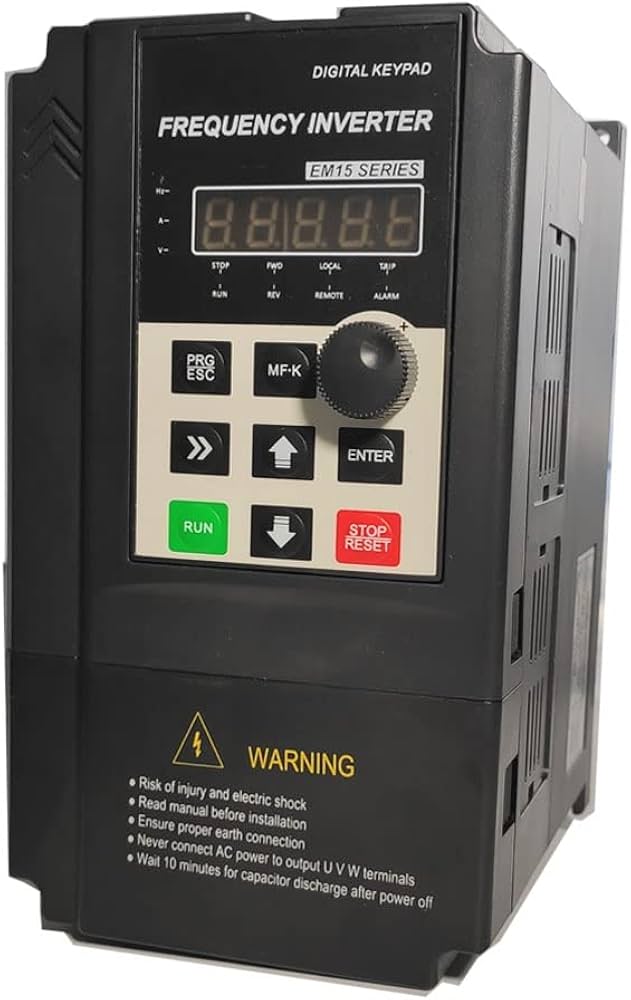

Introduction: Sourcing Variable Frequency Drive Controller for Industrial Use

In an era where operational efficiency and sustainability define competitive advantage, the variable frequency drive (VFD) controller has emerged as the critical interface between electrical infrastructure and intelligent motor management. Whether optimizing HVAC systems in commercial complexes, automating conveyor belts in manufacturing facilities, or maximizing water extraction in off-grid solar pumping installations, industrial engineers and EPC contractors face mounting pressure to reduce energy consumption while maintaining precise torque control across diverse load profiles. VFDs—also known as AC drives, variable speed drives (VSDs), or frequency inverters—address this challenge by dynamically adjusting motor speed and voltage to match real-time demands, delivering documented energy savings of 40% to 80% compared to direct-on-line operation while significantly extending equipment lifespan and reducing mechanical stress on pumps, fans, and compressors.

This comprehensive guide serves as your technical roadmap for sourcing industrial-grade VFD controllers in today’s complex procurement landscape. We will dissect fundamental drive architectures—from compact single-phase units for light industrial duty to heavy-duty three-phase vector drives capable of sophisticated sensorless control—examining critical specifications including IP ratings, harmonic distortion limits, braking capabilities, and communication protocols essential for Industry 4.0 integration. For agricultural project managers and solar integrators, we explore specialized solar pump inverters optimized for maximum power point tracking (MPPT) and DC-to-AC conversion in photovoltaic water systems. Beyond technical parameters, we evaluate global manufacturing capabilities, quality certifications (CE, UL, IEC), and supply chain considerations to ensure your selection delivers the typical 6-12 month ROI while meeting stringent reliability standards for mission-critical applications.

Technical Types and Variations of Variable Frequency Drive Controller

Selection of a Variable Frequency Drive (VFD) controller requires precise alignment between the drive’s technical architecture and the application’s power source, motor specifications, and environmental demands. While all VFDs fundamentally convert fixed-frequency AC power to variable-frequency output, modern industrial and agricultural implementations demand distinct hardware configurations and control algorithms. The following classifications address the primary technical variations governing procurement decisions for EPC contractors and automation engineers.

Type	Technical Features	Best for (Industry)	Pros & Cons
Solar DC-to-AC Pump Inverters	DC input (200–800VDC), integrated MPPT algorithm (99% tracking efficiency), AC output (single/three-phase), IP65/NEMA 4X enclosure, dry-run and water level protection logic	Agriculture irrigation, remote livestock watering, off-grid village water supply	Pros: Eliminates grid infrastructure costs, 40–60% energy savings vs. diesel pumps, automatic sunrise/sunset operation. Cons: Weather-dependent output requires PV array oversizing, limited continuous operation during low irradiance without battery backup.
Standard Three-Phase AC VFDs	380–480V AC input/output (50/60Hz), IGBT-based inverter bridge (PWM control), DC bus with braking chopper, V/Hz or open-loop vector control, Modbus/RS485 standard	Manufacturing lines, HVAC systems, wastewater treatment, industrial pumps	Pros: Mature ecosystem, wide power range (0.75kW–1MW+), regenerative braking options, comprehensive harmonic mitigation (active front end available). Cons: Grid dependency creates vulnerability to voltage sags, requires three-phase infrastructure availability.
Single-Phase Input VFDs	220–240V single-phase input, phase-conversion circuitry to output three-phase 220V, derated capacity (typically 50% of three-phase rating), compact form factor	Small machine shops, residential pressure boosting pumps, rural agricultural processing	Pros: Utilizes existing single-phase rural infrastructure, cost-effective entry point for <3kW applications, eliminates need for rotary phase converters. Cons: Limited to lower power ranges (<5HP typical), higher input current draw requires oversized circuit breakers, reduced DC bus capacitance affects ripple performance.
Sensorless Vector Control Drives	Open-loop flux vector algorithm (no encoder required), 150% rated torque at 0.5Hz, auto-tuning for motor parameter identification, precise slip compensation	Crane hoists, extruders, high-friction positive displacement pumps, material handling	Pros: High starting torque for heavy loads, ±0.5% speed accuracy without feedback device, superior low-speed operation (1:100 speed range). Cons: 20–30% cost premium over scalar control, requires parameter tuning for optimal performance, sensitive to motor cable length without output reactors.

Solar DC-to-AC Pump Inverters

Solar pump inverters represent a specialized VFD topology optimized for photovoltaic (PV) power sources rather than grid AC. Unlike standard VFDs that rectify AC to DC then invert back to variable AC, solar variants accept high-voltage DC input directly from PV arrays (typically 400VDC for 3-phase pumps). The critical differentiator is the integrated Maximum Power Point Tracking (MPPT) algorithm, which continuously adjusts the DC bus voltage to extract maximum available power from the solar array as irradiance conditions fluctuate.

For agricultural project managers, these drives eliminate the “soft start” energy waste inherent in traditional irrigation systems. The inverter automatically detects sunrise irradiance levels, initiates pump operation at optimal frequency (avoiding low-efficiency partial speeds), and provides dry-run protection by monitoring motor current signatures to detect cavitation or empty wells. Boray Inverter’s implementations typically include IP65 enclosures to withstand outdoor agricultural environments without additional electrical housing, reducing installation costs for EPC contractors.

Standard Three-Phase AC VFDs

The industrial workhorse of motor control, these drives accept three-phase utility power and provide variable frequency output through a diode bridge rectifier and IGBT inverter stage. Modern units employ Pulse Width Modulation (PWM) switching frequencies between 2–16 kHz, balancing thermal performance against motor bearing current issues. For industrial engineers, the key specification differentiator lies in the control mode: scalar V/Hz control suffices for centrifugal pumps and fans with quadratic torque loads, while demanding constant torque applications require flux vector control.

Harmonic mitigation represents a critical procurement consideration for facilities with strict IEEE-519 compliance. Active Front End (AFE) variants replace the standard diode rectifier with an IGBT-based regenerative unit, eliminating input current harmonics below 5% THD and enabling power regeneration back to the grid—essential for crane and hoist applications with frequent deceleration cycles.

Single-Phase Input VFDs

These drives solve infrastructure limitations in rural or legacy installations where three-phase power is unavailable. Internally, they utilize a voltage doubler circuit or active power factor correction (PFC) to generate sufficient DC bus voltage from single-phase 220/230V input, then synthesize three-phase output for standard AC motors. However, electrical engineers must account for input current limitations: a 2.2kW three-phase motor driven by a single-phase input VFD may draw 20–24A input current versus 10A for a native three-phase drive, requiring upgraded supply wiring and protection devices.

Best practices for agricultural distributors recommend these units only for sub-3kW applications (typically up to 2HP) with centrifugal pump loads, as the reduced DC bus capacitance can cause voltage ripple issues under high-torque constant-load conditions.

Sensorless Vector Control Drives

Moving beyond basic V/Hz control, sensorless vector drives employ mathematical motor models to calculate rotor flux position without physical encoder feedback. By precisely controlling motor flux and torque components separately, these drives deliver 150% rated torque at speeds as low as 0.5Hz—critical for positive displacement pumps and extruders that require high breakaway torque. The auto-tuning function measures stator resistance and inductance during commissioning, automatically compensating for cable length and motor temperature variations.

For automation distributors, the value proposition centers on eliminating mechanical encoders (and their associated wiring vulnerability) while maintaining performance within 0.5% of commanded speed. This technology proves particularly valuable in solar pumping applications where starting torque requirements exceed what standard V/Hz drives can provide from DC solar input, though the increased computational requirements necessitate higher-grade DSP processors that impact unit cost.

Key Industrial Applications for Variable Frequency Drive Controller

Variable frequency drive controllers have evolved from simple motor speed regulators to sophisticated automation nodes that optimize energy conversion across diverse industrial ecosystems. For EPC contractors and system integrators, selecting the appropriate VFD topology requires matching drive capabilities to specific load characteristics—whether managing the variable torque demands of centrifugal pumps or the constant torque requirements of crushers and conveyors. Below is a technical breakdown of high-impact deployment scenarios where modern VFD controllers deliver measurable ROI through intelligent motor management.

Sector	Application	Energy Saving Value	Sourcing Considerations
Agriculture & Solar Pumping	Solar-powered irrigation, deep-well submersible pumps, drip/sprinkler pressure regulation, livestock water systems	• 60–80% elimination of grid electricity costs when paired with PV arrays • 30–50% reduction in water waste through pressure-optimized flow curves • Elimination of water hammer via soft-start ramp profiles (2–10s adjustable)	• IP65/NEMA 4X enclosures for outdoor UV/corrosion resistance • Integrated MPPT algorithms (99%+ tracking efficiency) for direct PV coupling • Wide DC input voltage range (200V–800V) to accommodate solar irradiance fluctuations • Anti-islanding protection and dry-run detection for submersible pump protection
HVAC & Building Automation	Chiller compressor control, cooling tower fans, variable air volume (VAV) systems, boiler feed pumps, heat exchanger circulation	• 40–60% reduction in HVAC energy consumption via demand-based modulation • 20–30% decrease in mechanical maintenance through soft-start/stop cycles • Peak demand charge mitigation via controlled ramp-up (vs. DOL inrush currents)	• BACnet/IP or Modbus RTU communication for BMS integration • Harmonic mitigation (3% line reactors or active front ends) to comply with IEEE 519 • Fire mode bypass functionality for emergency smoke evacuation • Compatibility with EC/PM motors (synchronous reluctance control)
Water & Wastewater Treatment	Aeration blower control, lift station pumps, filter backwash systems, sludge thickeners, chemical dosing pumps	• 50–70% aeration energy savings (typically the largest load in WWTPs) • Precise dissolved oxygen (DO) control via integrated PID loops • Reduced peak demand charges through load balancing across multi-pump arrays	• NEMA 4X/UL Type 4X stainless steel enclosures for H₂S corrosion resistance • Conformal-coated PCBs for humid/corrosive atmospheres • Multi-pump cascade control (master/slave rotation) to equalize runtime • Sleep/wake functionality based on flow sensor feedback
Mining & Cement	Crusher and mill drives, long-distance conveyors, kiln rotation control, ventilation fans, slurry pumps	• 20–40% energy recovery potential via regenerative braking (downhill conveyors) • Torque limiting prevents mechanical overload and belt slippage • Optimized material flow reduces idle running time by 15–25%	• High overload capacity: 150–200% rated current for 60 seconds (heavy starting torque) • Flux vector control (sensorless or closed-loop) for low-speed high-torque operation • Regenerative braking units or common DC bus configurations • Vibration resistance per IEC 60068-2-6 and dust ingress protection (IP54 minimum)

Detailed Application Analysis

Agriculture & Solar Pumping Systems
In off-grid and grid-tie irrigation projects, the VFD controller functions as the power conversion bridge between photovoltaic arrays and AC induction motors or permanent magnet pumps. Unlike conventional DOL starters, solar pump inverters utilize maximum power point tracking (MPPT) to maintain pump operation even during low irradiance conditions (early morning, cloud cover). For EPC contractors, critical sourcing criteria include the drive’s ability to handle wide DC voltage fluctuations—essential for maintaining flow rates as solar intensity varies throughout the day. Advanced models offer automatic frequency sweep to detect the optimal operating point, eliminating the need for separate PLC controllers in standalone installations.

HVAC & Building Automation
Commercial building energy codes increasingly mandate variable flow systems for chilled water and air distribution. VFD controllers in this sector must integrate seamlessly with building management systems (BMS) via open protocols like BACnet or Modbus. From an engineering perspective, the key value lies in the drive’s ability to replace mechanical throttling devices (dampers, valves) with electronic speed control, converting previously wasted mechanical energy into electrical savings. When sourcing, prioritize units with integrated harmonic filters or DC link chokes, as the cumulative effect of multiple drives in a facility can create power quality issues that violate utility interconnection standards.

Water & Wastewater Treatment
Aeration blowers in biological treatment processes represent a prime candidate for VFD retrofitting, as oxygen demand fluctuates based on biological load and time of day. Modern VFD controllers equipped with process PID loops can receive 4–20mA feedback from dissolved oxygen sensors, automatically adjusting blower speed to maintain setpoints without operator intervention. For project managers, sourcing considerations extend beyond energy savings to include redundancy features—look for drives offering flying start capabilities (catching spinning loads) and automatic transfer to bypass in case of drive fault, ensuring compliance with environmental discharge permits even during equipment maintenance.

Mining & Cement
Heavy industrial applications subject VFD controllers to extreme electrical and mechanical stress. In crusher applications, the drive must provide high starting torque (often 150% rated torque) while limiting current to prevent voltage sags on weak mine site grids. For downhill conveyor systems, regenerative VFDs convert gravitational potential energy into electrical power that can be fed back to the grid or shared across a common DC bus with other drives. Sourcing for these environments requires attention to thermal management—drives with isolated cooling ducts or liquid cooling options prevent abrasive dust infiltration while maintaining semiconductor junction temperatures within safe operating limits, significantly extending mean time between failures (MTBF) in continuous-duty cycles.

Top 3 Engineering Pain Points for Variable Frequency Drive Controller

Scenario 1: Grid Instability and Power Quality Degradation in Remote Industrial Nodes

The Problem:
In remote agricultural pumping stations and decentralized industrial facilities, VFDs frequently encounter weak grid conditions characterized by voltage sags, phase imbalance, and harmonic distortion. For solar pump inverter applications specifically, intermittent DC input caused by cloud transience or low irradiance periods creates DC bus undervoltage faults, forcing unexpected system halts. Traditional VFDs lacking ride-through capabilities trip offline during these fluctuations, causing motor coasting, process interruptions, and potential damage to mechanical seals in pump systems. Additionally, high inrush currents during grid recovery can stress rectifier bridges and DC link capacitors, accelerating component aging and reducing mean time between failures (MTBF).

The Solution:
Modern VFD controllers engineered for solar and industrial applications incorporate Automatic Voltage Regulation (AVR) and stall prevention algorithms that maintain stable output frequency despite ±20% input voltage fluctuations. Advanced solar pump inverters utilize Maximum Power Point Tracking (MPPT) with wide DC voltage range operation (e.g., 200VDC–400VDC for single-phase systems) to sustain operation during irradiance drops. Look for drives featuring kinetic buffering (utilizing motor inertia during brief power dips) and active front end (AFE) rectifiers that mitigate harmonic feedback to the grid. Boray Inverter’s specialized solar pump VFDs integrate intelligent DC link management with automatic restart functions, ensuring continuous operation in off-grid and weak-grid environments without manual intervention.

Scenario 2: Mechanical Stress and Process Control Precision in Pumping Systems

The Problem:
Direct-on-line (DOL) starting or poorly parameterized VFDs generate excessive mechanical stress through instantaneous torque application, leading to water hammer effects in pipeline infrastructure, premature bearing wear, and cavitation in centrifugal pumps. In precision applications such as drip irrigation or HVAC water loops, inability to maintain constant pressure setpoints results in energy waste and system inefficiency. Furthermore, mechanical resonance at specific rotational speeds can cause catastrophic pump failure or pipeline fatigue. Engineers often struggle with configuring PID parameters manually, resulting in oscillating flow rates and hunting behavior that reduces overall system efficiency and extends payback periods beyond the projected 6–12 month ROI.

The Solution:
Implement VFD controllers with optimized S-curve acceleration/deceleration profiles (0.1–3600s adjustable ramps) and torque limit settings that eliminate hydraulic shock during start/stop cycles. Advanced drives offer built-in PID control with sleep/wake functions for maintaining constant pressure or flow with ±0.5% accuracy, automatically adjusting motor speed to match real-time demand while eliminating throttling valve losses. Critical for pumping applications, modern VFDs include skip frequency bands (avoiding mechanical resonance points) and cavitation detection algorithms that reduce speed automatically when NPSH (Net Positive Suction Head) margins are compromised. Boray’s pump-specific VFD series feature one-button auto-tuning for PID loops and pre-programmed pump curves that optimize energy consumption while extending mechanical seal life by up to 300% through soft-start mechanics.

Scenario 3: Environmental Harshness and Thermal Management in Outdoor Installations

The Problem:
Standard IP20-rated VFD controllers installed in agricultural fields, wastewater treatment facilities, or desert solar farms face rapid degradation due to dust ingress, humidity condensation, corrosive atmospheres (H₂S, ammonia, or salt air), and extreme ambient temperatures (-10°C to +50°C+). Forced-air cooling designs draw contaminated air across heat sinks and PCBs, leading to thermal runaway, short circuits, and electrolytic capacitor failure within 2–3 years—well below the expected 10-year service life. EPC contractors frequently encounter project delays and cost overruns when specifying separate NEMA enclosures for indoor-rated drives, while maintenance teams struggle with fan replacement in remote locations. UV degradation of plastic enclosures and terminal block corrosion further compromise electrical safety and ingress protection over time.

The Solution:
Specify VFD controllers with IP65 or IP66-rated die-cast aluminum enclosures featuring conformal coating on all PCB assemblies to resist moisture and chemical corrosion. Fanless designs utilizing natural convection or liquid cooling eliminate moving parts and prevent dust accumulation, significantly improving reliability in dusty agricultural environments. Ensure drives operate across a wide temperature range (-20°C to +60°C with derating) and include automatic thermal monitoring with derating curves. For solar pumping applications, select drives with UV-resistant enclosures and cable gland sealing suitable for direct outdoor mounting without additional cabinets. Boray Inverter’s heavy-duty VFD series incorporate triple-coated PCBs, stainless steel hardware, and isolated cooling channels that separate electronic components from airflow, ensuring reliable operation in desert, tropical, or coastal environments while maintaining TÜV-certified safety standards.

Component and Hardware Analysis for Variable Frequency Drive Controller

The reliability and operational efficiency of a Variable Frequency Drive (VFD) controller in demanding solar pumping and industrial automation environments depend fundamentally on the engineering integrity of its internal hardware architecture. Unlike standard motor starters, modern VFDs function as precision power electronics systems that must withstand wide voltage fluctuations, thermal cycling, harmonic stresses, and harsh environmental conditions—particularly in solar irrigation applications where ambient temperatures can exceed 60°C and DC input voltages vary dramatically with irradiance levels.

Core Power Stage Architecture

At the heart of any VFD controller lies the power conversion stack, comprising the rectifier stage, DC bus capacitors, and the inverter bridge. In solar pump inverters, the rectifier stage often operates as an active front-end or is bypassed for direct DC coupling from photovoltaic arrays, placing exceptional demands on the DC link capacitance and inverter semiconductors.

Insulated Gate Bipolar Transistors (IGBTs) constitute the critical switching elements within the inverter bridge. These power modules convert the stored DC bus energy into variable-frequency, variable-voltage AC power for motor control. High-quality VFDs utilize trench-field-stop IGBT technology from tier-one manufacturers (Infineon, Mitsubishi, or Fuji Electric), offering low Vce(sat) characteristics to minimize conduction losses and robust thermal cycling capability to withstand the repetitive stress of PWM switching at 2–16 kHz frequencies. For solar pumping applications specifically, the IGBT modules must accommodate elevated DC bus voltages (up to 800VDC in 380V AC systems) while maintaining switching efficiency across the entire MPPT voltage range.

The DC Link Capacitor Bank serves as the energy reservoir that buffers the pulsating power flow between the rectifier and inverter. In premium VFD controllers, metallized polypropylene film capacitors have largely superseded electrolytic capacitors due to their superior ripple current handling, lower equivalent series resistance (ESR), and extended lifespan characteristics. Film capacitors eliminate the electrolyte evaporation failure mode prevalent in aluminum electrolytic types, offering operational lifespans exceeding 100,000 hours at rated temperatures—critical for solar installations where maintenance access is limited.

Control Intelligence and Signal Processing

The Digital Signal Processor (DSP) or Microcontroller Unit (MCU) functions as the VFD’s computational brain, executing complex vector control algorithms, MPPT tracking for solar applications, and real-time protection protocols. Industrial-grade VFDs employ 32-bit DSP architectures (such as Texas Instruments C2000 series or STMicroelectronics high-performance MCUs) capable of sub-millisecond control loop execution. The processor’s thermal rating (-40°C to +85°C industrial grade) and electromagnetic immunity determine the controller’s stability in electrically noisy environments near high-power switching circuits.

Gate Driver Circuits provide the isolated voltage pulses necessary to switch IGBTs at precise intervals. High-quality gate drivers incorporate desaturation detection, active Miller clamping, and short-circuit protection with sub-microsecond response times to prevent catastrophic failure during motor phase-to-phase faults or line surges common in agricultural pumping installations.

Thermal Management Infrastructure

Thermal design represents the primary determinant of VFD longevity. The heatsink assembly—typically constructed from extruded aluminum alloy 6063-T5 with anodized surfaces—must maintain junction temperatures below 125°C under full-load conditions. Advanced designs employ direct-bonded copper (DBC) substrates or phase-change thermal interface materials between IGBT modules and heatsinks to minimize thermal resistance (Rth). For solar pump inverters deployed in desert or tropical climates, forced air cooling with ball-bearing fans (rated for 50,000+ hours MTBF) or liquid cooling solutions for high-power (>75kW) systems become essential to prevent thermal runaway.

Component Quality Analysis Matrix

Component	Function	Quality Indicator	Impact on Lifespan
IGBT Power Module	AC-DC-AC power conversion; motor speed control via PWM switching	• Voltage rating ≥ 1.2× nominal system voltage • Trench-stop technology with low Vce(sat) • Thermal resistance Rth(j-c) < 0.5 K/W • Brand: Infineon EconoDUAL, Mitsubishi NX-series	Dominant failure mode: thermal cycling fatigue. High-quality modules extend MTBF to 100,000+ hours. Poor thermal interface reduces lifespan by 50% per 10°C junction temperature increase.
DC Link Capacitors	Energy storage; ripple current absorption; voltage stabilization	• Metallized polypropylene film (not electrolytic) • Ripple current rating ≥ 1.5× calculated load • Temperature rating: -40°C to +105°C • ESR < 10mΩ at 10kHz	Film capacitors offer 100,000+ hour lifespan. Electrolytic capacitors degrade via electrolyte evaporation; lifespan halves per 10°C ambient increase. Critical for solar VFDs with high DC ripple.
DSP/Controller	Vector control algorithm execution; MPPT logic; protection protocols	• 32-bit architecture (≥60MHz clock) • Industrial temp range (-40°C to +85°C) • Hardware-based PWM generation • Integrated ADC with 12-bit+ resolution	Determines control stability and protection response. Industrial-grade processors prevent erratic operation in high-temperature solar environments.
Cooling Heatsinks	Thermal dissipation from semiconductors to ambient	• Aluminum alloy 6063-T5 with anodization • Fin density optimized for CFM/airflow • Thermal interface material: phase-change or high-conductivity silicone • Corrosion resistance rating	Directly impacts IGBT junction temperatures. Inadequate heatsinking causes thermal runaway and catastrophic failure. Critical in dust-prone agricultural settings.
EMI Filters	Suppression of conducted emissions; protection against grid transients	• Common-mode choke with high permeability ferrite • X2/Y2 safety-rated capacitors • Insertion loss > 40dB at 150kHz • IP65 enclosure rating for solar applications	Prevents premature aging of insulation systems and protects control electronics from voltage spikes. Essential for compliance with IEC 61800-3.
PCB & Interconnects	Signal routing; power distribution; communication interfaces	• FR-4 with high Tg (glass transition >150°C) • 2oz+ copper weight for power traces • Conformal coating (acrylic/urethane) • Gold-plated connectors for control terminals	Conformal coating prevents corrosion in humid climates. Heavy copper traces reduce resistive heating and solder joint fatigue.
Protection Circuitry	Surge suppression; overvoltage clamping; thermal monitoring	• Metal oxide varistors (MOVs) with high energy absorption (J rating) • NTC thermistors for heatsink monitoring • Snubber circuits for dv/dt protection	First line of defense against lightning and grid surges. High-energy MOVs sacrifice themselves to protect expensive semiconductors.

Solar-Specific Hardware Considerations

For solar pump inverter applications, additional hardware complexities arise from the need to process highly variable DC input power. The Maximum Power Point Tracking (MPPT) hardware requires precision voltage and current sensing circuits with 0.5% accuracy across wide temperature ranges to optimize photovoltaic array output. Input capacitors must withstand sustained operation at 800VDC–1000VDC while handling the high-frequency ripple current generated by the MPPT algorithm’s sweep functions.

Furthermore, isolation transformers or reinforced insulation barriers within the control power supplies become critical safety elements in standalone solar pumping systems lacking utility grounding. The hardware must comply with IEC 62109-2 for photovoltaic power converters, requiring double or reinforced insulation between DC input circuits and accessible conductive parts.

Procurement and Specification Guidelines

When evaluating VFD controllers for industrial or solar pumping projects, engineers should prioritize hardware specifications over nominal power ratings alone. Request semiconductor datasheets confirming IGBT voltage margins of at least 20% above nominal system voltage to accommodate voltage spikes from long motor cable runs. Verify capacitor lifespans at the actual operating temperature (not just ambient 40°C baseline), as enclosure internal temperatures typically exceed ambient by 15–20°C.

For mission-critical agricultural installations, specify VFDs utilizing film capacitor technology rather than electrolytic, and confirm heatsink thermal calculations for the maximum anticipated solar irradiance conditions. The incremental cost of industrial-grade components—particularly the power module and thermal interface materials—typically yields ROI within 18–24 months through avoided downtime and extended maintenance intervals in remote pumping applications.

Manufacturing Standards and Testing QC for Variable Frequency Drive Controller

At Boray Inverter, manufacturing excellence for Variable Frequency Drive (VFD) controllers extends beyond assembly line efficiency—it encompasses rigorous material selection, environmental hardening, and verification protocols that ensure reliable operation across solar pumping stations, industrial automation lines, and agricultural installations exposed to extreme thermal cycling, humidity, and dust.

PCB Protection and Environmental Hardening

The foundation of VFD reliability begins at the circuit board level. All Boray VFD controllers undergo automated PCB conformal coating using acrylic or silicone-based compounds that create a protective dielectric layer against moisture ingress, salt spray, and conductive dust particles. This tropicalization process is critical for solar pump inverters installed in outdoor agricultural environments where relative humidity can exceed 95% and corrosive atmospheres are common. Coating thickness is verified via eddy current measurement to ensure 25–75μm coverage per IPC-A-610 Class 3 standards, preventing dendritic growth and ionic contamination that could cause gate driver failures in IGBT modules.

Accelerated Life Testing and Thermal Validation

To simulate decade-long operational stresses in compressed timeframes, Boray implements high-temperature aging (HTA) protocols where assembled VFD controllers undergo 48–72 hours of continuous operation at 85°C ambient—exceeding standard industrial conditions. This burn-in process identifies early-life failures (ELF) in capacitors, thermal interface materials, and solder joints before shipment. Following HTA, units undergo thermal cycling between -40°C and +85°C to validate thermal expansion compatibility between the aluminum heatsink, PCB substrates, and power semiconductor packages, ensuring mechanical integrity during daily solar irradiance heating and nighttime cooling cycles in remote pumping applications.

100% Full-Load Production Testing

Unlike statistical sampling methods employed by commodity drive manufacturers, Boray mandates 100% full-load testing across the complete operational envelope. Each VFD controller is subjected to:
– Rated current verification at 50Hz, 60Hz, and maximum output frequency
– Overload capacity testing at 150% rated current for 60 seconds (simulating pump startup inrush)
– DC bus voltage ripple analysis under regenerative braking conditions
– Thermal runaway verification via infrared thermography of IGBT junctions and rectifier bridges

This zero-defect approach eliminates field failures in critical solar irrigation projects where downtime costs exceed equipment value, particularly for EPC contractors managing warranty obligations across distributed agricultural sites.

International Standards and Certification Compliance

Boray VFD manufacturing facilities maintain ISO 9001:2015 quality management systems with process controls traceable to IEC 61800-2 (adjustable speed electrical power drive systems) and IEC 61000-6-2/4 (EMC immunity/emissions). For global market access:
– CE Marking: Compliance with Low Voltage Directive (LVD) 2014/35/EU and EMC Directive 2014/30/EU, including mandatory testing for conducted emissions (EN 55011 Class A) and voltage dips (EN 61000-4-11)
– RoHS 3 Directive: Restriction of hazardous substances in solder alloys and plastic housings
– IP Environmental Protection: Solar pump inverter variants achieve IP65/NEMA 4X ratings through ultrasonic welding of enclosure gaskets and stainless-steel hardware, validated via pressurized dust and water jet testing per IEC 60529

Component Traceability and Supply Chain Integrity

Quality control extends upstream through automated optical inspection (AOI) of SMT assemblies and X-ray analysis of BGA solder joints in DSP control boards. Critical power components—film capacitors, IGBT modules, and current sensors—are sourced from Tier-1 suppliers with full lot traceability, enabling rapid failure analysis and corrective action (RCCA) should field anomalies occur. Each VFD controller receives a unique serial number linking to test data including efficiency curves, insulation resistance measurements (>100MΩ at 500VDC), and harmonic distortion records (THDi <5% with optional DC chokes).

For industrial engineers and agricultural project managers specifying equipment for 20-year operational lifespans, these manufacturing protocols ensure that Boray VFD controllers deliver consistent motor control performance—from centrifugal pumps in desert solar farms to conveyor systems in continuous-process manufacturing—without the catastrophic failure modes associated with underspecified drives.

Step-by-Step Engineering Sizing Checklist for Variable Frequency Drive Controller

Proper sizing of a Variable Frequency Drive (VFD) controller—whether for grid-tied industrial automation or off-grid solar pumping applications—requires rigorous electrical and environmental analysis. Undersizing leads to thermal failure and nuisance tripping; oversizing reduces power factor efficiency and increases capital cost. The following engineering protocol provides a systematic framework for specifying Boray Inverter VFD solutions, ensuring compatibility between motor characteristics, power source architecture, and operational duty cycles.

Phase 1: Motor & Load Characterization

Before selecting a drive, verify the electromechanical interface requirements:

• [ ] Motor Topology Verification: Confirm motor type—Standard Induction Motor (SIM), Permanent Magnet Synchronous Motor (PMSM), or Brushless DC (BLDC). Solar pump inverters typically require specific firmware for MPPT tracking with PMSM pumps.
• [ ] Nameplate Data Extraction: Record rated voltage (V), Full Load Amperage (FLA), nominal speed (RPM), service factor (typically 1.15), and insulation class (F or H).
• [ ] Torque Profile Analysis: Classify the load as Variable Torque (centrifugal pumps/fans) or Constant Torque (conveyors, positive displacement pumps). Solar agricultural applications are predominantly variable torque, requiring quadratic V/f curves.
• [ ] Starting Torque Requirements: Calculate breakaway torque. High-static-head borehole pumps may require 150-200% starting torque; ensure the VFD can provide 150% overload current for 60 seconds.

Phase 2: Input Power Architecture & Solar Sizing

For solar pump inverters (Boray’s specialty), DC input specification is critical:

• [ ] PV Array Voltage Window: Determine the VFD’s Maximum Power Point Tracking (MPPT) voltage range (e.g., 200–800 VDC). The array’s maximum power voltage (Vmp) must fall within this window under standard test conditions (STC).
• [ ] Open Circuit Voltage (Voc) Safety Margin: Calculate maximum Voc at record low temperature using:
  $$V_{oc_max} = V_{oc_panel} \times N_{series} \times [1 + (T_{min} – 25°C) \times \beta]$$
  where $\beta$ is the temperature coefficient (%/°C). Ensure $V_{oc_max}$ < VFD maximum DC input voltage (typically 900–1000 VDC for 750V-rated systems).
• [ ] Current Sizing for Irradiance: Size array current (Imp) to provide at least 80% of VFD rated input current at 800 W/m² irradiance to maintain pump operation during partial cloud cover.
• [ ] Grid Fallback Compatibility: If hybrid, verify AC input voltage tolerance (±15% typical) and phase configuration (single-phase 220V vs. three-phase 380V/480V).

Phase 3: VFD Electrical Rating Calculations

Match the drive’s silicon capacity to the motor demands:

• [ ] Continuous Current Rating: Select VFD rated current ≥ 1.1 × Motor FLA for standard duty. For high-inertia loads or submersible pumps with long cable runs, use 1.25 × FLA.
• [ ] Voltage Compatibility Matrix:
• Low Voltage (LV): 220V–240V AC (±10%) or 380V–480V AC (±10%)
• DC Input: Match to PV string voltage (see Phase 2)
• [ ] Power Derating Factors: Apply correction factors for:
• Altitude: Derate 1% per 100m above 1000m (reduced air density affects heat sinking)
• Ambient Temperature: Derate 2.5% per °C above 40°C (or switch to liquid-cooled units >50°C)
• Switching Frequency: Higher carrier frequencies (>4kHz) reduce audible noise but increase thermal losses; derate current by 10-15% if >6kHz required.
• [ ] Harmonic Mitigation: If THD (Total Harmonic Distortion) must be <5%, specify AC line reactors or active front-end (AFE) drives for grid-tied systems.

Phase 4: Environmental & Mechanical Specification

Agricultural and industrial environments demand robust physical specifications:

• [ ] Ingress Protection (IP) Rating:
• Indoor controlled environments: IP20/NEMA 1
• Outdoor agricultural/dusty sites: IP65/NEMA 4X (essential for solar pump inverters exposed to monsoon conditions or irrigation spray)
• [ ] Cooling Methodology: Forced air cooling requires 50mm minimum clearance; sealed heatsink designs (natural convection) preferred for dusty environments to avoid fan failure.
• [ ] Cable Entry: Verify conduit gland sizes accommodate motor cable (typically 4mm²–35mm² depending on kW rating) plus shielding for EMI compliance.

Phase 5: Application-Specific Control Configuration

Optimize for solar pumping efficiency and protection:

• [ ] V/f Curve Optimization: For centrifugal pumps, program a quadratic curve (P ∝ n³) to match the affinity laws. Set minimum frequency (sleep mode) to prevent dry-running when irradiance drops below 200 W/m².
• [ ] MPPT Algorithm Selection: Ensure the VFD utilizes perturb-and-observe (P&O) or incremental conductance MPPT for solar inputs, with tracking efficiency >99%.
• [ ] Braking Requirements: For high-inertia loads or downhill conveyors, calculate braking resistor wattage:
  $$W_{brake} = \frac{0.005 \times J \times (n_1^2 – n_2^2)}{t_{brake}} \times \text{cycles/hour}$$
  where $J$ is inertia (kg·m²). If regenerative energy is >20% of rated power, specify regenerative braking units or shared DC bus configurations.
• [ ] Dry-Run Protection: Configure underload detection (current <30% rated) with auto-restart delay for water level monitoring in borehole applications.

Phase 6: Integration & Electromagnetic Compatibility

Ensure system-level reliability:

• [ ] Motor Cable Sizing: Calculate voltage drop <3% at rated current. For VFDs, use symmetrical shielded cables (3-core plus 3-earth) to reduce bearing currents and EMI. Maximum cable length without output reactor: typically 50m (check dv/dt specifications).
• [ ] Grounding Protocol: Establish dedicated PE bus; ground shield at VFD end only (motor end isolated) to prevent ground loops.
• [ ] RFI Filtering: Install Class A (industrial) or Class B (residential) EMC filters based on installation proximity to sensitive electronics.
• [ ] Protection Coordination: Size upstream circuit breakers (magnetic only, no thermal trip) at 1.5–2.0 × VFD rated current. Install fast-acting fuses (aR type) for semiconductor protection.

Phase 7: Validation & Commissioning Documentation

Finalize with verification protocols:

• [ ] Factory Acceptance Testing (FAT): Verify VFD performs at 110% rated current for 1 minute without thermal overload; confirm MPPT tracking accuracy under simulated irradiance steps.
• [ ] Insulation Resistance Testing: Megger motor windings at >100MΩ before VFD connection to prevent damage from pre-existing moisture (critical for agricultural pumps).
• [ ] Parameter Backup: Save final configuration (V/f points, protection thresholds, PID settings for pressure control) to external storage or cloud-connected drives.
• [ ] As-Built Documentation: Include single-line diagrams showing VFD, bypass contactor (if required), EMI filters, and motor connection topology with cable lengths specified.

Critical Sizing Note for Solar Applications: When specifying Boray solar pump inverters, always size the DC input capacity based on the Voc at minimum design temperature, not nominal Vmp. A common engineering error is overlooking temperature coefficient effects, which can push Voc above 1000VDC in cold climates, triggering overvoltage faults and potential IGBT damage. Conversely, ensure Vmp at high temperatures (60°C cell temperature) remains above the VFD’s minimum MPPT voltage to prevent stalling during peak summer heat.

By adhering to this checklist, EPC contractors and automation engineers can eliminate specification errors, ensure IEC 61800-5-1 compliance, and achieve the projected 40-80% energy savings characteristic of properly applied variable frequency drive technology.

Wholesale Cost and Energy ROI Analysis for Variable Frequency Drive Controller

When procuring variable frequency drive controllers at scale, discerning between unit price and total cost of ownership (TCO) separates high-performance agricultural and industrial deployments from budget-constrained, high-maintenance installations. For EPC contractors and automation distributors evaluating Boray Inverter’s solar pump VFDs and motor control solutions, understanding the wholesale cost architecture alongside verifiable energy ROI metrics ensures competitive project bidding and sustainable margin retention.

Wholesale Procurement Tiers and Volume Economics

B2B pricing for variable frequency drive controllers operates on a logarithmic volume curve rather than linear markdowns. For standard 0.75kW–75kW industrial VFDs, wholesale distributors typically encounter three procurement tiers:

Project-Based Tier (5–50 units): Pricing reflects 35–45% below MSRP, suitable for agricultural irrigation clusters or small industrial retrofits. At this volume, solar pump inverters with integrated MPPT functionality command a 15–20% premium over standard AC motor drives due to specialized DC input handling and maximum power point tracking algorithms.

EPC Contract Tier (50–500 units): Bulk agricultural or wastewater treatment deployments unlock 50–60% wholesale discounts. This tier often includes firmware customization for specific pump curves and regional grid compliance certifications (CE, UL, IEC 61800-3), eliminating downstream integration costs that typically erode project margins.

OEM Partnership Tier (500+ units annually): Strategic partnerships for pump manufacturers and system integrators access 65%+ wholesale pricing, co-branded enclosures, and dedicated BOM (Bill of Materials) locking to mitigate semiconductor shortage risks.

Retail vs. Wholesale Spread Analysis:
Retail markup in industrial automation typically ranges 40–80% above wholesale cost, varying by region. In emerging solar markets (Sub-Saharan Africa, Southeast Asia), retail premiums often reach 100% due to import logistics and local technical support requirements. Direct wholesale procurement from manufacturers like Boray Inverter reduces this spread, particularly for solar pumping systems where local integrators can handle commissioning without distributor markup.

Energy ROI Calculation Frameworks

The financial justification for VFD deployment hinges on the Affinity Laws—where power consumption correlates with the cube of speed reduction. For centrifugal pumps and fans, reducing motor speed by 20% yields approximately 50% energy savings, creating non-linear ROI acceleration.

Standard Industrial ROI Model:
For a 30kW irrigation pump operating 2,000 hours annually at $0.12/kWh:

• Direct Online (DOL) Consumption: 30kW × 2,000h × 0.85 (load factor) = 51,000 kWh/year ($6,120)
• VFD-Optimized Consumption: Variable load matching reduces average draw to 18kW = 30,600 kWh/year ($3,672)
• Annual Savings: $2,448
• Wholesale VFD Investment: $1,800–$2,400 (depending on IP rating and communications)
• Payback Period: 8.8–11.8 months

Solar Pumping Specific ROI:
Solar VFD controllers eliminate battery banks and inverters in DC-coupled systems, reducing capital expenditure by $0.50–$0.80 per watt compared to AC-coupled architectures. For a 15kW solar pumping system:

• Diesel Displacement: Replacing a 20hp diesel pump (consuming 4.5L/hour at $1.20/L) with a solar VFD system saves $5.40/hour of operation. At 1,500 annual sunshine hours, diesel cost avoidance exceeds $8,100/year.
• VFD Controller Cost: $900–$1,400 wholesale
• ROI: 1.6–2.1 months for diesel replacement scenarios, or immediate when factoring in carbon credit monetization in regulated markets.

Warranty Cost and TCO Implications

Warranty structures significantly impact lifecycle costing. Standard VFD warranties range 12–24 months, while extended 5-year coverage adds 8–12% to wholesale unit cost but reduces TCO by 23–30% in harsh environments (agricultural dust, humidity, or coastal salinity).

Critical Warranty Considerations:
– IGBT Module Coverage: Power semiconductor failures represent 60% of field failures in solar pumping applications. Comprehensive warranties covering DC bus capacitors and inverter bridges beyond Year 2 provide $400–$800 replacement cost avoidance per unit.
– Environmental Derating: Wholesale pricing should account for IP65-rated enclosures in outdoor solar applications versus standard IP20 indoor units. The 25% wholesale premium for sealed drives eliminates $150–$300 annual maintenance costs for external enclosure fabrication.
– MTBF Metrics: High-quality VFDs demonstrate Mean Time Between Failures exceeding 100,000 hours. When evaluating wholesale options, units with <50,000 hour MTBF create hidden costs through downtime in critical irrigation windows or continuous process manufacturing.

Strategic Procurement Recommendations

For automation distributors and agricultural project managers, optimizing the cost-performance curve requires:

1. Hybrid Sourcing: Procure solar-specific VFDs (with 600VDC input capability and MPPT) wholesale for renewable projects, while maintaining standard AC drive inventory for grid-tied retrofits.
2. Energy Baseline Verification: Require pre-installation power logging to establish accurate ROI baselines. Projects with variable flow requirements (HVAC, irrigation) consistently achieve 6–12 month paybacks, while constant torque applications (conveyors, compressors) typically see 18–24 month returns.
3. Warranty Arbitrage: Negotiate 3-year standard warranties at the wholesale tier by committing to volume forecasts, effectively capturing extended warranty value without per-unit premiums.

In global deployments, particularly for solar water pumping in remote agricultural zones, the combination of wholesale VFD procurement and solar-direct coupling eliminates traditional energy costs entirely, transforming the variable frequency drive controller from a power quality device into a primary energy infrastructure component with payback periods measured in weeks rather than years.

Alternatives Comparison: Is Variable Frequency Drive Controller the Best Choice?

Selecting the optimal motor control strategy requires balancing initial capital expenditure against lifecycle operational costs, energy efficiency targets, and specific application demands. While Variable Frequency Drive (VFD) controllers represent the gold standard for energy-efficient motor management in variable torque applications—particularly solar pumping and HVAC systems—they are not universally superior to every alternative. The following technical analysis evaluates VFDs against primary competing technologies to guide specification decisions for industrial engineers, EPC contractors, and agricultural project managers.

VFD vs. Soft Starter: Control Philosophy vs. Mechanical Protection

Soft starters utilize solid-state devices to provide a controlled voltage ramp-up during motor acceleration, limiting inrush current to 2–3 times full load current (compared to 6–8 times with Direct-On-Line starters). This reduces mechanical stress and extends motor bearing life, making soft starters suitable for high-inertia applications like crushers, mills, and conveyor belts that run at constant speed once started.

However, soft starters provide no speed regulation capability and offer minimal energy savings once the motor reaches full speed. In contrast, VFD controllers dynamically match motor speed to load requirements through continuous frequency modulation (typically 0–400 Hz), delivering energy reductions of 40–60% in centrifugal pump and fan applications through the affinity laws (where power varies with the cube of speed).

Decision Matrix:
– Choose Soft Starter when: The application requires fixed-speed operation, high starting torque is needed for inertial loads, and the primary concern is mechanical stress reduction rather than energy optimization.
– Choose VFD when: Flow or pressure requirements vary, energy recovery justifies the higher initial investment, or precise process control is required.

VFD vs. Direct-On-Line (DOL) and Across-the-Line Starters

Across-the-line contactors represent the most basic motor control method, applying full line voltage instantaneously. While the lowest cost option ($200–$500 for contactor vs. $1,500+ for VFD), DOL starting creates significant electrical and mechanical penalties:

• Electrical Impact: Voltage dips up to 15% during startup can disrupt sensitive equipment on the same network
• Mechanical Stress: Immediate application of full torque causes shaft twisting and coupling wear
• Energy Waste: Motors run at full speed regardless of demand, consuming 100% rated power even at partial loads

Modern VFDs eliminate these issues through controlled acceleration ramps and intelligent load matching. For solar pumping applications specifically—Boray Inverter’s core competency—DOL starting is often impractical due to high starting current demands that would require oversized PV arrays and inverters.

Solar VFD Systems vs. Grid-Powered Motor Controls

In remote agricultural and industrial applications, the comparison shifts from motor control topology to power source architecture:

Parameter	Grid-Powered DOL/Soft Starter	Grid-Powered VFD	Solar-Powered VFD (PV Pumping)
Energy Source	AC Grid	AC Grid	DC Solar Array (with MPPT)
Operating Cost	High (grid electricity tariffs)	Medium (reduced consumption)	Near Zero (after CAPEX)
Infrastructure	Grid connection required	Grid connection required	Standalone, no trenching/cabling
Speed Control	None (DOL) / Limited (Soft)	Full variable speed	Full variable speed + MPPT optimization
Environmental	Grid carbon dependent	Reduced grid consumption	Zero direct emissions
ROI Timeline	N/A	6–18 months	2–4 years (including PV hardware)

Solar VFD Specific Advantages:
Solar pump inverters (specialized VFDs) incorporate Maximum Power Point Tracking (MPPT) algorithms that optimize the PV array voltage-current curve in real-time, maintaining pump operation even during irradiance fluctuations. Unlike grid-tied systems, solar VFDs can operate with DC input directly, eliminating battery costs in pure pumping applications—a critical advantage for EPC contractors designing off-grid irrigation projects.

Motor Technology Synergy: PMSM vs. Induction Motor (IM) with VFD Control

When specifying VFD systems, motor selection significantly impacts efficiency outcomes:

Induction Motors (IM) with VFD:
– Standard asynchronous design (IE2/IE3 efficiency classes)
– Robust, field-proven technology with minimal maintenance
– VFD compensates for inherent slip losses, improving part-load efficiency
– Cost-effective for general industrial applications

Permanent Magnet Synchronous Motors (PMSM) with VFD:
– Requires VFD operation (cannot run DOL)
– IE4/IE5 ultra-premium efficiency (up to 96% vs. 91% for premium IM)
– Synchronous operation eliminates rotor slip losses
– Higher power density (smaller frame sizes for equivalent output)
– 10–20% additional energy savings over VFD-controlled IMs in continuous duty

Strategic Recommendation: For new solar pumping installations where lifecycle efficiency justifies premium components, PMSM-VFD combinations maximize water output per watt of installed PV capacity. For retrofit applications or hazardous environments where motor replacement is impractical, VFD-controlled induction motors provide excellent ROI with minimal mechanical modifications.

Comparative Technical Specifications

Feature	Across-the-Line	Soft Starter	Standard VFD	Solar Pump Inverter (VFD)
Starting Current	600% FLC	200–350% FLC	100–150% FLC	100–120% FLC (soft start)
Speed Control Range	Fixed (100%)	Fixed (100%)	5–100% (variable)	20–100% (solar optimized)
Energy Saving Potential	0%	0–5%	30–60%	40–70% (includes solar gain)
Power Factor Correction	No	No	Built-in (0.95+)	Built-in
Harmonic Distortion	N/A	Low	Medium (mitigated)	Low–Medium
Initial Investment	$	$$	$$$	$$$$ (includes PV)
Maintenance Requirements	Minimal	Low	Medium	Low
Best Applications	Fixed loads, emergency pumps	Crushers, compressors	HVAC, industrial pumps	Remote irrigation, livestock watering

Decision Framework for Specification

Specify VFD Controllers When:
– The load profile varies significantly (centrifugal pumps, fans, mixers)
– Energy costs exceed $0.10/kWh and motors run >2,000 hours annually
– Precise process control improves product quality (flow control, tensioning)
– Soft starting is required and speed variation provides operational benefits

Specify Soft Starters When:
– The motor runs at constant speed 95%+ of the time
– High starting torque is required for inertial loads
– Budget constraints preclude VFD investment but mechanical protection is needed

Specify Solar VFD Systems When:
– Grid extension costs exceed $15,000–$30,000 per kilometer
– Diesel generator elimination is a project priority
– Water storage (tanks/reservoirs) can buffer solar intermittency
– MPPT optimization can extend daily pumping windows by 2–3 hours compared to static inverters

For agricultural EPC contractors and industrial automation distributors, the convergence of VFD technology with solar PV represents the highest-value proposition for remote motor applications—delivering not just motor control, but complete energy independence with intelligent maximum power point tracking and variable flow optimization.

Core Technical Specifications and Control Terms for Variable Frequency Drive Controller

When specifying Variable Frequency Drive (VFD) controllers for industrial or solar pumping applications, engineers and procurement specialists must evaluate both the electromechanical performance parameters and the commercial frameworks governing international equipment supply. The following technical and commercial parameters constitute the critical decision matrix for B2B specification and cross-border procurement.

Electrical Performance and Ratings

Input/Output Characteristics
VFD controllers are categorized by their input voltage tolerance and output frequency range. Standard industrial units accommodate three-phase inputs of 380V–480V AC (±15% tolerance) or single-phase 220V inputs for fractional horsepower applications. Output frequency ranges typically span 0–400 Hz, with specialized agricultural drives offering extended ranges up to 500 Hz for high-speed centrifugal pumps. Critical specifications include:
– Overload Capacity: 150% rated current for 60 seconds (standard duty) or 200% for 1 second (heavy duty/heavy start)
– Switching Frequency: 2–16 kHz (carrier frequency), with higher frequencies reducing motor noise but increasing thermal losses
– Power Factor: >0.95 at rated load, reducing reactive power penalties in industrial installations

EMC Compliance
Industrial VFDs must comply with IEC 61800-3 standards, with Class C2 (restricted distribution) or Class C3 (industrial environment) emission limits. Solar pump inverters require additional grid-interactive protections including anti-islanding detection (IEEE 1547/IEC 62116).

Motor Control Architectures

V/f Control (Scalar Control)
The fundamental method maintains a constant Volts-to-Hertz ratio, suitable for pumps and fans with quadratic torque loads. However, this open-loop configuration provides limited low-speed torque (typically 20–30% rated torque at 1 Hz).

Sensorless Vector Control (SVC)
Also termed Field-Oriented Control (FOC), this algorithm decouples torque and flux components using motor parameter identification. SVC provides:
– 150% rated torque at 0.5 Hz without encoder feedback
– Dynamic response times <50 ms for load transients
– Automatic torque boost for high-viscosity fluid startup

Closed-Loop Vector Control
Utilizing encoder feedback (incremental or resolver), this architecture achieves ±0.01% speed accuracy and full torque at zero speed, essential for precision positioning in conveyor systems or high-head pumping stations.

Solar Optimization: MPPT and PV Curve Management

For solar pump inverters, Maximum Power Point Tracking (MPPT) algorithms represent the critical efficiency determinant. Advanced controllers employ perturb-and-observe (P&O) or incremental conductance methods with tracking efficiencies exceeding 99%. Key specifications include:
– MPPT Voltage Range: Typically 250V–800V DC for 380V AC pumps, ensuring operation during low-irradiance conditions
– Startup Voltage: Soft-start capabilities initiating at 30% of rated Vmp (maximum power voltage)
– Dry-Run Protection: Current vector analysis detecting cavitation or empty wells, automatically triggering shutdown to prevent mechanical seal damage
– Low Voltage Ride-Through (LVRT): Maintaining operation during transient cloud cover with voltage sag compensation down to 60% Vdc

Process Automation: PID Control Implementation

Integrated Proportional-Integral-Derivative (PID) controllers enable closed-loop process control without external PLCs. In water pumping applications:
– Feedback Inputs: 4–20 mA pressure transducers or 0–10V flow sensors
– Control Modes: Constant pressure (PID pressure control), constant flow, or level control (for tank filling)
– Sleep/Wake Functionality: Automatic pump shutdown when demand drops below minimum flow threshold (sleep mode), with pressure-drop wake triggers to prevent water hammer

Advanced drives offer multi-pump control (cascade/rotating master) supporting up to 8 pumps with automatic alternation to equalize runtime hours.

Environmental and Mechanical Specifications

Ingress Protection (IP) Ratings
– IP20: Cabinet-mounted industrial drives requiring controlled environments
– IP54/55: Dust-protected and water-jet resistant for agricultural installations
– IP65: Totally dust-tight and protected against low-pressure water jets, suitable for outdoor solar pump installations without additional enclosures

Thermal Management
Operating temperature ranges of -10°C to +50°C (derating above 40°C), with heatsink temperatures monitored via PT100 or NTC sensors. For desert solar applications, specify drives with conformal-coated PCBs (Class 3 protection against salt mist and humidity per IEC 60068-2-52).

Communication Protocols and Integration

Modern VFD controllers support hierarchical automation through:
– Standard Interfaces: RS485 with Modbus RTU protocol
– Industrial Ethernet: Modbus TCP/IP, PROFINET, or EtherCAT for integration with SCADA systems
– Solar-Specific: RS485 communication with PV array monitoring systems, transmitting irradiance, panel temperature, and daily energy yield data

International Trade Terms and Procurement Logistics

When sourcing VFD controllers from Chinese manufacturers for global EPC projects, standard Incoterms 2020 apply:

FOB (Free On Board)
The supplier delivers goods cleared for export onto the vessel at the named port of shipment (e.g., FOB Shenzhen). Risk transfers when goods pass the ship’s rail. Buyer assumes ocean freight, insurance, and destination port charges. Optimal for buyers with established freight forwarding relationships.

CIF (Cost, Insurance, and Freight)
Supplier contracts carriage and insurance to the destination port, but risk transfers at origin port. CIF pricing includes marine insurance (typically 110% of CIF value against Institute Cargo Clauses A). Note that unloading costs at destination remain buyer’s responsibility unless specified as CIF Landed.

EXW (Ex Works)
Buyer assumes all transportation costs and risks from the factory door. Suitable only for buyers with in-country logistics capabilities or consolidated shipments.

DDP (Delivered Duty Paid)
Supplier responsibility extends to destination site, including import duties and taxes. Premium pricing reflects customs brokerage complexity but simplifies procurement for agricultural project managers lacking import expertise.

Commercial Considerations
– MOQ (Minimum Order Quantity): Typically 1 unit for standard power ratings (<55kW), with OEM customization requiring 50–100 unit commitments
– Lead Times: 15–25 days for standard models; 35–45 days for IP65 enclosures or specialized solar algorithms
– Warranty Terms: 18–24 months from Bill of Lading date, with extended warranty options to 5 years for critical infrastructure
– Documentation Package: CE certificates, IEC test reports, packing lists, commercial invoices, and certificates of origin (Form A or CO) required for customs clearance

Packaging Standards
Export-grade plywood crates with VCI (Volatile Corrosion Inhibitor) film for sea freight humidity protection, accommodating 20’GP (General Purpose) or 40’HQ (High Cube) container loading optimization.

Understanding these technical specifications alongside commercial terms enables precise total-cost-of-ownership calculations, ensuring selected VFD controllers meet both the electromechanical demands of solar pumping systems and the logistical requirements of international project execution.

Future Trends in the Variable Frequency Drive Controller Sector

The variable frequency drive (VFD) controller sector is rapidly evolving from standalone motor control devices into intelligent energy management ecosystems. As industrial electrification accelerates and renewable energy adoption reaches critical mass, next-generation VFDs are being engineered to serve as the central nervous system of smart automation architectures. For industrial engineers and EPC contractors, understanding these converging technological trajectories is essential for designing future-proof systems that deliver the 40-80% energy efficiency gains modern sustainability mandates require.

AI-Enhanced Automation and Predictive Control

The integration of artificial intelligence and machine learning algorithms directly into VFD firmware represents a significant leap beyond traditional V/Hz control methods. Advanced drives now employ self-optimizing vector control that continuously analyzes motor load signatures, automatically tuning parameters in real-time to minimize energy consumption while maintaining precise torque control. This is particularly critical for agricultural pumping applications where fluctuating water table levels and varying irrigation demands require dynamic speed adjustments.

Edge computing capabilities are being embedded at the drive level, enabling localized decision-making without latency-heavy cloud dependencies. For solar pumping systems, this means VFDs can instantaneously adjust motor speed based on irradiance fluctuations, maintaining optimal flow rates even during partial cloud cover without requiring centralized PLC intervention. These intelligent drives are also beginning to incorporate predictive maintenance algorithms that monitor bearing frequencies, current signatures, and thermal patterns to forecast mechanical failures weeks in advance—transforming maintenance schedules from reactive to condition-based protocols.

Deep Renewable Energy Integration

As the boundary between power generation and motor control dissolves, VFDs are increasingly engineered as hybrid energy routers rather than simple inverters. Modern solar pump inverters now feature advanced maximum power point tracking (MPPT) algorithms specifically optimized for submersible pump motor characteristics, achieving conversion efficiencies exceeding 98% while providing grid-forming capabilities for off-grid installations.

The sector is witnessing a shift toward DC-coupled architectures where VFDs can directly interface with battery storage systems and photovoltaic arrays without intermediate AC conversion losses. This topology is particularly advantageous for remote agricultural projects and industrial microgrids, enabling seamless transition between solar, battery, and grid power sources. Furthermore, emerging applications in green hydrogen production are driving development of high-power VFDs capable of precisely controlling electrolyzer stacks, where stable frequency control directly impacts hydrogen yield efficiency and membrane longevity.

Industrial IoT and Digital Ecosystem Connectivity

The proliferation of Industry 4.0 has catalyzed the transformation of VFDs into connected data nodes within comprehensive automation networks. Contemporary drives now offer native IoT protocols (MQTT, OPC UA, Modbus TCP) enabling seamless integration with SCADA systems, cloud analytics platforms, and mobile monitoring applications. For distributed agricultural operations, this connectivity allows project managers to monitor pump performance, energy yield, and system health across multiple sites from centralized dashboards, receiving automated alerts for fault conditions or efficiency degradation.

Cybersecurity has become a paramount consideration as VFDs gain network connectivity. Leading manufacturers are implementing IEC 62443-compliant security frameworks featuring encrypted communication channels, secure boot mechanisms, and role-based access controls to protect critical infrastructure from emerging threats. Additionally, over-the-air (OTA) firmware update capabilities ensure that deployed drives can receive performance enhancements and security patches without costly site visits—an essential feature for managing large-scale solar pumping installations across geographically dispersed territories.

Digital twin technology is also gaining traction, allowing engineers to simulate entire motor-drive systems virtually before physical deployment. By modeling pump curves, pipe network dynamics, and solar irradiance patterns, EPC contractors can optimize VFD parameter settings during the design phase, ensuring that systems achieve the rapid 6-12 month ROI benchmarks that have become standard expectations in the industry.

These converging trends indicate that the next generation of VFD controllers will function not merely as motor operators, but as intelligent energy orchestrators—balancing mechanical performance, renewable energy harvesting, and grid stability requirements in real-time. For organizations seeking competitive advantage in industrial automation and sustainable agriculture, selecting VFD platforms that embrace these technological trajectories will be crucial for long-term operational resilience and regulatory compliance.

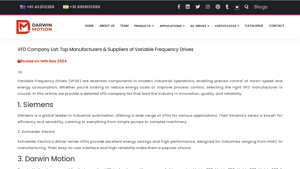

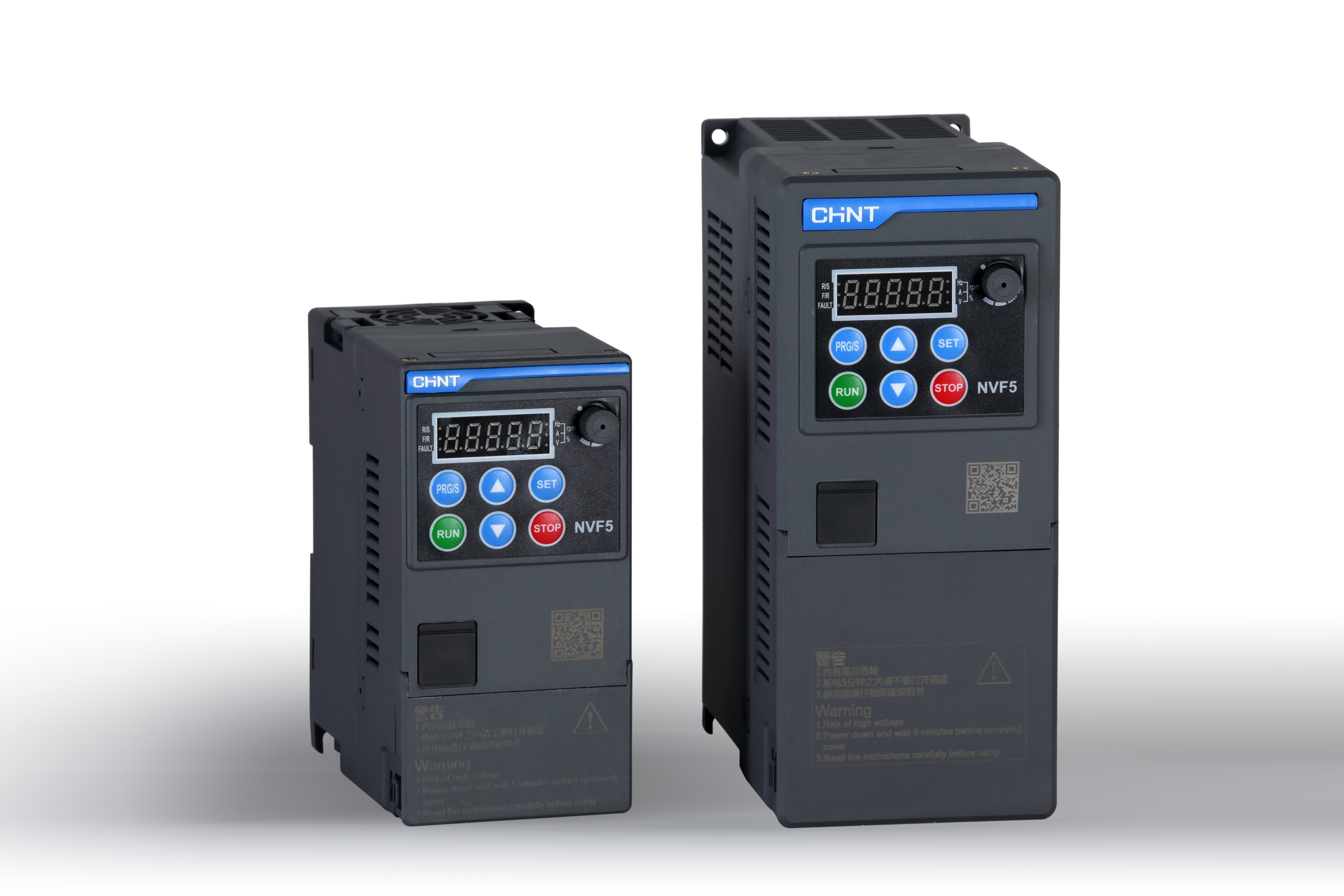

Top 2 Variable Frequency Drive Controller Manufacturers & Suppliers List

B2B Engineering FAQs About Variable Frequency Drive Controller

1. Q: How does a solar pump inverter’s MPPT algorithm differ from standard VFD motor control when handling fluctuating PV array voltage?
   A: While standard VFDs regulate motor speed based on fixed AC input or process feedback, solar pump inverters utilize specialized Maximum Power Point Tracking (MPPT) algorithms to continuously hunt the optimal operating voltage of the PV array (typically 300V–800V DC) as irradiance changes. Unlike generic VFDs that simply accept DC bus voltage, solar-specific VFD controllers dynamically adjust the V/f curve to maintain pump flow despite solar irradiance drops, ensuring the motor never stalls under low-light conditions. For EPC contractors, this means specifying a drive with wide DC input voltage tolerance (e.g., 250V–1000V) and automatic AC/DC dual-mode switching for 24/7 operation.

2. Q: What derating calculations are required when installing VFD controllers at high-altitude solar pumping sites (>2,000m above sea level)?
   A: At high altitudes, reduced air density diminishes cooling efficiency and dielectric strength. Engineers must apply derating factors of 1% per 100m above 1,000m for both current capacity and switching frequency. For a 7.5kW solar pump inverter installed at 3,000m, this effectively reduces continuous output current by 20%, necessitating upsizing to a 11kW unit or selecting a drive with forced air cooling and conformal-coated PCBs. Additionally, UV exposure at altitude accelerates degradation of external potentiometer seals—specify IP65-rated units with UV-resistant polycarbonate enclosures for agricultural deployments.

3. Q: How do harmonic distortions (THDi) from VFDs impact power quality in weak rural grids, and what built-in mitigation should distributors specify?
   A: Standard 6-pulse VFDs can introduce 30–40% Total Harmonic Current Distortion (THDi), causing transformer overheating and voltage distortion in agricultural microgrids with limited short-circuit capacity. For projects connecting to weak infrastructure, specify drives with integrated DC chokes (reducing THDi to <5%) or active front-end (AFE) rectifiers. In solar pumping applications where generators serve as backup, harmonic resonance can trip generator AVR systems; therefore, select VFDs with carrier frequency adjustment (2–16kHz) and automatic voltage regulation (AVR) to stabilize the back-feed during hybrid operation.

4. Q: What motor protection algorithms are critical for preventing dry-run damage in submersible borehole pumps controlled by VFDs?
   A: Dry-run protection requires more than simple undercurrent detection, as pump curves vary by head pressure. Advanced solar pump inverters employ intelligent underload detection comparing actual power consumption against a learned load curve, triggering shutdown within 2–3 seconds of cavitation onset. Critical features include: (1) auto-tuning of no-load current during commissioning, (2) minimum frequency clamping (typically 20–25Hz) to prevent dead-heading, and (3) flow sensorless operation using power fluctuation analysis. For deep-well projects, ensure the VFD supports “sleep mode” with automatic wake-up based on pressure tank levels to minimize start-stop cycles.

5. Q: In high-torque agricultural applications (e.g., positive displacement pumps), when should engineers specify sensorless vector control (SVC) over standard V/f control?
   A: Specify SVC (also called open-loop vector control) for applications requiring high starting torque (>150% rated torque at 0.5Hz) or precise speed holding (±0.5%) under load variations, such as progressive cavity pumps or irrigation pivots with varying elevation. V/f control suffices for centrifugal pumps with quadratic torque loads but results in 15–20% higher current draw during low-speed operation. SVC algorithms automatically compensate for stator resistance and slip, maintaining constant torque down to 1Hz—critical for solar systems where available PV power limits starting current surges.

6. Q: Which communication protocols and I/O configurations should automation distributors prioritize for SCADA integration in remote solar pumping stations?
   A: For IoT-enabled agricultural projects, prioritize VFDs with dual-protocol support: Modbus RTU (RS485) for local PLC integration and Modbus TCP/IP or 4G LTE modules for cloud SCADA. Essential I/O includes: (1) analog inputs (4–20mA/0–10V) for pressure transducers, (2) digital inputs for float switches and flow meters, and (3) relay outputs for fault indication to SMS alarm systems. Advanced units offer MQTT protocol support for direct AWS/Azure integration, enabling predictive maintenance alerts based on vibration thresholds and bearing temperature monitoring via PT100 inputs.

7. Q: How does input voltage sag ride-through capability affect VFD selection for regions with unstable grid or 100% solar PV operation?
   A: In weak-grid areas or 100% solar configurations, voltage sags from cloud transients or grid faults can cause standard VFDs to trip on undervoltage (UV) or DC bus undervoltage. Specify drives with “Power Ride-Through” (PRT) or kinetic buffering capabilities that utilize the motor’s inertia to regenerate energy into the DC bus during 200ms–2s voltage dips, maintaining control without tripping. For solar-only systems, ensure the VFD has a wide MPPT voltage window (e.g., 200V–800V) and automatic restart functions (Auto-Trip Reset) to resume operation when irradiance returns, eliminating manual intervention at remote well sites.

8. Q: What thermal management specifications distinguish industrial-grade VFDs for desert installations versus standard HVAC drives?
   A: Desert solar pumping requires VFDs rated for 50°C ambient operation (without derating) and 60°C with derating, compared to 40°C standard ratings. Critical specifications include: (1) heatsink temperatures monitored via PT1000 sensors with forced air cooling rated for 50,000 hours at 60°C, (2) conformal coating (Class 3C3 per IEC 60721-3-3) to protect against sand and salt mist in coastal agricultural zones, and (3) sun shields or remote keypad mounting to prevent LCD degradation. For dust-heavy environments, specify drives with isolated cooling channels (ducted air) where electronics remain sealed while heatsinks exhaust externally, maintaining IP55/IP65 integrity without filter maintenance.

Disclaimer

Conclusion: Partnering with Boray Inverter for Variable Frequency Drive Controller

As global industries accelerate toward energy efficiency and sustainable automation, the variable frequency drive controller has evolved from a simple motor speed regulator to a critical asset for operational excellence. Whether optimizing HVAC systems in commercial buildings, controlling conveyors in manufacturing facilities, or maximizing water extraction in off-grid solar irrigation projects, VFDs deliver measurable ROI through reduced energy consumption—often exceeding 40%—while extending motor lifespan and minimizing mechanical stress. The technology’s ability to precisely match motor output to load demand makes it indispensable for modern electrical engineering applications, particularly in renewable energy integration and smart agricultural infrastructure.

However, the performance and reliability of your VFD solution ultimately depend on the engineering expertise and manufacturing standards of your technology partner. For EPC contractors, system integrators, and automation distributors seeking robust motor control solutions, Shenzhen Boray Technology Co., Ltd. stands as a premier innovator in China’s solar pumping and industrial drive sector. With an R&D team comprising 50% of its workforce, Boray Inverter has mastered advanced PMSM (Permanent Magnet Synchronous Motor) and IM (Induction Motor) vector control technologies, ensuring superior torque response and energy efficiency across diverse load profiles.

Boray’s commitment to quality is evident in its two modern production lines and rigorous 100% full-load testing protocols, guaranteeing that every unit meets international standards for reliability in harsh agricultural and industrial environments. From large-scale irrigation projects to precision industrial automation, Boray Inverter has established a trusted global presence by delivering customized VFD solutions that address specific regional voltage requirements, communication protocols, and environmental challenges.

To optimize your next motor control project with high-performance variable frequency drives engineered for solar pumping and industrial applications, contact Boray Inverter today. Our technical team is ready to provide customized VFD configurations and competitive wholesale quotes tailored to your specifications.
