Introduction: Sourcing Variable Frequency Drives For Pumps for Industrial Use

In an era where operational efficiency and energy optimization define competitive advantage, industrial pumping systems face mounting pressure to deliver precise flow control while minimizing lifecycle costs. Whether managing HVAC circulation loops, agricultural irrigation networks, or complex chemical processing lines, static pump operations inevitably result in energy waste, mechanical stress, and premature equipment failure. This is where Variable Frequency Drives (VFDs) emerge as the critical interface between electrical infrastructure and hydraulic performance, transforming fixed-speed motors into intelligent, responsive assets through precise frequency modulation and Pulse Width Modulation (PWM) control.

For automation engineers, EPC contractors, and solar project developers, sourcing the right VFD transcends simple specification matching. Modern pump applications demand drives capable of handling friction head-dominated systems, harmonic mitigation, and seamless integration with SCADA or IoT architectures. In solar pumping contexts, specialized inverters must optimize Maximum Power Point Tracking (MPPT) while maintaining stable pressure across varying irradiance conditions—a technical nuance that separates industrial-grade solutions from consumer-grade alternatives.

This comprehensive guide examines the strategic sourcing of VFDs for pump systems across industrial and agricultural sectors. We will analyze drive topologies from standard AC motor controllers to solar-specific pump inverters, dissect critical specifications including ingress protection ratings and electromagnetic compatibility, and evaluate global manufacturing capabilities from tier-1 suppliers to specialized OEMs like Boray Inverter. Whether retrofitting existing infrastructure or designing greenfield solar pumping stations, understanding these variables ensures your motor control strategy aligns with both immediate performance targets and long-term sustainability objectives.

Technical Types and Variations of Variable Frequency Drives For Pumps

Variable frequency drives for pump applications are differentiated not merely by horsepower ratings, but by fundamental power architectures, control algorithms, and integration levels. The selection of topology directly influences system efficiency, grid interconnection requirements, and the ability to handle specific hydraulic behaviors such as friction head dominance or viscosity changes. Below is a technical classification of the primary VFD variations deployed in modern pumping infrastructure, followed by detailed operational analysis.

Type	Technical Features	Best for (Industry)	Pros & Cons
Standard Grid-Tied PWM AC Drive	• 3-phase AC input/output (380V–480V class) • Pulse Width Modulation (PWM) inverter topology • V/Hz (Volts-per-Hertz) scalar control • External PID/PLC integration capability • IP20 to IP54 enclosure ratings	Municipal Water/Wastewater, HVAC Circulation, General Industrial Process	Pros: Mature technology, lowest cost-per-kW, wide availability, compatible with standard induction motors. Cons: Requires robust 3-phase grid infrastructure; generates harmonic distortion (requires AC/DC reactors or filters); limited starting torque compared to vector drives.
Solar Pump Inverter (DC-to-AC VFD)	• Wide DC input voltage window (e.g., 200V–800Vdc) • Maximum Power Point Tracking (MPPT) algorithms • Dual-mode operation (Solar/Grid or Solar/AC hybrid) • Integrated dry-run, water level, and cavitation protection • Automatic sleep/wake based on irradiance	Agricultural Irrigation (Pivot/Drip), Remote Livestock, Off-grid Municipal Water Supply	Pros: Eliminates grid dependency; maximizes PV array energy harvest; significantly reduces operational expenditure (OPEX) in sunny regions; soft-start extends motor life. Cons: Weather-dependent output requires storage or hybrid design; higher initial capital expenditure (CAPEX); requires accurate PV array sizing and voltage matching.
Single-Phase to Three-Phase VFD	• 1-phase 220V/230V AC input • 3-phase 220V–380V AC output (via internal boost) • Derated capacity (typically 50% of equivalent 3-phase rating) • Phase-loss protection and input current balancing	Rural Residential, Smallholder Agriculture, Retrofit Markets lacking 3-phase infrastructure	Pros: Enables 3-phase motor operation on single-phase rural grids; eliminates inefficient rotary phase converters; provides soft-start functionality. Cons: Limited to smaller power ranges (typically ≤7.5kW); higher input current draw requires larger supply cables; voltage imbalance risks if not properly derated.
Integrated Constant Pressure Drive (All-in-One)	• Built-in PID controller with dedicated pressure transducer input (4–20mA/0–10V) • Pump-specific software (sleep mode, wake-up trigger, anti-rust cycling) • IP65/66 washdown enclosures • Pre-wired for specific pump-motor combinations (e.g., Grundfos/DAB style systems)	Building Services (Booster Sets), Residential Pressure Boosting, Light Commercial Irrigation	Pros: Plug-and-play commissioning; minimal external control wiring; optimized for constant pressure curves; compact footprint. Cons: Vendor-specific compatibility limits motor interchangeability; less flexible for non-standard process control (e.g., flow or level control); proprietary replacement parts.
Sensorless Vector Control VFD	• Field Oriented Control (FOC) or sensorless vector algorithms • High starting torque (150–200% rated torque at 0.5Hz) • Auto-tuning for motor parameter identification • Torque control mode (independent of speed)	Oil & Gas (Progressive Cavity Pumps), Chemical Dosing, High-Viscosity Slurry Pumping	Pros: Superior torque response prevents stalling under heavy load variations; maintains stable flow with changing fluid viscosity; energy efficient across wide speed ranges. Cons: Higher unit cost than scalar V/Hz drives; requires detailed motor nameplate data (Rs, Ls, etc.); more complex parameter configuration.

Detailed Technical Analysis

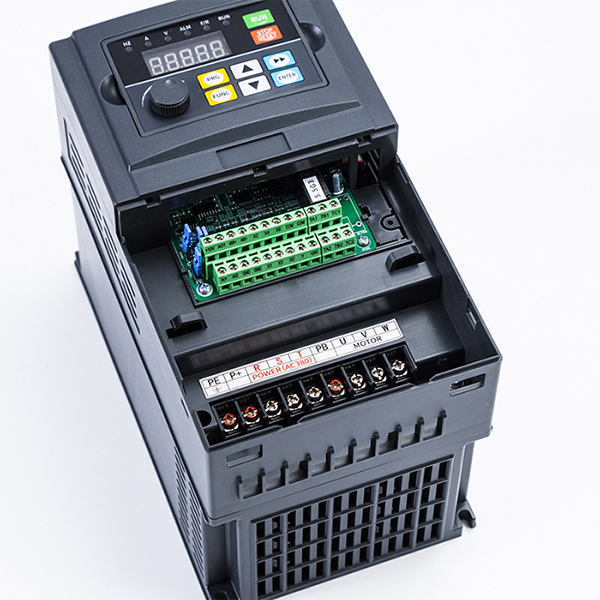

Standard Grid-Tied PWM AC Drive
This is the baseline topology referenced in hydraulic institute guidelines, utilizing IGBT-based PWM inverters to convert fixed-frequency grid power to variable frequency (typically 0–400Hz). For pump systems, these drives excel in friction head-dominated applications where flow modulation is frequent. Engineers must specify input line reactors or DC bus chokes to mitigate harmonic distortion (IEEE 519 compliance) and ensure the drive’s switching frequency (carrier frequency) is set to avoid motor bearing currents. While cost-effective, these systems often require external PLCs to manage multi-pump sequencing or complex interlocks.

Solar Pump Inverter (DC-to-AC VFD)
Distinct from standard AC drives, solar pump inverters operate as power conditioners for photovoltaic arrays. The critical technical differentiator is the MPPT algorithm, which continuously adjusts the motor frequency to maintain the PV array at its maximum power voltage (Vmp). Advanced units from manufacturers like Boray Inverter incorporate dual MPPT inputs and AC grid backup inputs, allowing seamless switching when irradiance drops below threshold levels. These drives must include robust motor protection algorithms specifically for dry-run conditions (detecting under-load current signatures) and stall prevention, as agricultural boreholes often experience fluctuating water tables.

Single-Phase to Three-Phase VFD
Technically functioning as active electronic phase converters, these drives rectify single-phase AC to DC, then invert it to three-phase power via PWM. The key engineering consideration is derating: because single-phase inputs deliver power through only two lines versus three, the input current is significantly higher for the same output power. Consequently, a 5.5kW three-phase drive may only be rated for 2.2kW–3.7kW when operated on single-phase input. These are ideal for EPC contractors retrofitting rural irrigation systems where extending 3-phase infrastructure is economically unfeasible.

Integrated Constant Pressure Drive
These specialized drives represent a convergence of VFD hardware and pump-specific process control. Unlike general-purpose VFDs requiring external PID modules, these units integrate the pressure setpoint, feedback loop, and pump protection logic on a single PCB. They are optimized for centrifugal pumps in building services, utilizing “sleep” functions that stop the motor when demand drops below a minimum flow (detected via pressure rise), then “wake” upon pressure decay. The limitation is reduced flexibility; the control logic is hardcoded for pressure regulation, making adaptation to level-control or flow-control applications difficult without external controllers.

Sensorless Vector Control VFD
For positive displacement pumps (e.g., progressive cavity or peristaltic pumps) handling viscous slurries or precise chemical dosing, scalar V/Hz control is insufficient due to torque fluctuations. Sensorless vector drives employ mathematical models of the motor’s magnetic field to decouple torque and flux components, providing dynamic torque response without physical encoder feedback. This prevents motor stall during viscosity spikes and allows precise flow control independent of pipeline back-pressure changes. Commissioning requires motor auto-tuning (standstill and rotational tests) to establish the stator resistance and inductance parameters, adding complexity but delivering superior hydraulic stability.

Key Industrial Applications for Variable Frequency Drives For Pumps

Variable frequency drives optimize pump performance across diverse industrial verticals by modulating motor speed to match real-time hydraulic demand. Unlike throttling valves or bypass systems, VFDs eliminate mechanical losses in friction head-dominated systems while reducing inrush currents and water hammer effects through precise PWM (Pulse Width Modulation) control. Below are critical applications where advanced motor control delivers measurable operational advantages for EPC contractors and system integrators.

Sector	Application	Energy Saving Value	Sourcing Considerations
Agricultural Irrigation & Solar Pumping	Surface and submersible borehole pumps for drip/sprinkler systems; DC-to-AC solar pump inverter conversion for off-grid operations	30–60% reduction in energy costs; elimination of diesel generator dependency; optimized water extraction matching solar irradiance curves	MPPT (Maximum Power Point Tracking) algorithm compatibility, IP65/NEMA 4X enclosures for UV/weather exposure, wide DC voltage input range (200–800VDC), single-phase to three-phase conversion capability, anti-islanding protection per IEEE 1547
HVAC & Commercial Building Services	Chilled water circulation, boiler feed pumps, and constant pressure booster sets for high-rise distribution	20–40% HVAC energy savings; reduced mechanical seal wear extending pump life by 2–3x; sleep mode functionality for zero-flow conditions	PID control with feedback from pressure transducers, BACnet/Modbus RTU integration for BMS connectivity, low harmonic distortion (<5% THDi), automatic energy optimization (AEO) functions
Water Treatment & Distribution	Raw water intake, filter backwash pumps, and municipal distribution pressure zone management	15–35% lifecycle cost reduction; mitigation of pressure transients reducing pipe burst incidents by up to 70%; demand-based flow control	Multi-pump cascade control algorithms (master/slave configurations), NEMA Premium efficiency motor compatibility, NEMA 4/12 enclosures for corrosive/chlorine environments, 4–20mA analog inputs for level/pressure sensors
Mining & Dewatering Operations	Pit dewatering, slurry transfer, and process water recirculation using high-head centrifugal pumps	25–45% fuel/electricity savings versus constant-speed throttling; soft-start capability reducing mechanical shaft stress and bearing wear	Heavy-duty chassis (IP54 minimum, IP66 preferred), V/Hz control with high starting torque (150% rated torque at 0.5Hz), input line reactors to mitigate voltage spikes from generator power, altitude derating specifications (>1000m), vibration-resistant terminal connections
Industrial Process Cooling	Cooling tower circulation, heat exchanger pumps, and precision temperature control in chemical/plastic manufacturing	30–50% reduction in cooling system energy; precise temperature control (±0.5°C) improving process yield; reduced cavitation risk	Sensorless vector control for dynamic load changes, EMC filters to prevent interference with PLCs and instrumentation, STO (Safe Torque Off) safety functions per IEC 61800-5-2, compatibility with glycol-based heat transfer fluids, wide ambient temperature operation (-10°C to +50°C)

Agricultural Irrigation & Solar Pumping
In remote agricultural applications, VFDs function as both motor controllers and phase converters, enabling three-phase submersible pumps to operate from single-phase grid supplies or directly from PV arrays. Solar pump inverters utilize MPPT algorithms to maximize energy harvest from fluctuating irradiance, adjusting pump speed automatically to match available solar power without battery storage. For constant pressure irrigation zones, the VFD maintains stable discharge pressure regardless of fluctuating demand or varying well levels, eliminating the need for pressure tanks and reducing water hammer in polyethylene distribution lines.

HVAC & Commercial Building Services
Commercial buildings utilize VFD-controlled booster sets to maintain constant pressure in high-rise plumbing systems without energy-wasting pressure reducing valves. In chilled water loops, VFDs accommodate variable thermal loads by modulating circulation pump speed based on differential temperature or pressure feedback. The technology’s ability to drive three-phase motors from single-phase supplies proves particularly valuable in retrofit applications where three-phase infrastructure is economically prohibitive. Sleep/wake functions automatically shut down pumps during zero-flow periods, restarting upon demand detection to minimize standby energy consumption.

Water Treatment & Distribution
Municipal water systems benefit from VFDs’ capacity to manage varying diurnal flow demands while limiting hydraulic transients that cause pipeline fatigue. In filtration applications, VFDs provide precise backwash flow rates that optimize media cleaning without over-pumping. Multi-pump control algorithms allow cascading operation of parallel pumps, automatically staging units on and off to maintain efficiency across varying demand curves. This eliminates the “pump hunting” common in traditional pressure switch systems and reduces the mechanical stress associated with frequent full-voltage starts.

Mining & Dewatering Operations
Mining environments demand ruggedized VFD solutions capable of operating from standalone generator power with unstable voltage characteristics. VFDs enable soft-start functionality that eliminates the high inrush currents (typically 6–8x FLA) associated with direct-on-line starting of large dewatering pumps, reducing strain on both the electrical supply and pump mechanical components. The drives’ ability to provide high starting torque at low frequencies ensures reliable startup of slurry pumps under heavy load conditions, while built-in DC injection braking facilitates rapid deceleration of high-inertia water columns.

Industrial Process Cooling
Precision manufacturing requires cooling systems that maintain tight temperature tolerances despite fluctuating process heat loads. VFDs modulate cooling tower fan speeds and circulation pump flows to match real-time thermal rejection requirements, eliminating the energy waste of constant-speed operation during partial load conditions. Advanced vector control modes provide rapid response to sudden load changes without overshoot, while integrated EMC filters ensure compliance with industrial electromagnetic compatibility standards critical in automated production environments.

Top 3 Engineering Pain Points for Variable Frequency Drives For Pumps

Implementing Variable Frequency Drives (VFDs) in pumping infrastructure requires navigating complex interactions between electrical supply characteristics, hydraulic system dynamics, and environmental stressors. While VFDs offer significant advantages in energy efficiency and process control through Pulse Width Modulation (PWM) technology, engineers frequently encounter specific failure modes that compromise system reliability. Below are the three critical engineering pain points that must be addressed during specification and commissioning.

Scenario 1: Grid Instability and Phase Imbalance in Remote Agricultural Infrastructure

The Problem:
Remote pumping stations—particularly in solar irrigation and rural water supply projects—operate on weak grid infrastructure or fluctuating photovoltaic (PV) arrays where voltage sags, phase imbalance, and harmonic distortion are prevalent. Standard VFDs lack sufficient ride-through capability, triggering under-voltage faults or overcurrent trips during transient grid events. In single-phase to three-phase conversion applications (common in agricultural zones without three-phase infrastructure), input voltage instability creates excessive DC bus ripple, leading to motor torque pulsation, overheating, and premature insulation failure. These interruptions occur during critical irrigation windows, resulting in crop stress and system downtime that negates the operational benefits of variable speed control.

The Solution:
Specify VFDs with advanced Automatic Voltage Regulation (AVR) and active DC bus voltage stabilization algorithms capable of maintaining constant V/Hz output despite ±20% input voltage fluctuations. For solar pumping applications, select drives with dual-mode MPPT (Maximum Power Point Tracking) and grid-fallback functionality, ensuring seamless transition between PV and auxiliary power without process interruption. Implement drives featuring phase-loss ride-through (PLR) technology and automatic restart sequences with speed capture functions to eliminate manual reset requirements after transient faults. Additionally, specify units with built-in DC reactors or active front ends (AFE) to mitigate harmonic feedback and protect upstream transformers in weak grid conditions.

Scenario 2: Hydraulic Transients and Control Instability in Constant Pressure Systems

The Problem:
In friction head-dominated pumping systems with frequent load swings—such as municipal pressure boosting stations, building services, and industrial process loops—poorly optimized VFD control leads to critical hydraulic issues. Aggressive PID tuning causes oscillating pump speeds that generate pressure spikes, water hammer, and pipeline fatigue. Conversely, sluggish response to rapid demand changes results in cavitation, mechanical seal degradation, and NPSH (Net Positive Suction Head) violations. Traditional VFDs without pump-specific algorithms fail to manage sleep/wake transitions smoothly, causing pressure collapse when the system transitions to standby or jarring start-up shocks that stress couplings and impellers.

The Solution:
Deploy VFDs with dedicated pump control firmware featuring optimized PID with automatic gain adjustment and anti-cavitation protection algorithms that monitor suction pressure and limit minimum operating frequencies. Implement multi-pump cascade control logic with automatic alternation and redundancy management to distribute wear across parallel pump arrays. Specify drives with “soft-fill” and “sleep boost” functions that gradually ramp speeds during system pressurization and maintain minimum pressure during standby modes without full motor stop. For critical constant pressure applications, utilize flux vector control (FVC) rather than standard V/Hz control to achieve ±0.5% speed accuracy and instantaneous torque response, eliminating pressure overshoot during rapid valve closure events.

Scenario 3: Environmental Ingress and Thermal Management in Harsh Field Conditions

The Problem:
Outdoor pump installations and solar pumping stations expose VFDs to aggressive environmental conditions including dust ingress (IP5X/IP6X), humidity cycling, and temperature extremes (-20°C to +50°C). High IP-rated enclosures (IP65/66) necessary for agricultural dust and driving rain often compromise natural convection cooling, forcing thermal derating or reliance on forced ventilation that introduces contaminants and condensation risks. Daily temperature fluctuations cause internal condensation, leading to PCB corrosion, short circuits, and gradual degradation of power electronic components. Standard VFDs designed for climate-controlled MCC rooms fail prematurely when subjected to these thermal shock and moisture conditions, resulting in field failures during critical operational periods.

The Solution:
Specify VFDs with IP65 or IP66-rated aluminum die-cast enclosures featuring isolated cooling channel designs or heat-pipe thermal management systems that maintain full rated output without forced air circulation. Ensure drives include conformal-coated PCBs with tropicalization treatment and automatic anti-condensation heaters that activate when internal humidity sensors detect dew-point conditions. Select units with wide operating temperature ranges (-25°C to +60°C) without derating, utilizing derating curves only for extreme altitudes. For solar pumping in desert or coastal environments, specify drives with C3 or C4 corrosion resistance ratings and UV-stable external materials. Implement external heat sinks with separate air passages to prevent dust accumulation on electronic components while maintaining thermal efficiency.

Component and Hardware Analysis for Variable Frequency Drives For Pumps

The reliability and efficiency of pump systems in industrial and agricultural environments depend fundamentally on the internal hardware architecture of the Variable Frequency Drive (VFD). For applications ranging from centrifugal irrigation pumps to high-pressure HVAC circulation systems, component selection determines not only energy efficiency but also the system’s ability to withstand thermal cycling, voltage transients, and harmonic stress over a 10–15 year operational lifecycle.

Power Semiconductor Architecture

The IGBT (Insulated Gate Bipolar Transistor) module serves as the primary switching element in modern pump VFDs, converting DC bus voltage into Pulse Width Modulation (PWM) output. In pump applications—particularly solar-powered systems with fluctuating DC input—IGBTs must handle high dv/dt rates and thermal shock from repetitive start-stop cycles. Premium drives utilize trench-gate field-stop IGBTs with lower saturation voltage (Vce(sat)) and integrated freewheeling diodes to minimize switching losses. For solar pump inverters specifically, the power stage must accommodate wide MPPT voltage ranges (typically 200V–800V DC) while maintaining high switching frequencies (4–16 kHz) to reduce motor audible noise and torque ripple.

Control and Processing Units

The Digital Signal Processor (DSP) or ARM-based microcontroller executes critical control algorithms including V/Hz control, Sensorless Vector Control (SVC), and PID loops for constant pressure regulation. In sophisticated agricultural pump systems, the controller manages multi-pump cascade logic and dry-run protection through real-time current signature analysis. High-quality drives employ 32-bit DSPs with floating-point capability (>100 MHz clock speeds) and 12-bit+ ADC resolution for precise motor flux estimation. This precision directly impacts pump longevity by eliminating hydraulic shock through smooth acceleration ramps (0.1–3600 s adjustable) and preventing water hammer effects in pipeline systems.

Energy Storage and Filtering Components

DC Link Capacitors stabilize the rectified voltage and supply ripple current to the inverter stage. While electrolytic capacitors remain common in cost-sensitive applications, film capacitors offer superior lifespan in harsh agricultural environments due to their self-healing properties and resistance to electrolyte evaporation. The capacitance value must be sized to handle the ripple current generated by PWM switching without excessive heating, as capacitor failure accounts for approximately 30% of VFD field failures.

EMI Filters and Input Chokes mitigate conducted emissions back to the grid and protect the motor from reflected wave phenomena. In pump systems with long cable runs (>50 meters between drive and motor), output reactors or sine-wave filters become essential to prevent motor bearing currents (Electric Discharge Machining) and insulation degradation from voltage overshoots.

Thermal Management Systems

Thermal design is critical in pump VFDs, particularly in solar pumping installations where ambient temperatures frequently exceed 45°C. The heatsink assembly—typically extruded aluminum 6063-T5 with anodized finishes—must maintain thermal resistance (Rth) below 0.15°C/W for the IGBT junction-to-case interface. Forced air cooling using ball-bearing fans (MTBF >50,000 hours at 40°C) is standard, though high-IP rated drives (IP55/65) for outdoor agricultural use often employ natural convection or liquid cooling to eliminate fan failure points.

Component Specification Matrix

Component	Function	Quality Indicator	Impact on Lifespan
IGBT Power Module	Converts DC to variable frequency AC via PWM switching; handles motor load currents	Junction temperature rating (Tj_max: 150°C–175°C), thermal resistance (Rth(j-c) <0.8 K/W), switching losses (Eon/Eoff), short-circuit withstand capability (10μs min)	Thermal cycling causes solder fatigue and bond wire lift-off; accounts for 40% of drive failures in high-duty pump cycles
DSP/Controller Board	Executes control algorithms, protection logic, and communication protocols	Clock speed (>80 MHz), ADC resolution (≥12-bit), temperature range (-40°C to +85°C industrial grade), firmware watchdog timers	Prevents catastrophic failures through millisecond-level fault detection (overcurrent, phase loss); unstable control causes erratic switching
DC Link Capacitors	Filters rectified DC and supplies ripple current; maintains bus voltage stability	Capacitance tolerance (±5%), ESR (<20mΩ), ripple current rating (A_rms), temperature rating (105°C vs. 85°C), expected life (L10 at rated temp)	Electrolyte evaporation leads to capacitance loss and DC bus oscillation; film capacitors offer 100k+ hour life vs. 20k hours for electrolytic
Thermal Management	Dissipates semiconductor heat; maintains junction temperatures within specification	Heatsink thermal resistance (°C/W), material thermal conductivity (Al 6063: 200 W/m·K), fan MTBF (50,000–60,000 hrs), bearing type (ball vs. sleeve)	Governed by Arrhenius equation: every 10°C reduction doubles component life; inadequate cooling triggers thermal runaway
EMI/Output Filters	Suppresses harmonics; protects motor insulation from dv/dt stress; reduces bearing currents	Insertion loss (dB at switching frequency), common mode impedance, dv/dt limitation (<500 V/μs for long cable runs)	Prevents motor insulation breakdown and bearing pitting; extends motor life significantly in retrofit pump installations
Current Sensors	Provides real-time feedback for vector control and overload protection	Accuracy (±0.5%), response time (<5μs), isolation voltage (2.5kV min), bandwidth (kHz range)	Precise current sensing enables accurate thermal modeling and prevents nuisance tripping or catastrophic overcurrent events
Power Supply Unit	Generates isolated low-voltage rails for control circuits, fans, and gate drivers	Line regulation (±1%), hold-up time (>20ms), surge protection (4kV), efficiency (>85%)	Ensures stable gate drive voltage; prevents latch-up conditions during grid voltage sags common in rural pumping stations

Hardware Considerations for Solar Pump Integration

In solar pumping applications, additional hardware robustness is required to handle the wide DC input voltage range and intermittent irradiance conditions. High-quality solar pump inverters incorporate boost PFC stages or direct DC-AC conversion with active front-end rectifiers capable of operating from 150VDC (low-light conditions) to 800VDC (open-circuit voltage) without component derating. The DC input capacitors must be specifically rated for photovoltaic applications, with enhanced ripple current capabilities to handle the double-line-frequency ripple inherent in single-phase solar pumping systems.

For EPC contractors and system integrators, specifying VFDs with conformal-coated PCBs (Class A or B protection), stainless steel hardware (for corrosive agricultural environments), and IP55/NEMA 4X enclosures ensures that the internal componentry is protected from humidity, dust, and chemical exposure—factors that exponentially degrade the quality indicators listed above and compromise the 20-year design life expected in modern pumping infrastructure.

Manufacturing Standards and Testing QC for Variable Frequency Drives For Pumps

Ensuring long-term reliability in pump applications—whether submersible borehole systems, agricultural irrigation, or industrial process water—demands Variable Frequency Drives (VFDs) built to withstand extreme thermal cycling, humidity, and electrical stress. For EPC contractors and automation distributors specifying equipment for mission-critical installations, understanding the manufacturing rigor behind the drive is as crucial as evaluating its technical specifications. Below is a detailed examination of the production standards, material science, and quality control protocols that separate industrial-grade pump VFDs from consumer-level alternatives.

PCB-Level Environmental Protection and Thermal Management

The foundation of any robust pump VFD begins with the Printed Circuit Board (PCB) assembly. Given that pump controllers frequently operate in environments with high humidity, condensation, and potential chemical exposure (fertilizers in agricultural settings or chlorine in water treatment), conformal coating is non-negotiable. Advanced manufacturers utilize acrylic, silicone, or urethane-based coatings applied via selective robotic spraying or dipping processes, ensuring complete coverage of solder joints and traces without compromising heat dissipation. This protective layer must meet IPC-CC-830 standards for insulation resistance and moisture protection, typically achieving salt spray resistance per ASTM B117 for 500+ hours to prevent corrosion-induced failures in coastal or high-humidity installations.

Simultaneously, thermal management during the assembly phase employs automated optical inspection (AOI) and X-ray inspection for Ball Grid Array (BGA) components, verifying solder integrity on IGBT drivers and microcontroller units. High thermal conductivity substrates, combined with precision-machined aluminum heat sinks featuring anodized finishes, ensure efficient heat dissipation from power modules to the enclosure, critical for maintaining junction temperatures within safe operating limits during continuous pump operation.

Component Sourcing and Traceability

Industrial pump VFDs require automotive-grade or industrial-grade electronic components rated for extended temperature ranges (-40°C to +85°C ambient). Key power stage components—specifically IGBT modules, DC bus capacitors, and braking units—must be sourced from Tier-1 suppliers (Infineon, Mitsubishi, Nichicon) with full lot traceability. Capacitors utilized in the DC link should feature metallized polypropylene film construction with self-healing properties, rated for 100,000+ hours of operational life at maximum ripple current.

Strict incoming Quality Control (IQC) protocols include:
– Parametric testing of semiconductor devices to verify switching characteristics and thermal impedance
– XRF (X-Ray Fluorescence) screening for RoHS compliance and elimination of counterfeit components
– Aging preconditioning of electrolytic capacitors to stabilize capacitance values before final assembly

Production Standards and Process Control

Manufacturing facilities producing pump VFDs for global distribution must maintain ISO 9001:2015 certification with specific adherence to IEC 61800-5-1 (safety requirements for adjustable speed electrical power drive systems) throughout the production line. Surface Mount Technology (SMT) lines should operate in Class 100,000 cleanroom environments to prevent particulate contamination on high-voltage circuitry.

Critical assembly checkpoints include:
– Torque-controlled fastening of bus bars and power terminals to prevent hot spots from loose connections
– Automated dispensing of thermal interface material (TIM) between IGBT modules and heat sinks, ensuring <0.1°C/W thermal resistance
– 100% Hi-Pot testing (Dielectric Withstand Voltage) at 2kV AC for 60 seconds between input/output terminals and ground to verify insulation integrity

Comprehensive Testing and Burn-In Protocols

Unlike consumer electronics where statistical sampling may suffice, industrial pump VFDs require 100% full-load functional testing before shipment. Each unit undergoes a multi-stage burn-in process:

1. High-Temperature Aging: Drives operate at 125% rated load in 50°C ambient temperatures for 4-8 hours, accelerating potential early-life failures (infant mortality) in capacitors and semiconductors. This thermal cycling reveals solder joint weaknesses and thermal runaway risks before deployment.
2. Full-Load Efficiency Testing: Verification of input/output power measurements to ensure >95% efficiency at rated load, with specific validation of PWM carrier frequency stability to prevent motor bearing currents in pump motors.
3. Dynamic Response Testing: Simulation of rapid flow demand changes (0-100% load swings) to verify PID control loop stability and pressure transient suppression—critical for constant pressure pump systems.
4. Protection Circuit Validation: Systematic injection of fault conditions including phase loss, overcurrent (150% overload), undervoltage, and ground faults to ensure instantaneous protection triggering and fault logging accuracy.

For solar pump inverters specifically, additional testing includes MPPT (Maximum Power Point Tracking) efficiency verification across varying irradiance profiles (200W/m² to 1000W/m²) and DC arc fault detection sensitivity testing to comply with UL 1699B standards for photovoltaic systems.

Electromagnetic Compatibility and Environmental Certification

Pump VFDs must comply with stringent EMC standards to prevent interference with nearby sensors and control systems. Comprehensive testing includes:
– EMC Emissions: Verification against EN 61800-3 (C2 or C3 categories) for conducted and radiated emissions, utilizing shielded cables and integrated EMC filters
– Immunity Testing: Surge protection (IEC 61000-4-5), electrostatic discharge (IEC 61000-4-2), and voltage dip immunity (IEC 61000-4-11) to ensure operation continues during grid disturbances
– Environmental Sealing: IP54 or IP65 enclosure validation through dust ingress and water jet testing (IEC 60529), ensuring protection in outdoor pump houses or agricultural fields

Global market access requires CE marking (LVD 2014/35/EU and EMC 2014/30/EU), UL 61800-5-1 certification for North American markets, and IEC 61800-3 compliance for international projects. For solar applications, IEC 62109-1 (safety of power converters used in photovoltaic systems) certification is mandatory.

Reliability Metrics and Field Validation

Leading manufacturers provide Mean Time Between Failures (MTBF) calculations exceeding 50,000 hours (per MIL-HDBK-217F or Telcordia SR-332), backed by accelerated life testing data. Quality assurance extends beyond the factory with Serial Number Traceability, enabling root cause analysis should field failures occur. Each drive’s test report—including thermal imaging records, efficiency curves, and protection trip times—should be archived for warranty validation.

For distributors and EPC contractors, specifying VFDs manufactured under these rigorous standards ensures that pump systems deliver the projected energy savings and operational longevity without the hidden costs of premature failure, particularly in remote solar pumping installations where service access is limited and reliability is paramount.

Step-by-Step Engineering Sizing Checklist for Variable Frequency Drives For Pumps

Proper sizing of Variable Frequency Drives (VFDs) for pumping applications requires rigorous analysis beyond simple nameplate matching. Whether deploying grid-connected motor control solutions or off-grid solar pumping systems, engineers must account for load characteristics, environmental derating factors, and energy source compatibility. The following checklist provides a systematic framework for specifying VFD-pump systems that optimize efficiency, ensure longevity, and prevent costly field failures.

1. Motor & Load Characterization

Verify Motor Specifications
– Rated Power (kW/HP): Size the VFD for 110–150% of the motor’s Full Load Amperage (FLA), depending on application severity. For centrifugal pumps (variable torque), 110–125% is typically sufficient; positive displacement pumps (constant torque) require 150% overload capacity for 60 seconds.
– Service Factor: Confirm the motor’s service factor (typically 1.15). If operating above nameplate kW, size the VFD for the service factor amperage, not nominal current.
– Insulation Class: Verify motor insulation is rated for inverter duty (Class F or H) to withstand PWM voltage spikes. If retrofitting standard motors, specify dV/dt filters or sinusoidal filters for cable runs >50 meters.

Define Torque Profile
– Centrifugal Pumps: Variable Torque (VT) load where torque varies with the square of speed. Confirm the VFD’s VT curve matches the pump’s affinity laws.
– Positive Displacement/Multi-stage: Constant Torque (CT) or Constant Power (CP) requirements. Verify the VFD can deliver 100% torque at zero speed (for pressurized start-up) without overheating.

2. Electrical Infrastructure Compatibility

Input Power Analysis
– Voltage Tolerance: For grid-connected systems, specify VFDs with ±15% voltage fluctuation tolerance to handle rural grid instability. For solar pump inverters, verify Maximum Power Point Tracking (MPPT) voltage range compatibility.
– Phase Configuration: When converting single-phase to three-phase (common in agricultural deployments up to 3.7kW), ensure the VFD’s input current rating accounts for √3 derating (input current ≈ 1.73 × output current).
– Harmonic Distortion: Calculate Total Harmonic Distortion (THDi). For installations >5kW, specify DC chokes or active front-end (AFE) drives to comply with IEEE 519 / EN 61000-3-6.

Output Specifications
– Carrier Frequency: Set PWM carrier frequency (typically 2–16 kHz) based on motor cable length. Higher frequencies reduce motor noise but increase switching losses—derate VFD capacity by 5% per 1kHz above 4kHz if ambient temperature exceeds 40°C.
– Cable Distance: For runs >100m between VFD and motor, calculate voltage reflection coefficients and specify output reactors or shielded cables with low capacitance (<75 pF/m).

3. Solar Array Sizing & String Configuration (Solar Pumping)

DC Input Voltage Calculations
– Open Circuit Voltage (Voc): Calculate maximum Voc at lowest expected temperature (typically -10°C or per local ASHRAE data):
Voc_max = Voc_stc × [1 + (T_min – 25) × β_Voc]
where β_Voc is the temperature coefficient (%/°C). Ensure Voc_max < VFD maximum DC input voltage (typically 800VDC or 1000VDC).
– MPPT Voltage Window: String voltage at Standard Test Conditions (STC) must fall within the VFD’s MPPT range (e.g., 250–750VDC). Calculate:
Vmp_operating = Vmp_stc × [1 + (T_max – 25) × β_Vmp]
where T_max is the highest cell temperature (ambient + 25°C typically).

Current & Power Sizing
– Array Current: Size PV strings so short-circuit current (Isc) does not exceed VFD input current limits. Provide 1.25 safety margin: Isc_array × 1.25 ≤ I_max_input.
– Power Matching: Size PV array wattage at 1.3–1.5× the motor kW to account for irradiance variability, temperature losses, and pump starting torque requirements. For borehole pumps with high static head, use the higher end of this ratio.

4. Environmental Derating Factors

Thermal Management
– Altitude Derating: Reduce VFD current capacity by 1% per 100m above 1000m altitude due to reduced air density and cooling efficiency. Above 3000m, forced ventilation or external cooling is mandatory.
– Ambient Temperature: Verify continuous operation rating (typically 40°C). For 50°C environments, derate current by 10–15% or specify high-temperature variants (50/60°C rated).
– Enclosure Ratings: Match IP rating to environment: IP20 for controlled electrical rooms, IP54/55 for dusty agricultural settings, IP66 for direct outdoor mounting.

Mechanical Considerations
– Vibration: For mobile irrigation rigs or seismic zones, specify conformal-coated PCBs and shock-mounted heat sinks.
– Cabinet Sizing: Maintain minimum clearances (typically 100mm above/below, 50mm sides) for convection cooling; calculate heat dissipation (approx. 3% of rated power as heat loss) for enclosure HVAC sizing.

5. Control Architecture & Sensor Integration

Feedback Mechanisms
– Pressure Transducers: For constant pressure systems, specify 4–20mA or 0–10V sensors with response times <100ms. Verify VFD analog input resolution (minimum 10-bit) to prevent pressure oscillations.
– Level/Flow Sensors: Integrate dry-run protection via float switches or ultrasonic level sensors with appropriate delay timers (3–5 seconds) to prevent nuisance tripping from surface turbulence.

Communication Protocols
– SCADA Integration: Confirm RS-485 Modbus RTU, Profibus DP, or Ethernet/IP compatibility for remote monitoring. For solar pumping, verify GPRS/4G datalogger compatibility for remote fault diagnostics.
– Multi-pump Control: For booster stations, verify the VFD supports cascade control (master-slave) or dedicated multi-pump cards for alternating duty cycles.

6. Protection Coordination & Safety

Circuit Protection
– Input Protection: Size Class J or Class T fuses at 1.5× input current for semiconductor protection. Avoid thermal-magnetic breakers alone (use them only for isolation).
– EMI Filtering: Specify C2 or C3 category EMC filters based on environment (industrial vs. residential). Verify shielding effectiveness for cables entering the VFD cabinet.

System Safeguards
– Dry-Run Protection: Program minimum frequency thresholds (typically 25Hz) and undercurrent detection to prevent seal damage in submersible pumps.
– Surge Protection: Install Type 2 SPDs on both AC input (grid) and DC input (solar) sides, rated for the calculated maximum continuous operating voltage (Uc).

7. Commissioning Verification Protocol

Pre-Start Checks
– Insulation Resistance: Verify motor winding insulation >100MΩ using a 1000V megohmmeter before VFD connection.
– Rotation Verification: Perform bump test at 5Hz to confirm pump rotation direction before full-speed operation.

Parameter Optimization
– Auto-Tuning: Execute motor parameter auto-tuning (rotational or stationary) to optimize flux vector control and torque compensation.
– Ramp Times: Set acceleration ramps based on pump inertia (typically 3–10 seconds for centrifugal, 10–30 seconds for high-inertia borehole pumps) to prevent water hammer and pipe stress.

Performance Validation
– Efficiency Mapping: Record input power vs. flow rate at 25%, 50%, 75%, and 100% speed points to verify system efficiency against pump curves.
– Thermal Imaging: After 2 hours of continuous operation, scan VFD heat sinks, reactor terminals, and motor junction boxes to identify loose connections or abnormal heating.

By systematically executing this checklist, engineers ensure that the specified VFD—whether a grid-tied industrial drive or a Boray solar pump inverter—delivers reliable, efficient operation across the full spectrum of operating conditions while maintaining compliance with international standards (IEC 61800-2, UL 61800-5-1).

Wholesale Cost and Energy ROI Analysis for Variable Frequency Drives For Pumps

When evaluating Variable Frequency Drive (VFD) procurement for pumping infrastructure, B2B stakeholders must look beyond the initial capital expenditure to understand the layered economics of wholesale distribution, energy recovery timelines, and warranty risk mitigation. For EPC contractors and automation distributors, the decision matrix involves balancing component-level pricing against integrated system value, particularly when specifying solar pump inverters or PWM-controlled motor drives for agricultural and industrial applications.

B2B Pricing Architecture: From Component Wholesale to System Retail

The supply chain for pump VFDs typically operates across four distinct pricing tiers. At the manufacturing level (OEM), bare drive units—such as those utilizing Pulse Width Modulation (PWM) technology for AC motor control—are priced based on semiconductor component costs (IGBT modules, capacitors, and control boards) and volume commitments. Distributors purchasing at wholesale tiers generally see pricing structures that reflect 35-45% discounts from published retail values, with additional decremental scaling for container-level quantities (typically 100+ units for sub-10kW drives).

However, the retail landscape observed in integrated pump systems—exemplified by packaged VFD-constant pressure solutions from manufacturers like Grundfos and DAB—demonstrates significant value-add markup. These packaged systems, which combine the drive, pressure transducers, and pump-specific firmware, command retail premiums of 60-80% over standalone VFD component costs. For industrial engineers specifying equipment, this creates a procurement decision: source discrete components (VFD + pump + sensors) at wholesale pricing with integration labor costs, or procure pre-engineered systems at retail with reduced commissioning risk.

Table 1: Typical B2B Pricing Structure for 7.5kW Pump VFDs (Solar/Grid-Tied)

Supply Tier	Unit Price Range	Warranty Terms	Technical Support Level
OEM Manufacturer	$280–$350	18–24 months	Firmware customization
Master Distributor	$420–$520	24–36 months	Application engineering
Systems Integrator	$650–$850	36 months	Commissioning included
End User Retail	$1,100–$1,400	12–24 months	Limited/telephonic

Note: Solar pump inverters with MPPT functionality typically command 15-20% premium over standard VFDs due to additional DC input staging and maximum power point tracking algorithms.

Energy ROI and the Affinity Laws

The financial justification for VFD deployment in pumping systems rests primarily on the Affinity Laws, which dictate that power consumption is proportional to the cube of the rotational speed (P ∝ N³). In friction head-dominated systems—precisely where Source 2 indicates VFDs yield maximum benefit—a 20% reduction in pump speed (from 60Hz to 48Hz) results in approximately 50% energy savings.

For a typical agricultural irrigation system operating a 15kW submersible pump 2,000 hours annually:
– Fixed-speed operation: 30,000 kWh/year at $0.12/kWh = $3,600
– VFD-controlled variable speed: 18,000 kWh/year (average 40% load reduction) = $2,160
– Annual savings: $1,440
– Payback period: 14–18 months for a wholesale-procured 15kW solar pump inverter ($1,800–$2,200 unit cost)

In solar pumping applications specifically, the ROI calculation expands to include array size reduction. By utilizing a VFD with soft-start capabilities—limiting inrush current and mechanical stresses as noted in hydraulic institute guidelines—agricultural project managers can specify PV arrays that are 30-40% smaller than those required for direct-online (DOL) motor starting. This capital cost avoidance often exceeds the VFD hardware cost within the first project year.

Warranty Cost Risk Analysis

Warranty structures represent a critical but often underestimated line item in TCO (Total Cost of Ownership) calculations. Wholesale procurement agreements typically shift warranty liability based on the supply tier:

• Manufacturer Tier: 24-month comprehensive coverage including IGBT failure and control board replacement
• Distributor Tier: Extended warranty programs (up to 5 years) available at 8-12% of unit cost, covering field failures and freight
• Integration Risk: When VFDs are paired with third-party pumps (non-Grundfos/DAB integrated systems), warranty conflicts may arise regarding whether drive failure caused pump damage or vice versa

For EPC contractors, the cost of warranty-related site visits often exceeds the hardware replacement value. A failed 5.5kW drive in a remote agricultural installation may incur $800 in travel and labor costs to replace a $400 wholesale component. Consequently, specifying drives with remote monitoring capabilities—standard in modern solar pump inverters—reduces warranty service costs by enabling predictive maintenance and remote fault clearing.

Solar-Specific Economic Considerations

Solar pump inverters (specialized VFDs with DC input capabilities) introduce unique economic variables. Unlike grid-tied VFDs, these units function as both phase converters (delivering three-phase output from single-phase or DC input) and motor controllers, eliminating the need for separate phase conversion equipment valued at $300–$600 in traditional installations.

Furthermore, the ability to drive three-phase motors from single-phase power (as enabled by the DC bus architecture in VFDs) allows agricultural projects to utilize existing single-phase rural grid infrastructure while operating high-efficiency three-phase pumps—a configuration impossible with conventional across-the-line starters. This hybrid capability extends the addressable market for distributors while reducing infrastructure upgrade costs for end users by 40-60%.

Strategic Procurement Recommendations

For automation distributors and EPC contractors optimizing project margins:

1. Volume Aggregation: Consolidate procurement across multiple projects to access OEM-tier pricing, particularly for solar pump inverter lines where demand is seasonal.
2. Firmware Customization: Leverage manufacturer-direct relationships to preload pump-specific curves and pressure setpoints, reducing field commissioning time by 60-70%.
3. Warranty Buffering: Allocate 3-5% of project hardware costs to extended warranty coverage for remote installations, where Mean Time To Repair (MTTR) directly impacts client satisfaction and callback liability.

The transition from fixed-speed pumping to VFD-controlled systems—whether grid-tied or solar-powered—represents not merely an operational upgrade but a financial restructuring of pumping assets. By understanding the wholesale-to-retail value chain and quantifying energy recovery through the Affinity Laws, B2B procurement teams can position VFD investments as high-yield infrastructure improvements with payback periods typically under 24 months.

Alternatives Comparison: Is Variable Frequency Drives For Pumps the Best Choice?

Selecting the optimal motor control and power architecture for pumping applications requires rigorous evaluation of lifecycle costs, duty cycles, and hydraulic system characteristics. While Variable Frequency Drives (VFDs) represent the gold standard for energy-efficient variable flow control, they are not universally optimal. The following technical analysis compares VFD-based architectures against alternative methodologies across three critical decision axes: motor starting strategies, power source selection, and motor technology pairing.

VFD vs. Soft Starter: Starting Strategy Economics

For applications requiring motor control but not necessarily continuous speed variation, Soft Starters (SS) present a capital-efficient alternative. Both technologies mitigate mechanical stress and inrush current (typically 600-800% of FLA for DOL starting), but their operational philosophies diverge significantly.

Soft Starters utilize thyristor-based voltage ramping to limit starting torque and current, gradually bringing the motor to full synchronous speed before bypassing to line power. This eliminates the across-the-line mechanical shock but locks the pump at fixed speed, offering no ability to modulate flow via the affinity laws ((P \propto N^3)).

VFDs, conversely, employ Pulse Width Modulation (PWM) to vary both voltage and frequency, enabling infinite speed adjustment from zero to base speed. While this facilitates dramatic energy savings in partial-load conditions (friction head-dominated systems), it introduces harmonic distortion (THDi typically 3-5% with active front ends, higher with 6-pulse bridges) and requires additional filtering or shielded cabling.

Parameter	VFD (Variable Frequency Drive)	Soft Starter
Speed Control	Continuous 0-100% of base speed	Fixed speed only (bypass mode)
Energy Savings	High (follows affinity laws, ~50-70% reduction at 70% flow)	Minimal (reduces inrush only)
Starting Current	100-150% of FLA (configurable)	200-400% of FLA (configurable)
Harmonic Injection	Moderate to High (requires mitigation)	Low (minimal during ramp, none at run)
Capital Cost	High ($$ – $$$)	Low to Moderate ($)
Maintenance	Cooling fans, capacitor replacement	Minimal (bypass contactors only)
Best Application	Variable demand, HVAC, irrigation zones, pressure boosting	High-inertia starts, crushers, conveyors, fixed-speed pumps

Engineering Verdict: Specify Soft Starters only when the duty cycle is >90% full speed and flow modulation is handled via throttling valves or on/off staging. For any system experiencing frequent load swings or requiring precise pressure maintenance (as in Grundfos-style constant pressure systems), VFDs justify their premium through operational expenditure (OpEx) reduction within 12-24 months.

Solar PV vs. Grid-AC Power: Energy Architecture

In agricultural and remote industrial contexts, the choice between Solar Pump Inverters (DC-fed VFDs) and conventional Grid-AC VFDs fundamentally alters system design constraints. Solar VFDs integrate Maximum Power Point Tracking (MPPT) algorithms to extract optimal energy from PV arrays without battery storage, directly driving the motor pump set during daylight hours.

Grid-AC VFDs offer continuous availability and higher power density (up to MW ranges) but incur ongoing electricity costs and grid dependency. Hybrid architectures (AC/DC auto-switching) are emerging for critical applications requiring 24/7 operation with solar priority and grid backup.

Parameter	Solar VFD (DC Input)	Grid-AC VFD
Input Power	200-800V DC (PV array direct)	380-480V AC 3-phase (or 1-phase with derating)
Operating Cost	Near zero (fuel/energy)	Grid tariff dependent (high OpEx)
Availability	Sun-dependent (6-8 hrs peak)	24/7 continuous
Initial Investment	High (PV modules + inverter)	Moderate (inverter only)
Environmental	Zero emissions during operation	Grid carbon footprint dependent
Maintenance	Panel cleaning, MPPT optimization	Standard electrical maintenance
Scalability	Modular (add panels)	Fixed capacity (transformer limited)

Engineering Verdict: Solar VFDs are optimal for irrigation in high-irradiance zones (>4.5 kWh/m²/day) where grid extension costs exceed $15,000/km or where diesel generators currently provide power. For process-critical industrial pumps requiring constant flow regardless of weather, Grid-AC VFDs remain mandatory, potentially augmented with solar pre-feeding to reduce grid consumption.

Motor Technology: PMSM vs. Induction Motor (IM)

When pairing motors with VFDs, the choice between Permanent Magnet Synchronous Motors (PMSM) and standard Induction Motors (IM, asynchronous) impacts efficiency, thermal management, and control precision.

PMSMs utilize rare-earth magnets to create rotor flux, eliminating slip losses inherent in IMs (typical slip 2-5%). This yields IE5 efficiency levels (>90% at partial loads) and allows for higher power density—critical for submersible borehole pumps where motor diameter is constrained. However, PMSMs require absolute encoder feedback or sensorless vector control algorithms and cannot operate without a VFD (no DOL capability).

Induction Motors offer ruggedness, lower capital cost, and the flexibility to run Direct-On-Line (DOL) if the VFD fails. Modern VFD-controlled IMs with optimized flux vector control achieve IE3-IE4 efficiencies but suffer from lower power factor at partial loads and greater heat generation.

Parameter	PMSM (with VFD)	Induction Motor (with VFD)
Peak Efficiency	>95% (IE5 Ultra Premium)	90-94% (IE3/IE4 Premium)
Power Factor	>0.95 across speed range	0.70-0.90 (varies with load)
Rotor Construction	Permanent magnets (NdFeB)	Squirrel cage (aluminum/copper)
VFD Dependency	Absolute (cannot run without drive)	Can bypass to line power
Cost Premium	40-60% over IM	Baseline
Thermal Profile	Lower losses (no rotor current)	Higher heat generation at low speeds
Control Complexity	Requires absolute position sensing	Standard V/Hz or vector control sufficient

Engineering Verdict: Specify PMSM for solar pumping systems where every watt of PV capacity counts, and for high-speed applications (>3600 RPM) requiring precise torque control. For general industrial pumping with grid power and maintenance staff accustomed to traditional motor technology, premium efficiency IMs (IE4) paired with VFDs offer the optimal balance of reliability and cost.

Decision Matrix: When VFDs Are—and Aren’t—the Best Choice

Specify VFDs When:
– System Curve: Friction head exceeds 60% of total dynamic head (affinity law savings dominate)
– Duty Cycle: Variable flow requirements >30% of operating hours
– Power Quality: Soft starting is required and energy recovery is prioritized
– Precision: Constant pressure or level control is mandatory (±0.1 bar accuracy)

Consider Alternatives When:
– Fixed Demand: The pump operates at design flow 95%+ of the time (throttling losses < VFD capital cost)
– Simplex Systems: Single-phase power with low duty cycle (pressure tank + pressure switch suffices)
– Hazardous Environments: Where VFD electronics cannot be adequately protected (IP ratings insufficient)
– High Harmonic Sensitivity: Facilities with strict IEEE 519 compliance where active filters are cost-prohibitive

Conclusion: VFDs for pumps represent the superior technical solution in variable-demand hydraulic systems, particularly when integrated with solar PV architectures or high-efficiency PMSM motors. However, the capital premium and harmonic management requirements necessitate rigorous lifecycle cost analysis. For fixed-speed applications, Soft Starters provide adequate protection at lower cost, while grid-connected systems remain essential for mission-critical continuous processes. The optimal specification aligns motor control strategy, power source, and motor technology with the specific duty cycle and total cost of ownership (TCO) targets of the project.

Core Technical Specifications and Control Terms for Variable Frequency Drives For Pumps

When specifying Variable Frequency Drives (VFDs) for pumping applications—whether for municipal water systems, agricultural irrigation, or industrial process control—engineers and procurement specialists must evaluate both electrical performance characteristics and commercial logistics frameworks. The intersection of advanced motor control algorithms, solar integration capabilities, and international trade terminology determines not only system efficiency but also project viability and total cost of ownership.

Critical Performance Parameters for Pump-Optimized VFDs

Maximum Power Point Tracking (MPPT)
In solar-powered pumping systems, MPPT is a non-negotiable specification. This algorithm continuously adjusts the electrical operating point of the photovoltaic (PV) array to extract maximum available power despite varying irradiance and temperature conditions. For pump-specific inverters, look for dynamic MPPT efficiency ratings above 99% with tracking response times under 500 milliseconds to accommodate sudden cloud transients. Advanced implementations utilize perturb-and-observe (P&O) or incremental conductance methods optimized for the quadratic torque load curves characteristic of centrifugal pumps, ensuring stable operation across the PV voltage curve (typically 200VDC–800VDC for medium-scale agricultural systems).

Vector Control (Field-Oriented Control – FOC)
Modern pump VFDs employ sensorless vector control to achieve precise torque and speed regulation without requiring encoder feedback. By mathematically decoupling the motor’s magnetic flux and torque components, FOC enables:
– High starting torque (up to 150% rated torque at 0.5 Hz) for overcoming static friction in deep-well submersible pumps
– Stable low-speed operation (critical for drip irrigation systems requiring 5–15 Hz operation)
– Automatic torque compensation to maintain constant pressure during demand fluctuations

For constant pressure systems utilizing PID control (see below), vector control provides the rapid torque response necessary to prevent pressure oscillations during valve closures or multiple fixture usage.

PID Closed-Loop Control Architecture
Proportional-Integral-Derivative (PID) control remains the industry standard for maintaining constant pressure or flow in VFD-driven pump systems. The VFD receives analog feedback (4–20 mA or 0–10 V) from pressure transducers or flow sensors and modulates output frequency to minimize the error between setpoint and process variable. Key implementation considerations include:
– Anti-windup algorithms to prevent integral saturation during no-flow conditions (dry-run protection)
– Sleep/wake functionality that stops the motor when demand drops below minimum flow thresholds, then automatically restarts when pressure decays to a lower setpoint—critical for energy savings in building services and irrigation
– Multi-pump cascade control allowing master-slave configurations where the VFD stages multiple fixed-speed pumps to maintain pressure within narrow bandwidths (±0.1 bar)

Power Electronics and Signal Processing

Pulse Width Modulation (PWM) Topology
As detailed in hydraulic institute guidelines, PWM remains the dominant method for VFD output stage design. By switching insulated-gate bipolar transistors (IGBTs) at carrier frequencies typically between 2 kHz and 16 kHz, the inverter synthesizes a variable-frequency, variable-voltage sine wave from DC bus voltage. For pump applications, specify random PWM or carrier frequency modulation capabilities to reduce acoustic motor noise (critical in residential booster systems) and mitigate bearing currents that can cause premature failure in submersible motors.

Single-Phase Input to Three-Phase Output Conversion
Particularly relevant for rural agricultural projects or retrofit installations lacking three-phase infrastructure, many modern pump VFDs function as active phase converters. These units rectify single-phase AC input (230V or 115V) to DC, then invert to three-phase output while maintaining full motor torque capability. When specifying such systems, verify the VFD’s derating requirements—typically 30–50% current reduction when operating from single-phase sources—to ensure adequate sizing for the pump’s power requirements.

Commercial Terminology and Logistics Frameworks

FOB (Free On Board)
Under Incoterms 2020, FOB pricing indicates the seller (manufacturer) delivers goods cleared for export, loaded onto the vessel nominated by the buyer at the named port of shipment. Risk transfers when goods cross the ship’s rail. For EPC contractors managing solar pumping projects, FOB terms provide control over freight forwarding and marine insurance but require established logistics networks to handle customs clearance and inland transport at destination.

CIF (Cost, Insurance and Freight)
CIF terms place responsibility for freight and minimum insurance coverage (Institute Cargo Clauses C) on the seller until the goods reach the destination port. While this simplifies procurement for agricultural project managers unfamiliar with international shipping, the buyer assumes risk once goods are loaded aboard the vessel. Critical note: CIF does not include unloading costs, customs duties, or inland transport from the port—factors that must be calculated when comparing total landed costs against FOB alternatives.

Additional Incoterms for Industrial Procurement
– EXW (Ex Works): Buyer collects goods from the manufacturer’s facility, assuming all export clearance and transport costs. Often results in lowest unit price but highest logistical complexity.
– DDP (Delivered Duty Paid): Seller delivers to named destination, paying all costs including import duties. Preferred for turnkey EPC contracts requiring predictable budgeting, though unit costs reflect the comprehensive service.

Integration Considerations for System Designers

When specifying VFDs for constant pressure pump systems (such as those utilizing Grundfos or DAB pump technologies), ensure compatibility between the drive’s PID response time and the pump’s inertia. High-inertia submersible pumps require slower PID ramp rates to prevent water hammer, while surface-mounted centrifugal pumps tolerate aggressive tuning for rapid pressure stabilization.

For solar hybrid applications, verify that the VFD supports dual-input AC/DC operation, allowing seamless switching between grid power and PV arrays without separate controllers. This functionality, combined with robust MPPT and vector control, enables 24/7 pumping capability while maximizing renewable energy utilization—essential for sustainable agricultural projects in remote regions.

Finally, specify enclosure ratings appropriate to the environment: IP54 for protected indoor installations, IP65 for outdoor agricultural exposure to dust and water jets, and NEMA 4X (or IP66) for corrosive industrial atmospheres. These specifications, combined with clear commercial terms, ensure that technical performance aligns with procurement reality across global supply chains.

Future Trends in the Variable Frequency Drives For Pumps Sector

The Variable Frequency Drive (VFD) sector for pumping applications is undergoing a paradigm shift, evolving from standalone motor control devices to intelligent, interconnected nodes within broader energy and automation ecosystems. As the technology matures—having already proven its efficacy in friction head-dominated systems with frequent load swings—future innovations are converging around three critical vectors: autonomous control architectures, seamless renewable energy integration, and cyber-physical monitoring infrastructures. For EPC contractors, system integrators, and agricultural project managers, understanding these trajectories is essential for specifying next-generation pumping solutions that optimize both Capital Expenditure (CAPEX) and Life Cycle Cost (LCC).

Intelligent Automation and Edge Intelligence

The next generation of pump VFDs is transitioning from reactive speed modulation to predictive, AI-driven control. Building upon the Pulse Width Modulation (PWM) foundations that enabled precise frequency adjustment, emerging drives incorporate edge-computing capabilities and embedded machine learning algorithms. These systems autonomously analyze real-time hydraulic conditions—pressure transients, flow dynamics, and system curve variations—to optimize motor speed beyond traditional PID control methods.

For constant pressure pump systems, such as those deployed in municipal water distribution and agricultural irrigation, this means adaptive control that anticipates demand fluctuations rather than merely reacting to them. Advanced VFDs now feature multi-pump cascade controllers with self-learning algorithms that determine optimal pump sequencing and sleep/wake cycles, significantly reducing mechanical wear and energy consumption. Furthermore, the integration of Programmable Logic Controller (PLC) functionality within the drive enclosure—often referred to as “smart drives”—eliminates separate automation hardware, reducing panel space and installation complexity for industrial engineers.

Renewable Energy Integration and Hybrid Electrification

The intersection of solar photovoltaic (PV) systems and VFD technology represents one of the most significant market disruptions, particularly for agricultural and remote industrial applications. Modern Solar Pump Inverters—essentially specialized VFDs with integrated Maximum Power Point Tracking (MPPT)—are evolving to support hybrid AC/DC architectures. These systems can simultaneously manage power from solar arrays, grid connections, and energy storage systems, ensuring continuous operation regardless of irradiance conditions.

A critical innovation gaining traction is the direct DC-coupled VFD, which eliminates the inefficiencies of traditional AC-coupled systems (where solar DC power is inverted to AC, then rectified back to DC within the drive). By allowing direct connection to battery storage or solar panels with wide voltage ranges, these drives maximize energy harvest while minimizing conversion losses. This architecture is particularly advantageous for EPC contractors deploying off-grid irrigation systems, where the VFD’s ability to convert single-phase input power to three-phase output (a capability increasingly important in rural electrification contexts) enables the use of standard three-phase pumps with single-phase solar arrays or limited grid infrastructure.

Additionally, regenerative VFDs—capable of returning braking energy to the grid or storage systems—are becoming economically viable for high-inertia pumping applications, such as large-scale drainage and effluent systems, further enhancing the sustainability profile of pumping stations.

IoT-Enabled Asset Management and Predictive Maintenance

The Industrial Internet of Things (IIoT) is transforming VFDs from control devices into data-rich sensors. Advanced drives now incorporate integrated vibration analysis, bearing temperature monitoring, and stator insulation resistance testing, transmitting this data via secure cloud connectivity to centralized asset management platforms. For automation distributors and maintenance teams, this shift enables a transition from time-based maintenance to condition-based and predictive strategies.

Digital twin technology is emerging as a powerful tool in this ecosystem. By creating virtual replicas of physical pump-VFD systems, engineers can simulate performance under varying conditions, validate control strategies before deployment, and troubleshoot remotely. This capability is invaluable for agricultural project managers overseeing distributed irrigation networks, where travel to remote sites is costly. Mobile-enabled VFD interfaces allow operators to adjust parameters, receive fault notifications, and access energy consumption analytics from anywhere, ensuring optimal performance of variable speed/constant pressure systems.

However, this connectivity introduces cybersecurity imperatives. Future VFD architectures are incorporating IEC 62443-compliant security protocols, encrypted communication channels, and secure boot mechanisms to protect critical infrastructure from unauthorized access—a crucial consideration as water and wastewater systems become increasingly digitized.

Strategic Implications for Stakeholders

For industrial engineers and EPC contractors, these trends necessitate a reevaluation of specification criteria. The selection of VFDs for pumping applications must now account for interoperability with renewable energy sources, cybersecurity certifications, and edge-computing capabilities. As energy efficiency regulations tighten globally, drives utilizing Silicon Carbide (SiC) and Gallium Nitride (GaN) power electronics—offering higher switching frequencies and reduced thermal losses—will become standard rather than premium offerings.

The convergence of automation, renewable integration, and IoT monitoring is ultimately driving the VFD market toward holistic “pump system optimization” rather than mere motor control. Stakeholders who specify these advanced technologies will deliver projects with demonstrably lower OPEX, enhanced reliability, and future-proofed scalability against evolving energy and environmental standards.

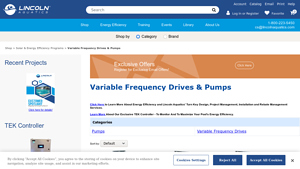

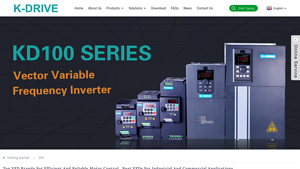

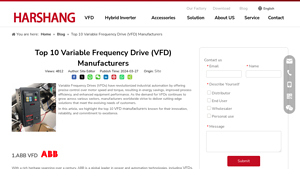

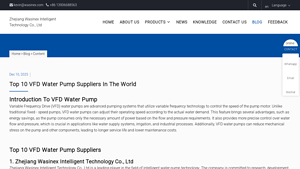

Top 4 Variable Frequency Drives For Pumps Manufacturers & Suppliers List

B2B Engineering FAQs About Variable Frequency Drives For Pumps

1. How does Pulse Width Modulation (PWM) output from a VFD impact motor insulation and bearing life in high-head centrifugal pump applications?
   PWM switching creates high-frequency voltage pulses with rapid rise times (dv/dt) that can cause voltage reflections at the motor terminals, potentially stressing winding insulation beyond the motor’s rated voltage. In pump systems with long cable runs between the VFD and motor, this phenomenon is amplified. Additionally, common-mode voltage can induce shaft currents leading to bearing fluting (EDM). For critical applications, specify motors with inverter-grade insulation (Class F or H) and consider installing output reactors or dV/dt filters to mitigate reflected waves. For submersible pumps, ensure the VFD features sine-wave filtering or select a drive with carrier frequency optimization to minimize bearing currents in the thrust bearings.

2. Can a standard VFD be used to convert single-phase input power to drive a three-phase pump motor, and what derating factors apply?
   Yes, many modern VFDs function as both phase converters and variable speed controllers, accepting single-phase input (typically 230V) and delivering three-phase output. However, the input current draw on the single-phase line is significantly higher than the three-phase equivalent, requiring derating of the VFD by approximately 50% of its normal three-phase rating. For example, a 7.5kW (10HP) pump motor requires a VFD rated for at least 15kW (20HP) input capacity when operating from single-phase supply. Always verify the VFD’s input current specifications against local utility limitations and ensure adequate DC bus capacitance to handle the higher ripple current inherent in single-phase rectification.

3. What are the critical control differences between a standard AC grid-tied VFD and a solar pump inverter for off-grid agricultural irrigation?
   While both regulate motor speed via frequency control, solar pump inverters (SPVs) incorporate Maximum Power Point Tracking (MPPT) algorithms to optimize the DC input from photovoltaic arrays, automatically adjusting motor speed based on available solar irradiance rather than maintaining fixed pressure setpoints. Grid-tied VFDs prioritize constant pressure or flow via PID control using pressure transducers. Hybrid systems require automatic AC/DC switching capability and wide voltage range tolerance (typically 200VDC–800VDC for 400V motors). For agricultural EPC projects, ensure the inverter includes dry-run protection, water tank level management, and automatic wake-up/sleep functions based on solar availability.

4. How should a VFD be sized and configured for a friction head-dominated constant pressure booster system with highly variable flow demands?
   In friction head-dominated systems (common in building services and irrigation), system head increases with the square of flow rate, making VFDs ideal for energy savings. Size the VFD based on the motor’s full-load current (FLA) plus 10–15% margin, not just horsepower. Configure the drive for PID control with a 4–20mA pressure transducer feedback. Set the minimum frequency to maintain pump affinity laws efficiency (typically 30Hz for centrifugal pumps) to avoid operating in the low-flow “dead head” region. For multi-pump installations, implement master/follower cascade control to stage pumps on/off while maintaining one variable-speed lead pump for optimal efficiency across the demand curve.

5. What specific VFD parameter settings and hardware protections are required to prevent cavitation and dry-running in deep-well submersible pumps?
   Configure underload detection (no-load current threshold) to trigger fault or warning if current drops below 30–50% of rated value, indicating loss of prime or dry-well conditions. Set a minimum operating frequency (e.g., 35Hz) to maintain sufficient NPSH (Net Positive Suction Head) and prevent low-flow cavitation. Implement ramp-down time extension (5–10 seconds) to avoid water hammer and check valve slamming. Hardware-wise, ensure the VFD includes input phase loss protection and DC bus undervoltage ride-through to handle voltage sags common in rural installations without tripping unnecessarily.

6. How do VFDs reduce mechanical stress and inrush current compared to Direct-On-Line (DOL) or soft starter methods in high-inertia pump applications?
   DOL starting draws 600–800% inrush current and generates instantaneous torque shocks up to 200% rated torque, stressing couplings, shafts, and impellers. VFDs limit starting current to 100–150% of rated current by ramping frequency from 0Hz, providing controlled acceleration that matches the pump’s torque curve. For high-inertia systems (large column pumps), set S-curve acceleration ramps (2–10 seconds) to eliminate mechanical resonance. Unlike soft starters, VFDs provide continuous speed control throughout the operating range, eliminating the need for throttling valves and bypass circuits while maintaining soft-start benefits at every startup cycle.

7. What harmonic mitigation strategies are required when installing multiple VFDs in parallel pump configurations to comply with IEEE 519 or local grid codes?
   Parallel VFD installations can create cumulative harmonic distortion (THD) on the supply line, particularly 5th and 7th harmonics. For systems with total VFD power exceeding 50% of transformer capacity, specify AC line reactors (3–5% impedance) or DC chokes on each drive. For higher power concentrations (aggressive THD limits), consider active front-end (AFE) drives or passive harmonic filters. In multi-pump booster stations, stagger the carrier frequencies of individual drives to prevent harmonic resonance, and ensure proper grounding practices (separate PE and shield connections) to prevent conducted EMI between drives.

8. How does sensorless flow estimation technology in advanced VFDs eliminate the need for external flow meters in constant pressure water supply systems?
   Modern VFDs utilize pump curve characterization algorithms that calculate flow rate based on the relationship between motor power consumption, speed, and pressure differential (using the affinity laws: Flow ∝ Speed, Head ∝ Speed², Power ∝ Speed³). By programming the specific pump curve parameters (shut-off head, best efficiency point) into the drive, the system can estimate flow within ±5% accuracy without physical sensors. This enables flow-based pump protection (minimum flow detection), energy monitoring, and no-flow shutdown (sleep mode) when demand ceases, reducing hardware costs and maintenance points in remote or unmanned installations.

Disclaimer

Conclusion: Partnering with Boray Inverter for Variable Frequency Drives For Pumps

Implementing Variable Frequency Drive technology in pumping systems represents a strategic evolution from traditional fixed-speed operation to intelligent, demand-responsive fluid management. As demonstrated throughout this guide, VFDs deliver quantifiable advantages across the operational lifecycle—from mitigating water hammer and reducing inrush currents to optimizing energy consumption in friction head-dominated systems. For engineers and project managers navigating the complexities of modern irrigation, HVAC, and industrial process control, the transition to variable speed pumping is no longer optional but essential for sustainable infrastructure development.

However, realizing these technical benefits requires more than theoretical understanding; it demands partnership with manufacturers who possess deep expertise in motor control algorithms and robust production capabilities. Shenzhen Boray Technology Co., Ltd. stands at the forefront of this specialized field, operating as a premier Chinese manufacturer dedicated to Solar Pump Inverters and advanced Motor Control Solutions. With an R&D team comprising 50% of its workforce, Boray Inverter has mastered sophisticated PMSM and IM vector control technologies that ensure precise torque response and superior efficiency across varying load conditions.

Boray’s commitment to quality is evidenced by its dual modern production lines and rigorous 100% full-load testing protocols, guaranteeing that every unit meets stringent international standards before deployment. Their solutions have earned the trust of EPC contractors and system integrators worldwide, powering critical applications in agricultural irrigation, municipal water management, and industrial automation sectors where reliability is paramount.

To transform your pumping infrastructure with customized VFD solutions engineered for your specific hydraulic profiles and motor specifications, contact Boray Inverter today. Visit borayinverter.com to request detailed technical specifications, application engineering support, and competitive wholesale quotations tailored to your project scale.
