Introduction: Sourcing Variable Frequency Drive Phase Converter for Industrial Use

In remote agricultural installations and aging industrial facilities worldwide, the challenge isn’t merely accessing three-phase power—it’s doing so efficiently while maintaining precise motor control. As single-phase grid constraints persist across rural solar pumping sites and legacy factory floors, engineers face a critical procurement decision: deploy a traditional phase converter to bridge the voltage gap, or leverage a Variable Frequency Drive (VFD) that simultaneously converts phases and optimizes motor performance through real-time frequency modulation?

This comprehensive guide demystifies the convergence of phase conversion and variable frequency technology for automation professionals, EPC contractors, and agricultural project managers. While standalone phase converters—whether rotary electromechanical systems or digital solid-state architectures—provide brute-force three-phase generation from single-phase utility sources, modern VFDs have evolved into sophisticated phase-converting motor controllers that regulate speed, torque, and energy consumption. This dual functionality proves particularly critical for solar irrigation systems requiring MPPT integration and precision manufacturing lines demanding dynamic load response.

We examine the technical distinctions between rotary and digital phase converter topologies, analyzing harmonic distortion profiles, power factor characteristics, and load-starting capabilities. For specification engineers, we detail critical selection criteria including input current derating requirements, enclosure IP ratings for harsh environments, and compatibility with permanent magnet motors increasingly deployed in high-efficiency pumping applications. Finally, we evaluate global manufacturer capabilities and supply chain considerations, assessing production scalability, customization protocols, and compliance with IEC 61800 and UL 61800 standards essential for cross-border industrial and renewable energy deployments.

Whether retrofitting existing machinery or designing next-generation solar-powered pumping stations, mastering these power conversion technologies ensures optimal equipment longevity, grid stability, and total cost of ownership across your industrial automation infrastructure.

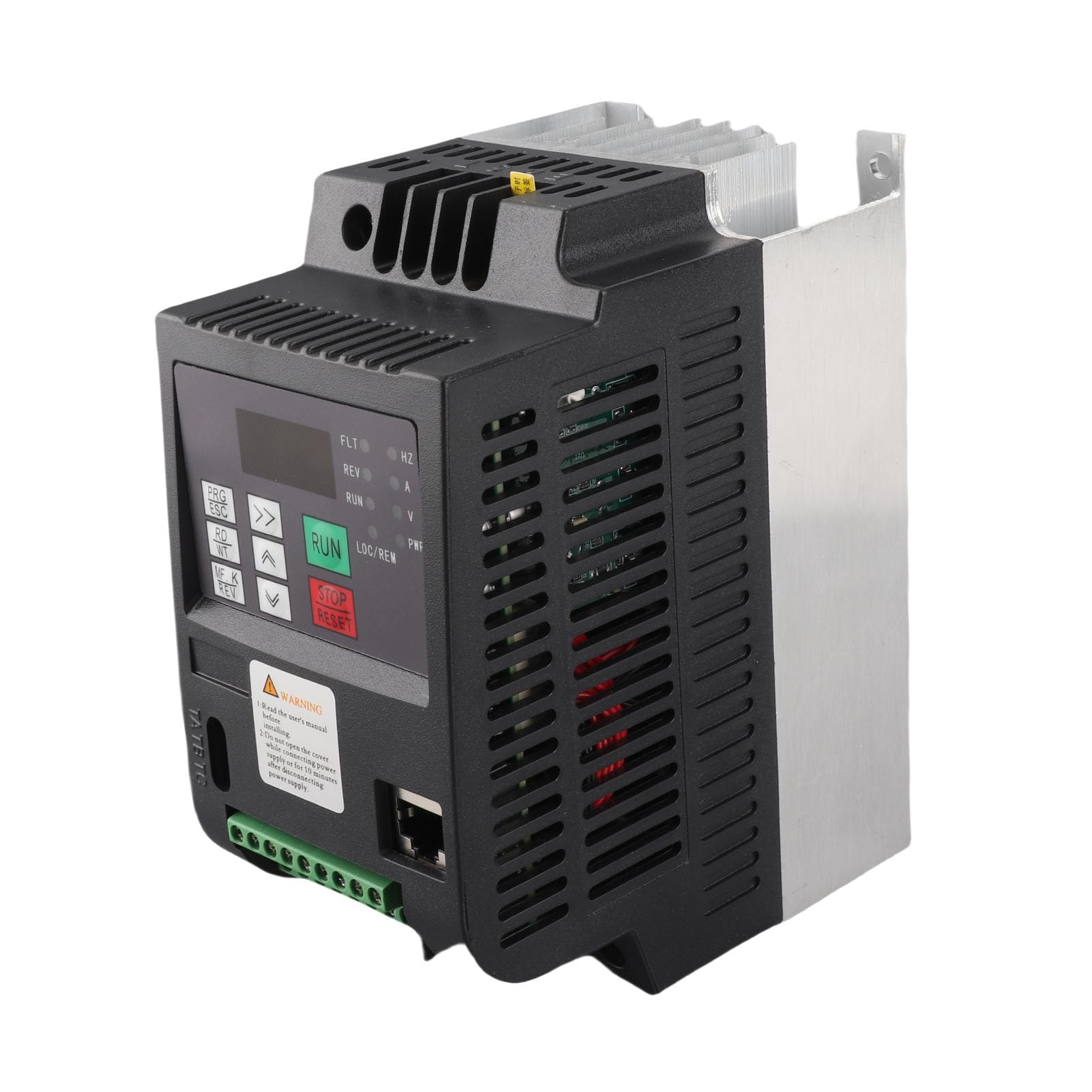

Technical Types and Variations of Variable Frequency Drive Phase Converter

When specifying power conversion equipment for sites lacking three-phase utility infrastructure, engineers must evaluate the intersection of phase conversion and motor control technologies. While standard VFDs inherently perform phase conversion by rectifying AC to DC and inverting back to variable-frequency AC, specialized architectures optimize this function for specific industrial, agricultural, and solar pumping applications. The following classifications distinguish between integrated VFD-phase conversion systems and hybrid configurations based on power topology, control methodology, and load compatibility.

Type	Technical Features	Best for (Industry)	Pros & Cons
Single-Phase Input VFD	• 1-phase 220/230V input / 3-phase 220/230V output • PWM inverter with IGBT switching (2-level or 3-level topology) • DC bus capacitance for 100/120Hz ripple smoothing • V/Hz or sensorless vector control • Mandatory 50% current derating for single-phase input operation	Agriculture (submersible pumps), Light industrial machinery, Commercial HVAC	Pros: Integrated speed control (10:1 to 100:1 range), soft-start capability (reduces mechanical stress), compact IP20/IP54 footprint, cost-effective for single-motor retrofit. Cons: Limited to one motor per drive; high input current harmonics (THDi 80-120%) requiring DC chokes; significant derating reduces cost-effectiveness for >7.5kW motors; cannot power control transformers or auxiliary 3-phase loads.
Solar Pump Inverter (DC-Coupled VFD)	• MPPT algorithm (98% tracking efficiency typical) • Wide DC input range (200-800VDC) • 3-phase AC output (380/460V, 50/60Hz) • V/f control with automatic voltage boost • Dry-run, water level, and cavitation protection	Off-grid irrigation, Livestock watering, Remote water pumping (EPC solar projects), Agricultural automation	Pros: Eliminates grid dependency; converts DC solar power directly to balanced 3-phase motor power; optimized pump curves match solar irradiance; no battery storage required (direct PV-to-pump). Cons: Weather-dependent output requires array oversizing (1.3-1.5x pump kW); limited starting torque at low irradiance; restricted to daylight operation without battery backup; requires specialized PV commissioning.
Rotary Phase Converter + VFD Hybrid	• Rotary generator (idler motor) creates true 3-phase 208/230/460V • Separate VFD downstream for variable speed control • Line reactors for harmonic isolation between rotary and VFD • Tank circuit (capacitors) for voltage balance (±2-5% phase balance) • Mechanical inertia provides 5-15 second ride-through	Machine shops, Woodworking/CNC facilities, Heavy industrial with multiple 3-phase motors, Grain handling	Pros: Powers multiple VFDs and motors simultaneously; provides true balanced 3-phase power (suitable for CNC and rectifier loads); handles high inrush currents (300-600% FLA); no motor derating required. Cons: Mechanical wear (bearings, capacitors every 5-7 years); continuous idling power consumption (2-5% of rated kW); NEMA 3R/4 enclosure footprint; 65-75 dB acoustic noise; requires periodic maintenance.
Static Digital Phase Converter	• Solid-state inverter bridge (IGBT or thyristor-based) • Fixed frequency output (50/60Hz ±1%) • Start capacitor assist for high-torque motor starting • No rotating components (electronic switching only) • Voltage boost circuitry (1.5x nominal for 3-5 seconds)	Rural workshops, Single-motor pump applications, Agricultural processing equipment, Remote compressor stations	Pros: No mechanical wear; silent operation (<40 dB); lower maintenance than rotary; compact wall-mount size; lower initial cost for 3-10HP range. Cons: Limited starting torque (typically 50-66% of motor T-Frame rating); connected motor must be derated 30-50%; cannot handle multiple motors; fixed speed only (no VFD functionality); sensitive to load power factor variations.
Active Front End (AFE) VFD	• IGBT-based regenerative rectifier (4-quadrant operation) • Bidirectional power flow capability • Unity power factor (>0.98) across speed range • Low harmonic distortion (THDi <5%, IEEE 519 compliant) • LCL filter integration for grid code compliance	Material handling (cranes/hoists), Centrifuges, Dynamometer test stands, High-duty cycle industrial, Grid-tied solar pumping with regeneration	Pros: Regenerative braking energy returned to grid (energy savings); clean power eliminates external harmonic filters; can operate from single-phase with superior power quality; four-quadrant torque control. Cons: 2.5-3x cost of standard VFD; complex parameter commissioning; requires LCL line filters; over-engineered for constant-torque pump applications; limited availability below 5kW.

Single-Phase Input VFD Configurations

Standard voltage-source PWM inverters can function as phase converters when configured for single-phase input, though this requires careful thermal and harmonic analysis. The absence of one input phase creates 100Hz (or 120Hz) DC bus ripple, necessitating either doubled DC-link capacitance or strict adherence to manufacturer derating curves—typically 50% of the drive’s three-phase current rating. For agricultural pumping applications, these units excel when paired with submersible motors up to 7.5kW (10HP), providing soft-start functionality that reduces water hammer and mechanical seal wear. However, engineers must specify input line reactors or DC chokes to mitigate the high THDi (Total Harmonic Current Distortion) inherent in single-phase diode bridge rectification, which can exceed 100% without mitigation, potentially causing utility-side voltage distortion.

Solar Pump Inverter Architectures

Photovoltaic-powered pump inverters represent a specialized subset where the phase conversion source is DC rather than single-phase AC. These drives utilize Maximum Power Point

Key Industrial Applications for Variable Frequency Drive Phase Converter

Integrating variable frequency drive (VFD) technology with phase conversion capabilities creates a hybrid power solution that addresses two critical operational constraints simultaneously: converting available single-phase utility power (or DC solar input) to three-phase motor supply while enabling precise speed and torque control. Unlike standalone rotary phase converters that merely generate three-phase power at fixed frequency, VFD phase converters leverage IGBT-based inverters to vary output frequency (typically 0–400 Hz) and voltage, optimizing motor performance across the load curve. Below are the primary industrial sectors where this dual-functionality delivers measurable ROI through energy recovery and infrastructure flexibility.

Sector	Application	Energy Saving Value	Sourcing Considerations
Agriculture & Solar Pumping	Submersible borehole pumps, center-pivot irrigation systems, livestock watering stations, greenhouse climate control fans	30–50% reduction in kWh consumption via affinity laws; elimination of inrush currents (up to 7× FLA reduction); MPPT optimization yielding 15–20% additional solar harvest compared to direct grid-tie	IP65/NEMA 4X enclosures for outdoor UV/chemical exposure; DC input range (200–800VDC) for solar compatibility; single-phase 220/230VAC input capability for rural grid connections; built-in dry-run and water hammer protection
Water Treatment & Distribution	Municipal lift stations, aeration basin blowers, filtration backwash pumps, high-service booster stations	20–40% energy recovery via variable flow control replacing throttling valves; precise dissolved oxygen (DO) control in aeration reduces blower runtime by 25–35%; soft-start eliminates pressure surges in PVC piping networks	NEMA 4/4X stainless steel construction for corrosive H₂S environments; integrated PID control for constant pressure/flow without external PLCs; harmonic mitigation (AC line reactors <5% THDi); redundant cooling fan designs for 24/7 critical infrastructure
HVAC & Building Automation	Chilled water primary/secondary pumps, cooling tower fans, air handling units (AHUs), compressor banks	30–60% fan energy reduction via cube-law affinity relationships; power factor correction >0.95 reduces utility demand charges; staged capacity control eliminates duct static pressure losses	BACnet/IP or Modbus RTU communication for BMS integration; low-noise PWM carrier frequency settings (4–16 kHz selectable); automatic bypass contactor options for fire/life safety compliance; UL 508C or CE certification for commercial building code adherence
Mining & Cement Processing	Portable crushing/screening plants, conveyor feed controls, baghouse dust collectors, ball mill auxiliary drives	15–35% energy savings through load-sharing and regenerative braking (in four-quadrant drives); controlled torque ramping prevents mechanical shock to gearboxes and couplings; phase balancing corrects voltage imbalance in remote single-phase tap locations	Heavy-duty overload capacity (150% for 60 seconds, 180% for 10 seconds); conformal-coated PCBs for dust/moisture ingress (IP54 minimum); wide voltage fluctuation tolerance (+/- 20%) for generator-fed sites; DC bus commoning capability for multi-drive solar arrays

Agricultural Irrigation & Solar Pumping Systems

In remote agricultural zones where three-phase infrastructure is cost-prohibitive to extend, VFD phase converters enable high-efficiency three-phase submersible pumps to operate from existing single-phase rural grids or direct PV arrays. The critical advantage lies in the removal of mechanical pressure switches and float controls; the VFD’s built-in MPPT algorithm continuously tracks the solar array’s maximum power point while varying pump speed to match insolation levels. For EPC contractors specifying solar pumping stations, prioritize units with IP65-rated enclosures and DC voltage input ranges spanning 200V to 800V to accommodate varying string configurations. Additionally, specify drives with automatic phase-sequence correction to prevent pump damage during installation wiring errors, and ensure the unit provides single-phase input derating curves (typically 50% of three-phase rated current) to prevent IGBT thermal overload during cloud transient conditions.

Water Treatment & Wastewater Infrastructure

Municipal lift stations and decentralized treatment facilities frequently encounter single-phase power availability at remote sites. VFD phase converters eliminate the need for separate phase conversion equipment while providing the variable flow control essential for energy-efficient aeration and pumping. When sourcing for water treatment applications, specify NEMA 4X (316 stainless steel) enclosures to withstand hydrogen sulfide corrosion in wet well environments. Critical control features include sleep/wake functions that stop the pump at zero flow demand (saving 3–5% standby losses) and multi-pump cascade controllers that stage auxiliary pumps without additional PLC hardware. For harmonic-sensitive treatment plants, ensure the drive includes DC link chokes or active front-end (AFE) rectifiers to maintain THDi below 5%, preventing interference with SCADA telemetry and chemical dosing pumps.

HVAC & Commercial Building Retrofits

Building automation retrofits often face the constraint of existing single-phase electrical infrastructure when upgrading to high-efficiency three-phase chillers or air handlers. VFD phase converters allow facility managers to deploy premium efficiency three-phase motors (IE3/IE4) without costly service upgrades. The energy savings potential is maximized when drives are programmed for quadratic V/f curves matching fan/pump affinity laws. Sourcing considerations for HVAC distributors should focus on EMC compliance (EN 61800-3 Category C2 or C3) to prevent conducted emissions from disrupting building automation networks. Specify drives with integral RFI filters and shielded cable termination kits. For critical comfort cooling applications, procure units with automatic bypass contactors that fail-safe to line power during drive fault conditions, ensuring continuous operation during peak load periods.

Mining and Material Processing Operations

Remote crushing and screening operations in mining and cement production frequently rely on generator sets or single-phase rural grid taps. VFD phase converters provide the phase conversion necessary for three-phase conveyor motors while enabling variable speed control to match material throughput, preventing spillage and mechanical wear. In these heavy-duty applications, sourcing must prioritize mechanical ruggedness: specify drives with conformal-coated circuit boards (IEC 60721-3-3 Class 3C2/3S2) to resist conductive dust and sulfur dioxide atmospheres. Overload capacity is critical—select drives rated for 150% overload for 60 seconds to handle crusher jam clearances and surge loading. For solar-hybrid mining installations, ensure the VFD supports DC bus commoning, allowing multiple drives to share a single solar array while maintaining individual motor control, reducing overall system costs for EPC contractors.

Top 3 Engineering Pain Points for Variable Frequency Drive Phase Converter

Scenario 1: Unstable Single-Phase Grid Supply in Remote Agricultural Irrigation

The Problem: In remote agricultural installations and rural industrial sites, single-phase utility grids often suffer from voltage sags, frequency fluctuations, and inconsistent power quality. When using basic phase converters or entry-level VFDs for three-phase motor operation, these grid instabilities cause nuisance tripping, erratic motor behavior, and premature drive failure. For solar pumping applications, the challenge compounds when transitioning between grid backup and PV power, requiring robust DC bus management and ride-through capabilities that standard phase converters cannot provide, leading to dry-run pump conditions and crop irrigation delays.

The Solution: Advanced VFD phase converter systems with active front-end (AFE) rectification and enhanced DC link stability algorithms. These drives maintain consistent three-phase output voltage and frequency regardless of input fluctuations, featuring extended undervoltage ride-through capabilities (typically 3-5 seconds) to bridge momentary outages. For hybrid solar-grid applications, intelligent maximum power point tracking (MPPT) integration ensures seamless switching between single-phase AC input and DC solar arrays without motor speed disruption, protecting both the drive and the pump motor from thermal stress while maintaining constant water flow pressure.

Scenario 2: Load Mismatch and Limited Scalability in Multi-Motor Industrial Setups

The Problem: Industrial engineers frequently face the dilemma of powering multiple three-phase machines from a single-phase supply. While traditional rotary phase converters can handle larger aggregate loads, they lack motor speed control and consume idling power when not fully loaded. Conversely, standard VFDs function as phase converters but are typically limited to single-motor applications (usually under 10-15 HP) and cannot power multiple machines simultaneously without complex synchronization issues or phase imbalance. This creates infrastructure redundancy when facilities need both phase conversion for legacy equipment and variable speed control for process optimization, complicating panel design and increasing capital expenditure.

The Solution: Modular VFD phase converter architectures with distributed control capabilities. Rather than choosing between a standalone rotary converter or a single-purpose VFD, modern systems employ a master-slave configuration where a high-capacity VFD acts as the phase generator while maintaining independent vector control for each connected motor. This approach allows a single single-phase input to feed multiple three-phase motors through intelligent load sharing, with individual speed/torque control for pumps and fans while providing clean, balanced three-phase power to fixed-speed equipment. The solution eliminates the need for separate phase converter and VFD installations, reducing panel space requirements and total cost of ownership by up to 40%.

Scenario 3: Environmental Harshness and Thermal Management in Outdoor Enclosures

The Problem: Phase converters and VFDs deployed in agricultural pumping stations, mining operations, or outdoor industrial automation cells face extreme environmental stressors: dust ingress (IP5X/6X requirements), temperature extremes (-20°C to +50°C), humidity, and corrosive atmospheres. Standard open-chassis phase converters with rotating components (rotary types) suffer from bearing degradation and dust accumulation, while consumer-grade VFDs often lack adequate conformal coating or sealed enclosures, leading to PCB corrosion and capacitor failure. The thermal management challenge intensifies when drives operate as phase converters at full load with limited ventilation in NEMA 3R or NEMA 4X enclosures, risking thermal derating or shutdown during critical irrigation or production cycles.

The Solution: IP65/NEMA 4X rated VFD phase converter units with passive cooling or liquid-cooled heat sinks, eliminating ventilation fans that draw in contaminants. These industrial-grade drives feature conformal-coated PCBs, stainless steel enclosures for corrosive environments, and wide-temperature-range components (-25°C to +60°C operational). Advanced thermal derating algorithms automatically adjust switching frequency and carrier wave patterns to maintain safe operating temperatures without external cooling, while dual-channel redundant cooling systems (where applicable) ensure continuous operation in desert solar farms or humid tropical irrigation sites. The integrated design replaces separate phase converter and enclosure systems, simplifying field installation and reducing maintenance intervals from quarterly to annual cycles.

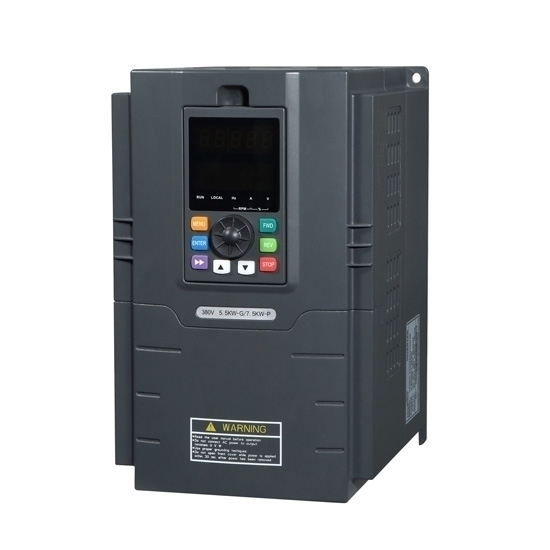

Component and Hardware Analysis for Variable Frequency Drive Phase Converter

The internal architecture of a Variable Frequency Drive (VFD) functioning as a phase converter represents a significant technological leap from traditional rotary or static phase conversion methods. Unlike mechanical rotary converters that rely on inertia and analog windings, modern VFDs employ sophisticated power electronics to convert single-phase utility input into balanced three-phase output while simultaneously enabling variable frequency control. This section examines the critical hardware components that determine system reliability, efficiency, and operational lifespan in demanding industrial and solar pumping applications.

Power Stage Architecture

Input Rectification & PFC Circuitry
The front-end rectifier bridge converts incoming AC power to DC. In single-phase to three-phase conversion applications, this stage must handle high crest factors and harmonic content inherent to single-phase supplies. Active Power Factor Correction (PFC) circuits are increasingly integrated to minimize grid distortion and ensure compliance with IEEE 519 and IEC 61000-3-12 standards. High-quality discrete diodes or thyristor-based controlled rectifiers with surge current ratings exceeding 200A (8.3ms) are essential for withstanding utility-side transients common in rural agricultural installations.

DC-Link Energy Storage
The DC bus serves as the energy reservoir between rectification and inversion stages. For VFD phase converters, capacitor selection critically impacts Mean Time Between Failures (MTBF). While traditional electrolytic capacitors offer high capacitance density, they exhibit limited lifespans (typically 5,000–10,000 hours at rated temperature) due to electrolyte evaporation. Premium VFDs designed for solar pumping and continuous industrial duty increasingly utilize metallized polypropylene film capacitors, which offer 100,000+ hour lifespans, lower Equivalent Series Resistance (ESR), and superior ripple current handling—critical for absorbing the pulsating power flow from single-phase inputs.

IGBT Inverter Modules
The Insulated Gate Bipolar Transistor (IGBT) module constitutes the core switching element, generating the Pulse Width Modulation (PWM) waveform that drives three-phase motors. Sixth-generation trench-stop IGBTs (such as Infineon’s IGBT6 or Mitsubishi’s CSTBT series) provide optimal trade-offs between conduction losses (Vce(sat)) and switching characteristics. For phase conversion applications, modules with low thermal resistance (Rth(j-c) < 0.6 K/W) and high short-circuit withstand capability (10μs minimum) are specified to handle motor inrush currents and regenerative energy from high-inertia pumps.

Control & Protection Systems

Digital Signal Processing (DSP) Controllers
The control board utilizes 32-bit floating-point DSPs or ARM Cortex-M4/M7 microcontrollers to execute vector control algorithms (Field-Oriented Control – FOC) and Space Vector PWM generation. In solar pumping VFDs, the DSP simultaneously manages Maximum Power Point Tracking (MPPT) algorithms with update rates exceeding 10kHz to optimize PV array output. Critical quality indicators include fault response times (<50μs for overcurrent protection) and multi-layer PCB construction with conformal coating (IPC-A-610 Class 3) to resist humidity and corrosive gases in agricultural environments.

Gate Driver Circuits
Isolated gate drivers with desaturation detection and Active Miller Clamping prevent false triggering and shoot-through failures. Optocoupler or digital isolator-based designs with Common Mode Transient Immunity (CMTI) > 50 kV/μs ensure reliable switching in high dv/dt environments typical of long motor cable runs in EPC-scale solar installations.

Thermal Management Engineering

Heatsink Design & Materials
Thermal management directly correlates with semiconductor lifespan. Extruded aluminum heatsinks (6063-T5 alloy) with anodized finishes provide thermal resistances between 0.3–0.8 K/W depending on geometry. For outdoor solar pump inverters, natural convection designs (fan-less) eliminate the primary mechanical failure point, while high-power units (>15kW) employ forced air cooling with ball-bearing fans rated for 50,000+ hours MTBF at 40°C ambient. Thermal interface materials (TIMs) utilizing phase-change compounds or graphite sheets ensure <0.1 K·m²/W contact resistance between IGBT modules and heatsinks.

Environmental Hardening
IP65-rated enclosures with labyrinthine ventilation and dust filters are mandatory for agricultural and desert solar applications. Internal humidity control via hygroscopic breathers or sealed nitrogen-filled chambers prevents condensation-induced corrosion on control boards during diurnal temperature cycling.

Component Analysis Matrix

Component	Function	Quality Indicator	Impact on Lifespan
IGBT Power Module	DC-AC inversion; PWM waveform generation for motor control	6th Gen Trench-Stop technology; Vce(sat) < 1.7V; Rth(j-c) < 0.6 K/W; 175°C max junction temp	Critical – Thermal cycling causes bond-wire fatigue; accounts for 40% of field failures in high-duty cycles
DC-Link Capacitor	Energy storage; ripple current absorption; voltage stabilization	Metallized film construction (not electrolytic); ESR < 5mΩ; 100,000+ hours @ rated temp; self-healing dielectric	Critical – Film capacitors extend lifespan 3-5x vs electrolytic; primary determinant of maintenance intervals
DSP/MPU Controller	Vector control algorithms; MPPT (solar); protection logic; PWM generation	32-bit 150MHz+ processor; <50μs fault response; Conformal coated PCB (IPC-A-610 Class 3)	Medium – Typically outlasts power stage if protected from voltage surges; firmware obsolescence often precedes hardware failure
Cooling Heatsink	Thermal dissipation for IGBTs and rectifiers	Aluminum 6063-T5; Thermal resistance < 0.5 K/W; Anodized 25μm+ coating; natural convection optimized fins	High – Insufficient cooling reduces IGBT lifespan by 50% per 10°C rise above 80°C junction
Input Rectifier	AC-DC conversion; surge current handling	Single-phase bridge rating >1.5x continuous current; I²t rating >200A²s; low VF (<1.1V)	Medium – Robust but stressed by grid transients; soft-start circuitry essential for phase converter applications
EMI Filter	Conducted noise suppression; grid compliance	Common/differential mode chokes; >40dB insertion loss at switching frequency; 150°C thermal rating	Low – Passive components with 20+ year lifespan; failure typically indicates catastrophic overvoltage event
Current Sensors	Motor phase current feedback; overcurrent protection; vector control	Closed-loop Hall effect; <1% linearity error; 50μs response time; 2.5kV isolation	High – Critical for protection; failure modes can cause catastrophic cascade damage to IGBTs and motors
Thermal Interface Material	Heat transfer between semiconductors and heatsink	Phase-change material >5W/mK thermal conductivity; long-term stability >10 years; no pump-out	High – Degradation causes thermal runaway; often overlooked in field maintenance

Reliability Considerations for Solar Pumping Integration

In photovoltaic water pumping systems, VFD phase converters face unique stressors including wide DC input voltage swings (200VDC–800VDC), intermittent cloud-induced transients, and remote monitoring requirements. Hardware designs must incorporate dual MPPT channels, anti-islanding protection circuits (UL 1741 SA), and DC arc fault detection per NEC 690.11. The elimination of electrolytic capacitors in favor of film technology becomes particularly critical in these applications, where maintenance access may be limited and ambient temperatures regularly exceed 45°C.

For EPC contractors and automation distributors, specifying VFD phase converters with these hardware quality indicators ensures project lifecycle costs align with 20–25 year solar asset expectations, rather than the 5–7 year replacement cycles typical of consumer-grade drive electronics.

Manufacturing Standards and Testing QC for Variable Frequency Drive Phase Converter

Rigorous manufacturing protocols distinguish industrial-grade Variable Frequency Drive (VFD) phase converters from consumer-grade alternatives, particularly when deployed in harsh agricultural or solar pumping environments. For EPC contractors and automation engineers specifying equipment that must operate reliably across temperature extremes, voltage fluctuations, and dusty conditions, understanding the manufacturing rigor behind these units is essential for risk mitigation and long-term ROI.

Precision PCB Assembly and Environmental Protection

The foundation of VFD reliability begins with the Printed Circuit Board (PCB) assembly process. Leading manufacturers adhere to IPC-A-610 Class 3 standards for high-performance electronic assemblies, ensuring solder joint integrity under mechanical stress and thermal cycling. Following assembly, conformal coating application becomes critical for agricultural and outdoor solar applications where humidity, chemical vapors, and conductive dust threaten longevity.

Three primary coating chemistries dominate industrial VFD production:
– Acrylic coatings (e.g., AR series) offering excellent moisture resistance and easy repairability for field-serviceable units
– Polyurethane coatings providing superior chemical resistance against fertilizers and pesticides in farming environments
– Silicone coatings for extreme temperature applications (-40°C to +150°C) typical in desert solar installations

Application methods include selective robotic spraying and dip-coating, with thickness verification via eddy current testing (typically 25-75μm per IPC-CC-830 standards). This barrier protection prevents dendritic growth and corrosion on high-voltage IGBT driver circuits and microcontroller pins.

Accelerated Life Testing and Thermal Validation

Before final assembly, critical components undergo High-Temperature Operating Life (HTOL) testing. Power modules and capacitors are subjected to 125°C ambient conditions for 1,000+ hours to identify infant mortality failures and verify Mean Time Between Failures (MTBF) calculations exceeding 50,000 hours.

Complete assembled units undergo high-temperature aging (burn-in) protocols where VFDs operate at 110% rated load in 40-50°C environmental chambers for 48-72 hours. This thermal stress screening reveals latent defects in solder joints, capacitor electrolyte integrity, and thermal interface materials. Thermal imaging verification ensures IGBT junction temperatures remain within ±5°C of design specifications across all three output phases, preventing hotspot formation that leads to premature failure in solar pump applications with intermittent shading conditions.

100% Full-Load Dynamic Testing

Unlike consumer electronics relying on statistical sampling, industrial VFD phase converters require 100% full-load testing before shipment. Each unit undergoes:
– Rated current verification at 50Hz, 60Hz, and variable frequencies up to 400Hz
– Phase balance testing ensuring <2% voltage imbalance across all three output phases
– Regenerative load testing simulating motor deceleration and braking energy feedback
– Efficiency mapping at 25%, 50%, 75%, and 100% load points to verify compliance with IEC 61800-9-2 efficiency classes

Dynamic testing utilizes motor dynamometers or regenerative electronic loads that simulate the torque profiles of centrifugal pumps and compressor applications. This ensures the VFD’s current control loops, DC bus stability, and braking chopper circuits perform under real-world mechanical stress rather than merely resistive loads.

International Compliance and Certification Framework

Global deployment requires adherence to stringent certification standards:

IEC 61800 Series Compliance:
– IEC 61800-5-1: Safety requirements including earth fault protection, overcurrent protection, and insulation coordination (pollution degree 3 for agricultural environments)
– IEC 61800-3: Electromagnetic compatibility (EMC) for PDS (Power Drive Systems), critical for solar farms with sensitive MPPT controllers
– IEC 61800-4: General requirements including tropicalization treatments for high-humidity climates

CE Marking Directives:
– Low Voltage Directive (LVD) 2014/35/EU: Dielectric strength testing at 2kV+ for 60 seconds
– EMC Directive 2014/30/EU: Radiated and conducted emission testing to Class A (industrial) and Class B (residential/agricultural) limits
– RoHS 2.0: Restriction of hazardous substances in solder and component packaging

ISO 9001:2015 Quality Management:
Manufacturing facilities maintain documented quality management systems covering incoming inspection (IQC), in-process inspection (IPQC), and outgoing quality control (OQC). Statistical Process Control (SPC) monitors key characteristics like DC bus voltage regulation and switching frequency stability.

Supply Chain and Material Verification

Quality control extends to component traceability. IGBT modules from tier-1 suppliers (Infineon, Mitsubishi, Fuji) undergo incoming inspection for V_CE(sat) consistency. Film capacitors receive 100% capacitance and ESR (Equivalent Series Resistance) testing to prevent DC bus ripple issues. Enclosure materials undergo UV resistance testing (ASTM G154) for outdoor solar installations, ensuring IP65/IP66 ratings remain intact after years of sun exposure.

Final Validation and Traceability

Each VFD receives a unique serial number linking to its complete test data record, including thermal imaging reports, load test results, and insulation resistance measurements (>100MΩ at 500VDC). Packaging includes desiccant and VCI (Vapor Corrosion Inhibitor) films for sea freight protection, acknowledging the global distribution networks serving agricultural projects in Southeast Asia, Africa, and Latin America.

For project managers specifying VFD phase converters in solar pumping stations or food processing facilities, demanding documentation of these manufacturing standards—particularly the 100% burn-in testing and conformal coating specifications—provides assurance of 15-20 year operational lifespans in environments where equipment failure costs exceed initial procurement prices by orders of magnitude.

Step-by-Step Engineering Sizing Checklist for Variable Frequency Drive Phase Converter

When specifying a Variable Frequency Drive (VFD) as a phase conversion solution—or integrating solar pump inverter technology for agricultural and industrial motor control—precise engineering validation is critical to prevent premature failure, harmonic distortion, or motor insulation damage. Unlike dedicated rotary or digital phase converters, VFDs functioning as phase converters require specific derating calculations and input current verification to handle single-phase to three-phase conversion safely.

The following technical checklist provides a systematic sizing and sourcing protocol for engineers, EPC contractors, and automation distributors evaluating VFD-based phase conversion for motor loads or solar pumping applications.

1. Motor Load Characterization & Nameplate Verification

Before selecting conversion equipment, extract and verify all motor nameplate data to establish baseline electrical requirements:
– Rated Power (kW/HP): Record continuous duty rating; distinguish between shaft power and electrical input power
– Full Load Amperage (FLA): Critical for VFD output sizing; note any service factor (typically 1.15 or 1.25)
– Voltage & Frequency: Standard 230V/460V, 50/60Hz; verify if motor is inverter-duty rated (NEMA MG1 Part 31) for VFD operation
– Insulation Class: Class F or H preferred for VFD phase conversion to withstand voltage spikes from IGBT switching
– Starting Torque Requirements: High-torque applications (positive displacement pumps, compressors) require 150-200% overload capacity verification

2. Phase Conversion Topology Selection

Determine whether a VFD-as-converter or dedicated phase converter architecture suits the application:
– Single Machine, Variable Speed: Standard VFD (1P input/3P output) is optimal; provides soft-start and speed control benefits
– Multiple Fixed-Speed Machines: Dedicated rotary or digital phase converter recommended; VFDs are not designed to power multiple machines simultaneously without individual VFDs per motor
– Solar Pumping Integration: Specify solar pump inverter (hybrid VFD with MPPT) when DC solar input is primary power source; ensure phase conversion capability exists for backup AC grid connection if required

3. Input Current Derating Calculations (Critical for 1P-to-3P)

When using a VFD to convert single-phase to three-phase, the input current draw is significantly higher than three-phase input configurations. Apply these engineering margins:
– Current Multiplication Factor: Single-phase input current ≈ 1.73 × equivalent three-phase input current for same output power
– VFD Oversizing Rule: Select VFD with twice (2×) the motor HP rating when operating from single-phase supply (e.g., 5HP motor requires 10HP-rated VFD on single-phase input)
– Input Fuse/Breaker Sizing: Calculate at 1.5–2.5 × VFD input current rating; verify single-phase supply capacity can sustain inrush during DC bus charging

4. DC Bus Voltage & Solar String Sizing (Solar Applications)

For solar pump inverter configurations acting as phase converters:
– MPPT Voltage Range: Match solar array Vmp (voltage at maximum power) to inverter MPPT window (typically 200-400VDC for small systems, 400-800VDC for industrial)
– Open Circuit Voltage (Voc) Calculation: Voc at lowest ambient temperature must not exceed inverter maximum DC input voltage:
$$V_{oc_max} = V_{oc_STC} \times [1 + (T_{min} – 25°C) \times \alpha_V]$$
where $\alpha_V$ = temperature coefficient of voltage (typically -0.3%/°C to -0.5%/°C)
– String Configuration: Series panels to achieve minimum MPPT voltage at high temperatures; parallel strings to achieve current capacity matching motor FLA × 1.25

5. Output Current Capacity & Overload Verification

Ensure the VFD or phase converter can deliver sufficient current under dynamic load conditions:
– Continuous Output Current: ≥ 110% of motor FLA for general applications; ≥ 125% for high-inertia or cyclic loads
– Overload Capacity: Verify 150% rated current for 60 seconds (standard) or 200% for 3 seconds (heavy-duty) for pump starting torque
– Phase Balance Tolerance: When using VFD as phase converter, output voltage imbalance must remain < 2% to prevent motor overheating; verify PWM carrier frequency settings to minimize imbalance

6. Harmonic Mitigation & Power Quality Analysis

Single-phase input VFDs generate higher harmonic distortion than three-phase units:
– Total Harmonic Current Distortion (THDi): Expect 60-80% THDi on single-phase input without mitigation; specify DC link chokes or AC line reactors (3-5% impedance) to reduce THDi to <35%
– Power Factor Correction: VFDs present near-unity power factor to the line, but input current waveform distortion requires proper sizing of upstream transformers (oversize by minimum 1.5× kVA rating)

7. Environmental Derating Factors

Adjust specifications for installation conditions:
– Altitude Derating: Reduce VFD/phase converter current capacity by 1% per 100m above 1000m elevation (or follow manufacturer-specific curves)
– Temperature Derating: Standard rating at 40°C; above 40°C, derate 2-3% per °C or specify enhanced cooling/heat sinks
– Enclosure Integrity: Agricultural/solar applications require minimum IP54 (NEMA 3R) or IP65 (NEMA 4X) for dust/moisture protection; verify heat dissipation calculations for sealed enclosures

8. Voltage Compatibility & Transient Protection

• Input Voltage Tolerance: Verify single-phase supply stability (±10% of nominal); VFDs are sensitive to voltage sags below 15% of nominal
• Surge Protection: Install Type 2 SPD (Surge Protective Device) on both input (AC) and output (motor) sides when used in solar or rural grid applications with lightning exposure
• Motor Cable Length: For VFD phase converters, keep motor leads < 100m to prevent reflected wave voltage spikes; specify inverter-duty cable or output reactors for longer distances

9. Control Interface & Monitoring Specifications

• I/O Configuration: Verify 0-10V or 4-20mA analog inputs for pressure transducers (pumping) or speed references; ensure sufficient digital inputs for start/stop and fault interlocks
• Communication Protocols: Modbus RTU/TCP standard; specify CANopen or proprietary protocols for solar pump monitoring systems
• Remote Monitoring: For solar pump VFDs, ensure GPRS/Wi-Fi datalogger compatibility for agricultural project management and fault alerting

10. Compliance & Certification Verification

• Grid Code Compliance: IEC 61000-3-2 (harmonics), IEC 61800-3 (EMC) for European projects; UL 508C for North American industrial applications
• Solar Standards: IEC 62109-2 for solar pump inverter safety; verify MPPT efficiency > 95% for agricultural ROI calculations
• Motor Compatibility: Ensure VFD output meets NEMA MG1 Part 31 limitations (voltage rise < 1,600V/μs) to prevent winding insulation failure

Engineering Note for Boray Inverter Applications: When specifying Boray solar pump inverters for phase conversion duties, confirm the specific model supports single-phase AC input (if grid-tied backup required) or verify DC-only operation with appropriate solar array sizing. For industrial VFD phase conversion projects, Boray’s heavy-duty VFD series with built-in DC reactors provide superior input current waveform management compared to standard drives, reducing upstream transformer heating by 40-60% in single-phase supply scenarios.

Wholesale Cost and Energy ROI Analysis for Variable Frequency Drive Phase Converter

When procuring motor control solutions for industrial or agricultural deployments, the decision between rotary phase converters and Variable Frequency Drive (VFD) phase conversion systems extends beyond initial hardware costs. For EPC contractors and automation distributors, understanding the wholesale pricing architecture, total cost of ownership (TCO), and energy return on investment (ROI) is critical to project profitability and long-term client satisfaction.

B2B Procurement Economics: Wholesale vs. Retail Structures

The industrial VFD market operates on a tiered pricing model that significantly impacts project margins. At the wholesale level, VFD phase converters—particularly those designed for solar pumping and heavy-duty motor control—typically follow volume-based discount schedules:

• OEM Volume Tiers (50+ units): 35-45% below retail MSRP, suitable for pump manufacturers and system integrators embedding VFDs into packaged solutions
• Distributor Tiers (10-49 units): 20-30% wholesale discounts, common for agricultural supply chains and regional automation distributors
• EPC Project Pricing: Custom negotiated rates for solar pumping installations, often including extended warranty packages and technical support allocations

Unlike rotary phase converters, which rely on analog electromechanical components with limited software integration, modern VFD phase converters incorporate IGBT-based inverters and microprocessor controls. This technological differentiation affects wholesale pricing strategies—digital phase conversion systems command higher unit costs but offer lower per-kW pricing as capacity increases, whereas rotary converters show linear cost scaling.

For global distributors, regional pricing variations must account for IP rating requirements (such as NEMA 4 enclosures for harsh agricultural environments) and grid compatibility certifications. Three-phase VFDs with single-phase input capabilities (230V to 400V conversion) typically wholesale at $180-$450 per kW, depending on protection ratings and communication protocol support (Modbus, CANopen, or proprietary solar pumping protocols).

Total Cost of Ownership: Installation and Operational Factors

While rotary phase converters present lower upfront capital expenditure—approximately 15-25% less than comparable VFD solutions at the wholesale level—the TCO analysis favors VFD phase conversion in variable-load applications. The installation economics reveal distinct advantages:

Infrastructure Requirements: VFD phase converters eliminate the need for additional power line infrastructure required by rotary systems. In retrofit applications where single-phase rural grids power three-phase irrigation pumps, VFDs utilize existing two-wire inputs while rotary converters demand three-wire outputs and additional panel space. This reduces installation labor costs by 30-40% in distributed agricultural projects.

Energy Efficiency Metrics: Rotary phase converters exhibit 85-90% efficiency ratings with constant power draw regardless of load, while VFD phase converters achieve 95-98% efficiency at full load and offer proportional energy consumption through variable frequency operation. For solar pumping applications, this efficiency differential directly impacts photovoltaic array sizing requirements—a 5% efficiency gain translates to 5-8% reduction in solar panel costs, often exceeding the initial hardware price differential.

Energy ROI Calculations for Solar Pumping Integration

The financial justification for VFD phase converters becomes compelling when analyzing energy recovery in solar-powered water systems. Unlike static phase conversion, VFDs enable Maximum Power Point Tracking (MPPT) integration, optimizing the DC-to-AC conversion for photovoltaic inputs.

Payback Period Analysis:
In a typical 15kW agricultural pumping system operating 1,800 hours annually:
* Rotary Phase Converter: Fixed consumption of 16.5kW (accounting for 90% efficiency), generating 29,700 kWh annual consumption
* VFD Phase Converter: Variable consumption averaging 12.8kW (accounting for 95% efficiency and 30% speed reduction via affinity laws), generating 23,040 kWh annual consumption

At an average industrial electricity rate of $0.12/kWh, the VFD solution yields $799 annual savings. With wholesale procurement costs of $2,700 for a 15kV solar pump VFD versus $2,200 for a rotary converter, the incremental $500 investment achieves payback within 7.5 months. When factoring in solar generation offsets (avoided grid costs), the ROI period extends to 18-24 months for off-grid installations.

Affinity Law Advantages: Centrifugal pumps operating at 80% speed through VFD control consume approximately 51% of full-load energy (following the cubic relationship: Power ∝ Speed³). Rotary phase converters cannot exploit this relationship, as they maintain constant frequency output. In variable-flow irrigation or industrial process control, this fundamental operational difference generates 40-60% energy savings over rotary alternatives, justifying the higher wholesale acquisition cost within the first operational year.

Warranty Cost Structures and Risk Mitigation

Warranty economics represent a critical component of wholesale procurement decisions. Standard VFD phase converters typically carry 18-24 month manufacturer warranties, while premium solar pump inverters (which incorporate phase conversion capabilities) often extend to 36-60 months with tiered coverage:

• Years 1-2: Full parts and labor replacement coverage (wholesale cost equivalent to 8-12% of unit price)
• Years 3-5: Limited hardware replacement, excluding capacitors and fans (extended warranty wholesale pricing: 3-5% of unit cost annually)

For EPC contractors, the warranty cost analysis must balance premium expenditures against failure risk. Rotary phase converters, with their mechanical rotors and bearings, exhibit higher mean time between failures (MTBF) of 15,000-20,000 hours in dusty agricultural environments, necessitating maintenance costs of $200-$400 per unit over a five-year lifecycle. VFD phase converters, utilizing solid-state electronics with IP65-rated enclosures, achieve 50,000+ hour MTBF with minimal maintenance, effectively neutralizing the initial wholesale price premium through reduced service dispatch costs.

Strategic Procurement Recommendation: Distributors and project managers should negotiate bundled warranty packages at the wholesale level, particularly for solar pumping VFDs that operate in high-temperature, high-humidity environments. A 2% increase in wholesale unit cost for extended thermal protection coverage typically yields 15-20% reduction in total warranty claim exposure over the product lifecycle.

For large-scale agricultural projects or industrial automation deployments, the wholesale transition from rotary to VFD phase conversion represents not merely a technological upgrade, but a financial optimization strategy where energy savings, reduced solar infrastructure requirements, and extended operational lifespans deliver superior project IRR (Internal Rate of Return) despite higher initial procurement costs.

Alternatives Comparison: Is Variable Frequency Drive Phase Converter the Best Choice?

Selecting the optimal power conversion and motor control architecture requires evaluating not just the immediate phase conversion requirement, but the total operational ecosystem—including energy source, motor technology, and load characteristics. For industrial engineers and EPC contractors designing agricultural irrigation systems or factory automation, the choice between a Variable Frequency Drive (VFD) acting as a phase converter versus standalone alternatives involves trade-offs in efficiency, capital expenditure, and operational flexibility.

VFD vs. Traditional Phase Converters: Beyond Basic Conversion

While both VFDs and dedicated phase converters bridge single-phase utility infrastructure to three-phase motor requirements, their operational philosophies diverge significantly. Rotary and digital phase converters function as static power infrastructure—generating a third phase to create balanced three-phase power, but maintaining fixed frequency output (typically 50/60 Hz). This limits motor operation to essentially constant speed, absent mechanical pulley systems or gearbox adjustments.

In contrast, a VFD-based phase conversion leverages rectification and IGBT-based inversion to not only synthesize three-phase power from single-phase input, but to provide variable voltage/frequency (V/Hz) control. For agricultural project managers deploying solar pump systems, this distinction is critical: a phase converter enables a pump to run, but a VFD enables optimization—matching pump curves to dynamic head requirements and solar irradiance levels.

Key Differentiator: Phase converters excel in multi-machine shops where several three-phase motors must run simultaneously from single-phase grid supply, offering robust sinusoidal output. VFDs are superior for single-machine applications requiring speed modulation, energy recovery, or soft-start capabilities to reduce mechanical stress and inrush current (typically 300-400% reduction compared to across-the-line starting).

VFD vs. Soft Starter: The Motor Starting Economics

For fixed-speed applications, soft starters present an alternative to VFDs for mitigating inrush current. Soft starters utilize thyristor-based phase angle control to ramp voltage during motor acceleration, limiting starting current to 200-300% of full load current versus 600-800% for direct-on-line (DOL) starting.

However, the comparison ends at startup. Soft starters provide no operational energy savings during steady-state operation and cannot vary motor speed. In pumping applications with varying head pressure or flow requirements, a soft starter forces operators to use throttling valves—wasting energy as hydraulic losses. A VFD, conversely, modulates pump speed to match system curves, delivering energy savings of 30-50% in variable torque applications according to affinity laws (where power varies with the cube of speed).

Selection Criterion: Choose soft starters only for high-inertia, fixed-speed loads (e.g., large fans, compressors) where the motor runs at full speed 95%+ of the time. For any application with load variability—including irrigation zones with changing elevation or industrial processes with varying throughput—VFDs provide superior lifecycle economics despite higher initial component costs.

Solar-Powered VFD Systems vs. Grid-Dependent Phase Conversion

For remote agricultural installations and off-grid industrial sites, the energy source comparison becomes as important as the conversion technology. Traditional phase converters require stable grid voltage and cannot accept DC input from photovoltaic arrays. Solar pump inverters (specialized VFDs with MPPT algorithms) directly accept high-voltage DC from solar arrays, eliminating the need for grid infrastructure entirely.

Grid-Tied Phase Converter Approach:
– Requires utility connection or diesel generator
– Fixed operational costs (fuel/electricity)
– Suitable for high-power continuous industrial loads
– Limited to grid-available locations

Solar VFD Approach:
– Direct DC-to-AC conversion with maximum power point tracking (MPPT)
– Zero fuel costs; minimal maintenance (no batteries required for daytime pumping)
– Modular scalability for agricultural projects from 0.5kW to 75kW+
– Requires solar irradiance; storage needed for 24/7 operation

For EPC contractors evaluating total project ROI, solar VFDs eliminate trenching costs for grid extension (often $10,000-$50,000 per kilometer in remote terrain) and provide 15-25 year operational lifespans with minimal degradation.

Motor Technology Integration: PMSM vs. IM Control Strategies

When deploying VFDs for phase conversion and speed control, motor selection significantly impacts system efficiency. Induction Motors (IM) represent the traditional standard—rugged, inexpensive, and compatible with standard VFD output. However, Permanent Magnet Synchronous Motors (PMSM) offer distinct advantages when paired with vector-control VFDs:

Induction Motor (IM) with VFD:
– Standard squirrel-cage design
– Higher heat generation at low speeds (requires derating or external cooling)
– Efficiency typically IE2-IE3 (85-92%)
– Lower capital cost; global parts availability

Permanent Magnet Synchronous Motor (PMSM) with VFD:
– Requires sensorless vector or encoder feedback VFD control
– Maintains high efficiency (>IE4/IE5, 93-96%) across wide speed range
– Higher power density (smaller frame size for equivalent kW)
– Critical for solar pumping where every watt of PV generation counts

Integration Note: Standard VFDs configured for phase conversion typically assume induction motor loads. PMSM applications require drives with specific motor control algorithms (sensorless vector control, rotor position estimation). Boray Inverter’s solar pump VFDs, for example, integrate pre-configured control modes for both IM and PMSM architectures, allowing agricultural engineers to optimize for either initial cost (IM) or long-term energy harvest (PMSM).

Comparative Analysis Matrix

Technology	Primary Function	Speed Control	Energy Efficiency	Initial Cost	Best Application
VFD (Phase Converting)	1φ→3φ conversion + V/Hz control	0-400 Hz variable	High (30-60% savings vs. fixed speed)	Medium-High	Single motor, variable load; solar pumping; precision control
Rotary Phase Converter	1φ→3φ conversion only	Fixed (60/50 Hz)	Baseline (no savings)	Medium	Multi-machine shops; fixed-speed legacy equipment
Digital Phase Converter	1φ→3φ with active balancing	Fixed	Baseline	High	Sensitive CNC/PLC equipment requiring clean power
Soft Starter	Reduced voltage starting	Fixed (bypassed after start)	Low (throttling losses)	Low	High-inertia fixed-speed loads; limited starting current infrastructure
Solar VFD (DC Input)	DC→3φ AC with MPPT	Variable	Very High (optimizes PV output)	Medium-High	Off-grid irrigation; remote dewatering; livestock watering
VFD + PMSM	Precision torque/speed control	Variable (high dynamic response)	Premium (IE4/IE5)	High	High-duty cycle pumps; energy-critical solar applications

Strategic Selection Framework

Choose VFD Phase Conversion when:
– The application requires speed variation (flow/pressure control in pumping, conveyor speed matching)
– Single-phase supply must power a three-phase motor without utility upgrade costs
– Energy efficiency targets mandate reduced consumption (payback typically 12-24 months in variable torque applications)
– Soft-starting is required to protect mechanical couplings or avoid voltage sag in weak grid infrastructure

Choose Alternative Phase Converters when:
– Powering multiple three-phase machines simultaneously from a single-phase source
– The installation requires true sinusoidal power for sensitive electronics (though modern VFDs with active front ends can match this)
– Capital constraints prohibit VFD procurement and speed control provides no operational benefit

Choose Solar VFD over Grid when:
– Grid extension costs exceed $0.50 per watt of installed solar capacity
– Diesel generator operational costs exceed $0.15/kWh (typical solar LCOE: $0.03-0.08/kWh)
– Daytime-only operation aligns with load requirements (irrigation, daylight industrial processes)

For EPC contractors and automation distributors, the convergence of phase conversion, motor control, and renewable integration makes modern VFDs—particularly solar-optimized variants—the default specification for new agricultural and remote industrial projects, while traditional phase converters remain relevant for legacy fixed-speed machinery retrofits in established facilities.

Core Technical Specifications and Control Terms for Variable Frequency Drive Phase Converter

When specifying Variable Frequency Drive (VFD) phase converters for industrial motor control and solar pumping applications, understanding the intersection of electrical parameters, control algorithms, and commercial frameworks is critical for system integration and project procurement. Unlike static phase converters that merely transform single-phase to three-phase power, modern VFDs function as intelligent power conversion systems that combine phase conversion with precise motor control, energy optimization, and grid interaction capabilities.

Electrical Specifications and Performance Parameters

Input/Output Configuration and Voltage Ranges
VFD phase converters must accommodate varying grid conditions while delivering stable three-phase output. Key specifications include:
– Input Phase Tolerance: Single-phase 220V ±15% or 230V ±10% (residential/agricultural grids) with automatic voltage regulation (AVR)
– Output Characteristics: Three-phase 220V/380V/460V selectable, with carrier frequencies adjustable between 2–16 kHz to reduce motor noise and heating
– Power Derating Curves: Critical for agricultural applications where ambient temperatures exceed 40°C; typically 1% derating per degree above 50°C
– Overload Capacity: 150% rated current for 60 seconds (heavy-duty mode) vs. 120% for 60 seconds (light-duty), essential for pump starting torque requirements

Protection and Environmental Ratings
For outdoor solar pumping installations and harsh industrial environments:
– Ingress Protection: IP65 enclosures for solar pump inverters exposed to dust and irrigation spray; IP20 for controlled cabinet installations
– EMC Compliance: Category C2 (industrial) or C3 (heavy industrial) filters to prevent interference with precision agricultural sensors
– DC Bus Voltage Management: For solar-compatible VFDs, input voltage ranges spanning 200VDC–800VDC with reverse polarity protection

Advanced Control Algorithms

Maximum Power Point Tracking (MPPT)
In solar pumping applications, MPPT algorithms optimize the DC input from photovoltaic arrays to maximize water flow efficiency. Advanced VFDs employ perturb-and-observe or incremental conductance methods with tracking efficiencies exceeding 99%, ensuring pumps operate at optimal power points even during partial shading conditions. This is distinct from standard phase converters, which lack DC input capability and cannot interface directly with solar arrays.

Vector Control (Field-Oriented Control)
Modern VFD phase converters utilize sensorless vector control to achieve dynamic torque response (typically <50ms) without requiring encoder feedback. This technology:
– Maintains constant torque across the speed range (2:1 to 100:1 speed range without derating)
– Provides 0.5Hz high starting torque (150–180% rated torque) for deep-well submersible pumps
– Enables precise speed regulation (±0.5% accuracy) for multi-pump cascade systems in irrigation projects

PID Process Control
Integrated PID controllers eliminate the need for external PLCs in closed-loop systems:
– Pressure Control: Maintains constant water pressure in variable flow applications by adjusting pump speed based on pressure transducer feedback
– Level Control: For tank filling operations with 4–20mA or 0–10V sensor inputs
– Sleep/Wake Functionality: Automatically stops the pump at low demand (sleep mode) and restarts when pressure drops below setpoints, preventing water hammer and reducing energy consumption by 30–50% compared to phase converter + throttle valve configurations

Commercial and Logistics Frameworks

Incoterms and Risk Transfer
For international EPC contracts and distributor procurement:
– FOB (Free On Board): Buyer assumes risk once goods pass the ship’s rail at the port of origin. Preferred by established importers with existing freight forwarding relationships and marine insurance policies.
– CIF (Cost, Insurance, Freight): Seller responsible for costs and risks until the destination port. Critical for agricultural project managers in landlocked regions where port handling complexity requires seller expertise.
– EXW (Ex Works): Minimum obligation for the seller; buyer handles export clearance and transport. Suitable for distributors with consolidation warehouses in China.

Technical Documentation and Compliance Packages
B2B procurement requires comprehensive documentation beyond basic specifications:
– Type Test Certificates: IEC 61800-2 (adjustable speed electrical power drive systems) compliance for grid-connected installations
– Solar Certifications: CE marking for European projects, UL 1741 for North American grid-tie applications
– Customs Harmonization: HS Code 8504.40 (static converters) classification for accurate duty calculation

Warranty and Service Level Agreements
Industrial VFD phase converters typically carry:
– Standard Warranty: 18–24 months from commissioning date or 24–36 months from manufacturing date
– Extended Coverage: Available for solar pumping installations in remote locations, including firmware update provisions and spare parts availability guarantees (10-year commitment for critical agricultural infrastructure)
– Technical Support: Remote diagnostics capability via RS485/Modbus RTU or optional GPRS/WiFi modules for predictive maintenance in unmanned pumping stations

Minimum Order Quantities and Customization
For OEM distributors and large EPC contractors:
– MOQ Flexibility: Standard models typically require 1-unit minimum for established distributors, with 50–100 unit thresholds for custom firmware (e.g., specific pump curves or regional language interfaces)
– Private Label Options: IP65 enclosures with custom branding and documentation for solar pump integrators
– Voltage/Frequency Customization: 50Hz/60Hz dual-rated units for international projects requiring equipment standardization across multiple regions

Understanding these specifications enables engineers to distinguish between basic phase conversion equipment and intelligent VFD systems capable of optimizing energy consumption, protecting motor assets, and integrating with modern IoT-based agricultural management systems.

Future Trends in the Variable Frequency Drive Phase Converter Sector

The boundary between traditional phase conversion and variable frequency drive (VFD) technology is rapidly dissolving as Industry 4.0 imperatives and global decarbonization initiatives reshape industrial power infrastructure. Rather than operating as discrete solutions—where phase converters merely generate three-phase power and VFDs solely manage motor speed—next-generation systems are converging into intelligent energy management platforms. These integrated solutions optimize power quality, grid stability, and operational efficiency across diverse applications, from precision agriculture in remote off-grid locations to heavy manufacturing facilities requiring robust phase balancing. For EPC contractors and automation distributors, this evolution represents a fundamental shift from selling standalone hardware to delivering comprehensive power ecosystems that bridge legacy single-phase infrastructure with modern three-phase automation requirements.

Convergence of Phase Conversion and Variable Frequency Control

The traditional dichotomy between rotary phase converters and VFDs—where the former handled large multi-machine loads and the latter managed single-motor variable speed applications—is giving way to hybrid architectures. Advanced digital phase converters now incorporate inverter-grade silicon carbide (SiC) and insulated-gate bipolar transistor (IGBT) technologies derived from VFD design, enabling simultaneous phase generation and frequency modulation within a single enclosure.

This convergence is particularly critical for agricultural project managers deploying solar pumping systems in regions with unreliable three-phase grid access. Modern solar pump inverters—functionally advanced VFDs with maximum power point tracking (MPPT)—are increasingly engineered to operate as bidirectional power converters. These systems not only transform DC solar input into variable-frequency three-phase AC for submersible pumps but can also function as static phase converters, supplying utility-grade three-phase power to auxiliary equipment when irrigation demands decrease. For industrial engineers, this eliminates the capital expense of installing separate rotary converters while providing the soft-start capabilities and harmonic filtering that protect sensitive CNC machinery and conveyor systems.

Renewable Energy Integration and DC Microgrids

The integration of variable frequency drive phase converter technology with distributed energy resources (DERs) represents the most significant architectural shift in the sector. As solar PV and battery storage costs decline, EPC contractors are specifying VFD-based phase conversion systems capable of DC bus coupling—directly interfacing with 600V–1500V DC renewable sources without intermediate AC conversion stages.

This topology offers distinct advantages for remote industrial sites:
– Elimination of inverter redundancy: Solar pump inverters with phase conversion capabilities can draw from PV arrays during daylight hours and seamlessly switch to single-phase grid input (via internal rectification) during low-irradiance periods, maintaining continuous three-phase output for critical loads.
– Regenerative power sharing: Advanced active front-end (AFE) VFDs now enable phase converter systems to return excess braking energy or surplus solar generation back to the grid or storage batteries, rather than dissipating it as heat through braking resistors.
– Hybrid AC/DC power distribution: New motor control solutions are emerging that supply variable-frequency three-phase power to traditional induction motors while simultaneously providing 48V DC bus power for IoT sensors and automation controls, reducing installation complexity for smart farming and industrial IoT deployments.

For agricultural applications specifically, the trend toward solar-powered phase conversion is accelerating the adoption of high-efficiency permanent magnet synchronous motors (PMSMs) and synchronous reluctance motors (SynRMs). These motor technologies, when paired with sensorless vector control VFDs, achieve IE5 efficiency ratings—critical for off-grid installations where every watt of solar capacity must be optimized.

IoT-Enabled Predictive Maintenance and Edge Analytics

The proliferation of Industry 4.0 connectivity is transforming VFD phase converter systems from passive power equipment into data-rich nodes within the industrial internet of things (IIoT). Modern drives are embedding edge computing capabilities that analyze phase balance, voltage total harmonic distortion (THD), and motor bearing condition in real-time—functionality previously requiring external power quality analyzers.

Key innovations driving this transformation include:
– Cloud-based phase monitoring: Cellular and LoRaWAN-enabled VFDs now transmit phase angle data, load imbalance alerts, and predictive failure warnings to centralized SCADA systems. For distributors managing fleets of agricultural pumping installations, this enables proactive maintenance scheduling before phase imbalance triggers catastrophic motor failure.
– Digital twin integration: Advanced motor control platforms are utilizing physics-based modeling to create digital replicas of phase converter and VFD installations. These twins simulate the impact of varying single-phase input voltage sags on three-phase output quality, allowing engineers to optimize capacitor bank configurations and filter settings virtually before physical deployment.
– Cybersecurity hardening: As phase conversion systems become networked, manufacturers are implementing IEC 62443-compliant security protocols, including encrypted firmware updates and certificate-based authentication—essential for critical infrastructure projects where grid-forming phase converters represent a potential attack vector.

Implications for System Specification and Procurement

For automation distributors and EPC contractors, these trends necessitate a reassessment of procurement criteria. The market is moving away from specifying phase converters and VFDs as separate line items toward integrated Power Conditioning and Motor Control (PCMC) units that combine phase generation, variable frequency operation, and energy monitoring in NEMA 4X or IP65-rated enclosures suitable for harsh agricultural and industrial environments.

Furthermore, the emergence of modular multilevel converter (MMC) topologies in medium-voltage applications suggests that future phase conversion for large-scale irrigation projects and industrial plants will utilize cascaded H-bridge configurations, offering near-sinusoidal output waveforms without output filters—eliminating the voltage stress and bearing current issues that plague traditional VFD-phase converter combinations.

As grid codes worldwide tighten requirements for power factor correction and harmonic mitigation, the next generation of VFD phase converter systems will necessarily incorporate active filter capabilities and smart grid synchronization features. This positions the technology not merely as a workaround for single-phase infrastructure limitations, but as a critical enabler of the flexible, renewable-powered industrial networks essential to achieving global net-zero manufacturing and sustainable agriculture targets.

Top 4 Variable Frequency Drive Phase Converter Manufacturers & Suppliers List

B2B Engineering FAQs About Variable Frequency Drive Phase Converter

1. Q: Can a Variable Frequency Drive effectively replace a rotary phase converter when powering three-phase irrigation pumps from single-phase rural grids, and what are the operational trade-offs?
   A: Yes, but with critical caveats. A VFD rectifies single-phase AC to DC, then inverts it to variable-frequency three-phase AC, enabling soft-start and flow control unavailable in rotary converters. However, single-phase input requires 50–100% current derating of the VFD’s rated capacity due to increased RMS current on the input diodes. Unlike rotary converters that generate a true three-phase bus capable of powering multiple motors simultaneously, VFDs are designed for dedicated single-motor control with strict V/Hz ratio requirements; attempting to run multiple motors from one VFD results in circulating currents and protection faults.

2. Q: What harmonic mitigation strategies are essential when deploying VFDs as phase converters in agricultural microgrids with sensitive telemetry equipment?
   A: VFDs utilizing PWM switching introduce high-order harmonics (particularly 5th, 7th, and 11th) that can interfere with SCADA and sensor networks. Engineers should specify 3–5% impedance line reactors or DC bus chokes to reduce THDi (Total Harmonic Current Distortion) below 5%, or deploy active front end (AFE) VFDs for regenerative applications. For compliance with IEEE 519 or EN 61000-3-6 in mixed-load environments, additional sine-wave filters may be required at the VFD output, whereas rotary phase converters typically only require passive balancing and present lower EMI concerns.

3. Q: How does input voltage sag immunity differ between standalone phase converters and VFD-based solutions in solar pumping applications with intermittent PV generation?
   A: Solar pump VFDs (PV inverters) accept wide DC input ranges (typically 200–800VDC) and employ Maximum Power Point Tracking (MPPT) algorithms to maintain operation during irradiance fluctuations. AC-input VFDs used as phase converters generally tolerate ±15% voltage sag before undervoltage faults occur. Rotary phase converters suffer immediate torque degradation and current imbalance during voltage sags. For critical irrigation infrastructure, VFDs with active boost PFC stages offer superior ride-through (up to 30% sag for 3 seconds) compared to passive rotary systems, ensuring continuous operation during grid instability.

4. Q: When converting single-phase 230V to three-phase 400V for European-standard motors using a VFD, what considerations apply regarding DC bus capacitance and semiconductor stress?
   A: Single-phase input eliminates the 120° phase offset, requiring the VFD’s DC bus capacitors to handle double-line-frequency ripple (100Hz/120Hz), necessitating 2.0–2.5x the capacitance value compared to three-phase input configurations. Engineers must verify that the VFD’s DC bus voltage rating exceeds √2 × VAC_input × 1.2 (safety margin for regenerative conditions). For 400V motor operation from 230V single-phase supply, a step-up transformer or boost-stage VFD topology is mandatory, as standard V/Hz programming cannot overcome the 42% voltage deficit without inducing magnetic saturation and torque loss in the motor.

5. Q: Can agricultural operations run multiple three-phase submersible pumps from a single high-capacity VFD configured as a phase converter?
   A: No—this configuration violates fundamental VFD design principles. VFDs rely on motor impedance matching and closed-loop vector control (or V/Hz open-loop) calibrated for a specific motor’s parameters. Running multiple pumps creates circulating currents between motors, impedance mismatches, and nullifies electronic motor protection (thermal overload, phase loss detection). For multi-pump installations, specify a rotary or digital phase converter to establish a true three-phase distribution bus, then install individual VFDs downstream for each pump if variable speed is required, ensuring proper coordination between the phase generation and motor control layers.

6. Q: What are the specific thermal management requirements for VFDs operating as phase converters in NEMA 3R/4 outdoor enclosures compared to rotary phase converters?
   A: VFDs concentrate heat loss (typically 2–4% of throughput) in IGBT modules, requiring aluminum heatsinks with forced-air cooling or natural convection tunnels. Single-phase input operation increases RMS input current by √3, exacerbating thermal stress on input rectifiers and DC bus capacitors. Rotary converters dissipate heat through rotating mass and broad surface area. For solar pump installations in ambient temperatures exceeding 40°C, specify VFDs with conformal-coated PCBs, IP65-rated heatsink tunnels, and automatic derating curves—thermal management specifications that exceed standard rotary phase converter requirements but are essential for semiconductor longevity.

7. Q: How do MPPT-enabled solar pump VFDs differ electrically from standard grid-tied VFDs when used for phase conversion in hybrid AC/DC pumping systems?
   A: Solar pump VFDs incorporate DC-DC boost converters and MPPT algorithms (99% tracking efficiency) to optimize power extraction from PV arrays (250–750VDC range) before DC-AC inversion. Standard industrial VFDs lack MPPT hardware and require stable AC input (single or three-phase). In hybrid configurations, solar VFDs can accept AC input through an active rectifier, but this bypasses MPPT functionality and reduces system efficiency by 15–25%. Critical specification point: ensure the VFD’s maximum DC input voltage (Voc_max) exceeds open-circuit PV voltage at lowest ambient temperature (typically -10°C coefficient adjustment) while maintaining Vmp_min above the VFD’s undervoltage threshold during cloud transients.

8. Q: From a power quality and TCO perspective, why might EPC contractors prefer VFD-based phase conversion over rotary solutions for precision agriculture with VFD-controlled center pivots?
   A: Rotary phase converters introduce voltage imbalance (typically 2–5%) and mechanical vibration that stress variable-frequency drives downstream, potentially causing nuisance tripping in modern center pivot control panels. VFDs providing direct phase conversion deliver electronically balanced three-phase output with <1% voltage imbalance and integrated power quality monitoring. Furthermore, VFDs offer regenerative deceleration, sleep mode functionality for low-flow periods, and direct Modbus/RS485 integration with soil moisture sensors—capabilities impossible with rotary phase conversion. While rotary systems offer lower initial CAPEX, VFD solutions reduce OPEX through 30–50% energy savings (variable flow vs. throttling) and elimination of rotary bearing maintenance, delivering favorable ROI within 18–24 months for high-usage irrigation projects.

Disclaimer

Conclusion: Partnering with Boray Inverter for Variable Frequency Drive Phase Converter

Selecting the optimal power conversion architecture—whether deploying a dedicated phase converter for robust multi-machine operation or implementing a sophisticated Variable Frequency Drive for precision motor control coupled with single-to-three-phase conversion—requires rigorous analysis of load characteristics, operational flexibility, and long-term energy efficiency targets. As industrial automation and agricultural irrigation systems evolve toward greater electrification and renewable integration, the distinction between basic phase conversion and intelligent, variable-frequency motor control becomes critical to operational success and total cost of ownership.

This is where Shenzhen Boray Technology Co., Ltd. emerges as your strategic partner in advanced motor control and solar pumping solutions. Unlike generic equipment suppliers, Boray Inverter integrates deep electrical engineering expertise with manufacturing excellence to deliver customized VFD and integrated phase conversion solutions engineered specifically for demanding applications in modern irrigation, industrial automation, and heavy-duty agricultural machinery. With an R&D team comprising 50% of our workforce, we have mastered advanced PMSM (Permanent Magnet Synchronous Motor) and IM (Induction Motor) vector control technologies, ensuring precise torque management, superior speed regulation, and maximum energy harvesting efficiency across diverse operational scenarios.

Our commitment to manufacturing excellence is demonstrated through two modern production lines and rigorous 100% full-load testing protocols, guaranteeing that every unit meets stringent international standards for reliability in harsh agricultural and industrial environments. From off-grid solar pumping installations in remote fields to sophisticated factory automation lines, Boray’s solutions have earned the trust of EPC contractors, system integrators, and agricultural project managers worldwide.

We invite electrical engineers, procurement specialists, and automation distributors to leverage our technical expertise for your next deployment. Contact Boray Inverter today at borayinverter.com to discuss your specific variable frequency drive phase converter requirements, request detailed technical specifications, or obtain competitive wholesale quotes for bulk procurement. Let our engineering team design the precise power conversion solution that drives your operational efficiency and project profitability forward.
