Introduction: Sourcing Hybrid Inverter With Solar Battery Charging for Industrial Use

Industrial facilities and agricultural operations face mounting pressure to decouple from volatile grid tariffs while maintaining uninterrupted power for critical motor loads and pumping systems. As solar photovoltaic (PV) generation becomes standard for peak shaving and energy cost reduction, the integration of battery energy storage systems (BESS) has emerged as the critical differentiator for 24/7 operational resilience. At the intersection of these technologies stands the hybrid inverter with solar battery charging—a sophisticated power conversion system (PCS) that unifies solar harvesting, intelligent battery management, and seamless grid interaction into a single industrial-grade platform.

Unlike conventional solar-only inverters or standalone battery chargers, modern hybrid inverters leverage advanced Maximum Power Point Tracking (MPPT) algorithms and multi-stage charging profiles to optimize energy flow between PV arrays, lithium-ion storage banks, and high-inertia loads such as irrigation pumps and HVAC systems driven by Variable Frequency Drives (VFDs). This convergence is particularly vital for EPC contractors and automation distributors specifying equipment for remote agricultural sites or manufacturing facilities where grid instability threatens production continuity.

This comprehensive guide examines the industrial sourcing landscape for hybrid inverter systems, dissecting the technical architectures that distinguish AC-coupled from DC-coupled topologies, critical specifications including conversion efficiency, harmonic distortion, and VFD compatibility, and rigorous manufacturer evaluation criteria spanning certification standards, OEM customization capabilities, and lifecycle support. Whether retrofitting existing solar pump installations or designing new commercial & industrial (C&I) microgrids, the following sections provide the engineering intelligence necessary to specify robust, scalable energy storage solutions that align with your operational reliability targets.

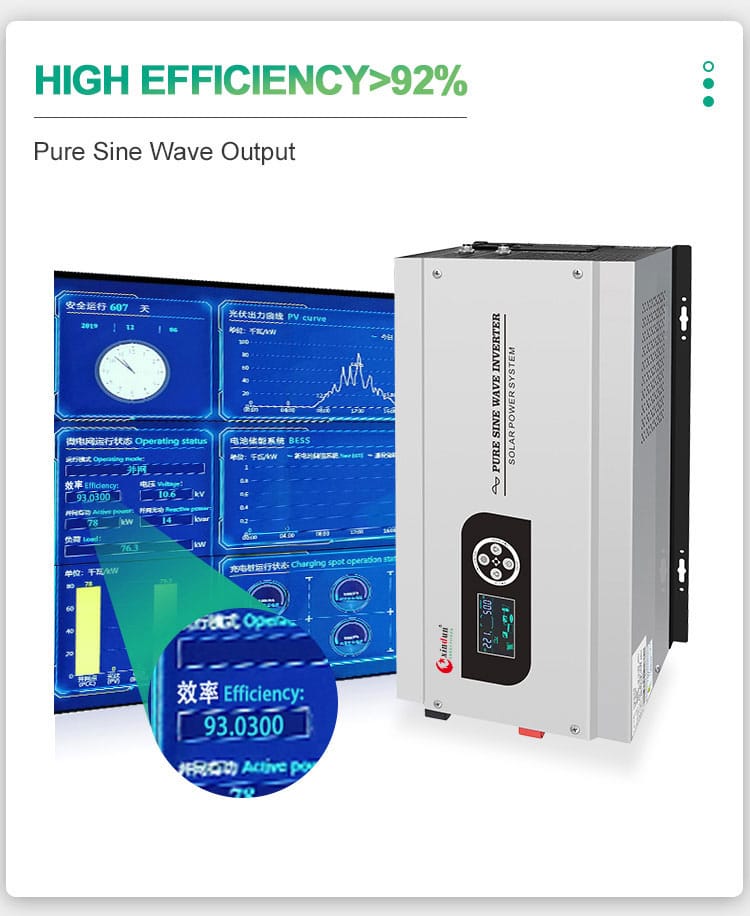

Technical Types and Variations of Hybrid Inverter With Solar Battery Charging

Hybrid inverters with solar battery charging vary significantly in their electrical architecture, coupling methodology, and integration capabilities with industrial loads. For B2B stakeholders—ranging from EPC contractors designing multi-MW installations to agricultural engineers specifying solar pumping systems—selecting the appropriate topology is critical for optimizing round-trip efficiency, ensuring grid compliance, and managing motor control compatibility. Below is a technical classification of the primary hybrid inverter configurations deployed in industrial and commercial environments.

Type	Technical Features	Best for (Industry)	Pros & Cons
DC-Coupled Centralized Hybrid Inverters	• Direct PV string input (600V–1500V DC) • Integrated MPPT (Multi-MPPT tracking) • Bidirectional DC/AC conversion with battery direct-connect • Centralized battery management system (BMS) communication	New C&I installations, Utility-scale solar farms, Heavy manufacturing facilities requiring peak shaving	Pros: Higher efficiency (95–98%) due to single conversion stage; lower component count; optimal for large PV arrays. Cons: Requires high-voltage battery banks (400V–800V); limited flexibility for retrofitting existing AC-coupled systems; single point of failure in centralized architecture.
AC-Coupled Retrofit Hybrid Inverters	• Grid-interactive AC input (existing solar inverter output) • Battery charging via AC coupling (rectification stage) • Frequency-watt control for legacy system integration • Smart export control and zero-export capability	Existing rooftop solar installations, Warehouse retrofits, Facilities upgrading to energy storage without replacing PV infrastructure	Pros: Non-invasive integration with existing string inverters; independent MPPT operation from existing arrays; flexible battery placement. Cons: Lower round-trip efficiency (90–93%) due to dual conversion (DC→AC→DC); requires compatible frequency response settings; potential power factor conflicts with inductive motor loads.
Solar Pumping Hybrid Inverters with Integrated VFD	• Dual-mode operation: Direct solar VFD drive + Battery backup mode • MPPT-optimized for pump motor curves (centrifugal/submersible) • Soft-start algorithms reducing inrush current (up to 60% reduction) • Automatic grid/battery switchover for 24/7 irrigation	Agricultural irrigation, Remote water supply systems, Industrial process cooling with intermittent solar resource	Pros: Eliminates separate pump controller; maintains water flow during cloud transients via battery buffer; optimized torque control for submersible pumps. Cons: Limited to specific motor HP ranges; requires careful harmonic filtering to prevent battery heating; higher upfront capital cost than standalone pump inverters.
High-Voltage Modular Hybrid Inverters (1500V DC Class)	• Containerized architecture (250kW–1500kW+ blocks) • 1500V DC input / 800V AC output configuration • Advanced grid-forming capabilities (black start, synthetic inertia) • Liquid cooling systems for high ambient temperatures (>45°C)	Large-scale C&I microgrids, Mining operations, Data centers requiring MW-level backup power	Pros: Reduced DC cabling costs (lower current at high voltage); scalable N+1 redundancy; superior fault ride-through (FRT) capabilities. Cons: Specialized high-voltage battery chemistry required (typically LFP or NMC at 1000V+); complex arc-flash safety protocols; requires certified high-voltage technicians for maintenance.
All-in-One Integrated Hybrid Inverters (ESS)	• Pre-wired battery + inverter + BMS + cooling in single enclosure • Plug-and-play communication (CAN/RS485/Ethernet) • Integrated EMS (Energy Management System) with load prioritization • IP65+ rating for outdoor installation without external enclosures	Commercial buildings with limited electrical room space, Telecommunication towers, Remote industrial outposts	Pros: Rapid deployment (reduced commissioning time by 40–60%); factory-tested compatibility; minimal civil works required. Cons: Vendor lock-in on battery chemistry; limited thermal management flexibility; challenging to service individual components without system shutdown.

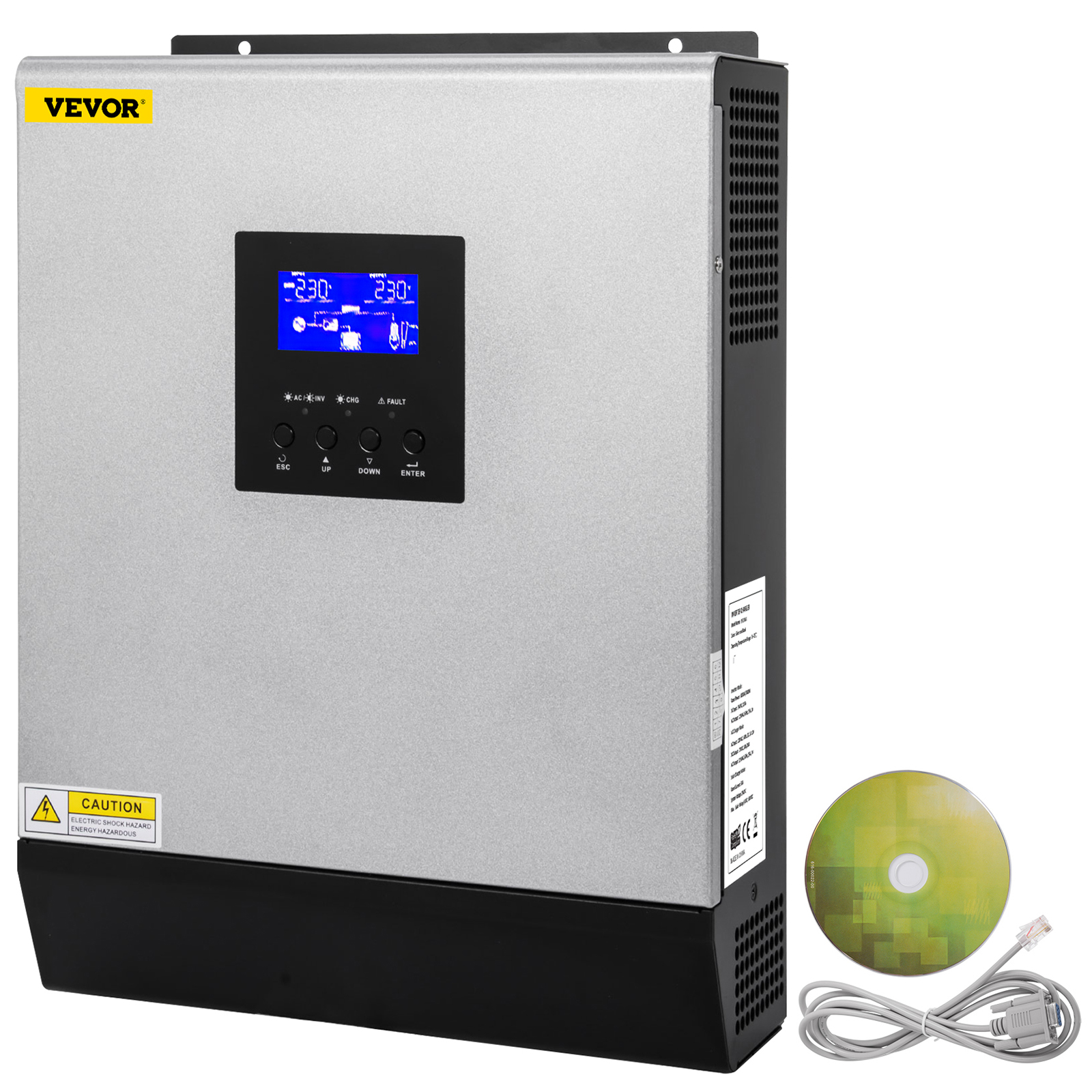

Detailed Technical Analysis

DC-Coupled Centralized Hybrid Inverters
These systems represent the most efficient pathway for new industrial installations where the solar array and storage are co-located. By connecting photovoltaic strings directly to the inverter’s DC bus (bypassing the need for separate charge controllers), these units minimize conversion losses. For EPC contractors, the critical specification lies in the MPPT voltage window—ensuring compatibility with both the PV array’s Voc (open-circuit voltage) and the battery’s nominal voltage. Advanced units feature IV curve scanning to detect shading or soiling losses, automatically adjusting the DC/DC conversion ratio to maintain optimal battery charging currents (C-rates). When paired with motor control applications, these inverters must provide sufficient reactive power capability (typically 0.8 leading to 0.8 lagging power factor) to support the inductive loads of VFD-driven pumps and compressors without overloading the battery inverter section.

AC-Coupled Retrofit Hybrid Inverters
Engineered for facilities with existing grid-tie solar infrastructure, these inverters function as grid-interactive battery inverters that capture excess AC generation from existing string inverters. The technical challenge involves frequency-shift power control (FSPC) or droop control to throttle the existing solar inverters when batteries reach full charge. For industrial engineers, the key consideration is harmonic distortion management—since the retrofit inverter must rectify AC to charge batteries, total harmonic distortion (THD) can exceed 5% if not properly filtered, potentially causing heating in transformer windings or interference with sensitive automation equipment. These systems excel in agricultural applications where farmers seek to add storage to existing irrigation solar arrays without disrupting current operations.

Solar Pumping Hybrid Inverters with Integrated VFD
This specialized category bridges Boray Inverter’s core competency in motor control with energy storage integration. Unlike standard hybrid inverters, these units incorporate variable frequency drive algorithms specifically tuned for pump load curves. During solar-only operation, the inverter tracks the PV array’s maximum power point while maintaining the pump’s optimal efficiency curve (typically following the affinity laws: flow proportional to speed, head proportional to speed squared). When solar irradiance drops below the motor’s minimum operating threshold, the system seamlessly switches to battery power without stopping the motor—critical for preventing water hammer in pipeline systems. The integration eliminates the need for separate motor starters and reduces inrush currents by up to 60% through controlled voltage ramping, extending battery life by minimizing high-current discharge events.

High-Voltage Modular Hybrid Inverters
Designed for megawatt-scale industrial microgrids, these systems operate at 1500V DC (PV side) and 800V AC (battery side), significantly reducing copper losses in DC cabling compared to 1000V systems. The modular architecture allows EPC contractors to implement N+1 redundancy at the rack level, ensuring continuous operation during individual inverter module maintenance. Grid-forming capabilities are essential here—these inverters can establish voltage and frequency references (island mode) to power entire industrial facilities during grid outages, including starting large induction motors (motor starting current up to 7x FLA) using the battery’s surge capacity. Thermal management shifts from air-cooling to liquid-cooled heat exchangers, enabling operation in harsh environments (up to 60°C ambient) common in mining and desert agriculture applications.

All-in-One Integrated Hybrid Inverters (ESS)
These factory-integrated energy storage systems (ESS) address the B2B need for standardized, bankable solutions with minimal engineering overhead. The critical technical differentiator is the unified thermal management system—shared cooling between the inverter power stage and battery modules prevents thermal runaway while maintaining optimal cell temperatures (20–25°C). For automation distributors, these systems offer simplified BOM (Bill of Materials) procurement with pre-certified UL9540 or IEC62619 compliance. However, engineers must verify the switching frequency of the inverter stage (typically 16kHz for IGBT-based units) to ensure electromagnetic compatibility (EMC) with nearby industrial control systems and VFDs, particularly in plants with extensive sensor networks.

Key Industrial Applications for Hybrid Inverter With Solar Battery Charging

Hybrid inverters with integrated solar battery charging represent a paradigm shift in industrial power architecture, particularly when synchronized with Variable Frequency Drive (VFD) systems and solar pumping infrastructure. By decoupling critical motor loads from grid dependency while optimizing DC bus stability for VFD operations, these systems enable precise energy arbitrage and demand response across sectors with high mechanical load requirements.

Sector	Application	Energy Saving Value	Sourcing Considerations
Agricultural Irrigation	Solar Pumping with Battery Storage & VFD Control	45–70% reduction in diesel/electricity costs; enables 24/7 irrigation scheduling independent of solar irradiance curves	• MPPT voltage range (400–850VDC) compatible with pump VFD DC inputs • IP65/NEMA 4X enclosure for harsh field environments • Motor starting surge capacity (300% rated for 10s) for submersible pumps • Anti-islanding protection per IEEE 1547/UL 1741
Water Treatment & Distribution	Municipal Booster Stations & Reverse Osmosis Plants	30–50% peak demand charge reduction; seamless backup for critical filtration processes during grid instability	• Grid-forming/black-start capability for emergency pumping • Pure sine wave output (<3% THD) to prevent PLC/VFD control errors • AC coupling compatibility with existing SCADA infrastructure • Redundant cooling for continuous 24/7 operation
Industrial HVAC & Process Cooling	Hybrid-VFD Integration for Chillers & Cooling Towers	25–40% HVAC energy cost reduction via load shifting; power factor correction >0.99	• Seamless transfer time <20ms to prevent VFD undervoltage trips • Harmonic filtering (THDi <5%) to protect motor windings • Modbus RTU/TCP integration with Building Management Systems (BMS) • Four-quadrant operation for regenerative braking energy capture
Mining & Remote Operations	Off-grid Crushing, Grinding & Dewatering Systems	60–80% fuel consumption reduction; diesel generator runtime minimization for heavy mechanical loads	• Wide DC voltage range (200–1000V) for large-scale solar arrays • Ruggedized construction (-20°C to +60°C ambient) • High overload capacity (150% for 60s) for crusher mill starting • Remote diagnostics with predictive maintenance algorithms

Agricultural Irrigation: Stabilizing Solar Pumping Operations

In modern agricultural automation, hybrid inverters serve as the critical interface between photovoltaic arrays and VFD-controlled submersible or surface pumps. Unlike standard solar pump inverters that cease operation during low irradiance, hybrid configurations maintain DC bus voltage through battery buffering, allowing VFDs to operate at optimal switching frequencies regardless of solar intermittency.

Technical Implementation: The hybrid inverter’s MPPT algorithm continuously tracks maximum power point (typically 400–800VDC for medium-voltage pumps) while diverting surplus energy to lithium-ion or lead-acid storage banks. During dawn/dusk operation or transient cloud cover, the battery bank supplies the VFD’s DC link, preventing motor speed fluctuations that cause water hammer and pipeline stress. For EPC contractors, critical sourcing criteria include verifying the inverter’s surge capacity—submersible pumps often require 3–5x locked rotor current for 5–10 seconds during startup—and ensuring IP65 ingress protection for outdoor agricultural environments.

Water Treatment & Distribution: Ensuring Process Continuity

Municipal water authorities and desalination plants utilize hybrid inverters to create microgrids around high-horsepower booster pumps and reverse osmosis (RO) membrane feed pumps. These applications demand not only energy arbitrage but also UPS-grade power quality for sensitive control electronics.

Integration Architecture: The hybrid inverter operates in AC coupling mode with existing facility VFDs, providing a secondary power path that activates within 20ms of grid failure. This seamless transition prevents VFD fault codes and maintains pressure in distribution networks. From a motor control perspective, the inverter’s output waveform quality (THD <3%) is paramount—distorted power can induce bearing currents in centrifugal pumps, leading to premature mechanical failure. Sourcing should prioritize units with active harmonic filtering and compatibility with 480V three-phase industrial networks.

Industrial HVAC: Load Shifting for Thermal Management

Commercial and industrial HVAC systems represent ideal candidates for hybrid inverter integration due to their predictable load profiles and substantial thermal inertia. When paired with VFD-controlled chillers and cooling tower fans, these systems shift energy consumption from peak tariff periods to high-solar-generation windows.

System Synergy: The hybrid inverter manages bidirectional power flow, charging batteries during off-peak solar generation and discharging during peak cooling demand (typically 12:00–18:00). Advanced units feature four-quadrant operation, capturing regenerative energy from decelerating fan motors and returning it to the battery bank rather than dissipating it as heat. For automation distributors, key specifications include Modbus TCP/IP connectivity for integration with existing BMS platforms and the ability to provide reactive power compensation (VAR support) to improve facility power factor.

Mining & Remote Operations: Off-Grid Mechanical Power

In remote mining operations where grid extension is economically unfeasible, hybrid inverters enable high-penetration renewable systems for crushing, grinding, and dewatering applications. These scenarios require robust power electronics capable of handling the severe inrush currents of jaw crushers and SAG mills.

Engineering Considerations: Unlike residential hybrids, industrial mining applications require inverters with 150% overload capacity for 60 seconds to accommodate motor starting surges without battery voltage collapse. The DC input voltage range must accommodate large solar arrays (up to 1000VDC) while maintaining stable AC output frequency (±0.5%) for VFD synchronization. Additionally, EPC contractors should specify units with conformal-coated PCBs and active cooling systems rated for high-ambient-temperature environments (up to 60°C) common in processing plants.

Strategic Sourcing Guidance: When specifying hybrid inverters for these industrial applications, prioritize manufacturers offering integrated VFD communication protocols (such as CANopen or Profibus), robust electromagnetic compatibility (EMC) shielding for motor cable noise suppression, and modular battery architectures that allow capacity scaling from 50kWh to MWh-scale without inverter replacement.

Top 3 Engineering Pain Points for Hybrid Inverter With Solar Battery Charging

Scenario 1: Voltage Sag and Anti-Islanding Conflicts During Motor Inrush Events

The Problem:
In hybrid solar pumping installations, the simultaneous demand of battery charging and high inrush current from VFD-controlled submersible pumps creates severe voltage sags on the DC bus and AC output. When the grid is weak or unstable, these transient loads trigger premature anti-islanding protection circuits, causing the hybrid inverter to disconnect precisely when seamless backup power is required for critical irrigation cycles. This results in failed motor starts, battery charging interruptions, and potential damage to both the inverter’s IGBT modules and the battery management system (BMS) due to erratic current fluctuations.

The Solution:
Deploy hybrid inverters equipped with dynamic power reserve allocation algorithms and “motor priority” logic that temporarily modulates battery charging current (transitioning from bulk to float or pause modes) to prioritize VFD torque requirements during start-up. Look for units featuring Voltage Ride-Through (VRT) capabilities compliant with IEEE 1547/UL 1741-SA, which can sustain output during 0.15-second voltage sags, and integrated soft-start coordination that communicates with the VFD to stagger motor acceleration ramps, eliminating the conflict between battery charging stability and inductive load demands.

Scenario 2: DC Coupling Architecture Mismatches Between Battery Chemistry and Motor Drive Voltage Requirements

The Problem:
EPC contractors frequently encounter configuration conflicts in DC-coupled hybrid systems where the solar array’s MPPT voltage window (optimized for 400V-800V battery banks) does not align with the DC input requirements of agricultural pump VFDs (often requiring stable 540V DC or specific 48V/380V conversions). This voltage mismatch forces the installation of separate DC-DC converters or AC coupling architectures, introducing conversion losses of 3-5% and complicating the energy management logic. The result is suboptimal battery charging profiles—where MPPT cannot track true maximum power points—and reduced motor efficiency due to unstable DC bus voltage during simultaneous charging and pumping operations.

The Solution:
Specify wide MPPT voltage range hybrid inverters (200V–1000V DC input) featuring dual-stage power conversion topology or integrated bidirectional DC-DC stages. These systems decouple the battery charging voltage (allowing optimization for LiFePO4 or lead-acid chemistries) from the VFD’s DC link voltage, enabling direct DC coupling to solar pump inverters without intermediary conversion losses. Advanced units offer programmable DC output ports specifically for VFD integration, ensuring that battery charging algorithms (bulk, absorption, float) operate independently while maintaining a stable DC bus for motor control, even during rapid changes in solar irradiance.

Scenario 3: Thermal Derating and IP Rating Failures in Harsh Agricultural Environments

The Problem:
Outdoor installation in dusty, high-humidity, or desert agricultural environments exposes hybrid inverters to ambient temperatures exceeding 45°C and particulate ingress that standard IP20/IP54 enclosures cannot withstand. As internal junction temperatures rise, the inverter’s thermal management system derates available power, simultaneously reducing battery charging current and limiting motor output capacity—often during peak irrigation hours when both functions are critical. Furthermore, inadequate sealing allows conductive dust to settle on battery terminals and control boards, creating ground fault risks and corrosion that degrade charging efficiency and battery cycle life.

The Solution:
Select IP65-rated hybrid inverters with active thermal management systems (forced air cooling with replaceable filters or liquid cooling plates) and conformal-coated PCBs designed for C5-M corrosion resistance. These units should feature intelligent derating algorithms that prioritize critical motor loads over battery charging when thermal thresholds are approached, ensuring irrigation continuity while maintaining trickle charge levels to preserve battery chemistry. For extreme environments, specify inverters with external battery cabinet integration, physically separating the battery storage from heat-generating power electronics while maintaining CAN/RS485 communication for coordinated thermal management and SOC monitoring.

Component and Hardware Analysis for Hybrid Inverter With Solar Battery Charging

Hybrid inverters deployed in solar pumping and commercial & industrial (C&I) energy storage applications function as bidirectional power conversion hubs, integrating photovoltaic (PV) generation, battery energy storage systems (BESS), and AC loads or utility grids within a single thermal and electrical envelope. Unlike conventional grid-tie inverters or standalone Variable Frequency Drives (VFDs), these systems must simultaneously execute Maximum Power Point Tracking (MPPT), manage three-stage battery charging profiles (Bulk, Absorption, Float), and handle motor inrush currents in agricultural or factory environments. This multiplexing of functions places extraordinary demands on internal components, requiring industrial-grade specifications that exceed standard consumer solar hardware.

Power Semiconductor Stage: IGBT and SiC MOSFET Modules

At the heart of the hybrid inverter’s power train reside the switching devices—typically Insulated Gate Bipolar Transistors (IGBTs) for 20–150 kW agricultural pump systems, or Silicon Carbide (SiC) MOSFETs in next-generation high-efficiency models. These modules handle the dual responsibility of DC-AC inversion for motor drives and synchronous rectification for battery charging. In solar pumping applications, the semiconductor bridge must withstand high dv/dt stresses during pump motor starting while maintaining precise current control for lithium-ion or lead-acid battery charging cycles.

Critical Design Parameters:
– Thermal Impedance: Junction-to-case thermal resistance (Rth(j-c)) must be <0.15 K/W for 100kW-class units to limit temperature excursions during simultaneous PV generation and battery charging.
– Switching Frequency: Higher frequencies (8–16 kHz) enabled by SiC devices reduce DC-link capacitor ripple current but demand superior gate driver isolation and PCB layout discipline to prevent shoot-through faults.
– Reverse Recovery: Fast recovery diodes or SiC Schottky barriers minimize switching losses during the transition from inverter mode (powering pumps) to charger mode (battery charging), directly impacting system efficiency in hybrid duty cycles.

Digital Signal Processing and Control Architecture

The intelligent management of energy flow relies on high-speed Digital Signal Processors (DSPs) or ARM-based microcontrollers executing real-time control loops. For hybrid inverters with solar battery charging, the controller must parallel-process MPPT algorithms (typically Perturb and Observe or Incremental Conductance), battery State-of-Charge (SOC) estimation, and grid synchronization via Phase-Locked Loops (PLL).

Engineering Considerations:
– ADC Resolution: 12-bit minimum analog-to-digital conversion is required for precise voltage sensing in the absorption charging phase, where voltage regulation tolerance of ±0.5% prevents battery gassing and electrolyte degradation.
– Algorithm Latency: Control loop execution under 100 μs ensures stable operation when switching between grid-tie and off-grid modes during utility disturbances—a common scenario in rural pumping stations.
– Communication Protocols: Integrated CAN bus or RS485 Modbus interfaces enable seamless integration with external Battery Management Systems (BMS), crucial for lithium iron phosphate (LiFePO4) installations where cell balancing data must inform charging current limits.

Passive Components and Energy Storage Interface

DC-Link Capacitors:
Film capacitors (polypropylene metallized film) have largely superseded electrolytic capacitors in industrial hybrid inverters due to their ability to handle high ripple currents and longer lifespans in high-temperature environments. In systems like the HPS series or Boray’s pump inverter platforms, the DC-link bank must absorb twice the ripple current compared to standard VFDs because of the superposition of PV input fluctuation and battery charge/discharge pulses.

Magnetics:
Boost inductors for the MPPT stage and line filter chokes require amorphous or nanocrystalline core materials to minimize hysteresis losses at the switching frequencies mentioned above. Saturation current ratings must exceed 150% of nominal to accommodate the power fluctuations inherent in solar irradiance changes without core saturation, which would introduce harmonic distortion into the charging current.

Thermal Management and Mechanical Integrity

The integration of battery charging functionality increases thermal loading by 15–25% compared to standard motor control inverters, necessitating advanced thermal design:

• Heatsink Architecture: Extruded aluminum 6063-T5 heatsinks with forced air convection (centrifugal fans with IP54 rating for agricultural dust protection) must maintain semiconductor case temperatures below 70°C at 45°C ambient. Computational Fluid Dynamics (CFD) modeling ensures uniform thermal distribution across IGBT modules.
• Thermal Interface Materials (TIM): Phase-change materials with thermal conductivity >3.0 W/mK replace traditional silicone pads to minimize contact resistance between power modules and heatsinks, critical for maintaining junction temperatures within manufacturer specifications during continuous battery charging cycles.
• Fan Management: Intelligent speed control based on heatsink temperature extends fan Mean Time Between Failures (MTBF) from 40,000 hours (constant speed) to 60,000+ hours, while redundant fan configurations prevent thermal runaway in remote pumping applications where maintenance access is limited.

Component Specification Matrix

Component	Function	Quality Indicator	Impact on Lifespan
IGBT/SiC Power Modules	DC-AC conversion; bidirectional battery charge/discharge switching; motor drive output	Junction temperature rating (Tj_max > 175°C for SiC, 150°C for IGBT); thermal resistance Rth(j-c) < 0.15 K/W; switching energy losses (Eon/Eoff)	Every 10°C reduction in junction temperature doubles module life; thermal cycling causes solder layer degradation leading to thermal runaway
DSP Controller	MPPT execution; three-stage charging algorithm (Bulk/Absorption/Float); grid synchronization	ADC resolution (≥12-bit); processing speed (>100 MIPS); clock stability (±50 ppm); industrial temperature range (-40°C to +85°C)	Voltage regulation drift causes battery overcharging (reducing cycle life by 30-50%); thermal derating prevents algorithm crashes in high-ambient environments
DC-Link Film Capacitors	Ripple current absorption; DC bus stabilization during PV and battery power fluctuations	Ripple current rating (Irms) at 100°C; Equivalent Series Resistance (ESR) < 2mΩ; metallized film self-healing capability	Life expectancy halves for every 5-7°C ambient temperature increase; high ESR causes internal heating and electrolyte dry-out in non-film types
Thermal Management System	Heat dissipation from semiconductors and magnetics; environmental sealing	Thermal resistance Rth(s-a) < 0.5 K/W; fan L10 life > 60,000 hours; heatsink material purity (Al 6063-T5); IP54/65 enclosure rating	Inadequate cooling accelerates semiconductor bond wire fatigue; dust ingress increases thermal resistance by 20-40% in agricultural environments
Hall Effect Current Sensors	Precise current measurement for MPPT optimization and battery overcurrent protection	Accuracy (±0.5% FS); response time < 5μs; isolation voltage (≥2.5kV); offset drift (< 0.1%/°C)	Current sensing drift causes MPPT inefficiency (2-5% energy loss) and battery overcurrent stress, reducing cycle life; magnetic core saturation leads to control instability
EMI Filter Chokes	Attenuation of switching harmonics; compliance with IEC 61000 standards	Core material (Amorphous metal vs. Ferrite); saturation current (>150% rated); Curie temperature (>200°C)	Core saturation increases copper losses and thermal stress; insulation system degradation (Class H vs. Class F) determines long-term dielectric withstand capability

Integration and Procurement Recommendations

For EPC contractors and agricultural project managers specifying hybrid inverters with solar battery charging, component traceability is paramount. Request manufacturers provide semiconductor datasheets specifying Rth values and capacitor life curves based on actual ripple current calculations rather than generic specifications. In solar pumping applications where motors present inductive loads, verify that IGBT modules include integrated freewheeling diodes rated for the full motor regeneration current, not just the charging current.

Boray Inverter’s engineering protocols mandate 100% burn-in testing of power modules at elevated temperatures (85°C ambient for 48 hours) to precipitate early-life failures in capacitors and semiconductors before field deployment. When evaluating suppliers, prioritize those offering modular architectures allowing field replacement of fans and control boards without dismantling power terminals—critical for minimizing Mean Time To Repair (MTTR) in remote agricultural installations.

The convergence of VFD motor control expertise and solar battery charging technology demands components rated for the worst-case thermal叠加 (superposition) of full PV generation, maximum battery charging current, and motor starting loads. Only through rigorous component-level analysis can system integrators ensure 20-year operational lifespans in the demanding environments characteristic of modern solar pumping and C&I storage projects.

Manufacturing Standards and Testing QC for Hybrid Inverter With Solar Battery Charging

At Boray Inverter, our hybrid inverter manufacturing protocols leverage three decades of Variable Frequency Drive (VFD) and solar pump controller production expertise, applying industrial-grade reliability standards to energy storage systems. Given that hybrid inverters with solar battery charging operate as the critical nexus between photovoltaic generation, chemical energy storage, and AC loads—or grid interconnection—our quality control framework treats every unit as a mission-critical power conversion device subject to the same rigorous validation as high-torque motor control systems.

PCB-Level Environmental Protection and Assembly Standards

Recognizing that agricultural and industrial deployments expose electronics to high humidity, dust, and corrosive atmospheres, all hybrid inverter printed circuit boards undergo conformal coating using acrylic or polyurethane compounds applied via selective spraying or dipping processes. This protective layer meets IPC-CC-830 standards for insulation resistance and moisture protection, ensuring solder joints and trace lines remain isolated from condensation and airborne contaminants common in livestock facilities or outdoor pumping stations.

Surface-mount technology (SMT) assembly follows IPC-A-610 Class 3 criteria for high-performance/high-reliability products, utilizing lead-free soldering profiles with X-ray inspection for BGA and power device connections. Thermal interface materials (TIMs) between IGBT modules and heat sinks are robotically dispensed to ensure consistent thermal conductivity—critical for maintaining MPPT efficiency and battery charging accuracy during high ambient temperature operation.

100% Full-Load Burn-In Testing Protocol

Unlike consumer-grade manufacturers relying on statistical sampling, Boray implements 100% full-load aging testing for every hybrid inverter prior to shipment. Each unit undergoes a minimum 4-hour burn-in cycle at 45°C ambient temperature while operating at 110% rated load, simulating worst-case solar charging scenarios combined with simultaneous AC output loading. This process screens for early-life component failures, thermal runaway risks in power semiconductors, and latent soldering defects that could compromise battery charging reliability in the field.

During burn-in, automated test equipment monitors DC bus voltage stability, battery charge current ripple (maintained below 3% to prevent lithium-ion cell degradation), and grid-tie synchronization parameters. Units exhibiting voltage drift beyond ±1% or temperature anomalies in magnetic components are flagged for root-cause analysis and component replacement.

Battery Integration and Safety Validation

For hybrid inverters incorporating solar battery charging, our QC protocol includes dedicated Battery Management System (BMS) communication verification. We simulate complete charge/discharge cycles using programmable DC loads to validate:
– Multi-stage charging algorithm accuracy (bulk, absorption, float)
– Over-voltage and under-voltage protection response times (<100ms)
– Ground fault detection and arc fault protection circuits
– Anti-islanding protection for grid-tie configurations

High-potential (hipot) testing at 2kV AC for 60 seconds verifies isolation between battery terminals, PV input, and AC output circuits, ensuring compliance with IEC 62109-1 safety requirements for power converters used in photovoltaic systems.

Certification and Compliance Framework

Our manufacturing facilities maintain ISO 9001:2015 certification for quality management systems and ISO 14001:2015 for environmental management, with production lines audited annually for continuous improvement metrics. Hybrid inverter designs conform to:
– CE Marking: Compliance with Low Voltage Directive (LVD) 2014/35/EU, EMC Directive 2014/30/EU, and RoHS 2011/65/EU
– IEC 62109-1/-2: Safety of power converters used in photovoltaic power systems
– IEC 62477-1: Safety requirements for power electronic converter systems
– VDE-AR-N 4105/4110: Technical connection rules for generators to the German medium-voltage grid (ensuring grid-code compliance for European projects)
– IP65 Ingress Protection: Validated through dust and water jet testing for outdoor agricultural installations

Traceability and Documentation

Each hybrid inverter receives a unique serial number linked to complete manufacturing genealogy, including batch codes for power semiconductors, capacitor lot numbers, and test result logs. This traceability ensures that EPC contractors and automation distributors can access complete quality documentation for warranty claims or retrofit projects, while supporting predictive maintenance strategies for agricultural pumping systems where downtime translates directly to crop loss.

By applying VFD-grade thermal management, motor-control-level EMI filtering, and agricultural-automation durability standards to hybrid inverter production, Boray ensures that solar battery charging systems deliver the same 20-year operational lifespan expected from industrial motor control equipment.

Step-by-Step Engineering Sizing Checklist for Hybrid Inverter With Solar Battery Charging

Before initiating procurement or system design, engineers must validate the electromechanical compatibility between the hybrid inverter, photovoltaic (PV) generator, energy storage system (ESS), and the motor load—particularly when integrating Variable Frequency Drives (VFDs) for solar pumping or industrial process control. The following technical checklist ensures optimal MPPT efficiency, battery cycle life, and motor performance across varying irradiance and load conditions.

Step 1: Motor Load Characterization & VFD Interface Compatibility
– Mechanical Power Audit: Calculate the actual shaft power requirement (kW) of the pump or industrial motor, accounting for static head, friction losses, and process duty cycles. Size the hybrid inverter’s AC output rating to be ≥ 1.25× the motor’s rated apparent power (kVA) to accommodate VFD inrush and harmonic distortion.
– VFD Input Specifications: Verify the hybrid inverter’s output voltage (230V/400V/480V) and frequency stability (±0.5 Hz) match the VFD’s input tolerance. For solar pumping applications using Boray’s VFD series, confirm the hybrid inverter provides grid-forming capability (voltage and frequency reference) when operating in off-grid mode, as the VFD relies on a stable AC bus.
– Starting Current Analysis: Although VFDs enable soft-start functionality (limiting inrush to 1.2–1.5× FLA), verify the hybrid inverter’s surge capacity (typically 1.5–2× rated power for 10–60 seconds) can handle simultaneous motor acceleration and battery charging transients.

Step 2: PV Array String Sizing & MPPT Voltage Window Optimization
– Open-Circuit Voltage (Voc) Calculation: Size PV strings using the formula:
Voc_max = Voc_stc × N_modules × [1 + (T_min − 25°C) × β_Voc]
where β_Voc is the module’s temperature coefficient (%/°C) and T_min is the record low ambient temperature. Ensure Voc_max remains ≤ the hybrid inverter’s maximum DC input voltage with 10% safety margin.
– MPPT Operating Range: Confirm the string’s maximum power point voltage (Vmp) at standard test conditions (STC) falls within the inverter’s MPPT voltage window (e.g., 200–850Vdc for commercial hybrid units). For agricultural applications with long cable runs, account for voltage drop (≤3%) when sizing conductor cross-sections.
– Current Capacity Verification: Total array short-circuit current (Isc) must not exceed the hybrid inverter’s maximum DC input current per MPPT tracker. When using multiple strings, implement string fusing per IEC 62548 to prevent reverse current faults during shading events.

Step 3: Battery Bank Sizing & Charge Profile Coordination
– Energy Capacity Sizing: Calculate required usable energy (kWh) based on autonomy days (typically 1–3 days for industrial/agricultural loads) and depth of discharge (DoD) limitations:
E_nominal = (E_load × Days) / (DoD × η_round_trip)
where η_round_trip includes inverter efficiency (typically 94–97%) and battery Coulombic efficiency.
– C-Rate Compatibility: Match the battery’s maximum charge/discharge C-rate (e.g., 0.5C for LiFePO4) with the hybrid inverter’s charge controller output. For a 100kW hybrid inverter charging a 480Vdc battery, ensure the charge current does not exceed the battery manufacturer’s recommended limit to prevent thermal runaway and capacity fade.
– Voltage Level Alignment: Verify the battery nominal voltage (48V/400V/800V) aligns with the hybrid inverter’s battery port specifications. Industrial systems above 50kW typically utilize 400V or 800V battery architectures to minimize DC cabling losses.
– Charging Algorithm Configuration: Program the hybrid inverter’s battery management system (BMS) communication (CAN/RS485) to implement three-stage charging: Bulk (constant current), Absorption (constant voltage), and Float. For lithium-ion chemistries, ensure cell balancing and temperature compensation (-3mV/°C/cell) are active to maximize cycle life beyond 6,000 cycles.

Step 4: Inverter Power Rating & Topology Selection
– Continuous vs. Peak Power: Select a hybrid inverter with a continuous power rating ≥ 1.2× the sum of simultaneous motor loads and auxiliary consumption. For EPC contractors, verify the unit supports parallel operation (master-slave or droop control) for future capacity expansion without replacing the entire inverter platform.
– DC Coupling vs. AC Coupling: For retrofits with existing PV arrays, specify AC-coupled hybrid inverters (grid-tied with battery backup). For new solar pumping installations, DC-coupled architectures offer higher round-trip efficiency (3–5% gain) by eliminating double conversion losses during battery charging.
– THD and Power Quality: Ensure the inverter’s output total harmonic distortion (THD) is <3% to prevent VFD malfunction and motor overheating. Check compliance with IEEE 519 or IEC 61000-3-6 for industrial grid-connection standards.

Step 5: Protection Coordination & Safety Systems
– Overcurrent Protection: Size DC breakers and fuses between the PV array, battery, and inverter per NEC 690 or IEC 60364-7-712. The hybrid inverter must incorporate reverse polarity protection, ground fault detection (for ungrounded arrays), and arc fault circuit interrupters (AFCI) for fire safety in agricultural environments.
– Islanding Protection: For grid-connected hybrid systems, verify anti-islanding protection (UL 1741/IEC 62116) disconnects within 2 seconds of grid loss to protect utility personnel.
– Environmental Derating: Apply altitude derating factors (>1,000m) and temperature derating (>40°C ambient) to the inverter’s continuous power rating. Specify IP65 or higher ingress protection for outdoor installations exposed to dust, humidity, or irrigation spray.

Step 6: Monitoring, Commissioning, and Validation
– SCADA Integration: Confirm the hybrid inverter supports Modbus TCP/IP or SunSpec protocols for integration with Boray’s motor control monitoring platforms, enabling real-time visualization of PV generation, battery SOC, and pump flow rates.
– Commissioning Protocol: Perform insulation resistance testing (Megger) on DC cabling (>1MΩ), verify MPPT efficiency (>99%) under varying irradiance, and validate battery charge/discharge efficiency using a power analyzer. Record baseline performance data for warranty claims and predictive maintenance scheduling.

By systematically executing this checklist, engineers ensure the hybrid inverter operates within its optimal efficiency envelope while safeguarding battery longevity and ensuring reliable motor control across solar pumping and industrial automation applications.

Wholesale Cost and Energy ROI Analysis for Hybrid Inverter With Solar Battery Charging

For EPC contractors and industrial automation distributors, the procurement of hybrid inverters with integrated solar battery charging represents a critical junction between upfront capital deployment and long-term operational profitability. Unlike residential solar markets where retail markups dominate the conversation, B2B industrial procurement focuses on volume-tiered pricing structures, Bill of Materials (BOM) optimization, and Total Cost of Ownership (TCO) calculations that account for the symbiotic relationship between hybrid inverters, Variable Frequency Drives (VFDs), and motor control systems.

B2B Procurement Economics: Wholesale vs. Retail Margins

In the industrial solar sector, wholesale pricing for hybrid inverters (typically 30kW–500kW+ range for C&I applications) follows a logarithmic decay curve based on volume commitments. While retail channels for sub-10kW residential units may see 40–60% markup over factory cost, B2B procurement for agricultural pumping stations or factory motor control systems operates on thinner margins—typically 12–18% for distributors and 8–12% for high-volume EPCs securing direct OEM partnerships.

For hybrid inverters specifically designed for solar pump applications with battery backup, wholesale pricing must account for the integrated Maximum Power Point Tracking (MPPT) controllers and bidirectional DC-AC conversion capabilities. These units command a 15–25% premium over standard grid-tie inverters, but eliminate the need for separate charge controllers and battery inverters—reducing Balance of System (BOS) costs by approximately $0.08–$0.12 per watt in large-scale deployments.

CAPEX Decomposition for Solar-Pump Hybrid Systems

When analyzing capital expenditure for hybrid inverter integration with VFD-driven pumping systems, engineers must consider the consolidated architecture advantages:

Integrated vs. Segmented Topology
A hybrid inverter with solar battery charging consolidates three discrete functions: solar DC/AC conversion, battery charge management, and grid synchronization. For a 100kW agricultural irrigation system, this integration eliminates separate battery inverter costs (approximately $8,000–$12,000) and reduces installation labor by 20–30%. The DC coupling between solar arrays and battery storage also improves round-trip efficiency by 3–5% compared to AC-coupled systems, directly impacting the energy yield available for motor control applications.

Battery Chemistry Cost Variables
Lithium Iron Phosphate (LiFePO4) batteries, preferred for solar pump hybrid systems due to their thermal stability and 6,000+ cycle life, currently wholesale at $120–$150 per kWh for industrial volumes. When paired with intelligent hybrid inverters featuring optimized charging profiles (bulk, absorption, float), these systems achieve 95%+ charge efficiency—minimizing energy waste during the critical irrigation hours when pump motors demand consistent power quality.

Energy ROI Modeling: VFD Integration and Peak Shaving

The return on investment for hybrid inverters in industrial motor control extends beyond simple kWh generation metrics. When integrated with Boray’s VFD technology for pump control, these systems enable sophisticated load management strategies:

Demand Charge Mitigation
For industrial facilities with high-power motor loads, hybrid inverters with battery storage provide peak shaving capabilities that reduce demand charges—often the largest component of commercial electricity bills. A 250kW hybrid system can discharge stored solar energy during motor startup sequences, preventing 300–500% current surges from triggering utility demand penalties. In markets with time-of-use (TOU) rates, this arbitrage capability delivers 18–24 month payback periods on the energy storage component alone.

Solar Pumping Efficiency Gains
In agricultural applications, hybrid inverters enable 24/7 pumping operations by storing daytime solar generation for nighttime irrigation. When coupled with VFD-controlled submersible pumps, the system maintains optimal flow rates regardless of solar irradiance fluctuations. This eliminates the “use-it-or-lose-it” constraint of traditional solar pumps, increasing water delivery capacity by 35–40% per installed kW of solar capacity.

Quantified Savings Framework
For a typical 75kW solar pump installation with 100kWh battery backup:
– Direct Energy Savings: $18,000–$24,000 annually (offsetting grid electricity or diesel generator costs)
– Demand Charge Reduction: $6,000–$9,000 annually (for grid-connected industrial sites)
– Maintenance Cost Avoidance: $3,500–$5,000 annually (reduced generator runtime and extended motor life through soft-start VFD integration)

Warranty Cost Analysis and TCO Optimization

Industrial hybrid inverters for motor control applications typically carry 5–10 year warranties, with battery systems warrantied for 10 years or 6,000 cycles. For B2B procurement, understanding warranty cost allocation is critical:

Manufacturer vs. Installer Liability
Tier-1 hybrid inverter manufacturers generally assume warranty costs for power electronics (inverter modules, MPPT controllers, and cooling systems) while distributors often bear the logistics costs for replacement units. Battery warranty claims, however, frequently involve prorated replacement schedules based on capacity degradation curves—critical for agricultural operators calculating 20-year irrigation system lifecycles.

Extended Warranty Economics
For EPC contractors, offering 10-year extended warranties on hybrid solar pump systems adds approximately 4–6% to the initial equipment cost but increases project IRR (Internal Rate of Return) by 1.2–1.8% through enhanced client confidence and reduced maintenance provisioning.

Failure Rate Cost Modeling
Field data indicates that hybrid inverters in solar pump applications experience 0.8–1.2% annual failure rates in harsh environments (high humidity, dust, temperature cycling). When calculating TCO, EPCs should provision $0.015–$0.025 per watt annually for warranty reserves—significantly lower than the $0.04–$0.06 per watt maintenance costs associated with traditional diesel pump systems.

Volume Pricing Strategies for Automation Distributors

For automation distributors bridging the gap between inverter manufacturers and end-user agricultural or industrial projects, margin optimization requires strategic inventory positioning:

Container-Level Procurement
Full-container orders (20–40 units of 50kW+ hybrid inverters) typically unlock factory-direct pricing at 22–28% below distributor list price. When combined with compatible VFDs and pump controllers from the same manufacturer ecosystem, distributors can offer integrated “solar pump station” packages with 15% gross margins while remaining 10–12% below the cost of piecemeal component procurement.

Regional Service Bundling
Distributors who provide commissioning services for hybrid inverter/VFD integration can command additional value-added margins (8–12%) while reducing the EPC’s installation risk. This is particularly valuable for complex applications involving multiple pump motors, pressure transducers, and automated valve control systems requiring precise harmonic management and power factor correction.

Strategic Procurement Recommendations

For project managers evaluating hybrid inverter deployment in motor control applications:

1. Specify MPPT Voltage Windows: Ensure the hybrid inverter’s MPPT range matches the VFD’s DC input requirements to eliminate unnecessary DC/DC conversion losses in pump drive systems.

2. Battery Sizing for Motor Inrush: Size battery capacity to handle 3–5x the rated current of the largest motor controlled by the VFD, ensuring stable voltage during startup sequences and preventing inverter overload faults.

3. Harmonic Compensation: Select hybrid inverters with active filtering capabilities (<3% THD) when controlling multiple VFDs, reducing the need for external line reactors and saving $2,000–$4,000 per installation point.

4. Firmware Compatibility: Verify that the hybrid inverter’s battery management system (BMS) communication protocols (CAN, RS485, or Ethernet) integrate with existing SCADA or pump control automation architectures to enable remote monitoring of both energy storage and motor performance metrics.

By analyzing wholesale procurement through the lens of integrated motor control and energy storage optimization, EPC contractors and industrial engineers can achieve system-level LCOE (Levelized Cost of Energy) reductions of 25–30% compared to segregated solar-plus-storage installations, while delivering the reliability and power quality required for critical pumping and automation applications.

Alternatives Comparison: Is Hybrid Inverter With Solar Battery Charging the Best Choice?

For industrial engineers and EPC contractors evaluating energy architectures for agricultural irrigation or factory automation, the decision to integrate battery storage via hybrid inverters involves weighing energy independence against capital efficiency and system complexity. While hybrid inverters with solar battery charging offer compelling advantages for load shifting and backup power, they represent just one point in a spectrum of motor control and power management strategies. Selecting the optimal configuration requires rigorous comparison against direct grid-fed Variable Frequency Drives (VFDs), AC-coupled storage architectures, and motor-specific control methodologies.

Hybrid Inverter vs. Grid-Tied Inverter with Direct VFD Coupling

In pure grid-tied solar installations without battery storage, solar generation directly offsets grid consumption through net metering, while motor loads are controlled by standalone VFDs. This architecture eliminates the round-trip efficiency losses (typically 8-12%) inherent in battery charging and discharging, and reduces initial CAPEX by 30-40% compared to hybrid systems.

However, this configuration lacks ride-through capability during grid outages—a critical limitation for agricultural operations where irrigation windows are time-sensitive. Hybrid inverters with battery charging provide seamless transition (<20ms) to off-grid mode, ensuring continuous motor operation during grid instability. For applications requiring 24/7 process continuity, the additional investment in battery storage is justified by avoided downtime costs, whereas direct grid-tied VFD systems remain optimal for facilities with tolerant load schedules and stable grid infrastructure.

DC-Coupled Hybrid vs. AC-Coupled Battery Storage

When battery integration is non-negotiable, engineers must evaluate coupling architectures. DC-coupled hybrid inverters integrate Maximum Power Point Tracking (MPPT) and battery management within a single conversion stage, achieving 94-97% system efficiency by eliminating the double-conversion penalty of AC-coupled systems. The DC architecture allows direct PV-to-battery energy transfer without intermediate AC conversion, reducing thermal losses and component count.

Conversely, AC-coupled systems using separate battery inverters offer superior design flexibility for retrofitting existing solar installations and provide redundancy through distributed conversion. For large-scale C&I projects exceeding 500kW, AC coupling often simplifies installation logistics and maintenance access, though at the cost of 2-4% efficiency reduction compared to integrated hybrid solutions.

Battery-Assisted Solar Pumping vs. Direct Solar VFD Systems

In agricultural solar pumping applications—a core competency for specialized VFD manufacturers like Boray Inverter—engineers face a distinct choice between direct solar VFD drives and battery-buffered hybrid systems.

Direct solar VFDs (also called solar pump inverters) convert DC PV output directly to variable frequency AC for submersible or surface pumps, eliminating battery costs entirely. These systems utilize MPPT algorithms optimized for hydraulic load curves rather than battery charging profiles, achieving motor efficiencies up to 98% with Permanent Magnet Synchronous Motors (PMSM). However, pumping capacity is strictly limited by real-time solar irradiance, requiring oversized arrays to meet peak flow requirements.

Hybrid inverters with battery charging enable “solar pumping plus” architectures, where excess daytime energy charges batteries for nighttime or cloudy-day operation. This approach allows right-sizing of PV arrays to average daily irradiance rather than peak demand, reducing panel count by 20-30%. The trade-off involves battery cycle life limitations (typically 4,000-6,000 cycles for LiFePO₄) and the need for sophisticated battery management systems (BMS) to prevent deep discharge damage in remote agricultural environments.

Motor Control Integration: VFD vs. Soft Starter in Hybrid Architectures

When hybrid inverters power motor loads, the choice between integrated VFD control and external soft starters significantly impacts system performance. Soft starters provide reduced-voltage starting to limit inrush current (typically 3-4x FLA vs. 6-8x for DOL), but they cannot vary motor speed. In hybrid systems with battery storage, soft starters waste stored energy by running motors at fixed speeds regardless of load conditions, reducing overall system efficiency by 15-25% in variable-torque applications like centrifugal pumps.

VFDs integrated with hybrid inverter outputs enable true variable-speed operation, allowing motors to run at optimal efficiency points (often 85-92% vs. 60-70% for throttled fixed-speed operation). Modern hybrid inverters designed for industrial applications now incorporate vector control algorithms that can directly drive PMSMs without external VFDs, though dedicated solar pump inverters still offer superior MPPT response for direct PV coupling.

Motor Selection: PMSM vs. Induction Motor (IM) Compatibility

The motor type selection fundamentally affects hybrid inverter sizing and battery capacity requirements. Permanent Magnet Synchronous Motors (PMSM) offer 3-5% higher efficiency than Induction Motors (IM) and maintain high power factor (>0.95) across load ranges, reducing apparent power requirements and inverter kVA ratings. For battery-powered operation where every watt-hour counts, PMSMs extend runtime by 8-12% compared to equivalent IMs.

However, PMSMs require precise rotor position sensing and advanced control algorithms, increasing hybrid inverter complexity and cost. Induction motors offer rugged simplicity and fault tolerance but suffer from higher magnetizing currents, requiring larger battery capacities and inverter thermal margins. In hybrid systems with solar battery charging, the efficiency gains of PMSM often justify the premium within 2-3 years of operational savings, particularly in off-grid installations where fuel generator backup costs are eliminated.

Comparative Analysis Matrix

Parameter	Hybrid Inverter + Battery	Direct Solar VFD	Grid-Tied VFD + Soft Starter	AC-Coupled Battery
System Efficiency	85-92% (round-trip)	94-98% (direct)	96-98% (no storage loss)	82-88% (double conversion)
Motor Starting Method	Integrated VFD/Soft Start	MPPT-VFD direct	External Soft Starter/VFD	External VFD required
Optimal Motor Type	PMSM (efficiency critical)	PMSM or IM	IM (cost optimized)	PMSM preferred
Grid Dependency	Zero (with adequate battery)	Zero (daylight only)	100% grid dependent	Zero (with adequate battery)
Initial CAPEX ($/kW)	$800-1,200	$400-600	$300-500	$900-1,400
OPEX (LCOE)	$0.08-0.15/kWh	$0.02-0.05/kWh	$0.10-0.20/kWh (grid)	$0.10-0.18/kWh
Backup Duration	4-24 hours (configurable)	None	Unlimited (grid)	4-24 hours
THD (Motor Current)	<3% (high-quality VFD)	<3%	15-30% (soft start)	<5%
Best Application	Critical loads, weak grid	Irrigation, daylight pumping	Stable grid, cost-sensitive	Retrofit existing solar

Strategic Selection Framework

Hybrid inverters with solar battery charging represent the optimal choice for mission-critical industrial processes requiring uninterrupted power supply (UPS) functionality combined with renewable integration, particularly in regions with unreliable grid infrastructure or time-of-use electricity pricing that favors load shifting. For agricultural projects where pumping can be scheduled during daylight hours, direct solar VFDs without battery storage deliver superior ROI and simplicity.

When specifying hybrid systems for motor control applications, prioritize units with integrated MPPT and VFD functionality rather than separate component architectures, ensuring compatibility with high-efficiency PMSMs and advanced charging algorithms (bulk/absorption/float) that maximize battery cycle life. For EPC contractors, the decision ultimately hinges on whether the value of energy security and arbitrage exceeds the capital premium and efficiency penalties of electrochemical storage.

Core Technical Specifications and Control Terms for Hybrid Inverter With Solar Battery Charging

Modern hybrid inverter architectures represent the convergence of photovoltaic (PV) power conversion, battery energy storage systems (BESS), and advanced motor control topologies. For industrial engineers and EPC contractors deploying solar pumping stations or C&I microgrids, understanding the precise technical specifications and commercial frameworks governing these systems is critical for ensuring compatibility, efficiency, and seamless logistics execution.

Critical Electrical Specifications

Maximum Power Point Tracking (MPPT) Dynamics
The MPPT algorithm serves as the primary energy harvesting interface between the PV array and the DC bus. Industrial-grade hybrid inverters utilize multi-string MPPT inputs with wide voltage tracking ranges (typically 200–850 VDC for commercial units, extending to 1500 VDC in utility-scale applications). For solar pumping integration—Boray Inverter’s core competency—MPPT voltage windows must accommodate the VFD’s DC link requirements while maintaining tracking efficiencies exceeding 99%. Advanced topologies employ perturb-and-observe (P&O) or incremental conductance algorithms with 1-second scan intervals to mitigate power loss during rapid irradiance changes caused by cloud transients in agricultural environments.

Vector Control (Field-Oriented Control – FOC)
When hybrid inverters interface with motor loads—particularly centrifugal pumps in irrigation systems—vector control becomes paramount. Unlike scalar V/f control, FOC decouples the stator current into magnetic flux and torque components, enabling precise speed regulation (±0.5% accuracy) and high starting torque (up to 200% rated torque at 0 Hz). This is essential for submersible pumps requiring constant torque startup against high hydrostatic head pressure. The inverter’s IGBT switching frequency (typically 2–16 kHz, adjustable) must be optimized to balance thermal dissipation against motor harmonic losses, with carrier frequencies above 4 kHz recommended for deep well pump applications to reduce acoustic noise and bearing currents.

Multi-Stage Battery Charging Profiles
Efficient energy storage management relies on sophisticated charging algorithms tailored to lithium iron phosphate (LiFePO₄) or lead-acid chemistries:
– Bulk Phase: Constant current charging up to 80% state of charge (SOC) at maximum available PV current
– Absorption Phase: Constant voltage regulation (typically 56.4–58.4V for 48V nominal systems) with tapering current to prevent electrolyte stratification
– Float Phase: Maintenance voltage (54.0–54.8V) to offset self-discharge without thermal runaway

Temperature compensation coefficients (-3mV/°C/cell) must be integrated for installations in extreme climates, ensuring charge voltage adjustments between -20°C and +60°C ambient operation.

Power Quality Parameters
Total Harmonic Distortion (THD) for voltage output should remain below 3% under linear loads to prevent motor insulation degradation and bearing pitting. Power factor correction (PFC) stages must maintain ≥0.99 lagging-to-leading capability to comply with utility interconnection standards (IEEE 1541/IEC 61727). For pumping applications, the inverter must provide galvanic isolation between DC input and AC output to prevent ground fault currents in submerged motor installations.

Control System Terminology

PID Closed-Loop Control
In solar pumping configurations, hybrid inverters incorporate Proportional-Integral-Derivative (PID) controllers for process variables such as water tank level, pipeline pressure, or flow rate. The control loop adjusts VFD output frequency based on sensor feedback (4–20mA or 0–10V signals), maintaining constant pressure despite varying solar irradiance. Derivative action dampens system oscillations caused by water hammer effects in long distribution pipelines, while integral action eliminates steady-state offset during partial shading conditions.

Energy Management System (EMS) Logic
Advanced hybrid inverters utilize predictive algorithms for load shifting and peak shaving:
– Time-of-Use (TOU) Optimization: Battery charging scheduled during off-peak tariff periods, discharge during peak demand
– Weather Forecasting Integration: Pre-charging batteries based on meteorological data to ensure pump operation during forecasted cloudy periods
– Anti-Islanding Protection: Active frequency drift methods (AFDPF) or impedance detection to disconnect within 2 seconds of grid loss, complying with UL 1741 or IEC 62116 standards

DC Coupling vs. AC Coupling
DC-coupled architectures minimize conversion losses (eliminating the 3–5% efficiency penalty of battery-to-AC-to-motor pathways) by supplying the VFD DC bus directly from the battery bank. This topology is preferred for agricultural pumping stations where motor loads constitute 80%+ of energy consumption. AC coupling, conversely, offers retrofit flexibility for existing solar installations but requires bidirectional inverters with synchronous rectification capabilities.

Commercial and Logistics Frameworks

Incoterms for Heavy Electrical Equipment

FOB (Free On Board)
Under FOB terms, Boray Inverter assumes responsibility for export clearance and loading charges until the goods pass the ship’s rail at the port of departure. Risk transfers to the buyer once the hybrid inverter units (typically packaged in IP-rated plywood crates with desiccant protection) are loaded. This term favors buyers with established freight forwarding networks and specific marine insurance preferences for high-value power electronics (HS Code 8504.40).

CIF (Cost, Insurance, and Freight)
CIF arrangements include ocean freight charges and minimum insurance coverage (110% of CIF value per Institute Cargo Clauses A) to the destination port. For EPC contractors managing turnkey solar pumping projects, CIF simplifies logistics coordination, though the buyer assumes unloading costs and inland transportation risks. Given the weight concentration of hybrid inverters (100kW units exceeding 800kg), heavy-lift surcharges and port handling fees must be specified in the commercial invoice.

Additional Commercial Considerations
– EXW (Ex Works): Suitable for distributors with consolidation warehouses in China, placing maximum logistics responsibility on the buyer from the factory floor
– DDP (Delivered Duty Paid): Boray Inverter manages customs clearance, duties, and final mile delivery to the project site, critical for remote agricultural installations where buyers lack import infrastructure
– Warranty Terms: Standard 5-year warranties on power electronics, with optional extensions to 10 years for the MPPT and battery management system (BMS) components. Mean Time Between Failures (MTBF) should exceed 50,000 hours at 45°C ambient for industrial reliability

Packaging and Compliance
Units ship with VCI (Volatile Corrosion Inhibitor) film wrapping for salt-air protection during maritime transport, accompanied by IEC 62109-1/-2 safety certifications and CE marking documentation required for EU customs clearance. For solar pumping projects in developing markets, SONCAP (Nigeria) or SASO (Saudi Arabia) conformity certificates must accompany the Bill of Lading to prevent port detention.

Future Trends in the Hybrid Inverter With Solar Battery Charging Sector

The hybrid inverter sector is undergoing a paradigm shift from simple DC-to-AC conversion devices to intelligent energy orchestration platforms that seamlessly interface with industrial motor control architectures. For EPC contractors and automation distributors, this evolution represents a critical convergence point where renewable energy storage, solar pumping systems, and precision VFD technologies merge into unified power management ecosystems. As battery chemistries advance and grid codes tighten globally, the next generation of hybrid inverters is being engineered to address the specific demands of heavy-duty agricultural operations and industrial automation environments.

Convergence with VFD and Motor Control Architectures

A defining trend in the sector is the functional integration between hybrid inverters and Variable Frequency Drive (VFD) systems, particularly for solar pumping applications. Rather than operating as discrete components, next-generation hybrid inverters are incorporating direct VFD communication protocols (Modbus RTU/TCP, CANopen, and EtherCAT) to create synchronized energy management systems. This convergence enables real-time coordination between battery charging cycles and motor load demands—critical for agricultural projects where irrigation schedules must align with solar generation curves and energy storage availability.

For industrial engineers, this means hybrid inverters are evolving into motor-centric energy hubs capable of soft-starting high-inertia pumps while simultaneously managing battery charge states. Advanced models now feature dedicated pump control algorithms that automatically adjust VFD output frequencies based on available solar irradiance and battery SOC (State of Charge), ensuring continuous operation during transient cloud cover without grid dependency. This integration reduces system complexity by eliminating separate control cabinets and minimizing voltage drop issues between the inverter and motor terminals.

AI-Driven Predictive Energy Management

The incorporation of machine learning algorithms into hybrid inverter firmware is transforming how agricultural and industrial facilities optimize their energy flows. Modern systems utilize predictive analytics to forecast load profiles—whether for seasonal irrigation patterns or automated manufacturing cycles—and preemptively adjust battery charging strategies accordingly. These intelligent charging profiles move beyond traditional MPPT (Maximum Power Point Tracking) to incorporate multi-variable optimization, considering factors such as electricity tariff structures, weather prediction data, and motor thermal protection requirements.

For solar pumping installations, this translates to adaptive irrigation scheduling where the inverter autonomously determines optimal times to charge batteries versus directly powering pumps, based on crop water requirements and anticipated solar availability. Industrial applications benefit from peak shaving algorithms that ensure high-torque motor startups draw from stored energy rather than the grid, significantly reducing demand charges for C&I facilities.

High-Voltage DC Coupling and Utility-Scale Integration

The industry is rapidly migrating toward high-voltage DC architectures (1000V–1500V DC) for commercial and utility-scale hybrid systems, a shift that directly impacts solar pumping stations and large industrial motor installations. These high-voltage configurations reduce DC cabling losses by up to 60% compared to traditional 400V systems, enabling longer distances between solar arrays, battery containers, and pump stations without voltage regulation issues.

For EPC contractors, this trend necessitates hybrid inverters with wide MPPT voltage windows and robust arc-fault detection capabilities compliant with evolving IEC 62477 and UL 1741 standards. The move toward containerized energy storage solutions (100kWh–3MWh+) requires inverters capable of bi-directional power flow at medium-voltage levels, facilitating seamless transitions between grid-tied, off-grid, and microgrid modes for remote agricultural operations or industrial parks.

Industrial IoT and SCADA Integration

The proliferation of Industry 4.0 connectivity standards is driving demand for hybrid inverters with native IoT capabilities and edge computing functionality. Modern units feature embedded gateways that transmit real-time operational data—DC bus voltage, battery cell temperatures, motor current harmonics, and VFD fault codes—to centralized SCADA systems or cloud-based monitoring platforms. This integration is particularly critical for agricultural project managers overseeing distributed solar pump networks across vast geographical areas.

Digital twin technology is emerging as a key differentiator, allowing engineers to simulate hybrid inverter performance within virtual motor control environments before physical deployment. Predictive maintenance algorithms analyze vibration signatures and thermal patterns from connected VFDs to schedule battery maintenance or motor servicing during planned downtime, preventing catastrophic failures in critical irrigation or production cycles.

Electrification of Agricultural Fleets and Bidirectional Power Flow

As agricultural operations electrify their vehicle fleets (tractors, UTVs, and autonomous harvesters), hybrid inverters are evolving to support Vehicle-to-Grid (V2G) and Vehicle-to-Load (V2L) functionalities. This creates opportunities for mobile energy storage where farm equipment batteries supplement stationary storage during peak motor starting events or emergency irrigation needs. Industrial facilities are similarly adopting this flexibility to power electric forklifts and automated guided vehicles (AGVs) using solar-generated stored energy.

The technical implementation requires sophisticated bidirectional DC-DC converters within the hybrid inverter architecture, capable of managing disparate battery chemistries (LiFePO4 for stationary storage versus NMC for mobile equipment) while maintaining power quality standards suitable for sensitive motor control electronics.

Modular Scalability and Redundancy for Critical Applications

Finally, the sector is witnessing a shift toward modular, hot-swappable inverter architectures that ensure continuous operation for mission-critical pumping and processing applications. Rather than monolithic units, distributed hybrid inverter systems allow EPC contractors to design N+1 redundant configurations where individual module failures do not compromise battery charging capabilities or motor control functions. This modularity supports phased project development, enabling agricultural enterprises to scale from single-pump installations to multi-megawatt irrigation districts using standardized building blocks.

These technological trajectories indicate that hybrid inverters will increasingly serve as the central nervous system of industrial electrification projects, bridging the gap between intermittent renewable generation, energy storage, and precision motor control requirements. For stakeholders in the solar pumping and automation sectors, selecting hybrid inverter platforms with open communication architectures and high-voltage compatibility will be essential for future-proofing infrastructure investments against evolving grid standards and operational demands.

Top 2 Hybrid Inverter With Solar Battery Charging Manufacturers & Suppliers List

B2B Engineering FAQs About Hybrid Inverter With Solar Battery Charging

1. Q: How does the MPPT algorithm in a hybrid solar inverter interact with the V/Hz control of a VFD when optimizing power delivery for agricultural pumping systems?
   A: While both systems optimize power, they operate at different stages. The hybrid inverter’s MPPT (Maximum Power Point Tracking) maximizes DC extraction from the PV array to charge batteries or feed the DC bus, typically operating at 400–850VDC depending on the model (e.g., HPS40KTL/50KTL series). The VFD then performs a second-stage conversion, using V/Hz or vector control to match the motor’s torque requirements. For optimal efficiency in solar pumping, the hybrid inverter should maintain a stable DC bus voltage above the VFD’s minimum input threshold (typically 360VDC for 380VAC motors) during battery discharge, preventing undervoltage trips during high-torque startup events. Advanced systems utilize Modbus communication to allow the VFD to preemptively signal load demands to the hybrid inverter’s energy management system, ensuring the battery’s State of Charge (SOC) prioritizes motor starting currents over auxiliary loads.

2. Q: What are the critical DC bus voltage compatibility considerations when paralleling a hybrid inverter’s battery output with a VFD for direct solar pump operation?
   A: Compatibility hinges on voltage window alignment and current ripple management. High-voltage hybrid inverters (e.g., 100kW+ C&I units) often operate at 600–1000VDC to minimize copper losses, whereas standard VFDs for pumps typically accept 380–480VAC input (equating to 513–650VDC bus after rectification). When using the hybrid inverter as a DC power source, ensure the battery voltage range (nominal vs. depth of discharge) remains within the VFD’s DC input tolerance—typically ±20% of rated bus voltage. Additionally, the hybrid inverter’s switching frequency (typically 2–4 kHz) must be synchronized or filtered to prevent harmonic interference with the VFD’s IGBT switching, which can cause erratic motor behavior or overcurrent faults in submersible pump applications.

3. Q: Can a hybrid inverter with solar battery charging provide sufficient ride-through capability for high-inrush motor starting, and how does this impact battery sizing for solar pumping projects?
   A: Yes, but battery sizing must account for the motor’s Locked Rotor Amps (LRA) versus the hybrid inverter’s surge capacity. Standard hybrid inverters (e.g., 40kW–100kW models) can typically deliver 1.5–2.0x rated power for 10–60 seconds. For a 30kW submersible pump with 6x inrush current (180kVA), the battery bank must be sized not just for steady-state kWh (flow rate × operating hours), but for the C-rate discharge capability to support the inverter’s peak output. Lithium iron phosphate (LiFePO4) batteries with 1C–2C discharge rates are recommended over lead-acid for this application. The system should utilize the hybrid inverter’s “optimized charging profiles” (bulk/absorption/float) to maintain a 20–30% SOC buffer specifically reserved for motor starting events, preventing deep discharge cycles that degrade battery longevity.

4. Q: How do staged charging algorithms (bulk, absorption, float) in hybrid inverters affect the duty cycle management of intermittent solar pumping compared to direct-coupled solar pump inverters?
   A: Direct-coupled solar pump inverters (like Boray’s solar pump VFDs) prioritize immediate power conversion without storage, ceasing operation when irradiance drops below the threshold. Hybrid inverters with battery storage enable “time-shifted” pumping by storing energy during peak sun (bulk charging phase) and discharging during absorption/float phases when solar input is marginal. For agricultural projects with time-of-use (TOU) tariffs, this allows pumping during off-peak grid hours using stored solar energy. However, engineers must calculate the round-trip efficiency loss (typically 8–12% for battery storage + inverter conversion) versus the hydraulic efficiency gain of running pumps at optimal speeds via VFD control rather than direct-coupled fixed-speed operation during variable irradiance conditions.

5. Q: What harmonic distortion (THDi) and power factor considerations should EPC contractors evaluate when connecting VFD-controlled motors to the AC output of a hybrid inverter versus grid-tied operation?
   A: Hybrid inverters operating in off-grid or battery mode often exhibit higher output impedance than stiff utility grids, making them more susceptible to voltage distortion from non-linear loads like VFDs. While grid-tied VFDs typically produce 3–8% current THD, this can translate to higher voltage THD (>5%) on a hybrid inverter’s output, potentially triggering protective shutdowns or overheating motors. EPC contractors should specify hybrid inverters with active filtering capabilities or install line reactors/dv/dt filters between the hybrid inverter and VFD. Additionally, verify that the hybrid inverter supports leading power factor loads, as lightly loaded VFDs can present capacitive power factors that confuse basic power factor correction algorithms in older hybrid models.

6. Q: In large-scale C&I solar pumping installations, how does DC coupling architecture compare to AC coupling for integrating hybrid inverters with existing motor control centers (MCCs)?
   A: DC coupling (connecting PV strings directly to the hybrid inverter’s DC bus) eliminates the double-conversion penalty when charging batteries (95–98% efficiency vs. 90–93% for AC-coupled systems), making it preferable for new solar pumping installations where the hybrid inverter serves as the primary power source. However, AC coupling is often superior for retrofitting existing VFD-driven pumping stations, as it allows the existing solar pump inverter or grid connection to remain intact while the hybrid inverter manages battery storage via the AC bus. For DC coupling with existing MCCs, ensure the hybrid inverter’s DC output voltage matches the VFD’s internal DC bus requirements (often requiring a DC-DC converter or specific “solar pump hybrid” models that bypass the VFD’s rectifier stage).

7. Q: What communication protocols enable real-time load shedding coordination between hybrid inverters and VFDs to prevent battery over-discharge during critical pump operations?
   A: Industrial-grade hybrid inverters and VFDs typically support Modbus RTU/TCP, CANopen, or proprietary protocols (e.g., RS-485 interfaces). For critical agricultural applications, implement a master-slave configuration where the hybrid inverter acts as the master, broadcasting SOC (State of Charge) and available power margins to the VFD’s PLC or external controller. When battery voltage drops to a programmable setpoint (e.g., 20% SOC), the VFD can receive a signal to reduce pump speed (frequency) via PID control, reducing power draw by the cube of the speed reduction (affinity laws) rather than hard-stopping the motor. Advanced systems utilize the hybrid inverter’s “smart energy management” APIs to prioritize the pump load as “Tier 1” critical, while shedding non-essential loads (lighting, HVAC) to extend pumping duration during low-irradiance periods.

8. Q: How do grid-forming vs. grid-following hybrid inverters impact motor starting performance in remote solar pumping applications without grid backup?
   A: Grid-forming (or “virtual synchronous generator”) hybrid inverters can establish their own voltage and frequency reference, providing the “stiff” source necessary for high-torque motor starting. This is critical for deep-well submersible pumps where starting current can be 5–7x running current. Grid-following inverters, conversely, require an existing grid or generator to synchronize against and may struggle with voltage sag during motor inrush, potentially causing startup failure. For off-grid solar pumping, specify grid-forming hybrid inverters with sufficient surge capacity (3x rated for 10 seconds) and “soft start” coordination with the VFD. The VFD should be programmed for “flying start” or “speed search” capability to catch a spinning pump column, reducing the energy burden on the hybrid inverter’s battery during restart sequences after cloud transients.

Disclaimer

Conclusion: Partnering with Boray Inverter for Hybrid Inverter With Solar Battery Charging

As the global energy infrastructure pivots toward decentralized, resilient power architectures, the hybrid inverter with solar battery charging has evolved from a peripheral component to the central orchestration layer of modern agricultural and industrial ecosystems. The integration of advanced MPPT algorithms, intelligent multi-stage battery management, and seamless grid-interactive functionality delivers quantifiable operational advantages—reducing dependency on unstable utility networks while maximizing renewable asset utilization. For electrical engineers and EPC contractors, selecting hardware that guarantees consistent performance across variable irradiance, temperature extremes, and dynamic load profiles remains the critical determinant of project ROI and system longevity.

This engineering imperative demands manufacturing partners with deep domain expertise in motor control and power electronics. Shenzhen Boray Technology Co., Ltd. stands at the forefront of this specialization, operating as an innovative China-based manufacturer of Solar Pumping and Motor Control Solutions. Our competitive distinction lies in an R&D engineering team that constitutes 50% of our total workforce, possessing mastery over Permanent Magnet Synchronous Motor (PMSM) and Induction Motor (IM) vector control technologies—expertise directly transferable to hybrid inverter architectures requiring precise torque control and harmonic suppression.

Supported by two state-of-the-art production lines and rigorous 100% full-load testing protocols, Boray Inverter ensures that every unit meets the exacting standards demanded by agricultural irrigation systems and industrial automation environments worldwide. Whether deploying solar pump VFDs in remote off-grid locations or integrating hybrid storage solutions for process-critical manufacturing, our platforms are engineered to withstand the voltage fluctuations and environmental stresses inherent to field operations.

We invite agricultural project managers, automation distributors, and EPC contractors to leverage our technical capabilities for customized VFD architectures and competitive wholesale partnerships. Contact Boray Inverter today to discuss how our motor control expertise and manufacturing scale can accelerate your next hybrid energy deployment.
