Introduction: Sourcing 3 Phase Variable Frequency Drive for Industrial Use

In modern industrial automation and solar infrastructure, the 3 Phase Variable Frequency Drive (VFD) has evolved from a simple motor controller to a critical asset for energy optimization and precision process control. With industrial motors consuming over 60% of global electricity in manufacturing and pumping applications, implementing the right VFD solution can reduce energy expenditure by up to 30% while extending equipment lifespan through soft-start capabilities and dynamic torque management.

However, sourcing the optimal drive for demanding environments—whether for centrifugal pumps in agricultural solar projects, conveyor systems in material handling, or HVAC compressors in commercial buildings—requires navigating complex technical specifications and compatibility challenges. Engineers and procurement teams must evaluate more than just horsepower ratings; factors such as input/output voltage classes (low voltage 380V/480V versus medium voltage 3kV/10kV), IP environmental protection ratings, harmonic distortion mitigation, and communication protocol integration determine long-term operational reliability.

This comprehensive guide addresses the critical procurement decisions facing EPC contractors, automation distributors, and project managers. We examine the distinct categories of 3 Phase VFDs—including standard industrial drives, solar pump inverters with MPPT functionality, and phase-conversion solutions for rural installations—alongside essential specifications for rectifier topology, DC bus capacity, and thermal management. Additionally, we provide a framework for evaluating manufacturers, from Chinese OEM capabilities and certification standards (CE, UL, IEC) to after-sales technical support infrastructure, ensuring your investment delivers measurable ROI across the operational lifecycle.

Technical Types and Variations of 3 Phase Variable Frequency Drive

Three-phase Variable Frequency Drives (VFDs) are categorized not merely by power rating, but by input voltage class, power source topology, and control methodology. Selecting the appropriate variation is critical for system compatibility, energy efficiency, and lifecycle cost—particularly in solar pumping projects where DC-input inverters differ fundamentally from grid-fed AC drives. Below is a technical classification of the primary 3-phase VFD architectures used in industrial automation and agricultural applications.

Type	Technical Features	Best for (Industry)	Pros & Cons
Low Voltage (LV) General Purpose VFD	• Input: 380V–480V AC (3-phase) ±10% • 2-Level IGBT-PWM topology • Scalar V/Hz or Sensorless Vector Control • Carrier frequency 2–16 kHz • Power range: 0.75 kW–710 kW	Manufacturing, HVAC, Water/Wastewater, General Machinery	Pros: High cost-efficiency, compact footprint, mature harmonic mitigation solutions Cons: Limited to LV motor networks; requires output reactors for long cable runs (>50m)
Medium Voltage (MV) VFD	• Input: 3.3kV / 6kV / 10kV AC • Multi-level cascaded H-bridge or NPC (Neutral Point Clamped) topology • Cell bypass redundancy & regenerative braking options • Power range: 200 kW–20 MW+	Oil & Gas, Mining, Large-scale Irrigation, Power Plants	Pros: Direct high-power motor control without step-down transformers; reduced I²R cable losses Cons: Significant capital expenditure (CAPEX); large physical footprint; requires specialized MV maintenance protocols
Solar Pump Inverter (DC-to-AC VFD)	• Input: 200V–800V DC (PV array direct) • Integrated MPPT (Maximum Power Point Tracking) algorithm • AC Output: 3-phase 220V/380V auto-switching • Dry-run, tank-full, and cavitation protection logic	Agriculture, Remote Water Supply, Off-grid Irrigation, EPC Solar Projects	Pros: Eliminates grid dependency; maximizes PV array yield; automatic sleep/wake based on irradiance Cons: Weather-dependent output; requires accurate PV array sizing; limited operation during low-light conditions without battery backup
Single-Phase Input VFD	• Input: 220V–240V AC (1-phase) • Output: 3-phase 220V (phase conversion) • Derating Required: 1.73× (√3) current oversizing vs. 3-phase input models • Recommended: 5% input line reactor for inrush current suppression	Rural Electrification, Small Workshops, Residential Pumping, Retrofit Markets	Pros: Enables 3-phase motor deployment on single-phase rural grids; eliminates external phase converters Cons: Limited to ~3 HP (2.2 kW) standard; derating reduces cost-efficiency; higher input current stress on rectifier diodes
High-Performance Vector Control VFD	• Field-Oriented Control (FOC) or Direct Torque Control (DTC) • High dynamic response bandwidth (>100 Hz) • 150%–200% starting torque at 0 Hz (with encoder) • Dual-rated for heavy duty (HD) and normal duty (ND)	Cranes, Hoists, Extruders, Centrifuges, Precision Positioning Systems	Pros: Precise torque control independent of speed; superior speed regulation (±0.01%) Cons: Higher unit cost; complex parameter tuning; encoder feedback wiring adds installation complexity

Detailed Technical Analysis

Low Voltage (LV) General Purpose VFDs
These units represent the industrial standard for motors up to 710 kW, utilizing 2-level IGBT bridges to generate PWM waveforms. Modern LV VFDs, such as the Boray XFC500 series, employ sophisticated algorithms like Sensorless Vector Control (SVC) to achieve dynamic response comparable to closed-loop systems without physical encoders. For solar pumping integrators, LV VFDs serve as the AC power stage in hybrid systems, though they require a separate DC-to-AC power supply unlike native solar pump inverters. Engineers must verify the drive’s THDi (Total Harmonic Distortion of current) specifications—typically <5% with active front ends (AFE)—to comply with IEEE 519 or local grid codes.

Medium Voltage (MV) VFDs
Operating at 3.3 kV, 6 kV, or 10 kV, MV drives utilize cascaded H-bridge or Neutral Point Clamped (NPC) topologies to manage the high voltage stresses that would otherwise destroy standard IGBT modules. These drives are essential for large-scale agricultural irrigation projects utilizing high-voltage borehole pumps or mining slurry pumps exceeding 500 kW. The multi-level design produces sinusoidal output waveforms with lower dv/dt stress, extending motor insulation life compared to LV drives with output filters. However, EPC contractors must account for significant infrastructure requirements, including reinforced electrical rooms and MV switchgear integration.

Solar Pump Inverters (DC-AC VFDs)
Distinct from standard VFDs, solar pump inverters accept direct current from PV arrays (typically 400V–800V DC) and incorporate Maximum Power Point Tracking (MPPT) to maintain optimal array voltage as irradiance changes. These drives include specialized pump protection algorithms—such as dry-run detection via current signature analysis and tank-full management using pressure transducers or level sensors. For agricultural project managers, the critical specification is the Vmppt voltage range versus the PV array’s actual output; mismatches here result in significant water yield losses during morning and evening hours.

Single-Phase Input VFDs
In regions where three-phase grid infrastructure is unavailable, these drives function as electronic phase converters. The critical engineering consideration is the derating factor: when powered by single-phase 230V, the input current draws on two lines instead of three, requiring the drive to be oversized by a factor of √3 (approximately 1.73) to maintain equivalent DC bus capacity. For example, a 5.5 kW (7.5 HP) three-phase motor requires a VFD rated for at least 9.5 kW input capacity when fed by single-phase power. Additionally, input line reactors (5% impedance) are mandatory to protect the rectifier bridge from current spikes and to mitigate harmonic feedback into the rural grid.

High-Performance Vector Control VFDs
Utilizing Field-Oriented Control (FOC), these drives decouple torque and flux components mathematically, enabling independent control of motor magnetization and torque production. This is crucial for applications requiring high starting torque (e.g., positive displacement pumps in extrusion processes) or precise speed control (e.g., wire drawing). While standard V/Hz drives maintain a constant V/f ratio, vector drives dynamically adjust current vectors, providing 150%–200% overload capability for 60 seconds. For automation distributors, the key differentiator is whether the application requires sensorless vector control (sufficient for 95% of pump/fan applications) or closed-loop vector control with encoder feedback (required for zero-speed holding torque).

Key Industrial Applications for 3 Phase Variable Frequency Drive

Three-phase Variable Frequency Drives represent the backbone of modern motor control strategies, extending far beyond simple speed regulation to deliver measurable ROI through energy optimization and process precision. For EPC contractors and automation distributors, understanding sector-specific implementation criteria ensures specification of drives that align with both environmental demands and long-term operational economics. Below is a strategic breakdown of high-impact applications where 3-phase VFD technology delivers transformative value.

Sector	Application	Energy Saving Value	Sourcing Considerations
Agriculture & Solar Pumping	Solar-powered irrigation systems, deep-well borehole pumps, and precision drip/sprinkler automation	40–60% reduction versus diesel or grid-tied pumping; MPPT efficiency achieving 98–99% power conversion from PV arrays	IP65/NEMA 4X enclosures mandatory for outdoor UV/humidity exposure; wide DC input voltage range (200–800VDC) to accommodate varying solar irradiance; integrated MPPT algorithms; anti-islanding protection per IEEE 1547; dry-run and water level detection sensors
Water & Wastewater Treatment	Centrifugal transfer pumps, aeration basin blowers, and sludge processing equipment	20–35% via variable flow control replacing throttling valves; up to 50% savings in aeration applications through dynamic dissolved oxygen (DO) matching	Corrosion-resistant enclosures (IP54 minimum, stainless steel options); PID process control with feedback loops for pressure/flow; active harmonic filters maintaining THDi <5% to protect sensitive PLC networks; redundant cooling systems for 24/7 critical infrastructure
HVAC & Building Infrastructure	Chilled water distribution pumps, cooling tower fans, and Air Handling Unit (AHU) variable air volume (VAV) systems	30–50% reduction in fan/pump energy consumption; typical payback period <18 months in commercial buildings	BACnet/IP or Modbus RTU communication protocols for BMS integration; sleep mode functionality to eliminate no-load losses; low audible noise operation (<60dB); compliance with IEEE 519 for harmonic distortion limits in multi-tenant facilities
Cement & Heavy Industry	Rotary kiln drives, conveyor belt systems, primary/secondary crushers, and induced draft (ID) fans	15–30% in high-inertia applications; significant mechanical wear reduction through controlled acceleration ramps (soft-start)	Vector control (FOC) capability delivering 150% starting torque at 0Hz; regenerative braking options for downhill conveyors; dust-tight sealing (IP54/IP55); overload capacity of 150% for 60 seconds to handle surge loads; vibration-resistant chassis mounting
Manufacturing & Process Automation	CNC machine tool spindles, plastic extruders, industrial mixers, and precision assembly conveyors	25–40% via precise load-matching; elimination of mechanical transmission losses in geared systems	STO/SS1 safety functions (IEC 61800-5-2) for emergency stop integration; EMC filters to prevent interference with sensitive instrumentation; programmable relay outputs for multi-motor coordination; compatibility with both induction motors and permanent magnet (PM) synchronous motors

Agriculture & Solar Pumping
In off-grid and grid-tied agricultural installations, 3-phase VFDs serve as the critical interface between photovoltaic arrays and AC induction motors. Unlike conventional pumping systems that operate at fixed speeds regardless of water demand, solar-compatible VFDs utilize Maximum Power Point Tracking (MPPT) to maximize energy harvest from PV panels while adjusting motor frequency to match real-time water requirements. For project managers specifying solar pumping solutions, prioritize drives with automatic voltage boosting to maintain torque during low-light conditions and IP65-rated enclosures to withstand pesticide exposure and irrigation overspray. The integration of dry-run protection and water level sensors prevents cavitation damage, extending submersible pump life by up to 40% compared to direct-on-line (DOL) starting methods.

Water & Wastewater Treatment
Municipal and industrial water facilities represent ideal candidates for VFD deployment due to the variable nature of demand-flow profiles. In aeration processes—typically the largest energy consumer in wastewater treatment—VFDs modulate blower speeds based on real-time dissolved oxygen measurements, eliminating the energy waste associated with constant-speed blowers and pneumatic throttling. When sourcing drives for this sector, EPC contractors should specify units with integrated PID controllers to close the loop between flow sensors and pump speed without external PLC intervention. Additionally, given the presence of corrosive gases (H₂S, chlorine), drives must feature conformal-coated PCBs and stainless steel hardware to prevent premature failure in humid electrical rooms.

HVAC & Building Infrastructure
Commercial building automation relies heavily on 3-phase VFDs to implement Variable Air Volume (VAV) and Variable Water Volume (VWV) strategies. By decoupling fan and pump speeds from fixed 50/60Hz supply frequencies, these drives enable part-load efficiency that centrifugal equipment inherently cannot achieve via damper or valve control. Critical sourcing considerations include BACnet communication stacks for seamless integration with Building Management Systems (BMS) and automatic sleep/wake functions that de-energize motors during low-demand periods while maintaining system readiness. For retrofit projects, verify that selected VFDs offer harmonic mitigation (active front ends or DC chokes) to prevent overheating of existing neutral conductors in older building infrastructure.

Cement & Heavy Industry
The cement sector presents unique challenges including high starting inertia, dusty environments, and regenerative load conditions. Vector-controlled 3-phase VFDs provide the high starting torque (150–200% rated) necessary to start fully loaded kilns and crushers without mechanical stress, while eliminating the maintenance-intensive slip rings and brushes required by traditional wound-rotor motor starters. For conveyor applications involving vertical drops or deceleration, specify drives with regenerative braking modules or common DC bus architectures to return braking energy to the facility grid rather than dissipating it as heat. Environmental protection ratings of IP54 or higher are non-negotiable to prevent cement dust infiltration into power sections.

Manufacturing & Process Automation
In discrete manufacturing and continuous process industries, VFDs enable precise torque and position control previously achievable only with servo systems. Modern 3-phase drives with sensorless vector control can maintain ±0.5% speed accuracy across a 100:1 range, suitable for extrusion and winding applications. Safety integration is paramount: specify drives with Safe Torque Off (STO) certified to IEC 61800-5-2 to satisfy machinery directive requirements without external contactors. For facilities with mixed motor populations, select universal VFDs capable of operating both standard induction motors and high-efficiency permanent magnet (PM) motors, providing flexibility for future efficiency upgrades without drive replacement.

Top 3 Engineering Pain Points for 3 Phase Variable Frequency Drive

Deploying three-phase Variable Frequency Drives (VFDs) in industrial automation, solar pumping, and agricultural infrastructure presents distinct engineering challenges that extend beyond simple motor speed regulation. From harmonic resonance in weak grid environments to thermal management in desert solar arrays, EPC contractors and automation engineers must navigate technical constraints that impact system reliability, CAPEX, and long-term OPEX. Below are the critical pain points encountered in field deployments and the engineering solutions required to address them.

Scenario 1: Harmonic Distortion and Power Quality in Weak Grid Infrastructure

The Problem:
Three-phase VFDs utilize rectifier circuits to convert AC mains power to DC, inherently generating harmonic currents (particularly 5th, 7th, and 11th order) that distort voltage waveforms and degrade power factor. In solar pumping installations or remote agricultural sites with weak grid infrastructure, this harmonic pollution exacerbates voltage fluctuations and can create resonance conditions with existing power factor correction capacitors. Compounding this issue, many rural deployments must utilize single-phase input supplies to power three-phase motors—a configuration that requires VFD derating by a factor of √3 (1.73) and necessitates external input line reactors of approximately 5% impedance to protect rectifier bridges from destructive inrush currents. Without these mitigations, drive failures and grid instability become recurrent operational liabilities.

The Solution:
Modern VFD architectures incorporating Active Front Ends (AFE) or built-in DC link chokes mitigate Total Harmonic Distortion (THD) to below 5% while improving power factor to near unity (0.98+), eliminating the need for separate active harmonic filters (APF/AHF). For single-phase input constraints, selecting drives with reinforced rectifier modules and integrated line reactors removes the complexity of external derating calculations. Boray Inverter’s three-phase VFDs feature automatic voltage regulation (AVR) and advanced PWM algorithms that maintain stable DC bus voltage even during grid voltage sags of ±20%, ensuring continuous operation in remote solar pumping stations without additional power quality infrastructure.

Scenario 2: Environmental Stress and Thermal Management in Outdoor Agricultural Deployments

The Problem:
VFDs deployed in solar pumping or agricultural automation face extreme environmental stressors: ambient temperature swings from -20°C to +60°C, humidity fluctuations causing internal condensation, and airborne contaminants including silica dust, chemical fertilizers, and corrosive agents. Standard IP20 or IP54 enclosures frequently fail in these conditions, leading to PCB corrosion, cooling fan failures, and thermal derating that significantly reduces drive lifespan. Inadequate heat management is particularly critical during peak solar generation hours when ambient temperatures are highest and cooling systems are under maximum load; without proper thermal design, drives trigger protective thermal shutdowns precisely when irrigation demand peaks, resulting in crop stress and system downtime.

The Solution:
IP65-rated (NEMA 4X) enclosures with conformal-coated PCBs provide complete protection against dust ingress and high-pressure water jets, essential for chemical-intensive agricultural environments. Passive cooling designs utilizing extended heatsink surfaces with natural convection eliminate mechanical fan failure points—a critical advantage in remote installations where maintenance access is limited. Boray Inverter’s outdoor-rated VFDs incorporate real-time thermal monitoring and automatic derating algorithms that dynamically adjust switching frequency to maintain safe operating temperatures across the full thermal envelope, ensuring reliable performance in desert solar arrays without external cooling systems or frequent filter cleaning.

Scenario 3: Legacy Motor Integration and Dynamic Load Precision Control

The Problem:
Retrofitting existing three-phase motors with VFDs presents significant compatibility hurdles: motors manufactured prior to inverter-duty standards (NEMA MG1 Part 31) often lack insulation systems rated for the voltage spikes (dv/dt) generated by IGBT switching, leading to premature winding failure. Furthermore, mechanical systems experience severe stress from abrupt torque changes during traditional across-the-line starting, which draws 6-8x rated current. In pumping applications, the inability to precisely control deceleration ramps results in water hammer effects that damage pipeline infrastructure. These technical challenges are compounded by operational gaps; industry surveys indicate approximately 20% of facilities struggle with inadequate personnel training on VFD parameterization, resulting in suboptimal performance and unrealized energy savings potential.

The Solution:
Advanced VFDs offering dual control modes—V/Hz for standard induction motors and Sensorless Vector Control (SVC) for high-torque applications—provide the flexibility necessary for legacy system integration. Soft-start

Component and Hardware Analysis for 3 Phase Variable Frequency Drive

The robustness of a 3 Phase Variable Frequency Drive (VFD) in demanding environments—such as solar irrigation sites with 50°C ambient temperatures or industrial facilities with high harmonic content—is fundamentally determined by the quality grade and integration density of its internal power electronics and control architecture. For EPC contractors and automation distributors evaluating long-term asset reliability, understanding the discrete hardware elements beyond the enclosure IP rating is critical. The following analysis examines the core components that dictate energy conversion efficiency, thermal performance, and Mean Time Between Failures (MTBF) in modern motor control systems.

Power Semiconductor Architecture

At the heart of the inverter stage, Insulated Gate Bipolar Transistor (IGBT) modules or Intelligent Power Modules (IPMs) perform the high-frequency switching that synthesizes variable frequency output from the DC bus. In solar pump inverter applications, these devices must withstand wide voltage fluctuations from PV arrays (typically 200V–800V DC fluctuation) while maintaining switching losses below 1.5% of throughput power.

High-grade IGBTs utilize NPT (Non-Punch Through) or FS (Field Stop) trench-gate technology, offering lower Vce(sat) (collector-emitter saturation voltage) and positive temperature coefficients that prevent thermal runaway. For agricultural projects with long cable runs between VFD and motor, selecting modules with dv/dt control (soft switching) is essential to mitigate reflected wave phenomena that damage motor insulation.

Control and Processing Units

The Digital Signal Processor (DSP) or ARM Cortex-M4/M7 microcontrollers execute the Field-Oriented Control (FOC) or V/f algorithms with cycle times under 100µs. In advanced solar pumping systems, this controller simultaneously manages Maximum Power Point Tracking (MPPT) logic alongside motor control. Quality indicators include:
– ADC resolution: 12-bit minimum for current sensing, 16-bit preferred for precision torque control
– Temperature operating range: Industrial-grade (-40°C to +85°C) vs. commercial-grade (0°C to +70°C)
– EMI immunity: IEC 61000-4-4 burst immunity of ±2kV on I/O ports

Failure of the control board due to inadequate conformal coating or insufficient isolation between high-voltage sensing traces and logic grounds is a primary cause of field failures in dusty agricultural environments.

Thermal Management Systems

Aluminum extrusion heatsinks with anodized surfaces and thermal interface materials (TIMs) featuring >6.0 W/mK thermal conductivity are non-negotiable for 3 Phase VFDs operating at 100% load in tropical climates. The thermal design must accommodate the “10°C rule”—for every 10°C reduction in junction temperature, semiconductor lifespan doubles per the Arrhenius equation.

Forced-air cooling systems should employ ball-bearing fans with IP54 protection and tachometer feedback for predictive maintenance, rather than sleeve-bearing alternatives that fail within 20,000 hours in dusty conditions. Liquid-cooled cold plates are increasingly specified for high-power agricultural projects (75kW+) where ambient air contains corrosive fertilizers or high salinity.

Passive Components and Protection

DC Link Film Capacitors (polypropylene metallized film) have largely superseded electrolytic capacitors in premium VFDs due to their 100,000-hour lifespan and ability to handle high ripple currents (up to 50A RMS) without electrolyte evaporation. Key quality differentiators include ESR (Equivalent Series Resistance) values below 5mΩ and self-healing dielectric properties.

Input/Output Reactors and EMI Filters prevent grid-side harmonics and protect motor bearings from common-mode currents. High-quality chokes utilize grain-oriented silicon steel with vacuum-impregnated windings to prevent moisture ingress—critical for solar pump installations with daily condensation cycles.

Component Quality Matrix

Component	Function	Quality Indicator	Impact on Lifespan
IGBT Power Module	AC-DC-AC conversion, high-frequency switching	Vce(sat) < 1.7V, Tj(max) 150°C–175°C, dv/dt controllability	Premium modules (Infineon, Mitsubishi, Fuji) extend operational life to 15–20 years vs. 5–8 years for generic alternatives
DSP/Controller Board	PWM generation, motor control algorithms, MPPT logic	Industrial temp range (-40°C to +85°C), 3-layer conformal coating, 16-bit ADC	Industrial-grade controllers reduce failure rates by 60% in outdoor solar applications compared to commercial-grade variants
DC Bus Capacitor	Energy storage, ripple current absorption, voltage stabilization	ESR < 5mΩ, ripple current rating >120% of nominal, film construction (polypropylene)	Film capacitors offer 100,000 hours @ 70°C vs. 20,000 hours for electrolytic; critical for 24/7 solar pumping
Cooling Heatsink	Thermal dissipation from semiconductors	Thermal resistance (Rth) < 0.15 K/W, aluminum alloy 6063-T5, anodized finish	Proper thermal management prevents junction temperature excursions that halve semiconductor life per 10°C rise
EMI Filter & Reactors	Harmonic mitigation, bearing current protection, grid compliance	Insertion loss >40dB at 1MHz, high-potential (hipot) testing >2kV, vacuum-impregnated windings	Prevents premature motor bearing failure (fluting) and insulation degradation; extends motor life by 30–40%
Thermal Interface Material	Heat transfer between IGBT baseplate and heatsink	Thermal conductivity >6 W/mK, dielectric strength >3kV/mm, silicone-free formulation	Eliminates hot spots; poor TIM can increase thermal resistance by 50%, accelerating aging
Input Rectifier Bridge	AC to DC conversion, power factor correction	Forward voltage drop < 1.0V, surge current rating >10x nominal, hexavalent chromium-free plating	Robust rectifiers prevent catastrophic failure during grid voltage swells common in rural agricultural networks

Integration Considerations for Solar Applications

For agricultural project managers specifying VFDs in photovoltaic pumping systems, component selection must prioritize wide voltage operation (to accommodate morning/evening irradiance fluctuations) and isolated communication ports (RS485/Modbus with 2.5kV isolation) for remote monitoring. The hardware must support sleep/wake functionality with minimal inrush current to preserve capacitor lifespan during intermittent solar availability.

Boray Inverter’s engineering approach emphasizes derated component specifications—utilizing 600V-rated IGBTs in 380V applications and 105°C-rated film capacitors in 50°C ambient designs—to ensure that agricultural installations achieve the 20-year operational lifespan expected of solar infrastructure assets. When evaluating supplier proposals, insist on disclosure of semiconductor brands, capacitor chemistry, and thermal test data at 45°C ambient rather than standard 25°C laboratory conditions.

Manufacturing Standards and Testing QC for 3 Phase Variable Frequency Drive

In mission-critical applications such as solar irrigation systems and heavy-duty industrial automation, the reliability of a 3 Phase Variable Frequency Drive (VFD) is determined long before installation—at the manufacturing and quality control stage. For EPC contractors and agricultural project managers deploying drives in remote or harsh environments, substandard production practices translate directly into costly downtime and system failures. Below is a technical breakdown of the manufacturing standards, material specifications, and 100% validation protocols that distinguish enterprise-grade VFDs from commodity alternatives.

Component-Level Manufacturing & Environmental Protection

PCB Conformal Coating and Potting
Given that solar pump inverters and agricultural VFDs frequently operate in high-humidity, dust-laden, or chemically corrosive environments, bare printed circuit boards (PCBs) undergo automated conformal coating processes. Boray Inverter utilizes acrylic or polyurethane conformal coatings (meeting IPC-A-610 Class 3 standards) that provide a dielectric barrier against moisture ingress and conductive contaminants. For drives intended for extreme outdoor exposure, selective potting of critical power sections (IGBT driver circuits and control power supplies) further mitigates the risk of arc tracking and dendritic growth between high-voltage traces.

Thermal Management Integration
During assembly, automated dispensing systems apply thermal interface materials (TIMs) with precise pressure control between IGBT modules and heatsinks, ensuring thermal resistance values below 0.1°C-in²/W. This is critical for VFDs handling regenerative loads in motor control applications, where inconsistent thermal coupling leads to junction temperature spikes and premature semiconductor failure.

100% Production Line Testing Protocols

Unlike consumer electronics that rely on Acceptable Quality Level (AQL) sampling, industrial VFDs require 100% full-load burn-in testing before shipment. Each unit undergoes:

• High-Temperature Aging: Units operate at 110–120% rated current in 40°C–50°C ambient chambers for a minimum of 4 hours (extended to 8 hours for solar pump inverters). This thermal stress screens for infant mortality in electrolytic capacitors and solder joint integrity under thermal cycling.
• Full-Power Load Testing: Using regenerative load banks or dynamometer setups, drives are validated across the entire V/Hz curve—from 0 Hz soft-start ramping to maximum output frequency—to verify current waveform purity (THDi < 5% where active front ends are used) and torque control accuracy.
• Protection Circuit Validation: Every unit is subjected to simulated fault conditions including phase-loss, input undervoltage (simulating solar array voltage collapse), output short-circuit, and thermal overload to ensure IGBT desaturation detection and hardware protection interlocks respond within microseconds.

Environmental Stress Screening (ESS)

For equipment destined for outdoor solar pumping stations or uncontrolled industrial environments, manufacturing includes aggressive Environmental Stress Screening:

• Thermal Shock Cycling: Units transition between -20°C and +60°C chambers within 5 minutes to validate solder joint integrity and plastic component dimensional stability.
• Humidity Resistance: 96-hour exposure to 95% relative humidity at 40°C (IEC 60068-2-78) verifies conformal coating effectiveness and connector sealing, crucial for tropical agricultural deployments.
• Vibration and Shock: Random vibration testing (5–500 Hz, 2G RMS) per IEC 60068-2-64 simulates transport rigors and pump-induced mechanical resonance, ensuring no degradation in choke coils or DC bus capacitor mounting.

Compliance with International Standards and Certifications

Electromagnetic Compatibility (EMC) and Safety
Manufacturing adherence to IEC 61800-5-1 (safety requirements) and IEC 61800-3 (EMC standards) is non-negotiable for global B2B distribution. Production facilities maintain calibrated EMC chambers to conduct radiated emission testing (30 MHz–1 GHz) and immunity testing against electrostatic discharge (ESD) and surge transients (IEC 61000-4-5). CE marking compliance requires rigorous documentation of Limited Voltage Directive (LVD) and EMC conformity, ensuring seamless grid connection approval within EU project tenders.

Quality Management Systems
ISO 9001:2015 certification governs the entire production workflow—from incoming inspection of IGBT modules and film capacitors (verifying tolerances and lot traceability) to final packaging. For solar-specific applications, additional validation against IEC 62109-2 (safety of power converters used in photovoltaic systems) ensures proper isolation barriers and ground fault protection integration.

Material Compliance
RoHS 3 and REACH compliance is verified through X-ray fluorescence (XRF) screening of solder alloys and plastic housings, eliminating hazardous substances that could disqualify drives from environmentally sensitive agricultural or government-funded solar projects.

Application-Specific QC for Solar Pumping

Given Boray Inverter’s specialization in solar pump VFDs, manufacturing includes specialized test stations that simulate photovoltaic array characteristics:

• MPPT Algorithm Verification: Drives are tested with solar simulators to confirm maximum power point tracking efficiency (>99%) across varying irradiance profiles (200W/m² to 1000W/m²).
• Wide Voltage Range Operation: Input voltage sweep testing from 200VDC to 800VDC (for standard 380V AC pumps) validates stable operation during dawn/dusk conditions and partial shading scenarios.
• Dry-Run and Water Hammer Protection: Automated test sequences verify that pump stall detection and soft-fill ramping algorithms function correctly, preventing mechanical damage to submersible pumps in borehole applications.

Traceability and Documentation

Each VFD receives a unique serial number linked to a digital birth certificate containing burn-in test data, thermal imaging records of critical joints, and component batch codes. This traceability is essential for EPC contractors managing warranty claims across multi-year solar irrigation projects, allowing precise identification of manufacturing dates and test parameters for any unit deployed in the field.

By enforcing these manufacturing standards—from conformal coating chemistry to 100% full-load thermal validation—industrial engineers and procurement managers can specify drives with confidence, knowing that every unit has been proven capable of withstanding the electrical, thermal, and environmental stresses inherent in modern motor control and solar pumping applications.

Step-by-Step Engineering Sizing Checklist for 3 Phase Variable Frequency Drive

Before initiating procurement, verify that your technical specifications account for both steady-state operation and transient conditions across the intended duty cycle. The following engineering checklist ensures compatibility between the 3-phase Variable Frequency Drive (VFD), motor characteristics, and power source—whether drawn from grid AC or photovoltaic DC arrays in solar pumping applications.

Phase 1: Load Characterization and Motor Specification

1.1 Mechanical Load Profiling
– Define Load Torque Profile: Identify constant torque (conveyors, compressors) vs. variable torque (centrifugal pumps, fans) applications. Solar pumping systems typically exhibit quadratic torque curves (T ∝ n²), requiring VFDs with optimized V/Hz control or sensorless vector control.
– Calculate Required Shaft Power:
$$P_{shaft} = \frac{\rho \cdot g \cdot H \cdot Q}{\eta_{pump}}$$
Where $\rho$ = fluid density, $H$ = total dynamic head (m), $Q$ = flow rate (m³/s), and $\eta_{pump}$ = pump efficiency. Size the motor with 15–20% service factor above calculated shaft power.

1.2 Motor Nameplate Verification
– Voltage Compatibility: Confirm motor rated voltage (380V/400V/460V/690V) matches VFD output capability. Mismatched V/Hz ratios cause magnetic saturation or insufficient torque.
– Current Rating Check: Size VFD continuous current rating ≥ 1.1 × motor FLA (Full Load Amps). For high-inertia loads or frequent start-stop cycles, specify 150% overload capacity for 60 seconds (Heavy Duty rating).
– Insulation Class: For retrofit applications, verify motor insulation withstands PWM switching spikes (≥ 1600V peak for 380V systems). Install output reactors or dV/dt filters if motor pre-dates IEC 60034-17 standards.

Phase 2: Input Power Configuration Analysis

2.1 Grid-Fed AC Systems
– Phase Configuration:
– 3-Phase Input: Standard sizing applies.
– Single-Phase Derating: When 3-phase motors must run from single-phase supply (common in remote agricultural sites), derate VFD capacity by factor of $\sqrt{3}$ (1.73). Select a drive rated for at least 1.73× motor current, or oversize two standard frame sizes (e.g., 5.5kW motor requires 11kW VFD). Install 5% impedance input line reactor to mitigate rectifier stress and current harmonics.
– Voltage Fluctuation Tolerance: Verify VFD input voltage range accommodates ±15% grid fluctuation (e.g., 323V–437V for 380V nominal).

2.2 Solar PV DC Input (Solar Pump Inverters)
– Open Circuit Voltage (Voc) Safety Margin: Calculate maximum array Voc at lowest expected temperature (using temperature coefficient $\alpha$):
$$V_{oc_max} = V_{oc_STC} \times [1 + \alpha \times (T_{min} – 25°C)]$$
Ensure $V_{oc_max}$ < VFD maximum DC input voltage (typically 800V or 1000V) with 10% safety margin.
– MPPT Voltage Window: Confirm PV array voltage at maximum power point (Vmp) falls within VFD MPPT range across all irradiance conditions. For Boray solar pump inverters, typical MPPT range spans 250V–750V DC; size strings to maintain Vmp > 1.2 × motor voltage × $\sqrt{2}$ to ensure sufficient back-EMF for motor magnetization.
– Current Sizing: Array short-circuit current ($I_{sc}$) must not exceed VFD maximum DC input current. Size PV cables for 1.25 × $I_{sc}$ per NEC/CEC standards.

Phase 3: Dynamic Performance & Control Verification

3.1 Acceleration/Deceleration Calculations
– Ramp Time Setting: Calculate minimum acceleration time to avoid overcurrent trips:
$$t_{acc} = \frac{J_{total} \times \Delta\omega}{T_{motor} – T_{load}}$$
Where $J_{total}$ = combined inertia of motor and load (kg·m²). For borehole pumps, set S-curve ramp profiles to eliminate water hammer.
– Braking Requirements: High-inertia loads require dynamic braking resistors or regenerative units. Calculate braking power: $P_{brake} = \frac{E_{kinetic}}{t_{dec}}$.

3.2 Harmonic Mitigation
– THD Assessment: For installations >50kW, specify DC chokes or active front-end (AFE) drives to maintain THDi < 5% per IEEE 519. Standard 6-pulse drives typically produce 30–40% THDi; add line reactors when generator sets supply power (voltage distortion < 8%).

Phase 4: Environmental & Installation Engineering

4.1 Thermal Management
– Ambient Derating: Apply 2.5% current derating per °C above 40°C. For desert solar pumping sites (50°C+ ambient), specify VFDs with 50°C full-load rating or provide forced ventilation (IP54 minimum).
– Altitude Correction: Derate 1% per 100m above 1000m altitude for air-cooled drives. Above 3000m, use liquid-cooled units or sealed enclosures with heat exchangers.

4.2 Enclosure & Protection
– IP Rating Selection:
– Indoor controlled environments: IP20/NEMA 1
– Outdoor agricultural/dusty sites: IP55/NEMA 12 or IP66
– Submersible pump control: IP68-rated junction boxes with marine-grade cable glands
– Cable Sizing: Size motor cables for 75°C operation, maintaining voltage drop < 3%. Shielded cables mandatory for runs >50m to reduce bearing currents (EDM).

Phase 5: Integration & Commissioning Validation

5.1 I/O & Communication Audit
– Analog/Digital Mapping: Verify 4–20mA/0–10V sensor compatibility for pressure transducers (solar pumping) or flow meters. Confirm dry contact inputs for float switches/level sensors.
– Protocol Compatibility: Ensure RS-485 Modbus RTU, CANopen, or Ethernet/IP support matches SCADA/remote monitoring requirements for unmanned solar installations.

5.2 Protection Coordination
– Input Protection: Size circuit breakers or fuses at 1.5–2.5 × VFD rated input current (Type gG for short-circuit protection; avoid motor-protective circuit breakers on VFD input).
– Output Protection: Motor thermal protection via VFD electronic overload (Class 10/20/30 selectable), eliminating need for external overload relays.

Final Verification Checklist
– [ ] Motor FLA ≤ VFD rated current (with applicable derating factors applied)
– [ ] PV Voc_max ≤ VFD max DC voltage – 10% (solar applications)
– [ ] VFD output frequency range covers 0–120% of motor base speed (check mechanical limits)
– [ ] Input line reactor specified for single-phase supply or generator-fed systems
– [ ] IP rating matches installation environment (dust/moisture ingress protection)
– [ ] EMC filter included for industrial environments (C2 or C3 category per IEC 61800-3)

Document all derating calculations (temperature, altitude, single-phase factor) in the project technical file to validate warranty compliance and ensure 20-year operational life expectancy in solar pumping infrastructure.

Wholesale Cost and Energy ROI Analysis for 3 Phase Variable Frequency Drive

When evaluating 3 Phase Variable Frequency Drive (VFD) procurement strategies, discerning buyers recognize that the acquisition cost represents merely the entry point of a comprehensive financial analysis. For EPC contractors managing multi-site industrial automation deployments and agricultural project managers overseeing solar irrigation infrastructure, the intersection of wholesale pricing mechanics, energy recovery timelines, and warranty risk allocation determines true project viability. Factory-direct sourcing from specialized manufacturers—particularly those with integrated solar pump inverter expertise—can fundamentally alter the cost-benefit equation, reducing unit costs by 25–40% compared to retail distribution channels while enabling customized warranty structures that align with specific operational duty cycles.

Wholesale Pricing Architecture and Volume Economics

B2B procurement of 3 Phase VFDs operates on a tiered pricing matrix that rewards scale and commitment. For automation distributors and EPC contractors, factory-direct wholesale pricing typically follows a logarithmic depreciation curve:

• Pilot/Low Volume (1–24 units): Standard wholesale pricing remains approximately 15–20% below MSRP, suitable for project prototyping or replacement scenarios
• Project Tier (25–99 units): Volume discounts escalate to 30–35% below retail, applicable for commercial building automation or mid-scale agricultural installations
• EPC/Integration Tier (100–499 units): Pricing reaches 40–45% below retail, common for municipal water management projects and industrial facility retrofits
• OEM/Container Load (500+ units): Custom manufacturing agreements with pricing 50–60% below retail, including private labeling and firmware customization options

For solar pumping applications specifically—where VFDs must handle variable irradiance and single-phase to three-phase conversion (requiring √3 derating as per IEEE standards)—factory-direct procurement eliminates intermediary markups on essential ancillary components such as input line reactors (5% impedance) and EMI filters. Agricultural project managers leveraging direct relationships with manufacturers like Boray Inverter can secure integrated solar pump inverter solutions that combine MPPT functionality with VFD control, reducing balance-of-system costs by eliminating separate charge controller expenditures.

Retail vs. Factory-Direct: Channel Cost Analysis

Traditional industrial distribution channels typically apply a 1.4–1.6x multiplier on factory costs, reflecting inventory carrying costs, technical support overhead, and regional logistics. However, for technically sophisticated buyers—particularly electrical engineers specifying 3 Phase VFDs for centrifugal pump systems or HVAC applications—this markup often provides limited incremental value when manufacturer technical documentation and direct engineering support are accessible.

The retail premium becomes particularly unjustifiable in large-scale solar pumping deployments, where EPC contractors require consistent firmware versions across hundreds of units. Factory-direct procurement ensures batch consistency, eliminates version-control risks inherent in distributor inventory rotation, and enables just-in-time manufacturing that reduces working capital requirements by 60–90 days. For global automation distributors, white-label arrangements allow margin retention while leveraging OEM manufacturing economies of scale, particularly for 380V/660V/1140V multi-voltage platforms common in emerging markets.

Energy ROI Modeling and Payback Dynamics

The financial justification for 3 Phase VFD deployment hinges on energy recovery timelines that vary significantly by application topology. Based on operational load profiles, the ROI calculation must account for:

Variable Torque Applications (Centrifugal Pumps, Fans):
Energy savings follow the cube law relationship between speed and power consumption. Reducing motor speed by 20% yields approximately 49% energy reduction. For a 75kW irrigation pump operating 2,000 hours annually at $0.12/kWh, a VFD investment of $2,800–$4,200 (wholesale) generates annual savings of $8,800–$11,200, achieving payback in 3–5 months. In solar pumping contexts, where diesel generator displacement costs $0.25–$0.40/kWh equivalent, payback periods compress to 2–4 months.

Constant Torque Applications (Conveyors, Compressors):
Linear power relationships yield more conservative savings, typically 15–25% through load-matching optimization. A 55kW compressor system realizes payback in 14–18 months under standard industrial electricity tariffs.

Harmonic Mitigation Considerations:
Source 2 indicates that single-phase input configurations (common in rural solar applications) require 73% current derating and input line reactors. While this increases initial hardware costs by 8–12%, the prevention of utility penalty charges for harmonic distortion (typically 2–5% of monthly electricity costs) preserves ROI integrity. Advanced VFDs with active front-end (AFE) rectification, though commanding a 20–25% wholesale premium, eliminate the need for external harmonic filters in sensitive agricultural microgrids.

Warranty Cost Structures and Risk Allocation

Warranty economics in B2B VFD procurement extend beyond simple repair-or-replace clauses. Sophisticated buyers analyze warranty as a risk-transfer mechanism with quantifiable cost implications:

Standard Warranty (12–24 months): Factory-absorbed costs typically represent 3–5% of unit wholesale pricing, covering manufacturing defects and component failures. For IP54-rated solar pump inverters exposed to outdoor agricultural environments, standard coverage often excludes condensation damage—a critical exclusion in humid climates.

Extended Warranty Tiers (3–5 years): Additional coverage costs 8–15% of unit price annually, transferring MTBF (Mean Time Between Failures) risk from the operator to the manufacturer. Given typical industrial VFD MTBF ratings of 50,000–100,000 hours, extended warranties provide positive expected value only in continuous-duty applications exceeding 6,000 annual operating hours.

Component-Level Warranty Differentiation: IGBT module failures account for 60–70% of VFD warranty claims in harsh environments. Manufacturers offering separate 5-year warranties on power modules (while maintaining 2-year coverage on control boards) provide superior risk-adjusted value for solar pumping applications subject to thermal cycling stress.

For EPC contractors, negotiating warranty cost caps or deductibles can reduce upfront project financing requirements by 2–4% while maintaining catastrophic failure protection. Chinese manufacturers with vertical integration capabilities often provide competitive warranty economics due to in-house semiconductor packaging and reduced logistics overhead, enabling 3-year comprehensive coverage at costs comparable to Western competitors’ 1-year plans.

Total Cost of Ownership Framework

Comprehensive ROI analysis must integrate soft costs frequently obscured in initial procurement:

Integration Engineering: Retrofitting legacy motor systems with 3 Phase VFDs requires harmonic analysis and potentially output dv/dt filters (adding $150–$400 per unit wholesale) to protect motor winding insulation in applications exceeding 100m cable runs.

Training and Commissioning: While Source 1 notes that 20% of facilities struggle with VFD technical competency, factory-direct procurement often includes embedded commissioning support and parameter template libraries—reducing field startup costs by $200–$500 per unit compared to retail channel purchases requiring third-party integrators.

End-of-Life Value: Modular VFD designs with field-replaceable fan and capacitor modules extend service life beyond 15 years, whereas sealed disposable units require full replacement at year 7–10. For agricultural project managers calculating 20-year irrigation infrastructure IRR, serviceable designs provide net present value advantages of 18–22% despite 10–15% higher initial wholesale costs.

In the solar pumping sector, where energy source variability necessitates sophisticated MPPT-VFD integration, selecting manufacturers with dual competency in photovoltaic inverters and motor control yields synergistic cost reductions. Factory-direct procurement of integrated solar pump inverters eliminates the 8–12% efficiency losses and $300–$600 hardware costs associated with separate solar inverter + VFD configurations, delivering superior LCOE (Levelized Cost of Energy) outcomes for agricultural water pumping projects.

For global distributors and EPC contractors, the optimal procurement strategy combines container-load wholesale pricing with application-specific warranty engineering, ensuring that energy savings of 20–30% translate to IRR improvements that justify capital deployment in competitive industrial automation and renewable energy markets.

Alternatives Comparison: Is 3 Phase Variable Frequency Drive the Best Choice?

Selecting the optimal motor control architecture requires balancing capital expenditure against lifecycle performance, particularly when integrating renewable energy sources or retrofitting legacy infrastructure. While the 3 Phase Variable Frequency Drive (VFD) represents the gold standard for dynamic motor control, alternative technologies may offer superior value propositions in specific operational contexts. Below, we evaluate the technical and economic trade-offs between VFDs and competing solutions across three critical decision axes: motor starting methodology, power source topology, and motor-drive pairing strategies.

VFD vs. Soft Starter: Control Philosophy vs. Starting Economics

For applications requiring only reduced mechanical stress during startup—such as conveyor belts or centrifugal pumps with constant speed requirements—Soft Starters present a compelling alternative to full VFD implementation. Soft starters utilize thyristor-based voltage ramping to limit inrush current (typically 3-5x full load current versus 6-8x across-the-line), thereby reducing mechanical shock and network disturbance.

However, the divergence in capability becomes apparent post-startup. Soft starters gradually apply full line frequency, offering no speed modulation capability and minimal energy savings once the motor reaches nominal speed. In contrast, a 3 Phase VFD maintains variable frequency/voltage control throughout the operational cycle, enabling energy recovery during deceleration and precise process control.

Decision Matrix: Deploy soft starters when:
– The load requires fixed speed operation post-startup
– Budget constraints prioritize initial cost over lifecycle energy savings
– The application involves high-inertia starts with minimal runtime variation

Conversely, specify VFDs when flow/pressure regulation via speed control yields >15% energy savings potential, or when process automation requires dynamic torque response.

Solar-Powered VFD vs. Grid-Connected Systems: Energy Autonomy Considerations

In agricultural irrigation and remote industrial applications, Solar Pump Inverters (specialized VFDs with integrated Maximum Power Point Tracking – MPPT) compete against traditional grid-connected VFD architectures.

Grid-connected VFDs offer unlimited runtime capacity and consistent performance regardless of irradiance levels, but incur ongoing electricity costs and grid infrastructure dependency. Solar VFDs eliminate grid connection costs and operational energy expenses, yet require oversized PV arrays to accommodate morning/afternoon low-light conditions and cannot operate without battery backup during darkness (unless hybridized).

Critical technical distinction: Solar pump inverters must manage DC bus voltage fluctuations from 200V to 800V (depending on array configuration) while maintaining stable three-phase output—functionality absent in standard grid-tied VFDs. Modern solar VFDs, such as Boray’s agricultural pump drive series, integrate automatic switching between solar DC and grid AC inputs, offering hybrid flexibility that pure grid-connected or pure solar systems cannot match independently.

Motor Technology Pairing: PMSM vs. Induction Motor with VFD

When specifying a 3 Phase VFD, engineers must select between Permanent Magnet Synchronous Motors (PMSM) and Standard Induction Motors (IM):

Induction Motors (IM) with VFDs remain the workhorse of industry due to their mechanical ruggedness, lower capital cost, and tolerance to voltage harmonics. Modern VFDs with sensorless vector control can achieve 95%+ efficiency with IMs in variable torque applications. However, IMs suffer from slip losses (rotor I²R heating) and reduced power factor at partial loads.

PMSMs eliminate rotor copper losses through permanent magnet excitation, delivering 2-5% higher full-load efficiency and superior partial-load performance—critical for solar pumping where every watt of PV capacity matters. The trade-off involves higher initial motor cost, demagnetization risk under fault conditions, and requirement for VFDs with specific control algorithms (often requiring rotor position sensors or advanced sensorless algorithms).

Comparative Analysis Matrix

Evaluation Criteria	Soft Starter + Fixed Speed	Grid-Connected VFD	Solar Pump Inverter (VFD)	PMSM + VFD System
Initial Investment	Low ($)	Medium ($$)	High (PV array + drive) ($$$)	High ($$$)
Energy Efficiency	85-92% (no speed control savings)	90-97% (with 20-50% energy recovery potential)	85-95% (zero operational energy cost)	93-98% (highest motor efficiency)
Speed Control Range	None (fixed speed)	10:1 to 1000:1 dynamic range	20-50Hz typical (solar irradiance dependent)	1:1000 precise control
Power Factor	0.75-0.85 (poor at light load)	>0.95 (unity possible with AFE)	Variable (MPPT optimization dependent)	>0.95 (maintained across range)
Maintenance Profile	Minimal (electromechanical)	Moderate (cooling, capacitor life)	High (PV cleaning, array checks)	Moderate (bearing maintenance, magnet integrity)
Grid Dependency	High	High	Zero (island capable)	High (unless solar-hybrid)
Best Application	High-inertia fans, compressors with constant demand	HVAC, industrial process control, complex automation	Remote irrigation, livestock watering, off-grid dewatering	High-precision positioning, high-efficiency pumping, battery-constrained systems

Strategic Selection Framework

Choose Soft Starters when protecting mechanical infrastructure from starting shock represents the primary concern, and where process requirements mandate constant speed operation. Typical ROI: 1-2 years through reduced mechanical maintenance.

Specify Grid-Connected 3 Phase VFDs for industrial processes requiring dynamic response, regenerative braking, or integration with Building Management Systems (BMS). The 30% energy reduction potential (per Siemens Global Energy Management data) typically yields 1.5-3 year payback periods in variable torque applications.

Implement Solar Pump Inverters for agricultural and remote applications where grid extension costs exceed $15,000/km or where diesel generator elimination is prioritized. Modern units with AC/DC hybrid inputs provide the operational security of grid backup with the economic benefits of solar generation.

Deploy PMSM-VFD Systems in battery-backed solar installations or premium efficiency applications where 2-3% efficiency gains justify 40-60% motor cost premiums. Particularly advantageous in submersible pumping where cooling constraints favor high-efficiency motor designs.

For EPC contractors and automation distributors, the convergence trend favors intelligent hybrid VFDs—units capable of accepting both grid AC and solar DC inputs while automatically optimizing between induction and permanent magnet motor control modes. This flexibility future-proofs installations against energy price volatility and grid reliability concerns while maintaining the precise control capabilities that distinguish modern 3 Phase VFD technology from legacy alternatives.

Core Technical Specifications and Control Terms for 3 Phase Variable Frequency Drive

When specifying a 3 Phase Variable Frequency Drive (VFD) for industrial automation or solar pumping infrastructure, engineers and procurement managers must evaluate both the electromechanical performance parameters that determine operational efficiency and the commercial frameworks governing international logistics. The following breakdown distinguishes between the control technologies essential for precision motor management and the Incoterms that define risk transfer and cost allocation in global supply chains.

Critical Technical Specifications for Motor and Solar Control

Input/Output Power Characteristics
Industrial-grade VFDs are categorized by their input voltage tolerance and output frequency range. Standard three-phase units typically support 380V–480V AC input (±15% fluctuation tolerance) with output frequencies adjustable from 0.5 Hz to 400 Hz (or 600 Hz for specialized high-speed applications). Current ratings must account for overload capacity—premium drives like those in Boray Inverter’s portfolio offer 150% rated current for 60 seconds and 180% for 10 seconds, critical for high-inertia loads in crushers or compressors.

Maximum Power Point Tracking (MPPT)
For solar pump inverter applications, MPPT algorithms determine system efficiency. This technology continuously scans the photovoltaic array’s I-V curve to maintain operation at the maximum power voltage (Vmp), typically achieving tracking efficiencies exceeding 99%. Key specifications include:
– Voltage Tracking Range: 200V–800V DC (varies by model), accommodating fluctuations in solar irradiance
– Scanning Frequency: Real-time scanning every 1–5 seconds to adapt to partial shading conditions
– Dry-Run Protection: Integrated logic that detects insufficient water flow and shuts down the pump to prevent cavitation, automatically restarting when conditions normalize

Vector Control Methodologies
Modern VFDs employ three distinct control architectures:
– V/F Control (Scalar): Maintains constant voltage-to-frequency ratio; suitable for general-purpose pumps and fans where precision is secondary to cost
– Sensorless Vector Control (SVC): Uses motor current feedback to estimate rotor position, providing ±0.5% speed accuracy and 150% starting torque at 0.5 Hz—ideal for agricultural irrigation with varying terrain
– Closed-Loop Vector Control: Requires encoder feedback, delivering ±0.01% speed accuracy and full torque at zero speed; essential for hoisting equipment or precision manufacturing lines

PID Process Control
Proportional-Integral-Derivative (PID) functionality enables closed-loop process control without external PLCs. In water management applications, the VFD receives feedback from pressure transducers or flow sensors, automatically adjusting motor speed to maintain setpoints (e.g., constant water pressure in multi-story buildings). Advanced implementations include auto-tuning algorithms that calculate optimal PID gains based on system response times, reducing commissioning complexity for EPC contractors.

Environmental and Communication Specifications
– Ingress Protection (IP) Ratings: IP20 for controlled cabinet installations; IP54 or IP65 for outdoor agricultural environments exposed to dust and water jets
– Communication Protocols: Standard RS485 with Modbus RTU; optional CANopen, Profibus DP, or Ethernet/IP for integration with SCADA systems
– EMC Compliance: EN 61800-3 Category C2 (industrial) or C3 (heavy industrial) to ensure electromagnetic compatibility with sensitive control equipment

Commercial Terms for Global Procurement and Logistics

EXW (Ex Works)
Under EXW terms, the seller (manufacturer) makes goods available at their factory or warehouse. The buyer assumes all costs and risks from that point, including export clearance, inland transport, and ocean freight. For VFD procurement, EXW pricing provides transparency on manufacturing costs but requires the buyer to manage complex export documentation from China, including VAT rebates and customs declarations.

FOB (Free On Board)
FOB specifies that the seller delivers goods onto the vessel designated by the buyer at the named port of shipment (e.g., FOB Shanghai). Risk transfers when goods pass the ship’s rail. For heavy electrical equipment like VFDs, FOB terms ensure the manufacturer handles domestic logistics and export formalities, while the buyer controls ocean freight and marine insurance selection. This term is preferred by distributors with established freight forwarding relationships.

CIF (Cost, Insurance and Freight)
CIF requires the seller to contract for carriage and procure marine insurance to the named destination port. While the seller pays freight charges, risk transfers to the buyer once goods are loaded on the vessel—meaning the buyer bears physical loss risk during transit despite not paying freight costs. For agricultural projects in remote regions, CIF simplifies procurement by consolidating logistics costs into the unit price, though buyers should verify that insurance coverage aligns with replacement values for sensitive electronic components.

DDP (Delivered Duty Paid)
DDP represents the maximum obligation for the seller, who delivers goods cleared for import to the buyer’s premises. This includes paying all duties, taxes, and customs clearance fees. For EPC contractors managing turnkey solar installations, DDP terms eliminate administrative burden but require the manufacturer (such as Boray Inverter) to possess robust logistics networks and import licenses in the destination country.

Selection Guidance
For containerized shipments of VFDs (typically 20GP or 40HQ containers accommodating palletized units), FOB offers optimal control for experienced importers, while CIF provides cost predictability for project managers focused on total landed cost calculations. When specifying solar pump systems requiring site-specific commissioning, DDP terms ensure the manufacturer assumes responsibility for in-country logistics, reducing risk of damage during final-mile transport to rural installation sites.

Future Trends in the 3 Phase Variable Frequency Drive Sector

The 3 Phase Variable Frequency Drive (VFD) sector is undergoing a paradigm shift driven by decarbonization mandates, Industry 4.0 adoption, and the proliferation of distributed energy resources. As industrial facilities and agricultural operations face increasing pressure to optimize energy consumption—where properly deployed VFDs already demonstrate up to 30% reduction in motor energy costs—the next generation of drive technology is evolving beyond simple speed control toward intelligent, grid-interactive power conversion systems. For EPC contractors and automation distributors, this evolution presents both technical opportunities and integration challenges, requiring a fundamental rethinking of how three-phase motor systems interface with broader energy ecosystems.

Intelligent Automation and AI-Driven Control Architectures

The convergence of artificial intelligence with variable frequency drive technology is transforming motor control from reactive to predictive systems. Next-generation 3 Phase VFDs are incorporating edge-computing capabilities directly into the drive’s control unit, enabling real-time analysis of motor performance parameters without reliance on external PLCs. These embedded systems utilize machine learning algorithms to dynamically adjust V/Hz profiles and torque compensation based on load characteristics, moving beyond traditional scalar control methods.

For industrial engineers, this translates to autonomous optimization of motor efficiency across varying operational conditions. Advanced vector control drives now feature self-tuning capabilities that automatically characterize motor parameters during commissioning, eliminating the manual configuration historically required for precise flux vector control. This is particularly critical when retrofitting legacy three-phase motors, where impedance matching and harmonic mitigation—historically pain points in 20% of installations according to IEC surveys—are now handled through adaptive firmware rather than hardware modifications.

Furthermore, the integration of digital twin technology allows drives to simulate motor behavior under different load scenarios before physical implementation. This capability enables agricultural project managers to model solar pumping system performance across seasonal irradiance variations, ensuring VFD sizing and thermal management specifications align with actual duty cycles rather than theoretical maximums.

Renewable Energy Integration and DC-Coupled Architectures

The delineation between solar pump inverters and traditional 3 Phase VFDs is increasingly blurring as manufacturers develop hybrid power conversion platforms. Modern drives are evolving to accept direct DC input from photovoltaic arrays, eliminating the inefficiencies of multiple conversion stages (DC-AC-DC) in solar pumping applications. These DC-coupled VFDs utilize advanced maximum power point tracking (MPPT) algorithms integrated directly into the drive’s rectifier stage, optimizing energy harvest while maintaining precise motor control.

For agricultural and remote industrial applications, this integration addresses the specific challenge of operating three-phase motors in locations with unreliable grid infrastructure or single-phase supply limitations. As noted in phase-conversion applications, traditional approaches required significant derating (typically √3 or 1.73x current capacity) when operating from single-phase sources. Emerging dual-mode VFDs, however, can automatically detect input power topology and reconfigure their rectifier stages—switching between active power factor correction for grid-tied operation and optimized DC bus management for solar-direct feeding.

Energy storage integration represents the next frontier, with VFDs evolving to function as bidirectional power converters. By utilizing the drive’s existing inverter bridge and DC bus capacitance, these systems can manage energy flow between batteries, solar arrays, and three-phase motors without separate charge controllers. This architecture is particularly relevant for irrigation projects requiring 24/7 operational capability, where the VFD seamlessly transitions between solar, battery, and grid power sources while maintaining consistent torque output for deep-well submersible pumps.

Industrial IoT and Cloud-Native Drive Management

The proliferation of Industry 4.0 connectivity standards is redefining VFDs as cyber-physical endpoints within distributed control systems. Modern three-phase drives are embedding OPC UA and MQTT protocols directly into their control firmware, enabling seamless integration with SCADA and cloud-based asset management platforms. This shift addresses the historical training gap identified in industrial surveys, where 20% of facilities struggled with VFD commissioning—by enabling remote diagnostics and parameter configuration by OEM technical teams.

For automation distributors, this connectivity enables new service-based revenue models. VFDs equipped with comprehensive condition monitoring can track bearing wear, insulation degradation, and thermal stress through analysis of current signatures and DC bus ripple patterns. Rather than scheduled maintenance, EPC contractors can offer predictive service contracts where drive analytics determine optimal maintenance windows, significantly reducing unplanned downtime in critical pumping and HVAC applications.

Cybersecurity has become paramount as VFDs gain network connectivity. Emerging standards require drives to implement encrypted communication channels, secure boot capabilities, and role-based access controls to prevent unauthorized modification of motor parameters. This is particularly critical in agricultural applications where irrigation systems represent potential entry points for industrial control system intrusions.

Wide Bandgap Semiconductors and Thermal Innovation

The transition from traditional IGBTs to Silicon Carbide (SiC) and Gallium Nitride (GaN) power devices is enabling a new generation of high-frequency, high-efficiency 3 Phase VFDs. These wide bandgap semiconductors operate at switching frequencies exceeding 50 kHz—compared to traditional 2-10 kHz ranges—allowing for smaller DC bus capacitors and more precise current control. For solar pumping applications, this translates to higher MPPT efficiency and the ability to drive high-speed permanent magnet motors previously incompatible with standard drives.

Thermal management innovations are simultaneously addressing installation constraints in harsh environments. Advanced heat sink designs utilizing phase-change materials and liquid cooling options are extending ambient temperature operating ranges to 60°C and beyond, critical for desert solar installations. These thermal improvements, combined with higher efficiency power electronics, are reducing enclosure sizes by up to 40%, simplifying integration for contractors working with limited electrical room real estate.

Implications for B2B Procurement and System Design

As these trends converge, procurement criteria for 3 Phase VFDs are shifting from standalone price comparisons to total cost of ownership (TCO) analyses that account for energy harvesting capabilities, predictive maintenance value, and cybersecurity compliance. EPC contractors must now evaluate drives not merely as motor controllers, but as intelligent nodes within distributed energy and automation architectures. For agricultural and industrial end-users, the selection of VFD technology increasingly determines the feasibility of grid-independent operation and the long-term resilience of critical pumping and processing infrastructure.

The trajectory of VFD development indicates a future where the distinction between motor drive, solar inverter, and energy management system becomes indistinguishable—a unified power conversion platform optimized for the renewable-powered, data-driven industrial landscape.

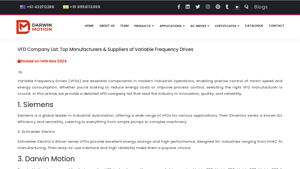

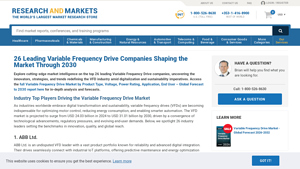

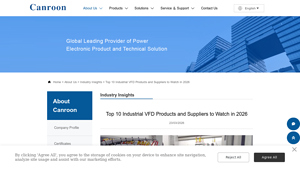

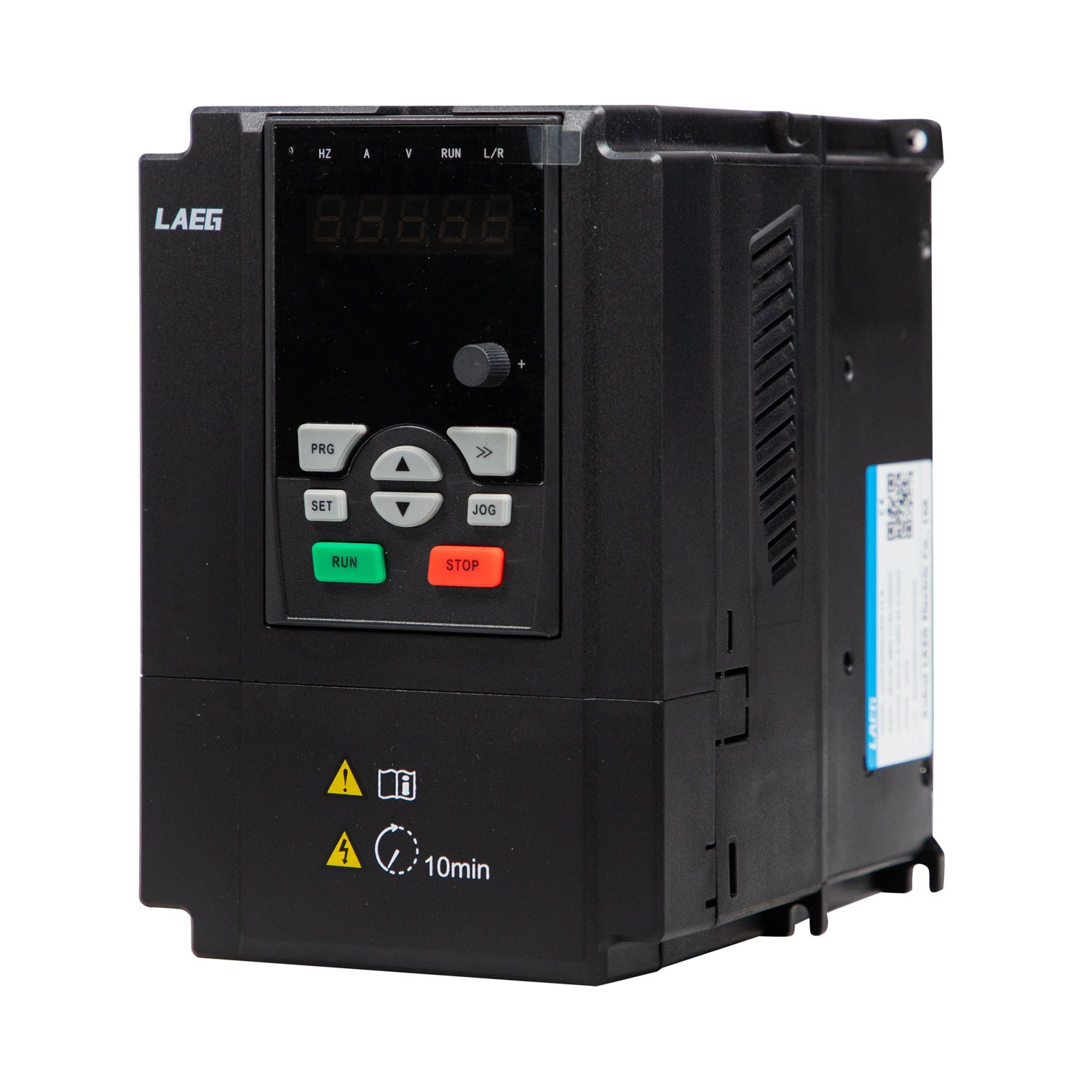

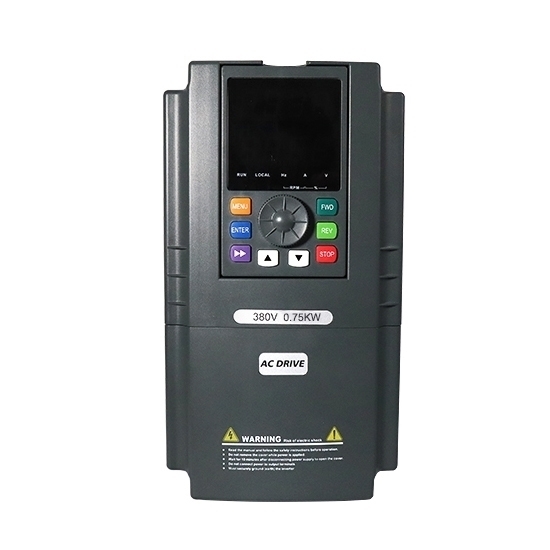

Top 3 3 Phase Variable Frequency Drive Manufacturers & Suppliers List

B2B Engineering FAQs About 3 Phase Variable Frequency Drive

1. When installing a solar pumping system with only single-phase grid availability, how do I properly size a three-phase VFD to avoid rectifier stress and ensure reliable motor operation?
   When feeding a three-phase VFD from single-phase power (common in rural agricultural installations), you must derate the drive capacity by a factor of √3 (approximately 1.73). Select a VFD with a current rating at least 1.73 times higher than the motor’s rated three-phase current to accommodate the increased current draw on the two active input lines. Additionally, install a 5% impedance input line reactor to filter inrush current and protect the rectifier bridge from thermal stress. For solar pump applications specifically, ensure the VFD’s DC bus capacitance is sufficient to handle the single-phase ripple current without excessive heating.

2. What motor insulation class and bearing protection are required for three-phase motors operating with VFDs in solar pumping applications with cable runs exceeding 50 meters?
   For cable runs >50m (typical in solar farm irrigation), specify inverter-duty motors with Class F or H insulation systems rated for 1,600V peak withstand capability to handle reflected wave phenomena. The rapid switching of IGBTs creates voltage spikes (dV/dt) that can exceed 1,000V at motor terminals, causing insulation degradation. Install shaft grounding rings or insulated bearings to prevent bearing currents caused by common-mode voltage. Consider adding dV/dt output filters or sine-wave filters when total cable length exceeds 100m to protect motor windings and extend bearing life in continuous-duty agricultural pumps.

3. How do altitude and ambient temperature affect VFD derating for outdoor solar pump installations in high-elevation agricultural regions?
   VFDs require derating of approximately 1% per 100m above 1,000m altitude due to reduced air density and cooling efficiency. For tropical or desert solar installations, apply additional derating when ambient temperatures exceed 40°C. Boray Inverter recommends selecting IP54 or IP65 enclosures with conformal coating on PCBs for dust and humidity protection. Ensure minimum clearance distances (typically 100mm above and below) for natural convection cooling, or specify forced ventilation with dust filters. In direct solar exposure, provide shade structures to prevent enclosure temperatures exceeding 50°C, which triggers thermal protection shutdown.

4. What harmonic mitigation strategies should EPC contractors implement when deploying multiple VFDs in large-scale agricultural irrigation networks to comply with IEEE 519 or local power quality standards?
   Multiple VFDs on a single distribution transformer create cumulative harmonic distortion (THD). Implement 3% to 5% input line reactors on each drive to reduce 5th and 7th harmonics by 30-50%. For installations with >20% non-linear load penetration, specify 12-pulse rectifier configurations or active front ends (AFE) rather than standard 6-pulse bridges. Consider centralized Active Power Filters (APF) or Static Var Generators (SVG) for the entire irrigation substation. Ensure the VFD’s DC bus inductance is adequate to limit current THD below 5% at the point of common coupling, preventing transformer overheating and voltage distortion affecting sensitive control equipment.

5. How does V/f control optimization differ between constant torque applications and centrifugal pump loads in solar water pumping systems?
   Centrifugal pumps follow the affinity laws (quadratic torque curve), requiring Variable Torque (VT) V/f profiles where voltage scales with the square of frequency. Set the VFD to quadratic V/f mode or perform auto-tuning to match the pump’s inertia. For solar pumping specifically, configure the Minimum Operating Frequency (typically 15-20Hz) to prevent pump cavitation and motor overheating at low speeds where cooling fan efficiency drops. Enable “Sleep Mode” functionality to stop the motor when water demand drops below minimum flow, restarting automatically when pressure drops or solar irradiance increases, maximizing energy harvest from PV arrays.

6. What are the critical DC bus voltage management considerations when operating VFDs with photovoltaic (PV) arrays that exhibit rapid irradiance fluctuations?
   Solar VFDs must manage DC bus voltage stability during cloud transients. Ensure the VFD’s DC bus capacitance is sized to handle voltage ripple <5% at minimum irradiance. Configure overvoltage stall prevention (deceleration time extension) to prevent DC bus overvoltage trips when clouds suddenly clear and motor decelerates. For systems requiring rapid stopping, specify external braking resistors with duty cycle calculations based on pump inertia (WK²) and stopping time. The braking chopper activation threshold should be set 10-15% below the VFD’s overvoltage fault level to accommodate PV array open-circuit voltage (Voc) variations with temperature.

7. **Which communication protocols and remote monitoring features are essential for integrating agricultural V

Disclaimer

Conclusion: Partnering with Boray Inverter for 3 Phase Variable Frequency Drive

Implementing 3-phase variable frequency drive technology represents a strategic imperative for modern operations seeking to optimize energy consumption, extend equipment lifespan, and achieve precise motor control across industrial and agricultural applications. While understanding VFD principles—from rectifier topology to vector control algorithms—provides the foundation, successful deployment ultimately depends on partnering with manufacturers who combine theoretical expertise with rigorous production standards and application-specific engineering support.

This is where Shenzhen Boray Technology Co., Ltd. distinguishes itself as your definitive solution provider. As an innovative manufacturer of Solar Pumping and Motor Control Solutions headquartered in China, Boray Inverter delivers technical excellence backed by substantial R&D investment. Our engineering team constitutes 50% of our workforce, specializing in advanced PMSM (Permanent Magnet Synchronous Motor) and IM (Induction Motor) vector control technologies that ensure superior torque response and energy efficiency across variable speed applications.

Our commitment to quality manifests through two modern production lines equipped with automated testing stations, where every unit undergoes 100% full-load testing to verify performance under maximum operational stresses. This manufacturing discipline has established Boray as a trusted partner for EPC contractors, agricultural project managers, and automation distributors worldwide, particularly in demanding solar pumping and irrigation sectors where reliability directly impacts productivity.

Whether you require customized VFD solutions for specific voltage classes, harmonic mitigation configurations, or wholesale supply agreements for large-scale deployments, Boray Inverter offers the technical depth and production capacity to meet your specifications. Contact our engineering team today to discuss your project requirements, request detailed technical documentation, or obtain competitive wholesale quotations. Partner with Boray to transform your motor control infrastructure into a competitive advantage.
