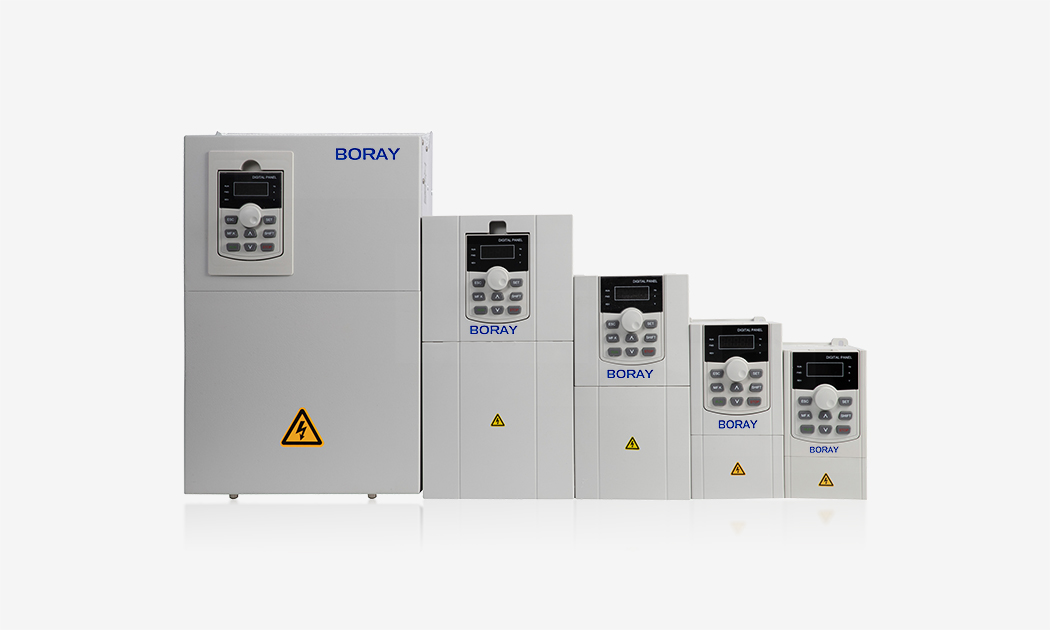

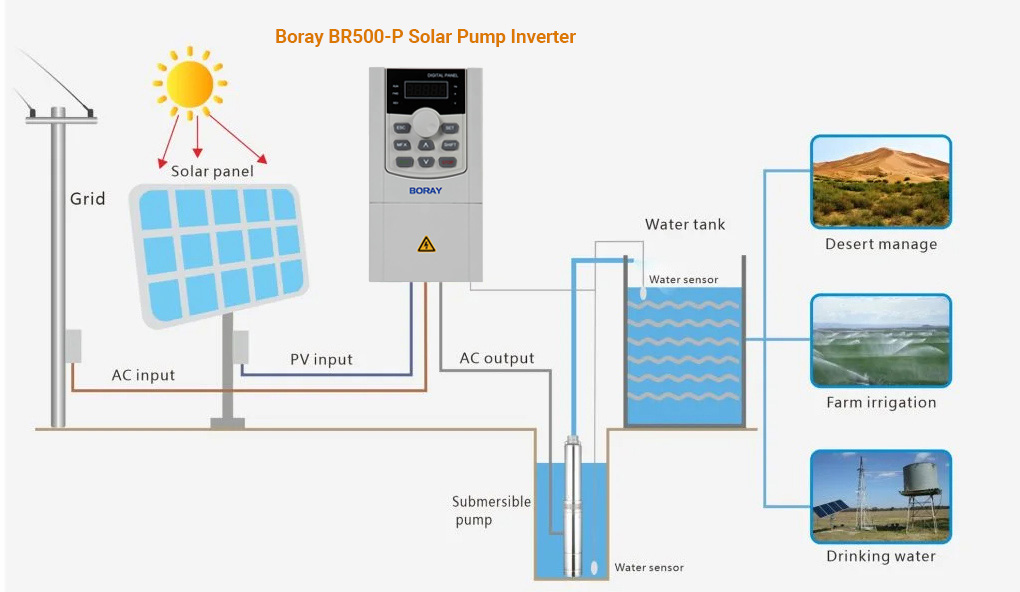

BR500-P Solar Pump Inverter Overview
The ZK500-P series powers three-phase or single-phase AC pumps using solar DC input. Built on the reliable ZK500 VFD platform, it features MPPT, rapid speed adjustment in low sunlight, and flexible pump compatibility—supporting both DC/AC input and 1/3-phase output.
Ideal for water-scarce regions, it enables sustainable household water supply, irrigation, and agriculture, replacing diesel generators with clean energy. hygienic standard, no-dead corner, easy to clean, easy operation & maintenance.
Features BR500-P Solar Pump Inverter
-
Efficient intelligent control to improve energy utilization
– The MPPT efficiency is as high as 99.8%, and the power factor of inverters below 15KW is not less than 0.96, maximizing solar energy conversion and reducing energy consumption costs.
– Automatically adapt to PMSM/synchronous motors, no manual parameter adjustment required, saving time and effort.
-
Multiple safety protections, stable and durable
– Dry-running, over-current, phase loss, minimum power input and other protections extend the life of pumps and equipment.
– Independent air duct design + triple-proof paint + enhanced lightning protection, adapting to harsh environments such as humidity and dust.
-
Flexible compatibility, remote intelligent management
– Dual-mode power supply, supporting AC/DC dual power input to cope with complex power usage scenarios.
– Remote monitoring, real-time parameter adjustment, fault alarm, and reduced operation and maintenance costs.
-
High-precision performance optimization
– PQ flow curve calculation accurately matches the pump flow demand to avoid energy waste.
– Imported IGBT modules (Infineon/Fuji) ensure long-term stable operation.
ApplicationBR500-P Solar Pump Inverter
BR500-P solar pump inverter is commonly used in agricultural irrigation, residential water, landscape fountains, swimming pool water supply, desert management, Industrial Application, Drip irrigation& sprinkler ,Tank/ cistern filling, Rural water supply for ranches, cabins and cottages etc.
Specifications BR500-P Solar Pump Inverter
| Item | Specifications | |
| Input | Rated Voltage/Frequency | 80-450VDC for D1 110V pumps, 0.75KW-2.2KW
150-450VDC for D2 220V pumps, 0.75KW-2.2KW 250-800VDC for D3 380V pumps, 0.75KW-500KW AC and DC hybrid input |
| Recommended MPPT voltage(VDC) | 1S series: Vmp 131 to 350 VDC
2S series: Vmp 280 to 375VDC 4T series: Vmp 450 to 780 VDC/ Max 900VDC is optional |
|
| VFD Efficiency | above 96% | |
| MPPT Efficiency | above 99.6% | |
| Power factor | above 0.94( with DC reactor) | |
| Allowable Variablerange | Voltage:-20%~+20%, Frequency:±5% | |
| Output | Rated Voltage | 0~110V 220V 380V 480V |
| Frequency Resolution | 0.01Hz | |
| Overload capacity | 150% 1 minute;180% 10 second;200% 0.5 second | |
| Basic Functions | Motor type | permanent magnet servo motor and asynchronous motor pumps. |
| Solar pump control special performance | MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation,
dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating |
|
| VFD funciton when AC grid input | Automatic voltage regulation (AVR)，Overvoltage and overspeed loss control，Fast current limiting function，When the grid voltage changes, it can automatically keep the output voltage constant，Automatically limits current and voltage during operation to prevent frequent overcurrent and overvoltage trip，Minimize overcurrent faults and protect the normal operation of the product | |
| Running mode | MPPT , CVT, variable frequency mode | |
| Communication | RS485 Standard Interface,supporting two formats MODBUS protocol | |
| Kinds of Protection functions | Over Current protection;Over Voltage protection;Under Voltage protection; Over heat protection;Overload protection | |
| Short circuit detection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection and overload protection of electrified motor | ||
| Environment | Altitude | Below 1000m; above 1000m, derated 1% for every additional 100m. |
| temperature | -10℃~+50℃ | |
| Ambient temperature | Less than 90%RH, no water condenses | |
| Vibration | Less than 5.9m/sec 2(0.6G) | |
| Storage temperature | -30℃~+60℃ | |
| Structure | Level of Protection | standard IP20, operation IP54 IP55 |
| Cooling-down method | Forced air cooling | |
| Installation | Indoor, ,free from direct sunlight, dust, corrosive gas,Oiliness gas, water vapour | |

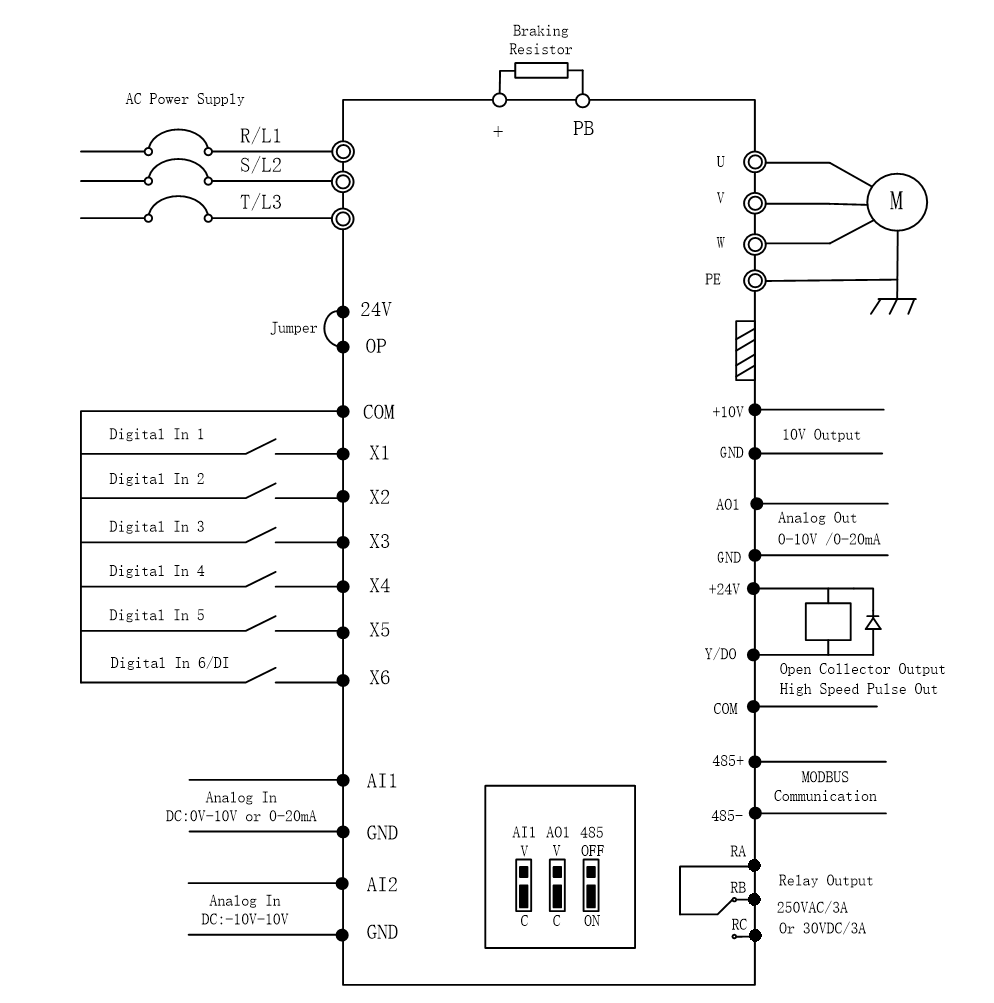

BR500-P MPPT Solar Pump Inverter Wiring Diagram
