BR2000-6500 Hybrid Solar Inverter Overview
BR2000-6500 hybrid solar inverter integrates MPPT solar charge controller, high frequency pure sine wave inverter and UPS function module. It is suitable for hybrid backup power supply and self-use applications. BR2000-6500 hybrid solar inverter can work with or without battery.

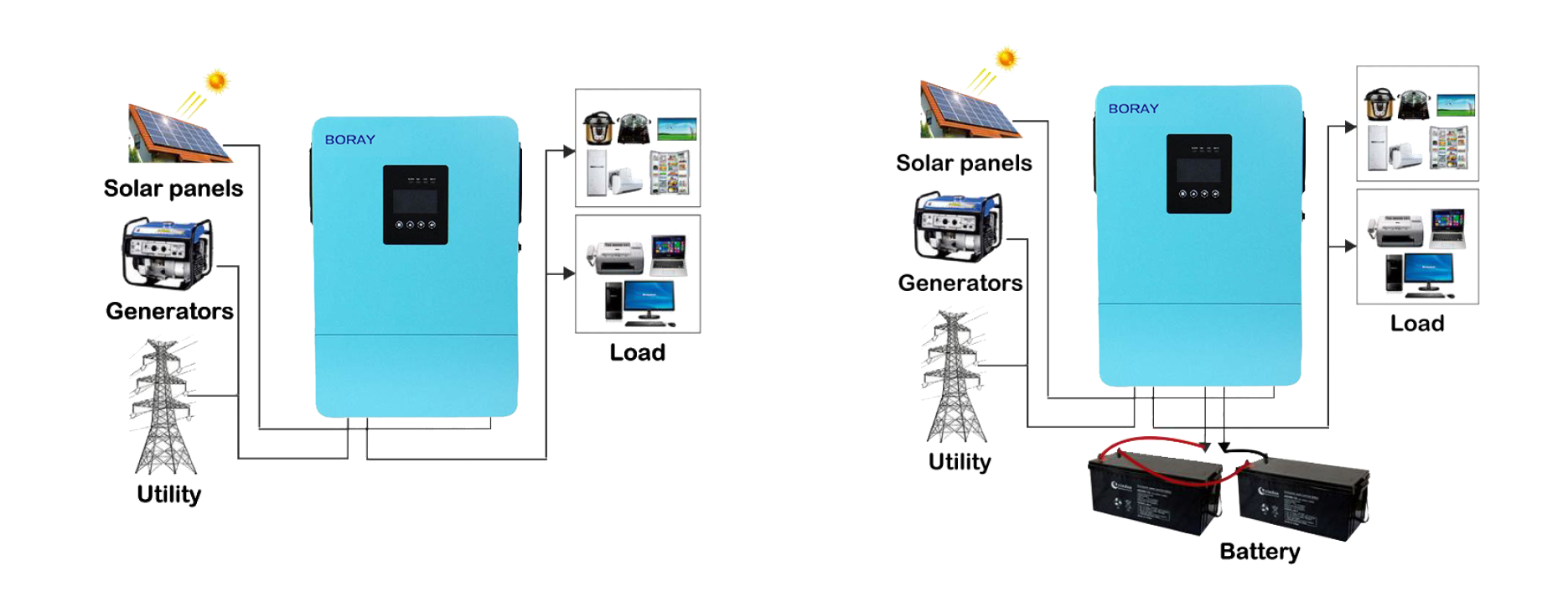

Work without battery
Features
- Can work without /With battery
- Support lithium battery /Gel/Lead Acid Battery/Deep cycle battery
- Built-in 80A MPPT controller
- PV input voltage: 120-450V
- Pure sine wave solar inverter(on/off Grid)
- Dual output ports
- Output power factor 1.0
- WIFI&GPRS available for lOS and Android
- One-key restoration to factory Settings
- Built-in Lithium battery automatic activation
Technical Specifications
BR2000-6500 Hybrid Solar Inverter
| MODEL | BR2000-6500 |
| Inverter output | |
| Rated Output Power | 5500W |
| Rated Output Voltage | 240Vac±5% (single phase) |
| Rated Output Current | 23.9A |
| Rated Output Frequency | 50/60Hz |
| Output Waveform | Pure Sine Wave |
| Output Topology | L1+N1+L2+N2+PE |
| Battery | |
| Battery Type | Lead acid / Gel / lithium battery |
| Rated Battery Voltage | 48V |
| Charging Method | Two-way / three-way / automatic setting |
| Max PV Charging Voltage | 500Vdc |
| Max PV Input Power | 6000W |
| Max PV Charging Current | 80A |
| Max PV Charging Efficiency | 99.50% |
| Max Hybrid Charging Current | 80A |
| PV Input | |
| MPPT Number | 1 |
| Max Input Power | 6000W |
| Max Open Circuit Voltage | 500Vdc |
| Max Input Current | 20A |
| Input Voltage Range | 120~450V |
| AC/Generator Input | |
| Input Voltage Range | 90~280Vac |
| Rated Input Voltage | 220Vac |
| Input Frequency | 50/60Hz |
| Max AC Bypass Current | 40A |
| General Parameters | |
| Dimensions | 458*306*114.5 (mm) |
| Net Weight | 8.40kg |
| Gross Weight | 9.90kg |
| Protection Level | IP21 |
| Operating Temperature | -10℃~50℃ |
| Cooling Method | Intelligent air cooling |
| Humidity | 5%~95% |
| Outer Box Packaging | 540*379*175(mm) |
