What a VFD Panel Does in Industrial and Pumping Systems
A variable frequency drive panel controls AC motor speed by adjusting output frequency and voltage, helping loads match process demand. In pump, fan, conveyor, or solar irrigation systems, this can reduce unnecessary energy use and soften mechanical stress. Properly specified panels also combine drive hardware with protection, wiring, and enclosure components for stable operation.
Main Drive Topologies and Their Engineering Fit
Most general industrial panels use PWM-based voltage source inverter designs, which offer efficient speed control for common motor loads. Solar pumping or off-grid applications may use drive panels designed to accept DC input from PV arrays and manage pump operation without grid dependence. For high-inertia, regenerative, or precise torque duties, current source or vector-control approaches may be considered, depending on the application.
Panel Components and Environmental Protection
Beyond the drive itself, a VFD panel includes circuit protection, disconnects, cooling, filters, and terminal arrangements that affect reliability. Enclosure choice should reflect dust, moisture, corrosive air, and outdoor exposure, while ventilation or forced cooling must match the heat generated by the drive. Harmonic mitigation and EMC measures are often needed when sensitive controls or shared power systems are present.
Common Applications and Control Requirements
VFD panels are used in water pumping, HVAC, material handling, and process automation where variable speed improves efficiency or control accuracy. Pump systems often benefit from soft start, pressure or level feedback, and protection against dry running or flow issues. Conveyor and machine applications may require higher starting torque, braking, or coordinated control, so drive selection should follow load behavior.
Selecting a Boray VFD Panel Solution

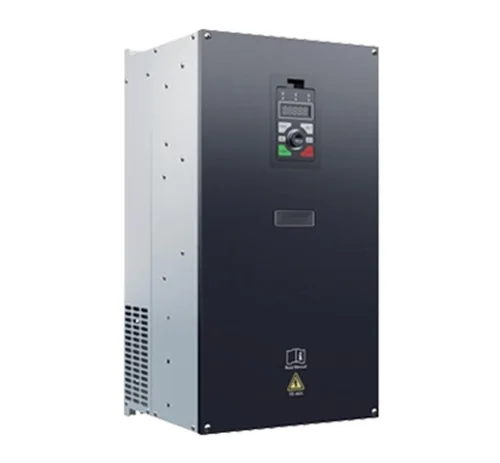

When comparing options, evaluate motor size, duty cycle, power source, ambient conditions, and required control features rather than drive catalog name alone. Boray products such as the BR300-IP54 Smart Water Pump VFD and AD1000PLUS High-Performance Vector Inverter show how pump and industrial control needs can be addressed through different drive families. A distributed inverter like the FD500 may also be relevant when system layout or modular control is part of the design.
