Introduction: Sourcing Hybrid Solar Charger Inverter for Industrial Use

Industrial facilities and agricultural operations face mounting pressure to decouple critical processes from grid volatility while managing escalating peak demand charges. For project engineers and EPC contractors overseeing automated irrigation networks or heavy manufacturing lines, even momentary power interruptions translate to significant revenue loss and accelerated equipment wear.

Hybrid solar charger inverters function as intelligent energy routers that transcend simple DC-to-AC conversion, seamlessly integrating photovoltaic generation, battery storage, and grid connectivity with industrial motor control systems. Unlike conventional string inverters, these bidirectional power management units store surplus solar energy to support high-inrush motor startups—such as centrifugal pumps or VFD-driven conveyors—while maintaining grid-tie capabilities for demand charge mitigation and net metering optimization.

This technical guide addresses the procurement complexities facing automation distributors and agricultural project managers when specifying hybrid inverter systems for industrial-scale deployment. We examine critical distinctions between residential single-phase units and robust three-phase configurations rated for 380V pump stations and automated machinery. Detailed analysis covers power scalability (from 5kW agricultural installations to 60kW+ industrial microgrids), MPPT efficiency algorithms, IP65+ protection for harsh environments, and seamless integration with existing VFD architectures and solar pumping controllers.

Whether designing resilient power systems for remote agricultural sites or optimizing factory energy management, understanding manufacturer capabilities—from IGBT thermal management to battery communication protocols—ensures your hybrid inverter specification aligns with both immediate load profiles and long-term operational continuity objectives.

Technical Types and Variations of Hybrid Solar Charger Inverter

Hybrid solar charger inverters represent the convergence of photovoltaic (PV) generation, energy storage management, and grid-interactive power conversion within a unified power electronic architecture. For industrial automation, agricultural irrigation, and commercial energy projects, selecting the appropriate topology is critical for ensuring compatibility with motor loads—particularly Variable Frequency Drive (VFD) systems and submersible pumps—while optimizing Levelized Cost of Energy (LCOE). The following classification outlines the primary technical variations based on phase configuration, integration architecture, and application-specific motor control capabilities.

Type	Technical Features	Best for (Industry)	Pros & Cons
Single-Phase String Hybrid Inverters	• 3–12 kW power range • Single-phase output (230V/120V) • Dual MPPT inputs (98%+ efficiency) • High-frequency transformerless topology • IP65 enclosure rating • THD < 2% (linear load)	Residential, small commercial facilities, light agricultural operations	Pros: Cost-effective per watt, modular scalability, simple installation Cons: Limited motor starting torque (3-5x surge), unsuitable for three-phase pump motors without phase converters
Split-Phase Hybrid Inverters (120/240V)	• Dual voltage output (L-N 120V, L-L 240V) • 60Hz nominal frequency • Neutral bonding capability • UL1741/CSA compliance • 5–15 kW capacity range • Generator input support	North American residential, small farms, commercial buildings with mixed-voltage loads	Pros: Native compatibility with NA split-phase grid, supports 240V pump motors while powering 120V control circuits Cons: Geographic limitation, requires neutral management for off-grid operation
Three-Phase Industrial Hybrid Inverters	• 15–100+ kW capacity • 400V/480V three-phase output • <3% THD at full load • Master-slave parallel operation (up to 10 units) • High-voltage battery support (400–800V DC) • Four-quadrant operation (P/Q control)	Industrial facilities, large-scale agriculture, commercial EPC projects, water treatment plants	Pros: Direct compatibility with industrial VFDs and three-phase pump motors, balanced load distribution, high power density Cons: Significant capital investment, requires three-phase battery configurations or DC-DC conversion stages
Solar Pumping Hybrid Inverters with VFD Integration	• MPPT voltage range optimized for pump curves (200-800V DC) • Integrated soft-start algorithms (ramp 0-60Hz in 2-10s) • Dry-run protection and flow sensors • Battery backup mode for 24/7 operation • Motor protection (overload, phase loss, stall detection) • IP54/IP66 enclosure options	Agricultural irrigation, remote water supply, livestock watering, industrial process cooling	Pros: Eliminates separate VFD hardware, optimized for inductive motor loads, grid independence for critical pumping schedules Cons: Application-specific design, limited versatility for non-motor loads without additional inverter capacity
All-in-One Integrated Hybrid Systems	• Built-in MPPT charge controllers (2-4 string inputs) • Multi-source AC charging (grid/generator) • Automatic transfer switch (ATS) integration • BMS communication (CAN2.0, RS485, Modbus) • Modular battery expansion (2.4–20+ kWh) • Touchscreen HMI with remote monitoring	Off-grid installations, telecom towers, critical backup systems, remote monitoring stations	Pros: Reduced BoS (Balance of System) costs, single-point monitoring, compact footprint, plug-and-play battery integration Cons: Proprietary battery compatibility constraints, single point of failure risk, limited field serviceability

1. Single-Phase String Hybrid Inverters

Single-phase string hybrid inverters utilize transformerless or high-frequency transformer topologies to convert DC solar/battery power to 230V (EU/Asia) or 120V (Japan) single-phase AC. These units typically feature dual Maximum Power Point Tracking (MPPT) inputs, allowing separate optimization of east/west-facing arrays or shaded strings. For agricultural applications, these inverters suit small-scale drip irrigation systems utilizing single-phase surface pumps up to 2.2 kW. However, engineers must account for the high inrush current of capacitor-start motors; the inverter’s surge capacity (typically 1.5–2x rated power for 10 seconds) must exceed the motor’s Locked Rotor Amps (LRA). When paired with external VFDs, these inverters can effectively drive three-phase pumps through single-phase input VFDs, though harmonic filtering becomes essential to prevent THD-induced heating in the inverter’s output stage.

2. Split-Phase Hybrid Inverters (120/240V)

Engineered specifically for North American electrical infrastructure, split-phase hybrid inverters generate two 120V legs 180° out of phase, providing both 120V (line-to-neutral) for control circuits and lighting, and 240V (line-to-line) for heavy motor loads. This topology is critical for agricultural projects utilizing deep-well submersible pumps requiring 240V single-phase input, while simultaneously powering 120V aeration or monitoring equipment. The neutral bonding capability allows seamless transition between grid-tied and off-grid modes, maintaining ground reference for safety. For industrial automation distributors, specifying these units requires verification of the inverter’s ability to handle 120% unbalanced loads—essential when pump motors cycle on while 120V control systems remain energized.

3. Three-Phase Industrial Hybrid Inverters

Three-phase industrial hybrid inverters represent the standard for commercial and heavy agricultural applications exceeding 15 kW. These units output 400V (Wye) or 480V (Delta) three-phase power with active front-end (AFE) rectification, enabling four-quadrant operation where power factor can be adjusted from 0.8 leading to 0.8 lagging for grid support. In solar pumping applications, these inverters directly interface with standard three-phase VFDs without requiring phase conversion, maintaining high system efficiency (>96%). The high-voltage battery compatibility (up to 800V DC) reduces DC cabling costs and minimizes conduction losses. Parallel operation capabilities allow EPC contractors to scale systems incrementally—adding 50 kW inverter modules as irrigation demands grow—while maintaining centralized monitoring via Modbus TCP/IP.

4. Solar Pumping Hybrid Inverters with VFD Integration

This specialized category merges hybrid inverter functionality with motor drive electronics, specifically engineered for centrifugal and positive-displacement pumps. Unlike standard hybrid inverters that prioritize constant voltage/frequency output, these units employ Variable Voltage Variable Frequency (VVVF) control algorithms that match pump speed to solar irradiance curves, maximizing water output during partial sun conditions. The integrated soft-start function eliminates water hammer and reduces mechanical stress on pump shafts and couplings. Critical for agricultural reliability, these inverters feature “dry-run” protection that monitors motor current signatures to detect cavitation or low-water conditions, automatically shutting down the pump to prevent damage. When grid power is available, the hybrid charging circuit maintains battery reserves for nighttime or emergency pumping, effectively creating an uninterruptible power supply (UPS) for critical water infrastructure.

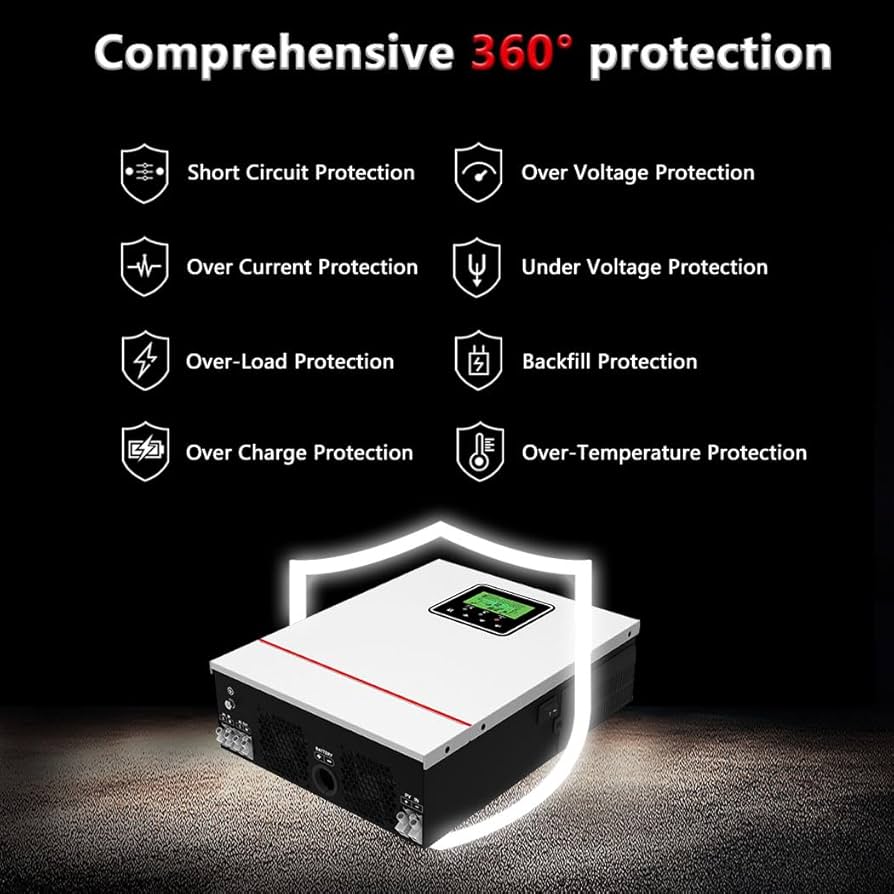

5. All-in-One Integrated Hybrid Systems

All-in-one systems consolidate MPPT solar charge controllers, battery management system (BMS) interfaces, and bidirectional inverters into a single enclosure, significantly reducing installation complexity for remote industrial sites. These units typically support lithium iron phosphate (LiFePO4) battery chemistries with CAN bus communication for state-of-charge (SOC) and state-of-health (SOH) monitoring. For automation engineers, the integrated ATS (Automatic Transfer Switch) allows programmable logic: prioritizing solar charging, switching to generator backup during extended low-irradiance periods, and maintaining critical motor loads during grid outages. While offering the lowest installation cost per kWh for small-to-medium systems, engineers must evaluate the thermal management design—ensuring the integrated enclosure’s heat dissipation capacity exceeds the combined losses of charging and inversion stages, particularly in ambient temperatures exceeding 45°C common in agricultural environments.

Key Industrial Applications for Hybrid Solar Charger Inverter

Hybrid solar charger inverters represent a paradigm shift in industrial power architecture, converging photovoltaic (PV) generation, battery energy storage systems (BESS), and grid/diesel backup into unified power conversion platforms. Unlike conventional solar installations that require separate charge controllers, battery inverters, and grid-tie units, these integrated systems manage DC bus voltage centrally—enabling direct coupling with Variable Frequency Drives (VFDs) and soft starters for motor control applications. For industrial engineers and EPC contractors, this consolidation reduces Balance of System (BOS) costs while providing the seamless transfer capabilities necessary for critical pump, compressor, and conveyor operations. The following applications demonstrate how hybrid inverter technology, when paired with advanced motor control strategies, delivers measurable ROI through demand charge reduction, fuel displacement, and production continuity assurance.

Sector	Application	Energy Saving Value	Sourcing Considerations
Agriculture & Irrigation	Solar-powered submersible pump stations with VFD integration and battery buffering for 24/7 irrigation cycles	40–70% reduction in diesel/generator fuel costs; elimination of peak demand charges during high-irrigation seasons	Wide MPPT voltage range (200–850VDC) for large PV arrays; IP65/NEMA 4X enclosure for outdoor agricultural environments; RS485/CAN bus communication compatibility with pump VFDs; anti-islanding protection (UL1741-SA/IEC62109)
Water Treatment & Distribution	Municipal lift stations, reverse osmosis plants, and pressure boosting systems requiring uninterrupted uptime	30–45% reduction in grid electricity consumption; avoidance of peak tariff penalties (often 20–40% of utility bills)	Seamless transfer switching (<20ms) to prevent pump cavitation during grid outages; compatibility with 3-phase induction motors (380–480VAC); harmonic distortion <3% THD to protect sensitive filtration equipment
HVAC & Building Automation	Solar-assisted chilled water systems, cooling towers, and variable air volume (VAV) handling units with hybrid power buffering	25–40% HVAC energy reduction via PV-to-motor direct coupling; peak shaving capabilities reducing demand charges by 15–30%	Integrated power factor correction (>0.99); low THD (<3%) to prevent motor winding heating; multi-string MPPT inputs for distributed rooftop PV layouts; BACnet/Modbus TCP integration with Building Management Systems
Mining & Remote Industrial Operations	Off-grid crushing, conveying, and dewatering pump systems operating in weak-grid or microgrid environments	60–80% diesel fuel savings versus pure fossil-fuel generation; optimized generator run-time extending prime mover life by 40%+	Grid-forming (islanding) capability with voltage/frequency regulation; 150% overload capacity for 60 seconds to handle motor starting surges; wide ambient temperature operation (-25°C to +60°C); conformal coating for dusty environments
Manufacturing & Process Industries	Critical motor loads, CNC machinery, and conveyor systems requiring ride-through power during grid sags and outages	Prevention of production losses (often $10k–$50k/hour in continuous processing); 20–30% reduction in industrial electricity tariffs via solar self-consumption	Pure sine wave output (<2% THD); generator input compatibility for extended outages; advanced Battery Management System (BMS) supporting LiFePO4 and lead-acid chemistries; active anti-condensation heating for humidity control

Agriculture & Large-Scale Irrigation
In agricultural automation, hybrid solar charger inverters function as the central power hub for solar pump VFDs, eliminating the efficiency losses associated with AC-coupled systems. By maintaining a stable DC bus (typically 400–800VDC), these inverters allow direct battery coupling to irrigation pumps controlled by Boray’s specialized solar pump VFDs—enabling variable-speed operation that matches water flow to solar irradiance levels. During peak sunlight, excess energy charges lithium-ion storage banks rather than curtailing PV output; this stored energy then powers early morning or late evening irrigation cycles when grid electricity tariffs are highest. Critical sourcing considerations include wide MPPT voltage windows to accommodate large series-string PV configurations common in megawatt-scale agricultural projects, and IP65-rated enclosures to withstand fertilizer corrosion and irrigation spray.

Water Treatment & Distribution Infrastructure
Municipal and industrial water facilities require absolute continuity; even momentary power interruptions can trigger pump cavitation, water hammer, and membrane damage in filtration systems. Hybrid inverters provide <20ms transfer switching—faster than traditional UPS systems—ensuring submersible pumps and booster stations never experience disruptive voltage sags. When integrated with VFDs, these systems enable “solar-only” operation during daylight hours, where the inverter prioritizes PV energy for motor control while maintaining battery reserves for grid failure backup. Engineers should specify units with robust anti-islanding protection and compatibility with 3-phase 400V industrial motors, alongside harmonic filtering (<3% THD) to prevent premature bearing failure in high-speed centrifugal pumps.

Industrial HVAC & Process Cooling
The affinity laws governing centrifugal pumps and fans dictate that a 20% reduction in motor speed yields a 50% energy savings—making variable frequency drives essential for HVAC efficiency. Hybrid solar charger inverters enhance this relationship by directly coupling PV generation to VFD DC inputs, creating a “solar-first” motor control strategy that reduces reliance on grid power during peak cooling demand periods. In cement plants and manufacturing facilities, these systems provide critical peak shaving, discharging batteries during utility demand spikes to avoid costly kW-demand charges. Sourcing priorities include integrated power factor correction (PFC) to maintain >0.99 PF across variable loads, and communication protocols (BACnet/IP or Modbus TCP) that allow integration with existing Building Automation Systems for coordinated chiller staging.

Mining & Remote Heavy Industry
In off-grid mining operations, hybrid inverters serve as grid-forming masters that regulate voltage and frequency for entire microgrids powering crushers, conveyors, and dewatering pumps. Unlike standard solar inverters that require a stable grid reference, these units create a virtual synchronous generator effect—critical for starting large induction motors that draw 6–7x their rated current during locked-rotor conditions. By combining solar generation with battery storage and diesel generator sets, mining operators can optimize generator dispatch, running fossil-fuel plants only at optimal load points (80–90% capacity) while batteries handle load fluctuations. Key specifications include 150% overload capacity for 60 seconds to accommodate motor starting surges, and conformal-coated PCBs to resist conductive dust and high-altitude operation challenges.

Manufacturing & Automation
For continuous process industries such as textiles, food processing, and automotive assembly, hybrid solar charger inverters provide voltage ride-through capability that protects sensitive motor control centers from costly downtime. When grid disturbances occur, the inverter instantaneously switches to battery power without interrupting PLC sequences or VFD parameter sets—maintaining constant torque output on conveyor lines and preventing product spoilage. Advanced systems feature generator input terminals that allow automatic integration of backup diesel units during extended outages, with intelligent load shedding protocols that prioritize critical motor loads over auxiliary equipment. Procurement teams should prioritize pure sine wave output (<2% THD) to prevent motor overheating, and ensure compatibility with lithium iron phosphate (LiFePO4) batteries for their superior cycle life and thermal stability in industrial environments.

Top 3 Engineering Pain Points for Hybrid Solar Charger Inverter

Scenario 1: Harmonic Interference and Power Quality Degradation in VFD-Driven Pumping Systems

The Problem:
When hybrid solar charger inverters supply power to Variable Frequency Drives (VFDs) in agricultural or industrial pumping applications, the pulse-width modulation (PWM) switching characteristics of the hybrid inverter can create harmonic resonance with the VFD’s input rectifier stage. This results in elevated Total Harmonic Distortion (THD) levels, typically exceeding IEEE 519 standards, which causes excessive heating in motor windings, premature bearing failure due to shaft currents, and erratic torque control. Additionally, the dual conversion process (DC-AC-DC) in battery-charging mode introduces voltage transients that disrupt the VFD’s DC bus stability, leading to nuisance tripping during critical irrigation cycles or process cooling operations.

The Solution:
Deploy hybrid inverters featuring active front-end (AFE) technology with built-in sine wave filters and <3% THD output specifications. Advanced models should offer VFD-compatible output modes that synchronize switching frequencies with motor load requirements, coupled with galvanic isolation transformers to mitigate common-mode voltage issues. For Boray Inverter applications, specify units with programmable power curves that prioritize motor starting torque requirements over battery charging during pump startup sequences, ensuring stable DC bus voltage and eliminating harmonic amplification through intelligent load management algorithms.

Scenario 2: Thermal Derating and Environmental Protection Conflicts in Remote Pump Stations

The Problem:
Hybrid inverters installed in outdoor agricultural pump stations or desert irrigation projects face a critical engineering trade-off: achieving IP65/IP66 ingress protection against dust, humidity, and irrigation spray while maintaining adequate thermal dissipation for continuous 45°C+ ambient operation. Standard hybrid inverters often derate output power by 20-30% at temperatures above 40°C, precisely when solar irradiance—and pumping demand—peaks. This thermal limitation forces engineers to oversize inverter capacity by 25-40%, increasing capital expenditure and reducing system efficiency. Furthermore, the accumulation of agricultural dust (PM10/PM2.5) on heat sinks creates thermal insulation layers, triggering thermal runaway protection shutdowns during critical daylight pumping hours.

The Solution:
Specify hybrid solar charger inverters with conformal-coated PCBs and fanless/passive cooling architectures rated for 60°C ambient operation without derating, or active cooling systems with replaceable dust filters and automatic thermal monitoring. Boray’s industrial-grade hybrid solutions utilize aluminum alloy heat sinks with anodized finishes and computational fluid dynamics (CFD)-optimized airflow paths that maintain full rated output (e.g., 15kW continuous) up to 50°C ambient. Implement redundant thermal protection with predictive maintenance alerts via Modbus/RS485 communication to SCADA systems, allowing preventive cleaning schedules that align with irrigation downtime windows.

Scenario 3: Coordination Between MPPT Optimization and Motor Inrush Current Management

The Problem:
In hybrid solar pumping systems, the Maximum Power Point Tracking (MPPT) algorithm continuously adjusts PV array voltage to maximize energy harvest, often creating a conflict with the instantaneous power demands of submersible pump motors. When a pump initiates startup (requiring 3-7x running current), the hybrid inverter must instantaneously shift power allocation from battery charging to motor supply, potentially causing the MPPT to hunt or destabilize as the DC bus voltage collapses. This results in failed motor starts, battery protection disconnects, or extended startup times that overheat motor windings. In weak-grid scenarios, the additional complexity of grid-tie synchronization during motor starting creates voltage sags that trigger utility-side protection relays.

The Solution:
Implement hybrid inverters with dual-stage MPPT controllers featuring “motor priority mode” that temporarily suspends battery charging and grid-feed functions during motor acceleration phases. Advanced units should incorporate soft-start algorithms specifically calibrated for centrifugal pump curves, gradually ramping output frequency from 0Hz to operating speed over 2-5 seconds to eliminate inrush current spikes. For Boray integrated systems, select hybrid inverters with expandable DC bus capacitance and dynamic power reserve buffers (typically 150% overload capacity for 60 seconds) that accommodate pump starting torque without disconnecting from the MPPT optimal operating point. Configure programmable logic controllers (PLCs) within the inverter to sequence multiple pumps via staggered start delays, preventing simultaneous inrush events that exceed the hybrid system’s surge capacity.

Component and Hardware Analysis for Hybrid Solar Charger Inverter

At the core of every hybrid solar charger inverter lies a sophisticated convergence of power electronics, digital control systems, and thermal management engineering. For industrial applications—particularly solar pumping stations and motor control environments where Boray Inverter specializes—these components must withstand aggressive electrical cycling, wide temperature fluctuations, and the unique demands of bidirectional power flow between photovoltaic arrays, battery storage banks, and inductive motor loads.

Unlike standard grid-tied solar inverters, hybrid units integrate battery charge control circuitry and often function as Variable Frequency Drives (VFDs) for direct motor control. This multi-functionality places extraordinary stress on internal hardware, requiring industrial-grade component selection that exceeds residential solar standards.

Power Semiconductor Stage (IGBT/SiC Modules)

The power conversion bridge represents the primary energy pathway, utilizing Insulated Gate Bipolar Transistors (IGBTs) or Silicon Carbide (SiC) MOSFETs in H-bridge configurations. In solar pumping applications, these semiconductors must manage not only Maximum Power Point Tracking (MPPT) from PV arrays but also the high inrush currents characteristic of submersible pump startup—often 3-7x nominal current.

Critical Specifications:
– Switching Frequency: 4-16 kHz for IGBT-based systems; up to 50+ kHz for SiC implementations, enabling finer motor control and reduced harmonic distortion
– Junction Temperature (Tj): Industrial units require Tj(max) ≥ 175°C with derating curves accounting for 50°C+ ambient agricultural environments
– Thermal Cycling Capability: Power modules must withstand >50,000 thermal cycles (ΔTj = 80°C) without solder fatigue or bond wire degradation

Digital Signal Processing Core

The control architecture typically employs dual-core Digital Signal Processors (DSPs) or hybrid DSP/FPGA configurations to simultaneously execute:
– Real-time MPPT algorithms (Perturb & Observe or Incremental Conductance)
– Battery charge management (CC/CV profiles for LiFePO4 or lead-acid chemistries)
– Motor control algorithms (Sensorless Vector Control, V/f control for pump applications)

High-resolution Analog-to-Digital Converters (ADCs) with ≥12-bit resolution and sub-microsecond sampling rates are essential for accurate current sensing in noisy electrical environments.

DC-Link Capacitor Banks

Acting as the energy buffer between PV input, battery bus, and AC output stages, DC-link capacitors stabilize voltage during motor acceleration transients. Film capacitors (polypropylene metallized film) are preferred over electrolytic in industrial hybrid inverters due to:
– Ripple Current Handling: 20-50 Arms continuous capability
– ESR Stability: <5mΩ at operating temperature
– Lifespan: 100,000+ hours at rated voltage and 70°C hotspot temperature

Electrolytic capacitors, if used, require thermal management strategies to prevent electrolyte evaporation in high-temperature pump house installations.

Thermal Management Architecture

Industrial hybrid inverters employ forced-air cooling with thermally optimized heatsink designs or, in premium agricultural units, heat-pipe technology with passive convection. The thermal interface material (TIM) between semiconductors and heatsinks critically impacts long-term reliability.

Key Metrics:
– Thermal Resistance (Rth): <0.1 K/W from junction to case
– Heatsink Material: Aluminum 6063-T5 with anodized finish for corrosion resistance in humid environments
– Fan MTBF: ≥60,000 hours at 40°C (dual-redundant fan configurations recommended for critical pumping stations)

Battery Management Interface

The battery charging subsystem requires isolated gate drivers and precision current sensing resistors (shunts) capable of bidirectional current measurement with ±0.5% accuracy. Communication protocols (CAN bus or RS-485) interface with external Battery Management Systems (BMS) to monitor cell-level voltages and temperatures, preventing thermal runaway in lithium-ion installations.

Component Analysis Matrix

Component	Function	Quality Indicator	Impact on Lifespan
IGBT/SiC Power Modules	DC/AC conversion; motor drive switching; bidirectional power flow	Vce(sat) < 1.5V; Tj(max) ≥ 175°C; Thermal resistance Rth(j-c) < 0.6 K/W	Directly determines MTBF; thermal cycling fatigue is primary failure mode; high-quality modules extend life 15-20 years
DSP Controller	MPPT algorithm execution; battery charge control; motor vector control	32-bit architecture; ≥150 MHz clock speed; ADC resolution ≥12-bit	Firmware corruption protection and temperature-rated operation (-40°C to +85°C) prevent control board failures
DC-Link Capacitors	Energy buffering; ripple current absorption; DC bus stabilization	ESR < 5mΩ; Ripple current rating > 30 Arms; 100,000 hours @ 70°C	Film capacitors offer 3-5x lifespan vs. electrolytic; critical for maintaining DC bus stability during motor inrush
Cooling Heatsinks	Thermal dissipation from semiconductors; junction temperature maintenance	Thermal resistance < 0.1 K/W; Anodized aluminum construction; Heat pipe thermal conductivity > 10,000 W/m·K	Prevents thermal runaway; 10°C reduction in operating temperature doubles semiconductor lifespan
EMI Filter Chokes	Attenuation of switching noise; grid compliance; motor bearing protection	High-permeability nanocrystalline cores; Saturation current > 1.5x rated	Prevents insulation degradation in motor windings; reduces eddy current losses in pump motors
Gate Drivers	Isolated switching signal amplification; IGBT protection (desaturation detection)	CMTI > 100 kV/μs; Propagation delay < 100 ns; Isolation voltage > 2500 VAC	Prevents catastrophic bridge failures; soft-turn-off circuits protect against shoot-through during motor switching
Current Sensors	Precision measurement for MPPT, battery management, and motor control	±0.5% accuracy; Bandwidth > 100 kHz; Galvanic isolation > 2.5 kV	Critical for accurate vector control in pumps; prevents overcurrent stress on power semiconductors

Integration with VFD Motor Control

In agricultural solar pumping applications, hybrid inverters often operate as integrated VFDs, requiring additional hardware considerations:

Pre-charge Circuits: Limit inrush current to the DC-link capacitors when connecting to high-capacity battery banks, preventing contactor welding and extending relay life.

Output Reactor Compatibility: Internal space and mounting provisions for dv/dt filters or sine-wave filters to protect submersible pump motors from reflected wave phenomena in long cable runs (>50 meters).

IP Rating Integrity: Sealed enclosures (IP65/NEMA 4X) with conformal-coated PCBs protect control electronics from humidity, dust, and chemical exposure prevalent in agricultural environments.

For EPC contractors and automation distributors, specifying hybrid inverters with industrial-grade component specifications—rather than residential solar-grade hardware—ensures compatibility with heavy-duty motor loads and provides the operational longevity required in remote solar pumping installations where maintenance access is limited.

Manufacturing Standards and Testing QC for Hybrid Solar Charger Inverter

At Boray Inverter, our hybrid solar charger inverter production lines integrate decades of variable frequency drive (VFD) manufacturing expertise with photovoltaic power conversion technology. For industrial engineers and EPC contractors deploying solar pumping systems or hybrid energy storage in harsh agricultural and automation environments, manufacturing rigor determines whether an inverter survives 25 years of thermal cycling, humidity, and full-load operation. Our quality assurance protocols exceed baseline OEM requirements, ensuring every unit functions as both a precision motor controller and grid-interactive energy manager.

International Compliance and Safety Standards

All Boray hybrid solar charger inverters are manufactured under ISO 9001:2015-certified quality management systems, with design validation adhering to IEC 62109-1/2 (safety requirements for power converters used in photovoltaic systems) and IEC 62040 (uninterruptible power systems). For European and global markets, units carry CE marking compliant with the Low Voltage Directive (LVD) 2014/35/EU and Electromagnetic Compatibility (EMC) Directive 2014/30/EU, specifically tested against EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions).

For solar pumping applications, we additionally validate against IEC 61683 (photovoltaic systems—power conditioners—procedure for measuring efficiency) and VDE-AR-N 4105 for grid connection stability. This regulatory framework ensures compatibility with agricultural induction motors, permanent magnet synchronous pumps (PMSM), and grid-tied storage systems without harmonic distortion or voltage instability.

PCB Assembly and Environmental Protection

Given that hybrid inverters operate in dusty agricultural fields and humid industrial environments, our printed circuit board (PCB) manufacturing follows IPC-A-610 Class 3 standards for high-performance electronic assemblies:

• Surface Mount Technology (SMT): Automated pick-and-place with ±0.05mm precision for IGBT and MOSFET power modules, followed by Automated Optical Inspection (AOI) and X-ray inspection for BGA components to eliminate voids in thermal pads.
• Conformal Coating: Every control board receives a uniform 25-75μm layer of acrylic or silicone conformal coating (per IPC-CC-830), selected based on deployment environment. Acrylic coatings provide excellent moisture resistance for tropical agricultural zones, while silicone variants withstand the thermal cycling (-40°C to +85°C) common in desert solar farms. This prevents dendritic growth and corrosion on high-voltage traces.
• Thermal Management: Direct Bond Copper (DBC) substrates and aluminum nitride (AlN) ceramic bases for power modules ensure junction-to-case thermal resistance <0.15 K/W, critical when driving submersible pumps with high starting torque.

100% Production Testing and Burn-In Protocols

Unlike sample-based quality control, Boray implements 100% full-load functional testing on every hybrid inverter before shipment:

1. Automated Test Equipment (ATE): Each unit undergoes a 48-point electrical safety check including Hi-Pot testing (1500VAC/1min insulation withstand), ground continuity (<0.1Ω), and insulation resistance (>100MΩ @ 500VDC).
2. Full-Load Burn-In: Units operate at 110% rated load for 4-6 hours in 45°C ambient temperature chambers. This high-temperature aging process screens for infant mortality in electrolytic capacitors, IGBT thermal interface integrity, and solder joint reliability under thermal stress.
3. Efficiency Mapping: We measure conversion efficiency at 25%, 50%, 75%, and 100% load points to verify compliance with IEC 61683 efficiency class requirements (typically >97% peak efficiency for our three-phase hybrid models).
4. Motor Control Validation: For solar pump applications, each inverter is tested with actual induction motors and PMSM loads to verify V/F control, vector control, and MPPT tracking accuracy (99.5% tracking efficiency minimum). This ensures compatibility with borehole pumps requiring high starting currents (up to 300% FLA) without nuisance tripping.

Environmental and Mechanical Stress Testing

To simulate global deployment conditions, our QC laboratory subjects representative samples to:

• Thermal Cycling: 500 cycles between -40°C and +85°C (IEC 60068-2-14) to validate conformal coating adhesion and connector integrity.
• Humidity and Corrosion: 96-hour salt mist testing (IEC 60068-2-11) for coastal agricultural projects, and 85°C/85% RH biased humidity testing for tropical environments.
• Vibration and Shock: Random vibration testing (5-500Hz, 2.5G RMS) and mechanical shock (30G/11ms) per IEC 60068-2-6/27 to ensure survival in transportation to remote EPC sites and operation near heavy machinery.

Component Traceability and Supply Chain Control

For industrial automation clients requiring long-term maintenance support, we maintain full component traceability through barcode serialization. Critical semiconductors (IGBTs, DSPs) are sourced from Tier-1 suppliers (Infineon, Texas Instruments, STMicroelectronics) with automotive-grade qualifications (AEC-Q100/101). Capacitors utilize 105°C rated electrolytics or film capacitors with >100,000-hour lifespan calculations, ensuring the 10-15 year service life demanded by solar pumping ROI models.

Integration with VFD Expertise

Leveraging our core competency in motor control, Boray hybrid solar charger inverters incorporate soft-start algorithms and dry-run protection specifically calibrated for agricultural pumps. The manufacturing test suite includes simulation of water hammer conditions, cavitation detection, and automatic frequency derating when PV input fluctuates—ensuring that the transition between solar, battery, and grid power maintains torque stability for centrifugal and positive displacement pumps.

This manufacturing discipline ensures that whether deployed in a 500kW agricultural irrigation project or an industrial peak-shaving installation, Boray hybrid inverters deliver the reliability of industrial VFDs with the energy management capabilities of modern solar storage systems.

Step-by-Step Engineering Sizing Checklist for Hybrid Solar Charger Inverter

Before initiating procurement or installation, verify system compatibility across mechanical, electrical, and environmental domains. This checklist ensures your hybrid solar charger inverter selection aligns with pump motor characteristics, photovoltaic (PV) generation capacity, and site-specific operational constraints.

1. Load Characterization & Motor Starting Requirements

Mechanical Power Verification
– Calculate hydraulic load: $P_{hyd} = \frac{\rho \cdot g \cdot H \cdot Q}{\eta_{pump}}$ (where $\rho$ = fluid density, $H$ = total dynamic head, $Q$ = flow rate, $\eta$ = pump efficiency)
– Convert to electrical power: $P_{motor} = \frac{P_{hyd}}{\eta_{motor}}$; apply 1.15 service factor for agricultural duty cycles
– Critical Check: Verify inverter surge capacity (typically 200–300% rated power for 5–10 seconds) exceeds motor Locked Rotor Amps (LRA) or external VFD inrush current

Phase & Voltage Configuration
– Match inverter output topology to motor nameplate: Single-phase (120V/230V), Split-phase (120/240V), or Three-phase (208V, 400V, 480V)
– For VFD-driven pumps: Confirm inverter output frequency stability (±0.5 Hz) and compatibility with VFD DC bus input requirements if bypassing internal rectification

2. Photovoltaic Array Sizing & Voltage Window Analysis

String Voltage Calculations (NEC 690.7 compliant)
– Calculate maximum open-circuit voltage ($V_{oc_max}$) at record low temperature:
$V_{oc_max} = V_{oc_STC} \times [1 + (T_{min} – 25°C) \times \frac{\%}{°C}]$
– Verify $V_{oc_max}$ < inverter maximum DC input voltage (typically 500V–1000V for residential, up to 1500V for industrial units)
– Calculate minimum $V_{mp}$ at high temperature: Must exceed inverter MPPT start voltage by 10% margin

Current & Power Sizing
– Size array at 1.25× continuous inverter input current (NEC 690.8)
– For pumping applications: Match PV array $P_{max}$ to pump hydraulic curve at Peak Sun Hours (PSH); oversize by 20–30% to account for dust, temperature derating, and battery charging simultaneously
– Hybrid-Specific: Ensure PV capacity exceeds simultaneous load demand + battery charging rate (C-rate)

3. Energy Storage Integration & Battery Sizing

Voltage Compatibility
– Confirm battery nominal voltage (48V, 400V, or 800V DC) matches inverter battery port specifications
– Verify charge/discharge current ratings: $I_{max} = \frac{P_{inverter_max}}{V_{battery}}$ must be within battery BMS limits

Autonomy & Depth of Discharge (DoD)
– Calculate required battery capacity for non-solar operation:
$Capacity (Wh) = \frac{Load (W) \times Autonomy (h)}{DoD \times \eta_{inverter} \times \eta_{battery}}$
– For agricultural irrigation: Size for 1–2 days autonomy; for industrial process backup: Size for 4–8 hours minimum

4. AC Output & Power Quality Specifications

Continuous vs. Surge Ratings
– Inverter continuous rating ≥ 1.25 × motor Full Load Amps (FLA) at specified power factor (typically 0.8–0.9 for pumps)
– Verify overload capacity: 150% for 60 seconds minimum for submersible pump starting torque

Harmonic Distortion & Power Factor
– Specify Total Harmonic Distortion (THD) < 3% for sensitive control circuits
– Ensure power factor correction (PFC) capability if running multiple induction motors without VFDs

5. Environmental Derating & Mechanical Installation

Thermal Management
– Apply altitude derating: Reduce output by 1% per 100m above 1000m ASL
– Verify ambient temperature range: Inverter capacity typically derates above 45°C; ensure heatsink clearance per manufacturer specifications
– IP Rating Selection: IP54 minimum for agricultural dust; IP65 for outdoor tropical installations

Protection Coordination
– Size DC fuses/breakers at 1.56× $I_{sc}$ (NEC 690.9)
– Install Type 2 SPD on DC inputs (PV and Battery) and AC outputs
– Verify ground fault protection integration with hybrid inverter isolation transformer (if required by local code)

6. Control System Integration & Communication

VFD & Motor Control Compatibility
– Confirm dry contact outputs (relays) for external VFD enable/start signals
– Verify Modbus RTU/TCP or CANopen protocols for SCADA integration and remote monitoring of pump status, flow rates, and fault conditions
– Check for generator auto-start (AGS) compatibility if diesel backup is required for extended cloudy periods

Grid Interaction Settings
– Configure anti-islanding protection (UL 1741/IEC 62109) and voltage/frequency ride-through curves per local utility requirements
– Set export limits if required by grid operator (zero-export mode for agricultural applications)

7. Final Verification & Commissioning Protocol

Pre-Energization Checks
– Megger test insulation resistance: >1 MΩ for motor windings and PV array
– Verify polarity on all DC strings and battery banks (reverse polarity destroys hybrid inverters)
– Confirm torque specifications on busbars and terminal connections (check for thermal expansion allowances)

Functional Testing
– Simulate grid failure: Verify <20ms transfer time to battery backup (critical for submersible pump dry-run protection)
– Test MPPT efficiency across voltage range: Should maintain >99% tracking efficiency
– Record baseline data: Irradiance vs. power output curves, battery charge/discharge cycles, and motor current waveforms

Documentation Package
– As-built single-line diagrams showing PV, battery, inverter, and motor connections
– String voltage calculations and temperature coefficient tables
– Warranty registration for inverter (typically 5–10 years) and battery modules

Note: For Boray Inverter solar pump VFD applications, verify that the hybrid inverter’s output waveform (pure sine wave) matches the VFD input requirements, and confirm that the DC bus voltage from the hybrid unit aligns with your pump inverter’s DC input specifications when operating in direct-coupled solar mode without battery conversion losses.

Wholesale Cost and Energy ROI Analysis for Hybrid Solar Charger Inverter

For EPC contractors and agricultural project managers evaluating capital expenditure on distributed energy resources, understanding the procurement economics of hybrid solar charger inverters requires shifting from consumer retail frameworks to industrial volume pricing architectures. While retail markets display unit costs ranging from $1,600 for entry-level 6kW residential units to $16,000 for commercial 60kW three-phase systems, B2B wholesale procurement—particularly for solar pumping stations and industrial motor control applications—operates on fundamentally different cost structures and ROI calculation methodologies.

Wholesale Pricing Architecture and Volume Economics

Industrial procurement of hybrid inverters for solar pumping and VFD-integrated systems typically follows tiered volume pricing models that diverge significantly from retail benchmarks. For agricultural automation projects requiring 6kW to 18kW single-phase or split-phase configurations, wholesale acquisition costs generally position 30–45% below retail listings, with additional decremental pricing for container-level quantities (100+ units) common in large-scale irrigation deployments.

The integration of Maximum Power Point Tracking (MPPT) charge controllers, bidirectional battery management systems, and grid-tie functionality into a single enclosure—exemplified by all-in-one units like the 12kW–18kW class systems—eliminates the procurement complexity of sourcing separate solar inverters, battery chargers, and transfer switches. For motor control applications, particularly when driving submersible pumps with VFD compatibility, hybrid inverters with 48V DC battery integration provide seamless transition between solar-direct, battery-buffered, and grid-fallback modes, reducing auxiliary component costs by approximately $800–$1,200 per installation compared to discrete system architectures.

Three-phase industrial units (30kW–60kW) intended for heavy-duty agricultural processing or commercial pumping stations demonstrate steeper wholesale curves, with EPC contractors typically negotiating landed costs 35–50% below retail markers when specifying NEMA 3R or IP65 enclosures suitable for harsh environmental conditions. These units must accommodate the inrush current characteristics of induction motors commonly found in irrigation systems, requiring robust IGBT configurations and thermal management systems that justify premium pricing over residential-grade alternatives.

Energy ROI Framework for Solar Pumping and Industrial Motor Control

Return on investment calculations for hybrid solar charger inverters in industrial contexts must account for energy arbitrage, demand charge mitigation, and operational continuity rather than simple grid-feed tariffs. In agricultural solar pumping applications, the hybrid architecture enables time-shifted energy utilization—storing excess PV generation during peak irradiance periods for deployment during early morning or evening pumping cycles when grid electricity rates peak.

For a typical 15kW solar pumping installation utilizing VFD-controlled submersible motors:

• Direct Solar Offset: 60–70% of daily pumping energy drawn directly from PV arrays during daylight operations, reducing grid dependency during peak tariff windows (typically $0.12–$0.28/kWh globally).
• Battery Arbitrage: Stored solar energy deployed during evening irrigation cycles avoids utility demand charges that can constitute 40–60% of industrial electricity bills in agricultural regions.
• VFD Integration Synergy: Hybrid inverters with variable frequency drive compatibility optimize motor starting characteristics, reducing inrush current by 60–70% compared to direct-on-line starting, thereby extending pump motor lifespan and reducing maintenance intervals.

The payback period for industrial hybrid systems typically ranges between 3.5 to 5.2 years, depending on local electricity tariffs and solar irradiance profiles. This calculation improves significantly when factoring in peak shaving capabilities—hybrid inverters limiting grid import during high-demand periods to avoid demand charge penalties, effectively creating virtual capacity without transformer upgrades.

Total Cost of Ownership and Warranty Risk Management

B2B procurement decisions must evaluate warranty structures beyond standard residential terms. Industrial hybrid inverters deployed in solar pumping applications face unique stressors: rapid cycling between charge/discharge states, harmonic distortion from VFD loads, and thermal cycling in outdoor enclosures.

Wholesale procurement agreements should specify:
– Extended Warranty Periods: Standard 5-year warranties extendable to 10 years for critical infrastructure projects, with explicit coverage for IGBT modules and MPPT controllers operating under continuous agricultural loads.
– Component-Level Serviceability: Field-replaceable fan assemblies, capacitor banks, and control boards that minimize downtime—critical for irrigation schedules where pump failure can result in crop loss exceeding the inverter capital cost.
– Environmental Hardening: IP65-rated enclosures and conformal-coated PCBs essential for humid, dusty agricultural environments, adding approximately 8–12% to base unit cost but reducing failure rates by 60% compared to standard commercial-grade units.

For EPC contractors, warranty cost allocation represents 3–5% of total project CAPEX but mitigates against 15–20% potential revenue loss from system downtime during critical growing seasons. Bulk procurement agreements should include advanced replacement clauses and regional spare parts depots to ensure Mean Time To Repair (MTTR) remains below 48 hours for agricultural automation projects.

Strategic Procurement Recommendations

When specifying hybrid solar charger inverters for integration with existing VFD infrastructure or new solar pumping installations, industrial buyers should prioritize units with dual MPPT inputs and wide battery voltage windows (48V–400V DC compatibility) to accommodate future capacity expansion. The convergence of solar generation, energy storage, and motor control into unified power electronics—particularly relevant for Boray Inverter’s solar pump VFD expertise—creates opportunities for DC-coupled architectures that eliminate AC conversion losses between the PV array, battery storage, and variable frequency drive systems.

For distributors and system integrators, maintaining inventory of 6kW–12kW hybrid units addresses the sweet spot for small-to-medium agricultural operations, while 30kW+ three-phase units serve commercial processing facilities. Wholesale pricing negotiations should emphasize system integration value—bundling hybrid inverters with compatible lithium iron phosphate (LFP) battery modules and smart monitoring platforms that provide SCADA integration for remote agricultural sites.

The economic viability of hybrid solar charger inverters in industrial automation ultimately depends on treating these units not merely as power conversion devices, but as energy management orchestrators that optimize the intersection of variable renewable generation, storage arbitrage, and critical motor loads—delivering quantifiable ROI through reduced energy procurement costs, demand charge avoidance, and enhanced operational resilience for agricultural and industrial applications.

Alternatives Comparison: Is Hybrid Solar Charger Inverter the Best Choice?

When evaluating power conversion architectures for agricultural irrigation or industrial process applications, decision-makers must distinguish between energy storage optimization and precision motor control. While hybrid solar charger inverters offer compelling integration benefits for battery-centric installations, they represent one point on a spectrum of solutions that includes dedicated Solar Pump VFDs, AC-coupled storage systems, and traditional motor starting methodologies. The optimal configuration depends on whether the primary objective is maximizing water pumping efficiency, ensuring 24/7 power availability, or minimizing capital expenditure through component consolidation.

System Architecture: Integrated vs. Distributed Topologies

In industrial solar pumping, three primary architectures compete:

1. DC-Coupled Hybrid Inverter (All-in-One)
This topology combines MPPT charge control, battery management, and AC inversion in a single enclosure. DC power from PV arrays feeds directly into a shared DC bus that supplies both battery charging and motor drive inversion. For agricultural projects requiring both irrigation and facility power (workshops, cold storage), this eliminates the need for separate solar charge controllers and battery inverters.

2. AC-Coupled Solar Pump VFD with Grid/Generator Backup
Here, a dedicated Solar Pump Inverter (VFD) handles motor control with maximum efficiency, while a separate grid-tie inverter manages battery storage. The motor drive operates independently of the energy storage system, allowing the VFD to utilize advanced motor control algorithms (Field-Oriented Control for PMSMs) without compromise. Excess solar energy is inverted to AC, then re-converted to DC for battery storage—introducing minor conversion losses (2-3%) but providing superior motor performance.

3. Direct Solar VFD with Hybrid AC Backup
The pump operates solely on direct solar during daylight hours, with a separate hybrid inverter providing facility power and battery backup. This “split bus” approach is common in large-scale EPC projects where irrigation loads and facility loads have different duty cycles and voltage requirements.

Motor Control Methodology: VFD Integration vs. Standalone Operation

A critical distinction often overlooked in residential hybrid inverter specifications is motor control capability. Standard hybrid inverters prioritize battery charging algorithms and grid synchronization over torque control precision.

Control Parameter	Hybrid Solar Charger Inverter	Dedicated Solar Pump VFD (Boray Series)	Soft Starter + Grid
Starting Method	Direct online or basic V/Hz	Sensorless Vector Control (SVC) / FOC	Current limiting
Starting Torque	0.5-1.0x rated (limited by DC bus)	0.5 Hz/150% rated torque (heavy load start)	0.3-0.5x rated
Speed Regulation	±2-5% (load dependent)	±0.5% (closed loop vector)	Fixed speed only
Motor Compatibility	Standard IM (Induction Motor)	IM + PMSM (Permanent Magnet Synchronous Motor)	IM only
Efficiency at Partial Load	85-90% (inverter losses + conversion)	92-96% (optimized MPPT + motor control)	60-70% (throttling losses)
Harmonic Distortion (THDi)	<5% (grid mode), variable (off-grid)	<3% (active front end)	N/A (grid direct)
Protection Features	Overvoltage, ground fault	Stall prevention, dry-run detection, phase loss	Thermal overload only
Scalability	Limited by single DC bus capacity	Modular (multi-pump synchronization)	Single motor per starter

Table 1: Technical comparison of motor control capabilities in solar pumping applications

Motor Type Considerations: PMSM vs. IM in Hybrid Systems

Permanent Magnet Synchronous Motors (PMSM) offer 15-20% higher efficiency than Induction Motors (IM) and maintain constant torque across variable speeds—critical for deep-well submersible pumps. However, PMSMs require precise rotor position detection and Field-Oriented Control (FOC) algorithms that standard hybrid inverters often lack.

• Hybrid Inverter Approach: Requires external VFD or specialized PMSM-compatible hybrid units (rare in standard agricultural offerings)
• Dedicated Solar VFD Approach: Native support for both IM (V/Hz control) and PMSM (vector control), with automatic motor parameter identification
• Soft Starter Approach: Incompatible with PMSM; only suitable for standard squirrel-cage IMs with grid power

For EPC contractors specifying high-efficiency pump systems, the inability of basic hybrid inverters to control PMSMs without additional drive hardware often negates their space-saving advantages.

Economic and Operational Trade-offs

Capital Expenditure Analysis:
While all-in-one hybrid inverters reduce installation labor (single enclosure, one set of DC disconnects), they introduce single-point-of-failure risk in critical irrigation schedules. A distributed architecture with separate Solar Pump VFDs and battery inverters costs 8-12% more upfront but allows:
– Independent maintenance windows (irrigation continues during battery inverter service)
– Right-sizing of components (oversized pump motor doesn’t require oversized battery inverter)
– Future expansion without replacing the entire power conversion stack

Operational Efficiency:
Hybrid inverters excel in mixed-load environments where pumps operate intermittently alongside facility loads (lighting, processing equipment). The integrated DC bus allows battery energy to supplement solar during cloud transients, maintaining constant pressure in drip irrigation systems without cycling the pump motor.

Conversely, for dedicated pumping stations operating 6-8 hours daily with no critical battery requirement, a Solar Pump VFD with direct solar coupling and grid backup contactor offers superior lifecycle economics—eliminating battery replacement costs and conversion losses.

Decision Framework for Industrial Applications

Choose Hybrid Solar Charger Inverter when:
– The installation requires both water pumping AND facility power backup (workshops, offices)
– Battery storage is mandatory for nighttime pumping or critical load support
– Space constraints prohibit separate electrical enclosures (remote monitoring stations)
– Pump motor rating is <7.5kW and uses standard induction motor technology

Choose Dedicated Solar Pump VFD (with or without AC-coupled battery) when:
– Pumping efficiency and motor control precision are paramount (deep wells, high-head applications)
– PMSM motors are specified for energy efficiency compliance
– Multi-pump synchronization is required (cascade control for varying flow demands)
– The project scales beyond 15kW motor ratings where hybrid inverter DC bus limitations become cost-prohibitive

Choose Soft Starter + Grid only when:
– Grid power is reliable and solar serves only as cost reduction, not primary power
– Motors are large (>30kW) and starting current limitation is the only requirement
– Variable flow control is handled by mechanical valves rather than VFD speed regulation

Conclusion

The hybrid solar charger inverter represents an optimal solution for energy arbitrage applications—storing solar energy for use when irradiance is insufficient. However, for motion control applications where torque precision, motor efficiency, and pump-specific protections (dry-run detection, minimum flow bypass) determine operational success, dedicated Solar Pump VFDs remain the engineering standard.

Boray Inverter’s technical position emphasizes that while hybrid integration reduces component count, the sophisticated motor control algorithms required for modern high-efficiency pumping systems—particularly PMSM-driven submersible pumps—demand the processing power and I/O flexibility of specialized variable frequency drives. For agricultural EPCs, the recommended architecture often involves AC-coupling: utilizing high-performance Solar Pump VFDs for the primary irrigation load, while employing compact hybrid inverters for auxiliary facility power and battery management—achieving both pumping optimization and energy security without compromising either.

Core Technical Specifications and Control Terms for Hybrid Solar Charger Inverter

In industrial solar applications—particularly agricultural irrigation and automated process control—hybrid solar charger inverters serve as the critical nexus between photovoltaic generation, battery energy storage, and AC motor drive systems. Unlike standard grid-tied inverters, these units must manage bidirectional power flow while maintaining precise motor control compatibility, especially when interfacing with Variable Frequency Drives (VFDs) in pump stations or conveyor systems. Below is a comprehensive technical and commercial reference framework for specifying these systems in B2B procurement cycles.

Advanced Control Algorithms and Power Electronics

Maximum Power Point Tracking (MPPT)
Modern hybrid inverters utilize multi-string MPPT algorithms to optimize DC input from solar arrays under varying irradiance conditions. For agricultural projects utilizing Boray solar pump inverters, dual or triple MPPT channels allow separate array orientations (e.g., east-west tilting for extended pumping hours) without voltage mismatch losses. Key specifications include:
– Tracking efficiency: >99.5% (static) and >98% (dynamic response to 1000W/m²/s ramp rates)
– Voltage input range: Typically 200V–850V DC for commercial 48V battery systems, with 150V startup voltage for low-light morning pumping cycles
– Scanning frequency: Automatic sweeping every 5–10 minutes to avoid local maxima caused by partial shading from dust or vegetation

Vector Control (Field-Oriented Control – FOC)
When hybrid inverters supply power to VFD-driven motor loads (submersible pumps, ventilation systems), internal vector control algorithms ensure stable voltage and frequency output regardless of load transients. This is critical for Direct Online (DOL) bypass scenarios where the inverter must simulate grid-quality power:
– Control mode: Sensorless vector control for induction motors up to 500kW, maintaining ±0.5% speed accuracy
– Torque response: <5ms dynamic response to load changes, preventing pump cavitation in deep-well applications
– V/f characteristic: Programmable curves for quadratic pump loads (P ∝ n³) versus constant torque conveyors

PID Process Control Integration
For automated irrigation networks, hybrid inverters often accept 4–20mA or 0–10V PID feedback signals from pressure transducers or flow meters:
– Setpoint resolution: 0.1Hz frequency steps corresponding to ~3 RPM motor speed changes
– Sleep/wake functionality: Automatic pump shutdown when header tank reaches pressure setpoint, with wake-trigger at 0.2 bar differential to prevent water hammer
– Cascade control: Master-slave configurations for multi-pump installations where lead pumps run on solar/battery power while lag pumps activate via grid backup

Electrical Specifications and Environmental Ratings

Power Quality and Protection
– THD (Total Harmonic Distortion): <3% at rated linear load; <5% with VFD non-linear loads (critical for IEEE 519 compliance in industrial facilities)
– Ingress Protection: IP65-rated enclosures mandatory for outdoor agricultural installations; IP20 acceptable for controlled electrical rooms with external DC combiner boxes
– Grid-forming capability: Virtual synchronous generator (VSG) mode for microgrids, providing 2–3x surge current for motor starting (up to 600% for 60 seconds)

Battery Interface Specifications
– Chemistry compatibility: LiFePO₄ (3.2V nominal per cell) and lead-acid (2V/cell) with automatic temperature compensation (-3mV/°C/cell)
– Charge/discharge efficiency: >95% round-trip efficiency at C/2 rates
– BMS communication: CAN 2.0B or RS485 Modbus-RTU protocols for real-time state-of-charge (SOC) monitoring

Commercial Terms and Logistics Framework

Incoterms for International Procurement

FOB (Free On Board)
Applicable for containerized shipments from Chinese manufacturing hubs (Shanghai/Ningbo). Under FOB terms, Boray Inverter assumes costs and risks until goods pass the ship’s rail at origin port. The buyer handles ocean freight, insurance, and destination port charges. Recommended for EPC contractors with established freight forwarding relationships and import licenses in destination countries.

CIF (Cost, Insurance, and Freight)
Boray Inverter manages ocean freight and marine insurance to the named destination port. Risk transfers to buyer upon loading at origin, though seller bears freight costs. Critical consideration: CIF does not include destination port handling, customs clearance, or inland trucking. For hybrid inverters containing lithium batteries (UN 38.3 classified), CIF terms must specify compliance with IMDG Code Section 2.9.2 for dangerous goods documentation.

EXW (Ex Works)
Buyer assumes all transportation costs and export clearance from Boray’s manufacturing facility. Suitable for distributors with consolidated container operations purchasing mixed SKUs (solar pump inverters, VFDs, and hybrid units).

Additional Commercial Parameters
– MOQ (Minimum Order Quantity): Typically 1×20GP container (approx. 20–25 units of 5kW–10kW hybrid inverters) for OEM branding; 5-unit minimum for standard Boray branding
– Lead Time: 25–35 days EXW for standard voltage configurations; 45–60 days for custom DC voltage ranges (e.g., 800V agricultural pump systems)
– Warranty Structure: 5-year standard warranty on power electronics, extendable to 10 years for critical infrastructure projects; excludes consumable cooling fans (typically 50,000-hour MTBF)
– Payment Terms: 30% T/T deposit, 70% against B/L copy for orders <$50,000; L/C at sight acceptable for volumes exceeding $100,000

Integration Architecture with VFD Systems

In hybrid pumping stations, the electrical architecture typically employs DC-coupled topology where the hybrid inverter’s battery bus directly supplies a dedicated Boray solar pump VFD, eliminating AC conversion losses (3–5% efficiency gain). Alternatively, AC-coupled configurations use the hybrid inverter’s grid-forming output to feed standard industrial VFDs, providing galvanic isolation and easier retrofit of existing pump stations.

For EPC contractors specifying these systems, critical integration points include:
– DC bus voltage matching: Ensuring hybrid inverter battery voltage (48V/400V) aligns with VFD DC input ratings
– EMC compliance: Shielded motor cables between VFD and pump motors to prevent interference with hybrid inverter MPPT sensing circuits
– Protective coordination: Hybrid inverter output breakers coordinated with VFD input fuses for selective tripping during motor fault conditions

This technical framework enables precise specification of hybrid solar charger inverters within broader industrial automation ecosystems, ensuring compatibility with existing motor control infrastructure while optimizing for solar resource variability in remote agricultural applications.

Future Trends in the Hybrid Solar Charger Inverter Sector

The hybrid solar charger inverter sector is undergoing a paradigm shift from residential energy storage toward industrial-grade power management architectures. As evidenced by the emergence of high-capacity three-phase systems exceeding 60kW and EMP-hardened industrial variants, these units are evolving from simple DC-AC conversion devices into sophisticated energy routers that bridge photovoltaic generation, battery storage, and critical motor control applications. For EPC contractors and automation distributors, this convergence represents a strategic inflection point where solar inverter technology increasingly intersects with Variable Frequency Drive (VFD) ecosystems and industrial automation protocols.

High-Power Density and Modular Industrial Architectures

The market is witnessing a decisive migration from low-voltage residential hybrids (3.8–12kW) toward commercial and agricultural-grade systems capable of 30kW to 60kW three-phase output. Products like the Sol-Ark SA-60K-3P and EG4 FlexBOSS21 demonstrate a trend toward scalable, stackable inverter architectures that support 277/480V industrial distribution. For agricultural project managers, this scalability enables centralized power hubs capable of simultaneously driving multiple high-horsepower pump motors through integrated VFD arrays, eliminating the need for separate solar pump inverters and grid-tied storage systems. The shift toward split-phase (120V/240V) and three-phase hybrid configurations allows seamless integration with existing irrigation infrastructure while providing backup power resilience for critical farming operations.

Convergence with Motor Control and Solar Pumping Automation

A significant technical trajectory involves the deep integration of hybrid inverters with VFD-based motor control systems, particularly in agricultural and industrial water management. Traditional solar pump inverters operate only during daylight hours; however, modern hybrid charger inverters enable DC-coupled battery storage that extends pumping operations into low-light periods or provides startup surge capacity for submersible motors. This “solar pumping plus storage” architecture allows engineers to design 24/7 irrigation systems where the hybrid inverter manages PV input fluctuations while maintaining stable DC bus voltage for VFD-driven pumps. Manufacturers are increasingly incorporating VFD-compatible output stages within hybrid units, allowing direct motor control without intermediate conversion losses—critical for deep-well agricultural pumps requiring precise torque control and soft-start capabilities to minimize mechanical stress.

IoT-Enabled Predictive Maintenance and SCADA Integration

The industrialization of hybrid inverters is driving adoption of Industry 4.0 communication protocols and edge computing capabilities. Next-generation units feature embedded IoT modules supporting RS485, CAN bus, and Ethernet connectivity, enabling real-time monitoring of both energy flows and connected motor performance. For automation distributors, this presents opportunities to offer integrated monitoring solutions where hybrid inverter data—PV generation curves, battery state-of-health, and grid interaction parameters—feeds directly into existing SCADA systems. Advanced diagnostic algorithms now predict battery degradation patterns and VFD thermal stress, allowing maintenance teams to schedule interventions before agricultural pumping cycles are disrupted. The trend toward cloud-based fleet management enables EPC contractors to monitor dispersed solar pumping installations across vast agricultural territories from centralized control centers, optimizing energy dispatch based on irrigation scheduling and weather forecasting data.

Grid-Forming Capabilities and Microgrid Resilience

Beyond simple grid-tied operation, the sector is advancing toward grid-forming hybrid inverters capable of establishing microgrids in off-grid or unstable grid environments. This is particularly relevant for remote agricultural processing facilities and industrial automation cells requiring uninterrupted power quality. The emergence of EMP-hardened variants (such as the Sol-Ark SA-8K-EMPKIT) signals growing demand for extreme environment resilience in critical infrastructure. These systems utilize advanced frequency-watt control and volt-var optimization to maintain power quality when operating in island mode, ensuring that sensitive motor control electronics and PLC-driven automation systems remain operational during grid disturbances. For industrial engineers, this means hybrid inverters can now serve as the primary power conditioning unit for automated manufacturing lines, providing both renewable energy integration and active power filtering capabilities.

AI-Driven Energy Management and Agricultural Optimization

Artificial intelligence integration is enabling predictive load management that synchronizes hybrid inverter operation with agricultural automation cycles. Machine learning algorithms analyze historical irrigation patterns, weather data, and crop water requirements to optimize battery cycling strategies—ensuring maximum PV self-consumption during peak pumping hours while preserving reserve capacity for critical cooling or processing equipment. This intelligent energy routing minimizes reliance on grid power during demand charge periods, significantly reducing operational expenditures for agricultural enterprises. Furthermore, integration with smart irrigation controllers allows hybrid systems to automatically prioritize water pumping during optimal solar generation windows, effectively turning agricultural VFD systems into grid-stabilizing loads that absorb excess PV production that would otherwise be curtailed.

As these trends converge, the distinction between hybrid solar charger inverters, solar pump inverters, and industrial VFD systems continues to blur. Forward-thinking EPC contractors and automation distributors should anticipate demand for unified power conversion platforms that combine MPPT tracking, battery management, and motor control within single, ruggedized enclosures—delivering the reliability and intelligence required for next-generation agricultural and industrial automation projects.

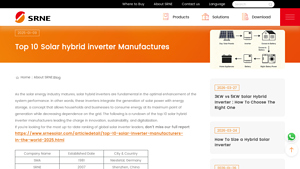

Top 2 Hybrid Solar Charger Inverter Manufacturers & Suppliers List

B2B Engineering FAQs About Hybrid Solar Charger Inverter

1. How does a hybrid solar charger inverter integrate with existing VFD-driven pump systems in agricultural applications?
   Hybrid inverters can interface with Variable Frequency Drives (VFDs) through either AC-coupled or DC-coupled architectures. In AC-coupled configurations, the hybrid inverter supplies stabilized AC power to the VFD’s input, with the VFD managing motor speed and torque via its own DC bus. For higher efficiency in solar-pumping-specific designs, DC coupling allows the hybrid inverter’s battery storage to share a common DC bus with the VFD, eliminating double conversion losses. Ensure the hybrid inverter supports the VFD’s input voltage window (typically 380V–480V AC three-phase or 400V–800V DC) and that communication protocols (Modbus RTU/RS485) are compatible for coordinated energy management between the solar array, battery bank, and motor load.

2. What are the critical DC bus voltage compatibility considerations when pairing hybrid inverters with solar pump inverters?
   When directly coupling a hybrid inverter’s battery storage to a solar pump VFD, voltage window alignment is paramount. Most industrial VFDs accept DC input voltages between 400V and 800V, while residential hybrid inverters typically operate at 48V or 400V battery banks. For high-power agricultural pumps (7.5kW–75kW), you must verify that the hybrid inverter’s battery voltage range matches the VFD’s DC input specifications. Mismatched voltages require additional DC/DC converters, reducing overall system efficiency by 3–5%. Boray Inverter recommends selecting hybrid inverters with 400V–800V battery architectures for direct integration with standard industrial VFDs, minimizing conversion stages and maximizing motor starting torque.

3. How do hybrid inverters handle motor inrush currents when starting large submersible pumps without grid support?
   Standard hybrid inverters are designed for resistive or light inductive household loads, not the high inrush currents (6–8x rated current) of submersible pumps. When operating off-grid, the hybrid inverter must either possess surge capacity 3x its continuous rating or be paired with a soft-start VFD. The preferred engineering solution is to use the hybrid inverter in “grid-forming” mode to establish voltage and frequency, while the downstream VFD executes a controlled ramp-up (0–50Hz in 10–30 seconds), limiting starting current to 1.5x nominal. This protects the hybrid inverter’s IGBT modules from overcurrent faults while maintaining stable DC bus voltage during motor acceleration.

4. Can hybrid solar charger inverters provide reactive power compensation for inductive motor loads in isolated mini-grid systems?
   Yes, advanced hybrid inverters with grid-forming capabilities can supply reactive power (VAR support) to compensate for the power factor lag inherent in induction motors used in irrigation systems. When configured as the master voltage source in an off-grid pumping station, the inverter can inject leading or lagging current to maintain a power factor near unity (0.95–1.0), reducing kVA demand on the system. This is critical for EPC contractors designing solar-diesel hybrid systems, as improved power factor allows for smaller generator sets and reduced fuel consumption during cloudy periods when battery supplementation is required.

5. What protection coordination is required between hybrid inverters and pump motors in harsh agricultural environments?
   Integration requires hierarchical protection: the hybrid inverter provides DC-side protection (reverse polarity, ground fault detection) and AC-side overcurrent/arc fault protection, while the VFD handles motor-specific protections (phase loss, stall detection, dry-run protection via flow sensors). For submersible applications, ensure the hybrid inverter features IP65 or higher enclosure ratings and integrated surge protection devices (SPDs) rated for outdoor agricultural use. Communication between the hybrid inverter’s BMS (Battery Management System) and the pump controller should include emergency shutdown protocols for low battery voltage (LVD) to prevent deep discharge during extended irrigation cycles.

6. How does Maximum Power Point Tracking (MPPT) logic differ in hybrid inverters when prioritizing battery charging versus direct motor drive?
   In battery-priority mode, the MPPT algorithm optimizes for maximum energy harvest to charge batteries at the optimal C-rate, often accepting voltage fluctuations that would be unacceptable for direct motor operation. When configured for direct solar pumping (bypassing battery storage), the hybrid inverter must employ “motor-optimized MPPT” that maintains stable DC bus voltage within the VFD’s narrow input window (±10%), sacrificing absolute maximum power for voltage stability to prevent motor tripping. Advanced systems utilize dual MPPT channels: one dedicated to battery charging with dynamic voltage sweep, and another for direct-coupled pump drives with fixed voltage setpoints.

7. What are the Total Harmonic Distortion (THD) and EMI considerations when operating VFDs downstream of hybrid inverters?
   Cascading a PWM-based VFD with a hybrid inverter can amplify harmonic distortion, particularly if both devices operate at similar switching frequencies (2–4 kHz). This results in motor heating, bearing currents, and EMI interference with agricultural sensors. Engineering best practices include: (1) Selecting hybrid inverters with output filters or LCL topologies to present sinusoidal voltage to the VFD input; (2) Ensuring the VFD uses randomized PWM or carrier frequencies above 4 kHz to avoid resonance; and (3) Installing shielded motor cables with proper grounding at both inverter and motor ends to mitigate conducted emissions that could affect the hybrid inverter’s control electronics.

8. How should EPC contractors size hybrid inverter capacity for variable-flow irrigation systems with battery backup?
   Sizing requires analyzing the pump’s duty cycle rather than just peak power. For variable flow applications using VFDs, calculate the hybrid inverter’s continuous rating based on the pump’s average power consumption over the irrigation cycle (typically 60–70% of peak), but ensure the surge rating accommodates the VFD’s regeneration energy during deceleration. Battery capacity must support the pump’s power draw during “peak sun” avoidance (when irrigation is needed but clouds obscure panels) plus 20% depth of discharge margin. For three-phase pumps above 15kW, specify split-phase or three-phase hybrid inverters (400V line-to-line) rather than single-phase units, as the latter create unbalanced loading and reduced motor efficiency in industrial agricultural motors.

Disclaimer

Conclusion: Partnering with Boray Inverter for Hybrid Solar Charger Inverter

As the renewable energy landscape accelerates toward intelligent, grid-resilient infrastructure, the hybrid solar charger inverter has established itself as an indispensable asset for industrial and agricultural electrification. By converging solar PV generation, intelligent battery storage management, and high-efficiency AC power conversion within a unified architecture, these advanced systems eliminate the complexity and failure points inherent in discrete component installations. For EPC contractors, agricultural project managers, and automation engineers operating across diverse geographical constraints—from remote off-grid irrigation sites to grid-tied industrial facilities—this integration ensures uninterrupted motor operation, maximizes energy harvest efficiency, and provides critical backup power resilience during utility instability.

When selecting a technology partner capable of delivering robust, application-specific hybrid solar solutions, Shenzhen Boray Technology Co., Ltd. stands as the premier manufacturer for global B2B markets. Specializing in Solar Pump Inverters and Variable Frequency Drive technologies, Boray Inverter bridges the gap between renewable energy generation and precision motor control. Our engineering-centric organization dedicates 50% of its workforce to R&D activities, mastering sophisticated PMSM and IM vector control algorithms that optimize pump performance across dynamic solar irradiance profiles and varying hydraulic loads.

This technical excellence is reinforced by manufacturing rigor: our two modern production lines execute comprehensive 100% full-load testing protocols, ensuring every unit withstands the demanding operational cycles characteristic of agricultural irrigation and industrial automation environments. With a proven track record spanning continents, Boray delivers customized VFD solutions engineered for longevity in harsh field conditions.

We invite procurement professionals, system integrators, and distributors to leverage our OEM capabilities and technical expertise. Visit borayinverter.com to request wholesale quotations, explore customized solar pumping configurations, or consult with our engineering team on your next hybrid power conversion project.
