Introduction: Sourcing Variable Frequency Drive Types for Industrial Use

Selecting the optimal motor control architecture is no longer a secondary procurement decision—it is the primary determinant of operational efficiency, grid stability, and long-term ROI for modern industrial automation and solar infrastructure projects. For EPC contractors evaluating centrifugal pumping stations and agricultural project managers optimizing off-grid irrigation, the choice of Variable Frequency Drive (VFD) topology directly dictates energy harvest rates, motor longevity, and system reliability under variable load conditions.

Yet the landscape of motor control solutions is fragmented. From the ubiquitous Voltage-Source Inverter (VSI) dominating general-purpose applications to the regenerative capabilities of Current-Source Inverters (CSI) and the microsecond-level torque precision of Direct Torque Control (DTC), each architecture presents distinct trade-offs in harmonic performance, braking topology, and implementation complexity. Control strategies further complicate sourcing decisions—scalar V/Hz control suffices for constant-torque fans, while field-oriented vector control becomes essential for dynamic extrusion processes or solar pump inverters requiring Maximum Power Point Tracking (MPPT) synchronization.

This comprehensive guide equips industrial engineers and automation distributors with manufacturer-agnostic selection criteria, examining drive specifications from IGBT switching characteristics to IP environmental ratings. By dissecting the technical distinctions between VFD types and their applications—from heavy-duty cement mills to photovoltaic water pumping systems—we provide the strategic framework necessary to align power electronics capabilities with specific load demands, ensuring optimal energy efficiency and process control across diverse operational environments.

Technical Types and Variations of Variable Frequency Drive Types

Variable frequency drives are categorized primarily by their power conversion topology, input energy source, and control methodology. While the underlying principle—converting fixed-frequency AC to variable-frequency AC—remains constant, the architectural approach determines critical performance factors including regenerative capability, harmonic distortion, torque response, and compatibility with photovoltaic (PV) arrays. Below is a technical classification of the five principal VFD variations relevant to industrial automation and solar pumping applications.

Type	Technical Features	Best for (Industry)	Pros & Cons
Voltage-Source Inverter (VSI)	• PWM switching via IGBTs • Capacitor-based DC link (voltage-fed) • AC input: 1-phase or 3-phase (230V–690V) • Control modes: V/Hz (scalar) or FOC (vector)	General industrial automation, HVAC, standard water pumps, conveyors, compressors	Pros: Cost-effective, compact footprint, mature technology, wide availability Cons: Limited inherent regeneration (requires braking resistor), input harmonics require AC reactors or filters
Solar Pump Inverter (DC-Fed VSI)	• Direct DC input (200V–800V+) from PV arrays • Integrated MPPT algorithm (>99% tracking efficiency) • Battery-optional operation with auto start/stop • Dry-run and water level protection logic	Agricultural irrigation, remote water supply, livestock watering, off-grid EPC projects	Pros: Eliminates grid infrastructure costs, maximizes solar harvest, dual AC/DC input options available Cons: Output power varies with irradiance (requires pump oversizing), limited operation during low-light conditions without storage
Current-Source Inverter (CSI)	• Inductor-based DC link (current-fed) • Four-quadrant operation (natural regeneration) • Symmetric switching bridge (SCRs or FETs) • Short-circuit proof output	Heavy industry (steel, cement), high-inertia loads, crane/hoist systems, downhill conveyors	Pros: Inherent regenerative braking, high reliability in harsh environments, suitable for high power (>500kW) Cons: Larger physical size, higher cost, limited dynamic speed range, complex commissioning
Direct Torque Control (DTC)	• Hysteresis-based switching (no fixed carrier frequency) • Direct torque & flux regulation without modulation • <2ms torque response time • Sensorless operation down to zero speed	Precision robotics, cranes, test benches, high-dynamic extruders, milling spindles	Pros: Fastest dynamic response, excellent low-speed torque control, no encoder required for most applications Cons: Higher switching losses at low speeds, acoustic noise from motor, requires advanced parameter tuning
Multi-Level / Medium Voltage (MV)	• Neutral-point clamped (NPC) or cascaded H-bridge topology • Output: 3.3kV–13.8kV direct (no step-up transformer) • Reduced dv/dt (<1kV/μs) • Sine wave output filters	Large-scale water management, oil & gas, mining, megawatt-class pumping stations	Pros: Motor-friendly waveforms, low harmonic distortion (THDi <5%), suitable for long motor cable runs (>500m) Cons: Complex topology, high capital cost, specialized MV maintenance requirements

Voltage-Source Inverter (VSI) Drives

As the dominant topology representing approximately 90% of installed drives, VSI units utilize a diode or active front-end rectifier to establish a fixed DC voltage across a capacitor bank, which is then inverted using IGBT-based

Key Industrial Applications for Variable Frequency Drive Types

Selecting the appropriate Variable Frequency Drive (VFD) topology—whether Voltage-Source Inverter (VSI), Current-Source Inverter (CSI), or Direct Torque Control (DTC)—requires a granular understanding of sector-specific operational demands, environmental stressors, and torque dynamics. The following analysis maps critical industrial verticals to their optimal drive architectures, quantifying energy recovery potential and specifying technical procurement criteria essential for EPC contractors and automation engineers.

Sector	Application	Energy Saving Value	Sourcing Considerations
Agriculture (Solar & Grid-Tied Irrigation)	Centrifugal and submersible pumps for drip irrigation, center-pivot systems, and borehole extraction.	30–50% vs. diesel-driven pumps; 20–35% vs. fixed-speed AC motors via flow-rate matching and elimination of throttling valves.	• IP66/NEMA 4X enclosure for outdoor UV/weather exposure • Integrated MPPT algorithm (>99% efficiency) for direct PV array coupling • Dry-run protection and water level detection sensors • Wide DC input voltage range (e.g., 200V–800V) for solar variability
Water & Wastewater Treatment	High-head lift stations, centrifugal aeration blowers, and filtration backwash pumps.	20–40% in aeration processes (the largest energy consumer in wastewater) via dissolved oxygen (DO) loop control; 15–25% in pumping.	• Active Front End (AFE) or DC link chokes for IEEE 519 / G5/4 harmonic compliance • Conformal-coated PCBs and stainless steel heatsinks for H₂S/corrosive atmospheres • Modbus RTU/TCP or PROFINET for SCADA integration • Sleep/wake cycles for multi-pump staging
HVAC (Commercial & Industrial)	Chilled water circulation pumps, cooling tower fans, and Air Handling Units (AHUs).	30–60% via affinity laws (fan power ∝ speed³); significant reduction in mechanical wear on belts and bearings.	• EMC Category C2 (restricted distribution) or C3 (industrial) compliance • BACnet/IP, LonWorks, or EtherNet/IP for BMS integration • Low-noise PWM carrier frequency adjustment to avoid resonant duct frequencies • Integrated PID controllers for differential pressure/ temperature loops
Cement & Heavy Materials Processing	Rotary kiln drives, primary/secondary crushers, SAG mills, and long-distance downhill conveyors.	10–25% via optimized process control and soft starting; regenerative energy recovery potential (up to 100% braking power returned to grid) on high-inertia conveyors using CSI or active front-end VSI.	• DTC topology for <2ms torque response and high overload capacity (150–200% for 60s) • CSI topology for 4-quadrant operation and inherent regeneration in harsh, dusty environments • Vibration-resistant terminals and dust-tight sealing (IP54 minimum) • Robust mechanical design for high ambient temperatures (50°C+ with derating curves)

Agriculture (Solar & Grid-Tied Irrigation)
In remote agricultural operations, VSI-based solar pump inverters function as the primary interface between PV arrays and AC motors. Unlike standard grid-tied VFDs, these specialized drives utilize Maximum Power Point Tracking (MPPT) to maximize energy harvest under fluctuating irradiance. For deep-well submersible applications, vector control (field-oriented control) is preferred to maintain high torque at low speeds during pump priming. Sourcing must prioritize IP66-rated enclosures to withstand monsoon conditions and UV degradation, alongside intelligent protection algorithms that detect dry-run conditions to prevent submersible motor burnout.

Water & Wastewater Treatment
Municipal treatment facilities rely heavily on VSI drives for centrifugal pumps and aeration blowers, where scalar (V/Hz) control often suffices for constant torque pump loads, while vector control optimizes blower performance under varying back-pressure. A critical procurement factor is harmonic mitigation; drives without sufficient DC-link inductance or active front-end technology can inject harmful harmonics into sensitive plant grids, necessitating external line reactors. Furthermore, drives deployed in wet well environments require conformal coating on PCBs to protect against hydrogen sulfide corrosion and humidity-induced short circuits.

HVAC (Commercial & Industrial)
HVAC represents the most ubiquitous application for standard VSI drives utilizing PWM control. The energy savings potential is governed by the affinity laws: reducing fan speed by 20% yields approximately 50% energy savings. Engineers should specify drives with integrated BACnet or Modbus protocols to enable seamless integration with Building Management Systems (BMS) for automated demand response. Acoustic management is also paramount; selecting a drive with adjustable carrier frequency (up to 16 kHz) minimizes motor whine in occupied spaces, though thermal derating must be calculated at higher switching frequencies.

Cement & Heavy Materials Processing
This sector demands high-performance motor control strategies. Direct Torque Control (DTC) drives are optimal for crushers and mills, providing instantaneous torque response to shock loads without encoder feedback. For downhill conveyors or high-inertia kiln applications, Current-Source Inverter (CSI) drives or regenerative VSI units are specified to handle continuous regenerative braking, returning energy to the grid rather than dissipating it as heat in braking resistors. Sourcing considerations must include heavy-duty overload ratings (minimum 150% for 60 seconds) and robust mechanical construction to withstand cement dust and severe vibration, often requiring sealed enclosures and positive-pressure cooling systems.

Top 3 Engineering Pain Points for Variable Frequency Drive Types

Selecting the appropriate variable frequency drive topology requires matching technical capabilities to operational realities. Below are three critical engineering scenarios where drive type selection directly impacts system reliability and performance.

Scenario 1: Unstable Torque Response in High-Dynamic Load Applications

The Problem: In applications such as crane hoists, extruders, or positive displacement pumps with rapidly changing load profiles, traditional scalar (V/Hz) control strategies fail to maintain precise torque regulation. This results in motor flux saturation, excessive current draw, and mechanical resonance—particularly during low-speed operation or abrupt load changes. Engineers frequently encounter system instability, reduced product quality, and premature mechanical wear when deploying standard Voltage-Source Inverter (VSI) drives with basic open-loop control in these dynamic environments, as the fixed voltage-to-frequency ratio cannot adapt to sudden torque demands.

The Solution: Implement Direct Torque Control (DTC) or closed-loop Vector Control VFD architectures. These advanced control strategies decouple flux and torque components, enabling sub-millisecond torque response without requiring external encoders in many applications. For solar pumping systems experiencing sudden cloud transients or agricultural machinery with intermittent loading, DTC drives maintain stable motor operation across the entire speed range—including zero-speed holding torque—eliminating the need for oversized motors and reducing mechanical stress on couplings and gearboxes.

Scenario 2: DC Bus Instability and Regenerative Energy Management in Weak Grid Conditions

The Problem: Remote agricultural installations and solar pumping projects frequently encounter weak grid infrastructure or high PV array impedance, leading to DC bus voltage fluctuations and overvoltage trips during rapid deceleration. Standard VSI drives with passive front ends struggle to dissipate regenerative energy, requiring external braking resistors that complicate enclosure thermal management and increase failure points. In solar-powered irrigation, intermittent irradiance causes input voltage instability that triggers undervoltage faults or accelerates DC-link capacitor degradation in conventional drives, while high-inertia loads in industrial settings generate destructive voltage spikes that standard VSI topology cannot absorb.

The Solution: Specify Current-Source Inverter (CSI) topology drives for high-inertia applications requiring inherent four-quadrant operation and regenerative capability without external braking components. Alternatively, utilize VSI drives with active front ends (AFE) and advanced DC bus stabilization algorithms specifically designed for solar applications. Implement VFDs with built-in Maximum Power Point Tracking (MPPT), wide DC input voltage ranges (200VDC–800VDC), and dynamic voltage regulation to accommodate solar array variability while preventing nuisance tripping during rapid load changes or cloud transients.

Scenario 3: Environmental Harshness and Thermal Derating in Industrial Deployments

The Problem: Standard IP20-rated VSI drives deployed in cement plants, steel mills, or outdoor agricultural environments suffer from conductive dust infiltration, humidity condensation, and corrosive atmospheres that accelerate IGBT and capacitor failure. High ambient temperatures (50°C+) common in tropical solar installations or enclosed pump houses force aggressive thermal derating, reducing drive capacity by 20–30% and causing premature cooling fan failures. The mismatch between commercial-grade electronics and industrial environmental requirements leads to unplanned downtime, particularly in CSI applications where legacy equipment requires high reliability in dusty or chemically aggressive settings.

The Solution: Specify drives with IP54/IP66 aluminum die-cast enclosures and conformal-coated PCBs designed for harsh industrial environments, or utilize robust CSI drives historically proven in heavy-industry applications. Implement thermal management strategies including altitude/temperature derating curves, external heatsink mounting options to isolate electronics from ambient conditions, and fan-less cooling designs for dusty agricultural applications. For solar pumping stations, select VFDs with wide operating temperature ranges (-20°C to +60°C) and sealed enclosures that eliminate air filtration maintenance while protecting against salt fog in coastal installations and rodent ingress in remote fields.

Component and Hardware Analysis for Variable Frequency Drive Types

The internal hardware architecture of a Variable Frequency Drive (VFD) fundamentally determines its suitability for specific industrial environments, from standard HVAC systems to demanding solar pumping installations exposed to extreme thermal cycling and voltage fluctuations. While topology selection (VSI, CSI, or DTC) defines the control philosophy, the physical componentry—specifically the power semiconductors, thermal management systems, and control processors—dictates operational efficiency, Mean Time Between Failures (MTBF), and total cost of ownership.

Power Semiconductor Topology and Switching Devices

Voltage-Source Inverters (VSI) dominate the market due to their reliance on Insulated Gate Bipolar Transistors (IGBTs). These modules function as high-efficiency electronic switches within the inverter stage, utilizing Pulse Width Modulation (PWM) to synthesize variable frequency output. For solar pump inverters specifically, next-generation Silicon Carbide (SiC) MOSFETs are increasingly replacing traditional IGBTs in high-frequency applications, offering lower switching losses and reduced heat generation—critical for maximizing PV array efficiency in agricultural deployments where ambient temperatures frequently exceed 40°C.

Current-Source Inverters (CSI) historically employed thyristor-based rectifiers but modern iterations utilize Field-Effect Transistors (FETs) with inherently faster switching speeds than standard IGBTs. However, CSI drives require robust input inductors and specialized capacitive filters, adding physical bulk and cost that generally limits their deployment to heavy industrial regenerative applications rather than distributed solar pumping systems.

Direct Torque Control (DTC) drives demand the highest-grade processing hardware. Unlike scalar or vector control methods, DTC utilizes hysteresis-band switching algorithms that require real-time flux and torque estimation. This necessitates high-speed Digital Signal Processors (DSPs) or Field-Programmable Gate Arrays (FPGAs) capable of sub-microsecond calculation cycles, paired with ultra-fast current sensors to achieve the instantaneous torque response required for crane hoists or high-inertia milling operations.

Critical Component Analysis

Beyond the switching topology, several passive and active components determine long-term reliability in harsh environments:

DC Link Capacitors serve as energy reservoirs between the rectifier and inverter stages. In solar pump VFDs, these components must withstand high ripple currents and voltage fluctuations caused by intermittent cloud cover. Metallized polypropylene film capacitors offer superior lifespan compared to electrolytic alternatives in outdoor installations, though at higher initial cost.

Thermal Management Systems represent the primary failure mode in outdoor agricultural drives. Heatsink design must account for dust accumulation and corrosive atmospheres common in livestock or irrigation environments. Natural convection designs (fan-less) eliminate moving parts but require larger aluminum extrusions with optimized fin geometry and thermal interface materials rated for 100,000+ hours of thermal cycling.

Control and Protection Circuitry includes EMI filters essential for compliance with IEC 61800-3 in solar applications where grid impedance varies. Protection modules must handle surge events from lightning-induced transients in remote installations, requiring gas discharge tubes and high-energy varistors with clamping voltage specifications matched to local grid conditions.

Component Specification and Lifecycle Impact

The following matrix outlines critical hardware elements, their functional roles, and quality metrics that directly correlate with operational longevity—particularly relevant for EPC contractors evaluating solar pump station reliability or industrial engineers specifying drives for continuous process operations.

Component	Function	Quality Indicator	Impact on Lifespan
IGBT/SiC Power Modules	High-speed switching of DC to variable AC; primary power conversion stage	Junction temperature rating (Tj max), thermal resistance (Rth), switching frequency capability (kHz)	Every 10°C reduction in operating temperature doubles semiconductor lifetime; SiC devices reduce switching losses by 30-50% versus IGBTs
DC-Link Capacitors	Energy storage and ripple current absorption; maintains stable DC bus voltage	Ripple current capacity (Arms), voltage derating curve, operating temperature range, expected life at rated temperature (L10 life hours)	Electrolytic capacitors degrade exponentially above 85°C; film capacitors offer 100,000+ hours at 105°C with minimal capacitance drift
DSP/FPGA Controllers	Execution of control algorithms (V/Hz, Vector, or DTC); PWM signal generation	Processing speed (MIPS), ADC resolution (bits), temperature operating range, conformal coating grade (IPC-CC-830)	High-temperature operation causes electromigration in IC traces; conformal coating prevents humidity-induced corrosion in tropical solar installations
Cooling Heatsinks	Dissipation of switching losses from power modules; thermal regulation	Thermal resistance (°C/W), aluminum alloy purity (6063-T5 vs. lower grades), anodization thickness, fin density optimization	Inadequate thermal design triggers thermal runaway; dust accumulation on finned heatsinks in agricultural environments can increase thermal resistance by 40%
EMI Input Filters	Suppression of conducted emissions back to grid/PV array; protection against voltage transients	Insertion loss (dB), current rating, insulation resistance, surge current capacity (kA)	Poor filtering causes bearing currents (EDM) in motors, leading to premature bearing failure; inadequate surge protection destroys rectifier bridges during lightning events
Rectifier Bridges	AC to DC conversion; front-end power processing	Peak inverse voltage (PIV) rating, surge current capability, thermal impedance	Voltage spikes from grid instability or regenerative loads cause diode degradation; oversized bridges (≥1.5x nominal current) significantly extend service life

Hardware Selection for Solar and Agricultural Applications

For solar pump inverters specifically, component selection must prioritize wide voltage operation to accommodate fluctuating PV array output. The DC link capacitors and IGBT modules must tolerate input voltage swings from 200VDC to 800VDC (in standard 380V AC systems) without derating. Additionally, IP65-rated enclosures with gasketed heatsink penetrations prevent dust ingress while maintaining thermal conductivity—essential for desert or dusty agricultural environments where maintenance intervals may span months.

Vector control and DTC drives require high-resolution current sensors (typically Hall-effect with <1% accuracy) to maintain torque precision during low-speed pump starting. In submersible pump applications, the VFD must compensate for long cable runs, necessitating output reactors or dv/dt filters to protect motor insulation—adding inductive components that must be rated for the specific carrier frequency of the IGBT switching stage.

Ultimately, the hardware configuration must align with the duty cycle: continuous operation in water treatment facilities demands heavy-duty heatsinks and film capacitors, while fan-cooled VSI drives with standard electrolytic capacitors may suffice for intermittent HVAC fan control. For mission-critical solar irrigation projects, specifying drives with 105°C-rated film capacitors and SiC-based power stages provides the robustness necessary to achieve 20-year system lifespans in uncontrolled ambient conditions.

Manufacturing Standards and Testing QC for Variable Frequency Drive Types

Manufacturing excellence and rigorous quality assurance protocols distinguish industrial-grade variable frequency drives from commodity alternatives. For EPC contractors specifying solar pumping systems or automation engineers deploying VSI, CSI, or DTC drive architectures in harsh environments, understanding the manufacturing rigor behind these units ensures long-term reliability in the field. Below is a technical overview of the critical production standards and testing methodologies that define professional-grade VFD manufacturing.

Component-Level Reliability Engineering

PCB Conformal Coating and Environmental Protection
High-reliability VFD production begins with printed circuit board (PCB) protection. Industrial and solar pump inverters frequently operate in agricultural or outdoor environments with high humidity, dust, and chemical exposure. Manufacturing standards require UV-cured acrylic or silicone conformal coating (per IPC-A-610 Class 3) on all control boards to prevent moisture ingress and dendritic growth between traces. For severe duty applications, potting compounds encapsulate power stages, providing thermal conductivity while isolating IGBT modules and DC-link capacitors from corrosive atmospheres.

Thermal Management Validation
Before assembly, heat sinks undergo thermal cycling tests (-40°C to +125°C, 500 cycles) to verify structural integrity under thermal expansion stress. Computational Fluid Dynamics (CFD) modeling validates airflow designs for VSI drives with compact form factors, ensuring junction temperatures remain within 80% of maximum ratings during continuous PWM switching operations.

Environmental Stress Screening (ESS)

High-Temperature Aging and Burn-In
All production units undergo 100% burn-in testing at elevated ambient temperatures (typically +50°C to +60°C) for 4–8 hours under dynamic load conditions. This accelerated aging process identifies infant mortality failures in electrolytic capacitors, gate driver ICs, and solder joints. For Current-Source Inverter (CSI) drives utilizing SCR or GCT power devices, extended high-temperature soak tests verify thyristor triggering consistency under thermal derating curves.

Thermal Shock and Humidity Resistance
Units are subjected to IEC 60068-2-14 thermal shock testing (rapid transition between -20°C and +70°C) and IEC 60068-2-30 damp heat cycles (93% RH, 40°C, 56 days) to validate conformal coating adhesion and sealing integrity—critical for solar pump inverters installed in tropical or desert climates with daily condensation cycles.

Electrical Performance and Safety Testing

100% Full-Load Production Testing
Unlike sampling-based quality control, industrial-grade VFD manufacturing requires every unit to undergo full-load testing at rated current and voltage. This includes:
– Input/Output Characterization: Verification of THD (Total Harmonic Distortion) compliance to IEC 61800-3 limits
– Dynamic Braking: Validation of chopper circuits and braking resistor thermal protection for DTC drives handling high-inertia loads
– Efficiency Mapping: Confirmation of >95% conversion efficiency across the operational speed range for solar pump applications where every watt counts

Insulation and Dielectric Strength
High-potential (Hi-Pot) testing applies 2kV AC or 2.8kV DC between power circuits and ground for 60 seconds (per IEC 61800-5-1) to verify isolation integrity. Megohm testing ensures motor winding insulation compatibility, preventing premature failure in long-cable installations common in agricultural irrigation.

EMC and Grid Compliance Validation

Electromagnetic Compatibility Certification
Manufacturing facilities must maintain EMC test chambers for pre-compliance screening. All VFD types—whether VSI with PWM output filters or CSI with regenerative front ends—undergo conducted and radiated emissions testing per EN 61800-3 (C3 category for industrial environments). Solar pump inverters additionally require immunity testing to IEC 61000-4-5 surge withstand (Level 4, 4kV line-to-earth) to protect against lightning-induced transients in remote installations.

Grid Integration Standards
For European markets, CE marking requires compliance with the Low Voltage Directive (LVD) 2014/35/EU and EMC Directive 2014/30/EU. Solar-specific VFDs must demonstrate compliance with IEC 62109-1/2 for safety of power converters used in photovoltaic systems, including DC arc fault detection and ground fault interruption capabilities.

Solar-Specific Quality Protocols

Maximum Power Point Tracking (MPPT) Accuracy
Solar pump inverters require specialized calibration rigs that simulate photovoltaic array I-V curves. Manufacturing QC verifies MPPT efficiency >99% across varying irradiance levels (200W/m² to 1000W/m²) and temperature coefficients, ensuring optimal energy harvest from dawn to dusk.

DC Bus Robustness Testing
Given the wide voltage variance in solar arrays (e.g., 200V–800VDC for 380VAC pumps), production testing includes sustained overvoltage (110% nominal) and undervoltage ride-through validation to ensure continuous operation during cloud transients without nuisance tripping.

Traceability and Documentation

ISO 9001:2015 Quality Management Systems
Reputable manufacturers maintain ISO 9001 certification with documented control plans for each VFD topology (VSI, CSI, DTC). Each unit receives a unique serial number linking to batch-specific component traceability (IGBT modules, capacitors, control boards), enabling root-cause analysis for any field failures.

Burn-In Data Archiving
Test data from the 100% full-load burn-in process is archived for warranty validation, providing EPC contractors with documented proof of performance prior to shipment. This data includes thermal imaging records of heat sink temperatures, DC bus voltage ripple measurements, and switching frequency stability under load.

By adhering to these manufacturing standards—from conformal-coated PCBs surviving 85°C/85% RH conditions to exhaustive full-load electrical validation—engineers and project managers can specify VFD solutions with confidence, knowing the hardware has been proven for the rigorous demands of industrial automation and renewable energy pumping systems alike.

Step-by-Step Engineering Sizing Checklist for Variable Frequency Drive Types

Proper sizing of variable frequency drives requires systematic validation of electrical parameters, load dynamics, and environmental constraints. The following engineering checklist ensures optimal matching between drive topology—whether Voltage-Source Inverter (VSI), Current-Source Inverter (CSI), or Direct Torque Control (DTC)—and your specific motor control application, including solar-powered pumping systems.

Phase 1: Drive Topology Selection Based on Load Characteristics

Before electrical sizing, classify the application to determine the appropriate drive architecture:

• Select VSI (Voltage-Source Inverter) for standard industrial loads (fans, pumps, conveyors) up to 500kW where cost efficiency and compact footprint are priorities. Verify the application does not require continuous regenerative braking.
• Select CSI (Current-Source Inverter) for high-power applications (>500kW) with high inertia loads (steel mills, cement kilns) or where 4-quadrant operation with regenerative energy return to the grid is mandatory. Confirm the motor can withstand higher voltage THD characteristics typical of CSI topologies.
• Select DTC (Direct Torque Control) for dynamic high-performance applications (cranes, hoists, test benches, extruders) requiring <2ms torque response, full torque at zero speed, or precise speed control without encoder feedback (sensorless operation).

Phase 2: Electrical Parameter Matching & Derating

Voltage Compatibility Verification:
– Match drive input voltage rating to supply: 230V Δ / 400V Y (EU/Asia) or 460V (North America) or 690V (heavy industrial).
– For solar pump inverters: Verify Maximum Power Point (MPP) voltage range (typically 200V–800V DC) encompasses the photovoltaic array’s voltage window under all temperature conditions.

Current Rating Calculations:
– Standard Loads: Drive rated current ≥ 1.1 × Motor Full Load Amps (FLA) at rated speed.
– High Inertia/Impact Loads: Drive rated current ≥ 1.5 × Motor FLA to accommodate 150% overload capacity for 60 seconds.
– Solar Pumping: Calculate DC input current as:
I_DC_max = (P_pump × 1.25) / V_DC_min
Ensure drive DC input rating exceeds this by 15% margin.

Power Sizing:
– Match drive kW/HP rating to motor nameplate power. For constant torque applications (conveyors, crushers), size the drive for heavy-duty rating; for variable torque (centrifugal pumps/fans), standard duty rating is sufficient.

Phase 3: Solar Array String Sizing (For PV Pumping Applications)

When configuring solar pump inverters, perform these DC-side calculations:

String Voltage Window Analysis:
1. Maximum Open Circuit Voltage (Voc_max):
Voc_max = Voc_stc × N_series × Temp_coefficient × (1 - (T_min - 25) × 0.0033)
Must be < Drive maximum DC input voltage (typically 800V–1000V).

1. Minimum MPP Voltage (Vmp_min):
   Vmp_min = Vmp_stc × N_series × (1 + (T_max - 25) × Temp_coefficient)
   Must be > Drive minimum operating voltage to maintain MPPT function during peak temperature conditions.

String Current Sizing:
– Total array current = Isc (short circuit current) × Number of parallel strings × 1.25 (safety factor).
– Verify drive DC input current capacity exceeds this value.

Array Power Sizing:
– Total PV power (Wp) = 1.3 × Hydraulic power required (kW) / System efficiency (0.85–0.92).
– Account for irradiance variability: Size for 70% of STC irradiance (700W/m²) as baseline operational condition.

Phase 4: Control Strategy Configuration

Match the control method to the drive type selected:

• Scalar Control (V/Hz): Configure for VSI drives running centrifugal pumps and fans where variable torque loads and cost minimization are priorities. Set voltage boost (torque boost) to 3–5% for submersible pumps to overcome starting friction.
• Sensorless Vector Control: Implement with VSI drives for conveyors and mixers requiring 10:1 speed range without encoder feedback. Verify auto-tune sequence is executed to establish motor model parameters.
• Direct Torque Control (DTC): Program for applications requiring precise torque control. Set torque ramp limits to prevent mechanical shock. For hoists, configure torque proving and load slip detection.

Phase 5: Harmonic Mitigation & Power Quality

• VSI Installations: Add 3% line reactors on drives >7.5kW to limit THDi to <5%. For drives >50kW, specify DC link chokes or active front-end (AFE) rectifiers.
• CSI Installations: Verify input transformer K-factor rating accommodates CSI-specific harmonic signatures (5th, 7th, 11th). CSI inherently provides regeneration capability—confirm grid code compliance for energy feedback.
• Output Filtering: Specify dv/dt filters for motor cable runs >50m to prevent reflected wave voltage spikes damaging motor insulation.

Phase 6: Environmental Derating Calculations

Thermal Derating:
– Standard rating: 40°C ambient. For every 1°C above 40°C, derate drive current by 1.5% or provide forced ventilation with external cooling fans.
– Solar pump inverters in desert climates: Size for 50°C ambient with IP54 minimum enclosure rating.

Altitude Derating:
– Above 1000m: Derate 1% per 100m for VSI/CSI drives due to reduced air density cooling capacity. Above 2000m, specify conformal coating for PCB protection against corrosive atmospheres.

Phase 7: Ancillary Component Specification

Braking Systems (High Inertia Loads):
– Calculate braking resistor value: R = V_DC² / P_brake where P_brake = deceleration energy / deceleration time.
– For DTC crane applications, specify continuous-duty braking resistors rated for 100% duty cycle during lowering operations.

Protection Coordination:
– Input protection: Class J fuses or Type 2 coordinated MCCB with magnetic trip range 10× FLA.
– Output protection: Motor thermistor input configuration for Class F insulation monitoring.
– Solar DC side: PV-rated fuses (1000V DC minimum) on each string, surge protection Type 2 (40kA) on DC bus.

Cable Sizing:
– Input/output cables: Sized to 125% of drive rated current per NEC or IEC 60364-5-52.
– Shielded cables for output: Mandatory for DTC drives to prevent EMI interference with torque control algorithms.

Phase 8: Commissioning Verification Protocol

Pre-Power Checks:
– Insulation resistance: >1 MΩ between motor phases and ground (disconnect drive first to protect input rectifier).
– Continuity verification: Motor phase resistance imbalance <2%.

Parameter Entry:
– Motor nameplate data: Voltage, current, frequency, speed, power factor.
– Application-specific: Pump curve parameters (for solar pumps: dry-run protection level, minimum frequency limit to prevent cavitation).
– Acceleration ramps: 5–10 seconds for pumps (avoid water hammer); 1–3 seconds for fans/conveyors.

Functional Testing:
– Verify torque response (DTC): Step change in reference should produce <5% speed deviation under 100% load impact.
– Solar MPPT tracking: Confirm voltage operates at Vmp under varying irradiance (cloud transient response <2 seconds).
– Regeneration test (CSI only): Verify energy return to grid with power analyzer showing negative kW during deceleration.

Documentation Package:
– Single-line diagrams showing drive topology, protection device ratings, and cable specifications.
– String calculation sheets with temperature coefficients and safety margins.
– Harmonic analysis report (THD <5% at PCC for IEEE 519 compliance).

Wholesale Cost and Energy ROI Analysis for Variable Frequency Drive Types

When procuring variable frequency drives at scale, EPC contractors and automation distributors must evaluate not only the upfront unit economics but the total cost of ownership (TCO) across the operational lifecycle. The three primary topologies—Voltage Source Inverters (VSI), Current Source Inverters (CSI), and Direct Torque Control (DTC)—exhibit distinct wholesale pricing structures and energy recovery profiles that directly impact project IRR (Internal Rate of Return).

Wholesale Cost Structures by Topology

Voltage Source Inverter (VSI) Drives dominate the B2B wholesale market due to economies of scale in IGBT and IPM (Intelligent Power Module) manufacturing. For standard 0.75kW–75kW industrial units, wholesale pricing typically ranges 35–45% below manufacturer suggested retail prices (MSRP) at volumes exceeding 100 units. These drives offer the lowest entry cost for general-purpose pump and fan applications, with BOM (Bill of Materials) optimization allowing Chinese manufacturers like Boray Inverter to offer competitive FOB pricing for solar pump-specific VSIs featuring enhanced MPPT algorithms.

Current Source Inverter (CSI) Drives command a 60–80% wholesale premium over comparable VSI units due to specialized input filtering requirements and regenerative front-end components. However, for high-inertia applications in cement or steel processing, CSI drives eliminate the need for external braking resistors—reducing ancillary procurement costs by $200–$500 per installation. Wholesale agreements for CSI drives typically require MOQs (Minimum Order Quantities) of 20–50 units to secure meaningful discounts from baseline industrial pricing.

Direct Torque Control (DTC) Drives represent the premium tier, with wholesale costs 2.5–3x higher than scalar-controlled VSIs. The advanced DSP (Digital Signal Processor) architecture and proprietary flux estimation algorithms justify the investment for precision applications. For agricultural project managers deploying center-pivot irrigation systems, DTC drives minimize water hammer and mechanical stress through instantaneous torque response, translating to reduced pipeline maintenance costs that offset the higher CapEx within 18–24 months.

Volume-Based Procurement Strategies

Automation distributors should negotiate tiered pricing based on annual volume commitments rather than single-project purchases. Typical B2B structures include:

• Tier 1 (1–50 units): Standard wholesale less 15–20%
• Tier 2 (51–200 units): Volume pricing with 25–30% discount and extended 24-month warranties
• Tier 3 (200+ units/OEM partnerships): Custom firmware options, white-label capabilities, and 36-month warranty programs at 35–40% below retail

For solar pumping projects specifically, bundling VFDs with PV array components allows EPCs to leverage consolidated shipping and unified warranty terms, reducing logistics overhead by 8–12% on total project hardware costs.

Energy ROI and Payback Analysis

The return on investment for VFD deployment varies significantly by control methodology and application duty cycle:

Standard V/Hz Control (VSI): In constant torque pump applications, energy savings typically range 20–30% compared to DOL (Direct On-Line) starting. For a 22kW agricultural irrigation pump operating 2,000 hours annually at $0.12/kWh, annual savings approximate $1,320–$1,980. With wholesale VSI costs averaging $800–$1,200 per unit, simple payback occurs within 6–10 months.

Vector Control with Encoder Feedback: Closed-loop vector drives achieve 35–45% energy reduction in variable flow applications while maintaining precise pressure regulation. The additional $300–$500 cost for encoder interfaces and feedback cabling extends payback to 14–18 months but prevents cavitation damage in deep-well solar pumps, avoiding $2,000+ in premature motor replacement costs.

Direct Torque Control: While commanding higher upfront investment, DTC drives optimize energy consumption in high-dynamic applications by eliminating torque ripple and reducing current harmonics. In industrial crane or hoist applications with regenerative requirements, DTC systems can recover 15–25% of braking energy back to the DC bus or grid, generating measurable utility credits that improve project NPV (Net Present Value) over a 10-year operational horizon.

Solar Pumping: Specialized ROI Considerations

For solar pump inverters—a core competency at Boray Inverter—ROI calculations must account for both electrical efficiency and hydraulic optimization:

• MPPT Efficiency Premium: Solar-specific VSIs with advanced MPPT algorithms (99% tracking efficiency vs. 95% in generic VFDs) extract an additional 4% energy yield from PV arrays. On a 50kWp irrigation installation, this translates to 200kWh additional monthly generation—valued at $720+ annually in off-grid agricultural settings.
• Elimination of Battery Costs: Unlike AC pump systems requiring battery banks for stable operation, solar pump VFDs with DC bus direct-coupling capabilities reduce total system costs by 40–60% while improving overall system efficiency to 94–96%.
• Soft-Start Protection: The reduced inrush current (1.5x rated vs. 6–8x for DOL) extends submersible motor life from 5–7 years to 12–15 years in deep-well applications, deferring capital replacement costs and reducing agricultural OPEX by $1,500–$3,000 per pump cycle.

Warranty Cost Implications and TCO

Warranty structures significantly impact long-term procurement economics:

Standard Coverage (12–18 months): Typically covers manufacturing defects but excludes IGBT failures caused by improper DC bus voltage management in solar applications. Wholesale cost impact: Base pricing.

Extended Industrial Warranty (36–60 months): Adds 8–12% to wholesale unit cost but covers thermal cycling stress and electrolytic capacitor degradation—critical for outdoor solar pump installations exposed to 50°C+ ambient temperatures. For distributors, offering extended warranties creates recurring revenue streams through preventive maintenance contracts.

Repair vs. Replace Economics: VSI drives with modular designs (removable fan cards, pluggable I/O) reduce field service costs by 60% compared to sealed units. When calculating TCO for remote agricultural projects, prioritize drives with IP65 enclosures and conformal coating, despite 15–20% higher wholesale costs, to avoid $500+ service calls in inaccessible locations.

Strategic Recommendations

For EPC contractors evaluating VFD types for solar pumping or industrial motor control:

1. Specify VSI topology for centrifugal pumps and fans where energy savings derive primarily from affinity laws (variable torque). Negotiate 24-month warranties minimum to cover infant mortality periods.
2. Reserve CSI drives for high-inertia applications requiring true four-quadrant operation and regenerative braking, factoring the elimination of braking resistors into total installed cost comparisons.
3. Deploy DTC only where torque precision prevents mechanical wear (positive displacement pumps, crane hoists) or where energy recovery justifies the premium through verified utility interconnection agreements.
4. Demand solar-specific firmware in agricultural projects, ensuring MPPT compatibility and dry-run protection algorithms that prevent pump damage during low-irradiance conditions—protecting both hardware investment and crop yields.

By aligning VFD topology selection with specific application physics and negotiating wholesale terms that account for energy recovery potential and warranty risk transfer, industrial buyers can achieve project IRR improvements of 15–25% while securing reliable motor control infrastructure for 15+ year operational lifespans.

Alternatives Comparison: Is Variable Frequency Drive Types the Best Choice?

When specifying motor control architectures for industrial or agricultural deployments, engineers must evaluate whether advanced variable frequency drive types represent the optimal capital investment against alternative technologies. While VFDs offer unparalleled speed and torque control, understanding their comparative advantages against soft starters, direct-on-line (DOL) systems, and alternative motor technologies ensures project specifications align with lifecycle operational requirements and ROI targets.

VFD vs. Soft Starter: The Starting Control Debate

Soft starters utilize thyristor-based phase control to ramp voltage during motor startup, effectively reducing mechanical stress and inrush current (typically 3–5× FLA versus 6–8× for DOL). However, once started, they operate at fixed frequency, offering no speed modulation. For centrifugal pumps or fans where flow control is required, soft starters force operators to rely on mechanical throttling (dampers/valves), incurring significant energy penalties—often wasting 30–40% of input power at partial loads.

In contrast, Voltage-Source Inverter (VSI) drives—the most prevalent VFD topology—eliminate these losses through variable speed operation, delivering proportional energy savings following the affinity laws (pump/fan power varies with the cube of speed). The decision point typically occurs when variable flow requirements exceed 20% of annual operating hours; below this threshold, soft starters may offer lower total cost of ownership for high-inertia applications like rock crushers or cement mills where full-speed operation is mandatory.

Solar-Powered VFD Architectures vs. Grid-Tied Systems

For remote agricultural irrigation or off-grid industrial contexts, solar pump inverters represent a specialized subclass of VFDs that fundamentally alter the power supply paradigm. Unlike conventional grid-tied drives that rely on stable AC input with standard diode bridge or active front-end (AFE) rectification, solar VFDs—such as Boray’s DC-input solar pump inverter series—incorporate Maximum Power Point Tracking (MPPT) algorithms and enhanced DC bus voltage management to draw directly from photovoltaic arrays.

Critical distinctions include:

• Power Stability: Grid-tied VSI drives offer consistent voltage source stability and unlimited runtime duration, while solar systems require either battery storage, hybrid AC/DC inputs, or water storage tanks to manage intermittency.
• System Efficiency: Modern solar VFDs achieve >98% MPPT efficiency and can operate with both Induction Motors (IM) and Permanent Magnet Synchronous Motors (PMSM), though the latter pairing yields superior partial-load efficiency critical for variable irradiance conditions.
• Infrastructure Costs: Solar VFDs eliminate trenching, transformer, and grid connection expenses, but require PV array capital expenditure. Grid systems impose ongoing energy procurement costs but lower upfront hardware investment.

Motor Technology Synergy: PMSM vs. Induction Motor Control

The efficacy of any VFD implementation depends significantly on motor selection. Standard Scalar (V/Hz) control paired with Induction Motors remains cost-effective for general-purpose pumps and fans, offering robustness in harsh environments. However, Permanent Magnet Synchronous Motors (PMSM) paired with Vector control or Direct Torque Control (DTC) drives offer distinct advantages for high-performance solar pumping or precision industrial applications:

• Efficiency Gains: IE5-class PMSMs achieve 95%+ efficiency versus 90–92% for premium induction motors, with particular advantages at low speeds where DTC drives excel.
• Thermal Management: Reduced heat generation in PMSMs extends inverter and motor bearing life—critical in solar applications where derating due to ambient temperature is common.
• Control Precision: DTC technology provides instantaneous torque response without modulation delays, enabling zero-speed holding torque for vertical turbine pumps in deep-well solar applications, whereas V/Hz-controlled induction motors risk instability at low frequencies.

Comparative Technical Analysis

Parameter	Soft Starter + Fixed Speed	Grid-Tied VFD (VSI)	Solar VFD with MPPT	PMSM + Vector/DTC Drive	Current-Source Inverter (CSI)
Speed Control Range	None (Fixed)	10:1 to 100:1	5:1 to 100:1 (irradiance-dependent)	1000:1+ (Zero-speed capable)	10:1
Energy Efficiency	Low (mechanical throttling losses)	High (variable speed optimization)	Very High (renewable source + VFD)	Premium (motor + drive synergy)	Moderate (older topology)
Torque Response	N/A (Line start only)	Moderate (V/Hz) to Fast (Vector)	Moderate (Solar VSI)	Instantaneous (DTC hysteresis control)	Slow but high continuous torque
Regenerative Capability	No	Limited (requires braking chopper or AFE)	No (DC bus feedback to PV)	Yes (with active front-end)	Yes (inherent four-quadrant operation)
Initial Investment	Low ($)	Medium ($$)	Medium-High ($$–$$$ incl. PV)	High ($$$)	High ($$$)
Maintenance Complexity	Minimal (electromechanical)	Low (IGBT-based electronics)	Low (sealed electronics, no brushes)	Medium (requires encoder/ resolver for closed-loop)	Medium (output capacitor aging)
Best Application	High-inertia starts, constant-volume systems	General pumps, HVAC, conveyors	Remote irrigation, livestock watering, off-grid pumping	Precision positioning, cranes, deep-well solar pumps	High-power cement mills, legacy steel plants

Strategic Selection Framework

For EPC contractors and automation distributors, the optimal configuration depends on duty cycle analysis and site constraints:

• Specify Soft Starters only when full-speed operation is mandatory and energy costs are negligible, or when starting high-inertia loads where VFD cost cannot be justified for intermittent operation.
• Deploy Grid-Tied VSI Drives with Scalar control for standard industrial processes requiring variable flow but possessing reliable three-phase infrastructure. Upgrade to Vector control for dynamic load conditions.
• Integrate Solar VFDs when operational sites lack grid access, when diesel generator backup costs exceed PV amortization, or when sustainability mandates require carbon-neutral pumping solutions. Specify PMSM compatibility for maximum water output per watt-peak.
• Utilize DTC or CSI Drives for specialized applications: DTC for robotics, hoists, or solar deep-well pumps requiring precise torque at zero/low speeds; CSI for large regenerative applications in harsh industrial environments where proven reliability outweighs efficiency concerns.

By mapping these alternatives against specific performance requirements—rather than defaulting to standard VFD types—engineers ensure the selected motor control solution delivers optimal efficiency, reliability, and return on investment for each unique application context.

Core Technical Specifications and Control Terms for Variable Frequency Drive Types

Selecting the appropriate Variable Frequency Drive (VFD) or Solar Pump Inverter requires fluency in both electrical engineering specifications and international procurement terminology. For EPC contractors and automation distributors, misinterpreting a control algorithm or an Incoterm can result in mismatched motor performance, project delays, or unexpected logistics costs. Below is a technical reference guide to the core specifications and commercial terms essential for specifying Boray Inverter solutions in industrial and agricultural deployments.

---

Power Topology & Semiconductor Architecture

Voltage Source Inverter (VSI)
The predominant topology in modern industrial and solar pumping applications. VSIs utilize a diode or active front-end (AFE) rectifier to create a stable DC bus voltage supported by capacitors, feeding IGBT (Insulated Gate Bipolar Transistor) inverters. Key specifications include:
* DC Bus Voltage: Typically 1.35 × AC input voltage (e.g., 540V DC for 380V AC).
* Switching Frequency: 2–16 kHz (carrier frequency); higher frequencies reduce motor noise but increase thermal losses.
* PWM Method: Space Vector Pulse Width Modulation (SVPWM) for optimal DC bus utilization.

Current Source Inverter (CSI)
Employing a large DC link inductor rather than capacitors, CSIs provide inherent regenerative capability (four-quadrant operation) without additional braking units. While less common in solar pumping due to cost and size, they remain relevant for high-inertia cement mills and steel applications requiring continuous duty cycles above 500kW.

Active Front End (AFE) vs. Standard Rectifier
For solar pump inverters, the DC input stage must accommodate wide voltage fluctuations from photovoltaic arrays. AFE rectifiers enable bidirectional power flow and low harmonic distortion (THDi < 5%), whereas standard 6-pulse diode bridges are sufficient for single-directional AC motor control.

---

Motor Control Methodologies

Control Method	Technical Principle	Performance Characteristics	Optimal Applications
Scalar (V/Hz)	Maintains constant voltage-to-frequency ratio	±2-3% speed accuracy; limited low-speed torque	Centrifugal pumps, HVAC fans, conveyors
Sensorless Vector	Flux and torque decoupling via motor model estimation	±0.5% speed accuracy; 150% torque at 0.5Hz	Agitation, extrusion, irrigation pumps
Closed-Loop Vector	Flux-oriented control (FOC) with encoder feedback	±0.01% speed accuracy; full torque at zero speed	Winding, positioning, crane hoists
Direct Torque Control (DTC)	Hysteresis-based torque and flux control without modulation	<2ms torque response; no encoder required	High-dynamic loads, rock crushers

Torque Control Mode vs. Speed Control Mode
While standard VFDs regulate rotational speed (RPM), advanced applications require Torque Control Mode, where the inverter regulates motor current to maintain constant tension or pressure regardless of speed variations—critical for winding operations and constant-pressure water systems.

---

Solar Pumping Specific Technical Parameters

Maximum Power Point Tracking (MPPT)
In photovoltaic pumping systems, MPPT algorithms ensure the inverter draws power at the array’s optimal voltage-current curve (typically 99% tracking efficiency). Boray Solar Pump Inverters utilize perturb-and-observe (P&O) or incremental conductance methods to adapt to irradiance changes from 200W/m² to 1000W/m².

DC Input Voltage Range
Solar VFDs must specify a Wide DC Input Window (e.g., 200V–800VDC for a 380V AC pump) to accommodate morning low-light conditions and peak noon irradiance without tripping on undervoltage or overvoltage faults.

Dual AC/DC Input Capability
Hybrid solar pump inverters allow automatic switching between photovoltaic DC and grid AC (or generator) inputs, ensuring 24/7 water availability with seamless <5ms transfer times.

Protection Algorithms Specific to Agriculture
* Dry Run Protection: Detects under-load conditions (no water) via current signature analysis, preventing pump seal damage.
* Tank Full/Level Control: PID integration with float switches or pressure transducers to enable sleep mode when reservoirs reach capacity.
* Soft Pipe Filling: Controlled ramp-up to prevent water hammer in PVC irrigation lines.

---

Process Control & Automation Terms

PID Control (Proportional-Integral-Derivative)
A closed-loop feedback mechanism where the VFD adjusts output frequency based on the error between a setpoint (e.g., 4 bar pressure) and process variable feedback. Critical for Constant Pressure Water Supply systems using 4-20mA pressure transducers.

Overload Capacity
Expressed as percentage of rated current for duration (e.g., 150% for 60 seconds or 200% for 0.5 seconds). This determines the drive’s ability to handle pump starting inrush or temporary blockages without faulting.

Ramp Time Configuration
* Acceleration/Deceleration: Adjustable from 0.1 to 3600 seconds; S-curve profiles reduce mechanical shock on pump impellers and pipeline infrastructure.
* DC Injection Braking: For rapid stopping of high-inertia loads, though rarely used in pumping applications.

Carrier Frequency & Motor Compatibility
Higher carrier frequencies (>6kHz) reduce acoustic motor noise but increase inverter heat dissipation. For submersible pumps with long motor cables (>50m), dv/dt filters or sine wave filters are specified to prevent reflected wave voltage spikes that damage motor insulation.

---

Physical Specifications & Environmental Ratings

Ingress Protection (IP) Ratings
* IP20: Standard cabinet-mounted drives; requires clean, dry electrical rooms.
* IP54: Dust-protected and splash-resistant; suitable for agricultural pump houses.
* IP65: Dust-tight and jet-water resistant; required for outdoor solar pump installations without enclosures.

EMC Compliance
* C2 Category: Industrial environment (EN 61800-3); suitable for fixed installations with separation from sensitive equipment.
* C3 Category: Second environment (industrial) with higher emission limits; requires external EMC filters on the input side.

Thermal Management
* Air Cooling: Forced convection with DC fans; derating required above 40°C ambient.
* Liquid Cooling: For high-power drives (>315kW) in desert solar installations where ambient temperatures exceed 50°C.

---

International Trade Terms (Incoterms 2020)

For global EPC contractors and distributors procuring VFDs from Chinese manufacturers like Boray Inverter, understanding liability transfer points is critical for insurance and customs clearance:

EXW (Ex Works)
Seller makes goods available at their factory. Buyer assumes all costs and risks from the factory door, including export clearance and inland transport in China. Suitable for buyers with established freight forwarders in China.

FOB (Free On Board)
Seller delivers goods to the port of shipment (e.g., Shenzhen or Shanghai) and loads them onto the vessel. Risk transfers once goods pass the ship’s rail. Buyer pays ocean freight, insurance, and destination port charges. Most common for containerized VFD shipments where buyers prefer to control main carriage.

CIF (Cost, Insurance, Freight)
Seller contracts and pays for carriage and insurance to the destination port (e.g., Mombasa, Dar es Salaam, or Dubai). Risk still transfers at origin port (same as FOB), but seller bears freight costs. Buyer handles unloading, import duties, and inland transport. Preferred by agricultural project managers seeking upfront cost visibility for budget allocation.

DDP (Delivered Duty Paid)
Seller assumes all costs and risks until goods are cleared for import and ready for unloading at the named destination. Includes duties, taxes, and customs clearance. Advantageous for turnkey solar pumping projects where the EPC contractor wants single-source accountability, though requires the seller to possess import licenses in the destination country.

Voltage and Certification Documentation
Regardless of Incoterm, B2B procurement must specify:
* Voltage/Frequency Standards: 380V/50Hz (IEC), 460V/60Hz (NEMA), or 220V single-phase for rural solar.
* Certification Package: CE (LVD/EMC), ISO9001, and IEC 61800 compliance certificates required for customs clearance in most jurisdictions.

Understanding these technical and commercial parameters ensures that specified VFDs—whether for high-torque industrial extruders or off-grid solar irrigation—deliver optimal lifecycle performance while aligning with project logistics and risk management protocols.

Future Trends in the Variable Frequency Drive Types Sector

The variable frequency drive (VFD) sector is undergoing a paradigm shift, evolving from standalone motor control devices to intelligent, interconnected energy management hubs. As industrial automation accelerates toward Industry 4.0 and renewable energy mandates reshape operational priorities, the distinction between traditional Voltage-Source Inverter (VSI) topologies and advanced Direct Torque Control (DTC) architectures is becoming increasingly nuanced. Tomorrow’s drive systems must seamlessly bridge high-precision motor control with sustainable energy ecosystems, particularly in solar pumping and agricultural automation where efficiency and remote operability are paramount.

Automation Market Trends: From Scalar Control to AI-Driven Optimization

The industrial automation landscape is witnessing a decisive migration away from basic scalar (V/Hz) control methods toward sophisticated vector control and DTC algorithms enhanced by artificial intelligence. Modern VFDs are incorporating edge computing capabilities that enable real-time load profiling and adaptive parameter tuning—critical for applications such as precision irrigation systems and variable-torque material handling.

For agricultural project managers and EPC contractors, this translates to drives that autonomously adjust to changing soil conditions or crop water requirements without manual intervention. Advanced field-oriented control (FOC) strategies now integrate with machine learning models to predict mechanical wear patterns, allowing drives to preemptively modify acceleration curves or torque limits to extend motor lifespan. This shift is particularly significant in solar pumping applications, where maximum power point tracking (MPPT) algorithms must dynamically synchronize with DTC-based motor control to maintain optimal flow rates during fluctuating irradiance conditions.

Renewable Energy Integration: The Convergence of Solar and Drive Technology

As global infrastructure moves toward decarbonization, VFDs are transitioning from grid-dependent power converters to hybrid energy management interfaces. The next generation of solar pump inverters—exemplifying this evolution—now features bidirectional power flow capabilities that allow VSI-based drives to operate as both motor controllers and grid-tie inverters, feeding excess energy back into microgrids or battery storage systems.

DC-coupled architectures are emerging as a dominant trend, eliminating traditional AC-DC-AC conversion stages to directly interface photovoltaic arrays with brushless DC and permanent magnet synchronous motors (PMSMs). This topology reduces conversion losses by 15-20% compared to conventional AC-coupled systems, a critical efficiency gain for off-grid agricultural installations. Furthermore, modern drives are incorporating wide-bandgap semiconductor technologies (SiC and GaN) that enable higher switching frequencies, allowing for more precise current-source inverter (CSI) characteristics within compact VSI footprints—ideal for harsh environmental conditions prevalent in remote pumping stations.

Energy storage integration represents another frontier, with VFDs now managing hybrid power sources by seamlessly switching between solar arrays, battery banks, and auxiliary generators. For industrial engineers, this means specifying drives with integrated DC bus management and regenerative braking capabilities that capture kinetic energy from decelerating pumps or conveyors, redirecting it to storage systems rather than dissipating it as heat.

IoT Monitoring Innovations: Digital Twins and Predictive Maintenance

The proliferation of Industrial Internet of Things (IIoT) sensors is transforming VFDs from reactive control devices to proactive diagnostic nodes. Cloud-connected drives now offer digital twin capabilities, creating virtual replicas of physical motor-drive systems that simulate performance under varying load conditions. This technology enables EPC contractors to validate system designs virtually before deployment, optimizing cable sizing and thermal management for specific solar pumping topologies.

Real-time monitoring platforms are advancing beyond basic fault indication to sophisticated vibration analysis and thermal imaging integration. Modern drives embed condition monitoring algorithms that detect bearing degradation or pump cavitation through spectral analysis of current signatures—eliminating the need for external sensors in many agricultural applications. For automation distributors, this represents a shift toward selling “uptime as a service,” where VFDs are bundled with predictive maintenance contracts that leverage edge-to-cloud data pipelines.

Cybersecurity has become a critical design consideration as drives gain connectivity. Next-generation VFD architectures incorporate hardware-based encryption and secure boot protocols to protect critical infrastructure from remote exploitation—a necessity for remotely monitored water treatment facilities and solar farms. Additionally, OPC UA and MQTT communication standards are becoming standard features, enabling seamless integration with SCADA systems and building management platforms while maintaining deterministic control for high-performance DTC applications.

Implications for Specification and Procurement

For technical decision-makers, these trends necessitate a reevaluation of procurement criteria. The traditional dichotomy between cost-effective VSI drives for pumps and high-performance DTC systems for cranes is blurring, with mid-range drives now offering adaptive control strategies that switch between scalar and vector modes based on operational demands. When specifying equipment for solar pumping projects, engineers should prioritize drives with integrated MPPT, wide voltage input ranges (150VDC-450VDC for single-phase solar arrays), and IP65+ enclosures suitable for agricultural environments.

As the sector advances, the most competitive solutions will combine the robust simplicity of voltage-source topologies with the precision of direct torque control, wrapped in IoT-enabled ecosystems that optimize energy consumption across the entire asset lifecycle. Organizations that adopt these integrated drive technologies today will establish the operational resilience and energy independence required for tomorrow’s industrial landscape.

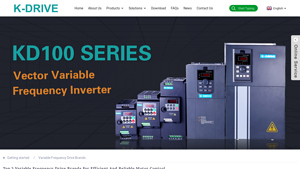

Top 2 Variable Frequency Drive Types Manufacturers & Suppliers List

B2B Engineering FAQs About Variable Frequency Drive Types

1. Q: In heavy-industrial applications requiring regenerative braking, why might engineers specify Current-Source Inverter (CSI) topology over Voltage-Source Inverter (VSI) despite higher implementation costs?
   A: CSI drives utilize an inductive DC link that naturally supports four-quadrant operation, enabling inherent regenerative braking without external braking resistors or active front-end (AFE) modules. This makes them advantageous for high-inertia loads in cement plants, steel mills, and downhill conveyors where energy return to the grid is mandatory. While VSI drives dominate general-purpose markets due to compact IGBT-based PWM architectures and lower capital costs, they require additional hardware configurations to achieve regeneration. Furthermore, CSI topology demonstrates superior robustness in harsh environments with extreme ambient temperatures or heavy airborne contaminants, though at the expense of larger physical footprint and reduced power density compared to modern VSI units.

2. Q: How does Direct Torque Control (DTC) enhance motor protection in solar pumping systems compared to traditional Vector Control methods?
   A: DTC eliminates the traditional modulator stage and PWM switching delays by directly controlling motor flux and torque via hysteresis-based switching algorithms, achieving torque response times typically under 1 millisecond. For solar pump inverters, this rapid response is critical for detecting and reacting to cavitation, dry-run conditions, or sudden blockages in submersible borehole pumps, preventing mechanical damage to pump stages and motor bearings. Unlike field-oriented vector control—which relies

Disclaimer

Conclusion: Partnering with Boray Inverter for Variable Frequency Drive Types

Selecting the optimal variable frequency drive architecture—whether Voltage-Source Inverter (VSI) for cost-effective general-purpose applications, Current-Source Inverter (CSI) for demanding regenerative environments, or Direct Torque Control (DTC) for high-dynamic precision—is only the first step toward operational excellence. The true value lies in partnering with a manufacturer that transforms these theoretical topologies into reliable, field-proven solutions engineered for your specific motor control and energy management challenges.

Enter Shenzhen Boray Technology Co., Ltd. (borayinverter.com), an innovative Chinese manufacturer specializing in Solar Pumping Inverters and advanced Motor Control Solutions. With 50% of our workforce comprising dedicated R&D engineers, Boray Inverter stands at the forefront of drive technology, mastering sophisticated PMSM (Permanent Magnet Synchronous Motor) and IM (Induction Motor) vector control algorithms that ensure precise torque response, superior low-speed performance, and maximum energy efficiency across variable load conditions.

Our commitment to quality is demonstrated through two state-of-the-art production lines and mandatory 100% full-load testing of every unit, guaranteeing exceptional reliability in the field. Boray’s VFD and solar pumping solutions have established a trusted global presence across agricultural irrigation projects, water treatment facilities, and industrial automation systems—delivering consistent performance where downtime is not an option.

Whether you are an EPC contractor designing large-scale solar pumping stations, an industrial engineer optimizing conveyor systems, or a distributor seeking high-margin motor control products, Boray provides customized VFD solutions tailored to your technical specifications and environmental requirements.

Contact Boray Inverter today to consult with our engineering team and request competitive wholesale quotes. Partner with us to implement the ideal variable frequency drive technology that drives efficiency, reliability, and profitability in your next project.
