Introduction: Sourcing Variable Frequency Drives for Industrial Use

In an era where energy efficiency and precision motor control define operational competitiveness, Variable Frequency Drives (VFDs) have evolved from optional accessories to critical infrastructure components. Whether optimizing centrifugal pumps in agricultural solar irrigation systems or regulating conveyors in material handling facilities, the right AC drive can reduce energy consumption by up to 50% while extending motor lifespan through soft-start capabilities and dynamic load management.

However, sourcing VFDs for industrial and renewable energy applications presents unique engineering challenges. Specifying the appropriate drive requires navigating complex technical parameters—from matching Full Load Amps (FLA) ratings and voltage classes (200V/400V/600V) to selecting between NEMA 1 indoor enclosures and NEMA 4X weatherproof configurations for harsh environments. For solar pumping specialists and EPC contractors, additional considerations include MPPT algorithm efficiency, DC input voltage ranges, and compatibility with permanent magnet motors versus standard AC induction models.

This comprehensive guide examines the complete VFD sourcing ecosystem for industrial engineers and automation distributors. We analyze drive typologies—from sub-micro drives for fractional horsepower applications to medium-voltage solutions for heavy industrial loads—alongside critical selection criteria including braking resistor requirements, line reactor specifications, and IP rating implications. Additionally, we evaluate manufacturing capabilities across global suppliers, comparing proprietary control algorithms, communication protocol support (Modbus, CANopen, Ethernet/IP), and regional service networks to ensure your specification meets both performance benchmarks and total cost of ownership targets.

Technical Types and Variations of Variable Frequency Drives

Variable Frequency Drives are not monolithic; their architecture varies significantly based on input power characteristics, voltage class, and control methodology. Selecting the appropriate topology is critical for system efficiency, motor compatibility, and lifecycle costs. Below are the four primary technical variations relevant to industrial automation, agricultural infrastructure, and renewable energy integration.

Type	Technical Features	Best for (Industry)	Pros & Cons
Solar Pump Inverters (SPV VFDs)	Wide DC input

Key Industrial Applications for Variable Frequency Drives

Variable Frequency Drives (VFDs) have become the cornerstone of modern motor control strategies across energy-intensive industries. By enabling precise speed regulation of AC induction motors and seamless integration with solar PV arrays, VFDs eliminate the energy waste inherent in throttling valves, dampers, and mechanical brakes. Below is a technical breakdown of high-impact sectors where VFD deployment delivers measurable ROI through optimized torque control and demand-based operation.

Sector	Application	Energy Saving Value	Sourcing Considerations
Agriculture & Irrigation	Solar surface/submersible pumps, center-pivot systems, drip irrigation pressure management	30–50% reduction in grid electricity costs; 95%+ PV array efficiency via MPPT algorithms	IP66/NEMA 4X enclosures for outdoor exposure; dry-run and water hammer protection; DC/AC dual input compatibility
Water & Wastewater Treatment	Lift station pumps, aeration blowers, filtration backwash pumps, chemical dosing	20–40% via pump affinity laws (cube law savings); optimized dissolved oxygen control in aeration	Corrosion-resistant coatings (C3/C4); harmonic filters (<5% THDi); redundant cooling fans for 24/7 operation
HVAC & Building Automation	Chilled water pumps, cooling tower fans, air handling units (AHUs), compressor modulation	30–60% in variable torque applications; reduced mechanical wear via soft-start ramp profiles	BACnet/IP or Modbus RTU integration; EMC compliance (EN 61800-3); low-noise switching for commercial spaces
Mining & Minerals Processing	Conveyor belts, primary/secondary crushers, ventilation fans, slurry pumps	15–35% through load-sharing and regenerative braking; elimination of fluid couplings	High overload capacity (150% rated current for 60s); regenerative braking units; vibration-resistant chassis (IEC 60068-2-6)
Cement & Heavy Industry	Kiln preheater fans, mill separators, rotary cooler drives, material transport	10–25% in high-inertia fan systems; peak demand charge reduction via controlled acceleration	Vector control (sensorless or closed-loop) for high starting torque; IP54 minimum dust protection; 690V+ voltage class options

Agriculture & Irrigation

In remote agricultural operations, VFDs function as the critical interface between photovoltaic arrays and AC induction motors. Solar pump inverters—specialized VFDs with integrated Maximum Power Point Tracking (MPPT)—convert DC solar output into variable-frequency three-phase power, eliminating the need for battery storage in daylight pumping cycles. For grid-connected farms, VFDs enable pressure transducer feedback loops that maintain constant water pressure across varying terrain, automatically reducing pump speed during low-demand periods rather than cycling motors on/off. When sourcing drives for agricultural deployment, prioritize units with automatic voltage adaptation (AVR) to handle fluctuating solar irradiance and built-in lightning protection (Class III SPD) for remote field installations.

Water & Wastewater Treatment

Municipal water infrastructure represents one of the highest energy-consuming municipal sectors, with pumping accounting for up to 80% of facility energy use. VFDs exploit the affinity laws—where power consumption drops by the cube of the speed reduction—to deliver exponential savings in centrifugal pump applications. In aeration basins, dissolved oxygen (DO) sensors interface with VFDs to modulate blower speed in real-time, maintaining precise oxygen levels while avoiding the energy penalty of blowing excess air through fixed-speed diffusers. For wastewater environments, specify drives with conformal-coated PCBs (IPC-A-610 Class 3) and stainless steel heat sinks to resist hydrogen sulfide corrosion, and ensure the drives support multi-pump alternation logic to equalize runtime across redundant pump stations.

HVAC & Building Automation

Commercial HVAC systems operate predominantly at part-load conditions, making them ideal candidates for variable torque VFD applications. By modulating chilled water pump speed based on differential pressure sensors or building management system (BMS) commands, VFDs eliminate the “low delta-T syndrome” common in constant-flow systems. For cooling tower fans, VFDs enable near-ambient approach temperatures by varying airflow rather than cycling fans on/off, significantly reducing mechanical stress on blade bearings. When specifying HVAC drives, verify compatibility with sine-wave filters for long motor cable runs (mitigating reflected wave phenomena) and ensure the drives meet IEEE 519 harmonic distortion limits to prevent interference with sensitive building automation networks.

Mining & Minerals Processing

Mining operations require ruggedized VFDs capable of withstanding harsh particulate environments while providing high starting torque for heavy-inertia loads. On long conveyor systems, VFDs enable soft-start ramp profiles that eliminate belt whip and mechanical shock, extending mechanical component life by 30% or more. Regenerative VFD configurations capture braking energy from downhill conveyors or descending hoists, feeding power back into the mine’s grid rather than dissipating it as heat through dynamic braking resistors. For underground applications, specify drives with ATEX/IECEx certification for explosive atmospheres and ensure the control interface supports SIL 2/3 safety functions for emergency stop protocols.

Cement & Heavy Industry

Cement manufacturing involves extreme thermal and mechanical stresses, requiring VFDs with robust vector control algorithms to maintain torque precision across low-speed operation. Kiln induced-draft (ID) fans—traditionally the largest energy consumers in cement plants—benefit from VFDs that optimize combustion airflow based on kiln pressure loops, improving clinker quality while reducing specific energy consumption per ton. For mill separator drives, flux vector control enables precise speed regulation (±0.5% accuracy) to maintain optimal particle separation efficiency. Sourcing considerations should include drives with active front ends (AFE) to regenerate energy to the grid during braking events and heavy-duty DC bus chokes to mitigate voltage spikes from utility power quality issues common in industrial zones.

Top 3 Engineering Pain Points for Variable Frequency Drives

Scenario 1: Power Quality Degradation and Harmonic Distortion in Weak Grid or Solar-PV Applications

The Problem:
Industrial facilities and remote agricultural sites often suffer from unstable input power characterized by voltage sags, grid transients, and high harmonic content. In solar pumping applications, DC bus voltage fluctuations from inconsistent irradiance create additional stress on the DC-link capacitors and switching devices. Without proper conditioning, VFDs can inject harmonics back into the grid, causing premature failure of capacitors in parallel loads, nuisance tripping of protective devices, and reduced power factor penalties. Standard drives lacking DC chokes or EMC filters often struggle with electromagnetic interference (EMI), disrupting sensitive control electronics in automated production lines or SCADA systems for solar arrays.

The Solution:
Specify VFDs with built-in DC reactors and input line reactors to mitigate harmonic currents (typically reducing THDi to <5%) and protect against voltage spikes. For solar pump inverters, select models with advanced Maximum Power Point Tracking (MPPT) algorithms that maintain stable operation despite rapid irradiance changes, coupled with wide DC input voltage ranges to accommodate early morning and late afternoon low-light conditions. Implement drives featuring active power factor correction (PFC) and compliance with IEC 61000-3-12 for electromagnetic compatibility. For critical industrial processes, specify units with ride-through capabilities (UPS functionality) to maintain motor control during momentary power dips, preventing costly line stoppages in continuous manufacturing operations.

---

Scenario 2: Environmental Ingress and Thermal Management in Harsh Outdoor or Washdown Environments

The Problem:
Standard IP20 or NEMA 1 rated drives are inadequate for deployment in agricultural irrigation fields, mining operations, or food & beverage processing facilities where exposure to dust, humidity, corrosive atmospheres, and high-pressure washdown is routine. Ingress of conductive dust or moisture leads to PCB corrosion, short circuits across power terminals, and accelerated aging of electrolytic capacitors. Furthermore, inadequate thermal design results in derating requirements in ambient temperatures exceeding 40°C, forcing engineers to oversize drives by 20-30%, increasing capital expenditure. In solar pumping installations, diurnal temperature swings cause condensation inside inadequately sealed enclosures, leading to intermittent faults and reduced Mean Time Between Failures (MTBF).

The Solution:
Specify drives with NEMA 4X (IP66) ratings for outdoor agricultural and harsh industrial applications, ensuring protection against dust ingress and high-pressure water jets. For extreme environments, select units with conformal-coated PCBs and stainless steel enclosures resistant to chemical corrosion. Implement intelligent thermal management systems featuring automatic carrier frequency derating curves and independent cooling channel designs that separate airflow from electronic components. In high-temperature installations (>50°C ambient), specify drives with external heatsink options or liquid cooling capabilities. For solar pump inverters specifically, ensure the enclosure includes UV-resistant materials and proper gland plate sealing for DC and AC cable entries to prevent moisture ingress during nighttime temperature drops.

---

Scenario 3: Mechanical Stress and Hydraulic Instability in Centrifugal Pump Systems

The Problem:
Direct-on-line (DOL) starting of pumps creates immediate torque shocks resulting in water hammer, mechanical seal failure, and excessive pipe stress—particularly problematic in long-distance irrigation pipelines and high-rise industrial fluid handling systems. Without precise flow control, centrifugal pumps operate away from their Best Efficiency Point (BEP), leading to cavitation, impeller erosion, and energy waste. In solar pumping applications, intermittent cloud cover causes rapid flow fluctuations, while dry-run conditions in boreholes lead to motor overheating and permanent magnet demagnetization. Traditional VFDs lacking pump-specific algorithms require complex external PLC programming to implement multi-pump staging and sleep/wake functionality, increasing system complexity and failure points.

The Solution:
Deploy VFDs with dedicated pump control firmware featuring soft-start/stop ramps (S-curve acceleration profiles) to eliminate water hammer and extend mechanical seal life by up to 300%. Implement PID control loops for constant pressure or flow regulation, automatically adjusting motor speed to maintain operation at the pump’s BEP. For solar applications, select inverters with intelligent sleep/wake functions that detect minimum flow requirements and dry-run protection via torque sensing or external float switches, preventing pump damage during low irradiance or empty well conditions. Specify drives supporting multi-pump cascade control (master-slave configurations) for booster stations, enabling automatic staging/destaging without external controllers. Additionally, ensure the VFD includes stall prevention and torque limit functions to protect against blockages in submersible borehole pumps or wastewater handling systems.

Component and Hardware Analysis for Variable Frequency Drives

The internal architecture of a Variable Frequency Drive (VFD) determines not only its operational efficiency but also its suitability for demanding applications such as solar-powered irrigation and heavy-duty industrial automation. For EPC contractors and system integrators, understanding the hardware topology is essential for specifying equipment that can withstand wide ambient temperature swings, high-altitude solar irradiance, and the harmonic stresses inherent in long-distance motor cable runs.

Power Semiconductor Stage: IGBT Modules

At the heart of every VFD lies the power semiconductor module, typically comprising Insulated Gate Bipolar Transistors (IGBTs) or Intelligent Power Modules (IPMs). These components perform the high-frequency switching necessary to synthesize variable-frequency AC waveforms from the DC bus. In solar pumping applications, where the DC input voltage fluctuates with irradiance levels, IGBTs must exhibit low saturation voltage (Vce(sat)) to minimize conduction losses during partial-load operation. Advanced trench-gate field-stop technology offers superior thermal performance and short-circuit withstand capability (typically 10μs at rated current), which is critical when starting submersible pumps against high hydrostatic head pressure.

The junction temperature cycling (∆Tj) during daily start-stop operations creates mechanical stress on wire bonds and solder layers. High-reliability drives utilize direct-bonded copper (DBC) substrates and aluminum silicon carbide (AlSiC) baseplates to mitigate thermal expansion mismatches, significantly reducing the risk of solder fatigue—a primary failure mode in agricultural installations with frequent cycling.

Control and Signal Processing Architecture

The computational engine of modern VFDs relies on 32-bit Digital Signal Processors (DSPs) or ARM-based microcontrollers executing complex vector control algorithms. For solar pump inverters, the controller must simultaneously manage Maximum Power Point Tracking (MPPT) logic while maintaining precise motor flux control. Quality indicators include hardware floating-point units (FPU) for real-time computation, 12-bit or higher Analog-to-Digital Converters (ADC) for current sensing, and integrated hardware security modules for tamper-proof operation.

Electromagnetic compatibility (EMC) immunity is paramount; industrial environments generate significant conducted and radiated interference. Look for multi-layer PCBs with dedicated ground planes, opto-isolated gate drivers, and conformal coating (typically acrylic or silicone-based) to protect against moisture ingress and corrosive gases common in livestock or greenhouse operations.

DC-Link Energy Storage and Filtering

The DC bus capacitors stabilize the voltage between the rectifier and inverter stages, absorbing ripple current and providing energy during load transients. While traditional VFDs employ aluminum electrolytic capacitors, solar-specific inverters increasingly utilize metallized polypropylene film capacitors. Film technology offers superior ripple current handling (essential for the high switching frequencies used in solar pumps), wider temperature tolerance (-40°C to +105°C), and significantly longer operational life—often exceeding 100,000 hours compared to 30,000-50,000 hours for electrolytic alternatives.

For agricultural projects in remote locations, the elimination of electrolytic capacitors reduces maintenance requirements and eliminates the “weak link” that traditionally limits VFD lifespan in high-temperature environments.

Thermal Management Systems

Thermal design directly impacts semiconductor longevity; per the Arrhenius equation, reducing junction temperature by 10°C approximately doubles the lifespan of power electronics. High-performance VFDs employ extruded aluminum heatsinks (typically 6063-T5 alloy) with optimized fin density calculated through computational fluid dynamics (CFD). In solar pumping applications where drives are often housed in NEMA 3R or 4X enclosures exposed to direct sunlight, thermal management must account for both internal heat dissipation and external solar gain.

Critical interface materials include phase-change thermal pads or high-conductivity silicone grease (thermal conductivity >3.0 W/m·K) between the IGBT module and heatsink. For drives above 7.5kW, forced air cooling using ball-bearing fans (rated for 50,000+ hours at 40°C) or, in harsh dusty environments, liquid cooling or heat-pipe systems may be specified to eliminate particulate ingress through fan apertures.

Component Reliability Matrix

Component	Function	Quality Indicator	Impact on Lifespan
IGBT Power Module	Converts DC to variable-frequency AC; handles motor switching transients	Trench-gate technology; Vce(sat) < 2.0V; RBSOA (Reverse Bias Safe Operating Area) rating; thermal impedance < 0.5 K/W	Critical – Thermal cycling causes bond wire lift-off and solder degradation; primary determinant of MTBF in cycling applications
DSP Controller	Executes vector control, MPPT algorithms, and protection logic; generates PWM signals	32-bit architecture >100MHz; hardware FPU; 12-bit+ ADC resolution; IEC 61000-4-4 EFT immunity >2kV	High – Control instability or latch-up events can cause immediate catastrophic failure; determines precision of motor torque control
DC-Link Capacitors	Filters PWM ripple current; maintains DC bus stability during irradiance fluctuations	Metallized polypropylene film (dry type); ripple current rating >150% nominal; ESR < 5mΩ; operating temperature -40°C to +105°C	Very High – Electrolytic types limit lifespan to 5-7 years in solar applications; film capacitors extend operational life to 10-15 years
Cooling Heatsink	Dissipates thermal energy from semiconductors to ambient environment	Aluminum alloy 6063-T5; thermal resistance < 0.8°C/W; anodized coating for corrosion resistance; CFD-optimized fin geometry	Critical – Junction temperature directly correlates to semiconductor longevity; inadequate cooling triggers thermal runaway
Thermal Interface Material	Ensures efficient heat conduction between IGBT baseplate and heatsink; provides dielectric isolation	Thermal conductivity >3 W/mK; breakdown voltage >3kV; long-term stability without pump-out or dry-out (silicone-free preferred)	High – Degradation increases thermal resistance by 50-200%, accelerating semiconductor aging
Input/Output Reactors	Limits inrush current; reduces dv/dt stress on motor insulation; mitigates reflected wave phenomena	High-permeability silicon steel or amorphous core; copper windings with H-class (180°C) insulation; inductance tolerance ±3%	Medium – Protects motor windings and drive output stage; insulation degradation from voltage spikes affects long-term reliability
Protection Circuitry	Monitors overcurrent, overvoltage, phase loss, and ground faults; implements Safe Torque Off (STO)	Response time <2μs; redundant safety relays (SIL 2/3 capable); desaturation detection on gate drivers	Critical – Prevents cascade failures; fast-acting protection preserves expensive power semiconductors during fault conditions
EMI Filter Components	Suppresses conducted emissions to prevent interference with sensors and communication systems	High-permeability ferrite cores; X2-class safety capacitors; low leakage current design (<3.5mA)	Low-Medium – Filter degradation affects compliance but rarely causes drive failure; critical for agricultural automation sensor networks

Environmental Hardening for Solar and Agricultural Deployment

Beyond individual component selection, system-level integration determines field reliability. For solar pumping stations, drives must accommodate wide DC input voltage ranges (typically 200VDC to 800VDC for standard pumps, up to 1500VDC for utility-scale systems) without component derating. This requires power semiconductors rated for 1200V or 1700V operation with appropriate creepage and clearance distances on PCBs to prevent arcing in high-altitude, low-atmosphere conditions.

Agricultural environments demand protection against humidity, dust, and chemical exposure. Look for conformal-coated control boards, sealed potting of critical capacitors, and stainless steel hardware for heatsink mounting. For submersible pump applications, VFDs should feature enhanced ground fault detection (sensitivity <30mA) and phase-loss protection to prevent dry-running conditions that damage both the drive and the pump motor.

When evaluating VFDs for mission-critical B2B applications, request component-level Mean Time Between Failures (MTBF) data and thermal imaging reports under full-load conditions. The integration of high-grade IGBT modules, film-based DC-link capacitors, and robust thermal management systems ensures that solar pumping installations achieve the 20-25 year operational lifespans expected by modern EPC contractors and project financiers.

Manufacturing Standards and Testing QC for Variable Frequency Drives

In industrial automation and solar pumping applications, Variable Frequency Drive (VFD) reliability is non-negotiable. A drive failure in a remote agricultural installation or continuous manufacturing process can result in catastrophic crop loss or production downtime. Consequently, rigorous manufacturing standards and comprehensive Quality Control (QC) protocols form the backbone of professional-grade drive production, ensuring that every unit withstands the thermal, electrical, and environmental stresses inherent to motor control and photovoltaic water pumping systems.

Advanced PCB Protection and Environmental Hardening

The foundation of VFD durability begins at the Printed Circuit Board (PCB) level. Industrial and solar pump inverters frequently operate in harsh environments—exposed to agricultural dust, humidity, salinity, and temperature extremes. To mitigate electrochemical migration and corrosion, premium manufacturers apply conformal coating to all PCBs in accordance with IPC-CC-830 and MIL-I-46058C standards.

Polyurethane-based coatings are typically preferred over acrylic for solar pump applications due to superior moisture resistance and dielectric strength, providing a barrier against the 85°C/85% relative humidity conditions common in tropical climates. The coating process involves automated selective spraying or dipping followed by UV-cured curing, ensuring complete coverage of critical traces and components without compromising heat sink thermal interfaces. For agricultural projects near coastal regions or chemical processing facilities, this tropicalization process prevents dendritic growth and tin whisker formation that could otherwise cause latent field failures.

Industrial-Grade Component Selection and Traceability

Reliability is designed in, not inspected in. Professional VFD manufacturing mandates industrial-grade components rated for -40°C to +85°C ambient operation, as opposed to commercial-grade alternatives. Critical components—including IGBT modules, DC bus capacitors (with preference for metallized film over electrolytic in solar applications for extended lifespan), and gate drivers—are sourced from Tier-1 suppliers with full lot traceability.

Each component batch undergoes incoming inspection for parametric verification, X-ray analysis for BGA packages, and solderability testing per J-STD-002. For solar pump inverters specifically, DC-link capacitors must demonstrate ripple current capability at elevated temperatures (105°C) to handle the intermittent nature of photovoltaic generation without degradation.

Environmental Stress Screening (ESS) and Burn-In Protocols

To identify infant mortality and latent defects before shipment, comprehensive Environmental Stress Screening is implemented. This includes:

High-Temperature Aging (Burn-In): Every drive undergoes a minimum 48-hour burn-in cycle at 50°C ambient (exceeding typical operating conditions) while switching at rated current. This accelerates the failure of weak solder joints, capacitor electrolyte degradation, or semiconductor defects that might otherwise manifest within the first 90 days of field operation.

Thermal Cycling: Sample units from each production lot are subjected to rapid temperature cycling between -40°C and +70°C (per IEC 60068-2-14) to validate solder joint integrity under CTE (Coefficient of Thermal Expansion) stress, critical for drives installed in uncontrolled outdoor environments.

Vibration and Mechanical Shock: Testing per IEC 60068-2-6 ensures that components remain secure during transportation and operation in vibrating applications such as mining conveyors or agricultural machinery.

100% Full-Load Functional Testing

Unlike consumer electronics that rely on statistical sampling, industrial VFDs require 100% full-load testing before release. Each unit is subjected to:

• Heat Run Testing: Operation at 100% rated output current for 2-4 hours at maximum specified ambient temperature (typically 50°C) to verify thermal management design, IGBT junction temperatures, and cooling fan efficacy.
• Input/Output Characterization: Verification of voltage balance across all three phases, current waveform purity (THDi < 5% with reactors), and insulation resistance testing (megger testing at >1000V DC) between power terminals and chassis.
• Efficiency Mapping: Efficiency verification at 25%, 50%, 75%, and 100% load points to ensure compliance with IE2/IE3 system efficiency requirements.
• Solar-Specific Validation: For solar pump inverters, dedicated MPPT (Maximum Power Point Tracking) algorithm verification is performed using solar simulators to confirm tracking efficiency (>99%) and response to rapid irradiance changes.

Electrical Safety and EMC Compliance

Safety testing encompasses dielectric withstand (hipot) testing at 2kV AC (or 2.5kV DC) for 60 seconds between mains circuits and earth, plus ground continuity verification (<0.1Ω). Electromagnetic Compatibility (EMC) testing ensures compliance with EN 61800-3 (variable speed drive EMC standards), including:
– Conducted emissions (150 kHz – 30 MHz)
– Radiated emissions (30 MHz – 1 GHz)
– Immunity to surge (IEC 61000-4-5, Level 4) and fast transients (IEC 61000-4-4), critical for grid-connected solar installations susceptible to lightning-induced surges.

Certification and Quality Management Systems

Manufacturing facilities maintain ISO 9001:2015 certification with integrated quality management systems tracking every unit via serial number from component receipt through final test. Product certifications include:
– CE Marking: Compliance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), and RoHS 2.0 (2011/65/EU).
– IEC 61800-5-1: Safety requirements for adjustable speed electrical power drive systems.
– IEC 62109-1/-2: Safety of power converters for use in photovoltaic power systems (essential for solar pump inverters).
– IP Rating Verification: Actual ingress protection testing (IP65 for solar pump inverters, IP20/IP54 for industrial enclosures) via dust and water spray validation, not merely design intent.

Final Inspection and Packaging Protocols

Prior to shipment, each VFD undergoes final visual inspection under magnification for coating uniformity, connector integrity, and labeling accuracy. For international distribution, units are vacuum-sealed with desiccant and humidity indicator cards to prevent moisture absorption during sea freight, particularly important for oceanic shipments to tropical agricultural regions.

This multi-layered approach to manufacturing quality ensures that whether the VFD is controlling a centrifugal pump in a desert solar installation or a conveyor system in a cement plant, the unit delivers consistent performance, minimal Total Cost of Ownership (TCO), and maximum Mean Time Between Failures (MTBF) exceeding 100,000 hours.

Step-by-Step Engineering Sizing Checklist for Variable Frequency Drives

Proper sizing of a Variable Frequency Drive extends beyond simple horsepower matching; it requires systematic validation of electrical, thermal, and mechanical compatibility to ensure operational longevity—particularly in harsh agricultural or industrial environments. Use this engineering checklist to validate specifications before procurement, ensuring seamless integration with induction motors, permanent magnet (PM) motors, or solar pump systems.

Phase 1: Motor and Load Characterization

1. Verify Motor Inverter-Rating and Topology
– Confirm the motor carries an inverter-duty rating (Class F or H insulation with NEMA MG1 Part 31 compliance) to withstand PWM voltage stresses and rapid switching dv/dt.
– Identify motor type: Standard AC Induction (IM), Permanent Magnet Synchronous (PMSM), or Brushless DC (BLDC). Note: Solar pump inverters, such as those in Boray’s product lines, often require specific parameter sets for PM motors to ensure precise rotor position tracking.
– Record nameplate data: Full Load Amps (FLA), rated voltage (V), frequency (Hz), base speed (RPM), service factor (SF), and thermal class.

2. Analyze Load Torque Profile
– Variable Torque (VT): For centrifugal pumps and fans, where torque varies with the square of speed. Ensure the drive’s VT rating meets or exceeds the motor’s FLA.
– Constant Torque (CT): For conveyors, agitators, and positive displacement pumps. Size the drive for 150% overload capacity for 60 seconds to handle breakaway torque.
– High Starting Torque: For deep-well solar pumps or boreholes with high static head, verify the drive can deliver 150–200% starting torque at low frequencies (0.5–5 Hz).

Phase 2: Electrical Sizing and Compatibility

3. Current Capacity Validation
– Fundamental Rule: Drive rated output current ≥ Motor FLA × Application Factor (typically 1.0 for VT, 1.1–1.25 for CT or high-cyclic loads).
– Overload Verification: Confirm the drive’s overload curve (e.g., 150% for 60s, 180% for 3s) aligns with the motor’s thermal limits and starting requirements.
– Single-Phase Derating: When feeding a 3-phase drive from single-phase mains (common in remote agricultural sites), apply a 50% current derating factor or select a drive with dedicated single-phase input logic.

4. Voltage Class and Input Configuration
– Match drive voltage class to supply and motor voltage:
– 200V Class: 200–240V (±10%) input; suitable for residential/light commercial.
– 400V Class: 380–480V (±10%) input; standard industrial and solar pumping.
– 600V Class: 575–690V input; heavy industrial mining applications.
– Solar DC Input (for Solar Pump Inverters):
– Calculate PV array open-circuit voltage (Voc) at lowest ambient temperature:
Voc_max = Voc_stc × [1 + (TC_Voc × (T_min - 25))]
where TC_Voc is the temperature coefficient (%/°C). Ensure Voc_max < Drive maximum DC input voltage.
– Verify MPPT voltage window: Array Vmp (Voltage at Max Power) must fall within the drive’s MPPT range across all irradiance conditions (typically 200V–800V DC for mid-range solar pumps).

5. Cable and Protection Coordination
– Size input/output cables based on drive rated current, not motor FLA, accounting for harmonic content (use 75°C copper ampacities per NEC or IEC 60364).
– Select circuit protection: Input fuses or circuit breakers must be semiconductor-rated (Type CC, J, or R) with I²t coordination below the drive’s surge withstand rating.

Phase 3: Environmental and Thermal Engineering

6. Enclosure Integrity (IP/NEMA Ratings)
– IP20/NEMA 1: Clean, climate-controlled electrical rooms; requires external ventilation.
– IP54/NEMA 3R: Dust-protected, rain-resistant for outdoor agricultural pump houses.
– IP66/NEMA 4X: Washdown-duty, corrosion-resistant for food/beverage or chemical dosing applications; mandatory for direct solar exposure in tropical climates to prevent UV and moisture ingress.

7. Thermal Derating Calculations
– Altitude: Derate drive current by 1% per 100m above 1000m (3300 ft) due to reduced air density and cooling efficiency.
– Ambient Temperature: If operating above 40°C (104°F), derate current by 2.5% per °C, or specify external cooling fans/heat exchangers.
– Switching Frequency: High carrier frequencies (>8 kHz) reduce motor noise but increase drive heat dissipation; derate drive output by 10–20% or add external heatsinks.

Phase 4: Power Quality and Accessory Sizing

8. Harmonic Mitigation and Reactors
– Input Line Reactor: Size for 3–5% impedance when supply short-circuit capacity (SCCL) exceeds 50× drive kVA rating, or when power factor correction capacitors are present on the same bus.
– DC Link Choke: For drives >50HP (37kW), specify DC chokes to reduce input current THD to <35% and improve true power factor to >0.95.
– Output Reactor/dV/dT Filter: Mandatory for motor cable runs >50m (164 ft) to mitigate reflected wave phenomena and bearing currents; size by motor current and cable length.

9. Dynamic Braking and Regeneration
– Braking Resistor Sizing: Calculate peak braking power (P_peak) during deceleration:
P_peak = (T_brake × ω_motor) / 9.55
Select resistor ohms based on drive’s minimum braking resistance specification and duty cycle (ED%).
– Braking Chopper: Verify the drive’s internal braking transistor current rating exceeds the calculated braking current, or specify external braking units for high-inertia loads.

Phase 5: Control Architecture and Compliance

10. I/O and Communication Validation
– Analog I/O: Confirm 4–20mA or 0–10V signal compatibility for pressure transducers (solar pumping) or flow sensors; check resolution (≥10-bit) for precision dosing.
– Digital Interface: Verify dry contact inputs for float switches or level sensors; ensure relay outputs are rated for pump contactor coils (typically 250VAC/5A).
– Fieldbus Protocol: For integrated SCADA or remote monitoring (critical for agricultural EPC projects), confirm support for Modbus RTU/TCP, CANopen, or optional BACnet for building integration.

11. Regulatory and Efficiency Certification
– Verify compliance with IEC 61800-2 (adjustable speed electrical power drive systems) and IEC 61000-4 for EMC immunity.
– For solar applications, ensure compliance with local grid codes for anti-islanding (if hybrid capable) and IEC 62109 for PV safety.
– Confirm motor-drive system efficiency meets IE2 or IE3 classifications per IEC 60034-30-1 to qualify for energy rebate programs.

Final Verification: Cross-reference all calculated parameters against the manufacturer’s derating curves—specifically the “Safe Operating Area” (SOA) charts—to confirm continuous operation margins under worst-case scenario conditions (maximum ambient temperature, minimum supply voltage, and full load simultaneously).

Wholesale Cost and Energy ROI Analysis for Variable Frequency Drives

When procuring Variable Frequency Drives for industrial automation or solar pumping infrastructure, discerning the true economic value requires moving beyond sticker price to analyze volume-based procurement channels, energy recovery timelines, and risk-mitigation through warranty structures. For EPC contractors managing multi-megawatt agricultural installations and automation distributors building inventory for industrial motor control markets, understanding these financial dynamics is critical to margin protection and project viability.

B2B Pricing Architecture and Volume Economics

The wholesale acquisition of VFDs operates on a tiered matrix fundamentally distinct from retail procurement. While retail channels typically price 1-3 HP units (120V single-phase to 480V three-phase) based on immediate availability, wholesale and OEM-direct structures—such as those offered by specialized manufacturers like Boray Inverter—provide significant unit cost reductions at volume thresholds typically beginning at 50+ units for sub-micro drives (≤1HP) and 20+ units for industrial-grade platforms (20HP-75HP).

Critical to accurate cost modeling is the voltage class segmentation observed across industrial portfolios:
– 200V Class (240V input): Common in agricultural solar pumping and light industrial applications, offering lower per-unit costs but requiring careful FLA (Full Load Amps) matching, typically ranging from 4.3A (1HP) to 138A (40HP)
– 400V Class (480V input): The standard for heavy industrial motor control, where drives handling 75HP/145A configurations command premium pricing but deliver superior energy density
– 600V Class: Specialized mining and heavy infrastructure applications with distinct insulation requirements

Wholesale pricing must account for ancillary component bundling. Line reactors, dynamic braking units, and EMC filters—mandatory for compliance in many solar pumping installations—often carry 15-30% discounts under distributor agreements compared to aftermarket procurement. For solar pump inverters specifically, integrated MPPT (Maximum Power Point Tracking) controllers versus standalone VFD configurations create divergent pricing models, with integrated solutions offering 12-18% lower total hardware costs but requiring precise PV array voltage matching.

Energy ROI and Payback Analysis

The financial justification for VFD deployment in motor control and solar pumping applications centers on the affinity laws: in centrifugal pump and fan applications, a 20% reduction in motor speed yields a 49% reduction in energy consumption (cube law relationship). For agricultural project managers evaluating solar-powered irrigation against diesel or grid-tie alternatives, this mathematical reality translates to compelling ROI metrics.

Solar Pumping ROI Calculation Framework:

In a typical 15HP (11kW) agricultural pumping scenario:
– Baseline: Direct-on-line (DOL) motor operation or diesel generator sets consuming 2,400 kWh/month
– VFD + Solar Configuration: Variable speed operation matching pump output to solar irradiance curves, reducing energy draw by 35-45% through elimination of throttling losses and optimized motor efficiency
– Payback Period: At wholesale VFD procurement costs ($800-$1,200 for 15HP/480V class drives) and prevailing solar LCOE (Levelized Cost of Energy), energy savings typically achieve full hardware payback within 14-22 months, depending on local electricity tariffs or diesel costs

For industrial conveyor and extruder applications, the ROI extends beyond energy to mechanical stress reduction. Soft-start capabilities inherent to VFDs reduce mechanical wear by 40-60%, extending bearing and coupling life. When amortized across a 10-year operational horizon, this mechanical preservation often exceeds the initial energy savings ROI, particularly in 24/7 manufacturing environments where 75HP drives control critical process equipment.

Warranty Cost Capitalization and Risk Management

Warranty structures represent a significant but frequently underestimated line item in TCO (Total Cost of Ownership) analysis. Standard industrial VFD warranties range from 12 to 36 months, with premium tiers extending to 60 months for IP20/NEMA 1 chassis units deployed in controlled environments. However, outdoor solar pumping installations requiring NEMA 4X (IP66) ratings face accelerated thermal cycling and humidity stress, necessitating extended warranty coverage that typically adds 8-12% to wholesale unit costs.

Strategic Warranty Considerations:

• MTBF Metrics: Quality drives utilizing film capacitors and advanced IGBT modules demonstrate MTBF rates exceeding 50,000 hours. When evaluating wholesale partners, verify whether warranty coverage includes field service labor or merely component replacement—a critical distinction for remote agricultural installations where technician dispatch costs may exceed hardware value.
• Environmental Derating: Warranty validity often requires adherence to specific ambient temperature ranges (typically -10°C to +40°C for standard units, +50°C+ for solar-specific designs). EPC contractors must factor cooling infrastructure costs into ROI calculations; forced ventilation or air-conditioned enclosures for IP20 drives in tropical solar farms can negate 18-24 months of energy savings if not specified correctly during procurement.
• Component-Level Coverage: Dynamic braking resistors and external line reactors—essential for high-inertia applications like rotary ovens and centrifugal pumps—often carry separate warranty terms (typically 12 months) distinct from the drive unit itself. Distributors should negotiate unified coverage terms to avoid exposure on ancillary components.

Total Cost of Ownership Framework

For automation distributors and EPC contractors, the optimal procurement strategy integrates hardware acquisition, energy recovery, and warranty risk into a unified financial model. A 25HP (480V) industrial VFD purchased at wholesale pricing ($1,800-$2,400 range) and deployed in a variable-torque pumping application will typically generate $1,200-$1,800 in annual energy savings at $0.12/kWh electricity rates, achieving net positive ROI within the first year of operation—well within standard warranty periods.

When specifying for solar pumping specifically, prioritize drives with integrated DC bus chokes and robust MPPT algorithms. These features, while adding 5-7% to initial wholesale costs, eliminate the need for separate PV inverters and reduce system complexity, improving overall project IRR (Internal Rate of Return) by 2-3 percentage points through reduced BoS (Balance of System) costs and enhanced energy harvest efficiency during low-irradiance conditions.

Ultimately, the most cost-effective VFD procurement aligns voltage class and environmental protection ratings with specific application duty cycles, leveraging volume discounts to offset premium warranty coverage that ensures operational continuity across the 15-20 year expected lifespan of modern motor control and solar pumping infrastructure.

Alternatives Comparison: Is Variable Frequency Drives the Best Choice?

When evaluating motor control strategies for industrial and agricultural applications, decision-makers must weigh initial investment against lifecycle efficiency, operational flexibility, and energy independence. While Variable Frequency Drives (VFDs) represent the gold standard for precision speed control and energy optimization, alternative technologies like Soft Starters, Direct-On-Line (DOL) systems, and varying power architectures (solar versus grid-tied) each occupy specific niches. Below, we analyze these alternatives through the lens of technical capability, total cost of ownership (TCO), and application suitability—particularly for solar pumping and heavy-duty industrial automation.

VFD vs. Soft Starter: Control Philosophy vs. Starting Support

The most common point of confusion in motor control selection lies between VFDs and Soft Starters. While both mitigate mechanical stress and inrush current, their operational principles diverge significantly.

Soft Starters utilize back-to-back thyristors (SCRs) to temporarily reduce voltage during motor startup, limiting inrush current to approximately 2-3 times Full Load Amps (FLA). Once the motor reaches near-full speed, a bypass contactor closes, and the motor runs at fixed line frequency (50Hz/60Hz). This provides no speed control during operation and offers minimal energy savings once the motor is running.

VFDs, conversely, employ a rectifier-inverter architecture (AC-DC-AC conversion) to vary both voltage and frequency continuously. This enables precise speed regulation from 0 to rated speed (and often beyond), maintaining constant V/Hz ratio for optimal magnetic flux. For centrifugal pumps and fans—where power consumption drops cubically with speed reduction—this translates to dramatic energy savings (up to 60%) compared to throttling or damper control.

Parameter	Soft Starter	Variable Frequency Drive	Engineering Implication
Speed Control	Fixed (Line Frequency Only)	0-400Hz (Variable)	VFDs enable process optimization; Soft Starters only limit mechanical shock
Starting Current	2-3× FLA	0.5-1.5× FLA (Programmable)	VFDs reduce utility demand charges and voltage sag
Energy Savings	Minimal (only during start)	Significant (proportional to speed³)	VFDs essential for variable torque applications (pumps/fans)
Power Factor	Near motor rating (0.7-0.85)	Near unity (0.95+)	VFDs reduce reactive power penalties
Harmonic Distortion	Low (minimal switching)	Moderate-High (requires line reactors/filters)	VFDs need input reactors per IEEE 519 compliance
Initial Cost	$ (Lower)	$$$ (Higher)	Soft Starters suit fixed-speed high-inertia loads
Motor Compatibility	Standard NEMA/IE motors	Inverter-rated insulation required	VFDs need motors with enhanced insulation (1600V rise time withstand)

Verdict: Choose Soft Starters for high-inertia, fixed-speed applications (e.g., crushers, mills) where limiting start current is the sole requirement. Select VFDs for any variable flow/pressure requirement, energy recovery mandates, or when soft starting is combined with operational speed control.

Solar-Powered VFD Systems vs. Grid-Powered Infrastructure

For agricultural irrigation and remote industrial sites, the decision extends beyond motor control to power sourcing. Modern Solar Pump Inverters (specialized VFDs with Maximum Power Point Tracking—MPPT) present a paradigm shift from conventional grid-tied VFDs.

Grid-Powered VFDs rely on stable AC mains (380V/480V 3-phase), offering unlimited runtime and consistent voltage/frequency reference. However, they incur ongoing electricity costs and require grid infrastructure extension in remote locations—often costing $10,000-$50,000 per kilometer of line extension.

Solar VFD Systems (DC-to-AC or DC-to-DC configurations) eliminate grid dependency by converting photovoltaic DC directly to variable frequency AC. Advanced units, such as those in Boray Inverter’s solar pump series, integrate MPPT algorithms that adjust motor frequency in real-time to match solar irradiance, maintaining optimal PV voltage (Vmp) even during fluctuating sunlight. These systems operate without batteries, storing energy in the form of pumped water (water battery concept).

Characteristic	Grid-Powered VFD	Solar Pump Inverter (VFD)	Project Considerations
Power Source	AC Grid (Stable)	PV Array (Variable DC)	Solar requires irradiance assessment (kWh/m²/day)
Operating Cost	High (kWh charges)	Near Zero (OPEX only)	Solar ROI typically 2-4 years vs diesel/grid
Initial Investment	Medium (Drive + Infrastructure)	High (Drive + PV Panels)	Solar CAEX offset by lack of trenching/permits
Speed Control	Full Range (0-Max)	MPPT-Limited (Frequency tracks irradiance)	Solar drives optimize for power availability, not arbitrary setpoints
Environmental Rating	IP20-NEMA 4	IP65+ (Outdoor mandatory)	Solar inverters require NEMA 4X/IP65 for field mounting
Motor Options	IM or PMSM	PMSM preferred (higher efficiency)	PMSM motors maximize water output per watt of solar
Backup Capability	Inherent	Requires hybrid design or AC input option	Hybrid solar/grid VFDs offer 24/7 reliability

Verdict: For sites with >4 kWh/m²/day solar resource and water storage capacity, solar VFDs eliminate energy costs and grid extension CAPEX. Grid-powered VFDs remain superior for continuous process industries requiring 24/7 operation without storage redundancy.

Motor Technology Synergy: PMSM vs. Induction Motor (IM) with VFD Control

The efficacy of a VFD depends significantly on the coupled motor technology. While VFDs can control both Induction Motors (IM) and Permanent Magnet Synchronous Motors (PMSM), the performance characteristics and efficiency profiles differ markedly.

Induction Motors (Asynchronous) operate with slip (rotor lagging behind magnetic field), resulting in I²R losses in the rotor cage. Standard IE3 efficiency motors achieve 90-95% efficiency at full load but drop to 85-88% at partial loads—common in VFD applications. However, IMs are robust, fault-tolerant, and can operate Direct-On-Line if the VFD fails (bypass mode).

Permanent Magnet Synchronous Motors (PMSM) utilize rare-earth magnets to create rotor flux, eliminating slip losses and achieving IE4/IE5 efficiency (95-98%). They require VFDs to operate (cannot run DOL) and provide higher power density—critical for solar pumping where every watt of PV capacity counts. PMSMs maintain near-constant efficiency across 25-100% load range, whereas IM efficiency degrades significantly at partial loads.

Specification	Induction Motor + VFD	PMSM + VFD	System Impact
Efficiency Class	IE3 (Premium)	IE4/IE5 (Super Premium)	PMSM reduces energy consumption 8-15% vs IM
VFD Requirement	Optional (can bypass)	Mandatory (cannot run without drive)	PMSM creates vendor lock-in but ensures optimized pairing
Speed Range	2:1 to 10:1 (Constant Torque)	4:1 to 20:1 (High Constant Torque)	PMSM better for low-speed high-torque extruders
Power Factor	0.85-0.90 (lagging)	0.95-0.99 (unity)	PMSM reduces inverter KVA sizing requirements
Cost	Lower (mature technology)	Higher (magnet material)	PMSM payback period 1-3 years in high-duty cycles
Temperature Rise	Higher (rotor losses)	Lower (no rotor current)	PMSM extends bearing life in solar pump boreholes

Verdict: For new installations in solar pumping, HVAC, and continuous duty industrial processes, PMSM-VFD pairings offer superior lifecycle value despite higher upfront costs. For retrofit applications or environments with high vibration/temperature extremes where magnet demagnetization is a risk, Induction Motors with VFDs provide proven reliability.

Strategic Decision Matrix

Application Scenario	Recommended Solution	Rationale
Fixed-speed pump, frequent starts, grid power	Soft Starter	Lowest cost for mechanical stress reduction only
Variable flow HVAC, grid power, existing IM	Standard Grid VFD + Line Reactor	Balanced cost/performance; utilizes existing motors
Remote irrigation, no grid access, sunny climate	Solar Pump Inverter + PMSM	Eliminates fuel costs; maximizes water per watt
High-precision positioning, servo-like control	VFD with PMSM (Vector Control)	Dynamic response superior to IM
Mining conveyor, high inertia, limited speed variation	Soft Starter or VFD (if energy recovery needed)	Soft starters sufficient unless downhill regeneration required

Conclusion: VFDs are not merely “speed controllers” but comprehensive energy management platforms. While Soft Starters and fixed-speed systems retain relevance in specific high-inertia, constant-speed applications, VFDs—particularly when paired with solar power sources and high-efficiency PMSMs—deliver unmatched operational flexibility and TCO advantages for modern industrial and agricultural automation. The “best choice” ultimately depends on duty cycle variability, energy cost structure, and the strategic value of process control precision.

Core Technical Specifications and Control Terms for Variable Frequency Drives

When specifying Variable Frequency Drives for industrial automation or solar pumping infrastructure, engineers and procurement specialists must navigate a dual landscape of precise electrical engineering parameters and international commercial frameworks. The following technical specifications and trade terminology constitute the essential vocabulary for effective B2B specification, procurement, and deployment of motor control systems.

Motor Control Architectures and Algorithms

Volts-per-Hertz (V/f) Control
The fundamental control method for standard pump and fan applications, V/f control maintains a constant ratio between voltage and frequency to preserve motor flux. While cost-effective for centrifugal pumps and HVAC systems, this open-loop approach offers limited low-speed torque performance (typically 150% rated torque at 3Hz), making it unsuitable for high-starting-torque agricultural irrigation or positive displacement pumps.

Sensorless Vector Control (SVC) / Open-Loop Vector
Utilizing advanced motor modeling algorithms, SVC provides dynamic torque response without requiring physical encoder feedback. Modern drives achieve torque accuracy within ±5% and speed regulation of ±0.5%, supporting applications such as conveyor systems and extruders where load fluctuations demand rapid torque compensation. For solar pump inverters, this enables stable operation under irradiance variability.

Field-Oriented Control (FOC) with Flux Vector
Closed-loop vector control utilizing encoder feedback delivers precise speed control (±0.01%) and full torque at zero speed (0Hz). Critical for winding machines, positioning systems, and high-precision process dosing pumps, FOC decouples torque and flux components, enabling independent control of motor magnetization and mechanical output.

Maximum Power Point Tracking (MPPT)
Specific to solar pump inverters and PV-powered VFDs, MPPT algorithms continuously adjust the operating voltage to extract maximum available power from photovoltaic arrays. Advanced implementations utilize perturb-and-observe (P&O) or incremental conductance methods, achieving tracking efficiencies exceeding 99% even under partial shading conditions. The MPPT voltage range (typically 200VDC–800VDC for standard systems, extending to 1500VDC for utility-scale installations) must align with the PV array configuration to prevent clipping losses during peak irradiance.

Process Control and Feedback Mechanisms

PID Control Loops
Proportional-Integral-Derivative control integrated within the VFD firmware enables closed-loop process control without external PLCs. In agricultural and industrial pumping applications, pressure transducers or flow meters feed analog signals (4–20mA or 0–10V) to the drive, which modulates motor speed to maintain setpoints. The PID parameters (Kp, Ki, Kd) require tuning to prevent oscillation in variable head conditions common in deep-well solar pumping systems.

Multi-Pump Control and Cascade Logic
Advanced drives support master-slave configurations for booster stations and irrigation networks, automatically sequencing pump startup to balance runtime hours and manage flow demand through staged capacity activation.

Electrical Specifications and Power Quality

Input/Output Voltage Classifications
– 200V Class: Covers 200–240V single-phase and three-phase inputs, typical for residential and light commercial agricultural applications up to 3HP/2.2kW.
– 400V Class: 380–480V three-phase industrial standard, supporting motors up to 1MW+ in heavy industrial contexts.
– 600V Class: 575V systems prevalent in North American mining and oil/gas sectors.

Total Harmonic Distortion (THDi)
Input current THDi specifications indicate grid disturbance levels. Six-pulse rectifiers typically generate 35–45% THDi, while active front-end (AFE) drives or DC chokes reduce this to <5%, complying with IEEE 519 and IEC 61000-3-6 standards for sensitive grid infrastructure.

Switching Frequency (Carrier Frequency)
IGBT switching frequencies ranging from 2kHz to 16kHz affect motor audible noise and thermal stress. Higher frequencies (>8kHz) reduce motor noise but increase drive switching losses, requiring derating in ambient temperatures above 40°C.

Overload Capacity
Industrial drives specify overload ratings as:
– Light Duty (LD): 110% for 60 seconds (fan/pump applications)
– Heavy Duty (HD): 150% for 60 seconds, 200% for 3 seconds (crushers, compressors, positive displacement pumps)

Environmental and Mechanical Specifications

Ingress Protection (IP) Ratings
– IP20: Indoor installations with controlled environments; requires external enclosure protection against dust and moisture.
– IP54/55: Dust-protected and water-jet resistant; suitable for agricultural pump houses with humidity exposure.
– IP65/66: Dust-tight and powerful water-jet/immersion resistant; mandatory for outdoor solar pump installations in tropical climates.

NEMA Enclosure Standards
– NEMA 1: General-purpose indoor use
– NEMA 4/4X: Watertight and corrosion-resistant; essential for food/beverage washdown environments and outdoor solar arrays exposed to monsoon conditions.

Temperature Derating
Standard operating ranges span -10°C to +40°C or +50°C. For desert solar applications exceeding 50°C ambient, drives require derating (typically 2% per degree above 40°C) or forced ventilation systems.

Communication and Integration Protocols

Standard Interfaces
RS485 with Modbus RTU remains the industrial baseline, supporting daisy-chain configurations up to 1,200 meters. For Industry 4.0 integration, modern drives offer:
– EtherNet/IP and Profinet: Real-time industrial Ethernet for manufacturing execution systems (MES)
– CANopen: Common in mobile equipment and agricultural machinery
– BACnet: Building automation integration for HVAC drives

I/O Configurations
Analog inputs (AI) accept 0–10V, ±10V, or 4–20mA signals from sensors. Digital inputs (DI) handle 24VDC control signals, while relay outputs (RO) provide status indication for remote monitoring systems critical in unmanned solar pumping stations.

International Commercial Terms (Incoterms 2020)

EXW (Ex Works)
The seller makes goods available at their factory (Boray Inverter manufacturing facilities). The buyer assumes all costs and risks from collection, including export clearance and freight. Suitable for buyers with established freight forwarders and import licenses.

FOB (Free On Board)
The seller delivers goods onto the vessel designated by the buyer at the named port of shipment (e.g., FOB Shanghai). Risk transfers when goods pass the ship’s rail, making this the standard term for containerized VFD exports from Chinese manufacturers. The buyer handles ocean freight, insurance, and destination charges.

CIF (Cost, Insurance, and Freight)
The seller contracts for carriage and insurance to the named destination port (e.g., CIF Lagos or CIF Rotterdam). While the seller bears costs to the destination, risk transfers at the origin port—meaning the buyer assumes risk during transit while the seller maintains insurance obligations. Critical for EPC contractors requiring cost certainty for project budgeting.

DAP (Delivered at Place)
Door-to-door delivery to the buyer’s specified location (project site or warehouse), excluding import duties and taxes. The seller manages all transportation logistics, ideal for agricultural project managers lacking customs brokerage resources.

DDP (Delivered Duty Paid)
Maximum seller obligation, including import clearance and duty payment. Provides complete landed cost transparency for distributors calculating resale margins, though requires the seller to possess import licenses in the destination country.

Procurement and Warranty Specifications

Minimum Order Quantities (MOQ)
Manufacturers typically structure MOQs by product families: sample orders (1–5 units), LCL (Less than Container Load) quantities (20–50 units), and FCL (Full Container Load) volumes (100+ units) with corresponding tiered pricing.

Lead Time Classifications
– Standard Stock: 3–7 working days for catalog drives
– Custom Configuration: 15–30 days for specialized voltage classes (575V, 690V) or integrated bypass contactors
– OEM/ODM Projects: 45–60 days for custom firmware, branding, and specialized enclosure modifications

Payment Instruments
– T/T (Telegraphic Transfer): 30% deposit, 70% against B/L copy standard for established relationships
– L/C (Letter of Credit): Required for high-risk markets or initial transactions exceeding $50,000, adding 1.5–3% banking charges
– O/A (Open Account): 30–90 day terms reserved for distributors with credit insurance or long-standing partnerships

Warranty and Service Terms
Standard warranty periods span 18–24 months from delivery or 12–18 months from commissioning. Extended warranty options (3–5 years) cover IGBT modules and control boards. Technical support differentiation includes remote diagnostics via RS485/Ethernet versus on-site service level agreements (SLAs) for critical infrastructure projects.

Understanding these specifications enables precise alignment between technical requirements—such as MPPT efficiency in solar arrays or vector control precision in industrial automation—and procurement strategies that mitigate supply chain risks through appropriate Incoterms selection and warranty structures.

Future Trends in the Variable Frequency Drives Sector

The Variable Frequency Drive (VFD) sector is undergoing a paradigm shift from simple motor speed regulation to intelligent energy management ecosystems. As industrial automation accelerates toward Industry 4.0 and agricultural operations increasingly demand off-grid sustainability, next-generation drive technologies are converging with renewable energy architectures and Industrial Internet of Things (IIoT) platforms. For EPC contractors and automation distributors, understanding these trajectories is critical for specifying systems that will remain compliant with evolving efficiency standards while delivering measurable ROI through predictive operational capabilities.

Intelligent Automation and Adaptive Motor Control

The automation market is moving beyond static V/Hz control curves toward AI-enhanced drive algorithms capable of real-time load profiling and self-optimization. Modern drives now incorporate edge computing capabilities that process motor performance data locally—reducing latency for critical torque adjustments while minimizing cloud dependency. For material handling and process industries, this enables adaptive flux vector control that automatically compensates for bearing wear or belt slippage without external sensors.

Integration with higher-level automation architectures has also evolved. Contemporary VFDs increasingly support OPC UA and MQTT protocols natively, enabling seamless vertical integration from field devices to Manufacturing Execution Systems (MES). This shift eliminates proprietary gateway hardware, reducing commissioning complexity for system integrators while providing engineers with granular visibility into energy consumption patterns across entire production lines.

Renewable Energy Integration and Solar Pumping Architectures

Perhaps the most significant disruption in the VFD landscape is the seamless integration of photovoltaic (PV) power sources, particularly for agricultural and remote industrial applications. Traditional AC drives required stable grid input, but emerging solar pump inverter technologies—exemplified by advanced MPPT (Maximum Power Point Tracking) algorithms—now enable direct DC coupling from PV arrays to three-phase motors without battery storage intermediaries.

This evolution supports hybrid AC/DC input architectures where drives automatically switch between grid power and solar generation based on irradiance levels. For agricultural project managers, this translates to irrigation systems that operate during daylight hours using 100% solar energy, switching to grid backup only during low-light conditions. Furthermore, regenerative VFD technologies are evolving to support bidirectional energy flow, allowing motor inertia to feed power back into microgrids or battery energy storage systems (BESS), effectively transforming industrial motor loads into grid stabilization assets.

The technical trajectory also points toward wide bandgap semiconductor adoption (Silicon Carbide and Gallium Nitride), which reduces switching losses in solar-integrated drives by up to 70% compared to traditional IGBT architectures. This advancement is crucial for maximizing pump efficiency during variable irradiance conditions, where every percentage point of conversion efficiency directly impacts water output volumes.

IoT-Enabled Condition Monitoring and Predictive Analytics

The proliferation of connected VFDs is redefining maintenance strategies from reactive to predictive models. Modern drives equipped with integrated vibration analysis, thermal imaging capabilities, and insulation resistance monitoring can detect bearing degradation or winding insulation breakdown weeks before catastrophic failure occurs. For mining and oil & gas operations where downtime costs exceed thousands of dollars per hour, this capability provides critical risk mitigation.

Cloud-based drive management platforms now offer digital twin functionality, creating virtual replicas of physical motor-drive systems that simulate performance under varying load conditions. Engineers can test parameter adjustments in the digital environment before deploying to physical assets, reducing commissioning time by up to 40%. These platforms also facilitate fleet management across geographically dispersed installations—particularly valuable for agricultural cooperatives managing hundreds of solar pumping stations across remote territories.

Cybersecurity has become a non-negotiable design parameter as connectivity increases. Leading manufacturers are implementing IEC 62443-compliant security frameworks, featuring encrypted firmware updates, role-based access controls, and network segmentation capabilities that isolate critical motor control functions from enterprise IT networks.

Efficiency Standards and Sustainable Design

Regulatory pressures are driving adoption of VFDs compatible with IE5 ultra-premium efficiency motors, requiring sophisticated control algorithms to minimize losses across the entire drive-motor system. Emerging topologies incorporate active front-end (AFE) technology that eliminates harmonic distortion (maintaining THDi below 5%), reducing the need for external line reactors and lowering infrastructure costs for electrical contractors.

Thermal management innovations are also enabling VFD deployment in harsh environments previously considered incompatible with electronics. Advanced heat sink designs utilizing phase-change materials and liquid cooling options allow drives to operate in ambient temperatures exceeding 50°C without derating—critical for desert solar pumping installations or cement processing facilities.

For distributors and contractors, these trends collectively signal a transition from component sales to system solution provisioning. The VFD of 2025-2030 functions not merely as a motor controller, but as an intelligent node within a sustainable energy ecosystem—optimizing power from renewable sources, predicting mechanical failures before they occur, and communicating seamlessly with cloud-based analytics platforms to drive continuous operational improvement.

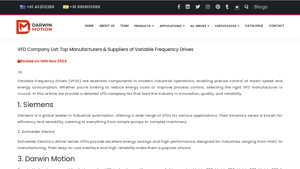

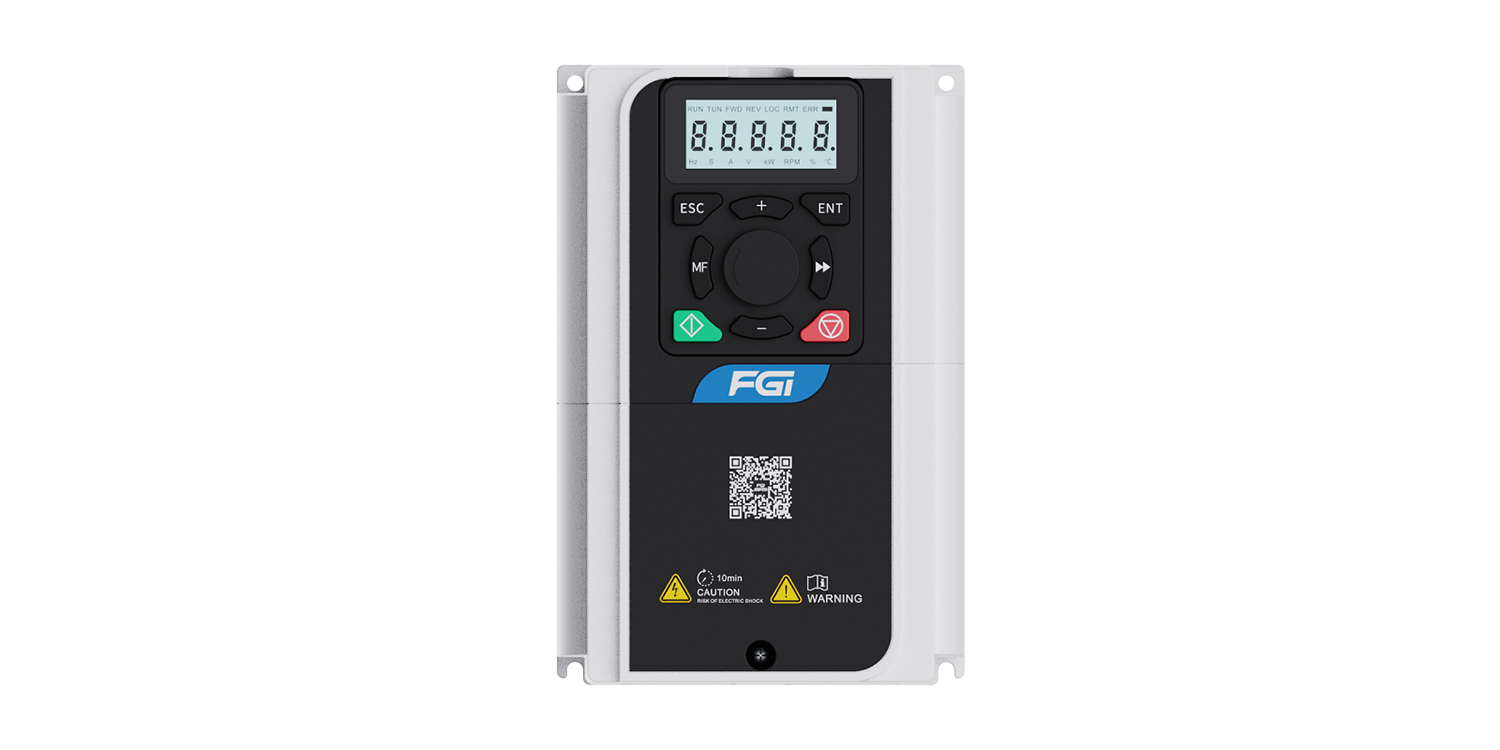

Top 3 Variable Frequency Drives Manufacturers & Suppliers List

B2B Engineering FAQs About Variable Frequency Drives

When specifying Variable Frequency Drives for industrial automation or solar pumping projects, engineers must evaluate electrical compatibility, environmental resilience, and system integration requirements. Below are critical technical considerations for ensuring reliable motor control and operational efficiency.

1. How do I correctly size a VFD based on motor Full Load Amps (FLA) and service factor?

Always size the VFD using the motor’s FLA rating rather than horsepower alone. The drive’s continuous output current must meet or exceed the motor’s FLA at the specified voltage class (200V, 400V, or 600V). If the motor has a service factor (e.g., 1.15), multiply the FLA by 1.15 to ensure the VFD can handle temporary overload conditions without tripping. For constant torque applications like conveyors or positive displacement pumps, size the drive one rating higher than the motor FLA to accommodate startup inrush currents.

2. What distinguishes inverter-duty motors from standard motors, and why does it matter?

Inverter-duty motors feature enhanced insulation systems (typically Class F or H) designed to withstand the high-voltage spikes (dv/dt) and rapid switching frequencies generated by IGBT-based VFDs. Standard motors using Class B insulation may experience premature winding failure due to partial discharge and voltage reflection. Additionally, inverter-duty motors often include insulated bearings or shaft grounding rings to prevent bearing pitting from circulating currents—critical for applications using cable runs exceeding 50 meters.

3. Can standard AC VFDs operate with DC input from solar arrays, and what are the specific requirements for solar pumping?

Standard VFDs require modification for direct DC input operation. Solar pump inverters (like Boray’s specialized series) accept wide DC voltage ranges (e.g., 200–400VDC for 220VAC output or 400–800VDC for 380–460VAC output) and incorporate Maximum Power Point Tracking (MPPT) algorithms to optimize photovoltaic array output. Critical specifications include: dual AC/DC input capability for grid fallback, DC voltage monitoring with under-voltage ride-through, and IP65/NEMA 4X enclosures for outdoor agricultural environments.

4. What environmental protection ratings should I specify for harsh industrial or outdoor agricultural installations?

• IP20/NEMA 1: Indoor, clean environments with controlled humidity; requires external enclosure for dust protection.
• NEMA 4/4X: Washdown environments, outdoor solar pump installations, or areas with chemical exposure; provides protection against water jets and corrosion.
• IP65: Equivalent to NEMA 4; essential for desert or tropical climates where sand, dust, and monsoon conditions coexist.

Always verify the VFD’s ambient temperature derating curve—agricultural installations often require 50°C operational capability without forced derating.

5. When are input line reactors and output dv/dt filters necessary?

Specify input line reactors (3–5% impedance) when:
* Supply transformer capacity exceeds the VFD rating by more than 10:1 (low line impedance)
* Multiple drives share a common bus
* Harmonic distortion must comply with IEEE 519

Specify output dv/dt filters or sine wave filters when:
* Motor cable length exceeds 50 meters (voltage reflection issues)
* Operating above 8 kHz carrier frequency
* Using older motors with marginal insulation systems

6. What is the difference between dynamic braking and regenerative braking in high-inertia applications?

Dynamic braking dissipates deceleration energy through external braking resistors via a chopper circuit—suitable for centrifugal pumps and fans with moderate inertia. Calculate resistor wattage based on duty cycle: W = (Braking Torque × Motor Speed × Duty Cycle) / 9.55.

Regenerative braking returns energy to the AC supply or DC bus (useful in solar systems with battery storage), eliminating heat generation. Specify regenerative units for high-inertia loads like rotary kilns or large flywheel applications where braking occurs frequently.

7. Which communication protocols ensure seamless integration with SCADA and agricultural automation systems?

For industrial environments, specify Modbus RTU (RS485) for basic monitoring or Modbus TCP/IP and EtherNet/IP for high-speed integration with PLCs. Solar pumping applications benefit from GPRS/4G modules for remote monitoring of flow rates and fault conditions. Ensure the VFD supports 4–20mA/0–10V analog inputs for pressure transducer feedback in constant-pressure water supply systems.

8. How do I calculate energy savings when retrofitting fixed-speed pumps with VFD control?

Apply the Affinity Laws: Power varies with the cube of speed (P ∝ n³). Reducing pump speed by 20% (to 80% of rated speed) yields energy savings of approximately 49% (1 – 0.8³). However, account for:
* Static head vs. friction head: Systems with high static head (elevated tanks) realize lower savings than pure friction systems.
* VFD efficiency losses: Modern drives operate at 95–97% efficiency; subtract 3–5% for total system calculation.
* Duty cycle analysis: Multiply savings by the percentage of time the system operates at reduced load.

For solar pumping, calculate the Solar Fraction (SF)—the percentage of annual energy provided by PV versus grid backup—to determine ROI on the DC-capable VFD investment.

Disclaimer

Conclusion: Partnering with Boray Inverter for Variable Frequency Drives

As industries worldwide accelerate their transition toward energy-efficient operations and sustainable infrastructure, the strategic implementation of Variable Frequency Drives has evolved from optional efficiency enhancement to critical operational necessity. Whether optimizing HVAC systems in commercial complexes, controlling conveyor belts in mining operations, or driving solar-powered irrigation pumps in remote agricultural installations, the selection of motor control technology directly impacts system reliability, energy consumption, and long-term operational costs. The technical complexities discussed—from vector control algorithms to harmonic mitigation and environmental protection ratings—underscore why partnering with specialized manufacturers matters more than ever in today’s competitive industrial landscape.

For engineering teams, EPC contractors, and automation distributors seeking more than off-the-shelf solutions, Shenzhen Boray Technology Co., Ltd. stands as a strategic ally in advanced motor control and solar pumping applications. Operating from state-of-the-art facilities in China, Boray Inverter distinguishes itself through an uncompromising commitment to technical innovation: our R&D engineers comprise 50% of the total workforce, driving continuous advancement in both Permanent Magnet Synchronous Motor (PMSM) and Induction Motor (IM) vector control technologies. This deep technical expertise translates into rugged, field-proven hardware backed by dual modern production lines and rigorous 100% full-load testing protocols that ensure every unit meets stringent international performance standards.

From large-scale agricultural irrigation projects across arid regions to precision industrial automation installations, Boray’s VFD solutions have earned trust through consistent performance in demanding environments. Our specialized focus on solar pumping inverters and variable frequency drives positions us uniquely to support renewable energy integration while delivering the torque control and efficiency optimization that modern motor applications demand.

We invite technical procurement teams and project managers to leverage our engineering capabilities for customized VFD configurations tailored to specific application requirements. Contact Boray Inverter today at borayinverter.com to discuss your project specifications, request detailed technical documentation, or obtain competitive wholesale quotations for your next motor control deployment.
