Introduction: Sourcing Variable Frequency Drive for Industrial Use

In an era where industrial energy efficiency and precision motor control define operational competitiveness, the Variable Frequency Drive (VFD) stands as the critical interface between electrical infrastructure and mechanical performance. Whether optimizing HVAC systems in commercial buildings, controlling conveyor belts in manufacturing facilities, or powering solar irrigation pumps in remote agricultural installations, VFDs—also known as Adjustable Speed Drives (ASDs) or inverters—enable precise speed regulation by varying the frequency and voltage supplied to AC motors.

For EPC contractors, automation distributors, and project engineers navigating global supply chains, sourcing the right VFD extends far beyond basic horsepower ratings. The decision encompasses evaluating converter topologies (from standard six-pulse rectifiers to regenerative active front-ends), DC bus configurations, and environmental protections critical for harsh industrial or outdoor solar applications. With North American systems operating at 60Hz and European/Asian standards at 50Hz, understanding how these drives manipulate AC waveforms to match motor requirements becomes fundamental to system integration.

This comprehensive guide examines the technical landscape of industrial VFD procurement, dissecting the distinctions between low-voltage and medium-voltage architectures, IP rating requirements for dusty agricultural environments, and communication protocols essential for Industry 4.0 integration. We analyze manufacturer capabilities—from specialized solar pump inverter producers to full-spectrum automation giants—providing procurement professionals with the technical benchmarks necessary to evaluate converter sections, DC bus stability, and harmonic mitigation strategies. Whether specifying drives for centrifugal pumps or complex multi-motor coordinated systems, this resource delivers the engineering insight required to optimize performance while ensuring long-term reliability across diverse operational contexts.

Technical Types and Variations of Variable Frequency Drive

Variable Frequency Drives are not monolithic; their topology and application scope vary significantly based on input power characteristics, voltage class, and control methodology. For industrial engineers and EPC contractors, selecting the appropriate VFD architecture is critical to optimizing motor control efficiency, harmonic mitigation, and lifecycle costs. Below, we categorize the four primary technical variations dominating the B2B landscape, from standard grid-tied industrial drives to specialized solar pumping solutions.

Type	Technical Features	Best for (Industry)	Pros & Cons
Low Voltage (LV) General Purpose VFDs	• Input: 3-phase 380V–480V AC (50/60Hz) • 6-pulse diode rectifier front-end • 2-level or 3-level IGBT inverter topology • PWM carrier frequency 2–16 kHz • Control modes: V/Hz, Sensorless Vector, or Closed-Loop Vector	Manufacturing lines, HVAC systems, water/wastewater treatment, conveyor systems	Pros: Cost-effective, compact footprint, mature service networks, wide power range (0.4kW–1MW+) Cons: Input current THD 5–8% (requires line reactors), limited to <1000V applications, regenerative braking requires external braking resistors or active front-end (AFE) retrofit
Solar Pump Inverters (SPVFDs)	• Input: 200V–800V DC (direct PV array connection) • Integrated MPPT algorithm (99% tracking efficiency) • AC Output: 220V/380V 3-phase • IP65/NEMA 4X enclosure rating • Dry-run protection, water tank level control, auto sleep/wake	Agricultural irrigation, remote livestock watering, off-grid village water supply, desert greening projects	Pros: Zero grid dependency, eliminates diesel generator OPEX, automatic sunrise-to-sunset operation, built-in motor protection (phase loss, overload) Cons: Weather-dependent output (requires 1.2–1.5x PV array oversizing), no operation during low irradiance (without battery backup), limited to centrifugal pump applications
Single-Phase Input VFDs (Phase Converters)	• Input: 1-phase 220V–240V AC • Active PFC (Power Factor Correction) front-end • Output: 3-phase 220V/380V (derated) • Dual-rating: 50% capacity at heavy load, 100% at light load • Built-in EMI filter for residential compliance	Rural workshops, legacy equipment upgrades, small agricultural processing (grain mills, feed mixers) where 3-phase utility is unavailable	Pros: Enables 3-phase motor deployment on single-phase infrastructure, lower installation cost than utility 3-phase extension, compact design Cons: Limited to <7.5kW (typically), high input current draw (2.5–3x vs 3-phase input), reduced capacitor lifespan due to input ripple stress
Medium Voltage (MV) VFDs	• Input: 2.3kV–13.8kV AC (direct medium voltage) • Multi-pulse (12/18/24-pulse) or Active Front-End (AFE) rectifier • Multi-level topology: NPC (Neutral Point Clamped), ANPC, or Cascaded H-Bridge (CHB) • Cell-based modular design with bypass capability • Efficiency >97%, THD <3%	Oil & gas extraction, cement mills, mining hoists, large ID/FD fans, power plant auxiliaries	Pros: Direct MV motor control (no step-down transformer), inherent regenerative capability (AFE variants), cell redundancy allows operation at reduced capacity during fault Cons: High CAPEX (5–10x LV equivalent), significant footprint requirements (IP00/IP20 cabinet), specialized MV technician required for maintenance, long lead times (12–20 weeks)

Detailed Technical Analysis

Low Voltage General Purpose VFDs represent the workhorse of industrial automation. Utilizing a standard 6-pulse diode bridge rectifier (as described in the converter section topology), these drives convert incoming AC to DC via six diodes, then invert back to variable-frequency AC using IGBT switching. For applications requiring dynamic braking—such as high-inertia centrifuges or downhill conveyors—engineers must specify external braking chopper units or upgrade to Active Front-End (AFE) regenerative drives, which replace the diode bridge with IGBTs to return energy to the grid rather than dissipating it as heat.

Solar Pump Inverters diverge fundamentally from grid-tied VFDs by eliminating the AC-DC conversion stage for the power source. Instead, they accept high-voltage DC directly from photovoltaic arrays (typically 400V–600V DC for 380V AC motors). The integrated Maximum Power Point Tracking (MPPT) algorithm continuously adjusts the DC bus voltage to extract maximum energy from the PV array as irradiance changes. Boray Inverter’s solar pump solutions utilize specialized V/Hz curves optimized for centrifugal pump affinity laws, ensuring that flow rates scale proportionally to solar irradiance while preventing motor overheating during low-speed operation—a critical consideration for submersible pumps in deep boreholes.

Single-Phase Input VFDs solve the infrastructure limitation common in rural agricultural zones. These drives employ active power factor correction (PFC) circuits to mitigate the high inrush currents associated with single-phase supply. When specifying these units, engineers must apply a derating factor: a 5.5kW rated single-phase input drive typically delivers only 3.7kW–4.0kW continuous output when powering a 3-phase motor under heavy load. The input stage generates significant harmonic content; therefore, built-in DC chokes or external line reactors are mandatory to prevent utility-side voltage distortion.

Medium Voltage VFDs address the efficiency and footprint challenges of controlling multi-megawatt motors (500kW–40MW+). Rather than using step-down transformers to feed LV drives, MV VFDs utilize multi-level inverter topologies—particularly the Cascaded H-Bridge (CHB) design—to synthesize near-sinusoidal output waveforms with minimal dv/dt stress on motor windings. This eliminates the need for output filters and allows the use of standard MV motor insulation. For EPC contractors in mining or cement, the regenerative variants (AFE-based) are particularly valuable, as they can return braking energy from downhill conveyors or mill inertia directly back to the 6.6kV or 11kV grid, achieving net energy savings of 15–30% compared to mechanical braking or LV drive solutions with resistor banks.

Key Industrial Applications for Variable Frequency Drive

Variable Frequency Drives (VFDs) have evolved from simple motor speed controllers to sophisticated automation nodes that optimize energy consumption across diverse industrial ecosystems. For EPC contractors and automation distributors, understanding sector-specific implementations is critical to specifying drives that deliver measurable ROI while meeting rigorous operational demands. Below is a strategic breakdown of high-impact applications where advanced motor control technology—particularly solar-integrated solutions—drives both efficiency and operational resilience.

Sector	Application	Energy Saving Value	Sourcing Considerations
Agriculture & Solar Irrigation	Solar pump inverters for borehole/submersible pumps, center-pivot systems, and drip irrigation pressure management	40–60% reduction vs. traditional DOL (Direct Online) starters; 100% grid independence with PV arrays during daylight operations	IP66/NEMA 4X enclosures for outdoor exposure, MPPT efficiency >99%, AC/DC dual input capability, dry-run protection algorithms, and compatibility with permanent magnet (PM) motors
Water & Wastewater Treatment	Lift station pumps, aeration blowers, filtration backwash systems, and chemical dosing pumps	30–50% reduction in pumping energy through dynamic flow matching; optimized aeration saves 20–35% in biological treatment processes	NEMA 4X stainless steel construction, active harmonic filters (<5% THD), redundant cooling fans, and embedded PLC logic for multi-pump staging
HVAC & Building Automation	Chilled water distribution pumps, cooling tower fans, air handling units (AHUs), and secondary refrigeration circuits	20–40% reduction in HVAC energy consumption (representing 40–60% of total building energy use); typical payback period 12–24 months	BACnet/IP or Modbus TCP integration, intelligent sleep mode functions, low-RFI/EMI emission ratings, and automatic resonance avoidance algorithms
Mining & Cement Processing	Kiln drive motors, primary/secondary crusher mills, long-distance overland conveyors, and exhaust gas fans	15–30% energy savings plus 50–70% reduction in mechanical stress via soft-start functionality; regenerative power capture on downhill conveyors	Heavy-duty chassis rated for 2.5G vibration resistance, flux vector control for 150% starting torque, regenerative braking units, and conformal coating for dust/salt environments

Agriculture & Solar Irrigation Systems

In agricultural automation, VFDs serve as the critical interface between photovoltaic arrays and AC induction motors or permanent magnet pumps. Unlike conventional grid-tied systems, solar pump inverters must perform Maximum Power Point Tracking (MPPT) to extract optimal energy from fluctuating irradiance while maintaining stable flow rates. For project managers specifying borehole pumps in remote locations, selecting drives with AC/DC hybrid input capability ensures 24/7 operational continuity—switching seamlessly between solar DC input during daylight and AC grid power during low-light conditions.

Critical engineering considerations include dry-run protection (preventing pump damage when water levels drop) and IP66-rated enclosures to withstand outdoor humidity and dust. Advanced drives in this sector now integrate IoT connectivity for remote monitoring via GSM/4G, allowing agricultural engineers to adjust flow rates seasonally without site visits. When sourcing for large-scale irrigation projects, prioritize inverters with wide voltage input ranges (200VDC–800VDC) to accommodate varying PV string configurations and ensure compatibility with submersible motor brands commonly deployed in deep-well applications.

Water & Wastewater Management

Municipal water infrastructure represents one of the highest-potential sectors for VFD implementation, particularly in lift stations and aeration processes where flow demands fluctuate diurnally. In sewage lift stations, variable speed control prevents pump cycling and water hammer while maintaining constant discharge pressure. For aeration blowers in biological treatment tanks, dissolved oxygen (DO) sensors interfaced with VFDs enable precise airflow modulation—reducing energy waste from over-aeration while maintaining treatment efficacy.

From a power quality perspective, water treatment facilities must source drives with active front ends (AFE) or built-in DC chokes to mitigate harmonic distortion (<5% THD), protecting sensitive SCADA systems and meeting IEEE 519 standards. EPC contractors should specify NEMA 4X stainless steel enclosures for corrosive environments (chlorine exposure in treatment plants) and ensure drives support multi-pump cascade control—automatically staging pumps on/off based on demand to eliminate inefficient throttle valve control.

HVAC & Commercial Building Automation

In commercial building automation, VFDs optimize the “muscle” of HVAC systems: pumps and fans operating under part-load conditions 90% of the time. Chilled water systems utilizing primary-variable flow with VFD-controlled pumps eliminate the energy waste of three-way valves and bypass loops. For cooling tower fans, variable speed control maintains optimal approach temperatures while reducing noise pollution—a critical consideration for urban installations.

Sourcing for this sector requires attention to building management system (BMS) integration; drives should support BACnet/IP, LonWorks, or Modbus protocols for seamless integration with existing automation infrastructure. Sleep mode functionality—where the drive automatically shuts down during no-flow conditions and wakes on demand—prevents unnecessary idling energy consumption. Additionally, specify drives with automatic carrier frequency adjustment to reduce motor noise and bearing currents, extending motor life in continuous-duty air handling applications.

Mining & Cement Processing

Heavy industrial applications subject VFDs to extreme environmental stressors including high vibration, conductive dust, and wide temperature swings. In cement manufacturing, kiln drives require precise torque control during material load variations, while crusher applications demand high overload capacity (150–200% for 60 seconds) to handle jam-clearing events. For long-distance conveyors, regenerative VFDs capture gravitational energy from downhill sections, feeding power back to the grid or sharing it across the facility DC bus.

When specifying for mining environments, prioritize drives with conformal-coated PCBs (protection against sulfur and salt atmospheres) and vibration-resistant chassis rated for 2.5G or higher. Flux vector control or direct torque control (DTC) algorithms are essential for maintaining precise speed regulation under varying load inertia. For safety-critical conveyor applications, specify drives with Safe Torque Off (STO) safety functions integrated with the facility’s E-stop systems and pull-cord switches.

---

Procurement Guidance for Distributors: When evaluating VFD suppliers for these sectors, verify not only the drive’s ampacity and voltage ratings but also the availability of application-specific macro configurations. Leading manufacturers provide pre-programmed settings for pump control, fan curves, and conveyor logic—reducing commissioning time by 40–60% and minimizing startup errors that plague complex industrial projects.

Top 3 Engineering Pain Points for Variable Frequency Drive

Scenario 1: Grid Harmonics and Power Quality Distortion from Six-Pulse Converters

The Problem: Standard VFDs utilize six-pulse converter sections that create six current pulses per cycle through diode switching. This non-linear operation generates characteristic 5th, 7th, and 11th harmonics, causing voltage distortion upstream and overheating of transformers and power factor correction capacitors. For EPC contractors deploying multiple drives in solar pumping stations or industrial plants, this violates IEEE 519 standards and can trigger utility penalties or equipment resonance.

The Solution: Boray Inverter engineers integrate DC bus chokes and EMC filters to smooth the AC ripple in the DC bus section, reducing THDi (Total Harmonic Current Distortion) to <5%. For large-scale agricultural projects, specifying AFE (Active Front End) regenerative drives or 12/18-pulse configurations eliminates harmonic feedback entirely, ensuring grid compliance and protecting upstream electrical infrastructure.

Scenario 2: DC Bus Instability in Solar-Pump Applications Without Grid Backup

The Problem: In solar pumping systems, the VFD’s converter section must handle highly variable DC input from PV arrays (300V-800V fluctuation) rather than stable grid AC. Without proper Maximum Power Point Tracking (MPPT) integration, the DC bus voltage becomes unstable, causing under-voltage faults, torque ripple, and motor stalling during cloud transients or low irradiance conditions—critical failures for remote irrigation projects where reliability is paramount.

The Solution: Boray’s Solar Pump Inverters feature specialized MPPT algorithms that maintain optimal DC bus voltage levels despite solar irradiance fluctuations. By dynamically adjusting the switching frequency of the inverter section and incorporating large-capacity DC link capacitors, these drives ensure continuous motor operation even with 30% voltage sags, providing reliable water pumping from sunrise to sunset without grid dependency.

Scenario 3: Harsh Environment Degradation of Converter and Control Electronics

The Problem: Industrial and agricultural VFD installations expose sensitive converter and DC bus components to dust, moisture, and temperature extremes (often exceeding 60°C in solar pump enclosures). Standard IP20-rated drives suffer from cooling fan failures, condensation on diode bridges, and corrosion of bus bars, leading to premature failure of the rectifier section and costly downtime in remote locations where maintenance access is limited.

The Solution: Boray Inverter provides IP65/66-rated VFD enclosures with conformal-coated PCBs and sealed converter sections that protect the diode bridges and DC bus from environmental contaminants. Fanless cooling designs utilizing heatsink technology eliminate moving parts, while wide-temperature components (-25°C to +60°C operation) ensure the converter section maintains stable DC output even in desert or tropical agricultural environments.

Component and Hardware Analysis for Variable Frequency Drive

The internal architecture of a Variable Frequency Drive (VFD) represents a sophisticated integration of power electronics, thermal management, and real-time digital control. For industrial engineers and EPC contractors specifying equipment for solar pumping stations or heavy-duty motor control applications, understanding the hardware topology beyond the block diagram level is critical for predicting long-term reliability, efficiency, and total cost of ownership.

A robust VFD topology comprises three fundamental stages: the input rectifier (converter), the DC link circuit (bus), and the output inverter section. Each stage relies on specific component classes that must withstand significant electrical stress, thermal cycling, and environmental factors—particularly in agricultural or remote solar installations where ambient temperatures fluctuate dramatically and maintenance access is limited.

Power Semiconductor Modules (IGBTs/IPMs)
The Insulated Gate Bipolar Transistor (IGBT) module serves as the primary switching element in the inverter section, converting the DC bus voltage back into variable-frequency, variable-voltage AC to control motor speed. Modern intelligent power modules (IPMs) integrate gate drivers and protection circuitry directly with the IGBT dies to minimize switching losses and electromagnetic interference (EMI). In solar pump inverter applications, where maximum power point tracking (MPPT) algorithms demand rapid switching cycles to optimize photovoltaic array output, the selection of IGBT modules with low thermal resistance (Rth(j-c)) and high short-circuit withstand capability is paramount. Seventh-generation trench-gate field-stop IGBTs from tier-one manufacturers offer superior conductivity modulation, reducing conduction losses by up to 20% compared to older planar technologies—directly translating to higher system efficiency and lower heatsink requirements in compact solar pump controllers.

DC Link Capacitors and Energy Storage
Following the six-pulse rectifier bridge (or active front-end in regenerative drives), the DC bus capacitors stabilize the rectified voltage and supply ripple current to the inverter. Electrolytic aluminum capacitors remain the industry standard for low-voltage drives (up to 690V), though film capacitors are increasingly adopted in high-reliability solar applications due to their longer lifespan and stable capacitance across temperature extremes. The equivalent series resistance (ESR) and ripple current rating determine the thermal stress on these components; excessive heat accelerates electrolyte evaporation in aluminum capacitors, leading to capacitance loss and eventual failure. For agricultural VFD installations exposed to high ambient temperatures, specifying capacitors rated for 105°C with extended life ratings (e.g., 10,000 hours at rated temperature) is essential to prevent mid-life degradation of the DC bus.

Digital Signal Processor (DSP) and Control Architecture
The control board functions as the VFD’s central nervous system, utilizing high-performance DSPs or ARM-based microcontrollers to execute vector control algorithms, PWM generation, and fault protection routines within microseconds. In solar pumping applications, the controller must simultaneously manage MPPT optimization, motor flux vector calculations, and dry-run protection algorithms. Quality indicators include processor clock speed (affecting control loop bandwidth), ADC resolution for current sensing (critical for precise torque control), and conformal coating standards (IPC-CC-830) to protect against humidity and corrosive atmospheres common in agricultural environments. Advanced drives employ dual-core architectures separating motor control from communication protocols, ensuring deterministic response times even when handling complex Modbus or CANopen network traffic.

Thermal Management Systems
Thermal design often determines the practical lifespan of a VFD more than any electrical specification. The cooling system must dissipate heat generated by IGBT switching losses (typically 2-4% of throughput power) and rectifier conduction losses. Forced-air cooling using ball-bearing fans with MTBF ratings exceeding 50,000 hours remains standard for enclosed industrial panels, while solar pump inverters frequently utilize natural convection or liquid cooling to eliminate moving parts entirely. Heatsink design requires careful analysis of thermal interface materials (TIMs) between the IGBT baseplate and aluminum extrusions; phase-change materials with high thermal conductivity (>5 W/mK) ensure minimal junction-to-ambient thermal resistance. In dusty agricultural environments, heatsink fin spacing must balance thermal performance against clogging resistance, often requiring IP54 or IP65 enclosure ratings with filtered ventilation or sealed designs.

Input/Output Protection and Filtering
Electromagnetic compatibility (EMC) components, including common-mode chokes, DC link inductors, and RFI filters, protect both the VFD and surrounding sensitive equipment from conducted emissions. The input reactor (choke) limits inrush current during startup and mitigates harmonic distortion reflected back to the grid or solar array. Output dv/dt filters become critical when driving long motor leads (>50 meters) in deep-well solar pumping applications, preventing voltage reflection that can cause insulation stress in submersible motor windings. Metal oxide varistors (MOVs) and transient voltage suppression (TVS) diodes provide surge protection against lightning strikes common in exposed solar installations.

Component Analysis Matrix

Component	Function	Quality Indicator	Impact on Lifespan
IGBT Module	High-speed switching for DC-AC inversion; motor torque control	Thermal resistance (Rth < 0.6 K/W), VCE(sat) rating, short-circuit withstand time (>10μs), manufacturer tier (Infineon, Mitsubishi, Fuji)	Primary failure mode in harsh environments; thermal cycling causes solder fatigue and bond wire lift-off, typically limiting lifespan to 50,000-100,000 hours depending on junction temperature
DC Link Capacitors	Energy storage, ripple current absorption, voltage stabilization	ESR (mΩ range), ripple current rating (ARMS), temperature rating (105°C vs 85°C), life expectancy at rated temp (hours)	Electrolyte evaporation leads to capacitance drift; 10°C reduction in operating temperature doubles lifespan; film capacitors offer 100,000+ hour life
DSP/Controller Board	PWM signal generation, vector control algorithms, communication protocols	Processing MIPS, ADC resolution (12-bit minimum), conformal coating grade (IPC-CC-830), operating temperature range (-40°C to +85°C industrial grade)	Control precision degradation or catastrophic failure due to humidity/corrosion; thermal stress causes solder joint fractures in BGA packages
Cooling System	Thermal dissipation for semiconductors; maintaining Tj < 125°C	Heatsink thermal resistance (°C/W), fan MTBF (L10 life at 40°C), TIM thermal conductivity (>5 W/mK), fin density vs dust accumulation	Overheating accelerates all component aging; fan bearing failure is leading cause of VFD downtime in agricultural applications; thermal runaway causes catastrophic IGBT failure
Input Rectifier Bridge	AC-DC conversion; power factor correction	Peak surge current rating (I2t), reverse recovery time (trr), forward voltage drop (VF)	Grid voltage transients cause diode degradation; poor heat sinking leads to thermal runaway and short-circuit failure
EMI/RFI Filters	Conducted noise suppression; grid compliance	Attenuation rating (dB), core material (nanocrystalline vs ferrite), insulation resistance	Degradation of magnetic core properties over time; capacitor failure in filter circuits can create ground fault conditions

Integration Considerations for Solar Pumping Applications
In photovoltaic-powered pumping systems, component selection must account for unique operational stressors including wide input voltage variations (200VDC to 800VDC in standard arrays), intermittent power availability during cloud transients, and the absence of grid impedance to limit fault currents. Boray Inverter’s solar pump VFDs utilize enhanced DC link capacitance banks to buffer photovoltaic power fluctuations and ruggedized IGBT modules rated for 600V or 1200V operation with extended reverse bias safe operating areas (RBSOA). The thermal management systems are specifically engineered for outdoor cabinet installations, employing anodized aluminum heatsinks with anti-corrosion treatments and optional liquid cooling plates for high-altitude, high-irradiance environments where air cooling efficiency diminishes.

For EPC contractors evaluating VFD hardware for irrigation projects or industrial automation distributors assessing inventory reliability, prioritizing drives with component derating margins—particularly semiconductor voltage ratings 2-3x the nominal operating voltage and capacitor temperature ratings 20°C above expected ambient—provides the necessary engineering margin to achieve 15-20 year operational lifespans in demanding field conditions.

Manufacturing Standards and Testing QC for Variable Frequency Drive

At Boray Inverter, our manufacturing philosophy centers on zero-defect reliability—a critical requirement for variable frequency drives deployed in solar pumping stations and industrial automation where downtime costs exceed equipment value by orders of magnitude. Our quality control protocols exceed baseline IEC 61800-2 requirements, implementing military-grade environmental screening adapted for the thermal stresses and particulate contamination inherent to agricultural and heavy industrial applications.

PCB Protection and Environmental Hardening

The foundation of VFD longevity begins at the printed circuit board level. We implement IPC-A-610 Class 3 acceptance criteria for all power and control PCBs, ensuring high-reliability solder joints capable of withstanding thermal cycling from -40°C to +70°C ambient operation.

Conformal Coating Protocols:
All PCBs receive automated selective conformal coating application using urethane or silicone-based compounds (per IPC-CC-830), providing:
– Dielectric strength >1500V to prevent arc tracking in high-humidity environments (>95% RH)
– Chemical resistance against agricultural fertilizers, pesticides, and industrial solvents
– Salt spray protection (ASTM B117, 500+ hours) for coastal solar installations
– Thermal conductivity management to prevent localized hot spots on IGBT driver circuits

Our coating process includes 100% automated optical inspection (AOI) for thickness uniformity (50-100μm target) and coverage completeness, followed by UV fluorescence verification to ensure no shadowed areas remain unprotected beneath high-profile components.

Accelerated Life Testing and Thermal Validation

Before final assembly, every power module undergoes High-Temperature Operating Life (HTOL) testing to precipitate early-life failures (infant mortality) and validate thermal design margins.

Burn-In Specifications:
– Temperature: 60°C ±2°C ambient (simulating enclosed panel conditions in direct sunlight)
– Duration: 48-72 hours continuous operation
– Load Profile: Cyclic loading from 25% to 110% rated current to stress thermal interfaces and solder joints
– Monitoring: Real-time thermal imaging of IGBT junctions and DC bus capacitors, with automatic shutdown if ΔT exceeds 15°C from baseline

This process identifies latent defects in power semiconductor mounting, capacitor electrolyte integrity, and thermal interface material (TIM) application—faults invisible to standard room-temperature functional testing.

100% Full-Load Production Testing

Unlike statistical sampling methods, Boray Inverter mandates 100% full-load testing across the complete operational envelope. Each VFD undergoes:

Dynamic Load Testing:
– Full-load operation at 0Hz, 50Hz, and maximum output frequency (typically 400Hz for specialized applications)
– Regenerative load testing to verify braking chopper functionality and DC bus voltage clamping
– Motor simulation testing using RLC load banks that replicate inductive motor characteristics, verifying current waveform fidelity and torque control algorithms
– Efficiency verification at 25%, 50%, 75%, and 100% load points (ensuring IE2/IE3 compliance for system efficiency)

Protection Circuit Validation:
– Overcurrent trip verification at 150% and 200% rated current
– Phase-loss detection and response time measurement (<100ms)
– Ground fault impedance testing (30mA sensitivity for personnel protection)

Test data is archived by serial number, creating a digital birth certificate for traceability and warranty validation.

International Standards Compliance and Certification

Our manufacturing facilities maintain ISO 9001:2015 quality management systems with specific procedures for VFD production per IEC 61800-2 (Adjustable Speed Electrical Power Drive Systems) and IEC 61800-5-1 (Safety Requirements).

CE Marking and EMC Compliance:
– LVD (Low Voltage Directive): EN 61800-5-1 for insulation coordination and creepage distances
– EMC Directive: EN 61800-3 (Category C2/C3) for conducted and radiated emissions, with integrated EMC filters tested for compliance at full switching frequency (2-16kHz typical)
– RoHS 3 and REACH: Full material declaration traceability for environmental compliance

Solar-Specific Certifications:
For solar pump inverter applications, we additionally verify compliance with IEC 62109-1 (Safety of Power Converters for Use in Photovoltaic Systems) and NB/T 32004 (China National Energy Administration standards for photovoltaic inverters), ensuring compatibility with PV array characteristics including wide MPPT voltage ranges and islanding protection.

Component Traceability and Supply Chain Control

Quality extends upstream through our AVL (Approved Vendor List) management:
– IGBT Modules: Sourced exclusively from Tier-1 manufacturers (Infineon, Mitsubishi, Fuji) with full lot traceability and VCE(sat) parameter screening
– DC Link Capacitors: Film capacitors rated for 100,000 hours life at rated temperature, with ESL (Equivalent Series Inductance) testing to ensure switching noise suppression
– PCB Laminates: FR-4 with high Tg (glass transition temperature >170°C) for thermal stability in tropical climates

Each VFD carries a QR-coded serial number linking to component batch records, enabling rapid failure analysis and targeted recall capabilities if supplier anomalies are detected post-shipment.

Packaging and Shipping Validation

Final QC extends to logistics protection:
– Vibration testing per ASTM D4169 (truck transport simulation) to ensure solder joint integrity during international shipping
– Desiccant packaging with humidity indicator cards for ocean freight protection
– IP rating verification of enclosure seals (IP54 standard, IP65 optional for outdoor solar pump installations) via hose-down testing before crating

This comprehensive manufacturing and testing ecosystem ensures that when a Boray VFD reaches your solar pumping project or industrial facility, it has already survived the equivalent of five years of operational stress—delivering the reliability that EPC contractors require for warranty compliance and agricultural operators demand for uninterrupted irrigation cycles.

Step-by-Step Engineering Sizing Checklist for Variable Frequency Drive

Proper sizing of a Variable Frequency Drive (VFD) or Solar Pump Inverter represents one of the most critical engineering decisions in industrial automation and renewable energy projects. An undersized drive will trip on overcurrent or thermal faults, while excessive oversizing degrades power factor, increases harmonic distortion, and inflates capital expenditure. The following systematic checklist provides a rigorous engineering workflow for specifying VFDs in both grid-tied industrial applications and off-grid solar pumping systems.

---

1. Motor Nameplate Data Verification & Classification

Before selecting any drive, extract and verify all parameters from the motor nameplate:

• Power Rating: Record both kilowatts (kW) and horsepower (HP). Verify if the rating is continuous duty (S1) or intermittent.
• Full Load Amps (FLA): This is the primary sizing metric, not the HP rating. FLA must be measured or calculated for the actual operating voltage.
• Voltage & Frequency: Note nominal voltage (e.g., 380V, 480V, 690V) and base frequency (50Hz/60Hz). Confirm the motor’s insulation class (F or H) for VFD duty, as inverter-duty motors withstand higher voltage spikes (dV/dt).
• Service Factor (SF): If SF > 1.0, the VFD must accommodate the elevated current without tripping (typically 1.15 SF requires 115% continuous current capability).
• NEMA Design Type:
  • Design B: General purpose, standard VFDs suffice.
  • Design D: High slip, high starting torque (oil well pumps, compressors)—requires heavy-duty VFDs with 150-200% overload capacity for 60 seconds.
  • Design C: High starting torque with low starting current—verify torque boost parameters.

2. Load Characterization & Torque Profiling

Analyze the mechanical load to determine the required torque profile:

Load Type	Characteristics	VFD Requirement
Variable Torque (Centrifugal pumps, fans)	Torque ∝ Speed², Power ∝ Speed³	Standard VFD with quadratic V/f curve; 110% overload for 60s
Constant Torque (Conveyors, positive displacement pumps)	Torque constant regardless of speed	Heavy-duty VFD; 150% overload for 60s; check low-speed cooling
Constant Power (Winding reels, machine tools)	Power constant, Torque ∝ 1/Speed	Regenerative drive or braking resistor required; field weakening control

• Inertia Ratio: Calculate the ratio of load inertia to motor inertia (J_load / J_motor). Ratios > 10:1 require extended acceleration/deceleration ramps or encoder feedback (vector control).
• Starting Torque: Verify the breakaway torque requirement. Submersible pumps may require 130-150% starting torque.

3. Supply Side Electrical Analysis

For Grid-Tied Applications:
* Input Voltage Tolerance: Confirm the VFD’s input voltage range accommodates utility fluctuations (typically ±10%). Check for phase imbalance (<3% max).
* Short Circuit Current Rating (SCCR): Ensure the VFD enclosure SCCR exceeds the available fault current at the installation point.
* Harmonic Mitigation: For drives >50HP, calculate expected Total Harmonic Distortion (THD). If THD(i) > 5%, specify input line reactors (3% impedance) or active front end (AFE) drives.

For Solar Pump Applications (DC Input):
* Open Circuit Voltage (Voc): Calculate maximum string voltage at record low temperature (T_min) using temperature coefficient (typically -0.3%/°C). Voc_max must be < VFD maximum DC input voltage with 20% safety margin.
* Maximum Power Point Voltage (Vmp): Ensure Vmp at standard test conditions (STC) falls within the VFD’s MPPT voltage window.
* Current Rating: Size PV array current at 1.25× the VFD’s rated input current to account for irradiance spikes and cloud-edge effects.

4. Environmental Derating Factors

Apply correction factors for non-standard conditions per IEC 60076 or NEMA MG1:

• Altitude: Above 1,000m (3,300 ft), derate VFD current by 1% per 100m due to reduced air cooling capacity. Above 2,000m, consider external cooling or sealed enclosures (IP54/NEMA 12).
• Ambient Temperature: Standard rating is 40°C (104°F). For every 1°C above 40°C, derate 2.5% or provide forced ventilation.
• Enclosure Integrity: In dusty agricultural or desert environments, specify IP65/NEMA 4X enclosures. Calculate heat dissipation (Watts = VFD losses ≈ 3-5% of kW rating) and verify cabinet ventilation CFM.

5. Solar Array Sizing Calculations (PV Pumping Systems)

For solar pump inverters, the DC source sizing follows hydraulic load calculations:

A. Hydraulic Power Requirement:

P_hydraulic (kW) = (Q × TDH × ρ × g) / (3.6 × 10⁶ × η_pump)

Where:
* Q = Flow rate (m³/hour)
* TDH = Total Dynamic Head (m) = Static Head + Friction Losses + Discharge Pressure
* ρ = Fluid density (kg/m³)
* η_pump = Pump efficiency (decimal)

B. PV Array Sizing:
* Oversizing Ratio: Size PV array at 1.25–1.5× the hydraulic power requirement to account for:
* Irradiance variability (Peak Sun Hours)
* Temperature derating (-0.4%/°C for crystalline modules)
* Dust/soiling losses (5-10%)
* System inefficiencies (cables, mismatch, inverter efficiency 95-98%)
* String Configuration:
* Minimum strings: Ensure Vmp_min > VFD minimum operating voltage at high temperatures (T_max).
* Maximum strings: Ensure Voc_max < VFD absolute maximum DC voltage at T_min.

6. VFD Current Rating Specification

Select the drive based on output current, not input current:

• Continuous Current: VFD rated current ≥ 1.1 × Motor FLA (10% safety margin minimum).
• Overload Capacity:
  • Light Duty: 110% for 60 seconds (variable torque).
  • Heavy Duty: 150% for 60 seconds, 200% for 3 seconds (constant torque, high inertia).
• Switching Frequency: Higher frequencies (8-16 kHz) reduce motor noise but increase VFD heating. Derate current by 10-20% if operating above 4 kHz.

7. Voltage Compatibility & Insulation Coordination

• Input/Output Voltage Match: Verify the VFD’s output voltage range matches the motor’s voltage rating across the entire speed range.
• Reflected Wave Protection: For motor cable lengths > 50m (150 ft), specify output reactors or dV/dt filters to protect motor insulation from voltage spikes (peak voltage < 1,600V for 480V systems).
• DC Bus Voltage: For solar applications, verify the VFD’s DC bus capacitors are rated for the maximum string voltage including temperature coefficients.

8. Protection Coordination & Ancillary Components

• Input Protection: Size circuit breakers or fuses at 1.5× VFD input current (semiconductor fuses for short-circuit protection).
• Cable Sizing: Size output cables for 125% of motor FLA due to harmonic heating. Use symmetrically shielded cables with 100% ground coverage for EMI suppression.
• Braking Systems: For high-inertia loads or downhill conveyors, calculate braking resistor wattage:
  W_brake = (J × ω² × Decelerations_per_minute) / 7200
  Where J = total inertia (kg·m²), ω = angular velocity (rad/s).
• EMI Filters: Specify input filters if the installation is near sensitive equipment (PLCs, sensors) to meet IEC 61800-3 Category C2 or C3.

9. Control Interface & Communication Validation

• I/O Verification: Confirm digital inputs (24VDC/120VAC), analog inputs (4-20mA/0-10V), and relay outputs match the control scheme.
• Communication Protocols: Verify compatibility with existing SCADA/PLC networks (Modbus RTU/TCP, Profibus, Profinet, EtherNet/IP).
• Sensor Feedback: For closed-loop control, verify encoder resolution (PPR) matches VFD feedback card specifications.

10. Final Validation Checklist

Before releasing specifications for procurement:

• [ ] Motor FLA < VFD rated current × 0.9 (safety margin)
• [ ] VFD voltage rating ≥ Supply voltage × 1.15
• [ ] For solar: Voc_max < VFD_max_DC × 0.8; Vmp_min > VFD_min_DC × 1.2
• [ ] Ambient derating applied if T > 40°C or Altitude > 1,000m
• [ ] Braking resistor calculated for deceleration time < 10 seconds (if applicable)
• [ ] Cable length < 100m or output reactor specified
• [ ] Harmonic analysis completed for drives > 50HP
• [ ] IP rating suitable for environment (IP65 for outdoor agricultural)

Documentation Package: Include torque-speed curves, single-line diagrams showing protection coordination, thermal calculations for enclosure cooling, and solar array string layout diagrams (for PV applications) with voltage calculations at extreme temperatures.

Wholesale Cost and Energy ROI Analysis for Variable Frequency Drive

When evaluating Variable Frequency Drive (VFD) procurement for industrial automation or solar pumping infrastructure, discerning between wholesale acquisition costs and long-term energy return on investment (ROI) requires a nuanced understanding of both electrical engineering economics and supply chain dynamics. For EPC contractors and agricultural project managers, the initial unit price represents only a fraction of the Total Cost of Ownership (TCO), particularly when deploying drives in harsh environmental conditions common to solar irrigation or heavy manufacturing environments.

B2B Pricing Architecture: Wholesale vs. Retail Dynamics

The industrial VFD market operates on a tiered pricing structure that typically creates a 35-50% spread between manufacturer wholesale rates and end-user retail pricing. For standard low-voltage drives (380V-480V, 0.75kW-75kW range), wholesale volume tiers generally break down as follows:

Volume Tier Analysis:
– Prototype/MTO (1-9 units): Base wholesale pricing with limited customization
– Project Tier (10-49 units): 15-22% reduction from list price, applicable for pilot agricultural installations or small industrial retrofits
– EPC/Distributor Tier (50-499 units): 28-35% reduction, standard for solar pumping station deployments or manufacturing line upgrades
– OEM Partnership (500+ units): 40-45% reduction with firmware customization rights and private labeling options

Retail markup structures in the electrical supply chain typically add 30-45% for industrial distributors and 50-80% for localized electrical contractors. However, direct manufacturer relationships—particularly with specialized producers like Boray Inverter—eliminate intermediary costs while providing application-specific engineering support critical for solar pump integration or complex motor control scenarios.

Energy ROI Calculation Framework

The economic justification for VFD deployment hinges on the Affinity Laws, which dictate that a motor’s power consumption cubes in relation to speed reduction. For centrifugal pumps and fans—the primary loads in agricultural and HVAC applications—reducing motor speed by just 20% yields approximately 50% energy savings.

Standard ROI Calculation Model:

For a 30kW irrigation pump operating 2,000 hours annually at $0.12/kWh:

• Baseline Energy Cost (DOL starting): 30kW × 0.85 efficiency × 2,000 hrs × $0.12 = $6,120/year
• VFD-Optimized Operation (60% average load): 30kW × (0.6)³ × 2,000 hrs × $0.12 = $1,555/year
• Annual Savings: $4,565
• VFD Investment (Wholesale Tier): $1,200-$1,800 (depending on IP rating and communication protocols)
• Simple Payback Period: 3.2-4.7 months

In solar pumping applications, the ROI calculation must incorporate photovoltaic (PV) array optimization. Modern solar pump inverters with Maximum Power Point Tracking (MPPT) algorithms achieve 98% conversion efficiency, extracting 15-25% more energy from PV arrays compared to traditional DC-AC conversion methods. This effectively reduces required panel wattage by 20%, translating to $200-$400 savings per kilowatt of installed solar capacity—often exceeding the cost of the drive itself.

Warranty Cost Risk Analysis

Warranty structures significantly impact TCO, particularly in outdoor solar installations where temperature fluctuations and humidity stress converter sections and DC bus capacitors. Standard industry warranties range from 12-24 months, while premium tiers extend to 5 years with advanced replacement provisions.

Cost-Benefit Analysis of Extended Coverage:

• Standard Warranty (2-year): Included in base wholesale price ($0 incremental)
• Extended Warranty (5-year): 8-12% of unit cost, but reduces risk exposure by 60%
• Repair vs. Replacement Economics: Field replacement of a failed 6-pulse converter section costs approximately 40% of new drive price, while bus capacitor replacement runs 15-20%. For agricultural projects in remote locations, logistics often make replacement more economical than repair.

IP rating selection dramatically affects warranty claims frequency. IP20-rated drives suitable for controlled electrical rooms carry 2-3% annual failure rates in industrial settings, whereas IP54/IP65-rated units with conformal coating (essential for solar pump inverters exposed to dust and moisture) demonstrate sub-1% failure rates, justifying their 15-20% price premium through reduced warranty exposure.

Solar-Specific Economic Considerations

For agricultural project managers evaluating solar pumping VFDs, the economic model shifts from simple energy savings to system integration efficiency. AC solar pump inverters eliminate the need for battery storage in irrigation applications, reducing system costs by $0.50-$0.80 per watt compared to battery-coupled systems.

Comparative Cost Structure (50kW Solar Pumping Station):

• Traditional Grid + VFD: $45,000 equipment, $8,200 annual energy cost
• DC Solar + Battery + Standard Inverter: $85,000 equipment, $1,200 annual maintenance
• AC Solar Pump Inverter (Direct Drive): $62,000 equipment, $400 annual maintenance

The direct-drive solar VFD configuration achieves break-even at 4.2 years versus grid power, and 2.1 years versus battery-coupled systems, while eliminating the 5-7 year battery replacement cycle that plagues traditional solar pumping architectures.

Strategic Procurement Recommendations

For automation distributors and EPC contractors, negotiating wholesale agreements should prioritize:

1. Harmonic Mitigation Inclusion: Specify DC chokes or active front ends (AFE) in initial procurement rather than retrofitting, reducing total installation costs by 18-25%
2. Communication Protocol Standardization: Standardizing on Modbus RTU/TCP or CANopen across projects reduces commissioning costs by $150-$300 per node
3. Spare Parts Inventory Management: Maintaining a 2% spare ratio of critical components (IGBT modules, cooling fans) reduces project downtime costs by 90% while adding only marginal inventory carrying costs

When sourcing from manufacturers with integrated R&D capabilities—such as those offering customized firmware for specific pump curves or torque control algorithms—the wholesale price premium of 5-8% over generic drives yields 15-20% efficiency gains in specialized applications, fundamentally altering the ROI calculation in favor of application-specific solutions over commodity drives.

Alternatives Comparison: Is Variable Frequency Drive the Best Choice?

Selecting the optimal motor control and power delivery architecture requires a systematic evaluation of technical requirements, lifecycle costs, and operational constraints. While Variable Frequency Drives (VFDs) offer unparalleled speed control and energy optimization, alternative technologies such as soft starters, direct-on-line (DOL) systems, and fixed-speed solar pumping solutions may present viable options depending on application specificity. Below is a technical analysis comparing VFD implementations against primary alternatives across industrial automation and solar pumping contexts.

Motor Starting and Control Methodologies

The fundamental distinction between motor control strategies lies in the balance between initial capital expenditure and operational flexibility. Across-the-line (DOL) starting provides the lowest upfront cost but imposes severe mechanical and electrical stress through inrush currents reaching 600-800% of full-load amperage (FLA). Soft starters mitigate this through thyristor-based voltage ramping, reducing starting torque and current to 200-400% FLA, yet they lack operational speed control once the motor reaches full speed.

In contrast, VFDs utilize insulated-gate bipolar transistor (IGBT) technology to convert fixed-frequency AC to DC and back to variable-frequency AC, enabling precise speed regulation from zero to base speed and beyond. This topology eliminates inrush current entirely by magnetizing the motor at controlled voltage/frequency ratios (V/Hz), while providing regenerative braking capabilities and power factor correction near unity.

Comparative Analysis: Motor Control Strategies

Parameter	Across-the-Line (DOL)	Soft Starter	Variable Frequency Drive (VFD)
Starting Current	600-800% FLA	200-400% FLA	100-150% FLA (controlled ramp)
Speed Control	Fixed (synchronous speed)	Fixed (bypass mode)	10:1 to 100:1 range
Energy Efficiency	Constant, poor at partial load	Constant, poor at partial load	Optimized across load curve
Power Factor	0.70-0.85 lagging	0.70-0.85 lagging	Near unity (0.95+)
Initial Cost	$ (Low)	$$ (Medium)	$$$ (Higher)
Maintenance	Minimal	Low (thyristor aging)	Moderate (cooling, capacitors)
Best Application	Constant torque, infrequent starts	High inertia loads, limited starts	Variable torque, precise process control

Power Source Architectures: Solar VFD vs. Grid-Powered Systems

For agricultural and remote industrial pumping applications, the decision extends beyond motor control to power generation methodology. Traditional grid-powered systems offer consistent voltage and frequency stability but incur recurring energy costs and infrastructure dependency. Solar pump inverters—specialized VFDs with integrated Maximum Power Point Tracking (MPPT)—convert DC photovoltaic output directly to variable-frequency AC, eliminating battery storage requirements in most pumping scenarios.

Grid-powered soft starters or DOL systems cannot accommodate the variable irradiance conditions inherent to solar arrays. Without frequency modulation capability, these systems would require oversized PV arrays or battery banks to maintain fixed motor speeds, significantly reducing system efficiency and increasing capital costs. Modern solar pump VFDs dynamically adjust motor frequency (typically 20-50Hz range) to match available solar power, maintaining pump operation during low-light conditions while preventing array voltage collapse.

Comparative Analysis: Power Delivery for Pumping Applications

Feature	Grid-Powered DOL/Soft Starter	Grid-Powered VFD	Solar Pump Inverter (VFD)
Power Source	AC Grid (stable)	AC Grid (stable)	DC Solar Array (variable)
MPPT Integration	N/A	N/A	Essential (98%+ efficiency)
Operating Cost	High (grid electricity)	Medium (optimized grid use)	Near Zero (solar fuel)
Grid Dependency	100%	100%	Zero (off-grid capable)
Flow Control	On/off or throttling valves	Variable speed	Variable speed with solar tracking
CAPEX (Pumping Station)	Low	Medium	Medium-High (includes PV)
Payback Period	N/A	2-4 years (energy savings)	3-7 years (vs. diesel/grid)
Environmental Impact	High (grid carbon intensity)	Medium (reduced consumption)	Zero operational emissions

Motor Technology Pairing: Induction Motors vs. Permanent Magnet Synchronous Motors

When implementing VFD-based solutions, motor selection significantly impacts system efficiency. Standard squirrel-cage induction motors (IM) offer robustness and cost-effectiveness but typically operate at 85-92% efficiency with power factors degrading at partial loads. Permanent Magnet Synchronous Motors (PMSM), when paired with sensorless vector VFDs, achieve 93-98% efficiency across the operating range and maintain near-unity power factor without requiring power factor correction capacitors.

For solar pumping applications where photovoltaic array costs dominate the budget, PMSM-VFD combinations reduce required PV capacity by 15-25% compared to induction motor systems, often offsetting the higher motor cost through reduced solar infrastructure. However, PMSM systems require VFDs with specific control algorithms (such as Boray’s sensorless vector control) to manage rotor position estimation without encoder feedback, adding complexity to the drive configuration.

Comparative Analysis: Motor Technologies with VFD Control

Specification	Induction Motor (IM) + VFD	Permanent Magnet Motor (PMSM) + VFD
Full-Load Efficiency	85-92%	93-98%
Partial Load Efficiency	75-85% at 50% load	90-95% at 50% load
Power Factor	0.80-0.90 (lagging)	0.95-0.99 (leading)
Motor Cost	1.0x (baseline)	1.5-2.5x
VFD Requirements	Standard V/Hz or Vector	Sensorless Vector or Servo
Temperature Rise	Higher (copper losses)	Lower (rare-earth magnets)
Maintenance	Minimal (rugged construction)	Moderate (demagnetization risk)
Optimal Use Case	General industrial, constant torque	Solar pumping, high-efficiency HVAC

Strategic Decision Matrix

Choose VFD Technology When:
– The application requires variable flow/pressure control (pumping, HVAC, process control)
– Energy recovery through regenerative braking is feasible
– Soft starting is required but speed control offers additional process optimization
– Operating in solar-powered or hybrid renewable energy systems where power variability necessitates frequency adjustment

Consider Soft Starters When:
– The load requires only starting current limitation (high inertia fans, crushers)
– Full-speed operation is constant and temporary speed reduction provides no process benefit
– Initial budget constraints override long-term energy savings calculations

Consider Direct-On-Line When:
– Motors are small (<5kW) and start infrequently
– Mechanical shock is acceptable and process control is binary (on/off only)
– Backup generators or weak grids cannot accommodate VFD harmonics (though line reactors can mitigate this)

For EPC contractors and agricultural project managers evaluating solar irrigation systems, the VFD—specifically the solar pump inverter—represents the only technically viable solution for maximizing water output per watt of solar capacity. While grid-powered soft starters may suffice for fixed-speed municipal pumping, the integration of MPPT algorithms with variable frequency motor control creates synergies that alternative technologies cannot replicate in off-grid or diesel-replacement scenarios.

The convergence of declining PV costs and advanced VFD topologies has shifted the industry standard toward intelligent motor control. However, proper system design requires harmonic analysis (IEEE 519 compliance), thermal management planning, and motor insulation verification (for bearing current mitigation in VFD-fed systems), ensuring that the selected architecture delivers projected ROI across the 15-20 year operational lifespan typical of industrial motor installations.

Core Technical Specifications and Control Terms for Variable Frequency Drive

When specifying Variable Frequency Drives for industrial automation or solar pumping infrastructure, engineers and procurement managers must evaluate both the electromechanical performance envelope and the commercial frameworks governing international equipment supply. The following technical parameters and trade definitions establish the baseline for system compatibility, operational efficiency, and supply chain risk management.

Electrical Performance & Power Topology

Input Voltage Tolerance and Phase Configuration
Modern VFDs must accommodate grid fluctuations common in remote agricultural or industrial installations. Specify units with input voltage ranges of ±20% (e.g., 380V–480V three-phase systems or 200V–240V single-phase variants for smaller agricultural pumps). For solar pump inverters specifically, the DC input voltage window—typically 200V–800VDC depending on array configuration—must align with the photovoltaic string sizing to prevent under-voltage lockouts during low irradiance.

Output Frequency Resolution and Carrier Frequency
Standard VFDs operate between 0–400Hz, though specialized applications may require 0–600Hz. Critical for precision motor control is the carrier frequency (switching frequency), typically 2kHz–16kHz. Higher frequencies reduce motor noise and torque ripple but increase thermal stress on IGBT modules. Agricultural submersible pump applications often optimize around 4kHz–6kHz to balance acoustic performance with thermal efficiency.

Overload Capacity
Industrial drives differentiate between Variable Torque (VT) and Constant Torque (CT) ratings. For centrifugal pumps (VT), 110%–120% overload for 60 seconds suffices. For positive displacement pumps or crushers (CT), specify 150%–200% overload capacity for 60 seconds to handle startup inrush currents without faulting.

Advanced Motor Control Algorithms

Vector Control (Field-Oriented Control – FOC)
Unlike basic V/Hz control, Sensorless Vector Control decouples torque and flux components, enabling precise speed regulation (±0.5% accuracy) and high starting torque (200% at 0.5Hz). This is essential for deep-well solar pumps where low-speed starting prevents water hammer while maintaining sufficient torque to overcome static head pressure. For high-performance industrial conveyors, Closed-Loop Vector Control with encoder feedback achieves ±0.01% speed accuracy.

Maximum Power Point Tracking (MPPT)
In solar pumping VFDs, MPPT algorithms continuously adjust the effective load impedance to extract maximum available power from PV arrays. Specify MPPT efficiency >99% and voltage tracking ranges that accommodate seasonal temperature coefficients. Advanced implementations include Dry-Run Protection and Weak Sunlight Auto-Deceleration, which automatically reduce pump speed when irradiance drops below threshold levels, preventing cavitation and maintaining flow rather than hard-stopping the system.

PID Process Control
Integrated PID (Proportional-Integral-Derivative) controllers enable closed-loop automation without external PLCs. In irrigation systems, pressure transducers feed back to the VFD, which modulates pump speed to maintain constant pressure (setpoint) regardless of fluctuating demand or elevation changes. Specify PID sampling rates <100ms for stable pressure regulation in drip irrigation networks.

Communication & Integration Protocols

Industrial Fieldbus Compatibility
Modern VFDs must support Modbus RTU/ASCII (RS485) as standard, with optional Profibus-DP, CANopen, or EtherNet/IP for integration into SCADA systems. For solar pumping stations, GPRS/4G communication modules enable remote monitoring of flow rates, PV voltage, and fault codes via cloud platforms—critical for EPC contractors managing distributed agricultural installations.

EMC and Harmonic Compliance
Specify drives with built-in DC reactors or AC line reactors to achieve THDi (Total Harmonic Current Distortion) <5% per IEEE 519 or IEC 61000-3-6. For European markets, CE marking requires compliance with EN 61800-3 (C2 or C3 categories depending on environment).

Mechanical Specifications & Environmental Hardening

Ingress Protection (IP) Ratings
Outdoor solar pump inverters require IP65 or IP66 enclosures to withstand dust, monsoon conditions, and direct solar thermal loading. Industrial panel-mounted drives typically utilize IP20 protection with forced air cooling, requiring cabinet filtration systems rated for the ambient particulate level.

Thermal Management
Operating temperature ranges of -10°C to +50°C (with derating above 40°C) are standard. For desert agricultural applications, specify drives with conformal coating on PCBs to resist salt mist and humidity, extending MTBF (Mean Time Between Failures) beyond 50,000 hours.

International Commercial Terms (Incoterms 2020)

FOB (Free On Board)
Under FOB terms, the seller (manufacturer) delivers goods cleared for export onto the vessel designated by the buyer at the named port of shipment. Risk transfers when goods pass the ship’s rail. This term favors buyers with established freight forwarding relationships, allowing control over ocean freight and insurance costs. For VFD procurement, FOB is optimal when purchasing complete container loads (FCL) where the buyer can consolidate shipping with other project materials.

CIF (Cost, Insurance, and Freight)
CIF requires the seller to contract for carriage and insurance (minimum 110% of invoice value per Institute Cargo Clauses) to the named destination port. While the seller bears transit costs, risk still transfers at the port of shipment (not destination). This suits EPC contractors requiring turnkey procurement where the manufacturer manages logistics complexity, though buyers should verify that insurance coverage includes “All Risks” for sensitive electronic equipment susceptible to moisture damage during maritime transport.

EXW (Ex Works)
The seller makes goods available at their premises (factory). The buyer assumes all transportation costs and export clearance risks. While offering the lowest unit price, EXW places significant customs documentation burden on the buyer and is generally discouraged for international VFD procurement unless the buyer maintains a presence in the manufacturing country.

DDP (Delivered Duty Paid)
The seller delivers goods to the buyer’s specified location, cleared for import and bearing all duties/taxes. This minimizes procurement complexity for agricultural project managers but requires the manufacturer to possess robust import logistics capabilities in the destination country. DDP is advantageous for urgent replacement drives where downtime costs exceed logistics premiums.

Application-Specific Specification Matrices

Agricultural Solar Pumping
– MPPT Voltage Range: Must match PV array Voc (Open Circuit Voltage) and Vmp (Maximum Power Voltage) with 20% headroom for cold-weather voltage spikes.
– Soft-Start Duration: Programmable 0–60 second ramp-up to prevent pipeline pressure surges in drip irrigation.
– Dry-Run Protection: Current-sensing or external float-switch integration to shut down the pump when water levels recede.

Industrial Process Control
– Braking Chopper: Essential for high-inertia loads (centrifuges, fans) requiring rapid deceleration; specify duty cycle (typically 10%–20% ED).
– Flying Start: Capability to catch a spinning motor (coasting after power loss) without tripping on overcurrent—critical for HVAC fan arrays.

Harsh Environment Mining/Oil & Gas
– Conformal Coating: Acrylic or silicone-based PCB protection against H2S and salt spray.
– Vibration Resistance: Compliance with IEC 60068-2-6 (5Hz–150Hz, 1g acceleration) for pump skids in seismic zones.

When drafting technical specifications for tender documents, engineers should require manufacturers to provide Type Test Certificates for surge immunity (IEC 61000-4-5) and radiated emissions, ensuring the VFD will not interfere with adjacent solar monitoring equipment or wireless communication systems at remote installation sites.

Future Trends in the Variable Frequency Drive Sector

The variable frequency drive (VFD) sector is undergoing a paradigm shift driven by the convergence of wide-bandgap semiconductor technology, decentralized renewable energy architectures, and Industry 4.0 connectivity protocols. For industrial engineers and EPC contractors evaluating motor control strategies, the next generation of drive systems extends far beyond simple speed regulation, evolving into intelligent energy nodes that optimize power conversion across hybrid AC/DC infrastructures while providing actionable operational intelligence through cloud-native monitoring platforms.

Wide-Bandgap Semiconductors and Power Density Revolution

The transition from traditional IGBT topology to Silicon Carbide (SiC) and Gallium Nitride (GaN) semiconductors represents the most significant hardware evolution in drive technology. These wide-bandgap devices enable switching frequencies exceeding 50 kHz—tenfold improvements over conventional architectures—resulting in sinusoidal output waveforms with minimal harmonic distortion. For solar pumping applications and precision motor control, this translates to reduced motor heating, elimination of audible noise in agricultural installations, and the ability to drive high-efficiency IE5 synchronous reluctance motors without derating. Manufacturers are increasingly integrating these components into compact, IP66-rated enclosures specifically engineered for harsh environmental conditions in remote solar irrigation projects, where thermal management and space constraints present critical design challenges.

Renewable Integration and DC-Coupled Architectures

The proliferation of solar photovoltaic (PV) systems has catalyzed innovation in DC-input VFDs and solar pump inverters capable of direct PV coupling without intermediate battery storage. Modern solar pumping solutions now incorporate Maximum Power Point Tracking (MPPT) algorithms with dynamic voltage window optimization, allowing agricultural project managers to achieve water flow rates proportional to instantaneous solar irradiance while maintaining system efficiency above 95% across varying insolation conditions.

Beyond standalone solar applications, the industry is witnessing adoption of common DC bus configurations in industrial automation, where regenerative VFDs capture braking energy from high-inertia loads and redistribute it to other drives or feed it back to the grid. This “energy harvesting” approach, combined with bidirectional power flow capabilities, enables microgrid stability in hybrid installations where diesel generators, battery energy storage systems (BESS), and solar arrays must synchronize seamlessly. For EPC contractors designing sustainable industrial facilities, these integrated drive systems serve as the power conversion backbone, reducing overall system complexity while improving total harmonic distortion (THD) profiles.

IoT-Enabled Predictive Maintenance and Edge Intelligence

The integration of Industrial Internet of Things (IIoT) capabilities into VFD platforms is transforming maintenance paradigms from reactive to predictive. Advanced drives now embed edge computing processors capable of executing real-time motor signature analysis, detecting bearing degradation, misalignment, or cavitation in pumping systems through vibration spectrum analysis and current signature monitoring. These devices communicate via MQTT and OPC UA protocols, streaming telemetry data to SCADA systems or cloud-based digital twin environments where machine learning algorithms correlate operational parameters with failure modes.

For automation distributors and system integrators, this connectivity enables new service-based revenue models. Remote parameterization capabilities allow firmware updates and application-specific tuning without site visits—critical for geographically dispersed solar pumping installations or offshore pumping stations. Furthermore, cybersecurity-hardened communication stacks (implementing TLS 1.3 encryption and certificate-based authentication) ensure that motor control networks remain protected against unauthorized access while maintaining compliance with IEC 62443 standards for industrial automation security.

AI-Driven Energy Optimization and Autonomous Control

Artificial intelligence is increasingly embedded within drive firmware to enable autonomous energy optimization. Neural network-based load observers can predict torque requirements in cyclic applications—such as irrigation pivot systems or HVAC compressors—pre-adjusting motor excitation to minimize power consumption during transient states. These self-optimizing drives learn operational patterns over time, automatically calibrating PID parameters and ramp profiles to match specific mechanical system dynamics without manual commissioning by control engineers.

Sustainability and Circular Economy Considerations

Environmental regulations are driving innovation in regenerative drive topologies and eco-design principles. Modern VFDs incorporate active front-end (AFE) technology that not only reduces input current harmonics to less than 5% THD but also enables full regenerative capability for applications like downhill conveyors or centrifuge deceleration. Additionally, manufacturers are adopting modular architectures with replaceable power stages and control cards, extending product lifecycles and reducing electronic waste in large-scale industrial deployments.

As the boundary between power electronics, renewable generation, and data analytics continues to blur, the VFD is evolving from a motor control component into a comprehensive energy management system. For stakeholders across the industrial and agricultural sectors, selecting drive platforms that support these emerging capabilities ensures operational resilience, regulatory compliance, and optimal return on investment in an increasingly electrified and digitized infrastructure landscape.

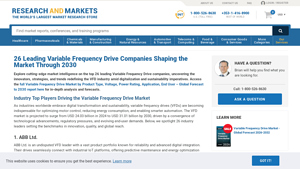

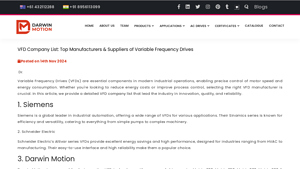

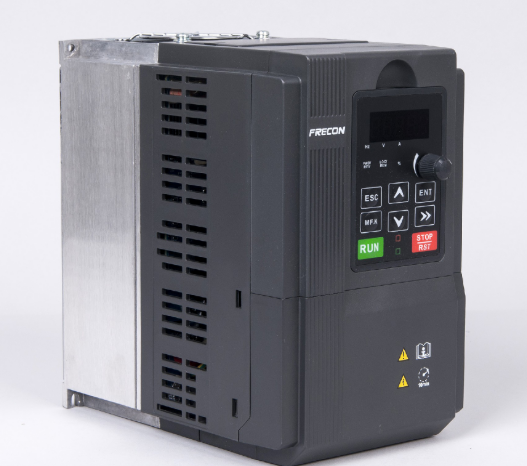

Top 3 Variable Frequency Drive Manufacturers & Suppliers List

B2B Engineering FAQs About Variable Frequency Drive

1. How does the three-stage power conversion topology (rectifier, DC bus, inverter) differ between standard grid-tied VFDs and solar pump inverters when handling DC input from PV arrays?

   In standard grid-tied VFDs, the converter section uses a 6-pulse diode bridge to rectify AC mains (480V RMS, peaking at 679V) into DC with an AC ripple (typically 580–680V) for the DC bus. Solar pump inverters, however, eliminate this front-end rectifier stage and directly interface with the PV array’s DC output (often 400–800VDC). The DC bus in solar applications must incorporate advanced Maximum Power Point Tracking (MPPT) algorithms to dynamically adjust the operating voltage and extract maximum energy from fluctuating irradiance. While both systems use IGBT-based inverters to generate variable frequency/voltage output for the motor, solar pump VFDs require enhanced DC bus capacitance and voltage ripple management to handle intermittent power supply without tripping undervoltage faults, particularly during cloud transients in agricultural installations.

2. What are the critical derating factors for specifying VFD capacity in high-temperature agricultural environments with poor grid stability?

   When specifying VFDs for solar pumping or irrigation projects, engineers must apply multiplicative derating factors: (1) Temperature derating: For every 1°C above 40°C ambient, reduce continuous output current by 2–3%; in desert agricultural settings (50–55°C), this often requires upsizing by 20–30%. (2) Altitude derating: Above 1,000m, reduce capacity by 1% per 100m due to reduced air cooling efficiency. (3) Switching frequency: High carrier frequencies (>4kHz) reduce motor noise but increase thermal stress; derate by 10–15% when using silent operation modes. (4) Harmonic heating: In weak grid conditions with high impedance, harmonic currents increase I²R losses. For submersible pump motors in boreholes, specify VFDs with built-in DC reactors or active front ends (AFE) to mitigate harmonic heating in long cable runs.

3. How do reflected wave phenomena and dV/dt spikes impact motor insulation in high-capacity irrigation systems, and what mitigation strategies should EPC contractors implement?

   The inverter section of modern VFDs using IGBT switching generates rapid voltage rise times (dV/dt up to 5,000–10,000 V/μs). When driving submersible pumps via long cable runs (>50 meters in agricultural fields), impedance mismatches between the cable and motor create reflected waves that can double the voltage at the motor terminals, stressing insulation beyond the 1,600V peak rating typical of standard NEMA motors. EPC contractors should: (1) Specify inverter-duty motors with enhanced insulation (Class F or H) and phase-to-ground voltage ratings ≥1,600V; (2) Install dV/dt filters or sine-wave filters at the VFD output when cable exceeds 100m; (3) Use shielded, symmetrical three-core cables with proper grounding at both ends to reduce electromagnetic interference (EMI) affecting nearby sensor networks.

4. In solar pumping applications, how does Vector Control (FOC) compare to V/Hz control for deep-well submersible pumps with high starting torque requirements?

   V/Hz (Volts per Hertz) control maintains a constant flux ratio by linearly increasing voltage with frequency, suitable for centrifugal pumps with quadratic torque loads (T ∝ n²) and stable grid conditions. However, for deep-well submersible pumps requiring high starting torque (150–200% rated) against static head pressure, Sensorless Vector Control (SVC) or Field-Oriented Control (FOC) is superior. These algorithms decouple torque and flux components, providing full torque at zero speed and precise speed regulation (±0.5%) despite varying water tables. For solar applications where input power fluctuates, vector control enables better torque-per-ampere optimization, allowing pumps to start and operate at lower irradiance levels (down to 30% standard sunlight) without stalling, whereas V/Hz control may fail to generate sufficient starting torque under reduced input power conditions.

5. What harmonic mitigation strategies are required when integrating multiple VFDs into agricultural micro-grids to comply with IEEE 519 / IEC 61000-3-6 standards?

   Standard 6-pulse VFDs generate characteristic harmonics (5th, 7th, 11th, 13th) with Total Harmonic Distortion (THD) of 30–40%, which can cause transformer overheating and capacitor bank resonance in micro-grids. For multi-pump agricultural installations: (1) Passive filtering: Install 5% impedance line reactors or DC link chokes to reduce THD to 25–30%; (2) Active front ends (AFE): Use IGBT-based rectifiers instead of diode bridges to achieve <5% THD and enable regenerative braking; (3) Phase-shifting transformers: For large irrigation projects (>500kW), use 12-pulse or 18-pulse configurations with multiple rectifier bridges to cancel specific harmonic orders; (4) Active harmonic filters: Install parallel active filters for existing installations to dynamically inject compensating currents, essential when solar inverters and VFDs share a common point of coupling.

6. How should protection parameters be configured for borehole pump motors operating with variable water tables and hybrid grid/solar inputs to prevent dry-running and mechanical seal damage?

   Configure the VFD with: (1) Underload protection (dry-run detection): Set a minimum current threshold (typically 30–40% of rated FLA) that triggers a fault if the pump draws less current than required for the specific head pressure, indicating cavitation or dry-running; (2) Stall prevention: Limit torque output to 110–120% of rated to protect against sand-lock in boreholes; (3) Sleep/wake functionality: Program the VFD to enter sleep mode when demand pressure is met and wake when pressure drops, with a minimum runtime timer (3–5 minutes) to limit motor starts to <6 per hour; (4) Undervoltage ride-through (UVRT): For hybrid systems, set a 2–3 second ride-through delay to ignore brief cloud transients without tripping, while ensuring automatic restart with speed catch-up function to resume pumping without water hammer.

7. What are the critical communication protocol considerations for integrating VFDs into SCADA systems for remote agricultural monitoring and automated irrigation scheduling?

   For modern precision agriculture, specify VFDs with: (1) Modbus RTU/TCP for basic RS-485 or Ethernet connectivity to PLCs, supporting registers for frequency command, output current, DC bus voltage, and fault codes; (2) CANopen for distributed pump stations requiring deterministic control with minimal wiring; (3) IoT integration: Solar pump inverters should support GPRS/4G modules or MQTT protocols to transmit real-time data (flow rates, PV voltage, fault status) to cloud-based SCADA platforms. Critical parameters to monitor remotely include: DC bus voltage stability (indicating PV array health), motor thermal state via I²t calculation, and cumulative energy consumption (kWh) for irrigation cost allocation. Ensure the VFD supports time-scheduled operation via external BMS/SCADA commands to enable automated night-time irrigation using grid power when solar generation is insufficient.

8. How does the DC bus voltage ripple specification affect motor control stability in solar pump inverters during rapidly changing irradiance conditions?

   The DC bus in solar pump inverters must maintain voltage stability despite input fluctuations from 200V to 800VDC as clouds pass. High electrolytic capacitance (or film capacitors for extended lifetime) filters the rectified DC, but the ripple coefficient (ΔV/V) must remain <5% to prevent: (1) Torque pulsations in the motor causing mechanical vibration and premature bearing failure; (2) Overcurrent trips when the DC bus drops below the undervoltage threshold during sudden irradiance drops; (3) Loss of vector control accuracy. Specify inverters with DC bus voltage regulation algorithms that dynamically adjust the modulation index and switching pattern to maintain constant V/Hz ratio to the motor, even when PV input voltage fluctuates by ±20% within seconds. For critical agricultural applications, select VFDs with active power buffers or sufficient capacitive energy storage (Joules/kW) to ride through 2–5 second transients without interrupting pump operation.

Disclaimer

Conclusion: Partnering with Boray Inverter for Variable Frequency Drive

As industries worldwide accelerate their transition toward energy-efficient operations and sustainable agricultural practices, the strategic implementation of Variable Frequency Drive technology has evolved from a simple cost-saving measure to a critical infrastructure imperative. Whether optimizing centrifugal pumps in large-scale irrigation systems, fine-tuning conveyor dynamics in automated manufacturing, or maximizing the extraction efficiency of solar-powered water pumping installations, the selection of motor control architecture directly impacts operational longevity, energy economics, and system reliability. The technical complexities inherent in modern VFD deployment—from harmonic mitigation and advanced vector control algorithms to environmental hardening and seamless grid-integration protocols—demand more than off-the-shelf components; they require engineered solutions backed by deep electromechanical expertise and rigorous quality assurance methodologies that account for real-world field conditions.

This is where Shenzhen Boray Technology Co., Ltd. distinguishes itself as a strategic technology partner rather than merely a component supplier. Operating from state-of-the-art manufacturing facilities in China, Boray Inverter specializes in high-performance Solar Pumping and Motor Control Solutions engineered specifically for the exacting demands of global B2B industrial and agricultural markets. Our competitive advantage is rooted in human capital and technical depth: Research and Development personnel comprise 50% of our total workforce, driving continuous innovation in Permanent Magnet Synchronous Motor (PMSM) and Induction Motor (IM) vector control technologies that deliver superior torque response and energy efficiency. This engineering excellence is validated through manufacturing discipline, utilizing two modern, automated production lines where every unit undergoes rigorous 100% full-load testing before shipment—ensuring that agricultural project managers, EPC contractors, and industrial automation distributors receive equipment that performs flawlessly under demanding field conditions from the moment of commissioning.

With a proven deployment track record across agricultural irrigation networks, photovoltaic pumping stations, and industrial automation sectors spanning multiple continents, Boray Inverter delivers not merely standardized drives, but fully customized VFD solutions tailored to specific voltage requirements, environmental enclosures, and communication protocols. We invite engineering procurement teams and distribution partners to leverage our manufacturing scale, technical expertise, and competitive wholesale structures. Contact Boray Inverter today via borayinverter.com to discuss your project specifications, request detailed technical documentation, or obtain wholesale quotations for bulk VFD procurement.
