Introduction: Sourcing Solar Hybrid Inverter for Industrial Use

In an era of volatile energy costs and increasing grid instability, industrial operations—from large-scale agricultural irrigation to automated manufacturing lines—demand power solutions that transcend simple grid-tie functionality. Solar hybrid inverters have emerged as the critical nexus between photovoltaic generation, battery energy storage systems (BESS), and mission-critical motor loads, offering bidirectional DC/AC conversion that ensures continuous operation even during utility outages.

For electrical engineers and EPC contractors managing complex industrial ecosystems, the selection of a solar hybrid inverter extends far beyond basic wattage ratings. These sophisticated power electronic devices must seamlessly integrate with existing Variable Frequency Drives (VFDs), accommodate high inrush currents from pump motors, and maintain power quality standards that protect sensitive automation equipment. Whether powering remote solar pumping stations or providing backup for industrial motor control centers, the right hybrid inverter serves as the intelligent energy manager that optimizes self-consumption while safeguarding operational continuity.

This comprehensive guide examines the industrial application landscape for solar hybrid inverters, dissecting the technical specifications that matter for heavy-duty environments: input voltage ranges compatible with three-phase motor systems, surge capacity for inductive loads, and communication protocols essential for SCADA integration. We analyze distinct inverter architectures—from multi-mode hybrid units to AC-coupled storage solutions—while providing evaluation criteria for sourcing from tier-1 manufacturers capable of supporting global agricultural and automation projects. From specification sheets to integration best practices with existing VFD infrastructure, this resource equips procurement teams and project managers with the technical insights necessary to specify robust, future-proof energy systems.

Technical Types and Variations of Solar Hybrid Inverter

Solar hybrid inverters are not monolithic devices; their technical architectures vary significantly based on voltage class, phase configuration, and integration topology with motor control systems. For industrial engineers and EPC contractors, selecting the appropriate topology requires understanding how each variation interfaces with existing VFD infrastructure, motor load characteristics, and PV array configurations. Below is a technical classification of hybrid inverter architectures most relevant to industrial automation, agricultural solar pumping, and heavy motor applications.

Type	Technical Features	Best for (Industry)	Pros & Cons
Three-Phase Industrial Hybrid (400V/480V)	• 3-phase AC output (380–480V, 50/60Hz) • IGBT-based bidirectional conversion • Grid-forming/following capability • THD <3% under linear loads • Direct motor soft-start integration	Manufacturing plants, commercial HVAC, large-scale agricultural processing	Pros: Direct compatibility with standard industrial motors; eliminates phase imbalance issues; high surge capacity (150% for 60s) for motor inrush Cons: Requires 3-phase infrastructure; higher capital cost; complex synchronization with existing VFDs
DC-Coupled High-Voltage (1000V–1500V)	• High PV input voltage (1000–1500Vdc) • 800V battery architecture (compatible with lithium-ion) • Multi-MPPT inputs (3–6 trackers) • DC/DC conversion efficiency >99% • Arc fault detection (NEC 690.11)	Utility-scale solar farms, industrial microgrids, heavy processing plants with high motor loads	Pros: Reduced DC cabling losses (I²R); higher string count per inverter; superior scalability for MW-class motor drives Cons: Limited battery chemistry compatibility; requires specialized DC safety disconnects; higher electromagnetic interference (EMI) concerns
Integrated Solar Pump-VFD Hybrid	• Combined MPPT + VFD + Grid-Tie in single enclosure • Dual AC/DC input bus for centrifugal pumps • Automatic AC grid fallback with <20ms transfer • Pressure/flow sensor analog inputs (4–20mA) • Pump-specific protection (dry-run, cavitation detection)	Agricultural irrigation, remote water supply, livestock operations, aquaculture	Pros: Eliminates separate VFD procurement; optimized V/f curves for pumps; seamless solar-to-grid transition prevents motor stalling Cons: Application-specific (motor-only loads); limited to centrifugal/piston pump compatibility; restricted to specific voltage classes
AC-Coupled Retrofit Hybrid	• AC bus coupling via existing string inverter output • Frequency-watt control for motor load management • Smart load shedding with priority motor circuits • Modbus RTU/TCP for SCADA integration • Compatible with legacy 50Hz/60Hz motor systems	Existing commercial PV installations, factory retrofits, facilities with established motor control centers (MCCs)	Pros: Non-invasive installation; preserves existing inverter warranties; flexible battery addition without DC rewiring Cons: Double conversion losses (95–96% vs. 98%+ for DC-coupled); complex anti-islanding protection; potential frequency instability with multiple motor starts
Low-Voltage Single-Phase (48V/230V)	• 48V nominal battery systems (SELV safety) • Single-phase 230V output with neutral • Surge capacity 200% for 5 seconds (motor starting) • Modular parallel operation (up to 6 units) • Integrated anti-islanding (UL 1741)	Small farms, remote monitoring stations, residential agriculture, light commercial	Pros: Safety compliance (no licensed electrician required in some jurisdictions); battery flexibility (lead-acid or LiFePO4); simple installation Cons: Limited to <5HP motors typically; cannot run 3-phase motors without additional phase converter; voltage sag under high inductive loads

Three-Phase Industrial Hybrid (400V/480V)

Technical Architecture:
These units employ six-pulse or twelve-pulse IGBT bridges to manage three-phase power with vector control capabilities. Unlike residential single-phase units, they maintain balanced phase voltages (±2%) critical for industrial induction motors. The bidirectional functionality allows the inverter to operate in “grid-forming” mode, creating a stable voltage reference when grid power is unavailable—essential for maintaining VFD operation during outages.

Motor Control Integration:
In industrial settings, these hybrids often interface directly with VFDs rather than replacing them. When configured as a grid backup source, the hybrid inverter provides clean sinusoidal power (THD <3%) that prevents VFD input rectifier damage. For direct motor connection, the inverter’s variable frequency output (0–400Hz programmable) enables soft-start functionality, reducing inrush current by 60–70% compared to across-the-line starting. This is particularly valuable for agricultural processing equipment where mechanical stress reduction extends machinery life.

Engineering Considerations:
EPC contractors must verify the inverter’s short-circuit withstand rating (typically 10kA–65kA RMS) matches existing switchgear. The units require proper derating for altitude (>1000m) and ambient temperature (>45°C), especially when driving high-inertia loads like hammer mills or irrigation pumps.

DC-Coupled High-Voltage (1000V–1500V)

Technical Architecture:
Utilizing wide-bandgap semiconductor technology (SiC MOSFETs in premium models), these inverters handle PV string voltages up to 1500Vdc—reducing DC conductor sizing by 33% compared to 1000V systems. The DC-coupled architecture means battery storage connects directly to the DC bus, eliminating AC/DC conversion losses during charging. For motor control applications, this provides the highest round-trip efficiency (90–92%) when solar energy directly feeds VFD DC buses.

Motor Control Integration:
High-voltage hybrids excel in large-scale solar pumping stations where multiple high-power motors (50HP+) operate simultaneously. The DC bus can interface directly with VFD DC links, bypassing the inverter’s AC stage entirely during solar-only operation. This “DC-coupled VFD” mode eliminates double conversion, improving system efficiency by 4–6 percentage points. However, engineers must implement proper DC arc flash protection and rapid shutdown devices per NEC 690.12.

Engineering Considerations:
Battery compatibility is restricted to high-voltage lithium-ion chemistries (400V–800V). The high DC voltages require specialized disconnecting means and personal protective equipment (PPE) for maintenance. EMI filtering is critical, as the high dv/dt switching can induce bearing currents in motors, requiring shaft grounding rings or insulated bearings on driven equipment.

Integrated Solar Pump-VFD Hybrid

Technical Architecture:
This specialized topology represents the convergence of MPPT charge controllers and variable frequency drives. The unit contains three distinct power stages: (1) PV input MPPT stage optimizing at 98% efficiency, (2) DC-link buffer capacitors for ride-through capability, and (3) IGBT output stage generating variable voltage/frequency (V/f) control. Unlike standard hybrids, these units prioritize motor torque production over grid export, with algorithms that maintain constant torque-per-ampere ratios as irradiance fluctuates.

Motor Control Integration:
The integrated design eliminates the traditional separation between solar charge controllers and VFDs. For centrifugal pumps, the inverter automatically adjusts pump speed (RPM) based on available solar power, preventing cavitation by maintaining minimum head pressure via pressure transducer feedback. When solar insufficiency occurs, the unit executes a “bump-less transfer” to AC grid power without stopping the motor—critical for continuous irrigation cycles.

Engineering Considerations:
These units require careful matching to motor nameplate data (FLA, service factor, insulation class). The V/f curves must be programmed for specific pump types (submersible vs. surface). Engineers should verify the inverter’s “dry-run” protection sensitivity, as false trips can occur with low-flow high-head applications. IP65 enclosures are standard for agricultural environments, but thermal management requires adequate spacing (150mm minimum) for heat dissipation.

AC-Coupled Retrofit Hybrid

Technical Architecture:
AC-coupled systems connect to the AC output of existing string inverters rather than the PV array DC conductors. The hybrid unit senses grid conditions via current transformers (CTs) and uses frequency-shifting power control (FSP) to regulate battery charging without DC wiring modifications. This topology employs frequency-watt droop curves (per IEEE 1547) to stabilize microgrids with high motor penetration.

Motor Control Integration:
In facilities with existing VFD installations, AC-coupled hybrids provide backup power without disrupting VFD parameter settings. However, engineers must account for the “double conversion” penalty: solar DC→AC (string inverter) → battery AC→DC (charger) → AC output (inverter). This results in 4–6% efficiency loss compared to DC-coupled alternatives. For motor starting, these units often struggle with high inrush currents unless oversized by 150–200%.

Engineering Considerations:
Anti-islanding protection becomes complex when multiple AC sources (grid, solar, battery) interact. The system requires sophisticated phase-locked loop (PLL) algorithms to prevent circulating currents between the hybrid inverter and existing VFD regenerative units. For agricultural retrofits, verify that the existing service panel can handle backfeed currents from the hybrid unit during grid-tie operation.

Low-Voltage Single-Phase (48V/230V)

Technical Architecture:
Operating with 48V nominal battery banks (Safety Extra-Low Voltage), these units use H-bridge topologies with high-frequency transformers for galvanic isolation. The single-phase output (230V L-N) employs sinusoidal PWM with unipolar switching to minimize switching losses. Surge capacity is critical for these units, as single-phase motors exhibit higher locked-rotor amps (LRA) relative to running current.

Motor Control Integration:
While limited to smaller motors (<3.7kW/5HP), these hybrids often include built-in “voltage boost” functions to compensate for voltage sag during motor starting. However, running three-phase motors requires external phase converters (rotary or electronic), adding complexity and 5–8% efficiency loss. For single-phase pump motors (common in residential agriculture), the inverter’s “soft-start” ramp (0–60Hz in 3–10 seconds) significantly reduces mechanical seal wear.

Engineering Considerations:
Battery cabling requires careful sizing due to high currents (100A+ at 48V for 5kW loads). Voltage drop calculations must account for the 2V–4V sag during motor inrush. These systems benefit from modular parallel stacking (master-slave configuration) to achieve higher power levels while maintaining 48V safety. For remote agricultural monitoring stations, the low-voltage architecture simplifies maintenance and reduces shock hazards in wet environments.

Key Industrial Applications for Solar Hybrid Inverter

Solar hybrid inverters represent a critical evolution in industrial power management, unifying photovoltaic generation, energy storage, and grid interconnection into a single conversion architecture. For industrial engineers and EPC contractors, these systems offer more than just backup power—they enable sophisticated load management, peak shaving, and seamless integration with Variable Frequency Drives (VFDs) in motor-intensive applications. Below are the primary industrial deployment scenarios where hybrid inverter technology delivers measurable ROI and operational resilience.

Sector	Application	Energy Saving Value	Sourcing Considerations
Agriculture & Irrigation	Solar pump systems with battery-buffered operation for drip/sprinkler irrigation and livestock watering	40–70% reduction in diesel/grid pumping costs; 30% extension of daily pumping hours via battery storage; elimination of fuel logistics for remote farms	IP65-rated enclosure for outdoor installation; VFD compatibility (0–400Hz output) for submersible pumps; wide MPPT voltage range (200–800V DC); dry-run protection integration
Water Treatment & Distribution	Municipal pumping stations, desalination pre-treatment, wastewater aeration, and remote lift stations	35–50% reduction in grid electricity imports; continuous operation during grid outages preventing sewage overflow; elimination of separate UPS systems	Bidirectional conversion efficiency >97%; three-phase 380/400V AC output stability; total harmonic distortion (THD) <3% for sensitive control electronics; anti-islanding compliance (IEEE 1541/UL 1741)
HVAC & Industrial Ventilation	Solar-assisted chiller plants, mine ventilation systems, and large-scale manufacturing exhaust	25–35% reduction in HVAC energy consumption; peak demand shaving of 20–30kW per 100HP motor; soft-start capability reducing mechanical stress on compressors	High overload capacity (150% for 60s, 200% for 3s); low switching frequency noise (<2kHz) for building environments; integration with Building Management Systems (BMS) via Modbus TCP/IP
Mining & Heavy Industry	Off-grid crushing/processing plants, conveyor belt systems, and dewatering pumps in remote extraction sites	60–80% reduction in diesel generator runtime; stabilized power quality preventing PLC/automation resets; reduced generator maintenance cycles	Ruggedized chassis (IP54 minimum, conformal coating PCBA); wide operating temperature range (-20°C to +60°C); wide DC input voltage (150–1000V) for large PV arrays; AC coupling capability for existing gensets
Manufacturing & Process Control	Textile spinning, cement grinding, food processing, and automated assembly lines with critical load requirements	20–40% reduction in peak demand charges via battery discharge during tariff spikes; power factor correction (>0.99) reducing reactive power penalties; <10ms transfer time preventing production line resets	Parallel operation capability for MW-scale expansion; active harmonic filtering (AHF) for non-linear loads; IEC 62040-1 and IEC 62109 safety certifications; seamless transfer between grid-forming and grid-following modes

Agriculture & Irrigation
In large-scale agricultural operations, solar hybrid inverters function as the central power management unit for irrigation systems, integrating directly with Boray’s solar pump VFDs to optimize water extraction schedules. Unlike standard solar pump inverters that cease operation during low irradiance, hybrid systems utilize battery banks to maintain pressure during early morning, late evening, or cloudy periods—critical for crops requiring precise moisture control. Engineers should specify units with advanced MPPT algorithms capable of tracking maximum power points despite partial shading from pivot irrigation systems. The inverter must provide galvanic isolation to protect submersible motor drives from ground fault currents while offering configurable V/f curves to match pump affinity laws, ensuring hydraulic efficiency across varying solar irradiance levels.

Water Treatment & Distribution
Municipal and industrial water facilities require 24/7 operational continuity that pure grid-tie solar cannot guarantee. Hybrid inverters in this sector serve dual functions: they power high-torque aeration blowers and raw water pumps during daylight hours while maintaining battery reserves for night-time critical loads. For EPC contractors, the key specification is the inverter’s ability to provide clean sinusoidal output (THD <3%) to prevent interference with SCADA systems and dissolved oxygen sensors. Bidirectional capability allows the system to charge batteries from the grid during off-peak tariff windows if solar generation is insufficient, while export limiting features ensure compliance with utility interconnection agreements when feeding excess power back to medium-voltage distribution networks.

HVAC & Industrial Ventilation
Large-scale HVAC systems present unique challenges due to high inrush currents from compressor motors and the need for precise frequency control. Solar hybrid inverters with integrated VFD functionality—or those designed to cascade with standalone VFDs—enable soft-start sequences that reduce mechanical stress on chiller compressors and mine ventilation fans. By storing solar energy in battery banks, these systems can discharge during afternoon cooling peaks when electricity tariffs are highest, effectively arbitraging energy costs. Sourcing priorities include inverters with high overload capacity to handle motor locked-rotor currents and compatibility with regenerative braking units that return deceleration energy to batteries rather than dissipating it as heat.

Mining & Heavy Industry
Remote mining operations often rely on expensive diesel microgrids. Solar hybrid inverters enable the gradual displacement of fossil fuels by forming stable microgrids that can black-start without grid support. When powering heavy-duty crushers and conveyor systems, the inverter must coordinate with motor control centers to manage the high starting torque of jaw crushers and ball mills. Critical sourcing considerations include wide DC input voltage ranges to accommodate large ground-mount PV arrays and robust electromagnetic compatibility (EMC) filtering to operate alongside high-power radio transmitters and drilling equipment. The ability to synchronize with existing gensets (gensync) allows for seamless hybridization of legacy power infrastructure without complete system replacement.

Manufacturing & Process Control
In continuous process industries such as cement grinding or textile manufacturing, power interruptions can result in significant material waste and equipment damage. Solar hybrid inverters provide ride-through capability during grid voltage sags and seamless transfer to battery power during outages, maintaining PLC and HMI systems without reset. For automation distributors, the value proposition lies in power quality improvement: advanced units offer active harmonic filtering to mitigate distortion caused by variable speed drives and rectifier loads elsewhere in the facility. When specifying for manufacturing environments, prioritize inverters with parallel redundancy features and Modbus/Profibus integration to enable centralized energy management across multiple production lines.

Top 3 Engineering Pain Points for Solar Hybrid Inverter

Scenario 1: DC Bus Instability During Motor Inrush in Hybrid Mode

The Problem:
In solar pumping installations, the sudden inrush current required for motor starting—typically 600-800% of rated current—creates catastrophic DC bus voltage sags when the hybrid inverter operates in off-grid or battery-priority mode. The battery bank’s internal resistance, combined with fluctuating PV input, cannot support the instantaneous power demand required by the VFD’s DC link. This results in under-voltage protection trips (UVP), failed pump starts, and potential motor insulation damage from repeated start attempts. Standard hybrid inverters lack the dynamic current limiting necessary to coordinate with external VFD ramp-up sequences, causing system availability issues during critical irrigation windows.

The Solution:
Specify hybrid inverters with active damping technology and high-rate battery compatibility (1C-2C discharge rates) to provide 200% overload capacity for 60-120 seconds during motor acceleration. Advanced units feature DC bus voltage feed-forward compensation that anticipates load changes and pre-charges the DC link before VFD engagement. Boray’s hybrid solar pump inverters utilize proprietary “Soft-Start Sync” algorithms that coordinate with external motor drives via Modbus/RS485, staggering multi-pump startup sequences to limit simultaneous inrush to <120% of rated capacity while maintaining stable 380V/440V AC output regardless of transitions between solar, battery, and grid sources.

Scenario 2: Grid-Forming Frequency Instability with Variable Renewable Input

The Problem:
When hybrid inverters operate in island mode (off-grid) to power remote irrigation systems, the absence of grid reference creates frequency instability during rapid solar irradiance fluctuations (cloud transients). Traditional voltage-source inverters struggle to maintain 50/60Hz ±0.5% frequency tolerance under varying PV input and changing pump loads governed by affinity laws. This causes connected VFDs to trip on frequency deviation faults or enter derating modes that unpredictably reduce flow rates. The harmonic interaction between the inverter’s PWM output and the motor’s inductive load further exacerbates torque pulsations, leading to mechanical wear and reduced pump bearing life.

The Solution:
Deploy grid-forming (GFM) hybrid inverters with Virtual Synchronous Generator (VSG) technology that emulates rotational inertia to stabilize frequency during transient events. These systems require advanced droop control algorithms that automatically adjust voltage/frequency based on real-time load impedance measurements. For agricultural applications, specify inverters with programmable frequency windows (45-65Hz) and direct VFD communication protocols to enable dynamic power curtailment. Boray’s solutions incorporate predictive irradiance monitoring with <1 second MPPT tracking speed, pre-adjusting inverter setpoints 500ms before cloud transients to ensure continuous motor operation without torque pulsations or frequency deviation trips.

Scenario 3: Environmental Ingress Protection vs. Thermal Performance Trade-offs

The Problem:
Agricultural and industrial hybrid inverter installations face conflicting engineering requirements: IP65/IP66 sealing is mandatory to protect against dust, humidity, and chemical exposure (fertilizers, pesticides), yet sealed enclosures trap heat from IGBT switching losses and battery charging cycles. Standard forced-air cooling introduces failure points (fans) and contamination pathways, while passive cooling often requires 30-40% inverter oversizing to maintain thermal margins. Thermal derating above 40°C ambient reduces available power for critical midday pumping when solar generation peaks, forcing EPC contractors to specify larger, more expensive units that compromise project ROI.

The Solution:
Specify hybrid inverters utilizing conformal-coated PCBs with IP66-rated die-cast aluminum heat sinks featuring natural convection cooling (fanless design) and thermal interface materials (TIM) with >3W/m-K conductivity. Advanced thermal management employs multi-layer PCB designs with direct bonded copper (DBC) substrates to reduce thermal resistance (Rth) from junction to case. Boray’s industrial hybrid series maintains 100% rated output up to 45°C ambient and 80% output at 60°C through intelligent derating curves that prioritize critical pump loads while shedding non-essential battery charging. The C4 corrosion resistance certification (per ISO 12944) ensures 25-year service life in coastal or agricultural chemical environments without compromising thermal performance or requiring chassis oversizing.

Component and Hardware Analysis for Solar Hybrid Inverter

At the core of every solar hybrid inverter lies a sophisticated power electronics architecture that must simultaneously manage photovoltaic (PV) energy harvesting, battery charge/discharge cycles, grid synchronization, and critical load management. For industrial and agricultural deployments—where Boray Inverter’s expertise in Variable Frequency Drives (VFDs) and motor control systems directly applies—the selection and integration of internal hardware components determine not only conversion efficiency but also operational longevity in harsh environments.

Power Semiconductor Topology

The heart of any hybrid inverter is its IGBT (Insulated Gate Bipolar Transistor) module or advanced SiC (Silicon Carbide) MOSFET array. These devices handle the high-frequency switching required for DC-to-AC conversion and bidirectional power flow for battery charging. In solar pumping applications, where motor inrush currents and regenerative energy from pump deceleration create significant electrical stress, the thermal cycling capability of these modules becomes critical. Industrial-grade modules feature direct-bonded copper (DBC) substrates and advanced wire-bonding techniques to minimize thermal resistance (Rth(j-c)) and withstand repetitive temperature swings from -40°C to 150°C junction temperatures.

Control Architecture and Processing

Digital Signal Processors (DSPs) or ARM-based microcontrollers execute the complex algorithms governing Maximum Power Point Tracking (MPPT), anti-islanding protection, and seamless transfer between on-grid and off-grid modes. For hybrid systems driving agricultural pumps, the controller must integrate motor control firmware—specifically V/Hz control or sensorless vector control—to manage induction and permanent magnet synchronous motors (PMSM) efficiently. High-resolution PWM generation (typically 4-16 kHz switching frequency) requires processors with sub-microsecond interrupt latency to prevent motor torque pulsations and ensure stable grid synchronization.

Energy Storage and Filtering Components

DC-Link Capacitor Banks buffer energy between the PV array, battery stack, and inverter bridge. In hybrid systems, these capacitors experience high ripple currents from both solar fluctuation and battery cycling. Metallized polypropylene film capacitors are preferred over electrolytic alternatives for industrial solar pumps due to their longer lifespan (up to 100,000 hours at rated voltage and 70°C ambient) and self-healing properties. The capacitance value and ESR (Equivalent Series Resistance) directly influence the DC bus voltage stability, which is crucial for preventing motor control instability during rapid load changes in irrigation systems.

Thermal Management Systems

Given that hybrid inverters in agricultural settings often operate in NEMA 3R or IP65 enclosures under direct solar loading, thermal management extends beyond simple heatsinks. Multi-layer aluminum heatsinks with anodized finishes, combined with intelligent fan control algorithms, maintain IGBT junction temperatures within safe operating areas (SOA). Thermal interface materials (TIMs) with phase-change properties ensure consistent heat transfer between power modules and heatsinks over the equipment’s 20-year design life. For remote solar pump stations, passive cooling designs utilizing heat-pipe technology eliminate fan failure points entirely.

Component Reliability Matrix

Component	Function	Quality Indicator	Impact on Lifespan
IGBT Power Module	Bidirectional DC-AC power conversion; handles motor inrush currents	Switching frequency capability (kHz), Thermal resistance Rth(j-c) < 0.15 K/W, VCE(sat) characteristics	Determines switching losses and thermal cycling fatigue; poor quality leads to solder joint degradation within 5-7 years
DSP/MPU Controller	Algorithm execution for MPPT, grid synchronization, and motor VFD control	Processing speed (MHz), PWM resolution (bits), Interrupt latency (<1μs)	Controls protection response time; industrial-grade processors prevent cascade failures during grid transients
DC-Link Capacitor Bank	Energy buffering; filtering high-frequency ripple from PV and battery	Capacitance retention rate (>95% at 100,000 hrs), ESR stability, Ripple current rating (Arms)	Electrolyte dry-out in low-grade units causes DC bus oscillation, motor torque ripple, and premature inverter failure
Thermal Management System	Heat dissipation from power semiconductors; environmental sealing	Thermal resistance (Rth) of heatsink assembly, IP rating (IP65+ for agricultural), TIM thermal conductivity (>3 W/mK)	Overheating is the primary failure mode; quality systems maintain <70°C ambient operation for 20+ year lifespan
Communication Interface	BMS integration, SCADA connectivity, remote pump monitoring	Protocol compatibility (Modbus RTU/TCP, CANopen), Isolation voltage (2.5kV), Surge protection (IEC 61000-4-5)	Enables predictive maintenance; poor interfaces prevent fault detection leading to catastrophic motor/pump damage
EMI Filter Chokes	Suppress conducted emissions; protect motor bearings from shaft currents	Inductance stability, Core material (amorphous vs. ferrite), Temperature rating (150°C+)	Prevents bearing fluting in pump motors; inadequate filtering causes premature motor failure regardless of inverter health

Integration with Motor Control Systems

From a B2B engineering perspective, the distinction between a standard residential hybrid inverter and an industrial solar pumping hybrid system lies in the motor control firmware embedded within the DSP. Boray Inverter’s expertise in VFD technology translates into hybrid inverters capable of soft-starting submersible pumps up to 75kW, eliminating water hammer while maintaining power factor correction (PFC) above 0.98. The hardware must include isolated gate drivers with millisecond-level fault propagation delays to protect IGBTs from shoot-through currents during pump motor locked-rotor conditions.

Durability Considerations for Agricultural EPCs

For EPC contractors specifying hybrid systems for off-grid irrigation, component selection must prioritize conformal coating (IPC-CC-830 Class 3) on PCBs to resist humidity and sulfurous atmospheres common in agricultural zones. Terminal blocks and busbar connections utilize tin-plated copper with anti-oxidation treatments to prevent contact resistance increase over time—a critical factor when hybrid inverters operate as standalone microgrids where maintenance intervals may span 6-12 months.

The convergence of solar hybrid technology with robust motor control hardware ensures that these systems do not merely convert energy, but actively protect downstream pumping assets while maximizing energy harvest efficiency across variable solar irradiance conditions.

Manufacturing Standards and Testing QC for Solar Hybrid Inverter

At Boray Inverter, manufacturing excellence for solar hybrid inverters is defined by the ability to withstand the rigorous demands of agricultural irrigation, industrial motor control, and remote off-grid deployments where service intervals are measured in years, not days. Our quality assurance protocols bridge the gap between standard consumer-grade power electronics and industrial Variable Frequency Drive (VFD) reliability, ensuring seamless integration with submersible pumps, surface motors, and complex automation systems.

Design-for-Reliability Standards and Certifications

Every unit is manufactured under an ISO 9001:2015 certified quality management system, with production lines adhering to IPC-A-610 Class 3 standards for high-performance electronic assemblies. For global market access and safety assurance, our solar hybrid inverters undergo comprehensive evaluation against:

• IEC 62109-1 & -2: Safety requirements for power converters used in photovoltaic systems
• IEC 61000-6-2 / 6-4: Electromagnetic compatibility (EMC) for industrial environments, ensuring immunity to grid disturbances and motor switching noise
• CE Marking: Full compliance with Low Voltage Directive (LVD) and EMC Directive
• ISO 14001: Environmental management ensuring RoHS compliance and restricted substance control

PCB-Level Protection: Conformal Coating and Environmental Sealing

Recognizing that agricultural and pumping applications expose electronics to high humidity, chemical fertilizers, and dust, we implement IPC-CC-830 compliant conformal coating processes on all control PCBs. Our automated selective coating system applies 25–75 μm of acrylic or silicone-based coating, providing:

• Moisture and corrosion resistance in 95% RH environments
• Dielectric strength >1500 V/mil to prevent arc tracking between high-voltage traces
• Protection against conductive dust common in desert solar installations

Power assemblies utilize IP65-rated enclosures (optional IP66) with dual-layer gaskets and pressure-equalization valves, validated through IEC 60529 dust and water jet testing.

Component Qualification and Supply Chain Control

To ensure compatibility with VFD loads and motor inrush currents, we source industrial-grade IGBTs and DC-link film capacitors from Tier-1 suppliers, with 100% component traceability via barcode serialization. Critical power components undergo:

• AEC-Q101 qualification for discrete semiconductors (where applicable)
• X-ray inspection of BGA and power module solder joints
• Solderability testing per IPC J-STD-002 to prevent dry joints in high-vibration pump house environments

Environmental Stress Screening (ESS)

Before final assembly, all inverter assemblies undergo aggressive environmental conditioning to precipitate latent defects:

• High-Temperature Aging: 72-hour burn-in at +50°C ambient with 100% rated load, simulating peak summer operation in enclosed agricultural pump rooms
• Thermal Cycling: 20 cycles between -40°C and +85°C per IEC 60068-2-14, ensuring solder joint integrity through seasonal temperature swings
• Humidity Freeze Cycling: 85°C/85% RH for 1000 hours followed by rapid freezing, validating coating adhesion and sealing effectiveness

100% Production Load Testing and Electrical Validation

Unlike sample-based QC, every solar hybrid inverter undergoes 100% full-load testing using programmable DC solar simulators and regenerative AC loads. Our automated test stations verify:

• Conversion Efficiency: Maximum Power Point Tracking (MPPT) efficiency >99% and CEC-weighted efficiency >97%
• Motor Control Compatibility: Soft-start ramp profiles (0–50 Hz in configurable 0.1–600 second ramps) and torque response testing with both induction and permanent magnet motors
• Protection Functionality: Verification of overvoltage, undervoltage, overcurrent, ground fault, and anti-islanding protection (UL 1741/IEEE 1547)
• Harmonic Distortion: THDi <3% at rated load to ensure compliance with IEEE 519 and prevent motor heating in long cable runs

VFD Integration and Pump-Specific Validation

Leveraging our expertise in motor control, each hybrid inverter is tested for seamless operation with Boray VFDs and third-party pump controllers:

• EMC Co-testing: Verification that inverter switching noise does not interfere with VFD encoder feedback or 4–20 mA sensor signals
• Regenerative Braking Handling: Testing energy flow from decelerating pump motors back through the hybrid inverter to batteries or grid
• Dry-Run and Cavitation Protection: Validation of sensorless flow detection algorithms when paired with submersible pumps

Traceability and Continuous Improvement

Each unit carries a unique serial number linking to complete manufacturing records, including solder paste inspection data, automated optical inspection (AOI) results, and thermal imaging profiles from load testing. This data feeds into our Six Sigma continuous improvement program, driving Mean Time Between Failures (MTBF) calculations exceeding 100,000 hours for critical power components.

By integrating VFD-grade manufacturing rigor with solar-specific testing protocols, Boray ensures that hybrid inverters deployed in your pumping and automation projects deliver the field reliability expected by EPC contractors and industrial engineers operating in the world’s most demanding environments.

Step-by-Step Engineering Sizing Checklist for Solar Hybrid Inverter

Before specifying a hybrid solar inverter for industrial pumping or motor control applications, engineers must validate electromechanical compatibility across the entire powertrain—from PV array to pump motor windings. The following protocol ensures optimal matching of capacity, voltage windows, and dynamic load characteristics.

Step 1: Motor & Load Characterization

Define the mechanical load profile to determine inverter kVA and overload capacity.
– Calculate Motor Shaft Power: Convert pump hydraulic power (kW) to brake horsepower (BHP) using $P_{brake} = \frac{Q \times H \times \rho}{3,960 \times \eta_{pump}}$ (for water), then add 15–20% service factor for submersible or deep-well applications.
– Assess Starting Torque Requirements: Identify Locked Rotor Amps (LRA) and starting torque curves. For centrifugal pumps with high static head, verify the hybrid inverter’s V/f control can deliver 150% rated torque for ≥60 seconds at startup.
– Duty Cycle Analysis: For intermittent agricultural irrigation, calculate the equivalent thermal load. If the motor cycles frequently (>6 starts/hour), confirm the inverter’s DC-link capacitance and IGBT thermal mass support Class F insulation limits (ΔT < 80°C).

Step 2: Inverter Topology & Power Rating Selection

Match inverter specifications to hybrid operational modes (grid-tie, off-grid, and generator backup).
– Continuous Current Rating: Size the inverter output current ≥1.25× motor Full Load Amps (FLA) per NEC 430.22. For VFD-controlled pumps, ensure the carrier frequency (2–8 kHz) does not derate output current by >10% at maximum ambient temperature.
– Hybrid Functionality Verification: Confirm bidirectional DC-AC conversion capability. The unit must support:
– DC-coupled battery charging directly from PV bus (bypassing separate charge controllers)
– Grid-forming capability for off-grid pump operation with stable voltage/frequency (±1% regulation)
– Seamless transfer time <20ms for critical livestock watering systems
– DC Input Voltage Window: Verify the Maximum Power Point Tracking (MPPT) range (e.g., 200–850 VDC) accommodates your string design at temperature extremes.

Step 3: Photovoltaic Array String Sizing

Calculate string configurations to maintain MPPT voltage within inverter limits across ambient temperature ranges.
– Maximum Open-Circuit Voltage (Voc): Calculate worst-case Voc at lowest expected ambient temperature (T_min):
$$V_{oc_max} = V_{oc_STC} \times N_{series} \times [1 + (T_{min} – 25°C) \times \alpha_{Voc}]$$
where $\alpha_{Voc}$ is the module’s temperature coefficient (%/°C). Ensure $V_{oc_max}$ < inverter maximum DC input voltage (typically 1,000 VDC or 1,500 VDC for commercial units).
– Minimum Operating Voltage (Vmp): Calculate Vmp at highest cell temperature (T_max + 25°C irradiance delta):
$$V_{mp_min} = V_{mp_STC} \times N_{series} \times [1 + (T_{max} – 25°C) \times \alpha_{Vmp}]$$
Verify $V_{mp_min}$ > inverter minimum MPPT voltage to prevent midday power clipping.
– Current Compatibility: Total array short-circuit current ($I_{sc_array}$) must be ≤ inverter maximum DC input current. Size conductors for 1.56× $I_{sc}$ per UL 1741.

Step 4: Energy Storage & DC Bus Integration

Align battery chemistry and voltage with hybrid inverter charge controllers.
– Voltage Nominal Matching: For 480V AC three-phase pump motors, ensure the DC bus voltage (battery + PV) supports the inverter’s DC/AC boost ratio. Lithium iron phosphate (LiFePO4) banks at 384VDC (120S) or 512VDC (160S) are typical for 400V-class industrial hybrids.
– Charge/Discharge Rates: Size battery capacity (kWh) to support 1.5× the motor’s hourly energy consumption during cloudy periods. Verify the inverter’s battery charge current limit (e.g., 100A) supports C/5 to C/2 charging rates without BMS throttling.
– Cold Cranking Considerations: For agricultural installations with winter operation, confirm battery discharge capacity at -10°C meets morning pump startup demands, or specify battery heating mats controlled by the inverter’s auxiliary relay.

Step 5: AC Output & Grid Interconnection

Validate electrical protection and power quality for utility-interactive or stand-alone operation.
– Voltage & Frequency Stability: For grid-tied systems, verify anti-islanding protection (UL 1741/IEEE 1547) and reactive power control (VAR support) if required by the utility. Off-grid systems require ±2% voltage regulation and ±0.5Hz frequency stability under 0–100% load steps.
– Harmonic Distortion: Specify total harmonic current distortion (THDi) <5% to prevent overheating of pump motor windings and nearby distribution transformers.
– Protection Coordination: Size AC breakers at 1.25× inverter rated output current. Install Type 2 DC surge protection devices (SPD) at PV input terminals and Type 1+2 SPD at AC output if located in lightning-prone agricultural zones.

Step 6: Environmental Derating & Mechanical Installation

Adjust ratings for altitude, temperature, and enclosure integrity.
– Thermal Derating: For installations >1,000m altitude or >40°C ambient, apply 1% current derating per 100m or 1°C above rating. Ensure the heatsink/fan assembly provides ≥50 CFM per kW of inverter capacity.
– Ingress Protection: Specify IP65 or NEMA 4X enclosures for outdoor agricultural environments with dust/irrigation spray. Verify conduit entry points maintain gland plate integrity for EMC compliance.
– Vibration Analysis: For mobile irrigation rigs or pump skids, confirm the inverter’s PCB mounting and fan bearings withstand 3–5G vibration per IEC 60068-2-6.

Final Verification: Cross-reference the selected hybrid inverter’s datasheet against the pump motor’s nameplate data, PV module specifications (IEC 61215), and battery BMS communication protocol (CAN/RS485) to ensure closed-loop control compatibility before procurement.

Wholesale Cost and Energy ROI Analysis for Solar Hybrid Inverter

For industrial-scale solar pumping installations and motor control applications, the procurement of hybrid inverters demands a sophisticated financial analysis that extends far beyond residential per-watt pricing models. EPC contractors and agricultural project managers must evaluate equipment costs within the context of Total Cost of Ownership (TCO), factoring in integration complexity with existing Variable Frequency Drive (VFD) infrastructure, energy arbitrage potential, and the risk-mitigation value of extended industrial warranties.

B2B Pricing Architecture: Volume Procurement vs. Retail Acquisition

The wholesale cost structure for solar hybrid inverters in industrial automation diverges significantly from residential markets. While retail hybrid inverters typically range from $0.15–$0.25 per watt for sub-10kW residential units, industrial-grade hybrid inverters (30kW–250kW+) for solar pumping and heavy motor control applications follow tiered volume pricing models:

Tier 1 Distributor Pricing (1–10 units): Approximately 35–40% below MSRP, suitable for pilot agricultural projects or single-site industrial retrofits integrating hybrid storage with existing VFD systems.

Tier 2 EPC Contractor Pricing (11–50 units): 45–55% reduction from retail, enabling competitive bidding on medium-scale irrigation projects where hybrid inverters manage both solar array input and battery backup for critical pumping operations during grid instability.

Tier 3 OEM Integration (50+ units): 60%+ wholesale pricing for manufacturers embedding hybrid inverter technology into integrated solar pump drive systems, where the hybrid unit functions as both grid-tie interface and VFD pre-charge/power conditioning module.

Critical to B2B procurement is the distinction between hybrid inverter-charger systems and hybrid solar pump controllers. The latter, specifically designed for agricultural VFD integration, command premium wholesale pricing ($800–$2,200 per unit depending on kW rating) but eliminate the need for separate DC coupling equipment, reducing balance-of-system costs by 12–18%.

TCO Analysis: Solar Pumping and Motor Control Integration

When analyzing ROI for industrial hybrid inverter deployments, the calculation must account for bidirectional power conversion efficiencies and VFD compatibility. Unlike standard grid-tie inverters, hybrid units for pumping applications must manage:

• DC Bus Voltage Stability: Maintaining 550V–800V DC bus compatibility with high-efficiency agricultural pumps and three-phase induction motors
• Regenerative Braking Energy Capture: In pumping applications with elevation differentials, hybrid inverters can recover kinetic energy during pump deceleration, storing it in battery banks rather than dissipating it as heat through braking resistors
• Peak Shaving for Demand Charge Reduction: Industrial facilities utilizing solar pumping with hybrid storage can offset 40–60% of peak demand charges by discharging stored energy during high-tariff periods, particularly critical for agricultural operations with seasonal irrigation spikes

For a typical 75kW solar pumping station with integrated hybrid storage, the capital equipment cost breakdown reveals:

• Hybrid Inverter Unit: 18–22% of total system cost
• VFD Integration and Motor Control Interfaces: 8–12% (often reduced when specifying hybrid inverters with built-in VFD communication protocols such as Modbus RTU/TCP)
• Battery Energy Storage System (BESS): 35–40%
• Installation and Commissioning: 15–20%

The integration of hybrid inverters with existing VFD infrastructure eliminates redundant power conversion stages, improving system efficiency from 88–90% (traditional AC-coupled battery systems) to 94–96% (DC-coupled hybrid architecture), directly impacting energy yield ROI calculations.

Energy ROI Calculations for Agricultural and Industrial Applications

The payback period for hybrid inverter investments in solar pumping scenarios typically ranges from 3.5 to 6 years, depending on local electricity tariffs and irrigation scheduling flexibility. Key variables in industrial ROI modeling include:

Energy Arbitrage Value: Hybrid inverters enable time-of-use optimization, storing solar energy generated during low-value morning hours and dispatching it during peak afternoon tariff periods when pumping demand peaks. For agricultural operations with time-of-use rates, this arbitrage can generate $0.08–$0.15 per kWh in value stacking.

Grid Independence and Diesel Offset: In remote pumping stations historically dependent on diesel generators, hybrid inverter systems with adequate battery storage can reduce fuel consumption by 70–85%, with diesel displacement providing the fastest ROI pathway (often sub-3-year payback when diesel costs exceed $1.20/liter).

VFD Soft-Start Protection: The integration of hybrid inverters with VFDs extends motor lifespan by 30–40% through controlled acceleration ramps and elimination of inrush currents, reducing capital replacement costs in multi-pump agricultural installations.

Capacity Factor Enhancement: Hybrid systems allow solar pumping operations to continue during cloud transients or grid outages, maintaining 85–92% capacity factors versus 60–70% for grid-tie-only systems, effectively increasing revenue-generating pumping hours by 20–25% annually.

Warranty Cost Risk Analysis: Industrial vs. Commercial Grade

B2B procurement decisions must rigorously evaluate warranty structures, as industrial hybrid inverters face significantly higher thermal and electrical stress than residential units:

Standard Warranty Economics: Most Tier 1 manufacturers offer 5-year standard warranties with optional extensions to 10 years at 8–12% of equipment cost. For solar pumping applications in harsh environments (high humidity, dust, temperature cycling), the expected failure rate for non-industrial-grade hybrid inverters exceeds 15% over 10 years, making extended warranties economically justified when NPV of replacement costs exceeds warranty premium.

Critical Component Coverage: EPC contractors should verify warranty coverage for:
– IGBT Modules and Power Stacks: The most common failure point in high-current pumping applications
– MPPT Controllers: Essential for maximizing solar array output in variable irradiance conditions
– Battery Management System (BMS) Integration: Ensuring compatibility warranty coverage when pairing third-party lithium or flow batteries with hybrid inverters

OPEX Impact: Industrial-grade hybrid inverters with 10-year comprehensive warranties typically reduce operational expenditure by $0.02–$0.03 per kWh processed over the system lifetime compared to standard 5-year warranty units, factoring in avoided replacement costs and downtime during critical irrigation windows.

For automation distributors, maintaining spare unit inventory for warranty swap programs represents a hidden carrying cost of 3–5% annually, favoring partnerships with manufacturers offering advanced replacement programs rather than repair-only warranty terms.

Strategic Procurement Recommendations

When specifying hybrid inverters for solar pumping and motor control projects, EPC contractors should prioritize units featuring dual MPPT inputs, IP65+ environmental protection, and VFD direct communication capabilities (supporting RS-485, CAN bus, or Ethernet/IP protocols). Bulk procurement agreements should negotiate not only per-unit pricing but also training credits for field service teams and buffer stock arrangements to minimize project delays.

The convergence of hybrid inverter technology with intelligent VFD control represents the optimal architecture for modern agricultural automation, delivering measurable ROI through energy cost reduction, demand charge management, and enhanced pumping system reliability.

Alternatives Comparison: Is Solar Hybrid Inverter the Best Choice?

When evaluating power conversion architectures for industrial and agricultural deployments, decision-makers must weigh the specific operational demands against capital expenditure (CAPEX) and long-term operational efficiency. While solar hybrid inverters offer compelling advantages for building-integrated energy storage, they are not universally optimal for all motor control or off-grid industrial scenarios. Below is a technical analysis comparing solar hybrid inverters against alternative power conversion and motor control strategies relevant to heavy-duty pumping, irrigation, and factory automation.

1. Solar Hybrid Inverter vs. Conventional Grid-Tied + Battery Inverter Architecture

In traditional solar installations, power conversion is handled by discrete components: a grid-tied inverter for PV-to-AC conversion and a separate battery inverter/charger for energy storage management. The hybrid inverter consolidates these functions into a single power electronic chassis.

Technical Distinctions:
– Conversion Stages: A conventional setup requires two separate inversion stages (PV DC→AC, then Battery DC→AC), resulting in cumulative conversion losses (typically 3-5% per stage). Hybrid inverters utilize a shared DC bus architecture, reducing round-trip efficiency losses by 1-2%.
– Form Factor & Installation: Hybrid systems reduce switchgear complexity and panel space requirements by approximately 30-40%, critical for compact agricultural pump houses or containerized industrial power units.
– Single Point of Failure: The integrated nature of hybrid inverters introduces a reliability risk not present in modular systems. If the hybrid unit fails, both solar generation and battery backup are simultaneously offline, whereas discrete systems offer operational redundancy.

2. Solar Hybrid Inverter vs. Dedicated Solar Pump Inverter (VFD)

For agricultural irrigation and industrial fluid handling, engineers often face a choice between using a solar hybrid inverter (designed primarily for building energy management) versus a dedicated Solar Pump Inverter—a specialized Variable Frequency Drive (VFD) optimized for photovoltaic water pumping.

Critical Differences:
– MPPT Optimization: Solar pump inverters employ proprietary Maximum Power Point Tracking (MPPT) algorithms specifically tuned for pump load curves and varying solar irradiance, achieving 98-99% tracking efficiency. Hybrid inverters use generic MPPT designed for battery charging, which may not optimize for motor torque requirements under fluctuating irradiance.
– Motor Control Sophistication: Dedicated solar pump VFDs offer sensorless vector control, automatic dry-run protection, water level detection, and soft-start capabilities that prevent water hammer and mechanical stress. Hybrid inverters typically provide basic V/Hz control, lacking the torque control precision necessary for deep-well submersible pumps or high-viscosity fluid handling.
– Grid Independence: Solar pump inverters operate in “pure off-grid” mode without requiring a grid reference (voltage/frequency source), directly converting PV DC to variable frequency AC for the motor. Hybrid inverters typically require a stable grid or battery reference to operate, making them unsuitable for direct-coupled solar pumping without battery storage.

3. Motor Starting and Control Strategies: VFD vs. Soft Starter vs. DOL

For industrial motor applications not requiring full solar integration, the method of motor starting significantly impacts equipment longevity and energy consumption.

Direct Online (DOL) Starting:
– Application: Only suitable for motors under 5kW or where mechanical shock is acceptable.
– Drawbacks: Inrush currents of 6-8x rated current create voltage sags and thermal stress. In solar-battery systems, DOL starting can collapse DC bus voltage, triggering inverter fault protection.

Soft Starters:
– Function: Reduce starting current to 2-4x rated current by controlling voltage ramp-up.
– Limitations: Provide no speed control or energy optimization during operation. Inefficient for variable torque loads (pumps, fans) where flow/pressure modulation is required.
– Solar Compatibility: Poor; soft starters cannot regulate frequency to match solar irradiance availability.

Variable Frequency Drives (VFDs):
– Advantages: Enable 0.5-1.5x rated current soft starting, precise speed control, and significant energy savings (30-50% in pumping applications) through affinity laws (Power ∝ Speed³).
– Solar Integration: General-purpose VFDs can be paired with solar hybrid inverters, but dedicated solar pump VFDs (like Boray’s SP series) eliminate the need for a hybrid inverter entirely in off-grid pumping scenarios.

4. Motor Technology Comparison: PMSM vs. Induction Motor (IM)

When pairing motors with solar inverter systems, the motor type selection affects overall system efficiency and inverter requirements.

Permanent Magnet Synchronous Motors (PMSM):
– Efficiency: 92-96% efficiency across wide load ranges, with higher power factor (0.95-1.0).
– Inverter Requirements: Require precise rotor position sensing or high-performance sensorless vector control; compatible with advanced solar pump inverters but often incompatible with basic hybrid inverters lacking closed-loop control capabilities.
– Cost: Higher initial cost offset by reduced energy consumption and smaller inverter sizing requirements (lower kVA rating needed for same mechanical output).

Induction Motors (IM):
– Robustness: Simpler construction, no rare-earth magnet dependencies, tolerant of voltage sags.
– Efficiency: Typically 85-90% at full load, with poor partial-load efficiency (critical for solar applications where irradiance varies).
– Compatibility: Work with basic V/Hz control from hybrid inverters, but energy losses are 15-20% higher than PMSM systems in variable-speed solar pumping.

Comparative Decision Matrix

Parameter	Solar Hybrid Inverter	Solar Pump Inverter (VFD)	Soft Starter + Grid	Grid-Tied + Battery Inverter
Primary Application	Building energy storage, grid-tied backup	Agricultural/Industrial pumping	Fixed-speed motor starting	Residential/Commercial backup power
Motor Control Capability	Basic V/Hz (limited torque control)	Sensorless vector, torque control	Voltage ramp only	None (AC coupling only)
Solar Direct-Drive	No (requires battery buffer)	Yes (direct PV-to-motor)	No	No
Starting Current	N/A (load dependent)	0.5-1.5x rated current	2-4x rated current	N/A
Energy Efficiency	94-96% (conversion only)	97-98% (system level with MPPT)	85-90% (motor dependent)	90-93% (cumulative losses)
Off-Grid Capability	Yes (with battery)	Yes (no battery required)	No	Limited (battery dependent)
CAPEX (per kW)	$800-$1,200	$200-$400	$150-$300	$1,000-$1,500
OPEX (Maintenance)	Medium (single unit, complex electronics)	Low (ruggedized for outdoor/pump houses)	Low (electromechanical)	High (battery replacement, dual units)
Harmonic Distortion (THDi)	<3%	<5%	N/A	<3%
Scalability	Limited by single unit capacity	Highly modular (pump-specific)	Motor-specific	Modular (separate components)

Strategic Recommendations

Choose Solar Hybrid Inverters when:
– The application requires building-level energy arbitrage (peak shaving, time-of-use optimization) rather than dedicated mechanical load control.
– Battery energy storage is mandatory for 24/7 critical loads in remote facilities.
– The installation requires grid-interactive capabilities with export limitations or net metering.

Choose Dedicated Solar Pump Inverters (VFDs) when:
– The primary load is centrifugal or positive displacement pumps in irrigation, drainage, or industrial fluid handling.
– Direct solar-to-mechanical power conversion is desired without battery costs (daytime-only pumping).
– Precise flow control, pressure maintenance, or multi-pump cascade control is required.

Choose Soft Starters only for fixed-speed applications where mechanical stress reduction is the sole concern, and energy efficiency is secondary.

Motor Selection Guidance: For solar pumping systems where every watt of PV capacity affects pumping volume, PMSM motors paired with dedicated solar pump VFDs deliver the lowest Total Cost of Ownership (TCO) despite higher upfront costs, particularly in applications with >500 operating hours annually.

Conclusion: While solar hybrid inverters represent the pinnacle of building energy management technology, they are not the optimal choice for direct solar pumping applications. For agricultural and industrial pumping, dedicated solar pump inverters (specialized VFDs) provide superior MPPT performance, motor protection features, and eliminate the cost and complexity of battery storage. Evaluate the primary load characteristics—mechanical vs. electrical storage—before specifying your power conversion architecture.

Core Technical Specifications and Control Terms for Solar Hybrid Inverter

For industrial-scale solar pumping and hybrid energy projects, selecting the appropriate inverter architecture requires precise evaluation of both electrical performance parameters and commercial logistics frameworks. Unlike residential battery hybrids, industrial solar hybrid inverters—particularly those interfacing with Variable Frequency Drives (VFDs) for motor control—must satisfy rigorous specifications governing power conversion efficiency, motor torque characteristics, and global supply chain protocols.

Photovoltaic Input Characteristics & MPPT Optimization

Maximum Power Point Tracking (MPPT) constitutes the primary efficiency mechanism in solar hybrid systems. For agricultural and industrial pumping applications, specify inverters with wide MPPT voltage ranges (typically 250VDC–800VDC or 400VDC–850VDC) to accommodate large PV array configurations and temperature-induced voltage fluctuations. Critical parameters include:

• MPPT Efficiency: ≥99.5% tracking efficiency under dynamic irradiance conditions
• Start-up Voltage: Lower thresholds (e.g., 200VDC) enable earlier morning pumping cycles when irradiance is minimal
• Maximum DC Input Current: Must exceed the short-circuit current (Isc) of the PV array by 1.25x safety margin per IEC 62548
• Number of MPPT Channels: Dual or triple independent MPPTs allow for east-west array configurations or partial shading mitigation across large agricultural fields

Motor Control Architectures: Vector Control & PID Regulation

When the hybrid inverter directly drives pumping motors or interfaces with external VFDs, Field-Oriented Control (FOC)—commonly termed Vector Control—becomes essential. Unlike scalar V/f control, vector control decouples torque and flux components, providing:

• High Starting Torque: 150–200% rated torque at 0.5Hz for submersible pump startup
• Speed Regulation Accuracy: ±0.5% for consistent flow rates in drip irrigation systems
• Dynamic Response: <100ms response to load changes in multi-pump configurations

PID (Proportional-Integral-Derivative) Control operates as the closed-loop feedback mechanism for system automation. In solar pumping hybrids, PID algorithms regulate:
* Constant Pressure: Adjusting pump speed based on pressure transducer feedback (4–20mA or 0–10V signals)
* Tank Level Management: Modulating flow to maintain reservoir levels while maximizing solar utilization
* Grid-Solar Blending: Smoothing transitions between PV-only, grid-tie, and battery backup modes without pressure surges

Power Quality & Anti-PID Protection

Total Harmonic Distortion (THD): Industrial hybrid inverters must maintain <3% current THD and <5% voltage THD at rated load to comply with IEEE 519 and prevent motor bearing currents that lead to premature pump failure.

Potential Induced Degradation (PID) Mitigation: High-voltage string configurations (1000V–1500VDC) in large-scale installations risk PID in crystalline silicon modules. Specify inverters with anti-PID functionality—typically achieved through:
* Negative grounding of the PV array relative to earth
* Nightly PID recovery routines that apply reverse voltage to the array
* Galvanic isolation between DC and AC stages

Ingress Protection (IP) Ratings: For outdoor agricultural environments, demand IP65 or IP66 enclosures to protect against dust infiltration and high-pressure water jets, ensuring reliability in monsoon conditions or irrigation spray zones.

Communication & Integration Protocols

Industrial hybrid inverters require robust industrial networks for SCADA integration:
* RS485/Modbus RTU: Standard for VFD communication and remote monitoring terminals
* CAN Bus: For real-time synchronization between multiple inverters in parallel pumping stations
* Ethernet/Modbus TCP: For cloud-based monitoring platforms utilized by EPC contractors
* Dry Contact I/O: For diesel generator auto-start signals in solar-diesel hybrid architectures

Commercial Terms for Global Procurement (Incoterms 2020)

When negotiating cross-border procurement for solar pumping infrastructure, precise Incoterms definitions prevent logistical disputes:

FOB (Free On Board): The seller delivers goods cleared for export onto the vessel at the named port of shipment (e.g., FOB Shenzhen). Risk transfers when goods pass the ship’s rail. Buyer assumes ocean freight and insurance costs. Optimal for EPC contractors with established freight forwarding relationships.

CIF (Cost, Insurance, and Freight): Seller contracts for carriage and insurance to the named destination port (e.g., CIF Mombasa). Risk transfers to buyer upon loading at origin, though seller bears freight costs. Note that CIF requires seller-provided insurance covering 110% of invoice value under minimum Institute Cargo Clauses (C). Critical for agricultural projects in regions with limited logistics infrastructure.

EXW (Ex Works): Buyer collects goods at the manufacturer’s facility (Boray factory). Places maximum obligation on the buyer, suitable only for distributors with China-based consolidation operations.

DAP (Delivered at Place): Seller delivers to the named destination (e.g., project site warehouse), excluding unloading and import clearance. Increasingly preferred for turnkey solar pumping projects where the contractor requires door-to-door accountability.

Additional Commercial Considerations:
* MOQ (Minimum Order Quantity): Typically 1–5 units for high-power hybrid inverters (>55kW), with volume discounts at 20+ units
* Lead Time: 15–30 days EXW for standard configurations; 45–60 days for custom voltage/frequency specifications (e.g., 460V/60Hz for North American agricultural markets)
* Warranty Structure: Standard 2-year warranty extendable to 5 years; specify whether on-site service or return-to-factory (RTF) protocols apply for rural installations
* Spare Parts Strategy: EPC contracts should stipulate 2–3% spare parts provision (PCBs, cooling fans, capacitors) for critical pumping infrastructure

Understanding these technical and commercial parameters enables stakeholders to specify solar hybrid inverters that deliver reliable motor control under variable solar conditions while maintaining predictable supply chain economics across international agricultural and industrial automation projects.

Future Trends in the Solar Hybrid Inverter Sector

The solar hybrid inverter sector is undergoing a paradigm shift from standalone power conversion equipment to intelligent energy management hubs. For industrial engineers and EPC contractors, this evolution represents a critical intersection between renewable energy integration and advanced motor control systems. As distributed energy resources (DERs) proliferate across agricultural and industrial landscapes, next-generation hybrid inverters are increasingly required to seamlessly interface with Variable Frequency Drives (VFDs), solar pumping systems, and automated process controls while maintaining grid stability and optimizing energy arbitrage across complex operational scenarios.

Deep Integration with VFD and Motor Control Architectures

A significant trend reshaping the sector is the convergence of hybrid inverter technology with industrial motor control systems, particularly in solar pumping applications. Traditional AC-coupled architectures are giving way to DC-coupled configurations that allow solar arrays to feed directly into a common DC bus shared with VFDs and battery storage systems. This topology eliminates redundant AC/DC conversion stages, reducing energy losses by 3-5% while simplifying system topology for agricultural irrigation projects and industrial process automation.

Modern hybrid inverters are increasingly incorporating bidirectional power flow capabilities that extend beyond battery charging to include regenerative energy capture from motor drives. In solar pumping systems, this allows VFDs to return deceleration energy to the DC bus rather than dissipating it through braking resistors, significantly improving overall system efficiency. For EPC contractors, this integration reduces component count and installation complexity, while providing engineers with granular control over power quality and harmonic distortion—critical factors when operating sensitive agricultural automation equipment or precision manufacturing machinery.

Grid-Forming Capabilities and Industrial Microgrids

The transition from grid-following to grid-forming inverter technology is particularly relevant for remote industrial sites and agricultural operations where grid stability cannot be guaranteed. Advanced hybrid inverters now incorporate Virtual Synchronous Machine (VSM) algorithms that mimic the rotational inertia of conventional generators, providing frequency and voltage support in weak-grid or off-grid scenarios. This capability is essential for solar pumping stations in rural areas and mining operations where voltage fluctuations could disrupt critical motor control processes.

These systems are evolving to support automated demand response (ADR) protocols, enabling seamless interaction with industrial Building Management Systems (BMS) and SCADA networks. By communicating directly with VFDs and process controllers, hybrid inverters can execute load-shedding strategies during peak tariff periods or grid instability events, prioritizing essential motor loads while modulating non-critical auxiliary systems. This level of automation is becoming a standard requirement for industrial energy management contracts and utility-scale agricultural projects.

AI-Driven Energy Management and Predictive Maintenance

The integration of edge computing and machine learning algorithms is transforming hybrid inverters from reactive devices into predictive energy management platforms. For solar pumping applications, advanced MPPT (Maximum Power Point Tracking) algorithms now incorporate weather forecasting data and soil moisture sensor inputs to optimize pumping schedules, ensuring maximum water delivery during peak solar generation while minimizing grid dependency.

Predictive maintenance capabilities represent a crucial innovation for minimizing downtime in critical industrial applications. By analyzing harmonic signatures and thermal patterns from connected VFDs and motors, intelligent hybrid inverters can detect bearing wear, cavitation in pumps, or insulation degradation before catastrophic failure occurs. This prognostic approach aligns with Industry 4.0 maintenance strategies, allowing agricultural project managers and facility engineers to schedule interventions during planned maintenance windows rather than emergency shutdowns.

IoT-Enabled Monitoring and Cybersecurity Integration

The proliferation of Industrial Internet of Things (IIoT) connectivity in hybrid inverters is enabling unprecedented visibility into distributed energy systems. Modern platforms offer real-time monitoring of not just energy flows, but also motor performance metrics, vibration analysis, and power quality parameters. For automation distributors, this creates opportunities to offer value-added services including remote commissioning, firmware updates, and performance optimization without site visits.

However, this connectivity necessitates robust cybersecurity frameworks. Emerging standards such as IEC 62443 are driving the implementation of secure boot processes, encrypted communication protocols, and network segmentation capabilities in hybrid inverter designs. For critical infrastructure applications—including water treatment facilities and automated agricultural networks—defense-in-depth strategies that isolate inverter control systems from enterprise IT networks while maintaining data accessibility for authorized operators are becoming mandatory specifications in EPC tenders.

High-Voltage Architectures and Wide Bandgap Semiconductors

The industry is rapidly adopting 1500V DC architectures for utility-scale and large commercial hybrid systems, reducing Balance of System (BOS) costs through decreased cabling and combiner box requirements. When paired with advanced VFDs capable of operating at elevated DC bus voltages, these systems enable longer distances between solar arrays and motor loads—particularly advantageous for agricultural irrigation projects covering extensive land areas.

Simultaneously, the adoption of Silicon Carbide (SiC) and Gallium Nitride (GaN) power semiconductors is improving switching frequencies and thermal performance. These materials enable more compact inverter designs with higher power densities, reduced cooling requirements, and improved efficiency under partial load conditions—characteristics essential for solar pumping systems that operate across wide power ranges throughout the day.

Standardization and Regulatory Evolution

Regulatory frameworks are evolving to accommodate bidirectional power flows and grid-support functionalities. Standards such as UL 1741-SA and IEEE 1547-2018 are driving the implementation of advanced grid services including frequency-watt control, volt-var optimization, and ride-through capabilities. For industrial engineers, compliance with these standards ensures that hybrid inverter installations can participate in emerging energy markets, including virtual power plants (VPPs) and capacity reserve programs, creating additional revenue streams for agricultural and industrial facility owners.

The convergence of these trends positions solar hybrid inverters as central nervous systems for automated, sustainable industrial operations. As the technology matures, differentiation will increasingly depend on seamless interoperability with existing motor control infrastructures, intelligent automation capabilities, and robust cybersecurity postures—factors that define the next generation of industrial energy solutions.

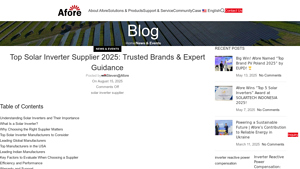

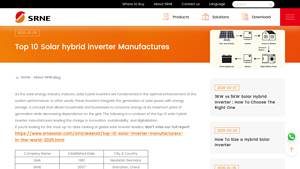

Top 2 Solar Hybrid Inverter Manufacturers & Suppliers List

B2B Engineering FAQs About Solar Hybrid Inverter

1. How does a solar hybrid inverter integrate with existing VFD-driven pump systems in agricultural retrofit projects?
   In retrofit scenarios, the hybrid inverter functions as the primary AC power source while maintaining compatibility with existing Variable Frequency Drive (VFD) inputs. For Boray solar pump inverters specifically, the hybrid unit’s output synchronizes with the VFD’s input voltage and frequency tolerances (typically 380V/400V AC ±15%). The integration requires configuring the hybrid inverter’s grid-tie parameters to match the VFD’s ramp-up characteristics, ensuring seamless transition between solar, battery, and grid power without triggering the VFD’s undervoltage or phase-loss protection. Critical considerations include maintaining the DC bus voltage stability when the hybrid inverter switches power sources, as fluctuations can cause VDC bus faults in the motor control system.

2. What are the motor inrush current limitations when using hybrid inverters for direct motor starting versus VFD-coupled architectures?
   Standard hybrid inverters designed for residential applications typically limit inrush current to 1.5–2x rated output for 10–60 seconds. However, for direct online (DOL) starting of irrigation pumps exceeding 7.5kW, this often proves insufficient, causing inverter overcurrent trips. In industrial solar pumping applications, the recommended architecture places the hybrid inverter upstream of a dedicated solar pump VFD (such as Boray’s PD series), which manages the motor’s inrush current through controlled ramp-up (0–60 Hz in configurable seconds). This configuration allows the hybrid inverter to see only the steady-state power demand (1.0–1.2x rated) rather than the 6–8x inrush spike, enabling smaller hybrid inverter sizing relative to motor horsepower.

3. Can industrial hybrid inverters provide grid-forming capabilities for off-grid irrigation networks with multiple asynchronous pump motors?
   Yes, advanced three-phase hybrid inverters with grid-forming (voltage-source) capability can establish and regulate microgrid parameters for remote agricultural operations. Unlike grid-following inverters that require a reference voltage, grid-forming units maintain 400V/50Hz (or 480V/60Hz) stability regardless of load fluctuations from multiple pump motors cycling on/off. For multi-pump installations, the hybrid inverter must support droop control or master-slave configurations to prevent circulating currents between pumps. When integrated with Boray VFDs, the system can implement frequency-watt control, where the hybrid inverter reduces output frequency during battery depletion, allowing pumps to derate rather than trip offline.

4. What isolation and grounding requirements are critical when deploying hybrid inverters with submersible pump VFDs in deep well applications?
   Submersible pump installations require galvanic isolation between the hybrid inverter output and the VFD input to prevent ground loop currents that can damage motor insulation. The hybrid inverter must feature transformer-based isolation or external isolation transformers when feeding VFDs powering submersible motors >50m depth. Grounding topology should follow TN-S standards, with separate PE (Protective Earth) and N (Neutral) conductors from the hybrid inverter to the VFD, and additional equipotential bonding at the wellhead. EMC compliance necessitates shielded cables between the hybrid inverter and VFD, with the hybrid inverter’s switching frequency (typically 4–16kHz) filtered to prevent conducted emissions affecting motor bearing currents.

5. How do hybrid inverters manage power quality (THD) when simultaneously feeding grid-tie operations and sensitive motor control equipment?
   Industrial hybrid inverters must maintain Total Harmonic Distortion (THD) <3% at rated load to prevent heating in motor windings and nuisance tripping of VFD protection circuits. When operating in hybrid mode—simultaneously exporting to the grid and powering local pump motors—the inverter’s PWM switching algorithm must prioritize harmonic cancellation. For installations using Boray motor control solutions, specify hybrid inverters with LCL (Inductor-Capacitor-Inductor) output filters rather than simple L filters, as these provide superior attenuation of high-frequency components that interfere with VFD current sensors. Additionally, the hybrid inverter should offer selectable power factor correction (PFC) modes to compensate for the lagging power factor of induction motors (0.75–0.85 typical).

6. What communication protocols enable coordination between hybrid inverters, pump station SCADA systems, and VFD controllers?
   Modern industrial hybrid inverters support Modbus RTU (RS485) and Modbus TCP/IP for integration with agricultural automation platforms. For seamless coordination with Boray VFDs and SCADA systems, the hybrid inverter should expose registers for: DC bus voltage, battery SOC (State of Charge), available solar power, and grid import/export status. Advanced implementations utilize CANopen or EtherCAT for deterministic control (<10ms latency) between the hybrid inverter and pump VFDs, enabling functions like solar-only pumping mode (disabling grid charging during peak irradiance) and automatic load shedding when battery voltage drops below configurable thresholds (e.g., 48V for 48V systems, 400V for high-voltage architectures).

7. How should EPC contractors size hybrid inverter capacity for hybrid AC/DC solar pumping architectures with battery backup?
   Sizing requires analyzing the diversity factor between AC auxiliary loads (lighting, controls) and DC pump power. For a system utilizing Boray solar pump inverters (DC input) alongside AC loads, the hybrid inverter capacity should be sized to: (1) Handle 100% of AC load power simultaneously with (2) Battery charging current required for autonomy days, plus (3) 25% headroom for VFD efficiency losses and temperature derating. Example: For a 15kW pump (DC coupled to solar array) with 5kW AC facility loads and 20kWh battery storage requiring 10kW charge rate, specify a 20–25kW hybrid inverter rather than simply aggregating peak loads (20kW), accounting for the fact that the pump VFD draws from the DC array directly during daylight hours, reducing AC burden on the hybrid unit.

8. What protection mechanisms do industrial hybrid inverters offer against pump motor regeneration and islanding conditions?
   When pumps decelerate rapidly or encounter water hammer, VFDs can regenerate energy back to the DC bus. Industrial hybrid inverters must incorporate active anti-islanding protection (IEEE 1547/UL 1741 compliant) and regenerative braking resistors or bidirectional grid-tie capability to dissipate excess energy. For off-grid pump stations, the hybrid inverter should feature frequency-shift power control (FSPC) to detect and disconnect from unintentional islands formed by motor-generator sets. Additionally, DC injection protection prevents transformer saturation when the hybrid inverter attempts to feed DC offset currents into the grid during VDC bus faults in the pump motor controller.

Disclaimer

Conclusion: Partnering with Boray Inverter for Solar Hybrid Inverter

As the solar industry advances toward true energy independence, the hybrid inverter stands as the critical nexus between renewable generation, storage capacity, and intelligent load management. For industrial engineers and EPC contractors designing robust agricultural irrigation systems or automated industrial processes, the selection of power conversion and motor control technologies ultimately determines system efficiency, reliability, and ROI. While hybrid inverters manage the complex DC-AC bidirectional flows between solar arrays, battery banks, and the utility grid, the downstream motor control systems—particularly Variable Frequency Drives (VFDs) and Solar Pump Inverters—must deliver equally sophisticated performance to maximize energy utilization in demanding environments.

This is where Shenzhen Boray Technology Co., Ltd. emerges as your strategic manufacturing partner. As an innovative leader in Solar Pumping & Motor Control Solutions based in China, Boray Inverter specializes in the precise vector control technologies that drive modern hybrid solar applications. With an R&D team comprising 50% of our workforce, we have mastered advanced PMSM (Permanent Magnet Synchronous Motor) and IM (Induction Motor) vector control algorithms, ensuring optimal efficiency across varying solar irradiance conditions and dynamic load demands.

Our manufacturing excellence is anchored by two modern production lines equipped with 100% full-load testing protocols, guaranteeing that every VFD and solar pump inverter meets stringent international standards before deployment. From large-scale agricultural irrigation projects in arid regions to complex industrial automation systems requiring precise motor control, Boray’s solutions have earned the trust of distributors and contractors globally.

Whether you require customized VFD solutions for hybrid solar pumping stations or seek wholesale partnerships for motor control equipment, Boray Inverter delivers the technical expertise and manufacturing capacity to power your next project. Visit borayinverter.com to connect with our engineering team and receive competitive quotations tailored to your specific regional and technical requirements.
