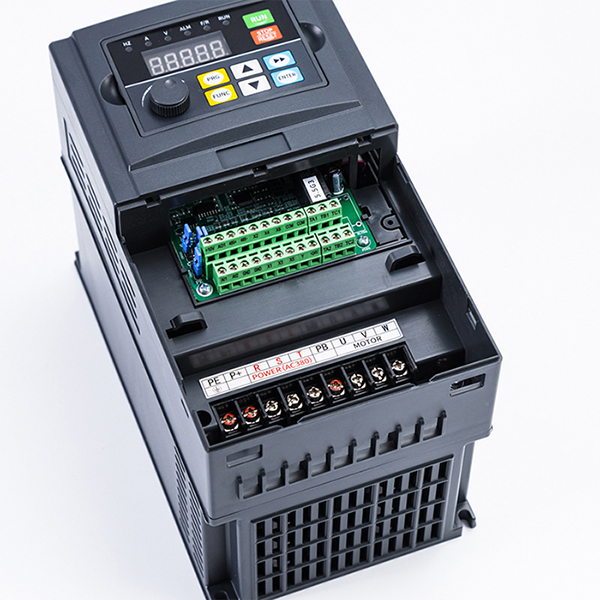

Introduction: Sourcing Variable Frequency Drive Well Pump for Industrial Use

In an era where operational efficiency and energy independence define competitive advantage, industrial water management systems face mounting pressure to reduce consumption while maintaining relentless uptime. Traditional across-the-line well pump configurations—characterized by binary on/off cycling and mechanical pressure switches—represent a significant liability for agricultural enterprises, mining operations, and municipal utilities. These legacy systems not only hemorrhage electrical energy through inrush currents and throttling losses but also subject submersible motors to mechanical stress that precipitates premature failure in remote installations.

Variable Frequency Drive (VFD) well pump technology has emerged as the critical infrastructure upgrade for sophisticated B2B applications, transforming fixed-speed submersible systems into intelligent, demand-responsive assets. By modulating motor speed through precise frequency control, modern VFDs eliminate water hammer, optimize flow rates against dynamic head conditions, and unlock compatibility with solar PV arrays through integrated Maximum Power Point Tracking (MPPT) algorithms.

This comprehensive guide examines the industrial VFD well pump landscape through the lens of electrical engineering and renewable integration. We dissect system architectures ranging from grid-tied industrial drives to hybrid solar pump inverters, analyze critical specifications including ingress protection ratings, harmonic distortion limits, and motor control methodologies, and establish rigorous criteria for evaluating global manufacturers and OEM partners. Whether specifying equipment for large-scale irrigation projects, mining dewatering systems, or municipal aquifer management, the following sections provide the technical framework necessary to specify, procure, and deploy VFD well pump solutions that deliver measurable ROI and operational resilience.

Technical Types and Variations of Variable Frequency Drive Well Pump

Variable Frequency Drive (VFD) well pump systems are not monolithic; their technical architectures vary significantly based on power source availability, motor control methodologies, and deployment environments. For industrial engineers and EPC contractors, selecting the appropriate topology requires understanding the distinctions between grid-tied configurations, solar-integrated drives, and advanced vector control systems. Below is a technical classification of the primary VFD well pump variations currently deployed in agricultural, municipal, and industrial water management sectors.

Type	Technical Features	Best for (Industry)	Pros & Cons
Single-Phase Input VFD (230V Class)	• 1φ 220-240V AC input / 3φ 220V AC output • Power range: 0.75kW–2.2kW (1HP–3HP) • V/Hz control with slip compensation • Built-in EMI filter for residential compliance	Small-scale agriculture, rural residential water supply, remote cabins, light irrigation	Pros: Eliminates need for three-phase grid infrastructure; cost-effective for low-power applications; plug-and-play installation. Cons: Limited to ~2.2kW maximum; higher input current draw requires larger gauge wiring; reduced efficiency compared to three-phase systems at full load.
Three-Phase Industrial VFD (380V–480V Class)	• 3φ 380-480V AC input/output • Power range: 1.5kW–500kW+ • Sensorless vector control (SVC) or V/Hz modes • DC injection braking, PID feedback for constant pressure	Municipal water treatment, large-scale center-pivot irrigation, industrial process water, mining dewatering	Pros: High energy efficiency (95%+); delivers 150% rated torque at low frequencies for deep well startup; scalable to high-power submersible pumps. Cons: Requires three-phase grid infrastructure; higher initial capital expenditure; harmonic mitigation may require additional line reactors.
Solar DC-AC VFD Pump Systems	• DC 200V–800V input range with MPPT algorithm • AC 3φ output (380V/460V) • IP65/NEMA 4X enclosure ratings • Battery-less direct-drive operation	Off-grid agricultural projects, solar irrigation schemes, remote livestock watering, developing regions with unreliable grids	Pros: Zero operating energy costs; MPPT efficiency >98% maximizes PV array output; modular design allows array expansion; operates during daylight without battery storage. Cons: Weather-dependent flow rates; requires 20-30% pump oversizing to compensate for irradiance variability; limited to daylight operation without hybrid storage.
Hybrid AC/DC VFD Systems	• Dual input topology: AC 3φ grid + DC PV • Automatic source switching logic (ATS) • Priority programming (solar priority vs. grid backup) • Anti-islanding protection per IEEE 1547	Agro-industrial facilities, commercial greenhouses, areas with intermittent grid availability, peak-shaving applications	Pros: 24/7 operational capability; reduces grid electricity consumption by 60-80%; seamless failover during outages; eligible for renewable energy incentives. Cons: Complex control architecture requires specialized commissioning; higher component count increases failure points; initial cost 40-60% higher than standard VFDs.
Vector Control VFDs for Deep Well Applications	• Sensorless vector control (open-loop) or closed-loop with encoder • 0.5Hz output with 150% starting torque • Advanced PID with sleep/wake functions • Water hammer suppression algorithms	Deep well extraction (>100m depth), high-head submersible pumps, constant pressure municipal systems, artesian well management	Pros: Precise speed regulation maintains constant pressure ±0.1 bar; high starting torque prevents motor stall in high-static-head wells; soft-start eliminates mechanical stress on pump stages. Cons: Requires motor parameter auto-tuning during commissioning; motor cable length limitations due to capacitive effects; potential for resonance issues requiring skip-frequency settings.

Detailed Technical Analysis

Single-Phase Input VFD Systems
These drives utilize single-phase rectifier front-ends to power three-phase induction motors, making them ideal for rural electrification projects where three-phase infrastructure is cost-prohibitive. The technical limitation lies in the input current harmonics and the reduced DC bus voltage (approximately 311VDC from 220VAC rectification), which limits the maximum motor size to approximately 2.2kW. Engineers must specify drives with active power factor correction (PFC) to mitigate grid distortion. For Boray Inverter applications, these units often incorporate derating curves when operating in high-ambient-temperature environments typical of agricultural pump houses.

Three-Phase Industrial VFD Configurations
The industry standard for commercial well pumps, these systems employ six-pulse or twelve-pulse rectifiers depending on harmonic compliance requirements. The critical differentiator is the control algorithm: basic V/Hz control suffices for centrifugal pumps with quadratic torque loads, while sensorless vector control is mandatory for positive displacement pumps or deep-well submersibles requiring high breakaway torque. Modern units feature built-in PLC functions for multi-pump sequencing (cascade control), allowing staging of multiple wells to meet variable demand without external controllers.

Solar DC-AC VFD Pump Systems
Technically distinct from standard AC drives, solar VFDs (such as Boray’s solar pump inverter series) incorporate Maximum Power Point Tracking (MPPT) algorithms specifically optimized for photovoltaic I-V curves. These units accept wide DC input voltage ranges (typically 200V–800VDC) and utilize IGBT modules rated for DC bus stresses. The absence of AC input rectifiers necessitates specialized protection against PV array ground faults and reverse polarity. Advanced models include water level sensors with dry-run protection, automatically reducing frequency when well levels drop below submersible pump intakes.

Hybrid AC/DC VFD Architectures
These sophisticated systems represent the convergence of grid stability and renewable energy optimization. The drive’s control board manages a DC bus fed by both a traditional three-phase rectifier and a PV array through a DC/DC converter. Critical for B2B procurement decisions is the transfer time specification; premium units achieve <10ms switching times, ensuring uninterrupted water supply for sensitive industrial processes. The control logic must prioritize solar energy while maintaining grid connection for torque-intensive startup sequences that exceed PV instantaneous power availability.

Vector Control for High-Static-Head Wells
In deep well applications (>100 meters), the pump motor faces significant static head plus acceleration torque requirements. Vector control VFDs mathematically model the motor’s flux and torque components separately, delivering precise torque control independent of speed. This is essential for maintaining constant pressure in variable-flow demand scenarios (such as municipal water towers or irrigation networks with multiple zones). The technical implementation requires accurate motor parameter input (stator resistance, leakage inductance) and often necessitates output reactors or sine-wave filters when motor cable runs exceed 50 meters, typical in deep well installations where the VFD is surface-mounted and the motor is submersed.

For EPC contractors specifying these systems, voltage phase compatibility, ingress protection ratings (IP54 minimum for dusty agricultural environments), and control interface protocols (Modbus RTU/TCP for SCADA integration) remain the primary technical selection criteria beyond raw power ratings.

Key Industrial Applications for Variable Frequency Drive Well Pump

Variable Frequency Drive (VFD) well pump systems transcend residential water supply, serving as critical infrastructure components across heavy industrial sectors. For EPC contractors and automation engineers, these systems offer precise motor control, demand-based flow modulation, and seamless integration with solar PV arrays—particularly relevant when specifying Boray Inverter’s solar pump inverter technologies for off-grid or hybrid installations.

Sector	Application	Energy Saving Value	Sourcing Considerations
Agriculture & Irrigation	Large-scale center-pivot, linear move, and drip irrigation systems; livestock water supply	30–50% reduction in kWh consumption; elimination of pressure relief valve losses; optimized solar PV pumping during peak irradiance	IP65/NEMA 4X enclosures for outdoor exposure; compatibility with 3-phase submersible motors (380–480V); built-in MPPT solar pump inverter functionality; multi-pump cascade control for zone management
Municipal Water Management	Potable water distribution networks, wastewater lift stations, and reservoir transfer pumping	20–40% energy savings via demand-based flow modulation; reduced mechanical wear extending MTBF by 40–60%	IEC 61000-4-x EMC compliance for grid stability; redundant 4-20mA/0-10V sensor inputs for level/pressure feedback; harmonic filtering (THDi <5%); SCADA integration via Modbus RTU/TCP
Mining & Heavy Industry	Underground mine dewatering, open-pit drainage, and process water supply for mineral processing	25–35% peak power demand reduction; soft-start capability eliminates water hammer in high-head pipelines	ATEX/IECEx certified enclosures for explosive atmospheres; robust torque control (150% rated torque at 0Hz) for slurry/high-viscosity fluids; derating factors for altitude >1000m; remote monitoring capabilities for unmanned operations
Commercial HVAC & District Cooling	Cooling tower makeup water systems, chilled water circulation, and condenser water pumping	15–30% energy optimization through variable flow matching; precise maintenance of differential pressure setpoints	BACnet/IP or Modbus RTU communication for BMS integration; low acoustic noise operation (<65dB) for occupied spaces; redundant pump staging with automatic alternation; sleep/wake functionality for low-flow conditions

Agricultural Irrigation & Water Management

In commercial agriculture, VFD-controlled well pumps address the highly variable flow requirements of center-pivot and drip irrigation systems. Unlike constant-speed pumps that rely on mechanical pressure regulators (inherently wasteful), VFDs modulate motor speed based on real-time pressure transducer feedback, maintaining precise nozzle pressure regardless of terrain elevation changes or zone valve operation.

For solar-powered installations, Boray’s solar pump inverter technology enables direct DC coupling with PV arrays, eliminating the inefficiencies of battery-based storage. The VFD’s Maximum Power Point Tracking (MPPT) algorithm continuously adjusts the operating point to extract maximum energy from solar panels during variable irradiance conditions—critical for irrigation scheduling in remote locations without grid infrastructure. Engineers should specify units with automatic AC/DC switching capability to ensure 24/7 operation via grid backup during low-solar periods.

Municipal Water Treatment & Distribution

Municipal applications demand rigorous compliance with IEC 61000 electromagnetic compatibility standards to prevent grid disturbance. VFD well pumps in water treatment facilities typically operate in closed-loop PID control, receiving feedback from ultrasonic level transmitters in clear wells or wet wells. This eliminates the “pump hunting” and water hammer associated with traditional pressure tank systems.

Sourcing considerations for municipal EPCs include harmonic mitigation—specify drives with active front ends (AFE) or DC chokes to maintain THDi below 5%, preventing transformer overheating in substations. Additionally, integrate redundant sensor pathways (4-20mA analog plus digital fieldbus) to ensure continuous operation during primary sensor failure, a critical reliability factor for public water supply infrastructure.

Mining & Heavy Industrial Dewatering

Underground mining operations require robust dewatering systems capable of handling high specific gravity fluids and abrasive particulates. VFD well pumps in this sector utilize sensorless vector control or closed-loop flux vector control to maintain constant torque at low speeds—essential for starting pumps against high static heads without exceeding motor current ratings.

The soft-start ramp functionality (0–60Hz adjustable over 0.1–600 seconds) prevents pressure spikes that could damage high-pressure pipeline infrastructure, particularly in deep-shaft operations where water hammer forces can exceed 10x normal operating pressure. When sourcing for mining environments, prioritize drives with conformal-coated PCBs and sealed enclosures (minimum IP54) to resist corrosive mine atmospheres and humidity.

Commercial HVAC & Building Automation

In large-scale commercial complexes, VFD well pumps manage makeup water for cooling towers and primary/secondary chilled water circuits. Integration with Building Management Systems (BMS) via BACnet or Modbus protocols allows the VFD to receive demand signals from building automation controllers, adjusting pump speed to match cooling load rather than maintaining constant flow through bypass lines.

Engineers should specify drives with “sleep mode” functionality—automatically stopping the pump when demand drops below minimum flow thresholds (detected via flow switches or pressure feedback), then automatically restarting when system pressure decays. This prevents energy waste from minimum flow bypass operation while ensuring pump motor cooling is maintained above manufacturer-specified minimum frequencies.

Technical Specification Note: When configuring VFD well pump systems across these sectors, ensure the drive’s carrier frequency is adjustable (2–16kHz) to balance acoustic noise against switching losses, and verify that the VFD’s ambient temperature rating (-10°C to +50°C standard, derated above 40°C) matches the installation environment. For solar hybrid applications, confirm the VFD’s DC input voltage range accommodates the open-circuit voltage (Voc) of the specified PV array under lowest expected temperature conditions.

Top 3 Engineering Pain Points for Variable Frequency Drive Well Pump

Scenario 1: Grid Instability and Motor Protection in Remote Agricultural Installations

The Problem: Well pump systems deployed in rural agricultural zones or off-grid solar installations frequently encounter unstable grid conditions, including voltage sags (±15% nominal), phase imbalances, and intermittent power supply. Direct-on-line (DOL) starting methods generate inrush currents of 600-800% rated amperage, stressing motor windings and accelerating insulation degradation in submersible pumps. In solar pumping applications, rapid cloud transients cause DC bus voltage fluctuations that trigger protective trips, resulting in unreliable water delivery for critical irrigation schedules and increased wear on mechanical seals due to repeated start-up torque shocks.

The Solution: Deploy VFDs with active front-end (AFE) rectifiers or enhanced DC link capacitance providing voltage ride-through capabilities (up to 3 seconds) during brownouts. Advanced motor control algorithms—including automatic voltage regulation (AVR), stall prevention, and electronic thermal overload modeling—protect submersible motor windings from overheating. For solar hybrid systems, integrated Maximum Power Point Tracking (MPPT) maintains stable DC bus voltage despite irradiance variations, while soft-start functionality (0.5-60 second ramp profiles) eliminates mechanical shock and reduces starting current by 70%, ensuring continuous operation during weak grid conditions.

Scenario 2: Hydraulic Transients and Infrastructure Integrity Management

The Problem: Traditional pressure tank systems rely on binary on/off control, creating water hammer effects that generate pressure spikes up to 10 times normal operating pressure (transient pressures exceeding 10 bar in standard 6 bar systems). These hydraulic shocks propagate through distribution networks, causing PVC pipe fatigue, check valve seat damage, and coupling failures in long-distance irrigation mains. In municipal and industrial applications, rapid cycling (frequent start/stop sequences) leads to mechanical seal degradation, shaft bearing wear, and premature failure of pump components, resulting in unplanned downtime and costly infrastructure repairs.

The Solution: Implement closed-loop VFD control with PID feedback sensors maintaining constant pressure (±0.1 bar accuracy) by modulating pump speed rather than cycling power. Programmable acceleration/deceleration ramps (typically 1-10 seconds) ensure gradual flow transitions, eliminating water hammer and reducing pressure transients by 90%. Advanced multi-pump cascade controllers enable duty/standby alternation and automatic rotation schemes, distributing mechanical wear evenly across pump arrays while providing redundancy. This approach extends pipeline lifespan, reduces seal replacement frequency by 40%, and ensures consistent flow rates for precision irrigation and industrial process water supply.

Scenario 3: Environmental Harsh Conditions and Thermal Derating

The Problem: VFD installations in well pump houses, outdoor solar pumping stations, or remote borehole sites face extreme environmental stressors: ambient temperatures ranging from -20°C to +50°C, humidity levels exceeding 90% RH, dust ingress (IP rating failures), and corrosive agricultural chemicals. Standard drives suffer from electrolytic capacitor drying, cooling fan failures, and PCB corrosion, leading to thermal derating or catastrophic failure during critical irrigation periods. In solar applications, direct solar loading on outdoor enclosures creates internal cabinet temperatures 15-20°C above ambient, forcing premature current derating and reduced pumping capacity when water demand peaks.

The Solution: Specify IP65/NEMA 4X rated VFDs with conformal-coated circuit boards and passive cooling architectures (heatsink-based thermal management) that eliminate ventilation fans and filter maintenance requirements. Advanced thermal algorithms provide real-time IGBT junction temperature monitoring with automatic current derating curves, ensuring continuous operation at 100% rated output up to 50°C ambient. For extreme environments, liquid-cooled VFD variants or cabinet installations with thermostatically controlled ventilation maintain optimal operating temperatures, while UV-resistant enclosures and anti-corrosion coatings protect against agricultural chemicals and salinity, achieving MTBF (Mean Time Between Failures) ratings exceeding 50,000 hours in field conditions.

Component and Hardware Analysis for Variable Frequency Drive Well Pump

Industrial-grade Variable Frequency Drives (VFDs) deployed in deep-well pumping applications operate under severe thermal, electrical, and mechanical stressors—particularly in solar-powered irrigation systems where input voltage fluctuates with irradiance and ambient temperatures range from sub-zero to 50°C+. The Mean Time Between Failures (MTBF) and Total Cost of Ownership (TCO) of these systems are dictated not by firmware features alone, but by the physical robustness of five critical hardware subsystems: the power semiconductor stage, control processing unit, DC-link energy storage, thermal management architecture, and electromagnetic conditioning components.

Power Semiconductor Stage: IGBT Modules and Intelligent Power Modules (IPMs)

At the heart of the VFD’s inverter section, Insulated Gate Bipolar Transistors (IGBTs) or integrated IPMs perform the high-speed switching necessary to synthesize variable frequency output from DC or rectified AC input. For well pump applications—especially submersible models with long cable runs—selection of trench-field-stop (TFS) IGBT technology is critical. These devices offer lower Vce(sat) (collector-emitter saturation voltage), reducing conduction losses by 15–20% compared to planar designs, directly translating to lower junction temperatures.

Critical Specification: For solar pump inverters handling DC input voltages up to 800VDC or higher, IGBT modules must exhibit a V_CES (collector-emitter breakdown voltage) rating of 1200V minimum, with a junction temperature tolerance (T_j) of 150°C or 175°C. The thermal interface material (TIM) between the module baseplate and heatsink—typically high-conductivity phase-change materials or ceramic-filled silicone—must maintain <0.3 K·m²/W thermal resistance to prevent thermal cycling fatigue, the primary failure mode in deep-well cyclic pumping operations.

Control Architecture: Digital Signal Processors (DSP) and Microcontrollers

The control board executes complex algorithms including Sensorless Vector Control (SVC), Maximum Power Point Tracking (MPPT) for solar arrays, and pressure-loop PID regulation. Industrial-grade VFDs utilize 32-bit floating-point DSPs (e.g., Texas Instruments C2000 series or equivalent ARM Cortex-M4/M7 architectures) clocked at 100 MHz or higher to achieve sub-millisecond response times to flow transients.

Hardware reliability hinges on industrial temperature-grade components (-40°C to +85°C ambient operation) with conformal coating (acrylic or polyurethane) to protect against condensation in humid wellhead environments. The analog-to-digital converter (ADC) resolution (minimum 12-bit, preferably 16-bit) determines the precision of current sensing for motor protection, preventing false trips during pump startup inrush.

DC-Link Capacitors: Film vs. Electrolytic Technology

The DC bus capacitance stabilizes the voltage ripple created by IGBT switching and absorbs energy from the motor during deceleration. In solar pump VFDs, where DC input ripple is inherently higher than grid-tied systems, metallized polypropylene film capacitors are superior to aluminum electrolytic capacitors. Film technology offers:
– Lifespan: 100,000+ hours at rated voltage and 70°C hotspot (vs. 20,000–50,000 hours for electrolytics)
– Ripple Current Handling: 20–30% higher thermal tolerance
– Failure Mode: Self-healing dielectric rather than catastrophic venting

For submersible pump controllers installed in wellhead enclosures, dry-film capacitors eliminate the risk of electrolyte leakage causing PCB corrosion.

Thermal Management: Heatsinks, Fans, and Thermal Interface Design

Thermal management accounts for 40% of VFD hardware failures in agricultural environments. Extruded aluminum heatsinks with anodized finishes (Al 6063-T5 alloy) provide corrosion resistance against fertilizer-laden dust and high humidity. The thermal resistance (R_th) of the heatsink assembly must be <0.5 K/W for every kW of output power.

Cooling Strategy Trade-offs:
– Forced Convection: Axial fans with dual-ball bearings (MTBF >50,000 hours) and IP54-rated grilles are standard for surface-mounted pump controllers.
– Natural Convection: Fanless designs utilizing heat-pipe technology or large-surface-area finned enclosures are mandatory for sealed wellhead installations where maintenance access is limited and dust infiltration is inevitable.

Thermal protection is implemented via Negative Temperature Coefficient (NTC) thermistors bonded to the IGBT baseplate, triggering derating at 85°C heatsink temperature and hard shutdown at 95°C.

Input/Output Conditioning: Chokes, Filters, and Braking Units

AC Line/Reactors: Input AC chokes (3% impedance) mitigate inrush current and reduce harmonic distortion (THDi) to <5%, critical for compliance with IEEE 519 in municipal water systems. Output dv/dt filters or sine-wave filters protect submersible motor windings from voltage reflection phenomena caused by long cable runs (>100m), preventing insulation breakdown and bearing fluting.

Braking Chopper: For high-inertia deep-well turbines, an external braking resistor and IGBT chopper circuit dissipate regenerative energy during rapid deceleration, preventing DC bus overvoltage trips.

---

Component Specification Matrix for B2B Procurement

Component	Function	Quality Indicator	Impact on Lifespan
IGBT Module	High-frequency switching for variable voltage/frequency output	• Brand: Infineon, Mitsubishi, or Fuji Electric • Tj(max) ≥ 150°C • Low Eon/Eoff switching losses	Thermal cycling causes solder fatigue; high-grade modules extend MTBF from 40k to 100k+ hours
DSP Controller	Executes vector control algorithms and MPPT logic	• 32-bit architecture, ≥100 MHz • Industrial temp range (-40°C to +85°C) • Conformal coating IPC-CC-830	Electromigration and capacitor aging in power supply section; industrial-grade processors reduce field failures by 60%
DC-Link Capacitor	Filters DC bus ripple and absorbs regenerative energy	• Metallized polypropylene film (not electrolytic) • Ripple current rating ≥1.5× calculated load • 100,000 hours @ rated voltage	Film capacitors prevent catastrophic failure modes; electrolytic dry-out causes 70% of VFD failures after year 5
Thermal Management System	Dissipates semiconductor heat to ambient	• Heatsink Rth <0.5 K/W per kW • 6063-T5 aluminum with hard anodization • Dual-ball bearing fans (MTBF >50,000 hrs)	Inadequate cooling reduces semiconductor life by 50% for every 10°C above rated junction temp
Input/Output Chokes	Limits inrush current and dv/dt stress on motor windings	• Copper windings (not aluminum) • Class H (180°C) insulation • Saturation current >150% rated	Prevents motor insulation breakdown; extends submersible pump life by 3–5 years in deep-well applications
Enclosure & Sealing	Protects electronics from dust, moisture, and corrosive gases	• IP65 minimum for surface mount; IP66 for harsh agricultural • 304 or 316 stainless steel hardware • UV-resistant gaskets (EPDM or silicone)	Moisture ingress causes corrosion and short circuits; proper sealing extends service life to 10+ years

Procurement Guidance for EPC Contractors and System Integrators

When specifying VFDs for solar well pump projects, prioritize hardware architectures that eliminate electrolytic capacitors entirely (DC-link and control power supply) to achieve 20-year design lifespans aligned with solar module warranties. Verify that IGBT modules utilize advanced substrate materials (AlSiC or AlN ceramic) for thermal shock resistance in desert or high-altitude installations. For submersible pump controllers, demand thermal cycling test reports (IEC 60068-2-14) confirming operation through -25°C to +60°C thermal shock cycles without solder joint degradation.

At Boray Inverter, our solar pump VFD series utilize film capacitor DC links and Infineon seventh-generation IGBT technology, specifically engineered for the voltage fluctuations and thermal stresses inherent in deep-well agricultural pumping. This hardware foundation ensures compatibility with 4-inch to 12-inch submersible motors across voltage classes from 220V single-phase to 690V three-phase, delivering consistent pressure control while minimizing O&M interventions in remote installations.

Manufacturing Standards and Testing QC for Variable Frequency Drive Well Pump

At Boray Inverter, manufacturing excellence for Variable Frequency Drive (VFD) well pump systems extends beyond assembly—it encompasses a rigorous quality assurance framework designed to ensure survivability in harsh subterranean environments, agricultural irrigation fields, and remote solar installations. Our production protocols address the unique stressors of well pump applications: constant humidity exposure, thermal cycling between surface and subsurface temperatures, and the mechanical resonance inherent in deep-well submersible operations.

Component-Level Reliability Engineering

PCB Conformal Coating and Environmental Protection
All control boards undergo automated selective conformal coating using UV-cured polyurethane or silicone-based compounds (100–200μm thickness), creating a moisture barrier critical for well pump VFDs operating in high-humidity boreholes or outdoor pump houses. Critical power sections receive additional epoxy potting to suppress vibration-induced solder joint fatigue, while conformal-coated areas maintain a minimum insulation resistance of 100MΩ at 500VDC per IPC-A-610 Class 3 standards.

Grade-A Component Sourcing and Traceability
We utilize only industrial-grade film capacitors (105°C rated, 100,000-hour lifespan) and 4th-generation IGBT modules with full lot traceability. Each semiconductor undergoes incoming inspection for V_CE(sat) consistency and thermal impedance validation, ensuring matched switching characteristics that minimize harmonic distortion in long-cable well pump installations.

Environmental Stress Screening (ESS) Protocols

High-Temperature Aging and Burn-In
Every VFD unit undergoes 72-hour burn-in at 50°C ambient (10°C above standard operating limits) with 110% rated load cycling. This accelerated life testing precipitates early component failures—particularly capacitor electrolyte formation and solder joint integrity—before shipment. For solar pump inverter variants, we add UV exposure testing (500 hours, ASTM G154) to validate enclosure material integrity for continuous outdoor mounting.

Thermal Shock and Humidity Validation
Units are subjected to 50-cycle thermal shock testing (-20°C to +60°C, IEC 60068-2-14) to simulate seasonal agricultural operation extremes. Subsequently, 48-hour damp heat testing (85% RH, 40°C, IEC 60068-2-78) verifies conformal coating efficacy against condensation-induced leakage currents—a common failure mode in well pump control boxes experiencing diurnal temperature swings.

100% Production Load Testing and Functional Validation

Unlike statistical sampling methods, Boray implements 100% full-load production testing on every VFD well pump drive:

• Full-Current Loading: Each unit operates at rated output current for 2 hours with temperature rise monitoring of heat sinks (ΔT <40K) and winding simulations
• Overload Capacity: 150% rated current for 60 seconds validates IGBT transient thermal performance and DC bus capacitor ripple current handling
• Protection Function Verification: Automated test rigs simulate dry-run conditions (underload detection), phase loss, input/output overvoltage, and instantaneous overcurrent (200% trip threshold)
• EMC Pre-Compliance: Conducted emissions testing (CISPR 11 Class A) on every unit ensures compliance with agricultural grid codes and prevents interference with remote monitoring systems

International Compliance and Certification Framework

CE and IEC Standards Conformance
All VFD well pump systems carry CE marking per the Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU), tested against:
* IEC 61800-5-1 (Safety requirements for adjustable speed drives)
* IEC 61000-4-4 (Electrical fast transient/burst immunity—critical for pump start-stop cycles)
* IEC 60068-2-6 (Vibration testing for submersible pump cable resonance scenarios)

Quality Management Systems
ISO 9001:2015 certification governs our manufacturing execution, with SPC (Statistical Process Control) monitoring of reflow oven profiles, torque consistency on busbar connections, and automated optical inspection (AOI) coverage for 100% of PCB assemblies.

Ingress Protection Validation
For outdoor well pump installations, enclosure integrity testing verifies IP65/66 ratings through high-pressure jet testing (12.5L/min, 3m distance) and dust exposure (IEC 60529), ensuring protection against irrigation spray and airborne agricultural particulates.

Solar Pump Inverter Specific QC Protocols

Given Boray’s specialization in solar pumping applications, additional testing layers include:
* MPPT Efficiency Verification: Each solar pump VFD undergoes dynamic MPPT tracking tests with simulated irradiance ramps (100W/m²/s) to verify >99% tracking efficiency
* DC Input Protection: Reverse polarity, surge (IEC 61643-11 Class II), and ground fault protection validation
* Motor Parameter Auto-Tuning: Automated commissioning tests with simulated motor loads to verify vector control accuracy for submersible induction motors

Traceability and Documentation for EPC Contractors

Every unit receives a unique serial number embedded in firmware and engraved on the chassis, linking to a complete manufacturing dossier including:
* Component batch records (capacitor ESR values, IGBT date codes)
* Individual test reports (load curves, insulation resistance measurements)
* Material compliance declarations (RoHS 3, REACH SVHC)

This granularity supports EPC contractor warranty claims, failure analysis, and predictive maintenance scheduling for multi-site agricultural deployments. By maintaining these stringent manufacturing standards, Boray ensures that VFD well pump systems deliver the 30%+ energy efficiency gains and extended motor lifespan critical to modern water management infrastructure, while minimizing field failure rates in remote, unmanned installations.

Step-by-Step Engineering Sizing Checklist for Variable Frequency Drive Well Pump

Proper sizing of a Variable Frequency Drive (VFD) for well pump applications requires rigorous systems engineering to ensure compatibility between hydraulic demands, motor characteristics, and power supply constraints—particularly when integrating solar PV arrays. The following technical checklist provides a systematic methodology for EPC contractors and automation engineers to specify Boray Inverter solutions with precision.

Step 1: Motor Nameplate Data Verification & Load Profiling

Begin by extracting critical parameters from the pump motor nameplate and hydraulic system requirements:

• Motor Electrical Characteristics: Record rated power (kW/HP), Full Load Amperage (FLA), nominal voltage (230V/380V/460V), frequency (50/60Hz), power factor, and insulation class (F or H).
• Service Factor (SF): Verify the motor’s SF rating; size the VFD continuous current rating to accommodate the service factor current without overload tripping.
• Hydraulic Load Analysis: Calculate Total Dynamic Head (TDH) comprising static lift, friction losses, and discharge pressure. Cross-reference with the pump curve to determine the operating flow rate (GPM or m³/h) and corresponding brake horsepower (BHP) at design duty points.
• Duty Cycle Classification: Determine if the application requires constant torque (positive displacement pumps) or variable torque (centrifugal pumps), as this dictates VFD overload capacity requirements.

Step 2: VFD Capacity Sizing & Current Margins

Size the drive based on actual load characteristics rather than motor nameplate alone:

• Current Rating Selection: Select a VFD with a continuous output current rating ≥ 110% of the motor FLA for centrifugal pumps, or ≥ 125% for high-starting-torque applications.
• Overload Capacity: Verify the VFD’s overload capability (typically 150% for 60 seconds) matches potential stall conditions during pump startup or sediment clearing events.
• Input Voltage Compatibility: Confirm the VFD’s input voltage range accommodates site supply variations (e.g., 380-480V ±10%) and matches the motor voltage to avoid derating issues.
• Carrier Frequency Consideration: For deep well submersible pumps with long motor leads (>50m), select a VFD with adjustable carrier frequency (2-4 kHz) to mitigate voltage reflection issues, or specify an output dv/dt filter.

Step 3: Solar Array String Sizing for PV-Powered Systems

When deploying Boray Solar Pump Inverters, DC input configuration is critical for MPPT efficiency:

• MPPT Voltage Window: Identify the VFD’s MPPT voltage range (e.g., 200-400VDC or 350-800VDC). Calculate the maximum string open-circuit voltage (Voc_max) using:
  Voc_max = Voc_module × N_modules × [1 + (T_min – 25°C) × β_Voc]
  where β_Voc is the voltage temperature coefficient (typically -0.3%/°C) and T_min is the lowest expected ambient temperature.
• Operating Voltage Optimization: Size strings to achieve Vmp (maximum power voltage) within the inverter’s MPPT range under standard test conditions (STC), accounting for voltage drop at elevated cell temperatures (typically -0.4%/°C).
• Current Capacity: Ensure the total string short-circuit current (Isc) multiplied by the number of parallel strings does not exceed the VFD’s maximum DC input current rating, incorporating a 1.25 safety factor for irradiance variations.
• Array-to-Motor Power Ratio: Size the PV array wattage at 1.2-1.4 times the motor rated power to account for inverter efficiency losses (typically 95-98%) and sub-optimal irradiance conditions.

Step 4: Electrical Integration & Cable Sizing

Specify conductors and protection devices based on VFD-specific electrical characteristics:

• AC Output Cabling: Size cables based on the VFD’s rated output current, not the motor FLA. Use shielded cables with a minimum insulation rating of 600V for distances up to 100m; above this distance, specify output reactors or sinusoidal filters to protect motor insulation from reflected wave phenomena.
• DC Input Cabling (Solar): Size PV conductors to handle 1.56× Isc (per NEC 690.8) with voltage drop limited to <2% to minimize MPPT voltage sag. Use PV-rated cables (UV-resistant, 90°C wet/dry rating) with MC4 or equivalent connectors rated for the calculated Voc_max.
• Harmonic Mitigation: For installations >50kW, calculate harmonic distortion (THDi) and specify AC line reactors or active filters if THDi exceeds 5% per IEEE 519.

Step 5: Environmental Derating & Enclosure Specifications

Adjust ratings for non-standard operating conditions:

• Altitude Derating: Reduce VFD continuous current rating by 1% per 100m above 1000m altitude due to reduced cooling efficiency; above 2000m, consult Boray engineering for specialized high-altitude firmware configurations.
• Thermal Management: For ambient temperatures exceeding 40°C, calculate derating factors (typically 2-3% per °C) or specify external cooling solutions. Ensure NEMA/IP ratings (IP54 minimum for dusty agricultural environments, IP65 for direct washdown) match the installation environment.
• Solar Irradiance Mapping: For off-grid solar pumps, utilize PVWatts or SAM software to verify daily water volume requirements align with seasonal irradiance data, sizing storage tanks for 3-5 days of autonomy.

Step 6: Protection Device Coordination

Integrate appropriate safeguards to ensure system longevity:

• Input Protection: Specify semiconductor fuses (gR or aR type) or circuit breakers with C-trip curves on the AC input sized at 1.5× VFD input current. For DC solar inputs, use PV-specific fuses rated for the calculated Voc_max.
• Surge Protection: Install Type 2 SPDs on both AC (line-to-line and line-to-ground) and DC (positive-to-negative and positive-to-ground) terminals to protect against lightning-induced transients common in remote well installations.
• Motor Protection: Configure VFD motor protection parameters including thermal overload (I²t), phase loss detection, and stall prevention. Set minimum frequency limits (typically 30Hz) to prevent pump cavitation and motor overheating at low speeds.

Step 7: Control Interface & Sensor Specification

Finalize automation integration points:

• Pressure Transducer Sizing: Specify 4-20mA or 0-10V pressure sensors with range 1.5× the maximum system pressure (e.g., 0-100 PSI for 60 PSI systems) to provide feedback for constant pressure control algorithms.
• Level Control Logic: For dry-run protection, install submersible level switches or ultrasonic sensors with appropriate relay logic interlocked to the VFD enable circuit.
• Communication Protocols: Verify RS485 Modbus RTU, CANopen, or optional IoT connectivity requirements for SCADA integration in agricultural automation networks.

Engineering Validation: Prior to procurement, cross-reference all calculated parameters against the Boray Inverter technical datasheets to confirm the selected model (e.g., Boray Solar Pump Inverter Series or General Purpose VFD Series) accommodates the voltage windows, current demands, and environmental specifications derived from this checklist.

Wholesale Cost and Energy ROI Analysis for Variable Frequency Drive Well Pump

When evaluating capital expenditure for submersible pumping infrastructure, procurement decisions must balance upfront component costs against operational expenditure over the system lifecycle. For EPC contractors and agricultural project managers deploying variable frequency drive (VFD) well pump systems, the economic analysis extends beyond simple equipment procurement to encompass energy arbitrage, harmonic mitigation costs, and warranty risk allocation across global supply chains.

Volume Procurement Economics and Wholesale Structures

B2B acquisition of VFD well pump systems follows tiered pricing architectures distinct from residential retail markets. Industrial-grade IP68-rated submersible VFDs—typically ranging from 5.5kW to 75kW for deep-well agricultural and municipal applications—demonstrate significant economies of scale at procurement volumes exceeding 100 units annually.

Wholesale Pricing Tiers:
– OEM Direct Volume (500+ units): 45-60% below MSRP, inclusive of vector control parameter pre-configuration and MODBUS/RS485 communication protocol integration
– Distributor Tier (100-499 units): 30-40% wholesale discount, with technical training and commissioning support included
– EPC Project Pricing: Project-specific bidding with extended warranty packages (5-year coverage on power modules and IGBT stacks)

Unlike standard pump controllers, industrial VFDs incorporate active front-end (AFE) rectifiers and DC bus chokes that add 15-20% to initial BOM costs but eliminate inrush current penalties and power factor correction equipment requirements. For solar pumping applications, hybrid VFDs with integrated Maximum Power Point Tracking (MPPT) algorithms command premium wholesale pricing (8-12% above grid-tied equivalents) but eliminate separate charge controller expenditures.

Energy ROI Modeling and Affinity Law Economics

The return on investment for VFD well pump systems derives primarily from the cubic relationship between pump speed and power consumption (the affinity laws: P ∝ N³). In constant pressure applications with variable demand profiles—common in irrigation networks and municipal distribution—reducing motor speed by 20% yields approximately 49% energy reduction.

Quantitative ROI Framework:

For a 22kW submersible pump operating 2,400 hours annually at $0.12/kWh:

1. Baseline Consumption: Fixed-speed operation at 100% capacity = 52,800 kWh/year ($6,336)
2. VFD-Optimized Profile: Average 75% speed (variable demand) = 22,275 kWh/year ($2,673)
3. Annual Savings: $3,663
4. Payback Period: 14-18 months (assuming $4,500-5,500 wholesale hardware cost differential)

In solar pumping deployments, the ROI calculation incorporates diesel displacement economics. A 15kW solar pump inverter replacing a diesel generator set eliminates approximately 4.5 liters/hour of fuel consumption. At current global diesel pricing ($1.20-$1.80/liter), solar-VFD hybrid systems achieve payback within 24-36 months, excluding carbon credit monetization and grid interconnection fee avoidance.

Power Quality Considerations:
Modern VFDs with active switching (IGBT-based) introduce harmonics (THDi <5% with proper filtering), requiring line reactors or sinusoidal filters adding $200-$800 to system costs. However, the elimination of water hammer effects—through controlled acceleration/deceleration ramps—reduces pipeline infrastructure maintenance costs by 40-60% over a 10-year operational window, factoring prominently in municipal TCO analyses.

Warranty Risk and Total Cost of Ownership

Industrial VFD well pump systems carry warranty structures reflecting semiconductor reliability curves. Standard coverage includes:

• 24-Month Standard Warranty: Power module and control board coverage, excluding environmental damage (flooding, lightning strikes)
• Extended 5-Year Coverage: Additional 15-20% of hardware cost, covering capacitor banks and cooling fan assemblies
• MTBF Data: Quality VFDs demonstrate Mean Time Between Failures exceeding 50,000 hours at 40°C ambient when properly derated for submersible motor cable lengths (>100m require output reactors)

The true TCO advantage emerges in mechanical system preservation. By eliminating across-the-line starting (6-8x inrush current), VFDs extend submersible motor bearing life from approximately 8 years to 15+ years, and reduce check valve replacement frequency by 70%. For agricultural projects spanning 500+ hectares, this translates to avoided maintenance costs of $15,000-$25,000 annually per installation.

Strategic Procurement Recommendations

For automation distributors and EPC contractors:

1. Specify Vector Control: Demand flux vector control (FVC) rather than V/Hz control for deep-well applications (>200m depth) to maintain torque characteristics at low speeds without motor overheating
2. Solar Hybrid Compatibility: Source VFDs with dual AC/DC input capability (such as Boray’s solar pump inverter series) to future-proof against grid instability and enable daytime diesel elimination
3. Harmonic Mitigation: Bundle 3% line reactors with orders exceeding 50 units to prevent utility penalty charges for THD violations in large-scale agricultural installations
4. Commissioning Support: Negotiate wholesale packages including parameter upload tools and pressure transducer calibration—critical for maintaining constant pressure setpoints (±0.5 bar) in variable flow scenarios

The convergence of solar PV cost reductions and advanced MPPT-VFD integration has repositioned well pump systems from grid-dependent assets to autonomous energy infrastructure. For B2B procurement teams, the optimal strategy involves locking 18-month volume pricing agreements during Q4 manufacturing cycles, capturing both component cost stability and favorable shipping logistics ahead of agricultural planting seasons.

Alternatives Comparison: Is Variable Frequency Drive Well Pump the Best Choice?

Selecting the optimal drive technology for submersible and surface well pump applications requires a systematic evaluation of load profiles, energy sources, and motor electromechanical characteristics. While Variable Frequency Drive (VFD) systems have become the benchmark for intelligent pump control, alternative technologies such as soft starters, direct grid connections, and advanced motor topologies present viable scenarios depending on project constraints. The following analysis evaluates these alternatives through the lens of Total Cost of Ownership (TCO), energy efficiency classes (IE Code), and operational flexibility to determine optimal deployment strategies for industrial, agricultural, and municipal water systems.

Control Topology Comparison: VFD vs. Soft Starter

For engineers evaluating motor starting methods, the distinction between VFDs and soft starters represents a fundamental decision point in system design.

Soft Starter Technology utilizes silicon-controlled rectifiers (SCRs) to gradually ramp the motor voltage during startup, effectively reducing inrush current from typical 6-8x full load current (FLC) to 3-4x FLC. This mitigates mechanical stress on pump impellers and shaft couplings. However, once the motor reaches nominal speed, the soft starter bypasses to full line voltage, operating the pump at fixed speed (50/60 Hz). Consequently, soft starters provide no flow or pressure modulation capabilities, making them suitable only for constant-demand applications where throttling valves handle flow control—an inherently inefficient approach that wastes energy through friction losses.

VFD Implementation, conversely, maintains continuous control throughout the operating cycle. By varying both voltage and frequency (V/Hz control or vector control), the VFD matches pump speed to real-time hydraulic demand. In well pump applications with fluctuating water tables or varying irrigation schedules, this translates to energy savings of 15-30% compared to fixed-speed operation, as confirmed by pump affinity laws (where power consumption correlates with the cube of speed). Additionally, VFDs eliminate water hammer through controlled acceleration/deceleration ramps (typically 1-10 seconds adjustable), protecting PVC drop pipes and pipeline infrastructure in deep well installations.

Decision Matrix: Soft starters remain appropriate for high-static-head applications with consistent demand profiles and strict capital expenditure constraints. VFDs are mandatory for variable flow requirements, pressure-sensitive distribution networks, and systems requiring remote monitoring integration via Modbus/RS485 or IoT protocols.

Power Architecture: Solar VFD Systems vs. Grid-Tied VFD Systems

The integration of photovoltaic (PV) power introduces distinct architectural considerations compared to conventional AC grid supply.

Grid-Tied VFD Systems operate from stable three-phase AC mains (380V/480V), providing consistent torque availability across the full speed range (0-60 Hz or 0-50 Hz). These systems prioritize power quality and harmonic mitigation (THDi <5% with active front-end or DC chokes), critical for municipal water utilities subject to IEEE 519 or IEC 61000-3-6 standards. Grid-tied configurations support higher horsepower ratings (up to several hundred kW) without the voltage sag issues inherent in battery-less solar designs.

Solar-Powered VFD Well Pumps (PV Pumping Systems) represent a specialized subset where the VFD functions as a solar inverter with Maximum Power Point Tracking (MPPT). Boray Inverter’s solar pump VFDs, for example, accept high-voltage DC input (200VDC-800VDC) from PV arrays, converting DC to variable-frequency AC while optimizing the voltage-current curve to extract maximum energy from fluctuating irradiance conditions. These systems eliminate grid dependency for remote agricultural irrigation but require careful array sizing: the PV power must exceed the pump’s hydraulic power by 1.25-1.5x to account for inverter efficiency (typically 95-98%) and irradiance variability.

Hybrid Considerations: Advanced installations utilize AC/DC hybrid VFDs with automatic switching capability, allowing daytime solar operation with seamless grid backup during low-light conditions—ideal for critical water supply applications requiring 24/7 availability.

Motor Electromechanical Analysis: PMSM vs. IM with VFD Control

The marriage of VFD technology with motor architecture significantly impacts system efficiency and control complexity.

Induction Motors (IM) paired with VFDs represent the industry standard. Squirrel-cage induction motors offer robustness, minimal maintenance, and compatibility with standard V/f (Volts per Hertz) control algorithms. When operated with VFDs, IMs achieve IE3 (Premium Efficiency) or IE4 (Super Premium) performance levels, though efficiency drops at partial loads (<50% speed). Vector control (Field-Oriented Control) enhances torque response for high-starting-torque deep well submersible pumps, but rotor slip (2-4%) inherently limits maximum efficiency.

Permanent Magnet Synchronous Motors (PMSM) require VFDs with specific control firmware supporting encoder-less vector control or servo algorithms. PMSMs eliminate rotor copper losses, achieving IE4 or IE5 (Ultra Premium Efficiency) ratings with higher power density. For solar well pumps, PMSM-VFD combinations maximize energy harvest from limited PV capacity, extracting water even during low-irradiance morning/evening periods when induction motors would stall. However, PMSMs incur higher capital costs (20-40% premium) and require VFDs with robust demagnetization protection and thermal management algorithms to prevent rare-earth magnet degradation.

Comparative Technical Specifications

Technology	Operating Principle	Speed Control Range	Energy Efficiency	Initial Cost Index	Best Application Scenario
Direct On Line (DOL)	Full voltage start, fixed speed	Fixed (100%)	IE2/IE3 baseline	1.0 (Baseline)	Constant demand, small horsepower, intermittent use
Soft Starter	Voltage ramp start, fixed speed	Fixed (100%)	IE2/IE3 (same as DOL)	1.2-1.4	High-inertia loads, reduced starting current requirement, constant flow systems
VFD + Induction Motor	Variable frequency/voltage	2:1 to 10:1 (20-100% speed)	IE3/IE4 (30% savings at partial load)	1.8-2.5	Variable demand, pressure boosting, water hammer sensitive systems
VFD + PMSM	Synchronous speed control	4:1 to 20:1 (5-100% speed)	IE4/IE5 (40-50% savings)	2.2-3.0	Solar pumping, high-duty cycles, precision flow control
Solar VFD (DC Input)	MPPT + DC/AC conversion	1:1 to 5:1 (frequency limited by irradiance)	IE3/IE4 (system level)	2.0-2.8 (incl. PV array)	Off-grid irrigation, remote livestock watering, grid-unavailable sites

Strategic Selection Framework

When VFD Well Pumps Are Optimal:
– Variable Flow Requirements: Irrigation systems with shifting zone demands, municipal water supply with diurnal consumption patterns, or industrial process cooling with fluctuating heat loads.
– Energy Recovery Scenarios: Systems operating >2,000 hours annually where 20-30% energy reduction provides ROI within 18-24 months.
– Infrastructure Protection: Deep wells (>100m) with PVC column pipes vulnerable to water hammer, or aging distribution networks requiring soft-start/stop cycles.

When Alternative Technologies Prevail:
– Soft Starter: Single-purpose dewatering pumps operating at full capacity with <500 annual operating hours, or temporary construction site water management.
– Fixed Speed + PV: Simple solar pumps using linear current boosters (non-VFD) for shallow wells (<30m) with minimal head variation—though modern solar VFDs have largely superseded these in cost-effectiveness.
– PMSM without VFD: Not recommended; PMSMs require VFDs for synchronization and cannot operate directly from grid power without synchronization apparatus.

Conclusion

For B2B procurement decisions involving well pump infrastructure, VFD technology—particularly when integrated with solar PV arrays or high-efficiency PMSM platforms—delivers superior lifecycle value despite higher upfront capital expenditure. The critical determination lies in duty cycle analysis: applications with variable demand profiles or remote power constraints realize immediate operational benefits from VFD deployment, while fixed-demand, grid-connected systems with limited operating hours may justify soft starter economics. As motor efficiency regulations globally transition toward IE4 and IE5 mandates, VFD-equipped well pumps will increasingly become the default specification for forward-looking agricultural and industrial water management projects.

Core Technical Specifications and Control Terms for Variable Frequency Drive Well Pump

Successful deployment of Variable Frequency Drive (VFD) well pump systems—whether for agricultural irrigation, municipal water management, or industrial process cooling—requires precise alignment between electrical engineering specifications and international commercial frameworks. For EPC contractors and automation distributors sourcing from global manufacturers like Boray Inverter, understanding both the technical control parameters and the Incoterms governing logistics is critical to ensuring system compatibility, installation efficiency, and total cost of ownership.

Critical Technical Specifications

Maximum Power Point Tracking (MPPT) Efficiency

For solar-hybrid or off-grid VFD well pump installations, MPPT algorithms determine the energy harvest efficiency from photovoltaic arrays. High-performance solar pump inverters utilize dual-MPPT or dynamic MPPT algorithms with tracking efficiencies exceeding 99% and response times under 0.5 seconds. This ensures optimal power extraction during fluctuating irradiance conditions—critical for maintaining constant flow rates in deep-well applications exceeding 200 meters. The MPPT voltage range (typically 250VDC–800VDC for medium-power systems) must align with the PV array configuration to prevent under-utilization of solar capacity.

Vector Control (Field-Oriented Control – FOC)

Modern VFD well pumps employ sensorless vector control rather than basic V/Hz control to manage the high-inertia loads of submersible pumps. FOC algorithms decouple motor flux and torque components, enabling:
– 0.5Hz low-frequency starting torque up to 150% rated capacity, essential for overcoming static head in deep wells
– Automatic torque boost compensation for voltage drops in long cable runs between surface-mounted VFDs and submersible motors
– Slip compensation to maintain precise speed regulation (±0.5%) despite varying load characteristics from changing water levels

PID Process Control Architecture

Closed-loop pressure management requires integrated PID (Proportional-Integral-Derivative) controllers within the VFD firmware. Specifications to verify include:
– Analog input resolution: 12-bit or higher for 4-20mA pressure transducer signals
– Sampling frequency: <100ms update rates to prevent pressure oscillations in constant-pressure systems
– Sleep/wake functionality: Automatic pump shutdown when demand drops below minimum flow thresholds (typically 10-20% of rated capacity), with pressure-based restart triggers to eliminate water hammer

Electrical Interface & Protection Standards

Parameter	Specification Range	Engineering Significance
Input Voltage Tolerance	±15% of nominal (380-480VAC 3-phase or 200-240VAC single-phase)	Ensures operation during grid fluctuations common in rural installations
Output Frequency Range	0–400Hz (configurable V/f curve)	Accommodates both slow-speed priming and high-flow irrigation modes
Switching Frequency	2–16kHz (carrier frequency)	Higher frequencies reduce motor noise but require derating in high-temperature environments
Ingress Protection	IP54 (indoor) to IP65 (outdoor/field-mounted)	Critical for dust/water resistance in agricultural environments
EMC Compliance	IEC 61800-3 (Category C2 or C3)	Ensures electromagnetic compatibility with PLCs and SCADA systems

Communication & Integration Protocols

B2B automation projects require seamless integration with existing Building Management Systems (BMS) or Agricultural IoT platforms. Essential interfaces include:
– RS485/Modbus RTU for hardwired PLC integration
– Optional GPRS/4G modules for remote monitoring of pump status, flow accumulation, and fault diagnostics
– 0-10V/4-20mA analog outputs for real-time feedback to central control rooms

Commercial Terms for Global Procurement

FOB (Free On Board)

Under FOB terms (typically FOB Shenzhen or FOB Shanghai for Chinese manufacturers), the supplier delivers goods to the port of shipment and clears them for export. Risk transfers to the buyer once the VFDs pass the ship’s rail. This term favors buyers with established freight forwarding relationships, allowing control over ocean freight rates and insurance coverage. For heavy electrical equipment like 55kW+ pump inverters, FOB pricing provides transparency in separating manufacturing costs from volatile shipping expenses.

CIF (Cost, Insurance, and Freight)

CIF terms include ocean freight and minimum insurance coverage (Clause C) to the destination port. While this simplifies procurement for agricultural project managers without logistics departments, buyers must verify that insurance covers “All Risks” (Clause A) for sensitive electronic components, as standard CIF insurance may exclude electrical surge damage during transit. CIF is preferable for turnkey EPC contracts where the contractor must deliver operational systems to remote sites without managing shipping logistics.

Alternative Incoterms for Industrial Projects

• EXW (Ex Works): Minimal supplier obligation; buyer handles all export clearance and transport. Suitable only for buyers with China-based procurement agents.
• DAP (Delivered at Place): Supplier bears risk until goods reach the named destination (e.g., project site warehouse), excluding import duties. Ideal for time-sensitive agricultural installations where coordination between multiple contractors is complex.
• DDP (Delivered Duty Paid): Supplier responsibility includes import clearance and duties. Critical for first-time importers in regions with complex customs regulations for electrical equipment (e.g., Middle East or African markets requiring SASO or PVOC certifications).

Warranty & Technical Support Frameworks

Beyond shipping terms, B2B procurement must define:
– Warranty Period: Standard 18–24 months from Bill of Lading date for VFDs; extended warranties for submersible pump motors
– Technical Documentation: English/French/Spanish manuals, CAD drawings for panel integration, and parameter configuration files
– Commissioning Support: Availability of field engineers for startup assistance, particularly for vector control auto-tuning and PID loop optimization in deep-well applications

Understanding these technical and commercial parameters enables procurement teams to evaluate supplier proposals beyond unit pricing, ensuring the selected VFD well pump system delivers the projected 30% energy savings while meeting project delivery schedules and compliance requirements.

Future Trends in the Variable Frequency Drive Well Pump Sector

The variable frequency drive (VFD) well pump sector is undergoing a paradigm shift driven by global electrification demands, stringent sustainability mandates, and the proliferation of Industry 4.0 connectivity. As water scarcity intensifies and energy markets fluctuate, next-generation pumping systems are evolving from simple motor speed controllers into intelligent, grid-interactive assets that optimize energy consumption across hybrid power architectures. For industrial engineers and EPC contractors, understanding these converging technological trajectories is essential for specifying future-proof irrigation and water management infrastructure.

Intelligent Automation and Adaptive Control Algorithms

The automation landscape for well pump VFDs is rapidly advancing beyond conventional PID control loops toward AI-enhanced, self-optimizing drive systems. Modern solar pump inverters and motor control solutions now incorporate machine learning algorithms that analyze historical usage patterns, aquifer recharge rates, and seasonal demand fluctuations to autonomously adjust operating parameters. These adaptive control systems minimize mechanical stress by predicting optimal ramp-up sequences and eliminating hydraulic transients that contribute to premature pump failure.

Furthermore, the integration of edge computing capabilities within VFD architectures enables real-time decision-making at the device level, reducing latency for critical protection functions such as dry-run detection and cavitation avoidance. For agricultural project managers, this translates to autonomous operation in remote locations without continuous cloud connectivity, while maintaining precision flow control that adapts to dynamic crop irrigation schedules.

Solar-Driven Electrification and Hybrid Power Architectures

Renewable energy integration represents the most significant disruptive force reshaping well pump VFD deployment. The transition from grid-dependent AC systems to solar-powered DC pumping solutions is accelerating, driven by declining photovoltaic costs and advanced Maximum Power Point Tracking (MPPT) algorithms embedded within specialized solar pump inverters. These systems now support hybrid AC/DC architectures that seamlessly switch between solar generation, grid power, and battery storage—ensuring 24/7 operational continuity while maximizing renewable energy penetration.

Emerging trends include the development of high-voltage DC bus VFDs capable of direct PV array coupling without intermediate conversion stages, significantly improving system efficiency by 3-5% while reducing component count and installation complexity. For EPC contractors, this evolution toward standardized DC-input VFD platforms simplifies engineering procurement and construction (EPC) workflows for off-grid water projects, particularly in regions with unreliable grid infrastructure. Additionally, bidirectional power flow capabilities are enabling well pump systems to participate in virtual power plants (VPPs), allowing agricultural operations to monetize excess solar generation while maintaining priority water access.

IoT-Enabled Predictive Maintenance and Digital Twin Integration

The industrial Internet of Things (IIoT) is transforming VFD well pump maintenance from reactive break-fix models to predictive, condition-based strategies. Advanced motor control solutions now integrate vibration analysis, thermal imaging, and insulation resistance monitoring directly at the drive level, transmitting encrypted telemetry data to cloud-based SCADA platforms via 4G/5G or LoRaWAN networks. These systems employ digital twin technology—virtual replicas of physical pumping assets—to simulate performance degradation under varying operational stresses, enabling maintenance teams to intervene precisely when component wear indicates impending failure rather than after catastrophic breakdown.

Cybersecurity has become paramount as operational technology (OT) networks converge with information technology (IT) infrastructure. Next-generation VFDs incorporate hardware-based security modules and zero-trust networking protocols to protect critical water infrastructure from ransomware attacks and unauthorized remote access. For automation distributors, this emphasis on cyber-physical security requires evaluating vendors based on IEC 62443 compliance and secure firmware update capabilities, ensuring that distributed pumping networks remain resilient against evolving threat landscapes.

Electrification Standards and Circular Economy Considerations

Regulatory momentum toward carbon neutrality is driving the development of VFD systems with enhanced regenerative capabilities and biodegradable cooling technologies. Future well pump installations will increasingly feature active front-end (AFE) drives that return braking energy to the grid or storage systems, rather than dissipating it as heat through braking resistors. Additionally, modular VFD architectures designed for component-level repairability and firmware upgradability are extending equipment lifecycles beyond traditional 15-20 year horizons, aligning with circular economy principles that prioritize resource conservation in agricultural and industrial water systems.

As these trends converge, the specification of VFD well pump systems requires holistic evaluation of not just hydraulic performance curves, but integrated energy management capabilities, cybersecurity posture, and interoperability within smart grid ecosystems. Organizations that adopt these advanced motor control technologies today will establish operational resilience against tomorrow’s energy and water security challenges.

Top 4 Variable Frequency Drive Well Pump Manufacturers & Suppliers List

B2B Engineering FAQs About Variable Frequency Drive Well Pump

1. How does a VFD mitigate inrush current during submersible pump startup, and what are the implications for motor insulation life?
   A VFD eliminates high inrush currents (typically 600–800% of FLA in DOL starters) by providing a controlled voltage ramp-up through Pulse Width Modulation (PWM). By limiting starting current to 110–150% of rated current and eliminating mechanical shock to the pump column, VFDs significantly reduce thermal stress on motor windings and extend insulation life. For deep well submersible motors, this soft-start capability prevents thrust bearing damage and reduces the risk of winding failure caused by repeated thermal cycling, particularly critical in solar pumping systems where battery or PV array capacity is limited.

2. What harmonic distortion levels are typical in VFD well pump installations, and what mitigation strategies ensure compliance with IEEE 519 / IEC 61000-3-6?
   Standard 6-pulse VFDs without mitigation typically generate current harmonics (THDi) of 30–40%. For B2B installations requiring grid compliance, specify VFDs with active front ends (AFE) or install 3% line reactors and DC bus chokes to reduce THDi to <5%. In solar pump applications using DC-input VFDs (solar pump inverters), harmonic injection back to the grid is eliminated; however, output-side dv/dt filters should be considered for long motor cable runs (>50m) to prevent reflected wave phenomena that damage motor insulation.

3. For hybrid solar-grid VFD well pump systems, what DC input voltage ranges and MPPT algorithms optimize efficiency across varying irradiance conditions?
   Solar-compatible VFD well pump controllers should accept wide DC input ranges (typically 200V–800VDC for 380VAC pumps) to accommodate series string configurations. Look for controllers with true MPPT (Maximum Power Point Tracking) efficiency >99% and automatic switching between AC grid and DC solar inputs. Advanced algorithms should include “weak light” optimization to maintain minimum operating frequency (15–20Hz) during low irradiance, preventing motor stall while maximizing daily water yield in agricultural applications.

4. How do constant pressure control algorithms differ between traditional PID-based VFDs and modern sensorless flow estimation in deep well applications?
   Traditional systems utilize external 4–20mA pressure transducers with PID loops (proportional band typically 0.5–2.0 bar). Modern sensorless VFDs estimate system curve characteristics by monitoring current, voltage, and power factor, eliminating sensor maintenance in deep wells. For critical industrial applications, specify dual-control modes: PID for precise pressure maintenance (±0.1 bar) during variable demand, and flow-estimation mode for backup operation if the transducer fails. Sleep/wake functionality should be configurable based on minimum frequency (e.g., 20Hz) and wake-up pressure drop thresholds.

5. What IP enclosure ratings and environmental specifications are mandatory for VFD installations in humid well houses or outdoor agricultural environments?
   For well pump applications, specify VFDs with IP65 or IP66 enclosures to protect against dust and high-pressure water jets. In humid environments (>85% RH), require conformal coating on PCBs (per IPC-A-610 Class 3) and stainless steel heat sinks to prevent corrosion. Ambient temperature ratings should account for solar gain in outdoor enclosures: ensure 50°C operational capability without derating, or provide forced ventilation calculations. For submersible motor control, verify the VFD includes output sine wave filters to reduce motor heating from PWM carrier frequencies (2–16 kHz).

6. How do switching frequencies (carrier frequencies) above 4 kHz affect submersible motor bearing currents, and what mitigation prevents premature bearing failure?
   High switching frequencies (>8 kHz) improve current waveform quality but increase capacitive coupling between stator and rotor, inducing shaft voltages that discharge through bearings (EDM—electrical discharge machining). In deep well pumps where bearing replacement is costly, specify VFDs with integrated du/dt filters or install shaft grounding rings (AEGIS® or equivalent) at the motor. Alternatively, select VFDs with randomized switching patterns that spread harmonic energy to reduce peak bearing currents, particularly important for motors >15kW in continuous irrigation duty.

7. What are the critical derating factors when sizing a VFD for a submersible well pump operating at altitude or with high service factors?
   Size VFDs at minimum 110% of motor FLA to accommodate the 1.15 service factor common in submersible pumps. Apply altitude derating of 1% per 100m above 1000m for convection-cooled units; forced-air cooling may be required above 2000m. For solar applications, size the DC input current capacity at 125% of the PV array’s short-circuit current (Isc). Temperature derating is critical: continuous operation above 40°C ambient requires 2% current reduction per degree Celsius or external heat exchangers.

8. How does a VFD implement dry-run protection and underload detection in deep well applications without external flow sensors?
   Advanced VFDs utilize motor power curve analysis to detect underload conditions (dry-running or dead-heading) by comparing actual power consumption against a learned pump curve. When power drops below configurable thresholds (typically 30–50% of nominal at a given frequency) for >5 seconds, the VFD triggers a fault and executes a programmed restart sequence (e.g., 30-minute retry intervals). For solar pumps, this protection prevents PV array voltage collapse during cavitation events. Specify VFDs with automatic pump curve learning functions and programmable underload torque limits to minimize false trips in variable water table conditions.

Disclaimer

Conclusion: Partnering with Boray Inverter for Variable Frequency Drive Well Pump

Implementing variable frequency drive technology in well pump systems represents a strategic evolution in fluid management—delivering quantifiable energy reductions of up to 30%, eliminating destructive water hammer effects, and extending critical infrastructure lifespan through intelligent motor control. For industrial engineers, agricultural project managers, and EPC contractors navigating the complexities of modern water infrastructure, the transition from conventional fixed-speed pumping to variable frequency solutions is no longer optional but essential for operational sustainability and regulatory compliance.

However, realizing these technical advantages requires more than theoretical understanding; it demands partnership with a manufacturer possessing deep domain expertise in motor control algorithms and robust production capabilities. Shenzhen Boray Technology Co., Ltd. stands at the forefront of this specialized sector, engineering high-performance Solar Pump Inverters and Variable Frequency Drives specifically optimized for submersible and surface pump applications. With an R&D team comprising 50% of its workforce, Boray Inverter has achieved mastery in both Permanent Magnet Synchronous Motor (PMSM) and Induction Motor (IM) vector control technologies, ensuring precise torque response and maximum efficiency across diverse load profiles.

Boray’s commitment to quality is evidenced by two state-of-the-art production lines and rigorous 100% full-load testing protocols that guarantee reliability in the field. From large-scale agricultural irrigation projects to industrial automation systems and municipal water treatment facilities, Boray Inverter has established a trusted global presence, providing scalable motor control solutions that withstand harsh environmental conditions while minimizing total cost of ownership.

To optimize your next well pump installation with customized VFD configurations engineered for your specific hydraulic and electrical parameters, contact the technical team at Boray Inverter. Visit borayinverter.com to request detailed specifications, application engineering support, and competitive wholesale quotations tailored to your project volume.
