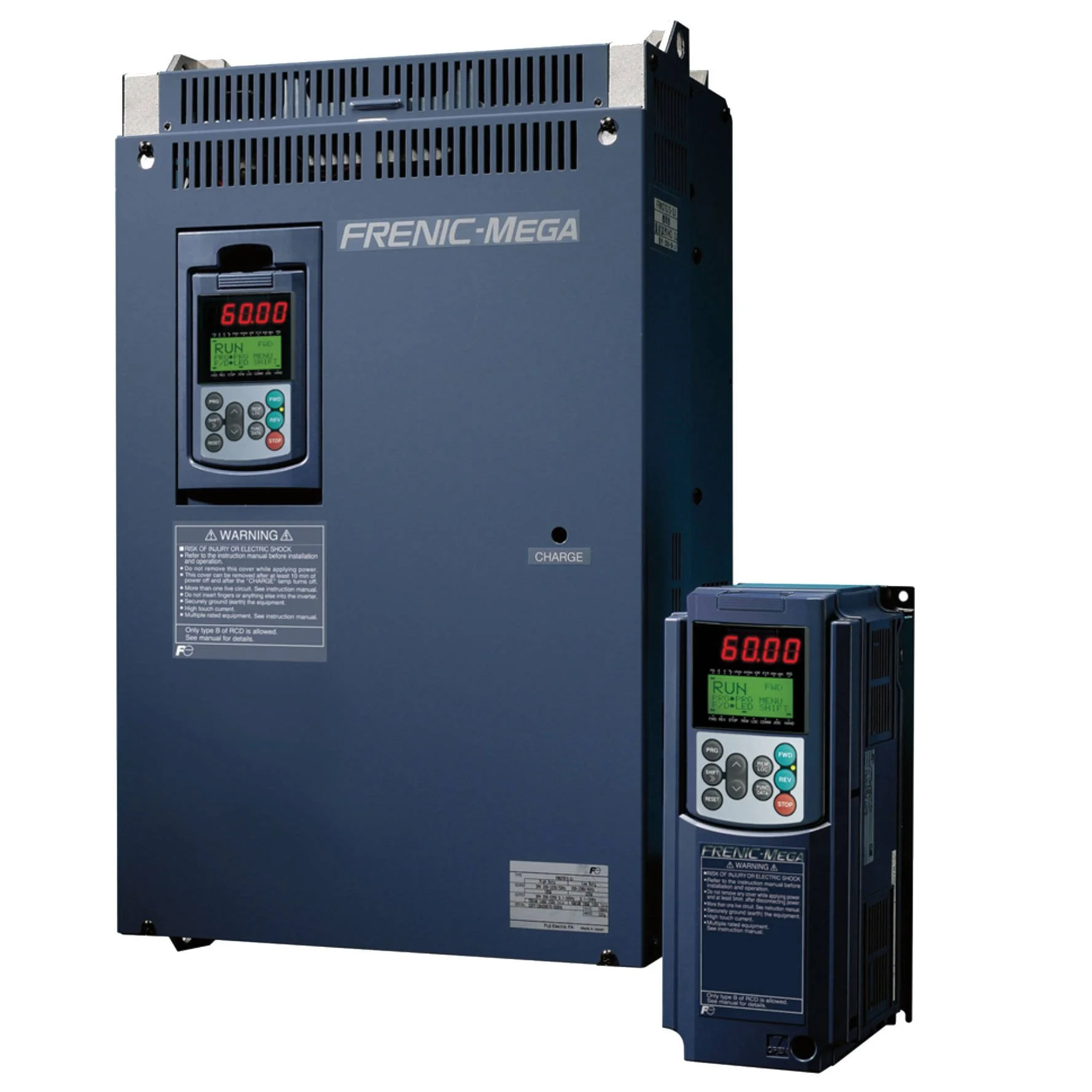

Introduction: Sourcing Variable Frequency Drive Panel for Industrial Use

In an era where operational efficiency and energy optimization define competitive advantage, industrial facilities and solar pumping installations face mounting pressure to reduce kWh consumption while maintaining precise process control. Variable Frequency Drive (VFD) panels have emerged as the critical infrastructure solution—integrating motor control, circuit protection, and thermal management into robust enclosures that regulate AC motor speed through intelligent frequency modulation. Whether managing heavy-duty conveyor systems in manufacturing plants or optimizing submersible pumps in agricultural PV projects, these panels eliminate the energy waste inherent in constant-speed operation, often reducing power consumption by up to 50% while extending motor lifespan.

This comprehensive guide addresses the technical and procurement complexities facing EPC contractors, automation distributors, and project engineers sourcing VFD panels for demanding environments. We examine the three primary drive topologies—Pulse Width Modulation (PWM), Voltage Source Inverters (VSI), and Current Source Inverters (CSI)—detailing their distinct applications from standard HVAC systems to high-inertia crane operations. Beyond topology selection, we analyze critical enclosure specifications including NEMA ratings (1, 3R, 4, 4X) for environmental protection, harmonic mitigation strategies involving line reactors and filters, and cooling system requirements essential for thermal management in dusty or corrosive industrial settings. Finally, we navigate manufacturer evaluation criteria, comparing OEM capabilities in custom panel integration, global certification standards, and after-sales support networks to ensure your specification meets both performance benchmarks and total cost of ownership targets.

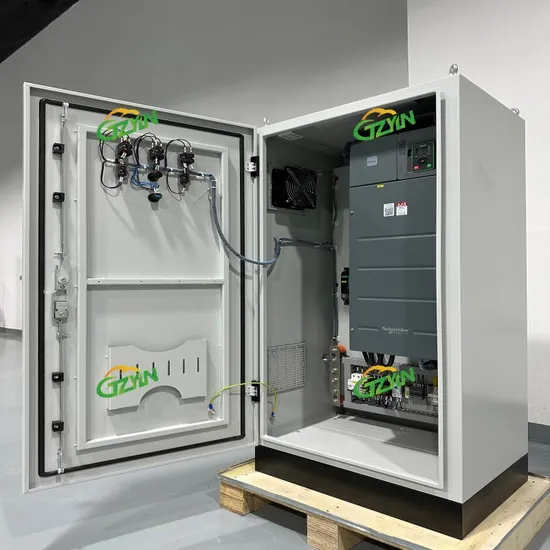

Technical Types and Variations of Variable Frequency Drive Panel

Variable Frequency Drive (VFD) panels are engineered in distinct technical architectures to accommodate diverse power sources, load dynamics, and environmental constraints. For EPC contractors and automation engineers, selecting the appropriate topology is critical to system reliability—particularly when integrating solar pumping solutions or managing high-inertia industrial loads. Below are the primary technical variations, each optimized for specific input characteristics and operational demands.

Type	Technical Features	Best for (Industry)	Pros & Cons
Solar PV-Powered VFD Panels	• Wide DC input voltage range (200V–800VDC) • Integrated Maximum Power Point Tracking (MPPT) • Battery-less direct PV coupling • IP65/NEMA 4X outdoor-rated enclosures • Dry-run protection & water level sensor inputs	Agriculture (solar irrigation), Remote water supply, Off-grid livestock watering	Pros: Zero grid dependency; 30–50% energy savings vs. diesel pumps; automatic dawn-to-dusk operation Cons: Weather-dependent output requires array oversizing; limited operation during low irradiance
Standard PWM-VSI AC Drive Panels	• 3-phase 380–480VAC input (50/60Hz) • IGBT-based PWM inverter topology (2–16 kHz switching) • DC bus capacitors with pre-charge circuits • NEMA 1/12/3R enclosure options • Built-in EMC filters & line reactors	Manufacturing, HVAC, Municipal water treatment, General industrial automation	Pros: >95% efficiency; precise V/Hz control; cost-effective for variable torque loads Cons: Limited starting torque without encoder feedback; generates harmonics requiring mitigation
Single-Phase Input VFD Panels	• 220–240VAC single-phase input • Voltage-doubling rectifier topology • 3-phase output capability (derated) • Active Power Factor Correction (PFC) • Phase-loss & imbalance protection	Rural agricultural zones, Residential pressure systems, Retrofit installations with limited grid access	Pros: Enables 3-phase motor operation on single-phase infrastructure; eliminates phase converter hardware Cons: 50–70% power derating required; limited to motors typically <7.5kW; higher thermal stress on DC bus
Current Source Inverter (CSI) VFD Panels	• Current-regulated topology with DC link inductors • Four-quadrant regenerative braking • Sine-wave output filters for motor protection • High short-circuit withstand capability • Synchronous transfer (bump-less) options	Heavy mining, Crane/hoist systems, Large centrifugal compressors, High-inertia centrifuges	Pros: Superior dynamic torque control; inherent regeneration capability; robust against motor cable faults Cons: Higher capital cost; larger physical footprint; limited to single-motor applications per drive

Solar PV-Powered VFD Panels

These specialized panels are designed to operate directly from photovoltaic arrays without grid-tie inverters or battery storage. The integrated MPPT algorithm continuously adjusts the DC bus voltage to extract maximum power from the solar array, even during fluctuating irradiance. For agricultural EPCs, these systems eliminate the complexity of hybrid AC/DC architectures—utilizing wide-range DC input (typically 200V–800V) to drive standard AC induction or permanent magnet motors. Critical engineering considerations include IP65 enclosure ratings for outdoor agricultural environments, dry-run protection for borehole pumps, and automatic frequency sweep functions to prevent pump cavitation during low-light conditions.

Standard PWM-VSI AC Drive Panels

As the industry standard for industrial automation, Voltage Source Inverter (VSI) panels utilizing Pulse Width Modulation (PWM) dominate manufacturing and process control applications. The architecture follows a rectifier-DC bus-inverter chain, where IGBT switches modulate voltage and frequency to the motor. These panels excel in variable torque applications (pumps, fans) where energy recovery is prioritized over high starting torque. Engineers should specify line reactors or harmonic filters to mitigate reflected wave phenomena, particularly when cable runs between panel and motor exceed 50 meters.

Single-Phase Input VFD Panels

In rural agricultural contexts where three-phase grid infrastructure is unavailable, these panels provide a technical bridge by accepting single-phase input and delivering three-phase output to standard motors. The topology employs voltage-doubling rectifier circuits and active PFC to maintain DC bus stability. However, significant derating (typically to 50–70% of nominal drive capacity) is required to prevent DC bus capacitor overheating. For agricultural project managers, this variation offers a cost-effective alternative to phase converters, though motor sizing must account for the reduced continuous output current.

Current Source Inverter (CSI) VFD Panels

Engineered for heavy-duty applications with high inertia or regenerative requirements, CSI panels utilize a large inductor in the DC link to regulate current rather than voltage. This topology provides natural four-quadrant operation, allowing energy return to the grid during deceleration without external braking resistors. The design offers exceptional short-circuit protection and torque stability during sudden load changes—critical for crane systems and large compressors. However, the physical size and cost of DC link inductors limit these panels to high-value industrial applications where precision torque control justifies the investment.

Key Industrial Applications for Variable Frequency Drive Panel

Variable Frequency Drive (VFD) panels serve as the integrated nerve center for motor control across diverse industrial ecosystems, combining power conversion, circuit protection, and process automation within a single enclosure. By regulating frequency and voltage supplied to AC motors, these panels enable precise speed and torque management while delivering measurable ROI through energy optimization, soft-start capabilities, and extended equipment life. Below are the critical industrial sectors where engineered VFD panel solutions generate the highest operational value.

Sector	Application	Energy Saving Value	Sourcing Considerations
Agriculture & Solar Irrigation	Solar pump inverters for borehole/submersible pumps, center-pivot systems, and drip irrigation networks	30–50% reduction versus traditional valve throttling; optimized PV array utilization through direct DC-to-AC conversion without battery storage	IP65/NEMA 4X stainless steel enclosures for UV and moisture resistance; integrated MPPT algorithms; dry-run and water-level protection logic; sine-wave filters for long motor cable runs
Water & Wastewater Treatment	Lift station pumps, aeration blowers, filter backwash systems, and chemical dosing pumps	20–40% via dynamic flow optimization; elimination of water hammer and associated pipe stress	Input line reactors for surge protection; PID control with 4–20 mA transducer feedback; NEMA 4X sealing for corrosive hydrogen sulfide environments; active harmonic filters to meet IEEE 519 standards
HVAC & Building Automation	Chilled water pumps, cooling tower fans, and Air Handling Units (AHU)	30–60% in variable torque (quadratic load) applications; significant part-load efficiency gains	Low-harmonic PWM drives with EMC filters; BACnet or Modbus RTU communication cards; NEMA 1/12 enclosures for indoor electrical rooms; integrated cooling units to manage heat dissipation in confined spaces
Mining & Heavy Material Handling	Conveyor belts, crushers, hoists, and drilling rig drawworks	15–25% direct energy savings plus 40%+ reduction in mechanical maintenance costs via controlled acceleration	Heavy-duty Current Source Inverters (CSI) or high-torque PWM drives for high-inertia loads; dynamic braking resistors and chopper circuits; NEMA 4/4X dust-tight sealing for particulate environments; manual bypass contactors to ensure critical uptime during VFD maintenance

Agriculture & Solar Irrigation
In off-grid and grid-tied irrigation projects, VFD panels function as the critical interface between photovoltaic arrays and submersible pump motors. Unlike conventional AC pumps that require inverters and battery banks, modern solar pump VFD panels utilize Maximum Power Point Tracking (MPPT) to convert DC solar generation directly into variable-frequency AC, matching motor speed to available solar irradiance in real time. This topology eliminates energy storage losses and reduces system complexity. When sourcing these panels, specify NEMA 4X or IP65 enclosures to withstand outdoor exposure, and insist on dry-run protection logic that shuts down the motor during low-well conditions to prevent cavitation and seal damage. The inclusion of sine-wave output filters is essential for installations where the panel and motor are separated by distances exceeding 50 meters, mitigating voltage reflection issues that damage motor windings.

Water & Wastewater Treatment
Municipal and industrial water facilities rely on VFD panels to modulate pump speeds based on level transducers and flow meters rather than using inefficient throttling valves or recirculation loops. In aeration basins, precise dissolved oxygen control via VFD-driven blowers reduces energy consumption during low-demand periods while maintaining biological process stability. Procurement teams should prioritize panels with integrated input line reactors to protect rectifier sections from utility voltage spikes and harmonic distortion. For applications involving corrosive gases or outdoor pump stations, specify NEMA 4X stainless steel construction with active cooling systems to prevent condensation-induced failures. Additionally, ensure the VFD supports PID loop control with 4–20 mA analog I/O to seamlessly interface with existing SCADA architectures.

HVAC & Building Automation
Commercial building systems represent ideal variable torque applications where load curves follow the affinity laws—small reductions in fan or pump speed yield cubic energy savings. VFD panels in this sector must prioritize electromagnetic compatibility (EMC) to prevent interference with sensitive building management systems. Specify Pulse Width Modulation (PWM) drives with carrier frequency adjustment capabilities to reduce audible motor noise in occupied spaces. Integration considerations include native BACnet or Modbus protocols for centralized automation control. From a thermal management perspective, verify that the panel includes adequately sized cooling units or ventilation fans, as HVAC electrical rooms often lack sufficient natural convection to dissipate heat generated by IGBT switching losses.

Mining & Heavy Material Handling
In mining operations, VFD panels control high-inertia equipment such as conveyor belts and crushers that require significant starting torque and controlled deceleration. For these heavy-duty cycles, Current Source Inverters (CSI) or robust PWM drives with torque-vector control are preferred over basic Voltage Source Inverters (VSI) due to their superior handling of sudden load changes and regenerative energy. Sourcing specifications must include dynamic braking resistors or regenerative braking units to dissipate kinetic energy during rapid deceleration, preventing overvoltage faults. Given the abrasive and moist environments typical of mining, demand NEMA 4 or 4X enclosures with positive-pressure cooling to exclude conductive dust. Finally, incorporate a manual bypass contactor within the panel design to allow direct-online motor operation during VFD maintenance, ensuring continuous production capability.

Top 3 Engineering Pain Points for Variable Frequency Drive Panel

Scenario 1: Thermal Runaway in High-IP-Rated Outdoor Enclosures

The Problem:
Variable Frequency Drives inherently generate significant thermal losses during the rectification and inversion processes—particularly in Pulse Width Modulation (PWM) drives where rapid IGBT switching creates substantial heat dissipation. When deployed in outdoor agricultural pumping stations or dusty industrial environments, VFD panels require NEMA 4 or 4X enclosures to protect against moisture ingress, corrosion, and particulate contamination. However, these sealed enclosures naturally inhibit convective cooling, creating a critical engineering conflict: maintaining IP65/IP66 protection ratings while preventing thermal derating or capacitor failure due to excessive internal temperatures. Without proper thermal management, DC bus capacitors (essential for smoothing the rectified DC voltage) experience accelerated electrolyte evaporation, leading to premature drive failure and costly downtime in remote solar pumping installations where ambient temperatures regularly exceed 45°C.

The Solution:
Engineered thermal management systems that decouple environmental sealing from heat dissipation. This includes thermoelectric cooling units, air-to-air heat exchangers, or liquid-cooled heat sinks mounted externally to the sealed chamber—allowing the VFD to maintain optimal operating temperatures without compromising NEMA 4X integrity. Advanced VFD panels should incorporate thermal derating curves specific to solar applications and forced ventilation systems with filtered air intake designed for desert or high-humidity agricultural environments. Specifying drives with oversized DC bus capacitors and low-loss IGBT modules further reduces internal heat generation, extending mean time between failures (MTBF) in harsh climate conditions while maintaining full motor torque output.

Scenario 2: Harmonic Distortion and Grid Instability in Multi-Drive Installations

The Problem:
While PWM-based VFDs offer superior speed control and energy efficiency, their non-linear power conversion creates high-frequency harmonic currents that reflect back into the supply grid. In industrial facilities with multiple VFD panels—such as conveyor systems, HVAC plants, or large-scale irrigation projects—these harmonics accumulate, causing voltage distortion, overheating of neutral conductors, and interference with sensitive control equipment. For EPC contractors, this translates to power quality violations (IEEE 519 / IEC 61000 compliance issues), increased kVA demand charges, and potential resonance conditions that can trip protective relays or damage power factor correction capacitors. The problem intensifies in weak grid conditions or standalone solar microgrids where source impedance is high and harmonic absorption capacity is limited, potentially destabilizing the entire distribution network.

The Solution:
Integrated harmonic mitigation strategies at the panel design stage. This includes specifying AC line reactors (3% or 5% impedance) or DC link chokes to reduce current THD (Total Harmonic Distortion), or deploying active harmonic filters for critical installations. For solar pumping applications, selecting VFDs with active front ends (AFE) or low-harmonic drive technologies regenerates clean power while maintaining unity power factor. Engineering teams should conduct harmonic analysis during the design phase, ensuring that the cumulative effect of multiple PWM drives does not exceed utility distortion limits, and specify 12-pulse or 18-pulse rectifier configurations for high-power agricultural pumps above 75kW where harmonic content is most problematic. Proper grounding and shielding practices within the panel enclosure further isolate conducted emissions from control circuits.

Scenario 3: DC Bus Voltage Instability in Off-Grid Solar Pumping Applications

The Problem:
Solar pump inverters operate without the stabilizing inertia of the AC grid, drawing variable DC power directly from PV arrays. Rapid changes in irradiance (cloud transients) or temperature fluctuations cause the DC bus voltage to fluctuate violently, challenging the VFD’s ability to maintain stable output frequency to the motor. If the DC bus voltage drops below the undervoltage threshold or exceeds capacitor ratings during sudden irradiance spikes, the drive trips on fault codes—stopping critical irrigation when water demand is highest. Additionally, the absence of grid impedance means voltage ripple from the rectification stage is more pronounced, potentially causing torque pulsations in the pump motor and mechanical stress on couplings, seals, and pipe infrastructure. This is particularly problematic for borehole pumps requiring constant torque startup against high static head.

The Solution:
Robust DC bus architecture designed for wide voltage range operation (typically 200VDC to 800VDC for standard solar pumps) with advanced Maximum Power Point Tracking (MPPT) algorithms that respond faster than traditional perturb-and-observe methods. Engineering specifications should require oversized DC link capacitors with high ripple current ratings and low ESR (Equivalent Series Resistance) to maintain voltage stability during transient cloud cover. For agricultural project managers, selecting VFD panels with automatic restart functions (ride-through capability) and stall prevention algorithms ensures continuous operation during brief power fluctuations. Integration of DC chokes or sinusoidal output filters reduces voltage reflection issues when motor cables exceed 50 meters—common in deep-well pumping applications—protecting motor insulation from high dv/dt stress while maintaining precise flow control and preventing premature bearing failure due to shaft currents.

Component and Hardware Analysis for Variable Frequency Drive Panel

The operational integrity of a Variable Frequency Drive (VFD) panel hinges on the synergistic performance of its internal electronic architecture. For mission-critical applications—from centrifugal irrigation pumps in off-grid agricultural PV systems to heavy-duty HVAC and conveyor networks—component selection directly influences conversion efficiency, fault tolerance, and total cost of ownership. In solar pumping contexts specifically, hardware must withstand wide voltage fluctuations, extreme thermal cycling, and outdoor environmental stressors while maintaining precise motor control.

Power Conversion and Control Stack

IGBT Power Modules serve as the primary switching elements within the inverter stage, converting smoothed DC bus voltage into variable-frequency AC output via Pulse Width Modulation (PWM). The quality of these insulated gate bipolar transistors determines switching losses, harmonic distortion, and short-circuit withstand capability. Industrial-grade panels utilize third-generation trench-gate IGBTs with low Vce(sat) characteristics to minimize conduction losses, particularly critical in solar pump inverters where DC input voltage can vary significantly with irradiance levels.

Rectifier Bridges and DC-Link Capacitors form the front-end power conditioning network. The rectifier converts incoming AC (or DC in solar applications) to pulsating DC, which is then filtered by the DC bus capacitors to provide stable energy storage and ripple current absorption. In high-reliability panels, metallized polypropylene film capacitors are increasingly preferred over electrolytic variants due to their longer service life, lower equivalent series resistance (ESR), and superior performance in high-ripple current conditions common in VFD operation.

Digital Signal Processors (DSPs) and Microcontroller Units (MCUs) constitute the control intelligence, executing complex vector control algorithms, MPPT (Maximum Power Point Tracking) logic for solar applications, and real-time protection routines. Advanced 32-bit DSP architectures with dedicated PWM generators enable precise flux vector control, essential for maintaining constant torque in agricultural pumps under varying load conditions.

Thermal Management and Protection Systems

Cooling Heatsinks and Thermal Interface Materials (TIM) are critical for maintaining semiconductor junction temperatures within safe operating limits. The thermal resistance (Rθ) of the heatsink assembly directly impacts IGBT lifespan, as Arrhenius modeling indicates that every 10°C reduction in junction temperature doubles component longevity. For outdoor solar pump installations, passive cooling with large finned aluminum heatsinks or active liquid cooling systems may be employed to compensate for high ambient temperatures and limited airflow.

Line and Load Reactors mitigate harmonic distortion and limit inrush currents, protecting both the drive and upstream grid infrastructure. EMI Filters suppress high-frequency noise generated by rapid IGBT switching, ensuring compliance with IEC 61800-3 standards for electromagnetic compatibility—vital for preventing interference with SCADA systems in automated agricultural networks.

Component Analysis Matrix

Component	Function	Quality Indicator	Impact on Lifespan
IGBT Power Module	High-speed switching for DC-to-AC inversion; controls voltage/frequency output to motor	Brand tier (Infineon, Mitsubishi, Fuji), voltage derating margin (>1.5x nominal), junction temperature rating (Tj(max) ≥ 150°C), thermal cycling capability	Primary determinant; thermal fatigue of solder joints and bond wires under cyclic loading is the dominant failure mode. High-quality modules extend MTBF beyond 100,000 hours
DC-Link Capacitors	Energy storage, ripple filtering, and DC bus voltage stabilization	Dielectric material (Film vs. Electrolytic), temperature rating (105°C vs. 85°C), ESR values, ripple current capacity	Electrolytic capacitors degrade via electrolyte evaporation (2-5 year life in high heat); film capacitors offer 10+ year lifespans with minimal degradation
DSP/MPU Controller	Execution of control algorithms, PWM signal generation, fault diagnostics	Processing speed (MIPS), temperature operating range (-40°C to +85°C industrial grade), watchdog timer protection, galvanic isolation	Prevents catastrophic failures by enabling fast fault detection (<2μs); poor-quality controllers increase risk of shoot-through faults destroying power semiconductors
Rectifier Bridge	AC-to-DC conversion (or DC conditioning in solar applications)	Peak inverse voltage (PIV) rating, surge current capacity, thermal resistance	Voltage transients from lightning or grid switching cause avalanche breakdown in underspecified diodes; robust bridges prevent cascade failures
Cooling Heatsink	Thermal dissipation from semiconductors to ambient environment	Material (Aluminum 6061 vs. Copper composite), fin density, thermal resistance (Rθ < 0.5 K/W for high-power units), anodization quality	Direct correlation to semiconductor junction temperature; inadequate cooling reduces IGBT life by 50% for every 15°C increase above rated Tj
Line Reactor	Input current harmonic filtering, inrush limitation, protection against voltage spikes	Inductance tolerance (±5%), thermal class (H-class insulation), saturation current rating	Reduces peak currents stress on DC bus capacitors and IGBTs by 30-40%, significantly extending power component longevity
Current/Voltage Sensors	Real-time feedback for closed-loop control and protection	Accuracy class (±0.5%), response time (<1μs), isolation voltage (2kV+)	Inaccurate sensors cause control instability, leading to overcurrent trips or motor insulation damage; Hall-effect sensors offer superior reliability vs. shunt resistors in noisy environments
EMI Filter	Suppression of conducted electromagnetic interference	Insertion loss (dB) at switching frequency, leakage current compliance (IEC 60990), temperature stability	Prevents ground fault errors and control board latch-ups that cause premature relay and contactor failure

Integration Considerations for Solar Pumping Applications

In photovoltaic water pumping systems, VFD panels must accommodate wide DC input voltage ranges (typically 200VDC to 800VDC) as irradiance fluctuates. This demands power components with higher voltage margins and control algorithms capable of MPPT tracking without additional external controllers. The enclosure rating (NEMA 4X or IP65) becomes a hardware specification itself, requiring sealed conduit entries, corrosion-resistant bus bars, and conformal-coated PCBs to protect against humidity and dust ingress common in agricultural environments.

For EPC contractors and automation distributors, specifying panels with modular bus bar systems and draw-out circuit breaker designs facilitates field maintenance and reduces Mean Time To Repair (MTTR). The integration of bypass contactors—allowing direct grid connection during drive failure—provides operational continuity for critical irrigation schedules, though this requires robust interlocking mechanisms to prevent back-feeding.

Ultimately, the lifecycle economics of a VFD panel are dictated by the thermal design margins and semiconductor quality selected at the specification stage. Investing in industrial-grade components with appropriate derating factors yields measurable reductions in unplanned downtime and maintenance costs across the 15-20 year operational life of solar pumping infrastructure.

Manufacturing Standards and Testing QC for Variable Frequency Drive Panel

Quality assurance in VFD panel manufacturing extends far beyond assembly-line checks. For applications spanning solar irrigation systems in arid climates to continuous-duty industrial conveyors, the integrity of every IGBT, capacitor, and control circuit determines operational longevity and safety. At Boray Inverter, our manufacturing protocols align with IEC 61800-5-1 and ISO 9001:2015 frameworks, ensuring each variable frequency drive panel withstands electrical, thermal, and environmental stressors inherent in decentralized solar pumping and heavy industrial motor control.

PCB-Level Manufacturing and Environmental Protection

The foundation of a reliable VFD panel begins with the printed circuit board (PCB) assembly. We adhere to IPC-A-610 Class 3 standards for high-performance electronic assemblies, critical for applications where equipment downtime is unacceptable. Following surface-mount technology (SMT) placement and through-hole soldering, every drive control board undergoes automated optical inspection (AOI) and in-circuit testing (ICT) to detect solder bridging, component misalignment, or latent defects.

For solar pump inverters and outdoor VFD installations exposed to humidity, dust, and chemical contaminants, conformal coating is mandatory rather than optional. We apply acrylic, silicone, or polyurethane coatings (depending on environmental specifications) via selective spraying or dipping processes, ensuring complete coverage of traces and components while maintaining thermal dissipation pathways. This protective layer provides insulation resistance against moisture ingress and corrosive atmospheres common in agricultural pumping stations, effectively preventing dendritic growth and leakage currents that lead to field failures.

High-Temperature Aging and Burn-In Protocols

To eliminate infant mortality and validate thermal design margins, 100% of VFD units undergo high-temperature burn-in testing (HTBT) prior to shipment. Units are subjected to 40°C to 50°C ambient temperatures for a minimum of 4 to 8 hours while operating at nominal load, simulating the thermal stress of enclosed NEMA 3R or NEMA 4X panels in direct sunlight. During this aging cycle, we monitor IGBT junction temperatures, DC bus capacitor ripple currents, and cooling fan performance. Any unit exhibiting thermal drift, abnormal switching characteristics, or cooling system inefficiencies is flagged for root-cause analysis and component replacement.

Additionally, thermal cycling testing (per IEC 60068-2-14) subjects drive panels to rapid temperature transitions between -20°C and +60°C to verify solder joint integrity and material expansion coefficients. This is particularly critical for solar pumping systems installed in desert environments where diurnal temperature swings exceed 30°C.

100% Full-Load Functional Verification

Unlike statistical sampling methods, Boray Inverter mandates 100% full-load testing for every VFD panel leaving the facility. Each unit is connected to a resistive or regenerative dynamometer load bank and operated at:
– 100% rated current for continuous thermal verification
– 150% overload capacity for 60 seconds (simulating pump startup inrush)
– Full frequency range (0-400Hz or application-specific) to validate PWM waveform integrity

During these tests, we verify output voltage symmetry, current harmonic distortion (THDi), and braking chopper functionality. For solar pump-specific inverters, additional validation includes MPPT tracking efficiency across varying irradiance profiles and dry-run protection algorithms that prevent pump damage during low-water conditions.

Safety and Insulation Integrity Validation

Electrical safety testing follows stringent protocols to meet CE Low Voltage Directive (LVD) 2014/35/EU and IEC 61800-5-1 requirements:
– HIPOT (Dielectric Withstand) Testing: Application of 2kV AC or 2.5kV DC for 60 seconds between mains circuits and earth/accessible parts to verify insulation integrity
– Insulation Resistance Testing: Megohm measurement at 500V DC to ensure >100 MΩ resistance
– Ground Continuity: Verification of protective bonding circuits with <0.1Ω resistance

These tests are automated and logged with serial number traceability, ensuring each VFD panel meets international safety standards for EPC contractors and industrial integrators.

Environmental and Mechanical Stress Testing

For harsh industrial and agricultural deployments, supplemental testing includes:
– Vibration Testing (IEC 60068-2-6): Sinusoidal vibration at 5-150Hz to simulate transportation and operational mechanical stress
– Ingress Protection (IP) Verification: Pressure testing of NEMA 4X/IP66 enclosures to confirm dust-tight and water-jet resistant seals
– Salt Fog Testing (ASTM B117): For coastal or fertilizer-exposed installations, validating corrosion resistance of heat sinks and enclosure hardware

Compliance Architecture and Traceability

Our quality management system maintains ISO 9001:2015 certification with comprehensive documentation chains. Each VFD panel carries a unique barcode identifier linking to:
– Component batch records (IGBT modules, DC link capacitors, control PCBs)
– Test data logs from burn-in and full-load verification
– Calibration certificates for test equipment

For global distribution, panels are certified to CE (EMC Directive 2014/30/EU, LVD), with optional UL 508A listing for North American markets. Solar pump inverters additionally undergo IEC 62109-1 testing for photovoltaic applications, ensuring safe operation with DC inputs up to 1000V.

This multi-layered QC architecture ensures that whether deployed in automated manufacturing lines or remote solar irrigation systems, Boray Inverter VFD panels deliver consistent motor control performance with MTBF ratings exceeding 50,000 hours under full-load conditions.

Step-by-Step Engineering Sizing Checklist for Variable Frequency Drive Panel

Proper sizing of a Variable Frequency Drive (VFD) panel requires rigorous systems engineering that accounts for both the electromechanical load characteristics and the power source architecture—whether grid-tied or photovoltaic (PV) fed. For EPC contractors and automation engineers deploying Boray Inverter solutions, the following technical protocol ensures optimal performance, NEC/IEC compliance, and long-term reliability across industrial and agricultural pumping applications.

Step 1: Motor Load Characterization and VFD Capacity Matching

Begin by documenting the motor’s Full Load Amperage (FLA) and service factor from the nameplate data. For constant torque applications (conveyors, compressors, positive displacement pumps), size the VFD output current capacity to ≥115% of motor FLA. For high-torque or high-inertia loads (crushers, large fans, deep-well solar pumps), utilize ≥150% current capacity for 60 seconds to accommodate starting inrush without nuisance tripping.

Verify the motor’s insulation class (Class F or H preferred for VFD duty) and confirm the VFD’s carrier frequency settings will not exceed the motor’s voltage withstand capability. For retrofit projects, measure actual load profiles using a power analyzer; oversizing beyond 120% for variable torque loads (centrifugal pumps) reduces efficiency and power factor correction effectiveness.

Step 2: Input Power Architecture and Voltage Coordination

Define the primary power source topology:
– AC Grid Input: Specify line reactors (3% or 5% impedance) for drives >5HP to mitigate voltage notching and harmonic distortion. Verify input voltage tolerance (typically ±10%) against local grid stability.
– Solar DC Input: For Boray solar pump inverters, confirm the PV array’s open-circuit voltage (Voc) at record low temperatures does not exceed the drive’s maximum DC input voltage (typically 800VDC or 1000VDC). Calculate using:
Voc_max = Voc_stc × [1 + (T_min – 25°C) × β]
where β is the panel’s temperature coefficient (%/°C) and T_min is the lowest ambient temperature.

Ensure the Maximum Power Point Tracking (MPPT) voltage window of the solar VFD overlaps with the array’s voltage at maximum power (Vmp) during peak operating temperatures to prevent efficiency losses.

Step 3: Solar Array String Sizing and Configuration

For photovoltaic-powered systems, perform string sizing calculations to optimize the DC bus:

1. Series Strings: Calculate the number of panels per string (N) such that:
   Vmppt_min < (N × Vmp) < Vmppt_max
   Account for voltage drop under high irradiance and temperature derating.

2. Parallel Strings: Determine maximum parallel strings based on the VFD’s maximum input current and short-circuit current (Isc) of the PV modules, incorporating a 1.25 safety factor per NEC 690.8.

3. Grounding: Specify PV array grounding conductors sized per NEC Article 250, ensuring the VFD panel’s DC input terminals include appropriate arc-fault detection and surge protection devices (SPD).

Step 4: Thermal Management and Enclosure Specifications

Calculate total heat dissipation within the enclosure using:
Q_total = (P_drive × 0.03) + (P_reactor × 0.015) + P_other
where P_drive is the rated power (3-5% lost as heat), and P_reactor accounts for line reactor losses.

Select NEMA enclosure ratings based on environment:
– NEMA 1: Clean indoor industrial environments
– NEMA 3R: Outdoor agricultural installations with rain protection
– NEMA 4/4X: Washdown areas, corrosive chemical environments, or offshore platforms

Size cooling units (fan or air conditioning) to maintain internal ambient temperature within the VFD’s specified operating range (typically -10°C to +50°C), applying a 2% current derating for every 1°C above 40°C if passive cooling is insufficient.

Step 5: Harmonic Mitigation and Power Quality

Specify harmonic filtration based on IEEE 519 or IEC 61000-3-6 standards:
– Install AC line reactors on the input side to reduce current harmonics (THDi) to <5%
– For installations with multiple drives >50kVA total, add DC bus chokes or active front-end (AFE) rectifiers
– Specify dv/dt filters at the VFD output when motor cable runs exceed 50 meters to prevent reflected wave phenomena and motor insulation degradation

For solar pump applications, verify the VFD’s electromagnetic compatibility (EMC) filters do not interfere with MPPT tracking algorithms during low irradiance conditions.

Step 6: Protection Coordination and Bypass Integration

Integrate circuit protection devices with proper coordination curves:
– Input: Molded case circuit breakers (MCCB) or fuses with semiconductor protection characteristics (Class J or R)
– Output: Motor circuit protectors (MCP) sized at 125% of motor FLA
– Bypass: Specify manual or automatic bypass contactors (3-contactor or 2-contactor with drive isolation) for critical applications where continuous operation is mandatory during VFD maintenance

Include ground fault protection (GFP) for solar applications to detect insulation breakdown in the PV array field wiring.

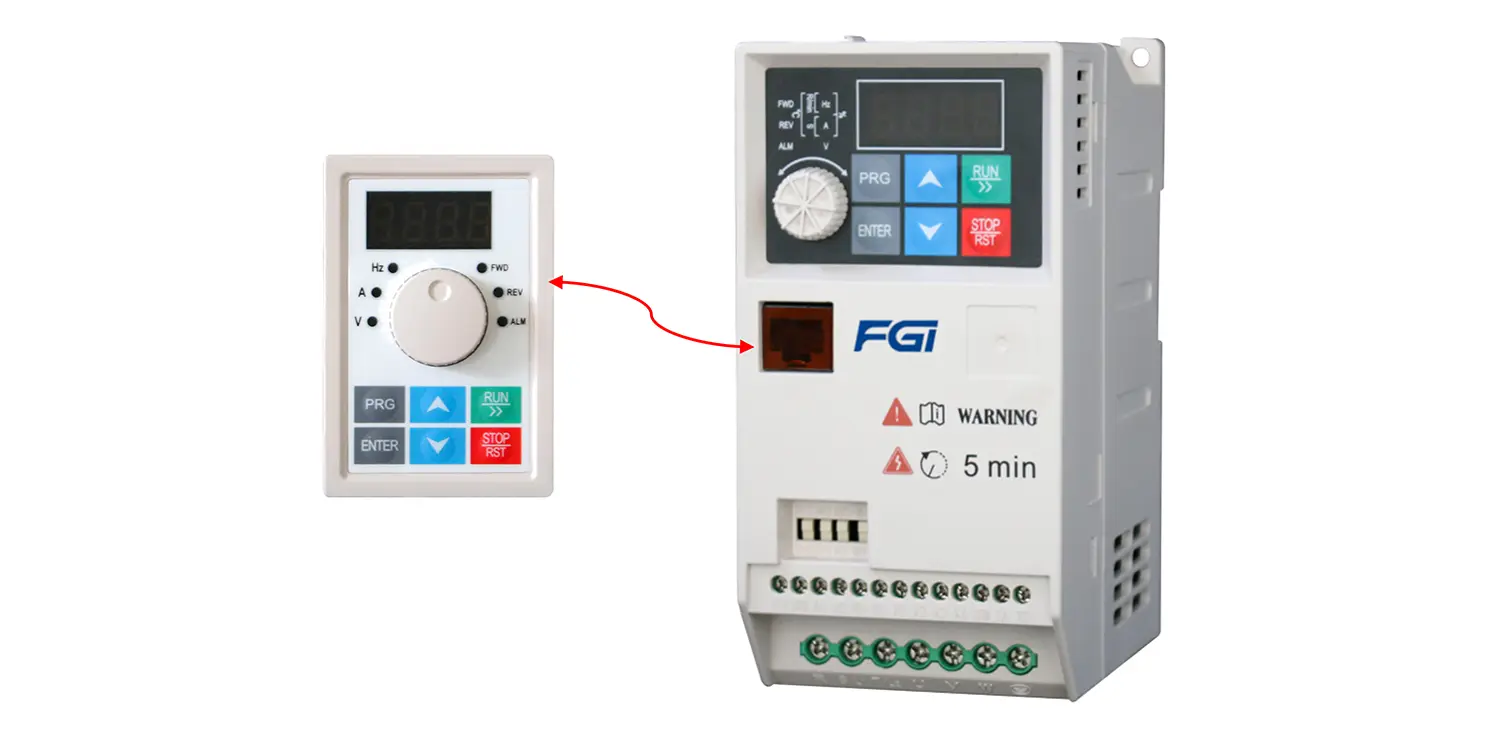

Step 7: Control Interface and Remote Monitoring

Define I/O requirements:
– Analog Inputs: 4-20mA pressure transducers or 0-10V level sensors for closed-loop pump control
– Digital Inputs: Dry contacts for float switches, flow meters, and emergency stops
– Communications: RS-485 Modbus RTU for SCADA integration, or GPRS/4G modules for remote agricultural monitoring via Boray’s proprietary monitoring platforms

For solar pumping projects, ensure the VFD panel includes a dry-run protection algorithm and minimum frequency settings to prevent cavitation in submersible pumps during low irradiance periods.

Step 8: Documentation and Compliance Verification

Finalize the specification package with:
– Single-line diagrams showing VFD, bypass, reactors, and protection devices
– Heat dissipation calculations and ventilation layouts
– Solar array string layout diagrams with voltage/current tabulations
– Declaration of conformity to IEC 61800-5-1 (safety) and IEC 61800-3 (EMC) for international projects

By systematically executing this checklist, engineering teams ensure the VFD panel—whether grid-tied or solar-powered—delivers precise motor control, maximum energy harvest, and decades of reliable service in demanding industrial and agricultural environments.

Wholesale Cost and Energy ROI Analysis for Variable Frequency Drive Panel

When evaluating Variable Frequency Drive (VFD) panels for large-scale industrial or agricultural solar pumping deployments, procurement decisions extend far beyond unit sticker prices. For EPC contractors and automation distributors, understanding the nuanced economics of wholesale sourcing, component modularity, and long-term energy arbitrage is critical to positioning competitive bids and ensuring project viability. The following analysis dissects the cost architecture of VFD panels, quantifies return on investment through energy recovery models, and evaluates warranty structures as strategic financial instruments rather than mere afterthoughts.

Wholesale Procurement Economics and Volume Pricing Tiers

In the B2B electrical infrastructure market, VFD panel pricing operates on a logarithmic volume curve rather than linear discounts. For distributors and EPC contractors sourcing through manufacturers like Boray Inverter, pricing structures typically stratify across three procurement tiers:

Tier 1 (1–10 Units): Standard distributor pricing applies, generally reflecting a 25–35% margin below MSRP. At this volume, NEMA 1 general-purpose panels (IP20 equivalent) for indoor HVAC or conveyor applications typically range from $800–$1,200 for low-voltage (230V/380V) units up to 7.5kW, while NEMA 4/4X outdoor-rated panels with integrated cooling and harmonic filtering command a 40–60% premium due to stainless steel enclosures and thermal management systems.

Tier 2 (11–50 Units): Project-level pricing activates, with OEMs offering 15–22% additional reductions. This tier often includes value-added services such as pre-configuration of PID control loops for pump applications or integration of DC input stages for solar pump inverters—critical for agricultural projects where photovoltaic (PV) arrays directly feed the VFD DC bus.

Tier 3 (50+ Units / Annual Contracts): Strategic partnership pricing, where unit costs approach manufacturing cost-plus structures (often 45–55% below retail). At this scale, white-label opportunities emerge for distributors seeking to brand VFD panels under proprietary lines, particularly for solar pumping solutions where Boray’s MPPT-enabled drive technology requires minimal customization but benefits from localized enclosure fabrication.

Component Cost Drivers: The bill of materials (BOM) significantly impacts wholesale negotiations. A standard PWM-based VFD panel comprises the drive module (35–45% of cost), NEMA-rated enclosure (15–25%), protection devices including line reactors and EMI filters (10–15%), and thermal management (cooling fans/heat exchangers accounting for 8–12%). Specifying Current Source Inverter (CSI) topology for high-torque drilling applications or adding manual bypass switches—essential for maintenance continuity in municipal water pumping—can increase base costs by 18–30% but reduces lifecycle service interruptions.

Energy ROI Modeling: From CAPEX to OPEX Recovery

The economic justification for VFD panel deployment hinges on the affinity laws (cube law) governing centrifugal pumps and fans, where power consumption correlates with the cube of rotational speed. For industrial engineers and agricultural project managers, this translates to quantifiable energy arbitrage:

Baseline Energy Recovery: A 75kW motor driving an irrigation pump operating at 85% capacity for 4,000 annual hours consumes approximately 255,000 kWh at fixed speed (Direct Online). Implementing VFD control to modulate flow via pressure transducers typically reduces average operating speed to 70–75% of maximum, yielding energy savings of 35–50% (Source 1). At an industrial electricity rate of $0.12/kWh, annual savings range from $10,700–$15,300 per motor.

Solar Pumping Specifics: In PV-powered agricultural systems, VFD panels with integrated Maximum Power Point Tracking (MPPT) eliminate the inefficiencies of battery storage by driving pumps directly from solar array output. The ROI calculation shifts from energy savings to energy generation efficiency. A 22kW solar pump inverter system replacing diesel-powered irrigation reduces fuel costs by $8,000–$12,000 annually (assuming 1,200 operating hours and diesel prices of $1.20/liter), achieving payback periods of 18–30 months depending on insolation zones.

Total Lifecycle Analysis: When calculating Total Cost of Ownership (TCO), factor in soft-start capabilities that reduce mechanical stress on pump bearings and couplings, extending maintenance intervals by 30–40%. For heavy-duty applications using CSI-based VFD panels in mining or compressor stations, the higher initial CAPEX (typically 20% above VSI units) is offset by reduced harmonic distortion (THD <5%) and elimination of power factor penalties from utilities.

Application Scenario	Motor Rating	Annual Operating Hours	Energy Savings (kWh)	Annual Cost Savings	Simple Payback Period
HVAC Fan System	15kW	6,000	28,000–35,000	$3,360–$4,200	14–18 months
Irrigation Pump (Grid)	55kW	3,500	58,000–72,000	$6,960–$8,640	16–22 months
Solar Pumping (PV)	30kW	2,000 (solar hours)	Diesel equivalent: 4,200L	$5,040 (fuel)	20–28 months
Industrial Compressor	110kW	7,000	192,000–240,000	$23,040–$28,800	12–15 months

Warranty Structures and Risk Mitigation

Warranty economics in VFD procurement represent a critical variable in project financing. Standard manufacturer warranties typically cover 12–24 months for the drive module and 6–12 months for ancillary components (cooling fans, capacitors). However, for EPC contractors managing agricultural or remote industrial installations, extended warranty programs (5-year comprehensive coverage) add 3–8% to unit costs but eliminate catastrophic failure risks associated with IGBT module degradation in harsh environments.

Mean Time Between Failures (MTBF): High-quality PWM VFD panels utilizing film capacitors rather than electrolytic variants demonstrate MTBF ratings exceeding 50,000 hours at 40°C ambient. When specifying panels for solar pumping in desert climates (ambient temperatures >50°C), investing in NEMA 4X enclosures with active cooling and conformal-coated PCBs increases upfront costs by $200–$400 per unit but extends operational life by 3–5 years, effectively reducing the annualized cost of warranty risk by 60%.

Bypass Configuration Economics: Specifying manual or automatic bypass switches within the VFD panel adds $150–$300 to BOM costs but ensures 100% uptime during drive maintenance or failure. For municipal water management or continuous-process manufacturing, this redundancy prevents revenue losses that typically dwarf the incremental hardware investment.

Strategic Sourcing Recommendations

For automation distributors and agricultural EPCs, optimizing VFD panel procurement requires technical specification alignment with financial modeling:

1. Harmonic Mitigation vs. Energy Savings: Specify line reactors (3% impedance) for installations with multiple VFD panels to prevent utility penalty charges for voltage distortion, particularly in European markets adhering to IEEE 519 or IEC 61000-3-6 standards. The $75–$150 reactor cost prevents 5–15% utility surcharge penalties.

2. Cooling System Specification: In solar pumping applications, specify heat exchangers rather than filtered fan cooling for desert environments. While increasing initial costs by 12–18%, this prevents dust infiltration that causes thermal derating and premature IGBT failure.

3. Modular Scalability: Procure VFD panels with expandable I/O and communication protocols (Modbus RTU/TCP, CANopen) to accommodate future SCADA integration without panel replacement, protecting the initial CAPEX investment against Industry 4.0 upgrades.

By analyzing wholesale cost structures alongside energy recovery models and warranty risk allocation, B2B procurement teams can position VFD panel solutions that deliver measurable IRR (Internal Rate of Return) exceeding 25% in high-duty-cycle applications, while ensuring operational resilience across 15–20 year asset lifecycles.

Alternatives Comparison: Is Variable Frequency Drive Panel the Best Choice?

When specifying motor control architectures for industrial automation or agricultural infrastructure, decision-makers must evaluate the total cost of ownership (TCO) against operational flexibility. While Variable Frequency Drive (VFD) panels represent the gold standard for precision motor control, alternative technologies—ranging from electromechanical soft starters to hybrid solar-grid configurations—may offer superior value propositions in specific scenarios. This analysis examines the technical boundaries, economic trade-offs, and application-specific performance of VFD panels versus their primary alternatives to establish clear selection criteria for engineers, EPC contractors, and project managers.

1. VFD Control Panels vs. Soft Starters: Beyond Inrush Current Management

Soft starters utilize solid-state devices (typically thyristors) to ramp up voltage during motor acceleration, limiting inrush current to 3–4 times full-load amperage (FLA) rather than the 6–8x seen in Direct Online (DOL) starting. However, once the motor reaches nominal speed, soft starters provide no speed regulation capability—the motor operates at fixed synchronous speed determined by line frequency and pole count.

VFD panels, conversely, modulate both voltage and frequency through Pulse Width Modulation (PWM) inversion, enabling continuous speed control from 10% to 100% of rated speed. This fundamental distinction creates divergent value profiles:

• Energy Economics: Soft starters reduce mechanical stress and minor energy losses during startup but offer no operational energy savings. VFD panels deliver 30–50% energy reduction in variable torque applications (centrifugal pumps, fans) by matching motor output to real-time hydraulic or aerodynamic demand.
• Process Control: Applications requiring flow modulation, pressure maintenance, or synchronized line speeds (conveyor systems, precision irrigation) mandate VFD technology. Soft starters are restricted to high-inertia loads where fixed-speed operation is acceptable (crushers, mills, compressors).
• Harmonic Considerations: Modern VFD panels incorporate active front ends (AFE) or DC chokes to mitigate harmonic distortion (THDi <5%), whereas soft starters generate minimal harmonics but provide no power quality improvement during run mode.

2. Solar-Powered VFD Architecture vs. Grid-Fed Systems

For remote agricultural pumping or off-grid industrial applications, solar pump inverters (specialized VFDs with Maximum Power Point Tracking—MPPT) present a radical alternative to conventional grid-fed motor control panels.

DC-Coupled Solar VFD Systems (such as Boray Inverter’s solar pump drive solutions) convert photovoltaic DC output directly to variable frequency AC, eliminating the inefficiencies of battery storage or grid-tie inverters. These systems achieve 60–80% energy cost reduction compared to diesel generators and 40–50% savings versus grid electricity in high-irradiance regions.

Grid-Fed VFD Panels maintain advantages in:
* Power Stability: Continuous operation regardless of irradiance or weather patterns
* Initial Capital: Lower upfront hardware costs (excluding long-term energy procurement)
* Scalability: Easier integration with existing three-phase infrastructure

However, hybrid configurations—combining grid connection with solar VFD panels and automatic switching logic—are increasingly specified for critical applications requiring both energy independence and operational redundancy.

3. Motor Topology Integration: PMSM vs. Induction Machine Control

The efficacy of a VFD panel depends significantly on the coupled motor technology. While standard VFD panels control Induction Motors (IM) through scalar (V/Hz) or vector control, Permanent Magnet Synchronous Motors (PMSM) require advanced VFD algorithms (sensorless vector or FOC—Field Oriented Control) but deliver superior system efficiency.

Performance Metric	VFD + Induction Motor	VFD + PMSM	Soft Starter + IM
Efficiency Class	IE2–IE3 (90–95%)	IE4–IE5 (95–98%)	IE2–IE3 (fixed speed)
Power Density	Standard	30–40% higher	Standard
Control Complexity	Standard V/Hz or Vector	Requires precise rotor position estimation	Simple voltage ramping
High-Temperature Operation	Robust (no demagnetization risk)	Requires thermal derating or rare-earth magnets	Robust
Cost Premium	Baseline	20–30% motor cost increase	Lowest first cost
Optimal Application	General industrial, HVAC	Solar pumping, high-efficiency fans	High-inertia starting only

Strategic Implications: For solar pumping projects where photovoltaic array size directly impacts capital expenditure, the 5–8% efficiency gain of PMSM systems often justifies the specialized VFD panel requirements, reducing required PV capacity by 10–15%. Conversely, standard induction motors paired with VFD panels remain the pragmatic choice for harsh industrial environments where motor replacement availability and fault tolerance outweigh peak efficiency metrics.

Comparative Analysis Matrix

Evaluation Criteria	VFD Control Panel	Soft Starter	Direct Online (DOL)	Solar VFD System
Speed Regulation	0–100% continuous	Fixed only	Fixed only	0–100% (irradiance-dependent)
Starting Current	1.5–2.0× FLA	3.0–4.5× FLA	6–8× FLA	Soft-start capable (ramp control)
Energy Savings Potential	30–60% (variable load)	5–10% (efficiency only)	None	70–90% (vs. diesel); 40–60% (vs. grid)
Process Control Capability	High (PID integration)	None	None	Moderate (flow/pressure optimization)
Initial Investment	High	Medium	Low	Medium-High (includes PV array)
Maintenance Profile	Medium (cooling, filter replacement)	Low	Low	Low (brushless, sealed electronics)
Grid Infrastructure Required	Yes	Yes	Yes	No (standalone capable)
Harmonic Generation	Low–Moderate (with filters)	Minimal	Minimal	Low (DC input eliminates grid harmonics)

Decision Framework for Specification

Specify VFD Panels When:
* Load profiles vary significantly (pumping against fluctuating head pressure, HVAC with variable occupancy)
* Precise process control is mandatory (tension control, positioning, flow modulation)
* Energy recovery (regenerative braking) or power factor correction is desired
* Soft starting is required and operational speed flexibility provides productivity gains

Specify Soft Starters When:
* The application requires fixed-speed operation but suffers from mechanical stress during startup (high-inertia fans, centrifuges)
* Capital constraints prohibit VFD procurement but utility penalties for high inrush current exist
* The motor operates in hazardous environments where VFD cooling systems pose maintenance challenges

Specify Solar VFD Systems When:
* Grid extension costs exceed $15,000–$30,000 per kilometer (typical rural agricultural threshold)
* Diesel generator OPEX (fuel, maintenance) exceeds $0.25/kWh equivalent
* Water storage (tanks/reservoirs) can buffer intermittent solar generation, eliminating battery requirements

Conclusion: VFD panels are not universally superior—they are precision instruments optimized for variable-demand electromechanical systems. For fixed-speed applications with high starting inertia, soft starters provide adequate protection at lower cost. However, in solar pumping, precision agriculture, and energy-intensive industrial processes, integrated VFD panels (particularly DC-coupled solar variants) deliver unmatched lifecycle value through energy optimization and operational flexibility. The “best choice” determination ultimately hinges on aligning control technology with hydraulic load profiles, energy infrastructure constraints, and total ownership economics over the 15–20 year equipment lifecycle.

Core Technical Specifications and Control Terms for Variable Frequency Drive Panel

When specifying Variable Frequency Drive (VFD) panels for industrial automation or solar pumping infrastructure, engineers and procurement specialists must navigate both complex electrical parameters and international commercial frameworks. The following technical specifications and trade terminology represent the critical decision points for ensuring system compatibility, operational efficiency, and seamless cross-border logistics.

Electrical Performance & Power Topology

Input/Output Characteristics
Standard VFD panels accommodate three-phase AC inputs ranging from 220V to 690V (±15% voltage fluctuation tolerance), with output frequency ranges typically spanning 0–400 Hz (extendable to 3200 Hz for specialized high-speed spindle applications). For solar pump integration, DC input ratings—commonly 200V–800VDC for 380VAC pumps—must align with photovoltaic array configurations. Critical specifications include overload capacity (150% rated current for 60 seconds, 180% for 10 seconds) and switching frequency (carrier frequency), typically adjustable between 1–16 kHz to balance acoustic noise reduction against thermal losses.

Harmonic Mitigation
Total Harmonic Distortion (THD) levels must comply with IEEE 519 or IEC 61000-3-6 standards. Specify line reactors (3% or 5% impedance) or active harmonic filters when connecting to weak grid infrastructure, particularly in agricultural installations where power quality fluctuates seasonally.

Advanced Control Methodologies

Vector Control (Sensorless Vector Control – SVC)
Beyond basic V/F (Volts/Hertz) control, high-performance applications require Sensorless Vector Control, which mathematically models motor flux and torque without physical encoders. This algorithm provides 0.5% speed accuracy and 200% starting torque at 0.5 Hz, essential for conveyor systems and positive-displacement pumps requiring high starting torque. For precision positioning, Flux Vector Control (FVC) with encoder feedback achieves ±0.01% speed regulation.

Maximum Power Point Tracking (MPPT)
In solar pumping applications, the VFD must integrate intelligent MPPT algorithms (99% tracking efficiency) to continuously adjust the operating voltage of photovoltaic arrays, extracting maximum energy despite irradiance variations. Advanced implementations include dry-run protection, water level detection, and automatic wake-up functions when solar irradiance returns after cloud cover.

PID Process Control
Built-in Proportional-Integral-Derivative (PID) controllers enable closed-loop process regulation without external PLCs. In HVAC and water treatment applications, the VFD automatically adjusts motor speed to maintain constant pressure, flow, or temperature by comparing feedback signals (4–20mA or 0–10V) against setpoints. Multi-pump control logic allows master-slave configurations for alternating operation and redundancy management in booster stations.

Enclosure Integrity & Environmental Ratings

Ingress Protection (IP) & NEMA Standards
Panel specifications must address installation environments:
– IP20/NEMA 1: Indoor clean environments with basic dust protection
– IP54/NEMA 12: Industrial environments with dust and light oil protection
– IP65/NEMA 4X: Outdoor or washdown applications (stainless steel construction for corrosive environments)
– IP66: Submersible pump control in flood-prone agricultural areas

Thermal management specifications must detail cooling methods—forced air convection (with redundant fans), heat exchangers, or liquid cooling for high-power densities (>500kW). Ambient temperature ratings typically range from -10°C to +50°C with derating curves for altitudes above 1000m.

Communication Architecture

Modern VFD panels require standardized communication protocols for Industry 4.0 integration:
– Fieldbus: RS485 with Modbus RTU (universal), CANopen, Profibus DP
– Industrial Ethernet: Modbus TCP/IP, EtherNet/IP, Profinet, or BACnet for building automation
– I/O Expansion: Configurable digital inputs (24VDC), analog outputs (0–10V/4–20mA), and relay outputs (250VAC/5A) for interlocking with motor starters and bypass circuits.

International Commercial Terms (Incoterms 2020)

For EPC contractors and distributors managing global supply chains, precise Incoterms definitions prevent logistics disputes:

FOB (Free On Board)
The seller (manufacturer) delivers goods cleared for export onto the vessel designated by the buyer at the named port of shipment. Risk transfers when goods pass the ship’s rail. The buyer assumes ocean freight, insurance, and destination port charges. FOB suits buyers with established freight forwarding relationships seeking cost control over shipping legs.

CIF (Cost, Insurance, and Freight)
The seller contracts for carriage and insurance to the destination port, paying freight costs and minimum marine insurance coverage. Risk transfers to the buyer upon loading at origin, despite the seller bearing freight costs. CIF provides cost predictability for project budgeting but requires buyers to verify insurance coverage adequacy for high-value VFD panels.

Additional Relevant Terms
– EXW (Ex Works): Buyer assumes all transportation risks and costs from the factory floor; suitable only for buyers with comprehensive logistics capabilities in China.
– DAP (Delivered at Place): Seller bears all risks until goods arrive at the named destination (e.g., project site), excluding unloading and import clearance.
– DDP (Delivered Duty Paid): Seller responsibility extends through import clearance and duty payment, offering turnkey convenience for agricultural projects in regions with complex customs procedures.

Compliance & Certification Matrix

Specify mandatory certifications based on target markets:
– CE Marking: Compliance with Low Voltage Directive (LVD) 2014/35/EU and EMC Directive 2014/30/EU
– UL 508A: Industrial control panel safety for North American markets
– IEC 61800-5-1: Safety requirements for adjustable speed electrical power drive systems
– RoHS/REACH: Environmental substance restrictions for EU and environmentally regulated projects

Warranty terms typically span 18–24 months from commissioning or 24–36 months from delivery, with extended warranty options available for solar pump applications in remote locations where service access is limited.

Understanding these specifications enables precise RFQ (Request for Quotation) generation, ensuring that procured VFD panels—whether for municipal water systems, irrigation networks, or industrial process lines—deliver specified performance while aligning with project logistics and risk management frameworks.

Future Trends in the Variable Frequency Drive Panel Sector

The VFD panel sector is undergoing rapid transformation driven by decarbonization mandates, Industry 4.0 adoption, and the electrification of agricultural infrastructure. As industrial facilities and solar pumping operations demand higher efficiency and seamless connectivity, next-generation VFD panels are evolving from simple motor control enclosures into intelligent energy management hubs. This shift is redefining how electrical engineers and EPC contractors approach system design, integration, and lifecycle management.

Automation Architectures and AI-Driven Optimization

The convergence of advanced automation technologies with VFD panel design is enabling unprecedented levels of process optimization. Modern panels are increasingly incorporating edge computing capabilities that allow for real-time algorithmic adjustments to Pulse Width Modulation (PWM) sequences, optimizing motor flux dynamics beyond traditional V/Hz control methods.

For heavy-duty applications—such as large-scale compressors and crane systems historically served by Current Source Inverters (CSIs)—new hybrid control architectures are emerging. These systems combine the robust torque control characteristics of CSI topology with the energy efficiency of Voltage Source Inverters (VSIs), managed through AI-driven controllers that predict load fluctuations milliseconds before they occur. This predictive capability is particularly critical in conveyor systems and drilling operations where sudden inertia changes can stress mechanical components.

Furthermore, modular VFD panel designs are gaining traction among automation distributors, allowing for scalable configurations that accommodate future line reactor and harmonic filter upgrades without complete enclosure replacement. This modularity addresses the growing demand for retrofitting existing NEMA-rated enclosures (including NEMA 4X stainless steel variants for corrosive environments) with next-generation semiconductor technologies, such as Silicon Carbide (SiC) IGBTs that reduce switching losses and thermal management requirements.

Renewable Energy Integration and Solar Pumping Ecosystems

The integration of VFD panels with photovoltaic (PV) systems represents one of the most significant market shifts, particularly for agricultural project managers and solar EPC contractors. Advanced VFD panels are now being engineered as hybrid AC/DC conversion nodes, capable of direct DC coupling with solar arrays while maintaining seamless grid-interactive functionality.

In solar pumping applications, next-generation panels incorporate integrated Maximum Power Point Tracking (MPPT) algorithms alongside traditional VFD rectification stages. This eliminates the need for separate solar inverters, allowing DC bus voltage from PV arrays to directly feed the drive’s power section through sophisticated DC link management. For agricultural operations spanning remote locations, these integrated systems reduce component count, minimize conversion losses, and improve overall system reliability.

The trend toward agricultural microgrids is also driving innovation in bidirectional VFD panel capabilities. Modern installations increasingly require motor drives that can not only consume energy but also regenerate excess power back to battery storage systems or the grid during low-demand pumping cycles. This regenerative functionality, combined with advanced cooling unit designs that adapt fan speed based on real-time thermal load rather than fixed thresholds, significantly enhances energy harvesting efficiency in solar-powered irrigation projects.

Additionally, VFD panels are being optimized for compatibility with energy storage systems (ESS), featuring enhanced DC bus capacitance configurations that stabilize voltage fluctuations inherent to solar generation. This is crucial for maintaining consistent torque output in submersible pump applications where voltage sag can lead to cavitation and premature motor failure.

IoT-Enabled Monitoring and Predictive Maintenance

Digitalization is transforming VFD panels from passive electrical equipment into active data nodes within industrial IoT ecosystems. The integration of cloud-connected monitoring systems allows for remote surveillance of critical parameters—including IGBT junction temperatures, DC bus ripple currents, and harmonic distortion levels—enabling predictive maintenance strategies that reduce unplanned downtime by up to 40%.

For agricultural project managers overseeing distributed solar pumping stations, mobile-enabled SCADA integration within VFD panels provides real-time visibility into motor performance across vast geographical areas. These systems leverage edge analytics to detect early warning signs of bearing degradation or misalignment through subtle changes in current draw and vibration signatures, alerting maintenance teams before catastrophic failure occurs.

Cybersecurity has become a paramount concern as VFD panels gain network connectivity. Future-ready panels are incorporating hardware-level security modules and encrypted communication protocols to protect against unauthorized access to motor control parameters. This is particularly critical in critical infrastructure applications where malicious manipulation of VFD settings could result in mechanical damage or operational disruption.

Thermal management is also benefiting from IoT innovation. Smart cooling units within VFD enclosures now utilize variable-speed fans controlled by predictive thermal models rather than simple thermostatic switches. These systems analyze historical load patterns and ambient temperature forecasts to pre-cool enclosures before anticipated high-demand periods, extending the lifespan of DC bus capacitors and other heat-sensitive components.

Sustainability and Regulatory Compliance

Regulatory pressures regarding electromagnetic compatibility (EMC) and energy efficiency are driving the adoption of active front-end (AFE) VFD panels that replace traditional diode rectifiers with active switching devices. This technology inherently reduces harmonic distortion, eliminating the need for bulky external harmonic filters while meeting stringent IEEE 519 and IEC 61000-3-6 standards—critical for industrial facilities connecting to utility grids with strict power quality requirements.

Material sustainability is also influencing enclosure design, with increased utilization of recycled metals and bio-based cooling fluids in closed-loop cooling systems. For harsh environment applications, advances in conformal coating technologies for circuit boards within VFD panels are extending operational life in high-humidity agricultural settings without requiring expensive NEMA 4X stainless steel enclosures for every installation.

As these trends converge, the VFD panel is transitioning from a standalone motor control device to a comprehensive energy management platform—bridging the gap between renewable generation, intelligent automation, and data-driven maintenance strategies for the next generation of industrial and agricultural electrification projects.

Top 3 Variable Frequency Drive Panel Manufacturers & Suppliers List

B2B Engineering FAQs About Variable Frequency Drive Panel

1. Q: How does an integrated VFD Panel differ from a standalone drive unit, and why is enclosure engineering critical for harsh agricultural or solar pumping environments?
   A: A VFD Panel is a turnkey power conversion assembly that integrates the variable frequency drive with essential peripheral components—circuit breakers, line reactors, harmonic filters, cooling systems, and motor protection—within a purpose-built enclosure. For solar pumping applications in agricultural or desert environments, the enclosure’s NEMA 3R/4X or IP65 rating is crucial to protect sensitive electronics from dust, moisture, and corrosive atmospheres. Furthermore, integrated thermal management (forced ventilation or air conditioning) compensates for high ambient temperatures common in solar fields, preventing IGBT thermal derating and ensuring continuous MPPT operation for maximum water extraction efficiency.

2. Q: What harmonic mitigation strategies should be specified in a VFD Panel to comply with IEEE 519 or local utility standards, and how do passive and active solutions differ?
   A: VFDs inherently generate harmonic currents that can distort grid voltage. For compliance, specify either 3% impedance line reactors (passive, cost-effective for THD reduction to ~35%) or DC link chokes to smooth the DC bus current. For stringent requirements (THD <5%), specify active harmonic filters or low-harmonic drives with active front ends (AFE). In solar pumping stations where weak grid connections are common, passive filtering combined with proper grounding is often sufficient, whereas industrial EPC projects with multiple drives typically require active filtering to prevent resonance with power factor correction capacitors.

3. Q: In solar pump inverter applications, how does the VFD Panel architecture handle wide DC input voltage fluctuations from PV arrays while maintaining constant torque for submersible pumps?
   A: Solar VFD Panels utilize a wide DC voltage range input (typically 200VDC–800VDC) with integrated Maximum Power Point Tracking (MPPT) algorithms that continuously adjust the DC bus voltage to extract peak power from fluctuating solar irradiance. The inverter section employs vector control or V/Hz control with automatic voltage regulation (AVR) to maintain constant V/Hz ratio to the motor, ensuring stable torque even when PV voltage drops by 20–30% during cloud transients. Advanced panels include DC boost PFC stages to maintain motor voltage when array voltage falls below motor nominal requirements.

4. Q: When designing VFD Panels for long-distance motor leads common in irrigation projects, what output filtering is required to prevent voltage reflection and bearing damage?
   A: Motor cable lengths exceeding 50–100 meters create reflected wave phenomena due to impedance mismatches, generating voltage spikes up to 2–3x DC bus voltage at the motor terminals. For agricultural applications with remote borehole pumps, specify dV/dt filters (limits voltage rise time) for runs up to 300m, or true sine wave filters (reconstructs PWM to sinusoidal waveform) for distances beyond 300m or when using older motor insulation systems. Additionally, specify insulated bearing motors or shaft grounding rings within the panel to prevent bearing currents caused by common-mode voltage, which is critical for submersible pump longevity.

5. Q: What is the function of a bypass configuration in heavy-duty VFD Panels, and when is it mandatory for critical agricultural or industrial processes?
   A: A bypass circuit (either manual or automatic) allows the motor to run across-the-line (DOL) or via soft starter should the VFD fail or require maintenance. For critical irrigation systems where crop loss from downtime is unacceptable, or for industrial processes requiring 24/7 operation, an automatic bypass with transfer switches is essential. The bypass must include motor overload protection independent of the VFD and mechanical interlocking to prevent simultaneous energization. In solar pumping, bypasses are less common unless grid backup is available, but dual-drive redundancy is often preferred for high-value agricultural operations.

6. Q: How does DC bus capacitance sizing in a VFD Panel affect ride-through capability during voltage sags or intermittent solar generation?
   A: The DC bus capacitors smooth the rectified AC and store energy for the inverter section. Sufficient capacitance provides “ride-through” capability—maintaining control power during brief voltage sags (up to 2–3 seconds) or solar intermittency. For solar pump applications, oversized DC link capacitors or external braking resistor modules can store sufficient energy to maintain pump inertia during cloud passage, preventing nuisance tripping. Engineers should verify the capacitor ripple current rating and expected lifespan (typically 5–7 years at rated temperature), as degraded capacitors reduce ride-through performance and increase output current ripple.

7. Q: How should protection coordination be engineered between VFD Panel input breakers, semiconductor fuses, and motor overloads to prevent catastrophic IGBT failure?
   A: VFD Panels require fast-acting semiconductor fuses (UL Class J or R) on the input side to protect IGBTs from short-circuit currents, as standard circuit breakers may not clear faults quickly enough to prevent junction damage. Coordination studies must ensure the upstream breaker clears overloads while semiconductor fuses isolate internal faults. The VFD’s electronic motor overload (Class 10/20/30) provides running protection, but the panel must include phase-loss monitoring and ground fault protection (residual current devices) for submersible pump applications where winding insulation failure is a risk. SCCR (Short Circuit Current Rating) labeling must exceed available fault current at the installation point.

8. Q: What are the key commissioning considerations for VFD Panels in multi-pump solar irrigation systems regarding pump curve optimization and anti-cavitation protection?
   A: Commissioning requires mapping the VFD’s frequency curve to the pump’s affinity laws (flow varies with speed, head with speed squared, power with speed cubed) to ensure the system never operates below the pump’s minimum continuous stable flow (MCSF), which causes overheating and cavitation. Program sleep/wake functions based on pressure transducer feedback or water level sensors to prevent dry-running. For multi-pump systems, configure cascade control (master/slave) within the panel’s PLC or external controller to stage pumps on/off based on flow demand, ensuring each VFD operates within its optimal efficiency window (typically 75–100% load) rather than running single pumps at low frequencies where efficiency drops and motor heating increases.

Disclaimer

Conclusion: Partnering with Boray Inverter for Variable Frequency Drive Panel

Implementing a variable frequency drive panel represents a strategic investment in operational efficiency, motor longevity, and sustainable energy management for modern industrial and agricultural infrastructures. By integrating advanced rectification, DC bus stabilization, and pulse width modulation technologies within robust NEMA-rated enclosures, these systems deliver precise torque and speed control while reducing energy consumption by up to 50% across variable load applications. Whether managing heavy-duty compressors, solar irrigation pumps, or complex conveyor systems, the right VFD panel ensures your motors operate at optimal flux density, minimizing mechanical stress and maintenance expenditures while maximizing process reliability and equipment lifespan.

For EPC contractors, automation distributors, and project managers seeking to deploy these advantages at scale, partnering with a manufacturer that combines deep technical innovation with rigorous quality assurance is paramount. Shenzhen Boray Technology Co., Ltd. (borayinverter.com) stands at the forefront of solar pumping and motor control solutions, offering engineered excellence through an R&D team comprising 50% of its workforce—specialists who have mastered advanced Permanent Magnet Synchronous Motor (PMSM) and Induction Motor (IM) vector control technologies. With two state-of-the-art production lines and comprehensive 100% full-load testing protocols, Boray Inverter ensures every unit meets stringent international performance standards before deployment. Our trusted global presence across agricultural irrigation, industrial automation, and renewable energy sectors demonstrates proven reliability in diverse environmental conditions and demanding operational contexts.

Contact Boray Inverter today to discuss your specific application requirements. Our engineering team stands ready to deliver customized VFD panel configurations, competitive wholesale quotations, and comprehensive technical support that transforms your motor control infrastructure from standard equipment into a strategic competitive advantage.
