Introduction: Sourcing Hybrid Solar Inverters for Industrial Use

As industrial facilities face escalating energy costs and grid instability, the integration of hybrid solar inverters has emerged as a critical strategy for ensuring operational continuity in motor-driven applications. Unlike conventional grid-tie systems, hybrid inverters function as intelligent energy routers—seamlessly managing power flow between photovoltaic arrays, battery storage, and AC loads while providing seamless backup for critical automation infrastructure. For engineers specifying equipment in agricultural irrigation, manufacturing lines, and remote pumping stations, these systems represent more than emergency power; they are the central nervous system of modern distributed energy architectures, capable of optimizing variable frequency drive (VFD) performance and extending motor lifespan through conditioned power delivery.

This comprehensive guide examines the industrial procurement landscape for hybrid solar inverter technology, with particular attention to high-inertia motor loads and solar pumping applications. We will dissect the technical distinctions between single-phase residential units and robust three-phase industrial platforms, analyze critical specifications including total harmonic distortion (THD), surge capacity for motor starting, and compatibility with existing SCADA or PLC networks. Furthermore, we evaluate global manufacturing capabilities, emphasizing OEM partners capable of integrating advanced motor control algorithms, anti-islanding protections, and pump-specific MPPT curves directly into inverter firmware. Whether you are an EPC contractor designing megawatt-scale solar pumping stations or an automation distributor sourcing reliable power conversion equipment, understanding these electromechanical integration parameters is essential for specifying systems that deliver both energy independence and precise mechanical control.

Technical Types and Variations of Hybrid Solar Inverters

For industrial and agricultural applications, hybrid solar inverters must transcend simple residential energy storage. The selection criteria shift toward motor load compatibility, three-phase power quality, high-voltage battery architectures to minimize DC cabling losses, and scalability for phased EPC deployments. Below is a technical classification of hybrid inverter topologies engineered for heavy-duty automation, solar pumping, and industrial motor control environments.

Type	Technical Features	Best for (Industry)	Pros & Cons
Three-Phase High-Voltage (HV) Battery Hybrids	• Battery Voltage: 400V–800V DC • AC Output: 380V/400V/480V 3-phase, <3% THD • Topology: IGBT-based bidirectional conversion • Power Range: 50kW–250kW+ per unit	Manufacturing plants, commercial HVAC, grain processing facilities, large-scale agricultural cooperatives	Pros: Low DC current reduces I²R losses; compatible with standard industrial three-phase motors; high power density. Cons: Requires sophisticated High-Voltage BMS (Battery Management System); stringent arc-flash safety protocols; higher upfront capital cost.
Integrated Solar Pump Hybrid Inverters (VFD-Compatible)	• Dual-function MPPT + Variable Frequency Drive (VFD) • Direct DC coupling to inverter bus (no separate charge controller) • Output: 0–50/60Hz+ variable frequency, 1-phase or 3-phase • Protection: Dry-run, under-voltage, phase-loss, and overload detection	Agricultural irrigation (boreholes, drip systems), aquaculture aeration, remote water supply, livestock watering	Pros: Eliminates separate motor starter/VFD; soft-start reduces pump mechanical stress and inrush current; maximizes daily water yield via MPPT; grid/gen auto-bypass for 24/7 operation. Cons: Application-specific (optimized for centrifugal/submersible pumps); limited surge capacity for non-motor loads; requires precise PV array voltage matching to motor specifications.
DC-Coupled All-in-One (AIO) Hybrid Systems	• PV DC directly charges battery via MPPT (single conversion point) • Bidirectional inverter for grid-tie and off-grid modes • Battery architectures: 48V (residential/light commercial) or 400V (industrial) • Integrated EMS (Energy Management System) with RS485/CAN communication	Telecom towers, remote monitoring stations, commercial buildings with existing PV, industrial microgrids	Pros: Higher round-trip efficiency (95%+) compared to AC-coupled; simpler topology reduces component count; superior battery charging control. Cons: Single point of failure; difficult to retrofit onto existing AC-coupled solar arrays; battery voltage must match inverter DC input range strictly.
Modular Parallel-Stackable Hybrids	• Master-slave or distributed control logic • Hot-swappable 5kW–15kW modules • Parallel communication via CAN bus or RS485 for phase synchronization • N+1 redundancy capability	EPC contractors, phased industrial park developments, scalable agricultural projects, data centers	Pros: Scalable from 10kW to MW-level systems; fault tolerance (system continues if one module fails); easier transportation and installation of smaller units. Cons: Complex synchronization algorithms to prevent circulating currents; higher cost per watt at low capacities; requires advanced commissioning.

Detailed Technical Analysis

1. Three-Phase High-Voltage (HV) Battery Hybrid Inverters

These systems are engineered for the demands of industrial motor control and large-scale automation. By utilizing a 400V to 800V DC battery bus—rather than the standard 48V— these inverters significantly reduce DC-side current, allowing for thinner cabling and lower resistive losses (P = I²R). For EPC contractors designing systems with heavy inductive loads, such as centrifugal pumps or conveyor motors, the three-phase output with low Total Harmonic Distortion (THD) ensures stable torque delivery and prevents motor overheating. The IGBT topology supports rapid switching for precise frequency control, akin to industrial VFDs, making them suitable for hybridizing factory power where grid stability is uncertain.

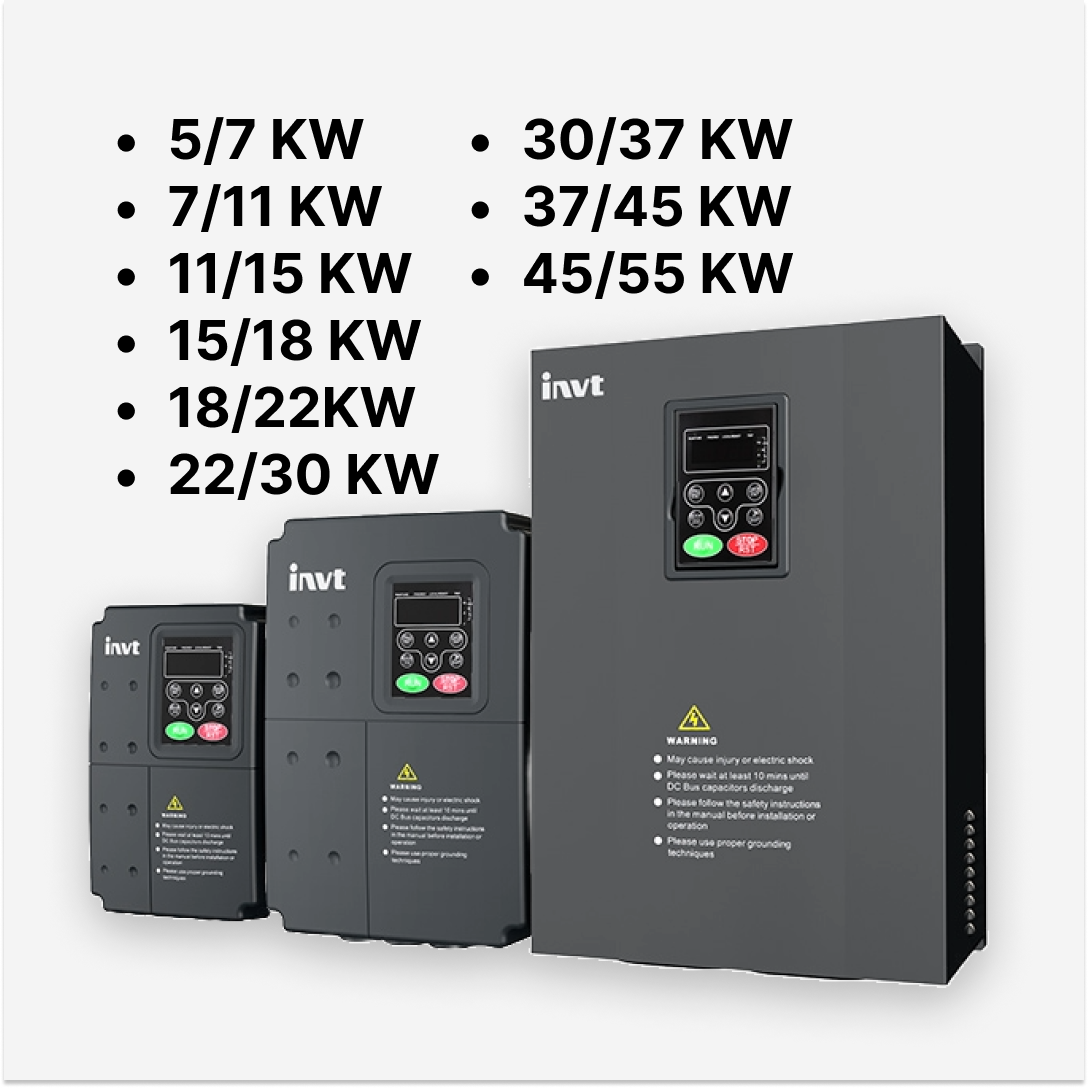

2. Integrated Solar Pump Hybrid Inverters (VFD-Compatible)

This variation represents the convergence of solar MPPT technology and motor control. Unlike standard hybrids designed for AC distribution panels, these units function as solar pump VFDs with integrated grid/generator bypass. They dynamically adjust output frequency (0–50/60Hz or higher) based on real-time solar irradiance, allowing submersible pumps to start softly and ramp up speed as sunlight increases—eliminating the high inrush currents (typically 6–7x FLA) associated with direct-on-line motor starting. For agricultural project managers, this means a single enclosure replaces the traditional stack of separate solar inverters, VFDs, and transfer switches. The built-in motor protection algorithms (dry-run detection via current sensing, under-load protection) are critical for remote borehole applications where pump failure is costly.

3. DC-Coupled All-in-One (AIO) Hybrid Systems

In DC-coupled architectures, PV energy flows directly to the battery through the MPPT charge controller, with only one conversion step (DC-to-AC) when powering loads. This contrasts with AC-coupled systems that require multiple conversions (DC-AC-DC-AC), resulting in higher efficiency—often exceeding 95% round-trip efficiency. For industrial engineers, this topology is advantageous in new installations where the inverter can be specified as the central hub. However, the DC bus voltage must be meticulously matched to the battery bank; a 48V system is suitable for small-scale agricultural monitoring, while 400V+ systems align with industrial HV battery standards. The integrated EMS allows for programmable load shedding, prioritizing critical motor loads during grid outages.

4. Modular Parallel-Stackable Hybrid Inverters

Designed for scalability, these systems allow EPCs to deploy projects in phases. Individual inverter modules (typically 5kW to 15kW) communicate via industrial protocols (CAN bus or RS485) to synchronize phase and frequency, effectively behaving as a single large inverter. This modularity offers N+1 redundancy; if one module fails, the remaining units continue to supply power, a crucial feature for continuous industrial processes. For agricultural projects expecting future expansion—such as adding irrigation zones or processing facilities—modular hybrids prevent the need to replace central inverters. However, engineers must ensure proper current sharing algorithms to avoid circulating currents between modules, which requires precise impedance matching and commissioning expertise.

Key Industrial Applications for Hybrid Solar Inverters

Hybrid solar inverters function as the intelligent power router in industrial microgrids, managing bidirectional energy flow between PV arrays, battery storage, and AC motor loads. In industrial automation contexts, these systems transcend simple energy conversion by enabling advanced load management strategies when paired with Variable Frequency Drives (VFDs) and soft starters. The following applications demonstrate how hybrid inverter technology addresses specific operational challenges across energy-intensive sectors.

Sector	Application	Energy Saving Value	Sourcing Considerations
Agriculture & Irrigation	Solar pump VFD integration for center-pivot, drip irrigation, and livestock watering systems	40–70% reduction in diesel or grid pumping costs; elimination of fuel logistics for remote operations; optimized water-energy nexus through variable flow matching	IP65/NEMA 4X enclosure ratings; wide MPPT voltage range (200–850VDC) for early morning/late afternoon pumping; compatibility with submersible motor VFDs; anti-islanding protection per IEEE 1547
Water Treatment & Distribution	Membrane filtration skids, aeration blowers, and lift station pumping with emergency backup	Peak shaving 30–50% of facility energy costs; uninterrupted biological process protection during outages; reduced demand charges through battery arbitrage	UL 1741-SA compliance for grid support; seamless transfer time <20ms to prevent process interruption; Modbus RTU/TCP integration with existing SCADA; THD <3% to protect sensitive instrumentation
HVAC & Building Automation	Chiller plants, cooling tower fan arrays, and secondary chilled water pumping	25–35% HVAC energy reduction via solar-assisted variable speed operation; demand response capability for utility rebate programs; power factor correction >0.99	Four-quadrant operation capability for regenerative elevator loads; cold-start/black-start functionality; integrated power quality monitoring; compatibility with BACnet/BMS protocols
Mining & Aggregate Processing	Conveyor drives, crusher feeds, and dewatering pumps in off-grid or weak-grid locations	60–80% diesel generator runtime reduction; optimized load management for high-inertia starting (150% surge capacity); reduced fuel logistics and emissions	Heavy-duty chassis (IP54 minimum); vibration resistance per IEC 60068-2-6; wide operating temperature range (-25°C to +60°C); active filtering for generator compatibility
Manufacturing & Process Industries	Compressed air systems, extrusion cooling, and automated material handling	Grid independence during peak tariff hours; ride-through capability for voltage sags preventing PLC/SCADA resets; harmonic mitigation for CNC equipment	IEC 62040-1 and IEC 62109 safety certifications; active front-end (AFE) rectifier technology for regenerative applications; parallel operation capability for MW-scale installations; integrated arc fault detection

Agriculture & Irrigation
In modern precision agriculture, hybrid solar inverters serve as the central power hub for solar pumping systems equipped with VFD-controlled submersible or surface pumps. Unlike traditional off-grid solar pumps that cease operation during cloud transients, hybrid configurations maintain constant pressure and flow by seamlessly blending battery storage and grid power (where available) with solar generation. When integrated with Boray’s solar pump inverter technology, these systems enable MPPT algorithms specifically optimized for centrifugal pump curves, reducing energy waste from throttling valves. For EPC contractors, critical sourcing criteria include wide DC input voltage ranges to accommodate varying solar irradiance throughout the day, and IP65-rated enclosures to withstand agricultural environments with high humidity and dust exposure. The energy economics are compelling: replacing diesel-powered irrigation with solar-hybrid systems typically yields ROI within 3–5 years, while eliminating fuel supply chain vulnerabilities in remote farming operations.

Water Treatment & Distribution
Municipal and industrial water facilities require 24/7 operational continuity, making hybrid inverters essential for critical process protection. In membrane filtration and biological treatment applications, hybrid systems provide ride-through capability during grid disturbances, preventing costly process failures and regulatory non-compliance. The integration with VFD-controlled aeration blowers and high-service pumps allows for intelligent load shedding—prioritizing critical processes while curtailing non-essential loads during battery-only operation. Engineers should specify inverters with true seamless transfer capabilities (<20ms) to prevent PLC resets and maintain dissolved oxygen levels in biological reactors. Additionally, advanced hybrid inverters offer active harmonic filtering, protecting sensitive water quality instrumentation from electrical noise generated by variable speed drives.

HVAC & Building Automation
Commercial and industrial HVAC systems present ideal loads for hybrid solar integration due to the natural correlation between solar availability and cooling demand. When hybrid inverters power VFD-driven chiller plants and cooling tower fans, they enable “solar smoothing”—using battery buffers to eliminate the erratic power draw that PV intermittency typically imposes on compressor motors. This configuration supports demand response strategies by discharging stored energy during peak tariff periods, effectively arbitraging energy costs. For automation distributors, key differentiators include four-quadrant operation (handling regenerative power from elevator drives or decelerating fans) and robust BMS integration via Modbus or BACnet protocols. The power quality benefits are equally significant: hybrid inverters with active power factor correction mitigate the lagging power factor typically associated with induction motors, reducing utility penalties and transformer loading.

Mining & Aggregate Processing
Remote mining operations traditionally rely on diesel generators for crushing, conveying, and dewatering applications—an expensive and carbon-intensive proposition. Hybrid solar inverters enable microgrids that significantly reduce generator runtime by managing the high starting currents associated with jaw crushers and conveyor systems through coordinated VFD soft-start sequences. The inverter’s ability to provide 150% surge capacity for 60 seconds is critical for these high-torque applications. Sourcing considerations must prioritize mechanical durability: vibration resistance per IEC 60068-2-6 standards and wide temperature operating ranges are non-negotiable for outdoor installation in quarry environments. Furthermore, the integration with Boray’s motor control solutions allows for coordinated load management, ensuring that heavy starting events occur during peak solar production or when battery state-of-charge permits, thereby minimizing generator cycling and fuel consumption.

Manufacturing & Process Industries
In discrete manufacturing and continuous process plants, hybrid solar inverters address power quality challenges while reducing energy costs. When powering compressed air systems and extrusion cooling circuits equipped with VFDs, these inverters provide voltage regulation and harmonic filtering that protects sensitive CNC and PLC equipment from grid-borne disturbances. The ability to operate in “peak shaving” mode—discharging batteries during high-tariff periods while maintaining grid connection for backup—provides immediate demand charge reduction without compromising production continuity. For industrial engineers, critical specifications include IEC 62040-1 safety compliance, parallel operation capabilities for scaling to MW-level loads, and active front-end technology that enables regenerative braking energy capture from material handling systems. The integration with existing motor control centers requires careful coordination of protection settings, particularly regarding ground fault detection and arc flash mitigation in hybrid DC/AC environments.

Top 3 Engineering Pain Points for Hybrid Solar Inverters

Scenario 1: Grid Instability and Weak Grid Conditions in Remote Agricultural Installations

The Problem:
In remote agricultural and industrial zones where hybrid solar inverters are deployed for solar pumping systems, grid infrastructure is often characterized by voltage fluctuations, high impedance, and unstable frequency profiles. When these inverters transition between off-grid (battery/solar) and grid-tied modes—or attempt to export surplus energy from solar pump operations—weak grid conditions trigger protective relay trips, causing system downtime and potential motor damage in VFD-driven pump systems. Additionally, phase imbalance in rural distribution networks creates synchronization challenges, leading to failed grid-connection attempts and reduced operational uptime for critical irrigation schedules.

The Solution:
Deploy hybrid inverters equipped with advanced grid-adaptive algorithms and wide voltage/frequency ride-through windows (typically 90-150% nominal voltage, 47-53Hz range). Look for units featuring active anti-islanding protection with impedance detection capabilities that can distinguish between genuine grid faults and weak grid characteristics. For solar pumping integration, ensure the hybrid inverter supports seamless switching logic that maintains VFD DC bus voltage stability during transfer operations, preventing pump motor stalling. Implementing inverters with reactive power compensation (VAR support) further stabilizes local grid voltage, ensuring compliance with IEEE 1547 or IEC 61727 standards while maintaining continuous agricultural operations.

---

Scenario 2: Dynamic Load Variability and Motor Control Precision in Solar Pumping Applications

The Problem:
Hybrid solar inverters serving solar pump VFDs face unique control challenges when managing the non-linear, high-inrush current demands of submersible and surface pumps. Irradiance variability creates fluctuating DC input to the VFD, resulting in torque ripple, cavitation risks, and reduced pump efficiency when the hybrid inverter’s battery management system (BMS) cannot respond rapidly to load transients. Furthermore, traditional hybrid inverters lack the specialized motor control algorithms (vector control, V/Hz optimization) required for multi-pump configurations, leading to synchronization issues and mechanical stress on pump bearings when switching between solar, battery, and grid power sources.

The Solution:
Specify hybrid inverters with integrated VFD-grade motor control capabilities or dedicated solar pump inverter compatibility modes. The optimal solution combines Maximum Power Point Tracking (MPPT) with dynamic torque control algorithms that adjust pump speed based on real-time solar availability while maintaining minimum speed thresholds to prevent dry-running. For multi-pump agricultural projects, select inverters supporting cascade control logic and automatic phase rotation correction. Advanced units should offer programmable ramp rates (0.1-60 seconds adjustable) to limit mechanical shock during source transitions, coupled with DC injection braking capabilities for rapid pump deceleration when solar input drops below critical thresholds, protecting both the motor and mechanical seals.

---

Scenario 3: Environmental Harshness and Thermal Management in Industrial Outdoor Deployment

The Problem:
Hybrid solar inverters installed in agricultural fields, mining operations, or coastal industrial sites face aggressive environmental stressors including dust infiltration (IP rating failures), salt mist corrosion, and extreme diurnal temperature swings (-20°C to +60°C). These conditions compromise the thermal management of power electronics, particularly the IGBT modules and capacitor banks that interface with high-power VFD loads. Ingress of conductive dust or humidity causes PCB tracking failures and reduced insulation resistance, while inadequate heat dissipation under full solar pump load conditions triggers thermal derating or emergency shutdowns during peak irrigation hours when system availability is most critical.

The Solution:
Engineer systems utilizing IP65 or IP66-rated hybrid inverters with conformal-coated PCBs and stainless steel/aluminum alloy enclosures resistant to corrosion categories C3-C4 (IEC 60721-3-4). For thermal management in high-ambient environments, select units with intelligent fan control systems featuring redundant cooling paths and temperature derating curves that maintain full rated output (100% continuous power) up to 45°C ambient. In desert or agricultural applications, specify inverters with front-access maintenance designs and removable dust filters. For coastal or chemical-exposure sites, ensure the inverter chassis utilizes 304/316 stainless steel construction with sealed cable glands, preventing salt mist ingress that degrades power terminals and communication ports critical for remote monitoring of solar pump systems.

Component and Hardware Analysis for Hybrid Solar Inverters

The internal architecture of a hybrid solar inverter represents a convergence of photovoltaic (PV) power conversion, battery energy storage management, and grid-interactive synchronization. For industrial engineers and EPC contractors deploying solar pumping systems or integrating hybrid inverters with existing VFD infrastructure, understanding the hardware-level distinctions between consumer-grade and industrial-grade components is critical for ensuring 20+ year operational lifespans in harsh agricultural or factory environments.

Power Semiconductor Topology: IGBT and SiC MOSFET Modules

At the heart of the DC/AC conversion stage, Insulated Gate Bipolar Transistors (IGBTs) or Silicon Carbide (SiC) MOSFETs function as the primary switching elements. In solar pumping applications—where Boray Inverter specializes—these modules must handle high inrush currents during motor starting while maintaining MPPT efficiency.

Key Engineering Considerations:
– Switching Frequency: Industrial hybrid inverters utilize carrier frequencies between 4-16 kHz. Higher frequencies reduce motor harmonics but increase switching losses, necessitating advanced thermal design.
– Short-Circuit Withstand Time: Quality modules offer >10μs withstand capability, crucial for protecting against pump motor stall conditions or grid faults.
– SiC Adoption: Next-generation hybrid inverters for large-scale irrigation are transitioning to SiC MOSFETs, offering 40% lower switching losses than traditional IGBT modules, directly translating to higher water pumping volumes per watt-hour in off-grid scenarios.

Digital Signal Processing and Control Architecture

The control subsystem distinguishes industrial-grade units from residential models. A dedicated Digital Signal Processor (DSP) or ARM-based microcontroller executes real-time algorithms for:

• Multi-peak MPPT tracking (essential for partially shaded agricultural installations)
• Grid-forming vs. grid-following modes for weak-grid rural electrification
• VFD integration protocols (Modbus RTU/TCP, CANopen) allowing seamless communication between the hybrid inverter and submersible pump controllers

Industrial-grade DSP controllers incorporate hardware-based PWM generators with dead-time insertion precision <100ns, preventing shoot-through failures in the IGBT bridge during rapid load transitions common in pressure-controlled pumping systems.

Thermal Management and Mechanical Design

Thermal stress accounts for approximately 60% of inverter field failures in solar pumping installations. The thermal chain comprises:

1. Baseplate Heatsinks: Extruded aluminum with forced air convection or liquid cooling for systems >50kW
2. Thermal Interface Materials (TIM): Phase-change materials with <0.5°C-in²/W thermal resistance between IGBT modules and heatsinks
3. Environmental Protection: IP65-rated enclosures with active cooling management prevent dust ingress in agricultural settings while maintaining junction temperatures below 85°C under 45°C ambient conditions

Energy Storage Interface Components

The DC-link between PV input, battery storage, and inverter output relies on metallized polypropylene film capacitors rather than electrolytic variants. Film capacitors offer:
– Ripple current handling: >15 Arms continuous capability for smoothing battery charge/discharge cycles
– Lifespan: 100,000+ hours at rated voltage and 70°C hotspot temperature
– Safety: Self-healing properties prevent catastrophic failure modes in remote pumping stations

Component Specification Matrix

Component	Function	Quality Indicator	Impact on Lifespan
IGBT/SiC Power Module	DC/AC conversion, motor drive control	Junction temp (Tj) rating >150°C; VCE(sat) <1.7V; Short-circuit withstand >10μs	Every 10°C above Tj reduces lifespan by 50%; Determines 40% of overall MTBF
DSP Controller	MPPT algorithm execution, grid synchronization, VFD communication	32-bit architecture >150MHz; Hardware PWM resolution <1ns; Dual-core lockstep for safety	Firmware corruption resistance; Determines control stability in varying irradiance
DC-Link Capacitors	Voltage ripple filtering, energy buffering	Metallized film construction; dv/dt rating >1000V/μs; ESR <5mΩ	Electrolytic caps fail at 5,000-10,000 hours vs. film caps at 100,000+ hours
Cooling Heatsinks	Thermal dissipation from semiconductors	Aluminum alloy 6063-T5; Thermal resistance <0.5°C/W; Anodized coating >25μm	Directly correlates to semiconductor junction temperatures; Fan bearing quality determines maintenance intervals
EMI Filter Chokes	Attenuation of switching noise, grid compliance	Nanocrystalline core material; Common-mode impedance >1kΩ @ 100kHz; Temperature rating 120°C	Core saturation leads to overheating; Determines EMC compliance longevity
Surge Protection Devices (SPD)	Lightning/transient protection for rural installations	Type 2 SPD with Imax >40kA; Response time <25ns; Thermal disconnect monitoring	Sacrificial components requiring inspection; Failure to protect destroys main power stage
Current Sensors (Hall Effect)	Precise current measurement for MPPT and protection	Bandwidth >100kHz; Accuracy ±0.5%; Isolation voltage 3kV	Drift in accuracy causes MPPT efficiency loss and potential overcurrent damage

Integration with Motor Control Systems

For agricultural project managers deploying solar pumping, the hybrid inverter’s hardware must accommodate VFD-like performance characteristics. The IGBT gate drivers require Miller clamping circuits and active desaturation protection to handle the regenerative energy from pump motor deceleration—features often absent in standard solar inverters but standard in industrial VFDs.

Additionally, the DC-bus voltage stability (maintained by the film capacitor bank) must support V/Hz control curves for submersible pumps, requiring tighter voltage regulation (±1%) than grid-tie inverters typically provide. This necessitates higher-grade current sensors and faster DSP sampling rates (>10kHz control loop).

Procurement Recommendations for EPC Contractors

When specifying hybrid inverters for industrial solar pumping projects:
1. Demand semiconductor datasheets: Verify IGBT module manufacturer (Infineon, Mitsubishi, STMicroelectronics) and avoid OEM-branded unmarked modules.
2. Specify thermal derating curves: Ensure continuous full-power operation at 45°C ambient without derating, critical for midday pumping operations in tropical climates.
3. Verify capacitor technology: Explicitly require metallized film capacitors; electrolytic DC-links indicate consumer-grade design unsuitable for industrial motor loads.
4. Communication redundancy: For automation integration, insist on isolated RS485 ports with 3kV surge protection and dual CAN bus interfaces for redundant pump control.

The hardware architecture ultimately determines whether a hybrid solar inverter serves as a reliable 20-year asset in an irrigation network or becomes a maintenance liability. By analyzing these component-level specifications through the lens of motor control and VFD expertise, industrial stakeholders can ensure compatibility with high-torque pumping applications while maximizing return on energy infrastructure investments.

Manufacturing Standards and Testing QC for Hybrid Solar Inverters

In industrial solar applications—particularly agricultural irrigation and automated motor control systems—hybrid inverter reliability is determined long before installation. For EPC contractors and automation distributors specifying equipment for harsh operational environments, understanding the manufacturing rigor behind these units is as critical as evaluating their datasheet specifications. Below is a technical examination of the quality control protocols and manufacturing standards that distinguish enterprise-grade hybrid inverters from consumer-tier alternatives.

PCB Assembly and Environmental Protection

The foundation of inverter longevity begins with the Printed Circuit Board (PCB) manufacturing process. Industrial-grade hybrid inverters utilize automated surface-mount technology (SMT) with lead-free soldering processes compliant with RoHS directives. Critical for agricultural and outdoor installations, conformal coating is applied to all power and control boards—not merely the main processor.

Premium manufacturers employ polyurethane or silicone-based conformal coatings applied to a thickness of 50–75 microns (measured via eddy current testing), creating a dielectric barrier against humidity, salt spray, and conductive dust common in solar pumping stations. This coating must pass IPC-A-610 Class 3 standards for high-performance/high-reliability electronics, ensuring protection against dendritic growth and corrosion in environments exceeding 85% relative humidity. For VFD-integrated hybrid systems controlling submersible pumps, additional potting compounds are utilized in the MPPT and DC-AC conversion modules to suppress vibration-induced solder joint fatigue.

Thermal Stress Validation and Burn-In Protocols

To eliminate infant mortality and validate thermal design margins, comprehensive high-temperature aging (HTA) procedures are mandatory. Unlike consumer electronics that rely on statistical sampling, industrial hybrid inverters undergo 100% burn-in testing at elevated ambient temperatures (typically +45°C to +60°C) for 48–72 hours under dynamic load conditions.

This process includes:
– Thermal cycling: Ramp rates of 2–5°C/minute between -20°C and +70°C to simulate desert diurnal temperature swings
– Power cycling: Repeated full-load to no-load transitions to stress IGBT junctions and DC-link capacitors
– Thermal imaging verification: FLIR inspection of heat sinks, bus bars, and semiconductor junctions to identify hotspots exceeding design thresholds by >5°C

For solar pumping applications where inverters operate in direct sunlight within NEMA enclosures, this testing ensures continuous operation at 100% rated load without thermal derating up to 50°C ambient.

Full-Load Electrical Performance Verification

Critical for motor control compatibility, every hybrid inverter must undergo 100% full-load testing at the factory—not random sampling. This protocol includes:

• Dynamic load testing: 110% overload capacity for 2 hours to verify IGBT current sharing and magnetic component saturation limits
• Motor compatibility testing: Connection to induction motors and permanent magnet synchronous motors (PMSM) to validate V/f control curves and torque response
• Harmonic distortion measurement: Verification of THDi <3% at rated load to ensure compliance with IEEE 519 and prevent bearing currents in downstream pump motors
• MPPT efficiency validation: Tracking efficiency verification >99.5% across 200–1000Vdc input ranges under rapid irradiance changes (simulated via programmable DC sources)

For hybrid systems with battery integration, additional tests include charge/discharge efficiency mapping, battery management system (BMS) communication protocol validation (CAN/RS485), and anti-islanding protection verification per UL 1741.

Certification Framework and Standards Compliance

Global market access requires adherence to stringent safety and performance standards. Industrial hybrid inverters must carry:

• IEC 62109-1/2: Safety requirements for power conversion equipment in photovoltaic systems
• IEC 61683: Efficiency measurement procedures for PV inverters
• EN 61000-6-2/6-4: EMC immunity and emission standards for industrial environments
• ISO 9001:2015: Quality management systems certification for manufacturing facilities
• CE Marking: Including Low Voltage Directive (LVD) 2014/35/EU and EMC Directive 2014/30/EU

For agricultural solar pumping projects, additional IP65 or IP66 ingress protection ratings are verified through dust penetration and high-pressure water jet testing (12.5mm nozzle, 100 liters/minute at 3 meters distance). Vibration testing per IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random) ensures survivability during transportation to remote installation sites.

Component Traceability and Supply Chain Integrity

Enterprise-grade manufacturing requires full component traceability using barcode/RFID systems tracking semiconductors, capacitors, and magnetic components to specific production lots. IGBT modules must be sourced from tier-1 manufacturers (Infineon, Mitsubishi, or equivalent) with voltage ratings having 30% derating margins (e.g., 1200V devices for 800Vdc systems). DC-link film capacitors require 100,000-hour life expectancy testing at rated temperature and ripple current.

For hybrid inverters deployed in solar pumping VFD applications, specialized dv/dt filters and sinewave output reactors undergo additional insulation testing (2kV AC hipot for 60 seconds) to prevent motor winding degradation in submersible pumps with long cable runs.

Quality Documentation and Factory Acceptance Testing (FAT)

Prior to shipment, comprehensive documentation packages must include individual unit test reports showing efficiency curves, protection relay trip times, and insulation resistance measurements (>1MΩ at 500Vdc). FAT protocols for EPC contractors should witness:
– Cold start capability at -25°C
– Grid synchronization stability (phase lock loop response <100ms)
– Export power control accuracy within ±1% of setpoint

By enforcing these manufacturing standards and QC protocols, project stakeholders ensure that hybrid solar inverters deliver the 20+ year operational lifespan required for industrial solar pumping and motor control investments, minimizing Levelized Cost of Energy (LCOE) and maximizing IRR for agricultural automation projects.

Step-by-Step Engineering Sizing Checklist for Hybrid Solar Inverters

Proper sizing of hybrid solar inverters for industrial and agricultural applications requires rigorous coordination between photovoltaic generation, motor loads, and energy storage subsystems. Unlike standard grid-tied configurations, hybrid systems must simultaneously manage variable DC input from solar arrays, battery charge/discharge cycles, and dynamic motor loads—often without grid support. The following engineering protocol ensures compatibility across the complete powertrain, from PV strings to pump motor terminals.

Step 1: Motor Load Characterization & Starting Current Analysis

Begin with comprehensive motor profiling to determine the inverter’s continuous and surge capacity requirements:

• Rated Power Matching: Size the hybrid inverter’s AC output rating at minimum 1.25× the motor’s nameplate kW rating for centrifugal pumps, and 1.5–2.0× for positive displacement pumps or submersible borehole pumps with high starting torque requirements.
• Inrush Current Verification: Verify the inverter’s surge capacity (typically 150–200% of rated power for 10–60 seconds) exceeds the motor’s locked-rotor amperage (LRA). For VFD-controlled motors integrated with hybrid inverters, ensure the drive’s DC bus voltage compatibility matches the hybrid inverter’s battery voltage setpoint (48V, 400V, or 800V architectures).
• Power Factor Compensation: Account for motor power factor (typically 0.75–0.85 for irrigation pumps) when calculating apparent power (kVA). The inverter’s output rating must cover kVA demand, not just kW.
• Duty Cycle Profiling: Map daily pumping schedules against solar irradiance curves. For agricultural projects with 6–8 hour pumping windows, ensure the inverter can sustain continuous operation at 80–90% of rated capacity without thermal derating.

Step 2: PV Array String Sizing & MPPT Voltage Window

Calculate precise string configurations to maximize energy harvest while respecting electrical limits:

• Maximum Open-Circuit Voltage (Voc): Calculate worst-case Voc using the formula:
  Voc_max = Voc_stc × [1 + (T_min − 25°C) × α]
  where T_min is the record low temperature at site (°C) and α is the panel’s temperature coefficient (%/°C). Ensure Voc_max remains below the hybrid inverter’s maximum DC input voltage (typically 600V, 1000V, or 1500V) with 5% safety margin.
• MPPT Operating Window: Verify the string’s voltage at maximum power point (Vmp) falls within the inverter’s MPPT range across all temperature conditions. For tropical installations, Vmp at 60°C cell temperature must exceed the MPPT minimum start voltage.
• Current Capacity: Total short-circuit current (Isc) from parallel strings must not exceed the MPPT channel’s maximum input current. For large agricultural installations requiring 100kW+ PV arrays, verify parallel capability (e.g., systems supporting up to 9 units in parallel for 102.6kW aggregated capacity) and current sharing balance.
• DC/AC Ratio Optimization: Size the PV array at 1.1–1.3× the inverter’s AC rating for hybrid systems. This accounts for battery charging efficiency losses (95–98% for lithium-ion) and ensures sufficient generation for simultaneous load supply and battery charging during peak sun hours.

Step 3: Battery Bank Integration & Voltage Compatibility

Coordinate the energy storage subsystem with motor control requirements:

• Voltage Architecture Selection: Match battery voltage (48V, 400V, or 800V DC) to the inverter’s battery input range and the motor/VFD system requirements. Higher voltage architectures (400V+) reduce DC cabling losses for long-distance agricultural pump installations.
• Capacity Sizing for Autonomy: Calculate battery capacity using:
  Capacity (kWh) = (Daily Load (kWh) × Days of Autonomy) / (Depth of Discharge × Efficiency)
  For critical irrigation systems, size for 2–3 days autonomy at 80% depth of discharge.
• Charge/Discharge Rates: Verify the inverter’s maximum charge current does not exceed the battery manufacturer’s recommended C-rate (typically 0.5C for lithium iron phosphate). For pump starting surges, ensure the battery can deliver the required peak power without voltage sag below the inverter’s low-voltage disconnect threshold.

Step 4: Protection Coordination & Environmental Derating

Ensure system longevity in harsh industrial and agricultural environments:

• Temperature Derating: Apply manufacturer-specific derating curves for ambient temperatures above 40°C. In desert agricultural applications, ensure the inverter’s continuous output at 50°C ambient still meets motor demand, or provide forced ventilation/shading.
• Altitude Correction: For highland projects (>1000m above sea level), derate inverter capacity by 1% per 100m above reference altitude due to reduced air cooling efficiency.
• Ingress Protection: Specify IP65 or higher protection ratings for outdoor agricultural installations exposed to dust, humidity, and irrigation spray. Verify terminal block sealing for coastal or chemical-heavy environments.
• Surge Protection: Install Type 2 SPDs on both DC (PV input) and AC (motor output) sides. Coordinate protection levels with the inverter’s internal surge withstand ratings to prevent nuisance tripping during electrical storms.

Step 5: Control Architecture & Communication Protocols

Integrate hybrid inverters with existing automation infrastructure:

• VFD Synchronization: When controlling pump motors via VFDs, ensure the hybrid inverter supports VFD-friendly output waveforms (pure sine wave with <3% THD) and provides stable voltage/frequency regulation during mode transitions (grid-tied to off-grid).
• Dry Contact Integration: Verify availability of programmable dry contacts for pump start/stop control, tank level float switches, and fault interlocking with existing motor control centers (MCCs).
• SCADA Connectivity: Confirm RS485 Modbus RTU, CAN bus, or Ethernet TCP/IP compatibility for remote monitoring of PV generation, battery state-of-charge, and motor operational parameters through centralized building management or agricultural IoT platforms.

Step 6: Final Verification & Commissioning Protocol

Before energization, complete this verification matrix:

• Insulation Resistance: Megger test motor windings and PV array cabling (>1 MΩ minimum) to prevent ground fault trips.
• Polarity Verification: Confirm DC polarity at all string inputs; reverse polarity on hybrid inverters typically causes catastrophic failure not covered by warranty.
• Grid Interaction Settings: For grid-tied hybrids, configure anti-islanding protection, voltage ride-through settings, and export limits per local utility requirements.
• Load Testing: Perform staged motor starting—first no-load, then partial load, then full load—while monitoring DC bus voltage stability and battery current transients.

By systematically executing these engineering checks, EPC contractors and automation distributors can ensure hybrid solar inverter installations deliver reliable motor control, maximize solar harvest through precise MPPT tracking, and provide resilient energy storage for critical industrial and agricultural operations.

Wholesale Cost and Energy ROI Analysis for Hybrid Solar Inverters

For EPC contractors and industrial automation distributors, procurement decisions on hybrid solar inverters extend far beyond sticker prices. The intersection of wholesale sourcing economics, energy arbitrage potential, and long-term service liabilities creates a complex Total Cost of Ownership (TCO) matrix that directly impacts project IRRs. When evaluating units ranging from 10kW residential-commercial hybrids to 100kW+ parallel-configurable systems, understanding the granular cost structures and ROI mechanisms specific to motor control and solar pumping applications becomes critical for accurate financial modeling.

Wholesale Procurement Economics vs. Retail Margins

Current market data indicates significant stratification between retail and B2B wholesale pricing tiers for hybrid inverters. Retail price points for premium single-phase units typically range from $0.24–$0.36 per watt (evidenced by 10kW units at approximately $2,449 and 15kW systems at $5,399), while three-phase industrial hybrids command $0.18–$0.28 per watt at volume. For agricultural project managers and automation distributors, wholesale procurement through OEM-direct channels—particularly when sourcing from specialized manufacturers integrating VFD functionality—yields 30–45% cost reductions below retail benchmarks, contingent upon Minimum Order Quantities (MOQ) of 20–50 units.

However, wholesale pricing must account for ancillary B2B costs often excluded from consumer retail:
– Compliance certification packages (UL 1741, IEC 62109, CE marking): $800–$1,200 per SKU
– Bulk logistics and customs harmonization: 8–12% of FOB pricing for containerized shipments
– Technical documentation localization: Critical for EPC contractors managing multi-jurisdictional solar pumping projects

For industrial engineers specifying parallel operation configurations (such as 9-unit 102.6kW arrays), wholesale tier pricing often includes master/slave synchronization licensing fees, whereas retail purchases treat these as premium add-ons.

Energy ROI in Motor Control and Solar Pumping Applications

The return profile for hybrid inverters diverges significantly between standard grid-tied residential installations and industrial motor control applications. In agricultural solar pumping systems—Boray Inverter’s core specialization—hybrid architectures with integrated VFD control deliver accelerated payback periods through demand charge mitigation and diesel displacement arbitrage.

Quantified ROI Scenarios:

1. Peak Shaving for Irrigation Motors: Hybrid inverters configured with 48V battery banks and VFD outputs (120/240V split-phase or 380V three-phase) enable 75kW–150kW agricultural pumps to operate during utility peak hours using stored solar energy. At average industrial electricity rates of $0.12–$0.18/kWh and demand charges of $15–$25/kW-month, payback periods compress to 3.5–5.2 years versus 7+ years for standard grid-tied systems.

2. Diesel Generator Offset: Remote pumping stations utilizing hybrid inverters with generator input ports achieve $0.08–$0.14 per kWh operational savings when displacing diesel consumption, assuming fuel costs of $1.20–$1.80/liter and generator efficiencies of 3–4 kWh/liter.

3. Motor Soft-Starting Integration: When hybrid inverters incorporate VFD functionality for submersible pumps (15kW–75kW range), the elimination of inrush current penalties (typically 6–8x running current) reduces utility demand charges by 18–25% annually, directly improving project NPV.

For EPC contractors, these savings must be weighed against higher upfront CAPEX—hybrid systems with battery integration and advanced motor control algorithms typically command $0.15–$0.22/W premiums over string inverters—but the operational flexibility enables participation in grid services and time-of-use arbitrage that standard inverters cannot access.

Warranty Cost Allocation and Risk Management

Warranty structures represent a critical, often underestimated line item in wholesale procurement analysis. Standard manufacturer warranties for hybrid inverters cover 5–10 years on power electronics and 2–5 years on integrated VFD modules. For B2B deployments, extended warranty costs typically add 5–8% to unit CAPEX but reduce long-term O&M risk exposure.

Critical Warranty Considerations for Industrial Applications:

• Parallel Operation Coverage: When configuring multiple hybrid inverters in master/slave arrays (e.g., 9 units for 102.6kW agricultural processing loads), verify that wholesale agreements include system-level warranty coherence rather than individual unit coverage, preventing liability gaps in synchronized motor control applications.

• Environmental Derating Clauses: Solar pumping installations in high-temperature agricultural zones (ambient >45°C) often trigger warranty limitations. Wholesale procurement should specify thermal performance guarantees for VFD-integrated hybrids operating at 100% load in 50°C environments, with replacement cost caps not exceeding 12% of initial hardware investment over the 10-year operational window.

• Battery Interface Liability: Hybrid inverters interfacing with LiFePO4 or lead-acid battery banks require explicit warranty language regarding charge controller failures that may cascade to storage systems. B2B procurement contracts should bifurcate inverter and battery warranties to avoid cross-liability disputes.

Integration with VFD and Motor Control Architectures

From an electrical engineering perspective, hybrid solar inverters serving industrial automation and agricultural sectors increasingly converge with Variable Frequency Drive (VFD) technology. Unlike standard grid-tied inverters, hybrid units with built-in motor control capabilities eliminate the need for separate VFD hardware in solar pumping applications, reducing system complexity and failure points.

Technical Cost Implications:

• Component Consolidation: Integrated hybrid-VFD systems reduce BOM costs by $800–$1,500 per pumping station by eliminating external VFD cabinets, communication gateways, and protection circuitry.
• Efficiency Gains: MPPT algorithms optimized for motor loads (particularly centrifugal pumps with variable torque curves) improve system efficiency by 3–7% compared to generic hybrid inverters paired with standalone VFDs.
• Protection Coordination: Wholesale procurement of integrated systems simplifies overcurrent protection design, as internal IGBT protection and motor thermal modeling are synchronized within the inverter firmware rather than requiring external relay coordination.

For distributors and EPC contractors, specifying hybrid inverters with IP65-rated enclosures and natural convection cooling (eliminating fan failure modes) proves essential for agricultural deployments where dust, humidity, and vibration stress VFD components.

Strategic Procurement Recommendations

When sourcing hybrid inverters for industrial solar pumping or motor control projects, prioritize wholesale agreements that include:
1. Volume-tiered pricing with locked rates for 12–18 month project pipelines
2. Technical integration support for VFD parameterization and motor compatibility testing
3. Warranty buyback options allowing EPC contractors to offer 10-year coverage while maintaining 5-year manufacturer backing
4. Parallel operation commissioning services for multi-megawatt agricultural installations

By analyzing wholesale costs through the lens of motor control integration and agricultural energy economics rather than simple $/W metrics, project stakeholders optimize both CapEx efficiency and long-term operational ROI.

Alternatives Comparison: Is Hybrid Solar Inverters the Best Choice?

When evaluating energy solutions for industrial pumping and motor control applications, the term “hybrid” requires careful contextualization. While residential and commercial markets often define hybrid inverters as grid-tied battery storage systems (exemplified by units like the Growatt SPH or Sol-Ark series), industrial engineers and agricultural EPC contractors face a different decision matrix. For solar pumping and heavy-duty motor applications, the relevant comparison centers on dedicated solar pump inverters (VFDs) versus battery-based hybrid systems, as well as the underlying motor control technologies that determine system efficiency and ROI.

Solar Pump VFDs vs. Battery Hybrid Inverters: The Storage Paradox

For agricultural irrigation and industrial fluid handling, the primary alternative to battery-hybrid solar inverters is the direct-drive solar pump inverter—a specialized Variable Frequency Drive (VFD) optimized for photovoltaic (PV) arrays without battery storage.

Energy Storage Economics:
Battery-based hybrid inverters (e.g., 10–15kW residential/commercial units) store excess energy in lithium banks for nighttime or cloudy-day operation. However, for pumping applications, water storage tanks serve as the most cost-effective energy buffer. Storing energy chemically in batteries incurs 15–20% round-trip efficiency losses and significant CAPEX (typically $400–$800/kWh), whereas water storage offers near-zero energy loss and lower capital costs for multi-day autonomy.

System Architecture Comparison:
– Hybrid Battery Inverters: Convert DC solar → AC grid → charge batteries → discharge to pump. Multiple conversion stages reduce overall system efficiency to 85–90%.
– Solar Pump VFDs: Direct DC-to-AC conversion with integrated Maximum Power Point Tracking (MPPT) specifically tuned for centrifugal pump torque curves, achieving 95–98% efficiency.

For EPC contractors designing irrigation systems, dedicated solar pump inverters (like Boray’s agricultural VFD series) eliminate battery replacement cycles (typically 5–8 years in harsh environments) and reduce maintenance overhead by 60% compared to hybrid battery systems.

Motor Control Alternatives: VFD vs. Soft Starter vs. DOL

In industrial automation contexts, engineers must evaluate whether full variable frequency control justifies its cost against simpler motor starting methods.

Direct Online (DOL) Starting:
– Application: Fixed-speed pumps with grid power availability
– Limitation: 6–8x inrush current, mechanical stress on pump bearings, no solar integration capability
– Efficiency: Constant speed operation wastes energy when system demand varies

Soft Starters:
– Function: Reduce starting current to 2–3x FLA via phase-angle control
– Advantage: Lower cost than VFDs, reduced mechanical wear
– Critical Limitation: Cannot vary operating speed. In solar pumping, this eliminates the ability to match pump output to available solar irradiance, reducing daily water yield by 20–30% compared to VFD-controlled systems.

Variable Frequency Drives (Solar-Optimized):
– Advantage: Complete speed control (typically 20–100% of rated speed), automatic MPPT tracking, torque compensation for well pumps
– Solar Specifics: Advanced solar pump VFDs include “weak sunlight” algorithms that maintain operation during partial cloud cover by reducing frequency, whereas soft starters would stall or trigger overload protection.

Motor Technology: PMSM vs. Induction Motors (IM)

The choice of motor technology significantly impacts inverter selection and system efficiency, particularly in solar applications where every watt of PV capacity carries cost weight.

Permanent Magnet Synchronous Motors (PMSM):
– Efficiency: IE4/IE5 class (90–96% efficiency across variable speed range)
– Inverter Requirement: Requires VFD (cannot run DOL)
– Solar Advantage: Higher power factor (>0.95) and lower current draw reduce required PV array size by 15–20% compared to IM
– Consideration: Higher initial cost; requires rotor position sensors or sensorless vector control algorithms in the VFD

Induction Motors (IM):
– Efficiency: Typically IE3 (87–92% at rated load), efficiency drops significantly at partial load
– Flexibility: Can operate with basic V/f control or across-the-line starting
– Robustness: Better suited for harsh agricultural environments (dust, moisture) without encoder feedback systems

Decision Matrix for BPC Contractors:
For solar pumping projects where PV array costs must be minimized, PMSM paired with high-efficiency solar pump VFDs offers the lowest lifecycle cost despite higher upfront motor expense. For grid-hybrid applications where solar supplements existing infrastructure, standard IM with VFDs provides the optimal balance of durability and energy savings.

Comprehensive Alternatives Comparison

Parameter	Battery Hybrid Inverter + Standard Pump	Solar Pump VFD + PMSM	Solar Pump VFD + IM	Soft Starter + Grid Pump
Primary Application	Residential/commercial backup power; intermittent pumping	Large-scale agricultural irrigation; off-grid industrial	General purpose solar pumping; retrofit projects	Grid-connected fixed-speed systems
Energy Storage Method	Lithium battery banks (chemical)	Water tanks (potential energy)	Water tanks (potential energy)	N/A (grid dependent)
System Efficiency	85–90% (including battery losses)	92–96%	88–92%	85–88% (constant speed)
Speed Control Range	Fixed frequency output (50/60Hz)	20–100% variable	20–100% variable	Fixed speed only
CAPEX Index	High (batteries + inverter)	Medium (premium motor + VFD)	Low (standard motor + VFD)	Lowest (basic starter)
OPEX (10-year)	High (battery replacement 2x)	Very Low (minimal maintenance)	Low (bearing maintenance only)	High (energy costs, mechanical wear)
Solar Dependency	Can operate off-grid with sufficient battery	Requires sunlight or AC backup input	Requires sunlight or AC backup input	None (grid only)
Grid Interaction	Bidirectional (sell back to grid)	AC backup optional (hybrid VFDs)	AC backup optional	Grid dependent
Motor Starting	Soft start via inverter	Variable torque ramp	Variable frequency start	Current-limited start
Best Use Case	Mixed loads (lighting, appliances, occasional pumping)	Deep well, high-head irrigation	Surface pumps, booster stations	Municipal water, constant demand

Strategic Selection Guidelines for Industrial Engineers

Choose Battery Hybrid Inverters when:
– The application requires 24/7 pumping autonomy without grid access AND water storage is impractical (e.g., pressurized municipal systems without tank capacity)
– The project involves mixed AC loads (pumps + processing equipment) where energy arbitrage provides value
– Grid-tie revenue (net metering) is a primary project objective

Choose Solar Pump VFDs (without batteries) when:
– Irrigation schedules can accommodate daylight-only operation or when elevated storage tanks provide nighttime pressure
– CAPEX constraints prioritize minimizing PV array size (use PMSM + high-efficiency VFD)
– Remote agricultural sites where battery maintenance logistics are prohibitive

Choose Hybrid Solar Pump Inverters (AC/DC Dual Input) when:
– Grid power is available but unreliable, and the system must automatically switch between solar and grid without battery buffering
– Water demand exceeds solar capacity during peak seasons, requiring grid supplementation without system shutdown

For EPC contractors and automation distributors, the critical insight is that residential-grade hybrid inverters (as cataloged in standard solar distribution channels) are rarely optimal for industrial pumping loads. The torque demands, MPPT voltage ranges, and protection requirements of 3-phase submersible pumps require industrial-grade VFD platforms with solar optimization firmware—distinct from the battery-centric hybrid units designed for household energy management.

Boray Inverter’s technical recommendation aligns with water-energy nexus optimization: prioritize direct solar-to-pump conversion with VFD control and hydraulic storage over electrochemical storage for agricultural projects, reserving battery-hybrid architectures only for applications requiring absolute load autonomy or grid stabilization services.

Core Technical Specifications and Control Terms for Hybrid Solar Inverters

When specifying hybrid solar inverters for industrial pumping stations, agricultural microgrids, or commercial C&I installations, procurement teams must evaluate both the electromechanical performance characteristics that ensure motor compatibility and the commercial terms that govern international logistics. The following technical parameters and trade definitions establish the baseline for system interoperability, long-term reliability, and supply chain risk management.

Electrical Performance & Solar Optimization Parameters

Maximum Power Point Tracking (MPPT) Algorithms

In solar pumping applications, the MPPT function serves as the primary interface between the PV array and the inverter’s DC bus. Modern hybrid units employ ** Perturb and Observe (P&O) or Incremental Conductance algorithms to maintain the array voltage at the maximum power point (Vmp) despite irradiance fluctuations and temperature coefficients. Critical specifications include:
– MPPT Voltage Range: Typically 200V–850V DC for string inverters; must accommodate open-circuit voltage (Voc) variations from -20°C to +60°C ambient
– Tracking Efficiency: ≥99.5% under steady-state conditions, with <1% power loss during rapid transient cloud transients
– Number of Independent MPPT Inputs**: Multi-MPPT architectures (2–4 trackers) mitigate mismatch losses in large agricultural installations where partial shading is unavoidable

Power Conversion Efficiency and Harmonic Distortion

For motor-driven loads, inverter efficiency directly impacts pump operating hours and battery cycling depth. Key metrics include:
– Maximum Efficiency: Peak values of 97.5%–98.5% (European efficiency weighted average)
– CEC Weighted Efficiency: More representative than peak values for variable solar pumping loads
– Total Harmonic Distortion (THD): <3% THDi (current) at rated load to prevent motor winding overheating and bearing currents; critical for VFD-compatible submersible pumps

Motor Control Architectures for Pump Integration

Field-Oriented Vector Control (FOC)

Hybrid inverters driving surface or submersible pumps utilize Field-Oriented Control (FOC)—also known as vector control—to decouple torque and flux components of AC motor current. Unlike scalar V/f control, FOC enables:
– Precise Torque Control: Maintains constant torque-per-ampere ratios during low-speed operation (critical for borehole pumps with high starting torque requirements)
– Speed Regulation: ±0.5% accuracy without encoder feedback (sensorless vector control), reducing wiring complexity in remote agricultural installations
– Energy Recovery: Regenerative braking capability during pump deceleration, feeding energy back to batteries or the grid

PID Process Control Loops

For pressure-boosting stations and irrigation systems, integrated Proportional-Integral-Derivative (PID) controllers enable closed-loop automation:
– Feedback Inputs: 4–20mA pressure transducers or flow meters interface via analog I/O or RS-485 Modbus
– Setpoint Management: Maintains constant water pressure (bar) or flow rate (m³/h) by dynamically adjusting motor frequency (30–60Hz range) based on solar availability
– Sleep/Wake Functionality: Automatically stops the pump at low irradiance (preventing dry-running) and restarts when insolation recovers, extending motor and impeller lifespan

Environmental and Mechanical Specifications

Ingress Protection (IP) and Thermal Management

Agricultural and industrial environments demand robust enclosures:
– IP65 Rating: Mandatory for outdoor installation to protect against dust infiltration and high-pressure water jets (critical for livestock watering and irrigation zones)
– Cooling Methodology: Forced air cooling with IP54-rated fans or passive convection with oversized heat sinks; operating temperature range of -25°C to +60°C with automatic derating above 45°C
– Corrosion Resistance: C5-M marine-grade coating for coastal or greenhouse applications with high humidity and chemical exposure

DC and AC Electrical Isolation

• Galvanic Isolation: High-frequency transformers or isolation stages prevent ground fault currents in submersible pump installations
• Surge Protection: Type 2 SPDs on both DC (PV) and AC (grid/load) sides, rated for 20kA+ impulse current per IEC 61643-31

Communication Protocols and System Integration

Industrial Communication Standards

Hybrid inverters must integrate with SCADA and Building Management Systems (BMS):
– Modbus RTU/TCP: Standard for remote monitoring of voltage, current, power, and fault codes
– CAN Bus: Used in parallel inverter configurations (master-slave architecture) for large pumping stations requiring >100kW capacity
– BACnet/IP: Relevant for commercial hybrid systems integrating HVAC and pumping loads

Grid Interaction Parameters

• Anti-Islanding Protection: UL 1741 SA or IEC 62116 certification for grid-tied operation
• Frequency-Watt Control: Active power curtailment response to grid frequency deviations (50Hz/60Hz ±0.5Hz thresholds)

International Commercial Terms (Incoterms) for Project Logistics

Understanding risk transfer and cost allocation in international procurement prevents disputes during customs clearance and installation scheduling.

EXW (Ex Works)

The seller makes goods available at their factory (Boray Inverter manufacturing facility). The buyer assumes all costs and risks from that point, including export clearance, freight, and insurance. Suitable only for buyers with established logistics networks in China.

FOB (Free On Board)

Risk transfers when goods pass the ship’s rail at the port of shipment (e.g., Shenzhen or Shanghai). The seller handles export clearance and inland transport to the port; the buyer assumes ocean freight, marine insurance, and destination port charges. FOB terms provide buyers with freight cost transparency and carrier selection flexibility for heavy inverter shipments (20ft/40ft containers).

CIF (Cost, Insurance, and Freight)

The seller contracts and pays for ocean freight and minimum insurance coverage (typically Institute Cargo Clauses C) to the destination port. Risk transfers at the origin port, but the seller bears freight costs to destination. CIF simplifies procurement for EPC contractors but requires verification that insurance covers “all risks” for sensitive power electronics; buyers often supplement with additional coverage.

DDP (Delivered Duty Paid)

The seller assumes maximum obligation, delivering cleared goods to the project site (agricultural field or industrial facility), paying all duties, taxes, and customs fees. DDP is advantageous for turnkey solar pumping projects but requires the manufacturer to possess import licenses and tax registration in the destination country—rare for Chinese manufacturers unless working through local subsidiaries.

Procurement Recommendation: For hybrid inverter projects involving solar pumping systems, specify FOB terms when the buyer has preferred freight forwarders, or CIF when requiring the manufacturer to manage ocean logistics. Always clarify that vector control parameters, MPPT voltage windows, and IP ratings must be validated via factory acceptance testing (FAT) prior to shipment, regardless of the Incoterm selected.

Future Trends in the Hybrid Solar Inverters Sector

The hybrid solar inverter sector is undergoing rapid transformation driven by the convergence of renewable energy mandates and Industry 4.0 automation requirements. For industrial engineers, agricultural project managers, and EPC contractors, next-generation hybrid inverters are evolving beyond simple DC/AC conversion devices into intelligent power management hubs. These systems now seamlessly integrate with Variable Frequency Drives (VFDs), solar pump controllers, and motor control architectures, enabling sophisticated energy dispatch for demanding industrial and agricultural environments.

Convergence with Motor Control and VFD Architectures

A significant trend reshaping the sector is the deep integration of hybrid inverters with motor control systems, particularly in solar pumping applications. Modern hybrid units are increasingly designed to communicate directly with VFDs through standardized protocols (Modbus RTU/TCP, CAN bus), enabling coordinated control between solar generation, battery storage states, and motor load demands. This integration allows for dynamic power management where the inverter automatically adjusts output frequency and voltage to match motor efficiency curves, reducing mechanical stress on pumps while maximizing PV energy harvest.

For agricultural project managers, this means hybrid systems can now prioritize solar-direct pumping during peak irradiance hours while seamlessly switching to stored energy or grid backup during low-light conditions—without manual intervention. Advanced topologies are emerging that allow direct DC coupling between solar arrays and pump motors via integrated VFD functionality, eliminating double conversion losses and improving overall system efficiency by 8-15% compared to traditional AC-coupled configurations.

IoT-Enabled Predictive Maintenance and SCADA Integration

The proliferation of Industrial Internet of Things (IIoT) connectivity is transforming hybrid inverters into data-rich nodes within broader automation ecosystems. Next-generation units feature embedded edge computing capabilities that monitor not only energy flows but also the health status of connected motor loads. By analyzing harmonic signatures, vibration data, and thermal patterns, these systems can predict bearing failures in pumping equipment or insulation degradation in motors before catastrophic failure occurs.

For EPC contractors deploying large-scale agricultural or industrial projects, cloud-native monitoring platforms now offer API integration with existing SCADA systems, allowing centralized oversight of hybrid inverter fleets, VFD parameters, and motor performance metrics from a single dashboard. This capability is particularly critical for remote solar pumping stations where cellular or LoRaWAN connectivity enables real-time alerts regarding filter clogging, dry-run conditions, or cavitation events—protecting both the inverter power electronics and the mechanical infrastructure.

Scalable Modular Architectures for Mission-Critical Applications

Market demand is driving a shift toward highly modular hybrid inverter designs capable of parallel operation for megawatt-scale industrial applications. Contemporary systems support master-slave configurations where multiple units (ranging from 10kW to 15kW modules) operate in synchronized arrays exceeding 100kW outputs, providing redundancy for continuous process operations. These architectures utilize intelligent load sharing algorithms that distribute motor starting currents across multiple inverter phases, reducing individual component stress while providing N+1 reliability for critical pumping infrastructure.

For automation distributors, this modularity translates to simplified inventory management and scalable project design. EPC contractors can now standardize on a single inverter platform across diverse project sizes—from small agricultural irrigation systems to large industrial water treatment facilities—expanding capacity simply by adding parallel units rather than replacing entire systems.

AI-Driven Energy Management and Grid Forming Capabilities

The integration of artificial intelligence and machine learning algorithms represents the next frontier in hybrid inverter technology. Advanced systems now employ predictive analytics that forecast solar irradiance, agricultural water demand patterns, and electricity tariff structures to optimize battery cycling and motor operation schedules. These smart inverters can autonomously execute peak-shaving strategies for industrial facilities, reducing demand charges by synchronizing high-torque motor startups with periods of maximum solar generation or low-cost grid power.

Furthermore, the transition toward grid-forming (vs. grid-following) inverter architectures is enabling true microgrid functionality for remote industrial sites. These systems can establish and regulate their own voltage and frequency references, allowing solar pumping stations to operate in complete isolation from the utility grid while maintaining stable power quality for sensitive motor control electronics. When paired with advanced lithium-ion or emerging solid-state battery chemistries, these inverters provide seamless transitions between power sources—critical for preventing motor damage during source switching events.

Wide Bandgap Semiconductors and Thermal Management

Underlying these functional advancements are fundamental improvements in power electronics. The adoption of Silicon Carbide (SiC) and Gallium Nitride (GaN) semiconductors is enabling higher switching frequencies with reduced thermal losses, resulting in more compact inverter footprints and improved efficiency in motor drive applications. These materials allow hybrid inverters to handle the high inrush currents associated with submersible pump motors while maintaining thermal stability in harsh agricultural environments exceeding 50°C ambient temperatures.

For electrical engineers specifying equipment, these innovations translate to reduced cooling requirements, extended capacitor lifespans, and the ability to locate inverter equipment closer to motor control centers without derating—optimizing balance-of-system costs for solar pumping projects.

As the sector matures, the distinction between hybrid solar inverters, motor drives, and industrial automation controllers continues to blur. For stakeholders across the value chain—from component distributors to agricultural project developers—success will depend on selecting platforms that offer not just power conversion, but comprehensive energy management ecosystems capable of orchestrating complex interactions between renewable generation, energy storage, and precision motor control.

Top 1 Hybrid Solar Inverters Manufacturers & Suppliers List

B2B Engineering FAQs About Hybrid Solar Inverters

1. How does a hybrid solar inverter differ from a dedicated solar pump inverter when used in agricultural VFD applications?
   A dedicated solar pump inverter (like Boray’s SP series) is optimized for single-purpose motor control, featuring MPPT algorithms specifically tuned for pump load curves and direct DC-to-AC conversion without battery intermediation. In contrast, a hybrid solar inverter is designed for bidirectional energy flow, managing PV generation, battery storage, and grid interaction simultaneously. For agricultural VFD applications, hybrid inverters offer the advantage of energy arbitrage—storing excess solar capacity to power pumps during low-irradiance periods or at night—whereas dedicated pump inverters operate only when solar irradiance is sufficient. However, engineers must verify that the hybrid inverter’s output waveform (pure sine wave) and surge capacity (typically 1.5–2x rated power for 10 seconds) match the VFD’s input requirements and the motor’s locked-rotor amperage (LRA).

2. What are the critical power quality considerations when integrating hybrid inverters with variable frequency drives (VFDs) for motor control?
   Power quality is paramount when coupling hybrid inverters with VFDs. Engineers must assess Total Harmonic Distortion (THD); standard hybrid inverters typically maintain <3% THD at linear loads, but VFDs introduce non-linear switching harmonics that can resonate with the inverter’s output filter. Specify hybrid inverters with robust output filtering and active front-end (AFE) rectifiers if the VFD lacks DC bus commonality. Additionally, verify voltage regulation stability (±2% typical) under varying PV input, as VFDs are sensitive to voltage sags that can trigger under-voltage faults or torque ripple in induction motors. For large-scale agricultural projects, consider hybrid inverters with three-phase 400V output and dedicated motor load profiles to minimize dV/dt stress on motor windings.

3. Can hybrid solar inverters provide the necessary starting current (inrush current) for large irrigation pumps without compromising battery lifespan?
   Yes, but proper sizing is critical. Submersible pumps and centrifugal irrigation pumps can draw 5–7x their rated current during startup (LRA). High-quality hybrid inverters designed for industrial applications provide surge ratings of 150–200% for 10–60 seconds. Engineers should calculate the pump’s LRA and ensure the inverter’s surge capacity exceeds this value without relying solely on battery discharge. Implementing a “soft start” configuration via the VFD reduces inrush to 1.5–2x FLA (Full Load Amperage), significantly lowering stress on both the inverter’s IGBT modules and the battery bank’s C-rate limits. For systems above 7.5kW (10HP), AC-coupled architectures with dedicated pump VFDs synchronized to the hybrid inverter’s grid-forming output often provide superior longevity compared to direct battery-to-pump DC coupling.

4. What protection mechanisms should engineers specify when connecting hybrid inverters to submersible pump systems with long cable runs?
   Long cable runs between hybrid inverters and submersible pumps (common in deep-well agricultural applications) create voltage drop and reflected wave issues. Engineers should specify hybrid inverters with adjustable output voltage compensation (boost function) to counteract I²R losses over distances exceeding 100 meters. Additionally, integrate output reactors or sine-wave filters at the inverter terminals to mitigate reflected wave phenomena that damage motor insulation. From a system protection standpoint, ensure the hybrid inverter includes ground fault detection (GFDI) for wet environments, DC arc fault protection (AFCI) for rooftop PV arrays, and anti-islanding protection (UL 1741/IEC 62116) if grid-tied. For VFD-driven pumps, configure the hybrid inverter’s frequency stability within ±0.5% to prevent resonance with the VFD’s carrier frequency.

5. How do grid-forming capabilities of modern hybrid inverters benefit off-grid solar pumping installations compared to traditional off-grid pump inverters?
   Traditional off-grid pump inverters require PV voltage to be present to operate (PV-direct), ceasing function during cloud transients or at night. Grid-forming hybrid inverters create a stable AC microgrid reference, allowing seamless integration with VFDs that can operate from stored battery energy. This enables 24/7 pumping schedules critical for livestock or drip irrigation systems. Furthermore, grid-forming inverters provide voltage and frequency regulation (V/f control) that stabilizes the VFD’s DC bus, eliminating the “hunting” behavior common in weak-grid scenarios. For remote agricultural sites, this capability allows engineers to design hybrid systems where the pump VFD operates as a standard grid-connected load, simplifying control logic and enabling remote monitoring of both the energy storage system and motor performance via integrated SCADA protocols (Modbus TCP/IP or RS485).

6. What are the harmonic distortion (THD) implications when operating hybrid inverters near their rated capacity with inductive motor loads?
   When hybrid inverters operate above 80% of rated capacity with inductive loads (pumps, compressors), THD can increase from the nominal <3% to 5–8%, particularly if the load power factor (PF) is below 0.85. This distortion affects the inverter’s efficiency and can cause overheating in neutral conductors in split-phase systems (120/240V). Engineers should specify hybrid inverters with high overload capacity (110% continuous, 150% for 60 minutes) to ensure operation remains below the 80% threshold during peak solar hours. For three-phase agricultural pumps, select inverters with active power factor correction (PFC) and specify VFDs with active front ends or DC chokes to reduce current harmonics fed back into the hybrid inverter’s output stage. Monitoring systems should track THD-V (voltage distortion) and THD-I (current distortion) separately, as motor loads primarily affect current distortion.

7. How should EPC contractors size battery banks for hybrid solar pumping systems to ensure 24/7 operation during variable weather conditions?
   Battery sizing for solar pumping requires calculating the pump’s daily energy requirement (kWh/day) multiplied by days of autonomy (typically 1–2 days for agricultural applications) divided by the depth of discharge (DoD) limit (0.8 for LiFePO4, 0.5 for lead-acid). However, engineers must also account for the hybrid inverter’s conversion efficiency (95–98%) and the VFD’s efficiency (92–97%). For example, a 5.5kW (7.5HP) pump operating 8 hours daily requires approximately 44kWh; with system losses, the battery bank should provide 50–55kWh usable capacity. Specify lithium iron phosphate (LiFePO4) batteries with high C-rate capability (1C continuous, 2C peak) to handle the pump’s starting surges without voltage sag. The hybrid inverter’s charge controller should support multi-stage charging (Bulk, Absorption, Float) compatible with the battery chemistry and include temperature compensation for installations in high-ambient agricultural environments.

8. What are the advantages of AC-coupled vs DC-coupled architectures when retrofitting existing VFD-driven pump systems with hybrid solar-battery solutions?
   AC-coupled architectures involve installing the hybrid inverter parallel to the existing grid/VFD connection, feeding AC power into the pump’s electrical panel. This approach is ideal for retrofits as it preserves the existing VFD and motor control logic, minimizes downtime, and allows the hybrid inverter to be located remotely from the pump controller (reducing environmental exposure to dust/moisture). DC-coupled systems, where PV connects directly to a charge controller feeding a battery bank that powers a dedicated pump inverter, offer higher round-trip efficiency (avoiding double conversion losses) but require replacing existing pump controls. For industrial sites with existing sophisticated VFDs (featuring PID control, multi-pump staging, or pressure transducer feedback), AC-coupling with a grid-forming hybrid inverter is typically the most cost-effective and least disruptive integration method, allowing the VFD to operate in its standard grid-following mode while the hybrid manages energy storage and solar harvesting.

Disclaimer

Conclusion: Partnering with Boray Inverter for Hybrid Solar Inverters

As hybrid solar inverters evolve from standalone energy conversion devices to intelligent nodes within complex industrial ecosystems, the margin for error in power electronics design continues to narrow. For agricultural project managers overseeing remote pumping stations, EPC contractors integrating solar-diesel hybrid systems, and automation distributors specifying motor control solutions, success depends on partnering with manufacturers who possess deep domain expertise in both photovoltaic energy management and precision motor control.

Shenzhen Boray Technology Co., Ltd. (borayinverter.com) represents this convergence of solar innovation and industrial automation excellence. Specializing in Solar Pump Inverters and Variable Frequency Drives (VFDs), Boray Inverter maintains an engineering-intensive operation where R&D personnel constitute 50% of the total workforce. This technical concentration enables sophisticated mastery of Permanent Magnet Synchronous Motor (PMSM) and Induction Motor (IM) vector control algorithms—critical technologies for optimizing pump efficiency under variable solar irradiance and ensuring seamless transitions between grid-tie, off-grid, and backup power modes.

Manufacturing rigor underpins Boray’s global reliability, with two state-of-the-art production lines implementing 100% full-load testing protocols that validate thermal performance and electrical integrity under real-world stress conditions. From large-scale agricultural irrigation deployments in arid climates to industrial automation systems requiring precise torque control, Boray’s solutions have established trusted presences across international markets.

For engineers and procurement specialists seeking to integrate robust solar pumping architectures or customize VFD solutions for hybrid energy systems, Boray Inverter offers the technical depth, manufacturing scalability, and application-specific expertise required for demanding B2B environments. Contact their engineering team today to discuss customized motor control configurations, obtain detailed technical specifications, or request competitive wholesale quotations for your next project.
