Introduction: Sourcing Hybrid Solar Inverter Charger for Industrial Use

Industrial operations and agricultural infrastructure face mounting pressure to decouple from volatile grid dependencies while maintaining seamless motor control for critical pumps, conveyors, and process automation. The hybrid solar inverter charger has emerged as the central nervous system of modern distributed energy architectures—integrating photovoltaic generation, battery storage management, and intelligent AC power conversion into a single, programmable unit. For EPC contractors and automation engineers specifying equipment for solar pumping stations or factory microgrids, these systems eliminate the engineering complexity of discrete charge controllers, separate battery inverters, and automatic transfer switches while providing the voltage stability essential for sensitive VFD-driven motor loads.

This comprehensive guide examines the industrial procurement landscape for hybrid inverter chargers, distinguishing between compact all-in-one units suitable for agricultural PV pumping and modular high-capacity systems engineered for three-phase industrial loads. We analyze critical specifications including MPPT voltage ranges, battery chemistry compatibility (LiFePO4 versus lead-acid), and split-phase versus three-phase output configurations—spanning from 5kW agricultural units to 60kW+ commercial systems. Additionally, we explore CAN bus and Modbus integration protocols with Variable Frequency Drives (VFDs) for intelligent motor control, ensuring your solar array and storage capacity align with dynamic load profiles in irrigation and manufacturing environments. Whether sourcing for remote off-grid installations or grid-tied facilities requiring backup resilience, understanding manufacturer capabilities—from specialized solar innovators to established automation houses—ensures your power conversion infrastructure meets both present operational demands and future scalability requirements.

Technical Types and Variations of Hybrid Solar Inverter Charger

Hybrid solar inverter chargers represent the convergence of photovoltaic (PV) generation, battery energy storage management, and AC power conversion into unified power electronic systems. For industrial automation and agricultural applications—particularly solar pumping installations—these architectures must integrate seamlessly with motor control technologies, including Variable Frequency Drives (VFDs) and soft-start mechanisms. The technical variations below are categorized by phase configuration, power capacity tiers, and system integration topology, with specific consideration for compatibility with pump motor loads and industrial motor control centers.

Type	Technical Features	Best for (Industry)	Pros & Cons
Single-Phase Low-Capacity (3–6 kW)	• 120V or 230V single-phase output • 1–2 MPPT inputs (60–150V DC range) • THDi <3%, Power factor >0.99 • Basic VFD compatibility via single-phase input drives	• Small-scale agricultural irrigation • Remote monitoring stations • Residential solar pumping (submersible) • Light industrial automation	Pros: Cost-effective for small motors, minimal installation complexity, lower standby losses Cons: Limited starting torque for induction motors, cannot directly drive standard three-phase pumps without phase converters
Split-Phase Hybrid (5–12 kW)	• 120V/240V dual voltage output (L-N/L-L) • Dual MPPT with 400V+ PV input capability • 60Hz/50Hz auto-sensing • Compatible with capacitor-start and VFD-controlled split-phase motors	• North American agricultural projects • Medium-scale irrigation (5–10 HP pumps) • Rural electrification with motor loads • EPC contractors serving residential/commercial crossover markets	Pros: Direct compatibility with US standard agricultural pumps, flexible voltage configuration for mixed loads Cons: Limited scalability for large three-phase motor banks, phase imbalance risks with unbalanced motor loads
Three-Phase Industrial (15–60+ kW)	• 208V/380V/480V three-phase output • High-voltage PV input (600–1000V DC) • 3+ MPPT channels with individual optimization • Integrated DC bus for VFD coupling • Phase sequence protection & motor insulation monitoring	• Large-scale solar pumping stations • Industrial motor control centers • Heavy irrigation (20+ HP submersible pumps) • Manufacturing facilities with hybrid renewable integration	Pros: Direct drive for standard industrial three-phase motors, high starting torque capability (3–5x rated), scalable modular architecture Cons: Higher capital cost, requires professional electrical infrastructure, complex harmonic filtering requirements
All-in-One Integrated Architecture	• Built-in MPPT charge controller + battery inverter + grid charger • IP65/NEMA 4X enclosure for outdoor agricultural deployment • CAN/RS485 communication for VFD synchronization • Lithium-ion (LiFePO4) BMS integration • Anti-islanding and GFCI protection	• EPC contractors requiring rapid deployment • Off-grid agricultural automation • Remote solar pumping with energy storage • Distributed industrial microgrids	Pros: Reduced wiring errors, faster commissioning, unified monitoring interface, optimized battery-to-motor efficiency Cons: Single point of failure risk, limited customization for specialized VFD protocols, thermal management challenges in high-ambient agricultural environments

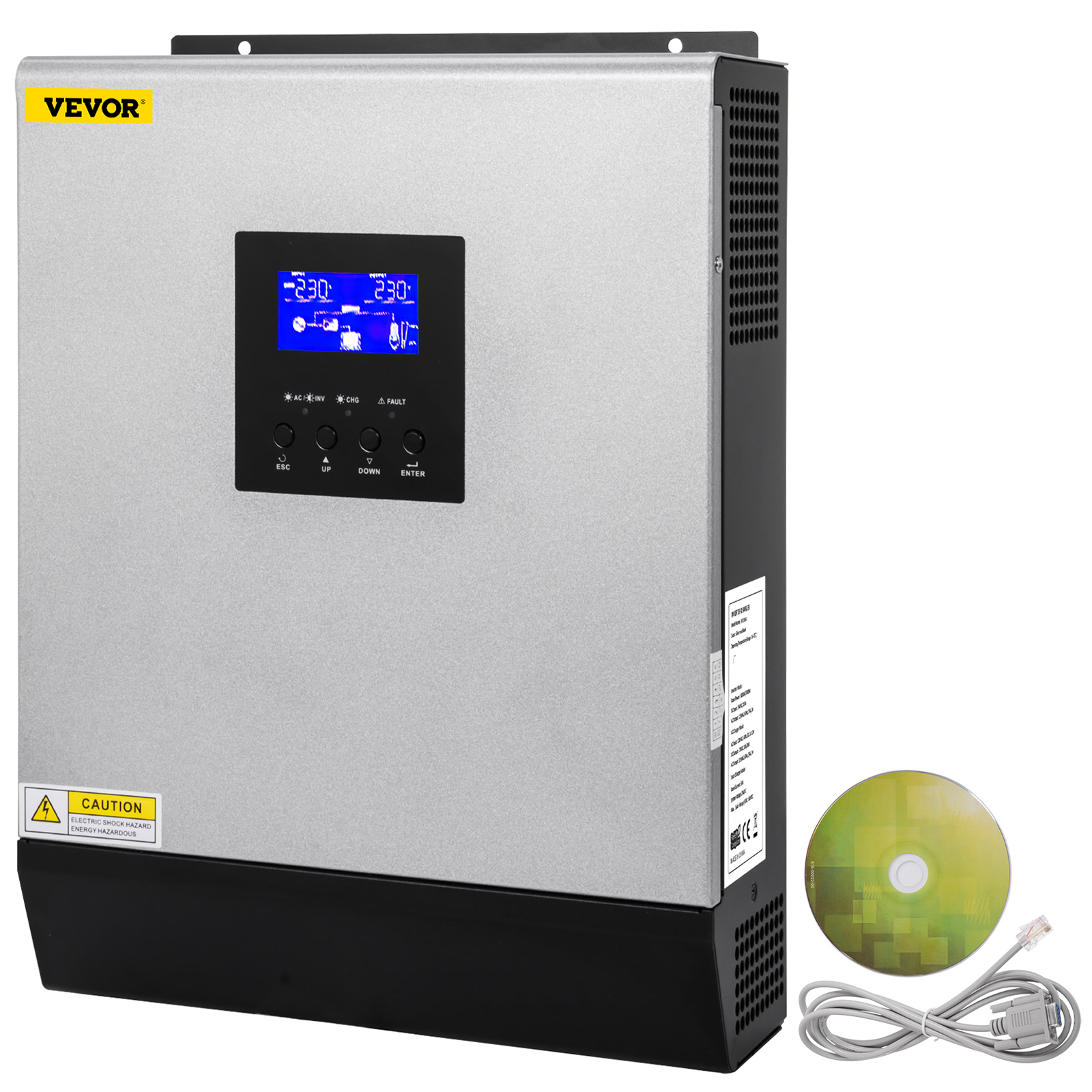

Single-Phase Low-Capacity (3–6 kW)

These units are engineered for direct connection to single-phase utility grids or off-grid battery systems, typically employing H-bridge topologies with high-frequency switching (16–20 kHz). For solar pumping applications, they are most effective when paired with single-phase input VFDs that can convert the fixed-frequency AC output to variable frequency for pump speed control. Engineers should note that while these inverters can power fractional to 3 HP motors, the high inrush current of capacitor-start pumps may require oversizing the inverter by 1.5–2x the motor’s running wattage. The integrated Maximum Power Point Tracking (MPPT) typically operates at 30–80V DC for 24V/48V battery systems, making them suitable for smaller PV arrays common in residential agricultural settings.

Split-Phase Hybrid (5–12 kW)

Split-phase configurations represent the dominant architecture for North American agricultural electrification, providing both 120V (line-to-neutral) and 240V (line-to-line) outputs simultaneously. Technically, these inverters utilize center-tapped transformers or split-phase H-bridge configurations to maintain voltage regulation within ±2% across asymmetric loads. For solar pumping, this enables direct connection to split-phase submersible pumps (common in deep-well applications) without requiring phase conversion equipment. Critical for EPC contractors: these systems often feature generator input terminals with automatic transfer switching, allowing seamless transition between solar/battery and backup generator power during extended cloudy periods—essential for critical irrigation schedules.

Three-Phase Industrial (15–60+ kW)

Industrial-grade three-phase hybrid inverters serve as the backbone for large-scale solar pumping stations and automated manufacturing facilities. These systems employ IGBT-based three-level NPC (Neutral Point Clamped) or T-type inverter topologies to achieve efficiencies >98% and handle the high crest factors associated with motor starting currents. Key technical differentiators include high-voltage PV inputs (up to 1000V DC), which reduce DC cabling costs and resistive losses in large agricultural arrays, and active front-end (AFE) rectification that enables regenerative braking energy capture when used with VFD-controlled pumps. For motor control applications, these inverters provide stable 380–480V three-phase power with <2% voltage unbalance, critical for preventing premature bearing failure in pump motors. Many units offer parallel operation capability (master-slave or droop control), allowing EPCs to scale systems to 100+ kW for large irrigation districts.

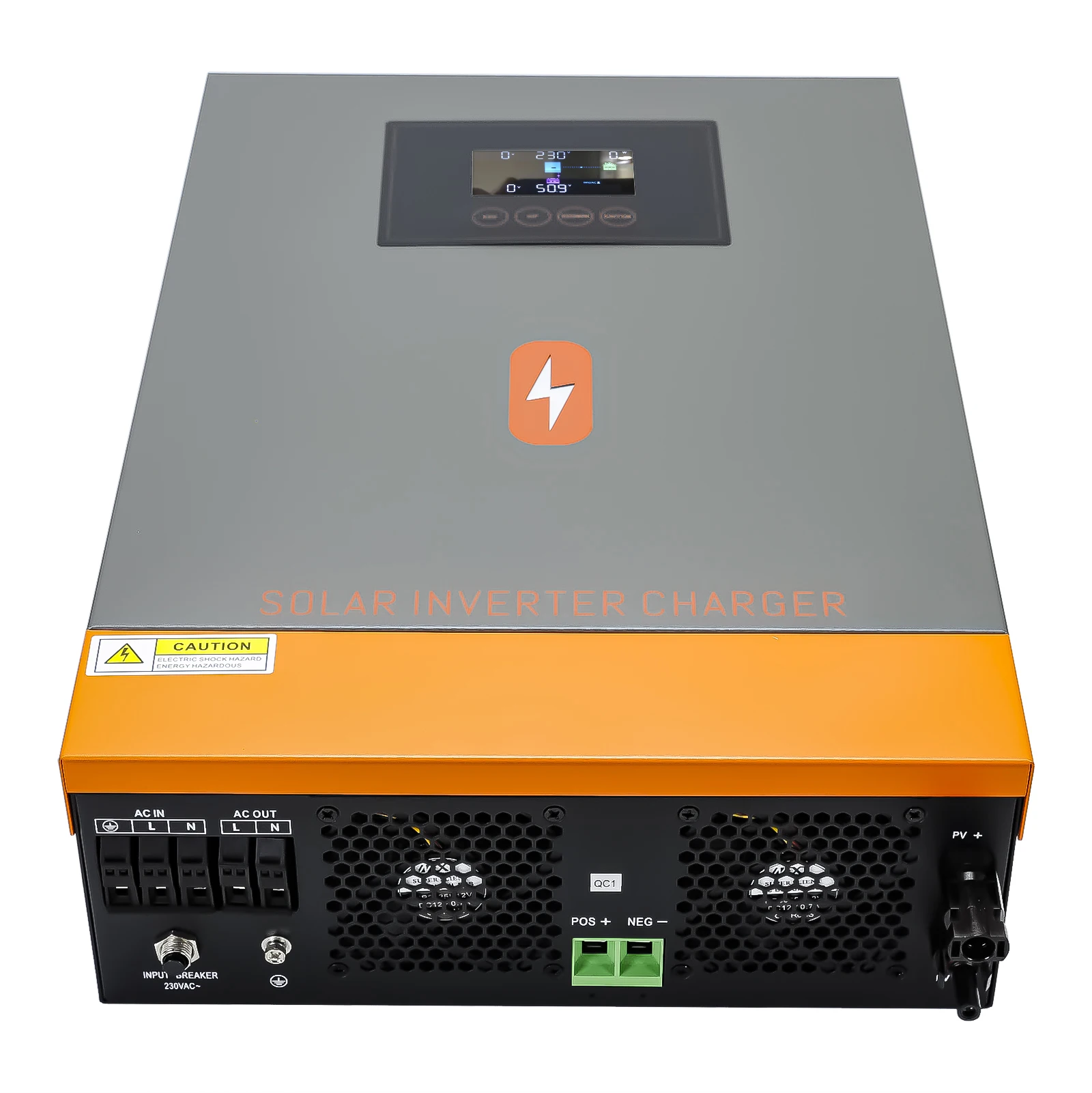

All-in-One Integrated Architecture

The all-in-one topology consolidates the solar charge controller, battery inverter, and AC battery charger into a single enclosure, often with integrated Battery Management System (BMS) communication for lithium-ion chemistries. From a motor control perspective, these units are increasingly designed with VFD-ready DC bus terminals, allowing direct coupling between the inverter’s DC link and the VFD’s DC input—bypassing the inverter’s AC conversion stage for pump motor drives and improving overall system efficiency by 3–5%. For agricultural automation, IP65-rated enclosures with active cooling (variable-speed fans) are essential to withstand dust, humidity, and temperature extremes. However, engineers must carefully evaluate the thermal derating curves: continuous operation at 45°C+ ambient temperatures (common in solar pumping installations) may require oversizing the unit by 20–25% or ensuring adequate shade/cooling infrastructure.

Key Industrial Applications for Hybrid Solar Inverter Charger

Integrating hybrid solar inverter chargers into industrial automation architectures enables facilities to decouple critical motor loads from grid instability while maximizing renewable energy penetration. Unlike standard solar inverters, these all-in-one systems combine MPPT charge control, battery energy storage, and bidirectional AC/DC power conversion—creating a resilient microgrid hub that interfaces seamlessly with Variable Frequency Drives (VFDs) and high-inertia motor applications. Below are the primary industrial deployment scenarios where hybrid inverter technology delivers measurable ROI through energy arbitrage and enhanced power quality.

Sector	Application	Energy Saving Value	Sourcing Considerations
Agriculture & Irrigation	Solar-powered borehole and pivot irrigation with grid/diesel backup	40–70% reduction in diesel displacement; optimized VFD soft-start reduces motor inrush current by up to 60%, extending pump motor life	IP65 enclosure rating for outdoor exposure; wide MPPT voltage range (200–850VDC) to accommodate varying irradiance; compatibility with 3-phase VFDs (380V/480V) for submersible pump control
Water & Wastewater Treatment	Lift stations, filtration backwash pumps, and aeration blowers	Peak demand charge mitigation (25–35%); elimination of overflow events via seamless backup power during grid outages	UL 1741-SA compliance for grid-interactive safety; transfer time <20ms for critical process continuity; Modbus RTU/TCP integration with SCADA systems
HVAC & Process Cooling	Centrifugal chillers, cooling tower fans, and ventilation systems	30–50% reduction in HVAC energy costs via solar self-consumption; power factor correction >0.99 to avoid utility penalties	Total harmonic distortion (THD) <3% for sensitive electronic loads; BACnet integration for building automation; scalable modular architecture (50kW–500kW+) for plant expansion
Mining & Cement Processing	Remote crushing, grinding mills, and conveyor belt motor control	60–80% reduction in diesel genset runtime; regenerative braking energy capture when paired with VFDs for downhill conveying	Heavy-duty construction (IP54 minimum); vibration resistance (IEC 60068-2-6); wide operating temperature range (-20°C to +60°C); three-phase 480V output with 150% overload capacity for motor starting torque

Agricultural Irrigation & Solar Pumping Stations

In remote agricultural zones where grid infrastructure is unreliable or non-existent, hybrid solar inverter chargers serve as the central power management unit for VFD-driven pumping systems. When integrated with Boray’s specialized solar pump inverters, these configurations enable daytime solar pumping while storing excess energy in lithium-ion or lead-carbon battery banks for nighttime or cloudy-day operation. The critical engineering advantage lies in the inverter’s ability to provide stable three-phase power to VFDs, which in turn manage the high starting torque of submersible borehole pumps—eliminating the need for diesel generators during peak irrigation hours. EPC contractors should specify systems with wide DC input voltage ranges to accommodate seasonal solar irradiance variations, and ensure the hybrid inverter supports generator auto-start functionality for extended periods of low irradiance, maintaining continuous crop protection without manual intervention.

Water Treatment & Distribution Infrastructure

Municipal and industrial water facilities require 24/7 operational continuity to maintain regulatory compliance. Hybrid inverter chargers provide uninterruptible power supply (UPS) functionality for lift stations and filtration plants, automatically switching between solar, battery, and grid power without interrupting VFD-controlled pump sequences. This seamless transfer prevents the “water hammer” effect and pipeline damage caused by abrupt pump stops. From an energy management perspective, these systems enable peak shaving by discharging stored solar energy during utility demand charge windows (typically 2 PM–6 PM), reducing operational expenditures by 25–35%. Sourcing teams must prioritize inverters with anti-islanding protection and IEEE 1547 compliance to ensure safe grid interconnection, alongside galvanic isolation to protect sensitive PLC-based control systems from ground fault currents.

Industrial HVAC & Process Cooling

Heating, ventilation, and air conditioning (HVAC) systems represent 40–60% of total electrical consumption in manufacturing facilities. Hybrid solar inverter chargers optimize these loads by supplying solar energy directly to VFD-controlled chiller compressors and cooling tower fans, while maintaining grid connection for supplemental power. The integration is particularly effective for centrifugal chillers with high inrush currents; the hybrid inverter’s soft-start capability, combined with VFD ramp control, eliminates voltage sags that disrupt adjacent production equipment. Advanced units offer power factor correction and active harmonic filtering (<3% THD), ensuring compliance with IEEE 519 standards for industrial power quality. For EPCs, key procurement criteria include BACnet or Modbus communication protocols for integration with Building Management Systems (BMS), and modular scalability to support phased capacity upgrades as facility cooling demands grow.

Mining, Cement & Heavy Material Processing

In remote mining and cement operations, hybrid solar inverter chargers function as the backbone of hybrid microgrids, drastically reducing reliance on expensive diesel generation. These applications demand robust power electronics capable of withstanding harsh environments—dust, vibration, and extreme temperatures—while delivering stable 480V three-phase power to heavy-duty crushers and conveyor systems. When paired with VFDs, the hybrid system can capture regenerative braking energy from downhill conveyors, storing it in batteries for reuse rather than dissipating it as heat. The inverter must support 150% overload capacity for 60 seconds to accommodate the high starting currents of squirrel-cage induction motors driving ball mills and jaw crushers. Sourcing considerations should include IEC 60068-2-6 vibration certification, conformal coating for circuit boards (IPC-A-610 Class 3), and wide temperature derating curves to ensure continuous operation in ambient conditions exceeding 50°C.

Top 3 Engineering Pain Points for Hybrid Solar Inverter Charger

Scenario 1: Grid Instability and Seamless Transfer in Remote Agricultural Installations

The Problem:
In remote agricultural and industrial sites, weak grid infrastructure presents a critical engineering challenge for hybrid solar inverter chargers. Voltage sags, frequency fluctuations, and intermittent grid availability can cause traditional inverters to fail during transfer between grid-tie and off-grid modes, resulting in motor stoppage for critical pump systems. When powering high-inertia loads like deep-well submersible pumps or large-scale irrigation systems, even a 20ms transfer delay can cause contactor chattering, VFD fault codes, and complete system downtime. Additionally, the lack of grid-forming capabilities in standard hybrid units prevents stable operation during complete grid loss, leaving crops unwatered and industrial processes halted while batteries deplete prematurely due to inefficient load management.

The Solution:
Deploy hybrid solar inverter chargers with zero-transfer-time switching technology and grid-forming inverter architecture specifically designed for motor control applications. Specify units featuring wide MPPT voltage ranges (150VDC–450VDC or higher) to accommodate varying solar irradiance while maintaining stable 380V/440V three-phase output for industrial pumps. Advanced models should incorporate VFD-compatible output stages that provide soft-start functionality, reducing inrush current by up to 70% when starting pump motors and eliminating water hammer in pipeline systems. Ensure the system includes programmable relay outputs for diesel generator integration, anti-islanding protection compliant with IEEE 1547/IEC 62116 standards, and configurable power prioritization logic that automatically switches between solar, battery, and grid sources without interrupting motor torque output.

Scenario 2: Battery Chemistry Compatibility and Cyclic Charging Management

The Problem:
Modern agricultural automation and industrial backup systems increasingly utilize lithium iron phosphate (LiFePO4) batteries for their energy density and cycle life, yet many hybrid inverter chargers employ outdated charging algorithms designed solely for lead-acid chemistry. This mismatch results in chronic undercharging, cell imbalance, and premature battery failure—particularly problematic in solar pumping applications where batteries must provide surge power for motor starting and store excess solar energy during peak irradiance. Without precise temperature compensation and multi-stage charging profiles (Bulk, Absorption, Float, and Equalization), battery banks in harsh outdoor environments suffer from thermal runaway or sulfation. The inability to communicate with Battery Management Systems (BMS) further risks overcurrent situations when high-torque pump motors demand sudden current surges exceeding the battery’s continuous discharge rating.

The Solution:
Specify hybrid inverter chargers with universal battery compatibility, including dedicated LiFePO4 charging profiles with active BMS communication protocols (RS485/CAN bus) that monitor individual cell voltages and temperatures. The ideal system should feature adaptive charging logic with temperature coefficients of ±3mV/°C per cell, automatically adjusting charge rates based on ambient conditions (-20°C to +60°C operating range). For solar pump integration, select inverters with dual MPPT inputs and intelligent load prioritization algorithms—directing solar energy first to motor loads, then to battery charging, and finally to grid export. Look for units with programmable charge current limits (0–100% adjustable) and surge power ratings (2–3x nominal for 10 seconds) to accommodate pump motor locked-rotor currents without triggering battery protection disconnects, ensuring continuous irrigation cycles even during fluctuating solar conditions.

Scenario 3: Environmental Harshness and Thermal Management in Outdoor Installations

The Problem:
Standard hybrid inverters rated for IP20 or IP54 deployment frequently fail in agricultural and industrial environments where dust infiltration, humidity, and temperature extremes are constant threats. When installed in pump houses, irrigation fields, or remote telemetry stations, inadequate ingress protection leads to PCB corrosion, cooling fan blockage from crop debris, and condensation-induced short circuits during early morning temperature swings. High ambient temperatures (45°C+) combined with full-load operation cause thermal derating, forcing inverters to reduce output precisely when solar generation is at its peak and pump demand is highest. This thermal throttling results in insufficient flow rates, incomplete irrigation cycles, and reduced motor efficiency as VFDs struggle to maintain constant V/Hz ratios under voltage sag conditions caused by overheated power electronics.

The Solution:
Engineer systems around fully enclosed hybrid solar inverter chargers with IP65 or IP66 ratings, utilizing passive cooling or sealed heat-sink designs that eliminate fan-related failure points and resist high-pressure water jets used in agricultural cleaning. Specify conformal-coated circuit boards resistant to salt spray, ammonia (from livestock operations), and agricultural chemicals (fertilizers, pesticides). For high-temperature environments, select units with wide operating temperature ranges (-25°C to +60°C) and automatic derating curves that maintain full power output up to 45°C ambient. Integration with variable frequency drive (VFD) technology further reduces thermal load by optimizing motor current draw and power factor correction (PFC), while remote monitoring capabilities (Modbus TCP/IP or 4G connectivity) provide real-time thermal diagnostics and predictive maintenance alerts for cleaning heat sinks before critical failures occur during peak growing seasons.

Component and Hardware Analysis for Hybrid Solar Inverter Charger

At the core of every hybrid solar inverter charger lies a sophisticated interplay of power electronics, thermal management, and intelligent control systems. For industrial engineers and EPC contractors deploying solar pumping stations or hybrid motor control solutions, understanding these internal architectures is critical—not merely for specification compliance, but for predicting long-term operational expenditure and system availability in harsh agricultural or factory environments.

Power Semiconductor Topology

The conversion efficiency and transient response of hybrid inverters depend fundamentally on the switching devices employed. Modern units utilize Insulated Gate Bipolar Transistors (IGBTs) or emerging Silicon Carbide (SiC) MOSFETs in H-bridge or three-level NPC (Neutral Point Clamped) configurations. In solar pumping applications where VFD-like motor control is required, these modules must handle high dv/dt stresses while maintaining switching frequencies between 4–16 kHz to minimize audible noise and motor bearing currents.

Critical Specification: Look for modules with junction temperatures rated to 175°C (Tj(max)) and integrated NTC thermistors for real-time thermal monitoring. Industrial-grade IGBT modules from manufacturers like Infineon or Mitsubishi Electric offer short-circuit withstand times (SCWT) exceeding 10μs—essential for surviving transformer inrush currents or pump cavitation events.

Digital Signal Processing & MPPT Architecture

The Digital Signal Processor (DSP) or ARM-based microcontroller serves as the system’s central nervous system, executing multiple control loops simultaneously: Maximum Power Point Tracking (MPPT) for PV arrays, battery charge management (CC-CV-CF algorithms), and grid-forming or grid-following inverter control. For agricultural pump systems, the DSP must also coordinate with external VFDs or manage direct-drive pump motors via embedded variable frequency algorithms.

High-reliability designs employ dual-core lockstep processors with ECC (Error Correction Code) memory to prevent single-event upsets from cosmic radiation or EMI in remote installations. The MPPT algorithm should demonstrate >99% tracking efficiency with scan rates under 500ms to capture rapid irradiance changes caused by passing clouds over irrigation fields.

Passive Component Engineering

DC-Link Capacitors buffer the ripple current between the PV array, battery bank, and inverter stage. While consumer-grade inverters often use aluminum electrolytic capacitors, industrial hybrid chargers for pumping applications should utilize metallized polypropylene film capacitors or hybrid electrolytic-film constructions. Film capacitors offer 100,000+ hour lifespans at rated voltage and 70°C ambient, compared to 2,000–5,000 hours for standard electrolytics under ripple current stress.

Magnetic Components—including inverter transformers, common-mode chokes, and output inductors—require grain-oriented silicon steel or amorphous metal cores to minimize hysteresis losses. In three-phase pump applications, the output inductance must be carefully calculated to limit current ripple (<5%) and prevent motor derating.

Thermal Management & Mechanical Integrity

Thermal design directly correlates with semiconductor lifespan. Hybrid inverters utilize aluminum extrusion heatsinks with forced air cooling (variable-speed fans) or, in premium industrial units, liquid-cooled cold plates for installations in NEMA 3R/4X enclosures. The thermal interface material (TIM) between IGBT modules and heatsinks should maintain <0.3°C-in²/W thermal resistance.

Variable-speed fan control—referenced in advanced PMA-series designs—reduces mechanical wear by operating fans only when junction temperatures exceed 60°C, extending fan bearing life from 30,000 hours to over 60,000 hours. For agricultural deployments in dusty environments, positive-pressure ventilation with IP65-rated filters prevents dust ingress that would otherwise insulate heatsinks and cause thermal runaway.

Component Analysis Matrix

Component	Function	Quality Indicator	Impact on Lifespan
IGBT Power Module	DC/AC conversion with PWM control; handles motor inrush currents	Junction temp rating ≥175°C; SCWT ≥10μs; VCE(sat) <1.7V	Every 10°C reduction in operating temperature doubles lifespan; critical for pump start-stop cycles
DSP/MPPT Controller	Executes control algorithms; manages battery charging profiles; VFD coordination	Dual-core lockstep architecture; 32-bit floating-point precision; <500ms MPPT tracking	Prevents control lockups that cause overvoltage faults; ensures optimal energy harvest reducing battery cycle stress
DC-Link Capacitor Bank	Filters ripple current; stabilizes DC bus voltage during load transients	Metallized film construction; ESR <2mΩ; 100,000 hrs @ 70°C rating	Film capacitors last 20x longer than electrolytics in solar pumping duty cycles; prevents catastrophic bus collapse
Magnetics (Choke/Transformer)	Output filtering; galvanic isolation; EMI suppression	Amorphous or GOSS cores; copper windings with 200°C insulation class	Core losses <3W/kg at 20kHz prevent thermal degradation; maintains output waveform purity for sensitive pump motors
Thermal Management System	Maintains semiconductor junction temperatures within safe operating area	Variable-speed fan with 60,000+ hr bearing life; heatsink thermal resistance <0.5°C/W	Directly determines semiconductor aging rate; dust-resistant IP65 design prevents 30% capacity degradation in agricultural environments
Protection Circuitry	Surge protection (SPD); EMI filtering; ground fault detection	Type 2 SPD per IEC 61643-11; common-mode choke impedance >1mΩ @ 1MHz	Prevents lightning-induced failures in remote pump stations; reduces insulation stress on motor windings
Communication Interface	Remote monitoring; SCADA integration; VFD synchronization	RS485/CAN bus with Modbus RTU; Ethernet with Modbus TCP; galvanic isolation	Enables predictive maintenance; prevents operational conflicts between inverter and external motor drives

Integration Considerations for Pumping & Motor Control

When deploying hybrid inverters in solar pumping systems that interface with existing VFD infrastructure, hardware compatibility extends beyond electrical specifications. The inverter’s output waveform quality (THD <3%) prevents VFD input rectifier overheating, while its surge capacity (typically 2x rated current for 60 seconds) must accommodate the high starting torque requirements of submersible pumps.

Battery management hardware should include temperature-compensated charging (–3mV/°C/cell for lead-acid; strict 0–45°C operating window for LiFePO4) to prevent thermal runaway in outdoor agricultural cabinets. For systems utilizing Boray’s solar pump inverter technology in conjunction with hybrid chargers, ensure the DC bus voltage ranges align—typically 400VDC nominal for 3-phase pumps—to avoid additional conversion stages that introduce efficiency losses.

The selection of these components determines not only the initial CAPEX but the Levelized Cost of Energy (LCOE) over 20+ year project lifespans. Industrial engineers should verify that component derating factors (typically 70% of maximum ratings for semiconductors, 50% for capacitors) are applied consistently across the hardware stack to achieve the 98%+ availability rates demanded by agricultural irrigation and industrial process applications.

Manufacturing Standards and Testing QC for Hybrid Solar Inverter Charger

Hybrid solar inverter chargers deployed in industrial automation and agricultural solar pumping systems operate in electrically hostile environments—exposed to harmonic loads, temperature extremes, humidity, and dust. For EPC contractors and system integrators, manufacturing rigor determines whether an installation delivers 25 years of service or fails within the first monsoon season. At Boray Inverter, our quality assurance protocols for hybrid solar inverter chargers mirror the same standards applied to our heavy-duty solar pump VFDs: industrial-grade component selection, 100% functional burn-in, and compliance with stringent international safety frameworks.

PCB Conformal Coating and Environmental Protection

In agricultural and industrial settings, inverter electronics face corrosive atmospheres, condensation, and conductive dust. Our manufacturing process employs automated selective conformal coating (acrylic or polyurethane-based, 25–75 µm thickness) on all PCBs, covering solder joints, traces, and components to IPC-A-610 Class 3 standards. This protective layer provides:
– Moisture and chemical resistance against fertilizer vapors and high-humidity irrigation zones
– Dielectric strength >1500V to prevent arc tracking between high-voltage traces
– Thermal conductivity management when paired with aluminum substrate PCBs used in power sections

For outdoor installations common in solar pumping stations, enclosures undergo IP65 validation testing, ensuring complete dust ingress protection and resistance to low-pressure water jets—critical when mounting near sprinkler systems or in dusty agricultural fields.

Certification Framework and International Standards

Manufacturing facilities maintain ISO 9001:2015 quality management systems with dedicated production lines for solar inverter chargers. Compliance testing adheres to:
– IEC 62109-1 & -2: Safety requirements for power converters used in photovoltaic systems, including protection against electric shock, energy hazards, and fire risks
– IEC 62040-1: Uninterruptible power systems (UPS) safety standards applicable to hybrid inverter charger functionality
– CE Marking: Full compliance with the Low Voltage Directive (LVD) 2014/35/EU and Electromagnetic Compatibility (EMC) Directive 2014/30/EU
– RoHS 3 & REACH: Restricted substance control for environmental sustainability in European and North American markets

For motor control integration, units undergo additional testing against IEC 61800-3 (adjustable speed electrical power drive systems) to ensure electromagnetic compatibility when operating alongside VFDs and soft starters in shared electrical rooms.

100% Production Testing and Burn-In Protocols

Unlike consumer-grade electronics that rely on statistical sampling, every hybrid solar inverter charger undergoes 100% full-load burn-in testing before shipment. Our multi-stage QC protocol includes:

High-Temperature Aging (HTA): Units operate at 110% rated load for 48–72 hours in 45°C ambient chambers, simulating desert installation conditions. This screens for infant mortality in capacitors, IGBT modules, and control ICs.

Thermal Cycling: Rapid temperature transitions (-20°C to +60°C) verify solder joint integrity and thermal interface material (TIM) effectiveness under expansion/contraction stress.

Full-Load Efficiency Verification: Each unit is tested at 25%, 50%, 75%, and 100% load points to confirm conversion efficiency >95% (peak) and <3% THDi (Total Harmonic Distortion of Input Current), ensuring compatibility with sensitive agricultural pump motors.

Protection Function Testing: Automated test rigs simulate grid faults, battery overvoltage, short circuits, and anti-islanding conditions to verify relay response times <100ms and firmware protection logic.

Component Traceability and Supply Chain Control

For industrial projects requiring 20-year operational lifespans, component provenance is non-negotiable. We maintain full lot traceability for critical semiconductors (IGBTs from Infineon or Mitsubishi, film capacitors from EPCOS/TDK) and magnetics. All magnetic components undergo HI-POT testing (1500VAC, 60 seconds) to verify insulation integrity. Battery management system (BMS) communication ports are tested for compatibility with lithium iron phosphate (LiFePO4) and lead-acid chemistries, ensuring seamless integration with modern solar storage systems.

Integration Testing with VFD and Motor Control Systems

Given Boray’s specialization in solar pump inverters and motor control, hybrid units undergo system-level integration testing with our VFD product lines. This includes:
– Harmonic resonance testing when hybrid inverters feed VFD loads to prevent beat frequencies
– MPPT algorithm validation under rapidly changing irradiance (simulating cloud transients) to ensure stable DC bus voltage for downstream motor drives
– Generator compatibility testing for off-grid agricultural systems, verifying seamless switching between solar, battery, and backup diesel generator inputs without motor torque disruption

Factory Acceptance Testing (FAT) Documentation

For EPC contractors and project financiers, we provide comprehensive FAT packages including:
– Individual unit test reports with serial-number traceability
– Thermal imaging records from full-load testing
– EMC test certificates (conducted and radiated emissions)
– Material composition declarations and conflict mineral reports
– IP rating validation certificates from third-party laboratories

This documentation supports bankability assessments and grid-connection approvals, reducing project commissioning timelines by ensuring field-ready reliability from the first power-on event.

By applying VFD-grade manufacturing discipline to hybrid solar inverter chargers—including conformal coating, 100% burn-in, and IEC-certified safety architectures—Boray Inverter ensures these systems withstand the mechanical vibration, thermal stress, and electrical noise inherent in industrial solar pumping and automation applications.

Step-by-Step Engineering Sizing Checklist for Hybrid Solar Inverter Charger

Proper sizing of a hybrid solar inverter charger requires rigorous electrical analysis beyond simple wattage matching. For industrial and agricultural deployments—particularly those integrating motor loads, solar pumping, or existing VFD infrastructure—engineers must verify compatibility across DC generation, energy storage, and AC distribution domains. The following checklist provides a systematic framework for specifying equipment that ensures reliable operation, maximizes MPPT efficiency, and protects downstream motor control systems.

Step 1: Load Profile & Motor Capacity Analysis
Begin with a granular assessment of connected loads, distinguishing between resistive, inductive, and non-linear loads. For motor-driven applications (pumps, compressors, conveyors):
– Calculate Inrush Demands: Verify the inverter’s surge capacity (typically 2–3x rated power for 10 seconds) against motor Locked Rotor Amps (LRA). For VFD-driven motors, inrush is managed by the drive, but the inverter must supply the drive’s input current without voltage sag.
– Power Factor Correction: Industrial loads often present 0.7–0.8 lagging power factor. Size the inverter’s kVA rating, not just kW, using:
$\text{Required kVA} = \frac{\text{Load kW}}{\text{Power Factor}}$
– Harmonic Content: If connecting VFDs directly to the inverter output, account for harmonic distortion (THDi). Specify inverters with <3% THD or plan for external line reactors.

Step 2: PV Array String Voltage & Current Calculations
Hybrid inverters operate within specific MPPT voltage windows. Incorrect string sizing causes clipping or shutdown during temperature extremes.
– Open Circuit Voltage (Voc): Calculate maximum array voltage at record low temperatures using temperature coefficients (typically -0.3%/°C to -0.5%/°C). Ensure:
$\text{Voc}_{\text{max}} \times \text{Module Count} \times \text{Temp Coefficient} < \text{Inverter Max DC Input Voltage}$
– MPPT Operating Range: Verify that $\text{Vmp}$ at standard test conditions (STC) falls within the inverter’s MPPT window. For 150VDC-class inverters, typical configurations use 3–4 series modules; for 600VDC commercial units, 10–14 modules.
– Current Capacity: Sum parallel string currents ($\text{Isc} \times 1.25$ safety factor) to ensure they do not exceed the inverter’s maximum short-circuit current rating per MPPT input.

Step 3: Battery Bank Voltage & Chemistry Alignment
The battery voltage determines the DC bus architecture and directly impacts inverter efficiency curves.
– Voltage Nominal: Match battery bank voltage (48V, 400V, etc.) to the inverter’s battery input range. Industrial solar pumping systems often utilize 380V–480V DC buses to minimize copper losses over long cable runs.
– Chemistry Protocols: Verify BMS communication protocols (CAN, RS485) for lithium iron phosphate (LiFePO4) batteries. Lead-acid configurations require temperature-compensated charging curves (typically -3mV/°C/cell).
– Peak Power Support: Calculate battery discharge C-rate to support motor starting surges. For a 10HP (7.5kW) pump motor with 3x inrush:
$\text{Battery Power} = \frac{22.5\text{kW}}{\text{Battery Voltage} \times \text{Inverter Efficiency}}$
Ensure the battery C-rate (typically 0.5C–1C for LiFePO4) can deliver this without voltage collapse.

Step 4: AC Output Configuration & Phase Balance
– Voltage & Phase: Confirm split-phase (120/240V), three-phase (208V, 480V), or single-phase output matches site requirements. Agricultural pump stations often require 480V three-phase; verify the inverter supports phase balancing if running single-phase loads on a three-phase output.
– Frequency Stability: For VFD synchronization, ensure inverter output frequency stability of ±0.5% under varying solar irradiance to prevent drive fault codes (F003, F004 on common VFD platforms).

Step 5: Charger Sizing & Generator Integration
– Charge Current: Size the charger capacity to replenish daily depth of discharge (DoD) within available solar hours. For off-grid systems with backup generators, verify the inverter’s AC input current rating supports the generator’s output without overload.
– Charge Stages: Program bulk, absorption, and float voltages specific to battery chemistry. For industrial lead-acid traction batteries, absorption voltage typically ranges 2.4–2.45V/cell.

Step 6: Environmental Derating & Thermal Management
– Temperature Derating: Inverter output current derates approximately 1.5% per °C above 40°C. For desert agricultural installations, size the inverter at 125% of calculated load to maintain rated output at 50°C ambient.
– Altitude Correction: Above 1000m, derate capacity by 1% per 100m due to reduced air cooling density.
– Ingress Protection: Specify IP65 or higher for outdoor agricultural environments; IP20 is acceptable for controlled electrical rooms.

Step 7: Motor Control Integration & Protection Coordination
When integrating with existing VFD infrastructure or solar pump controllers:
– DC Coupling vs. AC Coupling: For maximum efficiency in solar pumping, consider DC-coupled configurations where PV feeds the DC bus directly, bypassing inverter conversion losses. Verify the hybrid inverter supports direct DC injection or utilize Boray’s dedicated solar pump inverter series for such applications.
– Regenerative Energy: If motors undergo frequent braking, verify the inverter can absorb regenerative energy back to batteries or dissipate via braking resistors.
– Ground Fault Protection: For PV arrays >150V, utilize transformerless inverters with ground fault detection and interruption (GFDI) per NEC 690.41.

Step 8: Compliance & Verification
– Grid Codes: Verify IEEE 1547, UL 1741, or IEC 62109-1 compliance for grid-tie functionality. Off-grid industrial systems require UL 458 (power converters) certification.
– Motor Protection: Coordinate overload settings between inverter output breakers and motor thermal overloads. Time-current curves should show a 20% margin between inverter trip points and motor FLA.

Final Verification Checklist:
– [ ] Voc_max at -10°C < Inverter absolute maximum DC voltage
– [ ] Vmp at +50°C > Inverter minimum MPPT voltage
– [ ] Inverter continuous power > 1.25 × sum of simultaneous motor loads
– [ ] Battery C-rate > 2 × calculated average discharge current
– [ ] THD < 5% for sensitive VFD loads
– [ ] Surge capacity > Largest motor LRA / Power Factor

Note: For complex agricultural or industrial automation projects involving multiple motor control centers (MCCs), consider segregating critical pump loads onto dedicated solar pump inverters (such as Boray’s VFD-compatible solar pumping solutions) while utilizing hybrid inverters for facility power, optimizing both capital expenditure and system efficiency.

Wholesale Cost and Energy ROI Analysis for Hybrid Solar Inverter Charger

When evaluating hybrid solar inverter chargers for industrial microgrids, agricultural pumping stations, or automated processing facilities, procurement decisions extend far beyond unit acquisition costs. For EPC contractors and automation distributors, understanding the wholesale pricing architecture and energy return on investment (ROI) requires analyzing integration compatibility with existing Variable Frequency Drive (VFD) infrastructure, duty cycle requirements, and total lifecycle ownership costs.

Wholesale Pricing Architecture and Volume Tiers

The hybrid inverter charger market exhibits significant price stratification based on power capacity, phase configuration, and grid-interactive capabilities. Entry-level single-phase units (3–5 kW) typically wholesale between $650–$850 per unit at distributor volumes (25+ units), aligning with the $699–$799 retail benchmarks seen in consumer markets. However, industrial-grade three-phase hybrid inverters (15–30 kW) suitable for agricultural irrigation or factory auxiliary power systems command wholesale pricing between $3,200–$8,500, depending on PV input capacity and battery chemistry compatibility.

For EPC contractors managing solar pumping projects, volume procurement strategies should consider tiered breakpoints:
– Tier 1 (1–9 units): Standard distributor pricing, approximately 15–20% below MSRP
– Tier 2 (10–24 units): Project pricing with 22–28% volume discounts
– Tier 3 (25+ units/OEM partnerships): Direct manufacturer pricing with custom firmware options for VFD synchronization

Notably, units featuring advanced MPPT algorithms and split-phase output (120V/240V) for compatibility with standard pump motors carry a 12–18% premium over basic off-grid models but deliver superior ROI through enhanced motor control integration.

Energy ROI Modeling for Industrial Applications

The financial viability of hybrid inverter chargers in B2B contexts hinges on displacement of peak demand charges and diesel generator runtime reduction. For agricultural operations running 7.5–15 kW submersible pumps with VFD control, a properly sized 12 kW hybrid inverter system can deliver calculated IRR (Internal Rate of Return) between 18–24% over a 10-year operational period.

Sample ROI Calculation Framework:
– System Cost: $4,500 (hybrid inverter) + $8,200 (battery storage) + $3,100 (installation)
– Annual Energy Savings: $2,400 (peak shaving) + $1,800 (generator fuel displacement)
– Maintenance Reserve: $180/year (0.025% of hardware cost)
– Simple Payback: 3.2 years
– 10-Year NPV: $14,200 (at 6% discount rate)

In solar pumping applications specifically, hybrid configurations enable 24-hour irrigation cycles by storing excess PV generation during daylight hours to power VFD-driven pumps during evening tariff periods. This arbitrage between solar generation ($0.04–$0.06/kWh LCOE) versus peak grid rates ($0.18–$0.32/kWh) creates the primary value proposition for agricultural project managers.

Integration with Motor Control Systems

From an electrical engineering perspective, hybrid inverter chargers function most efficiently when specified as part of integrated motor control ecosystems. Modern units featuring CAN bus or RS485 Modbus communication can synchronize with Boray’s solar pump inverter VFDs to optimize pump ramp rates based on available PV generation and battery state-of-charge (SOC).

Critical specification parameters affecting both cost and ROI include:
– Surge Capacity: 3× rated power for 10 seconds (essential for submersible pump starting torque)
– THD (Total Harmonic Distortion): <3% to prevent VFD communication errors
– DC Voltage Range: 150–600Vdc to accommodate string configurations common in agricultural installations

Systems lacking these industrial specifications may carry lower upfront costs ($1,600–$2,200 range) but incur hidden expenses through reduced motor lifespan and increased VFD fault conditions.

Warranty Cost Analysis and TCO Considerations

Warranty structures significantly impact long-term procurement economics. Standard manufacturer warranties range from 5–10 years on power electronics, with premium extensions available for harsh environment deployments (IP65-rated enclosures for agricultural dust/moisture exposure).

TCO Calculation Factors:
– Replacement Reserve: Budget 2.5% annually for inverter replacement after year 12
– Efficiency Degradation: 0.5% annual loss in conversion efficiency (98.2% → 93% over 10 years)
– Compatibility Risk: Ensure battery communication protocols (CAN, RS485, or proprietary BMS) match existing automation infrastructure to avoid $800–$1,200 integration retrofit costs

For distributors, offering extended warranty packages (10–15 years) at 8–12% of hardware cost provides margin protection while addressing EPC contractor risk management requirements. Agricultural projects particularly benefit from comprehensive coverage given the exposure of outdoor installations to temperature cycling and humidity.

Strategic Procurement Recommendations

When specifying hybrid inverter chargers for industrial automation or solar pumping projects, prioritize units with programmable dry contacts and analog inputs (0–10V/4–20mA) to enable seamless VFD interlocking. The incremental $400–$600 cost for industrial communication capabilities typically pays back within 8 months through optimized pump scheduling and reduced mechanical stress on motor bearings.

For volume procurement, negotiate container-level pricing (40+ units) that includes factory firmware customization for specific VFD protocols. This approach reduces field commissioning time by 30–40% and eliminates compatibility-related service calls that erode project margins.

Ultimately, the most cost-effective hybrid inverter deployment treats the unit not as a standalone component, but as the intelligent power hub within a synchronized solar pumping and motor control architecture—where energy savings, equipment longevity, and operational flexibility generate compounding returns exceeding simple electricity cost arbitrage.

Alternatives Comparison: Is Hybrid Solar Inverter Charger the Best Choice?

When specifying power conversion equipment for agricultural irrigation or industrial process systems, engineers face a critical architectural decision: whether to deploy integrated hybrid solar inverter chargers (battery-centric AC systems) or dedicated motor control solutions optimized for direct PV-to-pump operation. While residential-grade all-in-one units—such as the PowerMax PMA series or EG4 hybrid platforms—offer compelling simplicity for small-scale energy storage, industrial applications require rigorous analysis of motor dynamics, harmonic distortion, and total cost of ownership (TCO).

The following technical comparison evaluates hybrid solar inverter chargers against specialized alternatives across four critical decision vectors: energy coupling architecture, motor starting methodology, prime mover technology, and grid dependency strategies.

1. System Architecture: Hybrid Inverter vs. Dedicated Solar Pump VFD

The fundamental distinction lies in power flow topology. Hybrid solar inverter chargers prioritize bidirectional energy management between PV arrays, battery banks, and AC loads, utilizing grid-forming inverters to maintain voltage stability. Conversely, specialized solar pump Variable Frequency Drives (VFDs) eliminate battery dependencies by directly converting DC solar input to variable-frequency AC optimized for motor torque requirements.

Parameter	Hybrid Solar Inverter Charger (e.g., EG4 6000XP, Sol-Ark SA-12K)	Dedicated Solar Pump VFD (e.g., Boray PV Series)	Engineering Implication
Primary Function	AC energy management with ESS integration	Direct DC-to-AC motor control with MPPT	Hybrid systems add 15-20% energy conversion losses; VFDs maximize PV-to-mechanical efficiency
MPPT Algorithm	Battery charging optimization (C/10-C/5 rates)	Motor torque curve tracking (P-V curve pumping)	Pump VFDs utilize specialized maximum power point tracking for centrifugal load profiles
Starting Torque Capability	Limited by battery C-rate and inverter surge capacity (typically 110-150% for 10s)	150-200% rated torque via V/Hz or Sensorless Vector Control (SVC)	Critical for borehole pumps with high static head requirements
THDi (Total Harmonic Distortion)	<5% (IEEE 1547 grid-tie standard)	<3% with integrated DC chokes	Lower THDi reduces motor heating and extends insulation life in submersible applications
Enclosure Rating	IP20-IP65 (indoor/constrained outdoor)	IP65/IP66 (NEMA 4X) with anti-UV housing	Agricultural environments demand washdown-capable protection
CAPEX per kW (System Level)	$800–$1,200 (including LiFePO4 batteries)	$150–$300 (direct drive, no storage)	Battery costs dominate hybrid economics; VFDs offer 3-5 year payback for pure pumping
Motor Compatibility	Standard AC induction motors	AC induction (IM), Permanent Magnet Synchronous (PMSM), Brushless DC (BLDC)	PMSM compatibility requires precise vector control unavailable in basic hybrid units

2. Motor Starting Methodology: VFD vs. Soft Starter

For large-scale agricultural pumps (>15kW), the starting methodology significantly impacts infrastructure costs and solar array sizing. While hybrid inverters can power pumps, they lack the sophisticated motor control algorithms necessary for high-inertia starting.

Characteristic	VFD Control	Soft Starter	Direct Online (DOL)
Starting Current	100-150% FLA (variable)	300-400% FLA (current ramp)	600-800% FLA
Starting Torque	Adjustable (0-200%)	50-150% (voltage dependent)	Fixed (breakdown torque)
Speed Control	10-100% (variable flow)	Fixed speed only	Fixed speed only
Solar Compatibility	Native DC input (150-800Vdc)	Requires full AC bus (battery-backed)	Requires stable AC grid or large battery bank
Energy Savings	30-50% (affinity laws)	10-15% (reduced inrush only)	None
Cost Premium	Baseline	-20% vs VFD	-40% vs VFD

Strategic Recommendation: Soft starters represent a false economy in solar pumping applications. While they reduce starting inrush, they sacrifice the flow-control energy savings that justify solar PV capital expenditure. Hybrid inverters paired with soft starters require oversized battery banks to handle motor inrush, negating cost advantages.

3. Prime Mover Technology: PMSM vs. Induction Motor (IM)

Motor selection fundamentally impacts the viability of hybrid inverter chargers versus dedicated VFDs. Permanent Magnet Synchronous Motors (PMSMs) offer superior efficiency but impose stringent control requirements.

Specification	PMSM (Rare-Earth/ Ferrite)	Induction Motor (IM)
Full-Load Efficiency	93-96% (IE5/IE4)	85-90% (IE3)
Power Factor	0.95-0.99 (unity capable)	0.80-0.85 (lagging)
VFD Requirement	Mandatory (requires rotor position sensing or high-frequency injection)	Recommended but not mandatory
Hybrid Inverter Compatibility	Poor (lacks precise vector control; risk of demagnetization)	Good (standard V/Hz sufficient)
Partial Load Efficiency	Maintains >90% down to 25% load	Drops to 70-75% at 50% load
Capital Cost	+30-50% vs IM	Baseline

Critical Insight: Hybrid solar inverter chargers lack the closed-loop vector control necessary for PMSM stability. Projects specifying high-efficiency PMSM pumps (common in solar-powered drip irrigation) must deploy dedicated solar pump VFDs with encoderless vector control or resolver feedback interfaces.

4. Energy Source Strategy: Solar-Direct vs. Hybrid Storage vs. Grid-Only

Architecture	Solar-Direct VFD	Hybrid Inverter + Battery	Grid-Only with VFD
Energy Independence	Daylight only (water storage buffering)	24/7 (battery limited)	Grid dependent
LCOE (Levelized Cost)	$0.03-0.08/kWh	$0.15-0.25/kWh (battery replacement cycle)	$0.10-0.20/kWh (regional dependent)
System Complexity	Low (no batteries, no BMS)	High (BMS, thermal management, inverter coordination)	Medium
Scalability	Modular (add PV panels)	Limited by battery charging rate	Unlimited
Maintenance	Minimal (brushless)	High (battery monitoring, replacement q5-10 years)	Medium
Best Application	Irrigation with water tank storage	Critical livestock watering (no storage tank)	Grid-stable regions with net metering

Decision Matrix for EPC Contractors

Choose Hybrid Solar Inverter Chargers when:
– The application requires 24/7 pumping with no water storage capacity (livestock troughs)
– Grid backup is mandatory for critical process cooling
– Existing AC infrastructure cannot be rewired for DC-coupled solar VFDs

Choose Dedicated Solar Pump VFDs when:
– Daily water volume can be stored in tanks/ponds (standard agricultural practice)
– PMSM motors are specified for maximum efficiency
– Project budget constraints prohibit battery replacement cycles
– Remote locations make battery maintenance logistically prohibitive

Avoid Hybrid Inverters for Motor Control when:
– Pump motors exceed 10kW and require high-breakaway torque
– Ambient temperatures exceed 45°C (battery thermal derating conflicts with motor cooling)
– Water hammer protection requires precise deceleration ramping (hybrid inverters lack programmable S-curves)

Conclusion

For industrial and agricultural pumping applications, **hybrid

Core Technical Specifications and Control Terms for Hybrid Solar Inverter Charger

When specifying hybrid solar inverter chargers for industrial and agricultural deployments, engineers must evaluate both the power electronics architecture and the commercial framework governing cross-border procurement. The following parameters and trade definitions govern system compatibility, motor control performance, and supply chain risk allocation for large-scale PV-diesel-battery hybrid installations.

MPPT Architecture and PV Input Characteristics

Maximum Power Point Tracking (MPPT) efficiency dictates the economic viability of solar pumping and C&I (Commercial & Industrial) storage projects. For hybrid inverters serving motor control applications, specify:

• Tracking Efficiency: ≥99.9% with dynamic voltage scanning algorithms to handle rapid irradiance changes caused by cloud transience in agricultural fields.
• Voltage Operating Windows: Wide DC input ranges (e.g., 200–1000 VDC for 48V battery systems) accommodate both high-string-count crystalline modules and thin-film arrays without requiring string rewiring.
• Multi-MPPT Topology: Dual or triple independent MPPT inputs allow east-west tilt configurations or mixed module types on the same inverter, critical for maximizing yield in irregular farm terrain or factory roofscapes with multiple orientations.
• Startup Voltage: Low V_start (typically 150–200VDC) ensures early morning pump priming and extended irrigation windows.

Vector Control (FOC) for Motor Drive Integration

Leveraging Boray’s VFD heritage, hybrid inverters destined for pumping and ventilation loads should incorporate Field-Oriented Control (FOC) or sensorless vector control on the AC output stage:

• Torque Decoupling: Flux and torque current components are regulated independently, delivering 150% rated torque at 0.5 Hz for submersible pump startup without water hammer.
• Speed Regulation Accuracy: ±0.5% static accuracy and dynamic response times <50ms ensure stable flow rates in drip irrigation systems despite solar irradiance fluctuations.
• V/Hz vs. Vector Mode: While simple fan loads tolerate scalar V/Hz control, deep-well pumps require closed-loop vector algorithms to maintain constant torque across the 30–60 Hz operational spectrum.

PID Control Loops for Process Automation

For Solar Pump Inverter applications within hybrid systems, integrated Proportional-Integral-Derivative (PID) controllers eliminate external PLCs:

• Pressure Transducer Feedback: 4–20 mA or 0–10V inputs from pipeline sensors enable constant-pressure mode; the inverter automatically modulates pump speed to maintain setpoints (e.g., 3.5 bar) regardless of sun intensity or grid availability.
• Sleep/Wake Logic: Programmable thresholds pause the pump at low irradiance (preventing dry-running) and restart when PV power exceeds the wake-up threshold, protecting mechanical seals and reducing nocturnal battery drain.
• Cascade Control: Master-slave PID configurations allow multiple pumps to stage on/off based on reservoir level and flow demand, optimizing energy storage versus immediate consumption.

Battery Management and Hybrid Topology

• Chemistry Compatibility: BMS communication protocols (CAN2.0B, RS485 Modbus) must support LiFePO₄ (LFP) and NMC lithium chemistries, as well as legacy lead-acid (AGM/GEL) for retrofit projects. Charge profiles should include Bulk, Absorption, Float, and Equalization stages.
• Charge/Discharge Rates: C-rate specifications (typically 0.5C–1C continuous) determine how quickly the inverter can source power for motor starting surges (5–7× FLA) without battery voltage sag.
• Grid-Tie vs. Off-Grid: Anti-islanding protection (UL1741/IEC62109) and voltage/frequency ride-through (VRT/FRT) capabilities ensure compliance with utility interconnection standards while providing seamless 0ms transfer to battery backup for critical irrigation or factory loads.

Output Power Quality and Protection

• THDi (Total Harmonic Distortion): <3% current distortion at rated load to prevent transformer overheating in rural distribution networks.
• IP Rating: IP65 or NEMA 4X enclosures mandatory for outdoor agricultural environments; forced-air cooling with variable-speed fans (as seen in PMA-series designs) reduces noise and extends electrolytic capacitor life.
• Surge Protection: Type II SPD on both DC (PV) and AC (grid/load) sides, with 20kA+ surge current capacity to withstand lightning-induced transients in open-field installations.

International Commercial Terms (Incoterms 2020)

For EPC contractors and distributors sourcing from Chinese manufacturers like Boray, precise Incoterms allocation determines cost and risk transfer:

• EXW (Ex Works): Buyer assumes all transport costs and export clearance from the factory. Suitable only for buyers with established freight forwarders in China.
• FOB (Free On Board): Seller delivers goods cleared for export onto the vessel at a named port (e.g., FOB Shanghai/Ningbo). Risk transfers when goods cross the ship’s rail; buyer pays ocean freight and insurance. Standard for 20GP/40HQ container loads of inverters.
• CIF (Cost, Insurance, and Freight): Seller contracts for carriage and insurance to the destination port, but risk still transfers at origin port loading. Critical for agricultural projects in Africa/South America where buyers lack marine insurance leverage.
• DDP (Delivered Duty Paid): Seller bears all costs and risks including import duties and VAT. Preferred for turnkey EPC contracts but requires the manufacturer to hold import licenses in the destination country.

Payment and Warranty Structures

• Payment Terms: T/T (Telegraphic Transfer) with 30% deposit and 70% against Bill of Lading (B/L) copy is standard; L/C (Letter of Credit) at sight recommended for initial transactions exceeding $50,000 to mitigate documentary risk.
• Warranty: 5-year standard coverage on power modules (IGBTs), with optional extension to 10 years for the MPPT and control boards. Ensure warranty includes replacement of fan assemblies and capacitors—common failure points in 24/7 pumping operations.
• Spare Parts MOQ: Negotiate a 1%–2% spare parts kit (IGBT modules, control boards, fans) shipped with the main cargo to minimize downtime in remote agricultural zones.

Engineering Note: When specifying hybrid inverters for solar pumping, verify that the DC voltage window of the MPPT aligns with the VFD DC bus requirements if the system uses a DC-coupled architecture, ensuring the solar array can directly supply the motor drive DC bus without intermediate battery conversion losses.

Future Trends in the Hybrid Solar Inverter Charger Sector

The convergence of power electronics and intelligent control systems is fundamentally reshaping how industrial and agricultural operations manage energy autonomy. As hybrid solar inverter chargers evolve from passive power conversion units to active grid-forming assets, several technical trajectories are emerging that directly impact motor control, pumping infrastructure, and automation architectures.

Convergence of Hybrid Inverters and Motor Control Systems

A significant trend gaining traction among EPC contractors and system integrators is the functional integration of Variable Frequency Drive (VFD) capabilities within hybrid inverter architectures. Traditional configurations required discrete components—solar charge controllers, battery inverters, and separate pump VFDs—for agricultural irrigation or industrial fluid handling applications. Next-generation hybrid units are incorporating direct AC motor control algorithms, enabling these systems to drive submersible pumps and surface motors directly from DC solar arrays or battery banks without intermediary conversion stages.

This convergence reduces balance-of-system costs and eliminates compatibility issues between standalone VFDs and inverter chargers. For agricultural project managers, this means hybrid systems can now execute MPPT (Maximum Power Point Tracking) optimization while simultaneously providing soft-start functionality and speed control for irrigation pumps. Manufacturers are increasingly offering firmware-configurable hybrid inverters that switch between static load support (grid-tied mode) and dynamic motor drive applications (off-grid pumping), providing operational flexibility for sites with seasonal water and energy demand variations.

Advanced Renewable Integration and Energy Storage Optimization

The sector is witnessing a decisive shift toward high-voltage DC architectures (1000V–1500V) in commercial and utility-scale hybrid systems, paralleling developments in central inverter technology. For industrial engineers, this transition reduces DC cabling losses and allows for longer string configurations, critical for large-scale agricultural operations where pump houses may be situated kilometers from solar arrays.

Simultaneously, battery chemistry agnosticism is becoming a standard requirement. Modern hybrid inverter chargers are being engineered with adaptive Battery Management System (BMS) communication protocols, supporting the transition from traditional lead-acid to lithium iron phosphate (LiFePO4) and emerging sodium-ion technologies. This flexibility allows EPC contractors to specify storage solutions based on project-specific cycle life requirements rather than inverter compatibility constraints. Additionally, bidirectional power flow capabilities are expanding beyond simple backup power to include grid ancillary services—frequency regulation and voltage support—positioning hybrid systems as revenue-generating assets for industrial microgrids rather than mere insurance policies against outages.

Industrial IoT and Predictive Maintenance Architectures

The integration of Industrial Internet of Things (IIoT) platforms is transforming hybrid inverter chargers into edge-computing nodes within broader automation ecosystems. Advanced units now embed Modbus TCP/IP, CAN bus, and MQTT protocols, enabling seamless integration with existing SCADA systems and cloud-based monitoring platforms. For automation distributors, this represents a shift from selling hardware components to providing comprehensive energy management solutions.

Predictive maintenance algorithms leveraging machine learning are being deployed to analyze harmonic signatures, thermal patterns, and switching frequencies in real-time. These systems can detect bearing wear in coupled pump motors or insulation degradation in underground cables before catastrophic failure occurs—a critical capability for remote agricultural installations where technician dispatch costs can exceed equipment replacement values. Furthermore, digital twin technology is emerging, allowing engineers to simulate hybrid inverter performance against specific load profiles (such as variable-speed pump curves) during the design phase, optimizing battery capacity sizing and reducing over-engineering.

Strategic Implications

For stakeholders across the value chain—from electrical engineers designing industrial microgrids to agricultural project managers deploying solar irrigation—the trajectory points toward intelligent, motor-control-capable hybrid systems that prioritize interoperability and data transparency. As these technologies mature, the distinction between energy storage inverters and motor drives will continue to blur, creating opportunities for vertically integrated solutions that reduce commissioning complexity while enhancing operational resilience in off-grid and weak-grid environments.

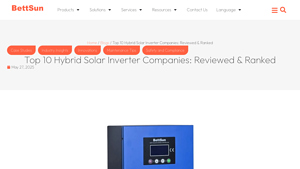

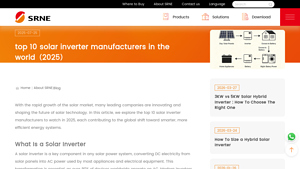

Top 2 Hybrid Solar Inverter Charger Manufacturers & Suppliers List

B2B Engineering FAQs About Hybrid Solar Inverter Charger

1. How does a hybrid solar inverter charger integrate with existing VFD-driven motor systems without causing control conflicts?
   In agricultural and industrial automation environments, the hybrid inverter charger must synchronize its AC output with the VFD’s input requirements. For DC-coupled architectures, the inverter’s battery discharge curve must maintain voltage stability within the VFD’s input tolerance (typically ±10%) to prevent undervoltage faults during motor starting. When retrofitting existing solar pump systems, engineers should verify that the hybrid inverter’s output frequency stability (±0.5% or better) matches the VFD’s grid-following parameters. Boray Inverter recommends implementing a master-slave control hierarchy where the hybrid inverter manages energy flow while the VFD handles motor torque control, ensuring seamless transition between grid-tie, off-grid, and backup power modes without disrupting pump operation or triggering fault codes.

2. What MPPT voltage window and tracking algorithms are optimal for variable-speed solar pumping applications?
   For submersible pump systems with VFD control, specify hybrid inverters with wide MPPT voltage ranges (e.g., 200V–850VDC for 48V battery systems) to accommodate both low-light morning starts and high-irradiance midday operation. The MPPT algorithm must feature fast tracking speeds (<10 seconds) to respond to sudden irradiance changes caused by cloud transients, which are common in agricultural settings. Critical for pump applications: the inverter should support “PV priority” mode, directing solar generation first to the motor load via the VFD, then to battery charging, minimizing double-conversion losses. Ensure the MPPT controller can handle the non-linear power curve of centrifugal pumps, where flow rates vary with the square of speed and power with the cube.

3. Can hybrid inverter chargers support high inrush currents from direct-online (DOL) motor starting, and how does this coordinate with soft-start VFDs?
   Standard hybrid inverters rated for continuous duty (e.g., 6kW–12kW) typically offer surge capacities of 1.5x–2x rated power for 10 seconds. However, large agricultural motors (10HP–50HP) can draw 6–8x FLA (Full Load Amps) during locked-rotor conditions. When integrating with VFDs, configure the hybrid inverter to operate in “bypass mode” during motor starting, allowing the VFD to manage the soft-start ramp (0–60Hz over 5–10 seconds), thereby reducing the inrush current seen by the inverter to 1.2x–1.5x running current. For systems without VFDs (direct pump coupling), specify inverters with high overload capability (300% for 20 seconds) or implement a staged start sequence using contactors to prevent DC bus voltage collapse.

4. Which battery management system (BMS) communication protocols ensure safe integration of lithium iron phosphate (LiFePO4) banks in industrial hybrid systems?
   For industrial-grade reliability, specify hybrid inverters supporting CAN Bus 2.0B (250kbps or 500kbps) and RS485 Modbus RTU protocols to communicate with external BMS units. This enables real-time monitoring of cell-level voltages, temperatures, and State of Charge (SOC), critical for preventing thermal runaway in high-temperature agricultural environments. Ensure the inverter supports closed-loop communication where charging parameters (CV/CC curves, float voltage 54.4V–58.4V for 48V LiFePO4) are automatically adjusted by the BMS. Compatibility with mainstream battery manufacturers (EG4, Simpliphi, BYD) requires adherence to Pylontech or Sungrow communication protocols, enabling plug-and-play integration without manual parameter configuration.

5. How do hybrid inverters maintain power quality (THD and power factor) when operating off-grid with inductive motor loads?
   When disconnected from the grid, the inverter must provide a pure sine wave output with THD (Total Harmonic Distortion) <3% to prevent VFD malfunction and motor overheating. For inductive loads typical in pumping applications (power factor 0.75–0.85 lagging), select inverters with active power factor correction (PFC) and reactive power compensation capabilities (±0.8 leading to ±0.8 lagging). Advanced models feature “smart load” detection that automatically adjusts output voltage regulation (±2%) to compensate for voltage drop across long cable runs to remote pump houses. This ensures the VFD receives stable input voltage, preventing nuisance tripping due to undervoltage or phase imbalance conditions.

6. What derating factors apply to hybrid inverter chargers deployed in high-temperature agricultural environments with limited ventilation?
   Semiconductor-based inverters typically derate 2%–3% per °C above 40°C ambient temperature. For agricultural installations in tropical or desert climates, specify inverters with IP65 enclosures and active cooling (thermostatically controlled fans) rather than passive convection. Critical specification: ensure the inverter maintains 100% rated output at 45°C and 80% at 50°C. When installed in pump houses or NEMA 3R enclosures, calculate the internal air temperature rise (typically 10°C–15°C above ambient) and size the inverter at 1.25x–1.4x the calculated continuous load. Boray Inverter’s thermal management designs utilize variable-speed fans and heatsink optimization to minimize derating in dusty agricultural environments.

7. How can hybrid solar inverter chargers be integrated into existing SCADA systems for centralized pumping station management?
   Modern hybrid inverters offer multiple communication gateways: RS485 Modbus RTU for local PLC integration, Ethernet TCP/IP for LAN connectivity, and 4G/WiFi modules for cloud-based monitoring. For agricultural automation, configure the inverter as a Modbus slave device (address 1–247) to transmit real-time data points: PV power (W), battery SOC (%), grid import/export (W), and fault registers. Integration with SCADA platforms (Wonderware, Ignition, or custom agricultural management software) requires mapping holding registers for AC voltage (40001–40002), DC bus voltage (40003), and alarm status (40100). Advanced systems support MQTT protocol for IoT integration, enabling predictive maintenance alerts when inverter efficiency drops below 95% or when ground fault currents are detected in the PV array.

8. When retrofitting existing solar pump installations, should engineers choose DC-coupled or AC-coupled hybrid inverter architectures?
   For existing solar pump systems with dedicated PV pump inverters (VFDs), AC-coupling is typically preferred: the new hybrid inverter connects to the AC bus downstream of the existing pump inverter, allowing the original system to operate unchanged while the hybrid unit manages battery storage and grid interaction. This eliminates the need to reconfigure high-voltage DC wiring and maintains the pump inverter’s optimized MPPT settings. However, for new installations or complete replacements, DC-coupling offers superior efficiency (95%–98% vs. 90%–93% for AC-coupled) by charging batteries directly from the PV array without AC conversion losses. DC-coupling also enables “direct solar pumping” during daylight hours, bypassing the battery entirely and extending battery cycle life by 30%–40% in irrigation applications with high daytime pumping loads.

Disclaimer

Conclusion: Partnering with Boray Inverter for Hybrid Solar Inverter Charger

As the renewable energy landscape evolves toward greater grid independence and operational efficiency, the hybrid solar inverter charger stands as a critical nexus between photovoltaic generation, energy storage, and intelligent load management. For industrial engineers, EPC contractors, and agricultural project managers, selecting equipment that delivers seamless AC/DC conversion, robust battery charging protocols, and adaptive motor control is not merely a procurement decision—it is a long-term operational investment. The convergence of solar pumping systems with variable frequency drive (VFD) technology demands hardware that can withstand harsh environmental conditions while maintaining precise vector control for both permanent magnet synchronous motors (PMSM) and induction motors (IM).

This is where strategic manufacturing partnerships become paramount. Shenzhen Boray Technology Co., Ltd. (borayinverter.com) emerges as the definitive solution provider in this specialized domain. As an innovative Chinese manufacturer dedicated to Solar Pumping & Motor Control Solutions, Boray Inverter distinguishes itself through an engineering-first philosophy: 50% of its workforce comprises R&D specialists who have mastered advanced PMSM and IM vector control algorithms, ensuring optimal torque response and energy efficiency across variable load conditions.

Boray’s commitment to quality assurance is embedded in its manufacturing infrastructure. With two modern production lines and rigorous 100% full-load testing protocols, every unit undergoes comprehensive validation before deployment. This meticulous approach has established Boray’s trusted presence across global agricultural irrigation networks and industrial automation projects, where reliability directly correlates with productivity.

For distributors seeking competitive wholesale partnerships and engineers requiring customized VFD configurations, Boray Inverter offers tailored solutions that bridge the gap between solar generation and precision motor control. Contact their technical team today to discuss project-specific requirements and obtain wholesale quotations for your next hybrid solar inverter charger deployment.
